1FEATURES OF YOUR HYUNDAI
60CIGARETTE LIGHTER
B420A01A-AAT
For the cigarette lighter to work, the key must
be in the "ACC" position or the "ON" position.
To use the cigarette lighter, push it all the way
into its socket. When the element has heated,
the lighter will pop out to the "ready" position.
Do not hold the cigarette lighter pressed in. This
can damage the heating element and create a
fire hazard.
If it is necessary to replace the cigarette lighter,
use only a genuine Hyundai replacement or its
approved equivalent.
HXDFL420
!
B500D07O-GAT
(If Installed)
These supply 12V electric power to operate
electric accessories or equipment only when
the key is in the "ON" or "ACC" position.
CAUTION:Do not use the power outlet to connect
electric accessories or equipment other
than those designed to operate on 12 volts.
HXDFL421
POWER OUTLET
B430A01E-AAT
FRONT ASHTRAY
The front ashtray may be opened by pushing
and releasing the ashtray lid. To remove the
ashtray to empty or clean it, lift the ashtray
upward and pull it out. The ashtray light will only
illuminate when the external lights are on (If
installed).
ASHTRAY
HXDFL440

1FEATURES OF YOUR HYUNDAI
61DRINK HOLDER
!
B450A01E-AATFRONT DRINK HOLDER
The drink holder is located in the right side of
parking brake for holding cups or cans.
WARNING:Do not place objects other than cups or
cans in the drink holder. Such objects can
be thrown out in the event of a sudden stop
or an accident, possibly injuring the pas-
sengers in the vehicle.
HXDOM120
B440A01E-AAT
REAR ASHTRAY
The rear ashtray may be opened by pulling the
lid out by its top edge. To remove the ashtray to
empty or clean it, press down on the spring-
loaded tab inside the ashtray and lift the ashtray
upward and pull it all the way out.
B530A01A-AAT
Always engage the parking brake before leav-
ing the car. This also turns on the parking brake
indicator light when the key is in the "ON" or
"START" position. Before driving away, be sure
that the parking brake is fully released and the
indicator light is off.
o To engage the parking brake, pull the lever
up as far as possible.
o To release the parking brake, pull up the
lever and press the thumb button. Then,
while holding the button in, lower the brake
lever.
PARKING BRAKE
B430A01EB530A01E

1FEATURES OF YOUR HYUNDAI
62

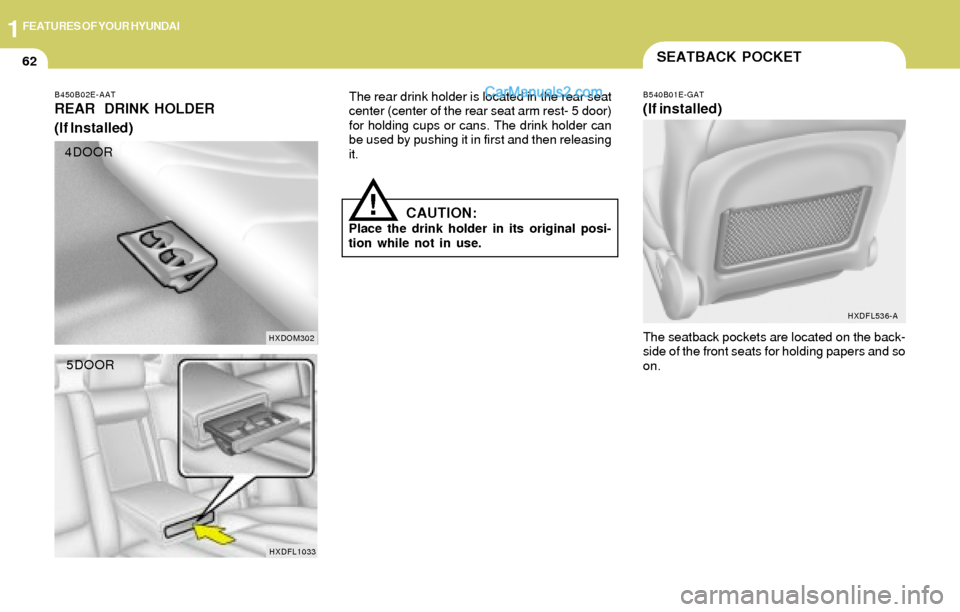

B450B02E-AAT
REAR DRINK HOLDER
(If Installed)The rear drink holder is located in the rear seat
center (center of the rear seat arm rest- 5 door)
for holding cups or cans. The drink holder can
be used by pushing it in first and then releasing
it.
CAUTION:Place the drink holder in its original posi-
tion while not in use.
!
HXDOM302
HXDFL1033
4DOOR
5DOOR
B540B01E-GAT
(If installed)
The seatback pockets are located on the back-
side of the front seats for holding papers and so
on.
SEATBACK POCKET
HXDFL536-A

1FEATURES OF YOUR HYUNDAI
63
!
!
WARNING:o Do not close a sunroof if anyone's hands,
arms or body are between the sliding
glass and the sunroof sash, as this could
result in an injury.
o Do not place your head or arms out of the
sunroof opening at any time.
CAUTION:o Do not open the sunroof in severely cold
temperature or when it is covered with
ice or snow.
o Periodically remove any dirt that may
have accumulated on the guide rails.
SUNROOF
B470A01S-AAT
SUNSHADE
B460A01S-AATSUNROOF (If Installed)
The sunroof can be operated with the ignition
key in the "ON" position. The sunshade can be opened and closed by
sliding it forward or rearward when the sunroof
is closed. The sunshade will open automatically
when the sunroof is opened, but it must be
closed manually.
B460B02E-AATOPERATING THE SUNROOF SYSTEM
Opening or Closing the Sunroof
B460B02E-A
The sunroof can be electrically opened or closed
with the ignition key in the "ON" position. The
sunroof is moved to its fully open position by
pushing the "Open" switch, and to stop at the
desired position, push in any switches (Open,
Close, Up, Down). To close, press and hold the
"CLOSE" button.
Release the button when the sunroof reaches
the desired position.
B470A01E

1FEATURES OF YOUR HYUNDAI
64

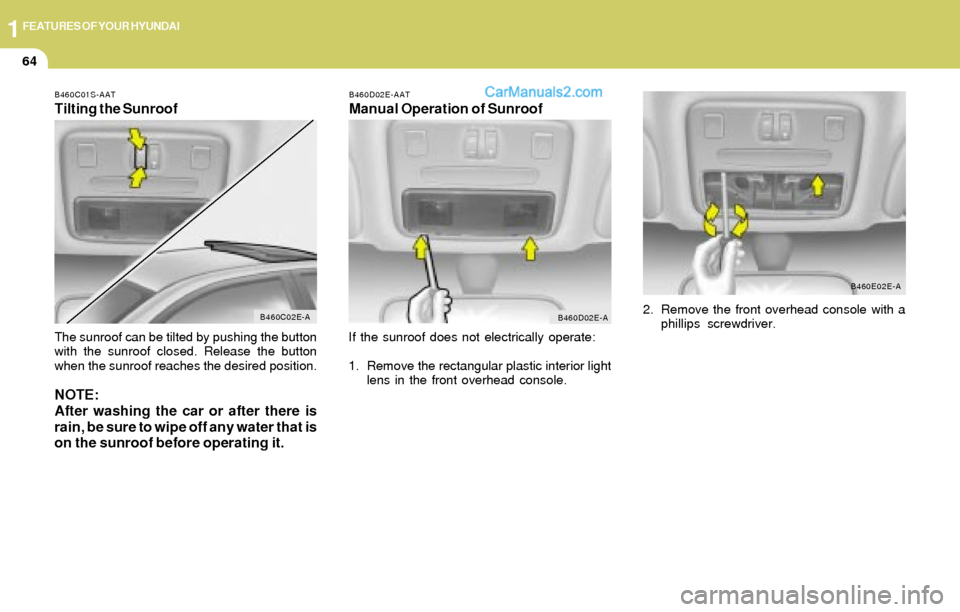

B460C01S-AAT
Tilting the Sunroof
B460D02E-AAT
Manual Operation of Sunroof
The sunroof can be tilted by pushing the button
with the sunroof closed. Release the button
when the sunroof reaches the desired position.
NOTE:
After washing the car or after there is
rain, be sure to wipe off any water that is
on the sunroof before operating it.
If the sunroof does not electrically operate:
1. Remove the rectangular plastic interior light
lens in the front overhead console.
B460C02E-A
B460D02E-A2. Remove the front overhead console with a
phillips screwdriver.
B460E02E-A

1FEATURES OF YOUR HYUNDAI
65
B490A01E-AAT
Interior light
The interior courtesy light has switch of three
positions. The three positions are:
oDRIn the "DR" position, the interior courtesy light
comes on when any door is opened regardless
of the ignition key position. The light goes out
when the door is closed.
oON
In the "ON" position, the light stays on at all
times.
o OFFIn the "OFF" position, the light stays off at all
times even though a door is open.
B490B01E
INTERIOR LIGHT
B480A01E-AAT
FRONT INTERIOR LIGHT
Map Light
The two map light buttons are located on both
sides of the front overhead console. Push in the
map light button to turn the light on or off. This
light produces a spot beam for convenient use
as a map light at night or as a personal light for
the driver and the passenger.
B460F02E-A
B480A02E-A
Without Sunroof With Sunroof
3. Insert the hexagonal head wrench provided
with the vehicle into the socket. This wrench
can be found in the vehicle's trunk or glove
box.
4. Turn the wrench clockwise to open or coun-
terclockwise to close.

1FEATURES OF YOUR HYUNDAI
66GLOVE BOXSPECTACLE CASE
!
B491A02F-GAT
(If Installed)
B500A01S-AAT
The spectacle case is located on the front
overhead console.
Push the end of cover to open the spectacle
case.
WARNING:Do not open the spectacle case while the
vehicle is moving. The rear view mirror of
the vehicle can be blocked.o To open the glove box, pull on the glove box
release lever.
o The glove box door can be locked (and
unlocked) with the key (If installed).
!WARNING:To avoid the possibility of injury in case of
an accident or a sudden stop, the glove box
door should be kept closed when the car is
in motion.
HXDOM241B500A01E
MULTI BOX
B500B02E-GAT
The multi box may be opened by pulling it out by
its grip.
It is used for storing small articles.
If the muti box is removed, the fuse box for the
lights and other electrical accessories will be
exposed.
HXD301

1FEATURES OF YOUR HYUNDAI
67
The outside rearview mirrors can be adjusted
to your preferred rear vision, both directly be-
hind the vehicle, and to the rear of the left and
right sides.
The remote control outside rearview mirror
switch controls the adjustments for both right
and left outside mirrors.
To adjust the position of either mirror:1. Move the selecting switch to the right or left
to activate the adjustable mechanism for the
corresponding door mirror.
2. Now, adjust mirror angle by depressing the
appropriate perimeter switch as illustrated.
B510D01E
MIRROR
B510A01S-AAT
OUTSIDE REARVIEW MIRROR
Manual Type
The outside rearview mirror on the driver's side
is equipped with a remote control for your
convenience. It is operated by the control lever
in the bottom front corner of the window.
Before driving away, always check that your
mirrors are positioned so you can see behind
you, both to the left and right sides, as well as
directly behind your vehicle. When using the
mirror, always exercise caution when attempt-
ing to judge the distance of vehicles behind or
along side of you.
NOTE:If the mirror control is jammed with ice, do
not attempt to break it free using the control
handle or by manipulating the face of the
mirror. Use an approved spray de-icer (not
radiator antifreeze) to release the frozen
mechanism or move the vehicle to warm
place and allow the ice to melt.
B510B01Y-AAT
Electric Type (If Installed)
B510A01E
B510C01E

1FEATURES OF YOUR HYUNDAI
68
!
CAUTION:o Do not operate the switch continuously
for an unnecessary length of time.
o Scraping ice from the mirror face could
cause permanent damage. To remove
any ice, use a sponge, soft cloth or
approved de-icer.
!
WARNING:Be careful when judging the size or dis-
tance of any object seen in the passenger
side rear view mirror. It is a convex mirror
with a curved surface. Any objects seen in
this mirror are closer than they appear.
B510D01Y-AAT
OUTSIDE REARVIEW MIRROR HEATER
(If installed)
The outside rearview mirror heater is actuated
in connection with the rear window defroster. To
heat the outside rearview mirror glass, push
in the switch for the rear window defroster. The
rearview mirror glass will be heated for defrost-
ing or defogging and will give you improved rear
vision in inclement weather conditions. Push the
switch again to turn the heater off. The outside
rearview mirror heater automatically turns itself
off after 15 minutes.
B380A01GK
Manual
Automatic
!
B510C01A-AAT
FOLDING THE OUTSIDE REARVIEW
MIRRORS
To fold the outside rearview mirrors, push them
towards the rear.
The outside rearview mirrors can be folded
rearward for parking in narrow areas.
WARNING:Do not adjust or fold the outside rearview
mirrors while the vehicle is moving. This
could result in loss of control, and an acci-
dent which could cause death, serious in-
jury or property damage.
B510E01E

1FEATURES OF YOUR HYUNDAI
69
B520A01A-AAT
DAY/NIGHT INSIDE REARVIEW
MIRROR
Manual type
Your Hyundai is equipped with a day/night inside
rearview mirror. The "night" position is selected
by flipping the tab at the bottom of the mirror
toward you. In the "night" position, the glare of
headlights of cars behind you is reduced.
B580A01L-GAT
SUN VISOR
Your Hyundai is equipped with sun visors to give
the driver and front passenger either frontal or
sideward shade. To reduce glare or to shut out
direct rays of the sun, turn the sun visor down.
A vanity mirror is provided on the back of the sun
visor for the driver and front passenger.
NOTE:The Supplemental Restraint System (SRS)
label containing useful information can be
found on the back of each sun visor.
Vanity mirror
B580A01E
HXDFL2112
B520B01O-GAT
Electric type (If installed)
The electric type day/night inside rearview mir-
ror controls automatically the glare of headlights
of the car behind you. Adjust the rearview mirror
to the desired position.
HXDFL2113
