6DO-IT-YOURSELF MAINTENANCE
27

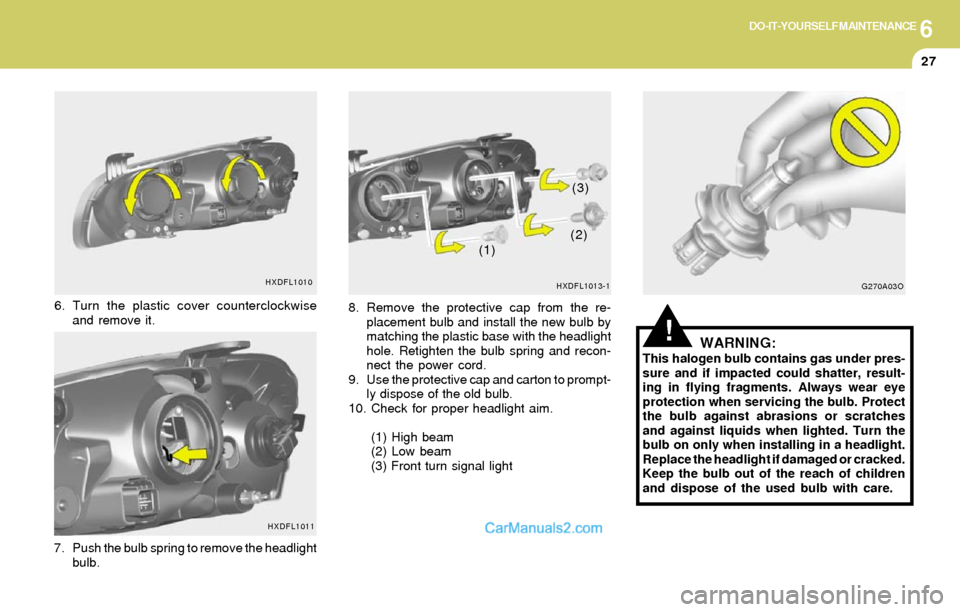

!WARNING:This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care. 8. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Retighten the bulb spring and recon-
nect the power cord.
9. Use the protective cap and carton to prompt-
ly dispose of the old bulb.
10. Check for proper headlight aim.
(1) High beam
(2) Low beam
(3) Front turn signal light
7. Push the bulb spring to remove the headlight
bulb. 6. Turn the plastic cover counterclockwise
and remove it.
HXDFL1011 HXDFL1010
HXDFL1013-1
(1)(2)(3)
G270A03O

6DO-IT-YOURSELF MAINTENANCE
28
G270D01E-AAT

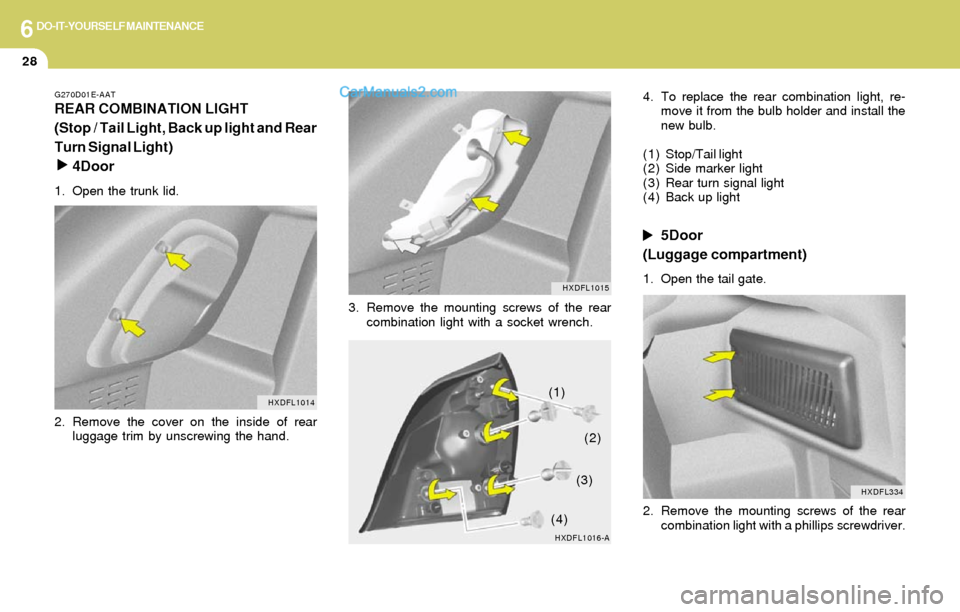

REAR COMBINATION LIGHT
(Stop / Tail Light, Back up light and Rear
Turn Signal Light)
4Door
1. Open the trunk lid.
2. Remove the cover on the inside of rear
luggage trim by unscrewing the hand.
HXDFL1014
3. Remove the mounting screws of the rear
combination light with a socket wrench.4. To replace the rear combination light, re-
move it from the bulb holder and install the
new bulb.
(1) Stop/Tail light
(2) Side marker light
(3) Rear turn signal light
(4) Back up light
5Door
(Luggage compartment)
1. Open the tail gate.
2. Remove the mounting screws of the rear
combination light with a phillips screwdriver.
HXDFL1016-AHXDFL1015
(1)
(2)
(3)
(4)
HXDFL334

6DO-IT-YOURSELF MAINTENANCE
29
HXDFL333 HXDFL342

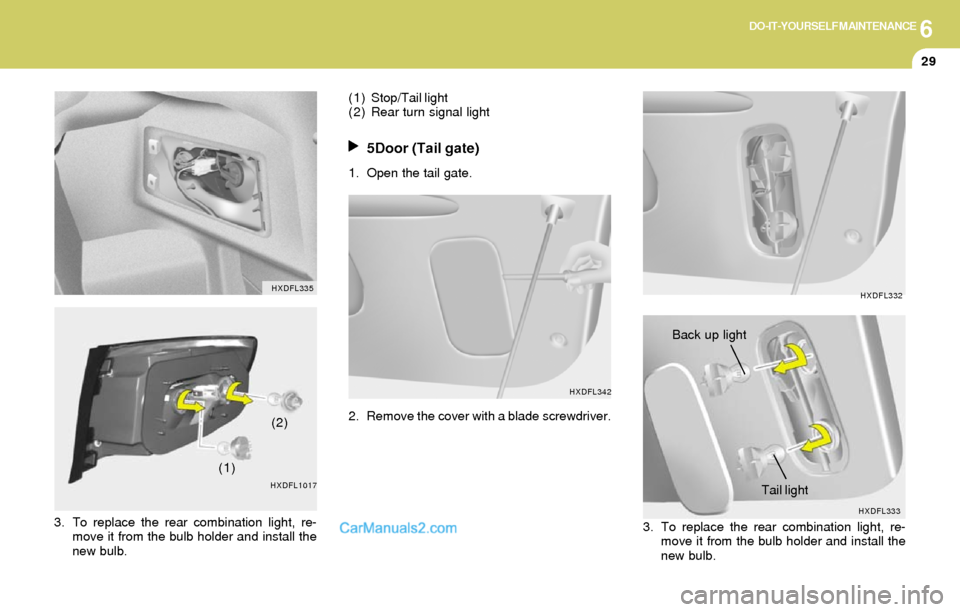

5Door (Tail gate)
1. Open the tail gate.
HXDFL332
2. Remove the cover with a blade screwdriver.Back up light
3. To replace the rear combination light, re-
move it from the bulb holder and install the
new bulb.
HXDFL1017
3. To replace the rear combination light, re-
move it from the bulb holder and install the
new bulb.(2)
HXDFL335
Tail light
(1)(1) Stop/Tail light
(2) Rear turn signal light

6DO-IT-YOURSELF MAINTENANCE
30
G270C01L-GAT

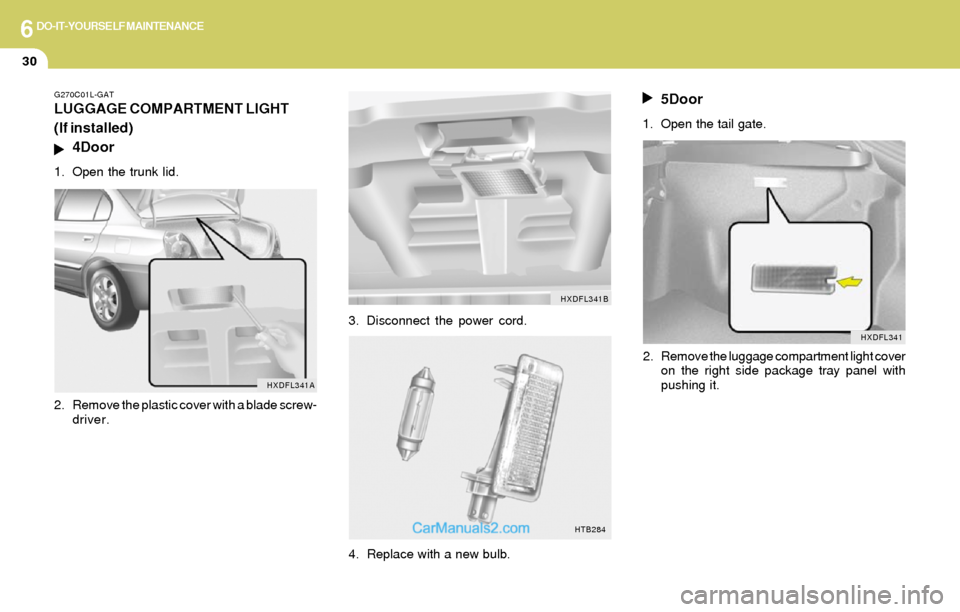

LUGGAGE COMPARTMENT LIGHT
(If installed)
4Door
1. Open the trunk lid.
2. Remove the plastic cover with a blade screw-
driver.
HXDFL341A
3. Disconnect the power cord.
HTB284
4. Replace with a new bulb.
5Door
1. Open the tail gate.
2. Remove the luggage compartment light cover
on the right side package tray panel with
pushing it.
HXDFL341B
HXDFL341

6DO-IT-YOURSELF MAINTENANCE
31
G270E01E-AAT

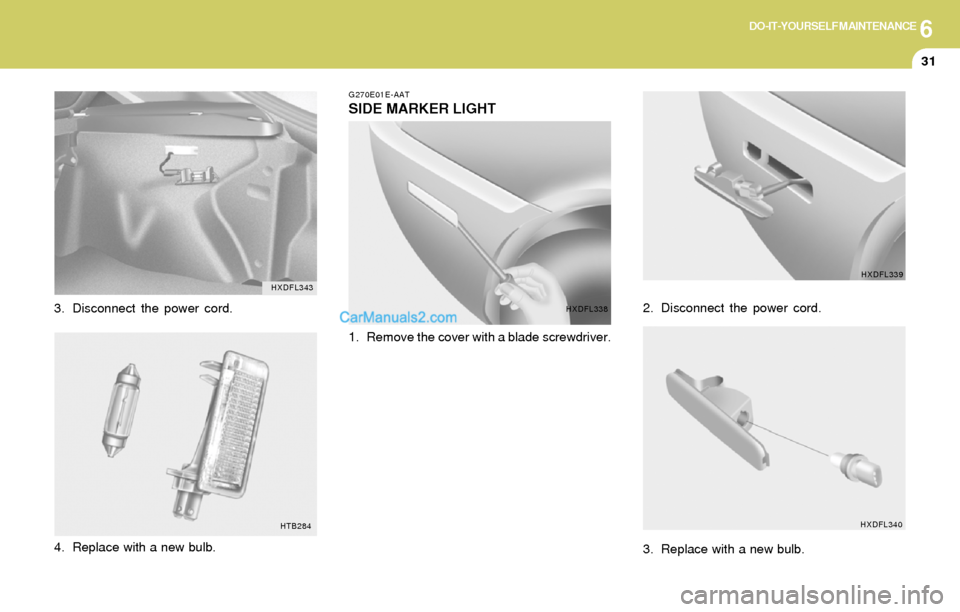

SIDE MARKER LIGHT
1. Remove the cover with a blade screwdriver.2. Disconnect the power cord.
3. Replace with a new bulb.
HTB284
3. Disconnect the power cord.
4. Replace with a new bulb.
HXDFL343
HXDFL338HXDFL339
HXDFL340

6DO-IT-YOURSELF MAINTENANCE
32
G270G01E-GAT

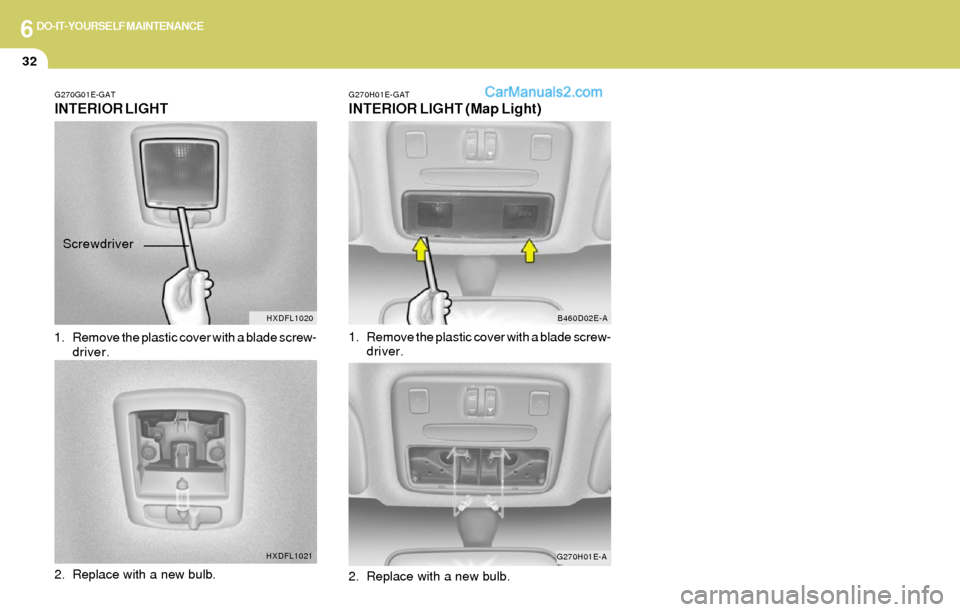

INTERIOR LIGHT
1. Remove the plastic cover with a blade screw-
driver.
2. Replace with a new bulb.
G270H01E-GAT
INTERIOR LIGHT (Map Light)
1. Remove the plastic cover with a blade screw-
driver.
2. Replace with a new bulb.
HXDFL1020
Screwdriver
HXDFL1021
B460D02E-A
G270H01E-A

6DO-IT-YOURSELF MAINTENANCE

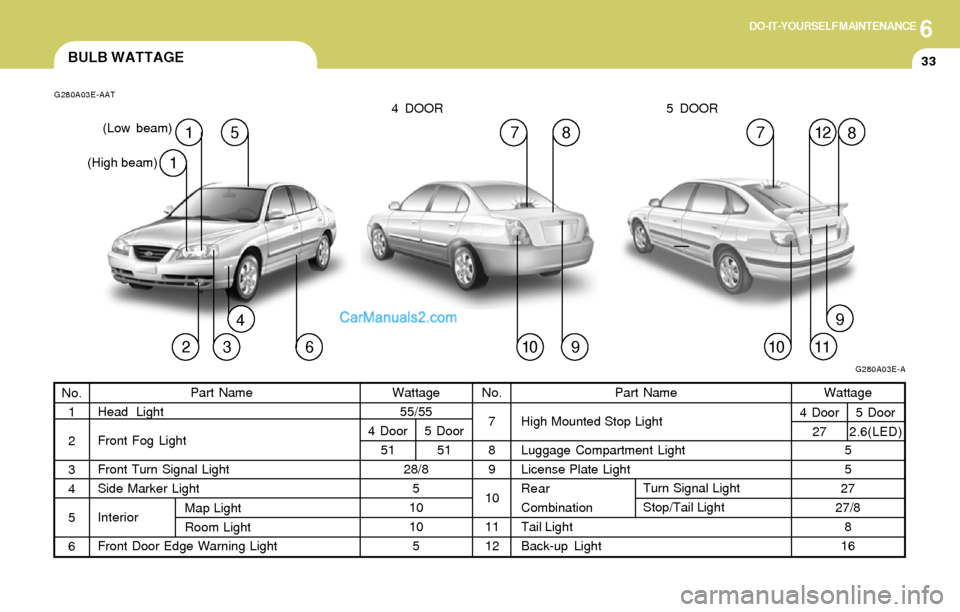

33BULB WATTAGE
G280A03E-AAT
23 678
G280A03E-A
(High beam)(Low beam)4 DOOR 5 DOOR
Wattage
55/55
28/8
5
10
10
5 4 Door
515 Door
51Part Name
High Mounted Stop Light
Luggage Compartment Light
License Plate Light
Rear
Combination
Tail Light
Back-up Light Part Name
Head Light
Front Fog Light
Front Turn Signal Light
Side Marker Light
Interior
Front Door Edge Warning Light
No.
1
2
3
4
5
6Wattage
5
5
27
27/8
8
16
Map Light
Room Light
No.
7
8
9
10
11
12
4 Door
275 Door
2.6(LED)
1
1512 7
4
9 10
9
10 11
8
Turn Signal Light
Stop/Tail Light

6DO-IT-YOURSELF MAINTENANCE
34FUSE PANEL DESCRIPTION
G280B01E-AAT

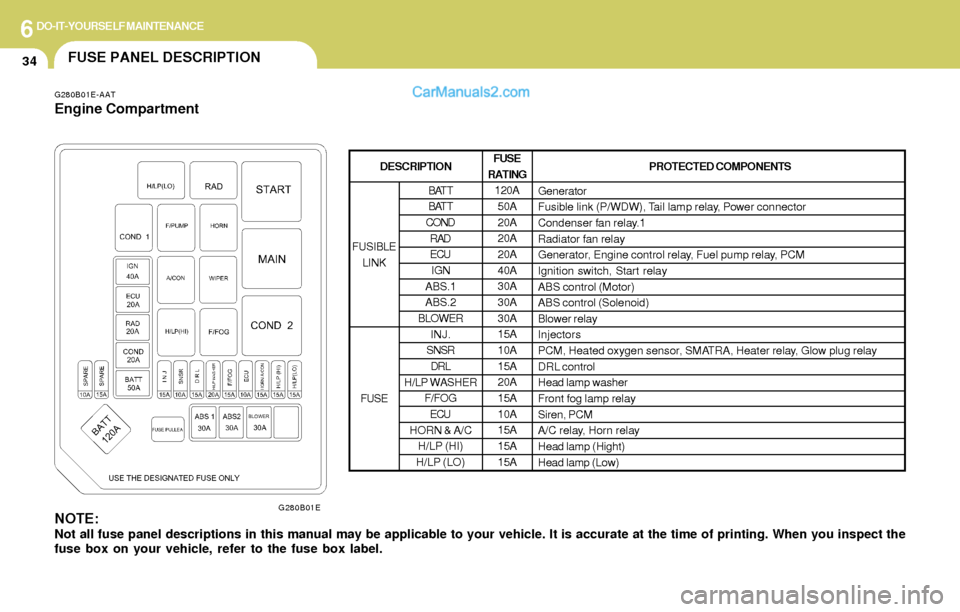

Engine Compartment
G280B01ENOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.
FUSE
RATING
120A
50A
20A
20A
20A
40A
30A
30A
30A
15A
10A
15A
20A
15A
10A
15A
15A
15APROTECTED COMPONENTS
Generator
Fusible link (P/WDW), Tail lamp relay, Power connector
Condenser fan relay.1
Radiator fan relay
Generator, Engine control relay, Fuel pump relay, PCM
Ignition switch, Start relay
ABS control (Motor)
ABS control (Solenoid)
Blower relay
Injectors
PCM, Heated oxygen sensor, SMATRA, Heater relay, Glow plug relay
DRL control
Head lamp washer
Front fog lamp relay
Siren, PCM
A/C relay, Horn relay
Head lamp (Hight)
Head lamp (Low)
BATT
BATT
COND
RAD
ECU
IGN
ABS.1
ABS.2
BLOWER
INJ.
SNSR
DRL
H/LP WASHER
F/FOG
ECU
HORN & A/C
H/LP (HI)
H/LP (LO) FUSIBLE
LINK
FUSE
DESCRIPTION

6DO-IT-YOURSELF MAINTENANCE
35
G280D01E-GAT

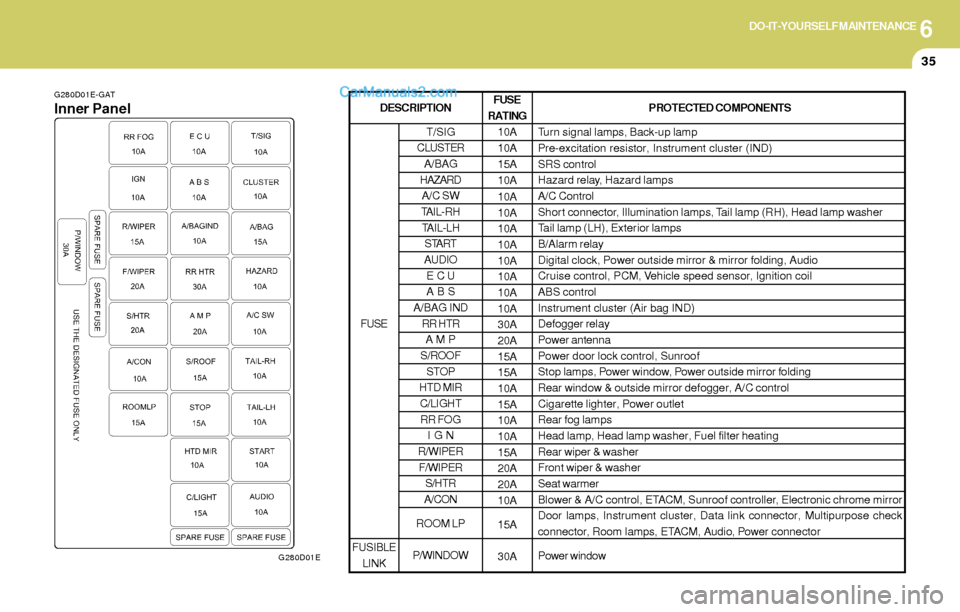

Inner Panel
G280D01E
FUSE
RATING
10A
10A
15A
10A
10A
10A
10A
10A
10A
10A
10A
10A
30A
20A
15A
15A
10A
15A
10A
10A
15A
20A
20A
10A
15A
30APROTECTED COMPONENTS
Turn signal lamps, Back-up lamp
Pre-excitation resistor, Instrument cluster (IND)
SRS control
Hazard relay, Hazard lamps
A/C Control
Shor t connector, Illumination lamps, Tail lamp (RH), Head lamp washer
Tail lamp (LH), Exterior lamps
B/Alarm relay
Digital clock, Power outside mirror & mirror folding, Audio
Cruise control, PCM, Vehicle speed sensor, Ignition coil
ABS control
Instrument cluster (Air bag IND)
Defogger relay
Power antenna
Power door lock control, Sunroof
Stop lamps, Power window, Power outside mirror folding
Rear window & outside mirror defogger, A/C control
Cigarette lighter, Power outlet
Rear fog lamps
Head lamp, Head lamp washer, Fuel filter heating
Rear wiper & washer
Front wiper & washer
Seat warmer
Blower & A/C control, ETACM, Sunroof controller, Electronic chrome mirror
Door lamps, Instrument cluster, Data link connector, Multipurpose check
connector, Room lamps, ETACM, Audio, Power connector
Power window
T/SIG
CLUSTER
A/BAG
HAZARD
A/C SW
TAIL-RH
TAIL-LH
START
AUDIO
E C U
A B S
A/BAG IND
RR HTR
A M P
S/ROOF
STOP
HTD MIR
C/LIGHT
RR FOG
I G N
R/WIPER
F/WIPER
S/HTR
A/CON
ROOM LP
P/WINDOW FUSE
FUSIBLE
LINK
DESCRIPTION
