Page 111 of 256

Hyundai Elantra 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
100
!
B750A04L B750A05L

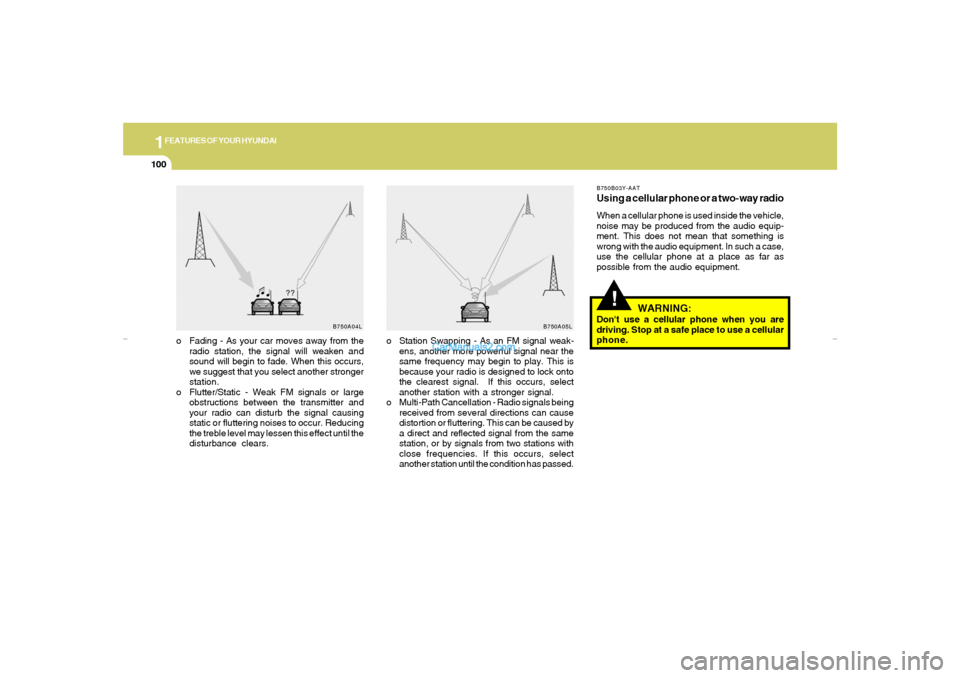

o Station Swapping - As an FM signal weak-
ens, another more powerful signal near the
same frequency may begin to play. This is
because your radio is

Page 112 of 256

Hyundai Elantra 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
101

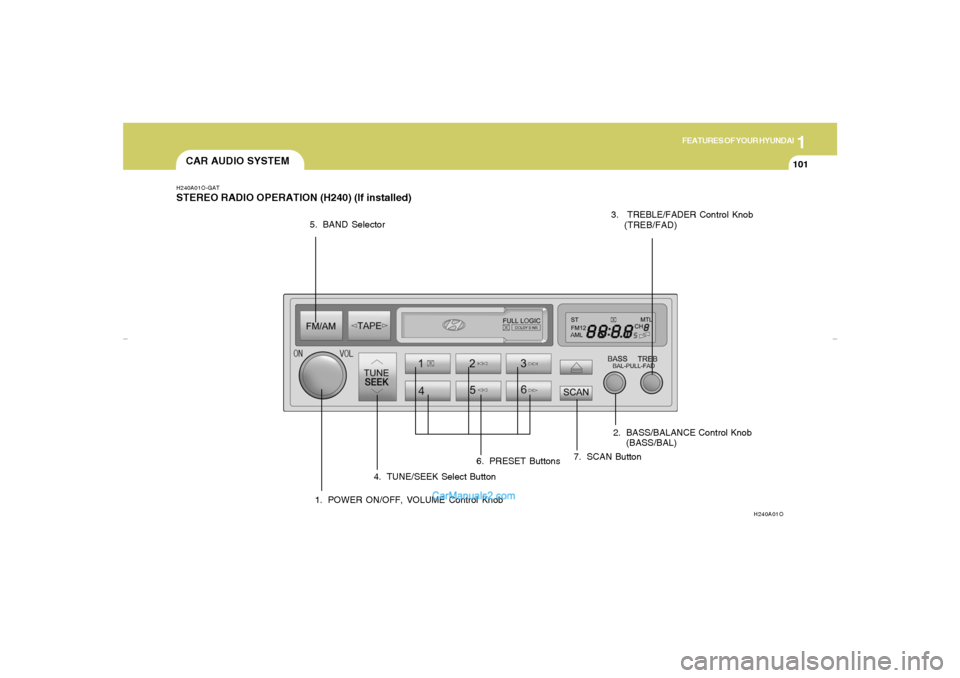

CAR AUDIO SYSTEMH240A01O-GATSTEREO RADIO OPERATION (H240) (If installed)
H240A01O
1. POWER ON/OFF, VOLUME Control Knob2. BASS/BALANCE Control Knob
(BASS/BAL) 3.  TREBLE/

Page 113 of 256

Hyundai Elantra 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
102
H240B04O-AAT1. POWER ON-OFF Control KnobThe radio unit may be operated when the ignition
key is in the "ACC" or "ON" position.  Press the
knob to switch the power on. The

Page 114 of 256

Hyundai Elantra 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
103

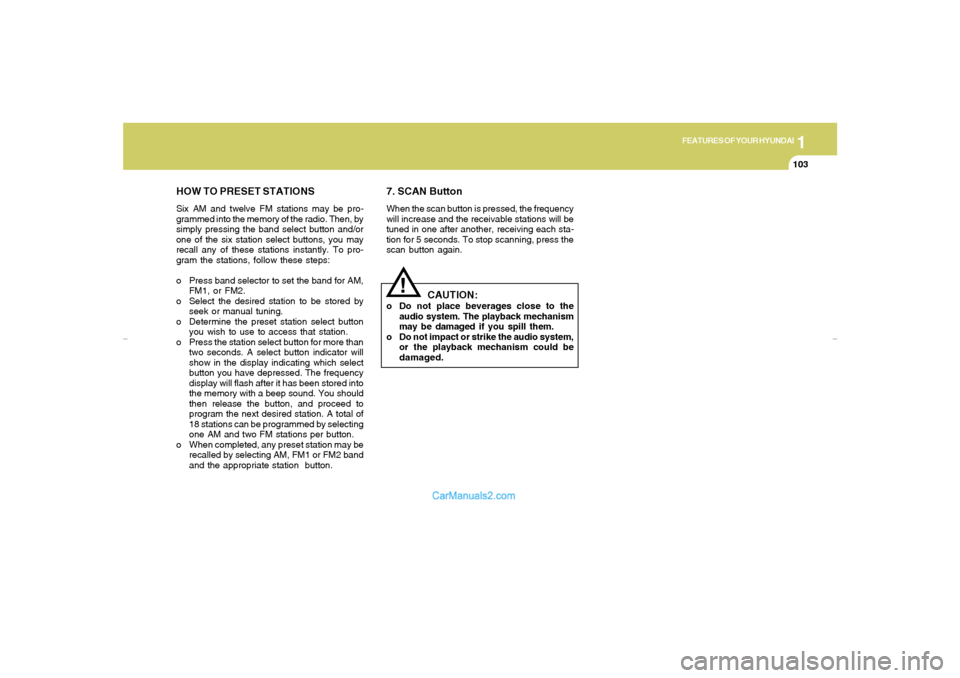

HOW TO PRESET STATIONSSix AM and twelve FM stations may be pro-
grammed into the memory of the radio. Then, by
simply pressing the band select button and/or
one of the s

Page 115 of 256

Hyundai Elantra 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
104

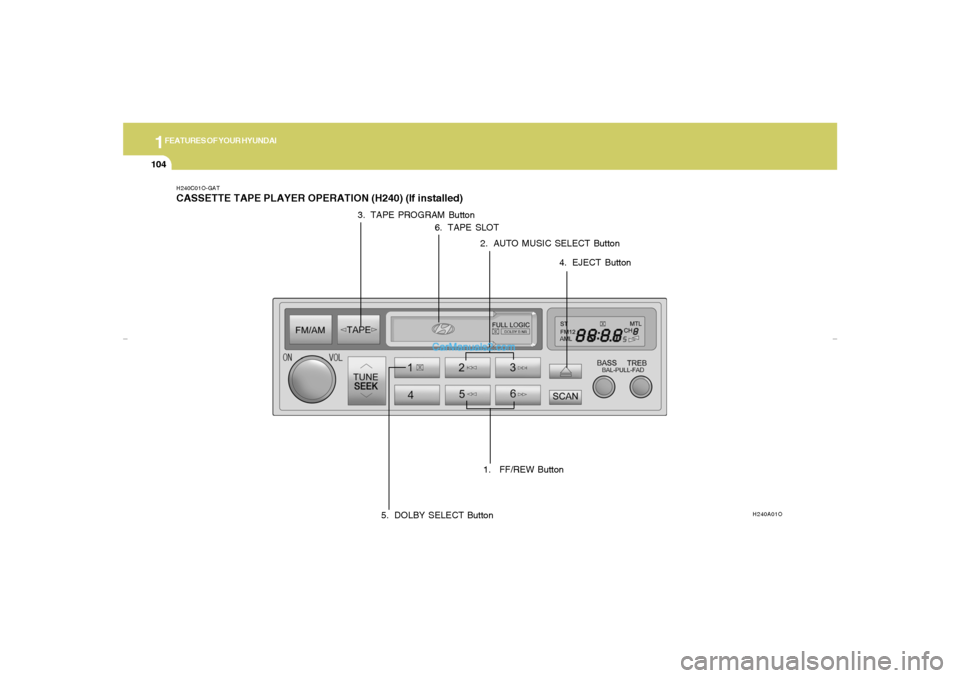

H240C01O-GATCASSETTE TAPE PLAYER OPERATION (H240) (If installed)
H240A01O
1.  FF/REW Button2. AUTO MUSIC SELECT Button 3. TAPE PROGRAM Button
4. EJECT Button
5. DOLBY SEL

Page 116 of 256

Hyundai Elantra 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
105

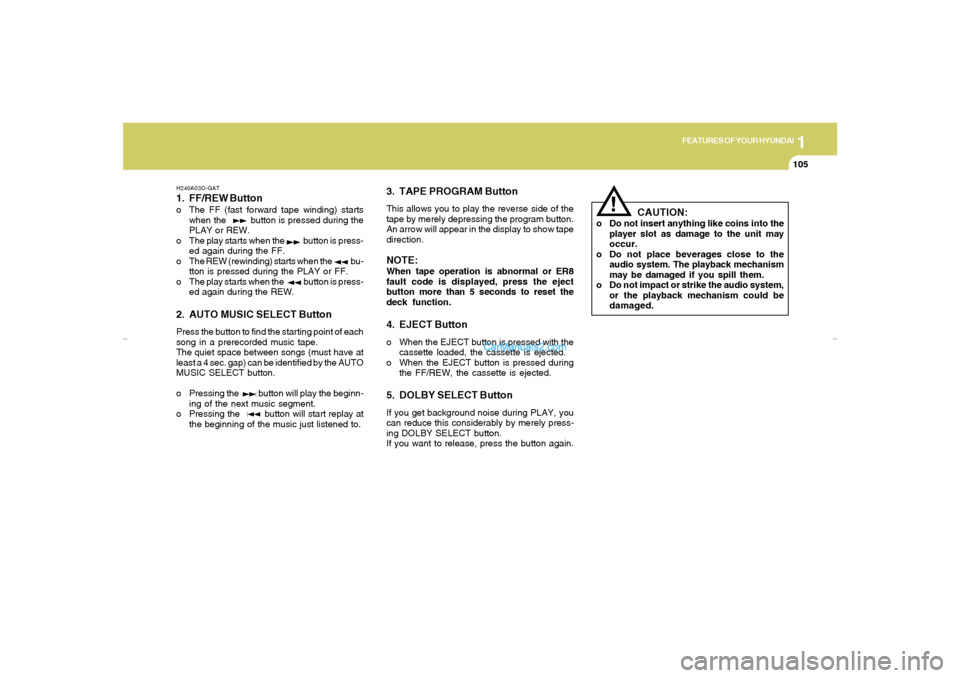

H240A03O-GAT1. FF/REW Buttono The FF (fast forward tape winding) starts
when the         button is pressed during the
PLAY or REW.
o The play starts when the           b

Page 117 of 256

Hyundai Elantra 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
106

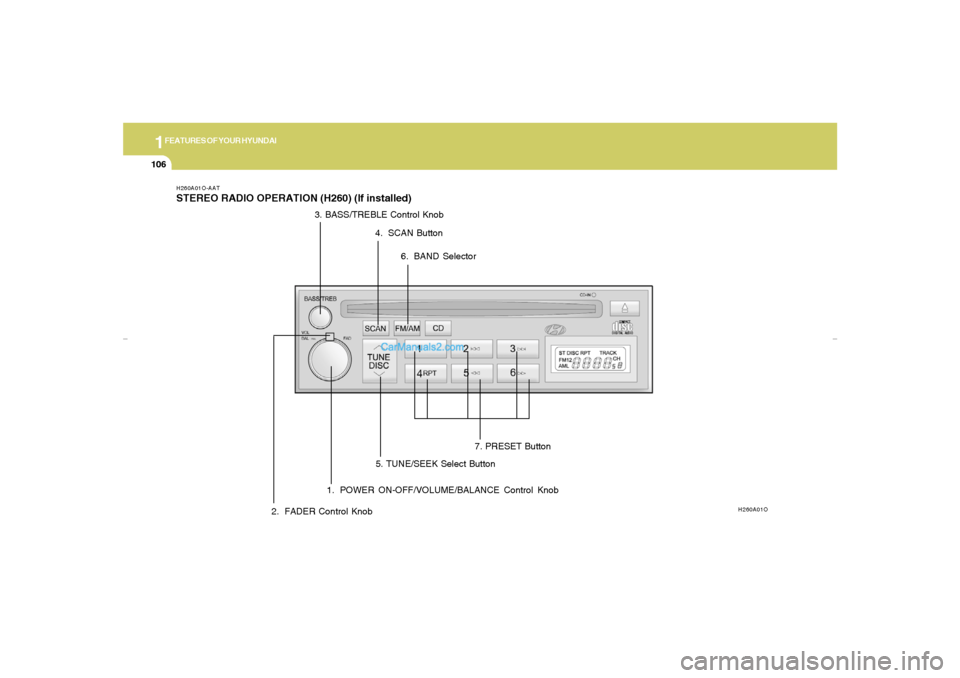

H260A01O-AATSTEREO RADIO OPERATION (H260) (If installed)
H260A01O
1. POWER ON-OFF/VOLUME/BALANCE Control Knob
2. FADER Control Knob3. BASS/TREBLE Control Knob
4. SCAN But

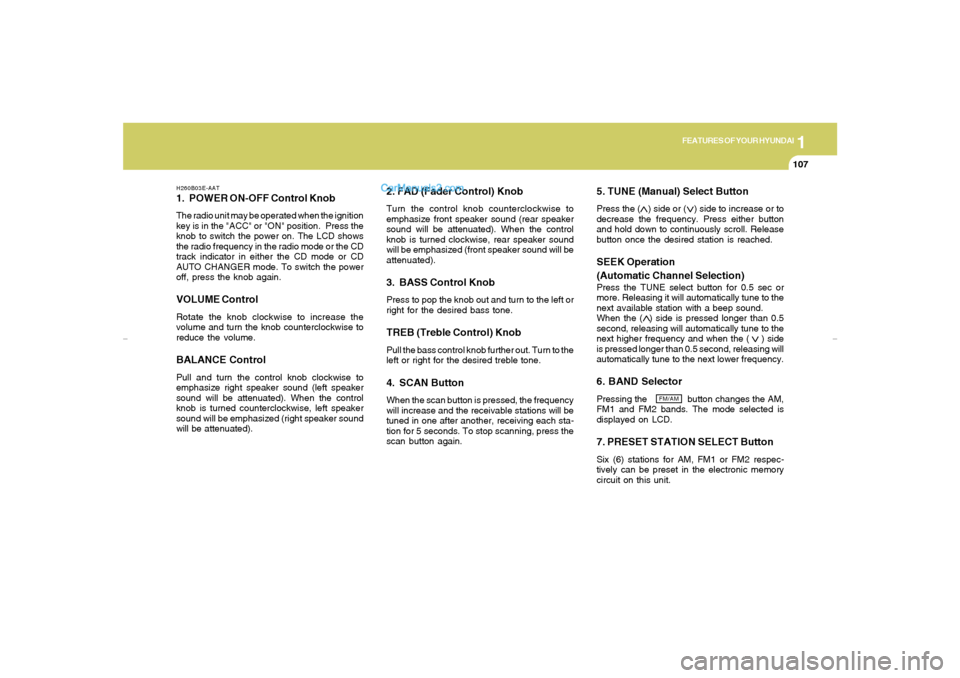

Page 118 of 256

Hyundai Elantra 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
107
H260B03E-AAT1. POWER ON-OFF Control KnobThe radio unit may be operated when the ignition
key is in the "ACC" or "ON" position.  Press the
knob to switch the power on. Th

Page 119 of 256

Hyundai Elantra 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
108

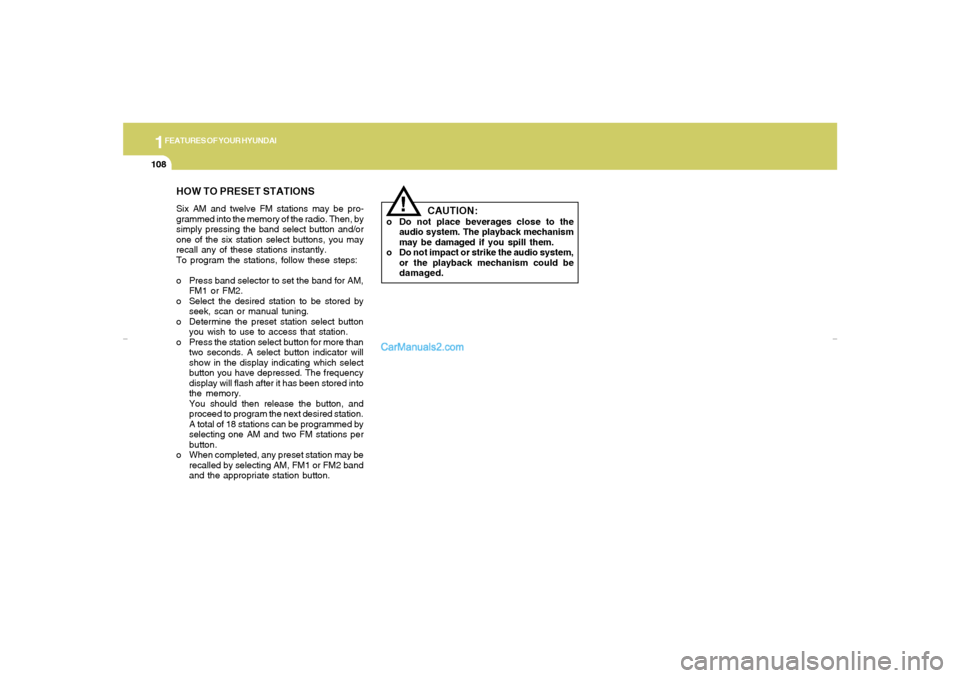

HOW TO PRESET STATIONSSix AM and twelve FM stations may be pro-
grammed into the memory of the radio. Then, by
simply pressing the band select button and/or
one of the si

Page 120 of 256

Hyundai Elantra 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
109

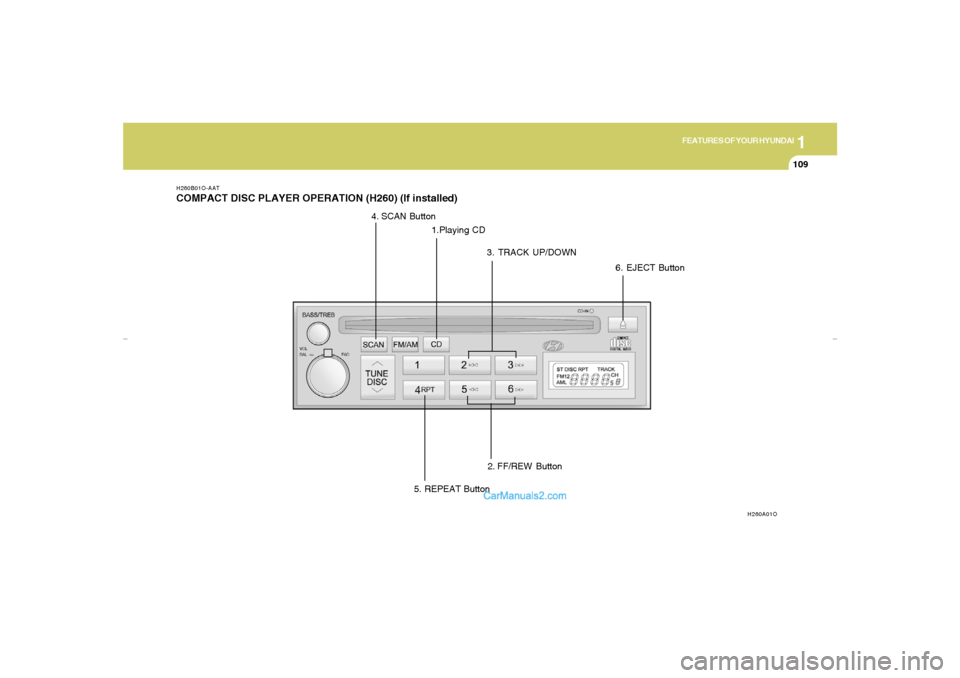

H260B01O-AATCOMPACT DISC PLAYER OPERATION (H260) (If installed)
H260A01O
1.Playing CD
2. FF/REW Button 3. TRACK UP/DOWN 4. SCAN Button
5. REPEAT Button6. EJECT Button
