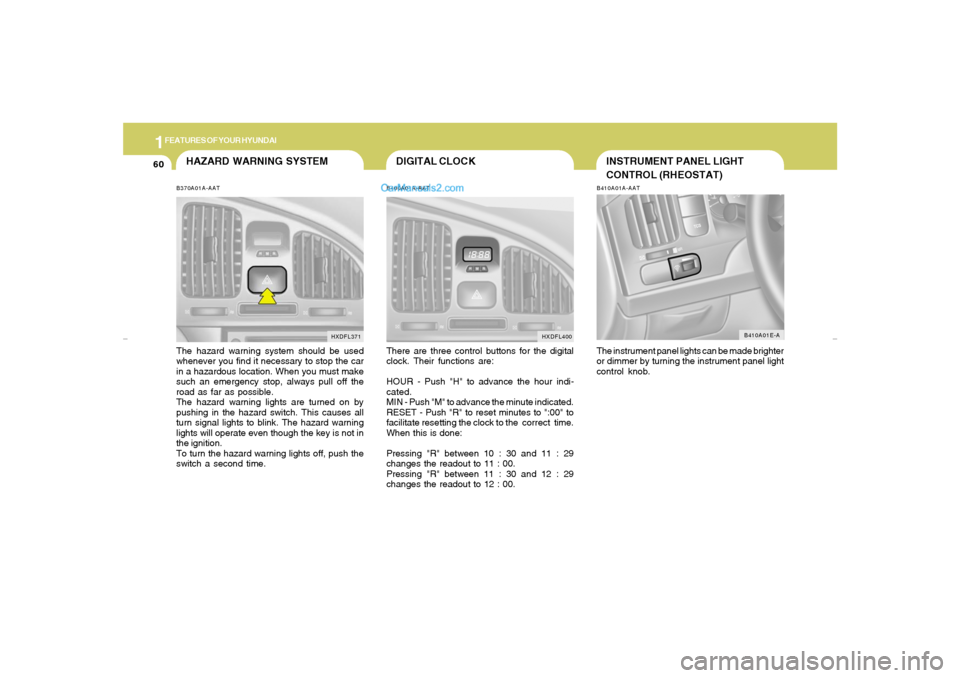

1FEATURES OF YOUR HYUNDAI60
B410A01A-AAT
B410A01E-AINSTRUMENT PANEL LIGHT
CONTROL (RHEOSTAT)The instrument panel lights can be made brighter
or dimmer by turning the instrument panel light
control knob.
DIGITAL CLOCKB400A01A-AATThere are three control buttons for the digital
clock. Their functions are:
HOUR - Push "H" to advance the hour indi-
cated.
MIN - Push "M" to advance the minute indicated.
RESET - Push "R" to reset minutes to ":00" to
facilitate resetting the clock to the correct time.
When this is done:
Pressing "R" between 10 : 30 and 11 : 29
changes the readout to 11 : 00.
Pressing "R" between 11 : 30 and 12 : 29
changes the readout to 12 : 00.
HXDFL400
HAZARD WARNING SYSTEMB370A01A-AATThe hazard warning system should be used
whenever you find it necessary to stop the car
in a hazardous location. When you must make
such an emergency stop, always pull off the
road as far as possible.
The hazard warning lights are turned on by
pushing in the hazard switch. This causes all
turn signal lights to blink. The hazard warning
lights will operate even though the key is not in
the ignition.
To turn the hazard warning lights off, push the
switch a second time.
HXDFL371
xdflhma-1a.p652/5/2008, 2:03 PM 60

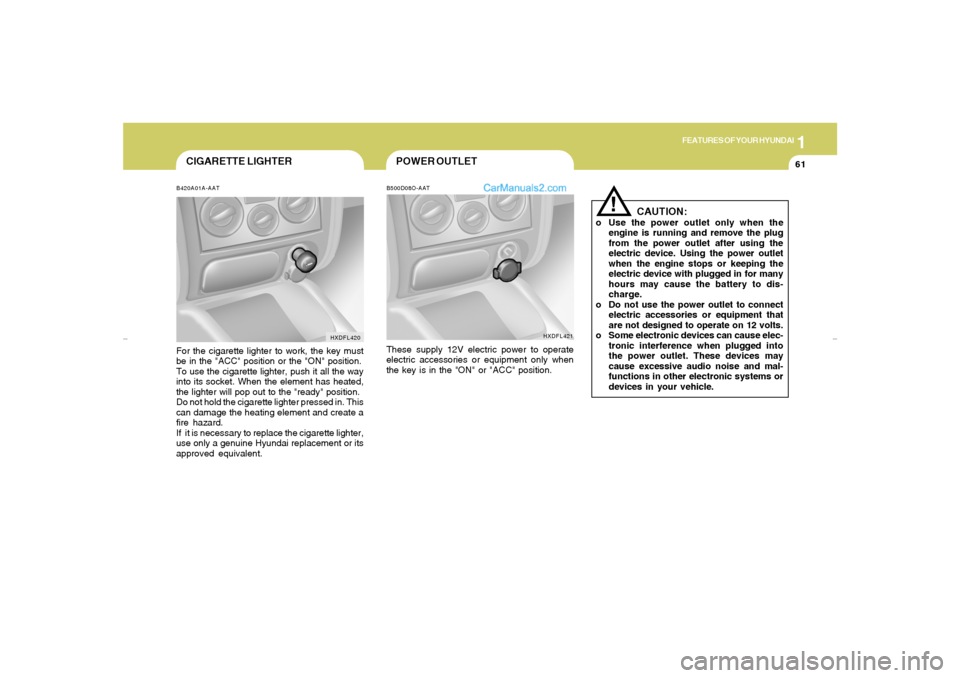

1
FEATURES OF YOUR HYUNDAI
61
CIGARETTE LIGHTERB420A01A-AATFor the cigarette lighter to work, the key must
be in the "ACC" position or the "ON" position.
To use the cigarette lighter, push it all the way
into its socket. When the element has heated,
the lighter will pop out to the "ready" position.
Do not hold the cigarette lighter pressed in. This
can damage the heating element and create a
fire hazard.
If it is necessary to replace the cigarette lighter,
use only a genuine Hyundai replacement or its
approved equivalent.
HXDFL420
!
B500D08O-AATThese supply 12V electric power to operate
electric accessories or equipment only when
the key is in the "ON" or "ACC" position.
CAUTION:
o Use the power outlet only when the
engine is running and remove the plug
from the power outlet after using the
electric device. Using the power outlet
when the engine stops or keeping the
electric device with plugged in for many
hours may cause the battery to dis-
charge.
o Do not use the power outlet to connect
electric accessories or equipment that
are not designed to operate on 12 volts.
o Some electronic devices can cause elec-
tronic interference when plugged into
the power outlet. These devices may
cause excessive audio noise and mal-
functions in other electronic systems or
devices in your vehicle.
HXDFL421
POWER OUTLET
xdflhma-1a.p652/5/2008, 2:03 PM 61

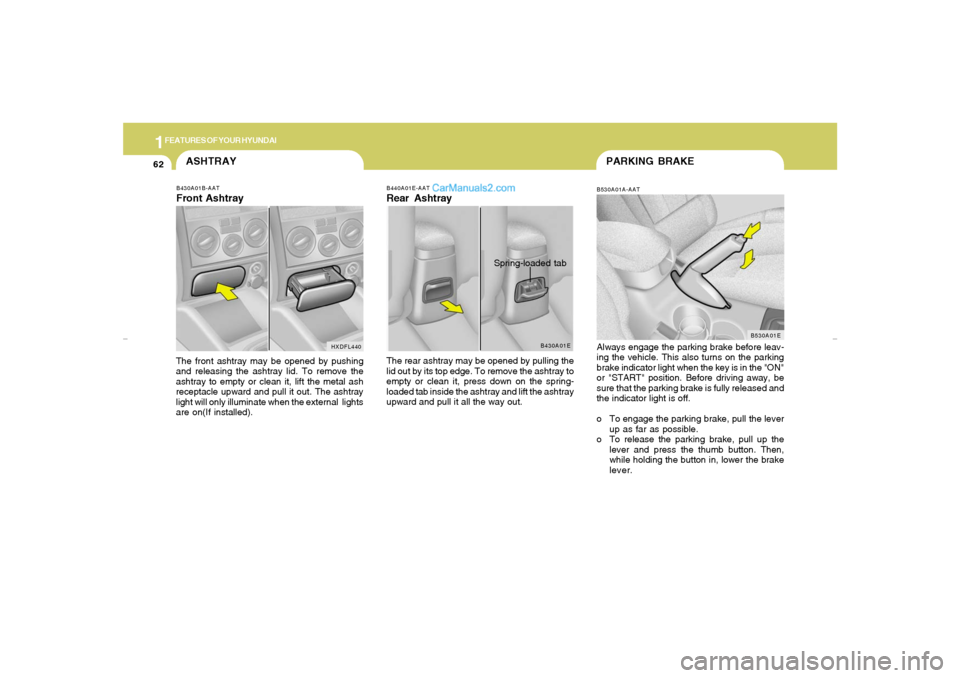

1FEATURES OF YOUR HYUNDAI62
B530A01A-AATAlways engage the parking brake before leav-
ing the vehicle. This also turns on the parking
brake indicator light when the key is in the "ON"
or "START" position. Before driving away, be
sure that the parking brake is fully released and
the indicator light is off.
o To engage the parking brake, pull the lever
up as far as possible.
o To release the parking brake, pull up the
lever and press the thumb button. Then,
while holding the button in, lower the brake
lever.PARKING BRAKE
B530A01E
B440A01E-AATRear AshtrayThe rear ashtray may be opened by pulling the
lid out by its top edge. To remove the ashtray to
empty or clean it, press down on the spring-
loaded tab inside the ashtray and lift the ashtray
upward and pull it all the way out.
B430A01E
Spring-loaded tab
B430A01B-AATFront AshtrayThe front ashtray may be opened by pushing
and releasing the ashtray lid. To remove the
ashtray to empty or clean it, lift the metal ash
receptacle upward and pull it out. The ashtray
light will only illuminate when the external lights
are on(If installed).ASHTRAY
HXDFL440
xdflhma-1a.p652/5/2008, 2:03 PM 62

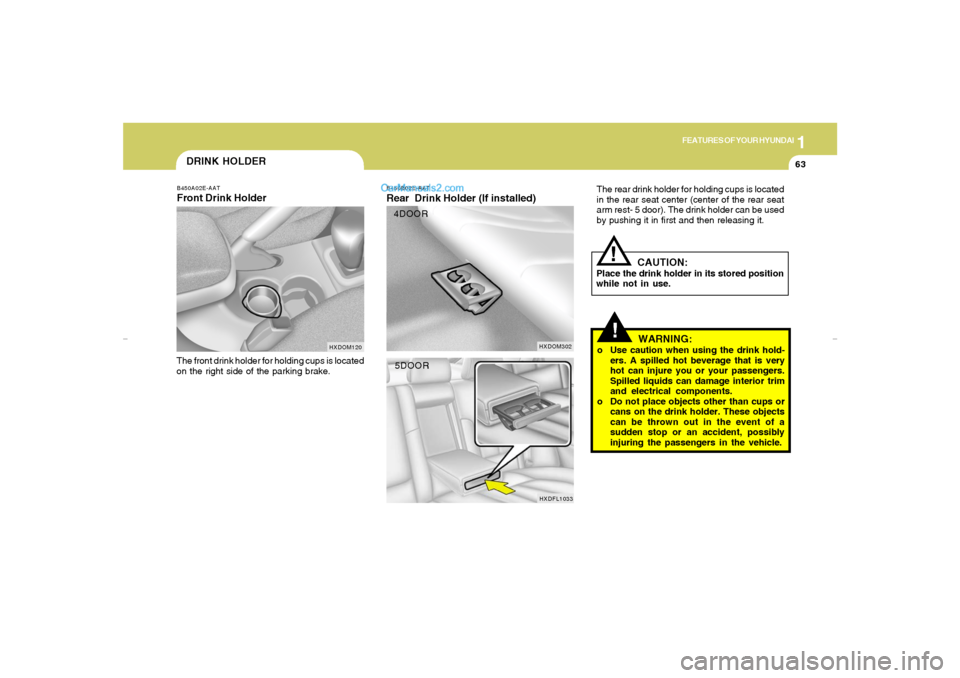

1
FEATURES OF YOUR HYUNDAI
63
!!
B450B02E-AATRear Drink Holder (If installed)
The rear drink holder for holding cups is located
in the rear seat center (center of the rear seat
arm rest- 5 door). The drink holder can be used
by pushing it in first and then releasing it.
HXDOM302
HXDFL1033
4DOOR
5DOOR
CAUTION:
Place the drink holder in its stored position
while not in use.
DRINK HOLDERB450A02E-AATFront Drink HolderThe front drink holder for holding cups is located
on the right side of the parking brake.
HXDOM120
WARNING:
o Use caution when using the drink hold-
ers. A spilled hot beverage that is very
hot can injure you or your passengers.
Spilled liquids can damage interior trim
and electrical components.
o Do not place objects other than cups or
cans on the drink holder. These objects
can be thrown out in the event of a
sudden stop or an accident, possibly
injuring the passengers in the vehicle.
xdflhma-1a.p652/5/2008, 2:03 PM 63

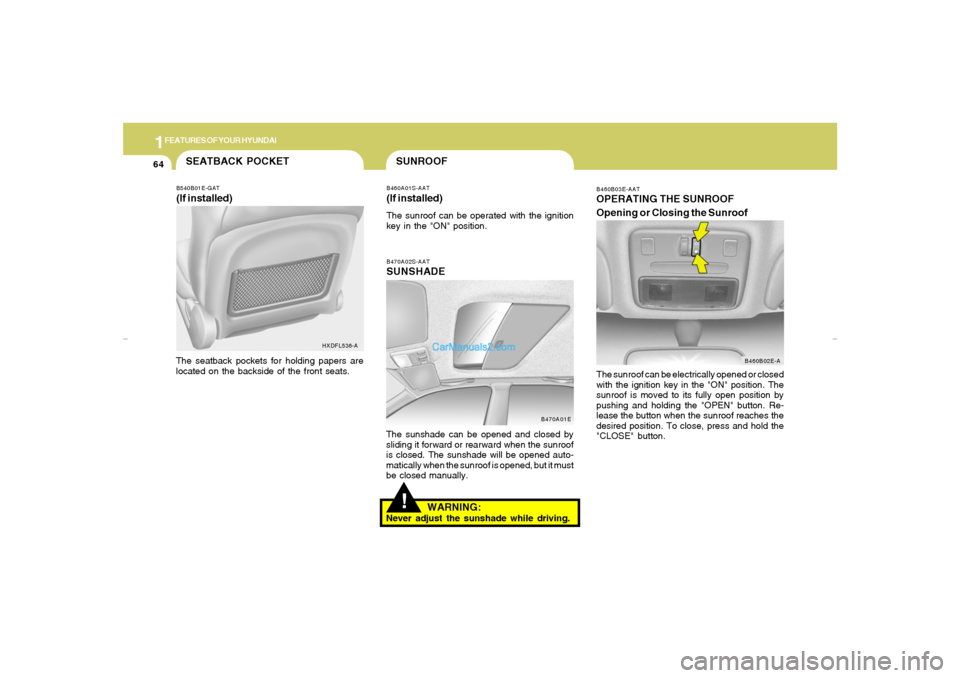

1FEATURES OF YOUR HYUNDAI64
!
B470A02S-AATSUNSHADEThe sunshade can be opened and closed by
sliding it forward or rearward when the sunroof
is closed. The sunshade will be opened auto-
matically when the sunroof is opened, but it must
be closed manually.
B470A01E
SUNROOFB460A01S-AAT(If installed)The sunroof can be operated with the ignition
key in the "ON" position.
B460B03E-AATOPERATING THE SUNROOF
Opening or Closing the Sunroof
B460B02E-A
The sunroof can be electrically opened or closed
with the ignition key in the "ON" position. The
sunroof is moved to its fully open position by
pushing and holding the "OPEN" button. Re-
lease the button when the sunroof reaches the
desired position. To close, press and hold the
"CLOSE" button.
WARNING:
Never adjust the sunshade while driving.
B540B01E-GAT(If installed)The seatback pockets for holding papers are
located on the backside of the front seats.SEATBACK POCKET
HXDFL536-A
xdflhma-1a.p652/5/2008, 2:03 PM 64

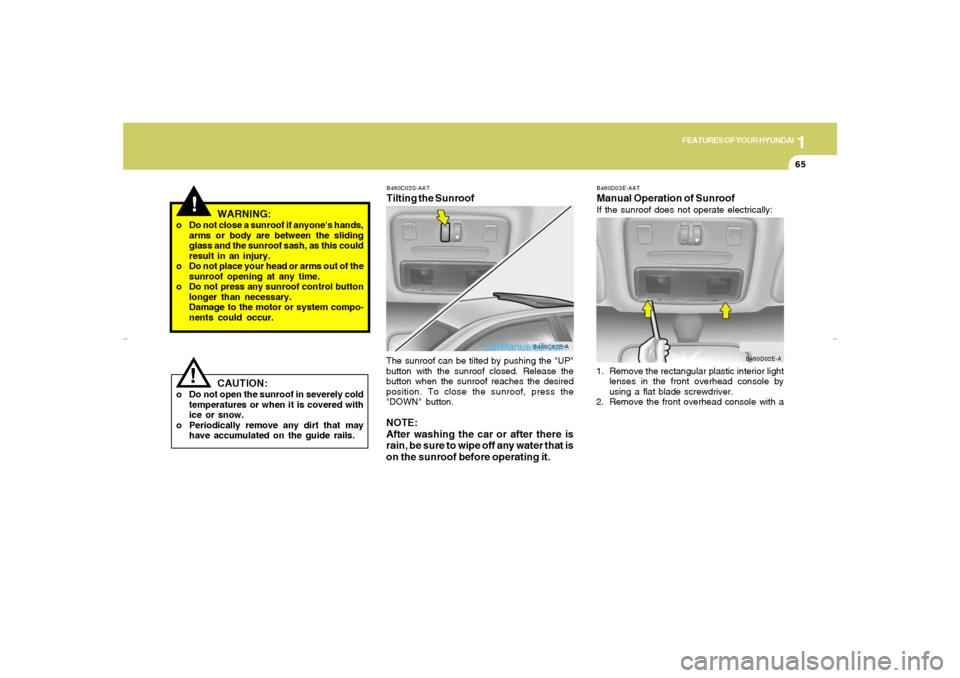

1
FEATURES OF YOUR HYUNDAI
65
B460C02S-AATTilting the Sunroof
B460D03E-AATManual Operation of SunroofIf the sunroof does not operate electrically:
The sunroof can be tilted by pushing the "UP"
button with the sunroof closed. Release the
button when the sunroof reaches the desired
position. To close the sunroof, press the
"DOWN" button.
NOTE:
After washing the car or after there is
rain, be sure to wipe off any water that is
on the sunroof before operating it.
1. Remove the rectangular plastic interior light
lenses in the front overhead console by
using a flat blade screwdriver.
2. Remove the front overhead console with a
B460C02E-A
B460D02E-A
!!
WARNING:
o Do not close a sunroof if anyone's hands,
arms or body are between the sliding
glass and the sunroof sash, as this could
result in an injury.
o Do not place your head or arms out of the
sunroof opening at any time.
o Do not press any sunroof control button
longer than necessary.
Damage to the motor or system compo-
nents could occur.
CAUTION:
o Do not open the sunroof in severely cold
temperatures or when it is covered with
ice or snow.
o Periodically remove any dirt that may
have accumulated on the guide rails.
xdflhma-1a.p652/5/2008, 2:03 PM 65

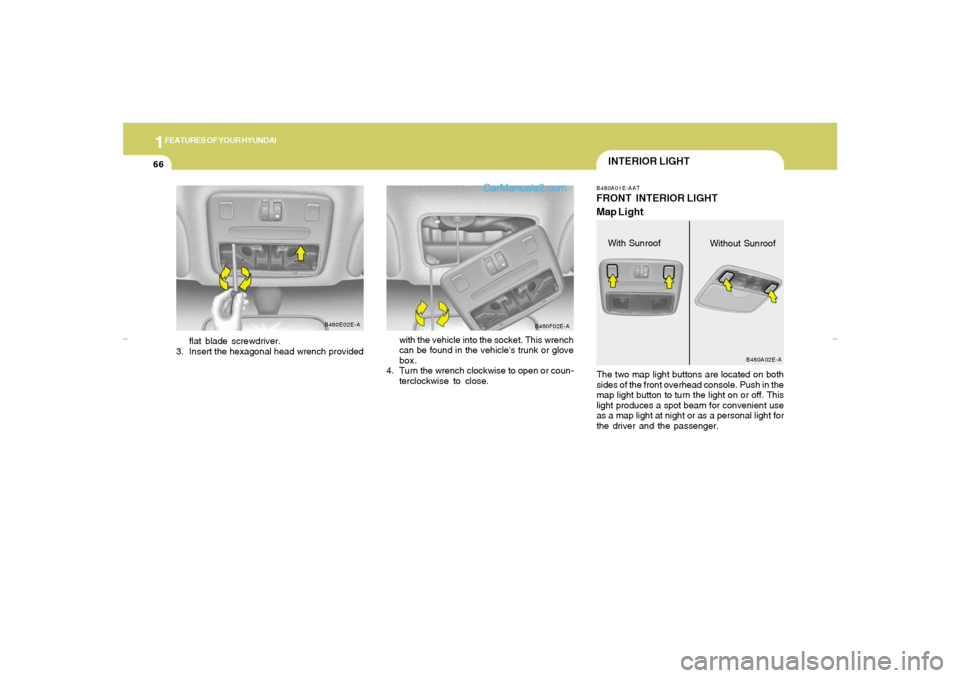

1FEATURES OF YOUR HYUNDAI66
INTERIOR LIGHTB480A01E-AATFRONT INTERIOR LIGHT
Map LightThe two map light buttons are located on both
sides of the front overhead console. Push in the
map light button to turn the light on or off. This
light produces a spot beam for convenient use
as a map light at night or as a personal light for
the driver and the passenger.
B460F02E-A
B480A02E-A
Without Sunroof With Sunroof
with the vehicle into the socket. This wrench
can be found in the vehicle's trunk or glove
box.
4. Turn the wrench clockwise to open or coun-
terclockwise to close.
flat blade screwdriver.
3. Insert the hexagonal head wrench provided
B460E02E-A
xdflhma-1a.p652/5/2008, 2:03 PM 66

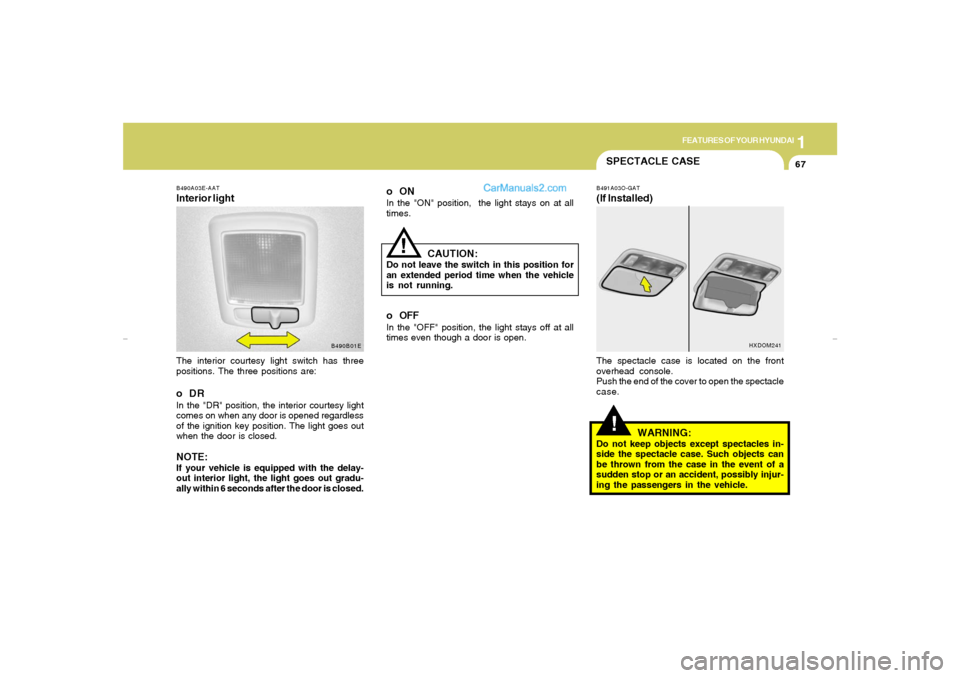

1
FEATURES OF YOUR HYUNDAI
67
SPECTACLE CASE!
B491A03O-GAT(If Installed)The spectacle case is located on the front
overhead console.
Push the end of the cover to open the spectacle
case.
WARNING:
Do not keep objects except spectacles in-
side the spectacle case. Such objects can
be thrown from the case in the event of a
sudden stop or an accident, possibly injur-
ing the passengers in the vehicle.
HXDOM241
oONIn the "ON" position, the light stays on at all
times.
B490A03E-AATInterior lightThe interior courtesy light switch has three
positions. The three positions are:oDRIn the "DR" position, the interior courtesy light
comes on when any door is opened regardless
of the ignition key position. The light goes out
when the door is closed.NOTE:If your vehicle is equipped with the delay-
out interior light, the light goes out gradu-
ally within 6 seconds after the door is closed.
B490B01E
CAUTION:
Do not leave the switch in this position for
an extended period time when the vehicle
is not running.o OFFIn the "OFF" position, the light stays off at all
times even though a door is open.
!
xdflhma-1a.p652/5/2008, 2:04 PM 67

1FEATURES OF YOUR HYUNDAI68
MIRRORB510A01S-AATOUTSIDE REARVIEW MIRROR
Manual TypeThe outside rearview mirror on the driver's side
is equipped with a remote control for your
convenience. It is operated by the control lever
in the bottom front corner of the window.
Before driving away, always check that your
mirrors are positioned so you can see behind
you, both to the left and right sides, as well as
directly behind your vehicle. When using the
mirror, always exercise caution when attempt-
ing to judge the distance of vehicles behind or
along side of you.
B510A01E
STORAGE COMPARTMENTB500B02E-GATThe storage compartment may be opened by
pulling it out by its grip.
It is used for storing small articles.
If the storage compartment is removed, the fuse
box for the lights and other electrical accesso-
ries will be exposed.
HXD301
GLOVE BOXB500A01A-AAT
!
WARNING:
To avoid the possibility of injury in case of
an accident or a sudden stop, the glove box
door should be kept closed when the car is
in motion.
B500A01E-A
To open the glove box, pull on the glove box
release lever.
xdflhma-1a.p652/5/2008, 2:04 PM 68

1
FEATURES OF YOUR HYUNDAI
69
!
CAUTION:
o Do not operate the switch continuously
for an unnecessary length of time.
o Scraping ice from the mirror face could
cause permanent damage. To remove
any ice, use a sponge, soft cloth or
approved de-icer.
!
WARNING:
Be careful when judging the size or dis-
tance of any object seen in the passenger
side rear view mirror. It is a convex mirror
with a curved surface, and objects seen in
this mirror are closer than they appear.
The outside rearview mirrors can be adjusted
to your preferred rear vision, both directly be-
hind the vehicle, and to the rear of the left and
right sides.
The remote control outside rearview mirror
switch controls the adjustments for both right
and left outside mirrors.To adjust the position of either mirror:1. Move the selecting switch to the right or left
to activate the adjustable mechanism for the
corresponding door mirror.
2. Adjust mirror angle by depressing the appro-
priate directional switch as illustrated.
B510D01E
NOTE:If the mirror control is jammed with ice, do
not attempt to break it free using the control
handle or by manipulating the face of the
mirror. Use an approved spray de-icer (not
radiator antifreeze) to release the frozen
mechanism or move the vehicle to a warm
place and allow the ice to melt.B510B01Y-AATElectric Type (If installed)
B510C01E
xdflhma-1a.p652/5/2008, 2:04 PM 69
