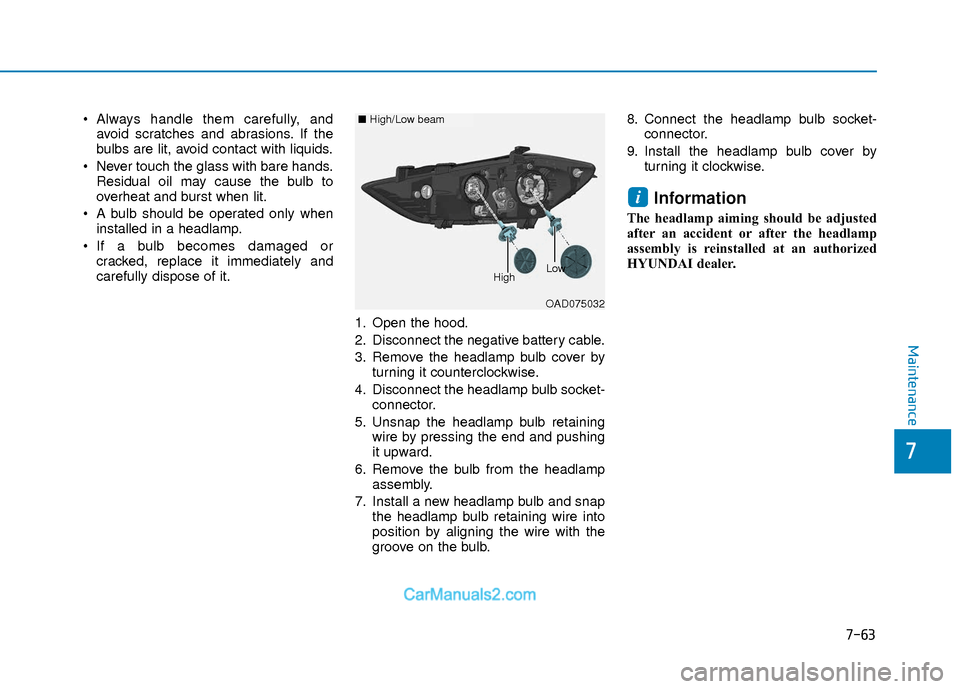

Hyundai Elantra 2018 Owner's Manual

7-63
7
Maintenance
Always handle them carefully, andavoid scratches and abrasions. If the
bulbs are lit, avoid contact with liquids.
Never touch the glass with bare hands. Residual oil may cause the bulb to
overheat and burst when lit.
A bulb should be operated only when installed in a headlamp.
If a bulb becomes damaged or cracked, replace it immediately and
carefully dispose of it.
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the headlamp bulb cover byturning it counterclockwise.
4. Disconnect the headlamp bulb socket- connector.
5. Unsnap the headlamp bulb retaining wire by pressing the end and pushing
it upward.
6. Remove the bulb from the headlamp assembly.
7. Install a new headlamp bulb and snap the headlamp bulb retaining wire into
position by aligning the wire with the
groove on the bulb. 8. Connect the headlamp bulb socket-
connector.
9. Install the headlamp bulb cover by turning it clockwise.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.
i
OAD075032
■High/Low beam
LowHigh

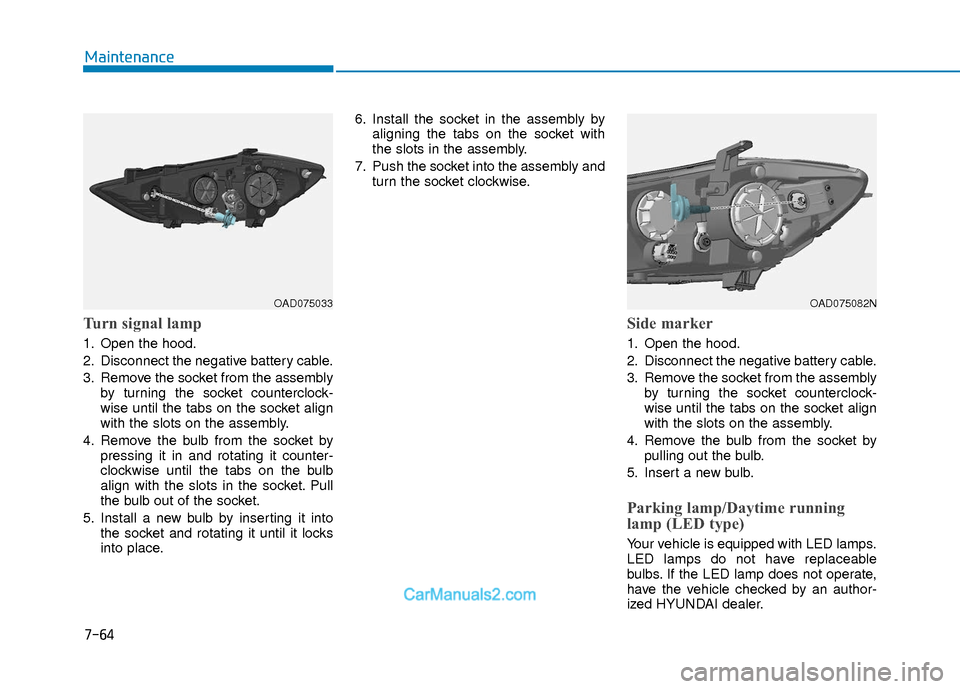

7-64
Maintenance
Turn signal lamp
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Install a new bulb by inserting it into the socket and rotating it until it locks
into place. 6. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Side marker
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
4. Remove the bulb from the socket by pulling out the bulb.
5. Insert a new bulb.
Parking lamp/Daytime running
lamp (LED type)
Your vehicle is equipped with LED lamps.
LED lamps do not have replaceable
bulbs. If the LED lamp does not operate,
have the vehicle checked by an author-
ized HYUNDAI dealer.
OAD075033OAD075082N

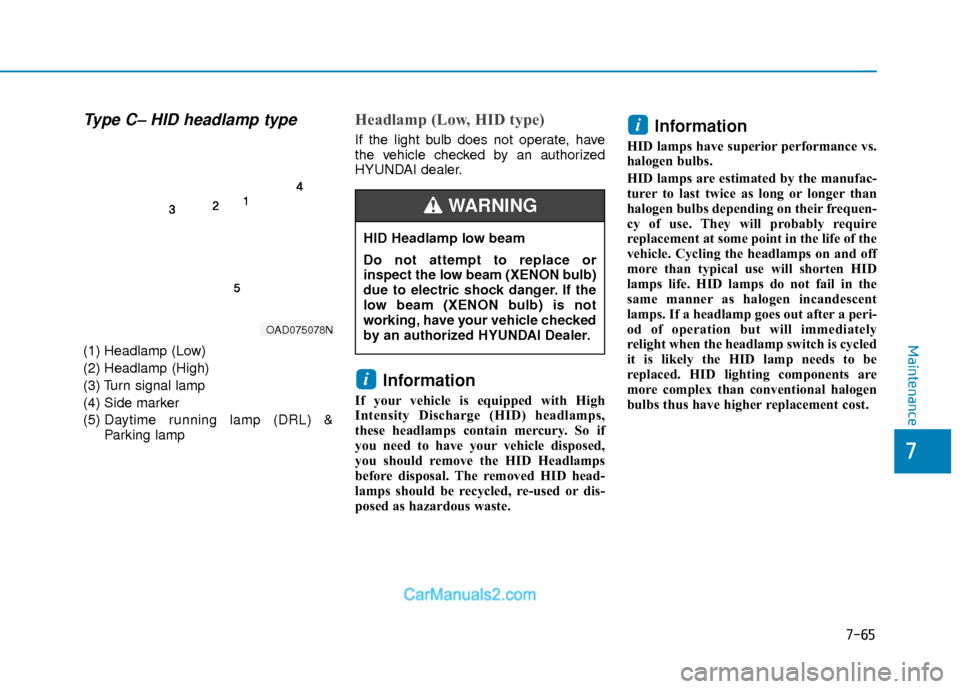

7-65
7
Maintenance
Type C– HID headlamp type
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Side marker
(5) Daytime running lamp (DRL) &
Parking lamp
Headlamp (Low, HID type)
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Information
If your vehicle is equipped with High
Intensity Discharge (HID) headlamps,
these headlamps contain mercury. So if
you need to have your vehicle disposed,
you should remove the HID Headlamps
before disposal. The removed HID head-
lamps should be recycled, re-used or dis-
posed as hazardous waste.
Information
HID lamps have superior performance vs.
halogen bulbs.
HID lamps are estimated by the manufac-
turer to last twice as long or longer than
halogen bulbs depending on their frequen-
cy of use. They will probably require
replacement at some point in the life of the
vehicle. Cycling the headlamps on and off
more than typical use will shorten HID
lamps life. HID lamps do not fail in the
same manner as halogen incandescent
lamps. If a headlamp goes out after a peri-
od of operation but will immediately
relight when the headlamp switch is cycled
it is likely the HID lamp needs to be
replaced. HID lighting components are
more complex than conventional halogen
bulbs thus have higher replacement cost.
i
i
OAD075078N
HID Headlamp low beam
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer.
WARNING

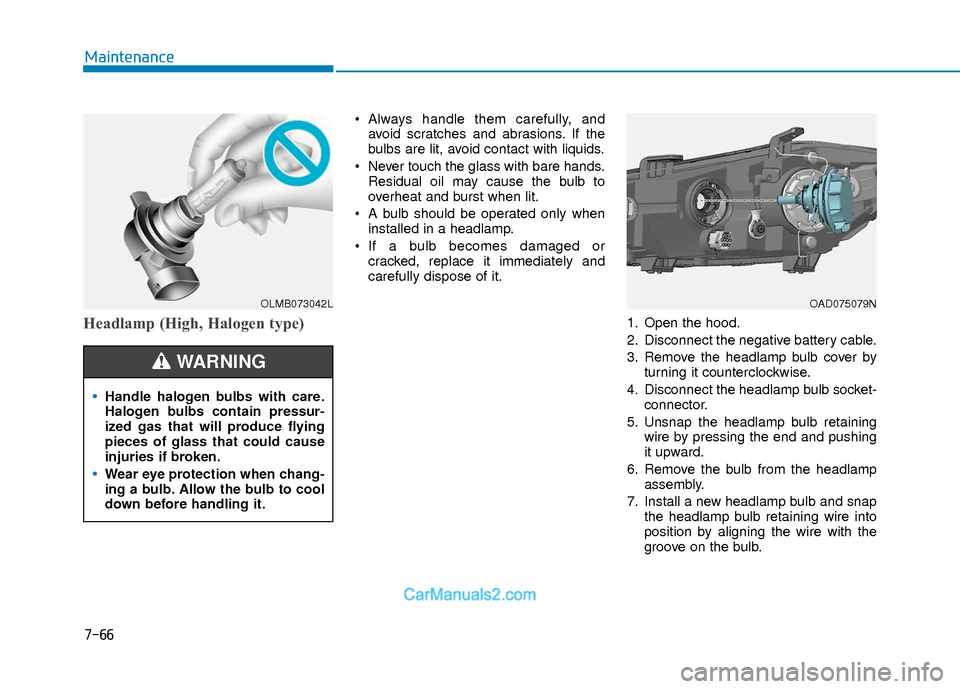

7-66
Maintenance
Headlamp (High, Halogen type)
Always handle them carefully, andavoid scratches and abrasions. If the
bulbs are lit, avoid contact with liquids.
Never touch the glass with bare hands. Residual oil may cause the bulb to
overheat and burst when lit.
A bulb should be operated only when installed in a headlamp.
If a bulb becomes damaged or cracked, replace it immediately and
carefully dispose of it.
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the headlamp bulb cover byturning it counterclockwise.
4. Disconnect the headlamp bulb socket- connector.
5. Unsnap the headlamp bulb retaining wire by pressing the end and pushing
it upward.
6. Remove the bulb from the headlamp assembly.
7. Install a new headlamp bulb and snap the headlamp bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
OLMB073042L
Handle halogen bulbs with care.
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass that could cause
injuries if broken.
Wear eye protection when chang-
ing a bulb. Allow the bulb to cool
down before handling it.
WARNING
OAD075079N

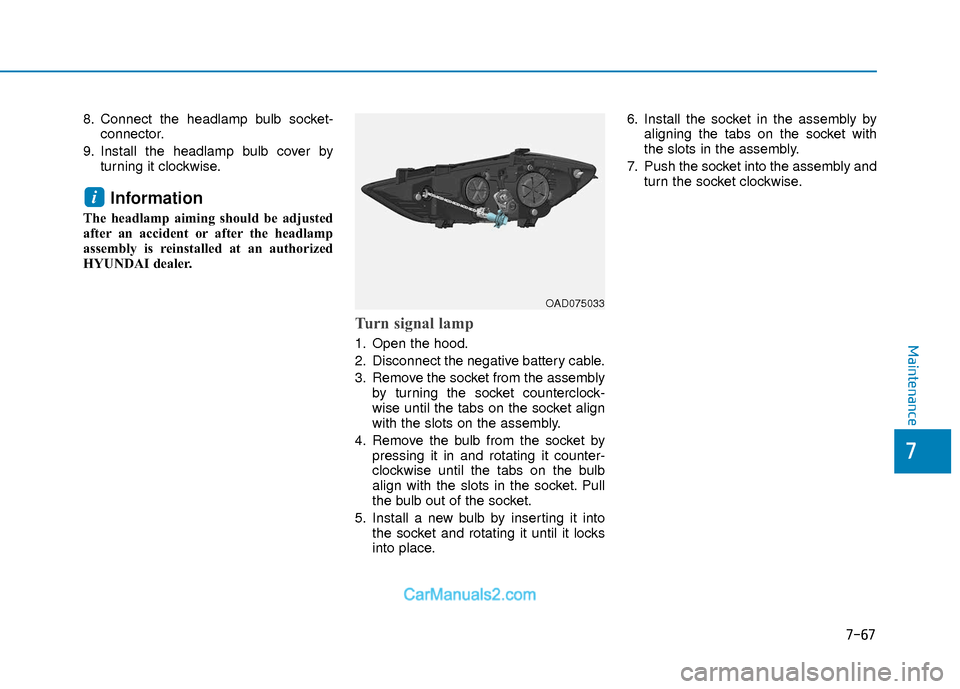

7-67
7
Maintenance
8. Connect the headlamp bulb socket-connector.
9. Install the headlamp bulb cover by turning it clockwise.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.
Turn signal lamp
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Install a new bulb by inserting it into the socket and rotating it until it locks
into place. 6. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
i
OAD075033

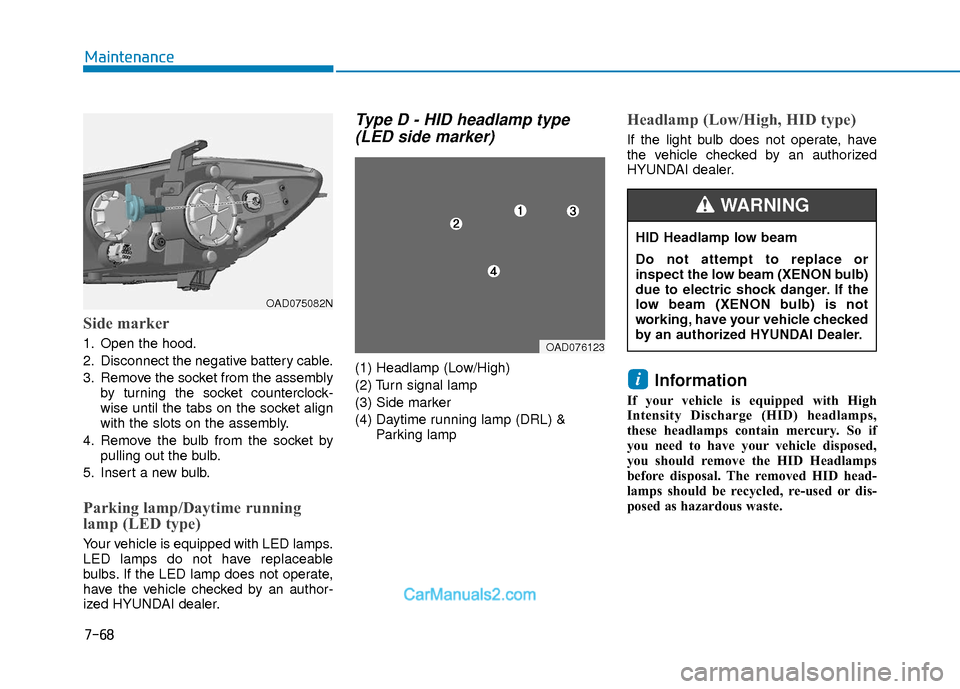

7-68
Maintenance
Side marker
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
4. Remove the bulb from the socket by pulling out the bulb.
5. Insert a new bulb.
Parking lamp/Daytime running
lamp (LED type)
Your vehicle is equipped with LED lamps.
LED lamps do not have replaceable
bulbs. If the LED lamp does not operate,
have the vehicle checked by an author-
ized HYUNDAI dealer.
Type D - HID headlamp type (LED side marker)
(1) Headlamp (Low/High)
(2) Turn signal lamp
(3) Side marker
(4) Daytime running lamp (DRL) &
Parking lamp
Headlamp (Low/High, HID type)
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Information
If your vehicle is equipped with High
Intensity Discharge (HID) headlamps,
these headlamps contain mercury. So if
you need to have your vehicle disposed,
you should remove the HID Headlamps
before disposal. The removed HID head-
lamps should be recycled, re-used or dis-
posed as hazardous waste.
i
OAD075082N
HID Headlamp low beam
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer.
WARNING
OAD076123

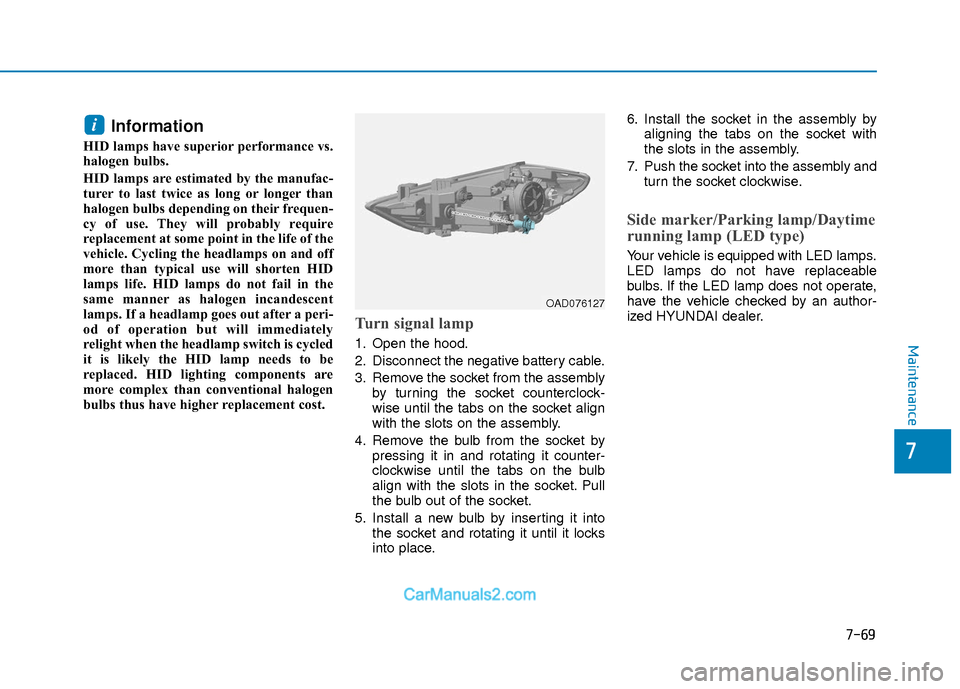

7-69
7
Maintenance
Information
HID lamps have superior performance vs.
halogen bulbs.
HID lamps are estimated by the manufac-
turer to last twice as long or longer than
halogen bulbs depending on their frequen-
cy of use. They will probably require
replacement at some point in the life of the
vehicle. Cycling the headlamps on and off
more than typical use will shorten HID
lamps life. HID lamps do not fail in the
same manner as halogen incandescent
lamps. If a headlamp goes out after a peri-
od of operation but will immediately
relight when the headlamp switch is cycled
it is likely the HID lamp needs to be
replaced. HID lighting components are
more complex than conventional halogen
bulbs thus have higher replacement cost.
Turn signal lamp
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Install a new bulb by inserting it into the socket and rotating it until it locks
into place. 6. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Side marker/Parking lamp/Daytime
running lamp (LED type)
Your vehicle is equipped with LED lamps.
LED lamps do not have replaceable
bulbs. If the LED lamp does not operate,
have the vehicle checked by an author-
ized HYUNDAI dealer.
i
OAD076127

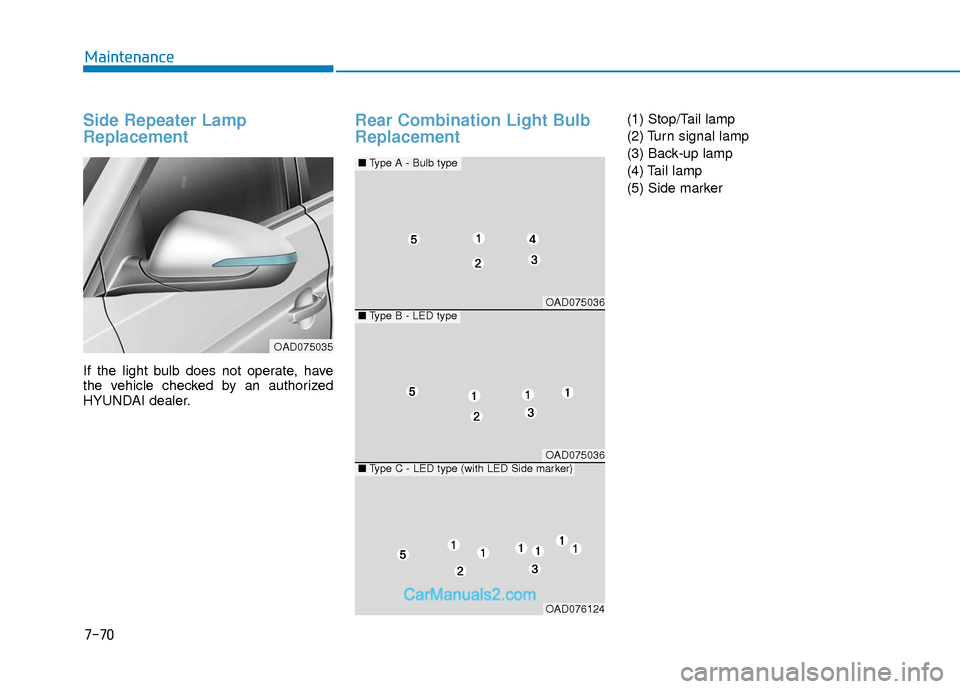

7-70
Maintenance
Side Repeater Lamp
Replacement
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Rear Combination Light Bulb
Replacement (1) Stop/Tail lamp
(2) Turn signal lamp
(3) Back-up lamp
(4) Tail lamp
(5) Side marker
OAD075035
OAD075036
OAD075036
OAD076124
■Type B - LED type
■Type A - Bulb type
■Type C - LED type (with LED Side marker)

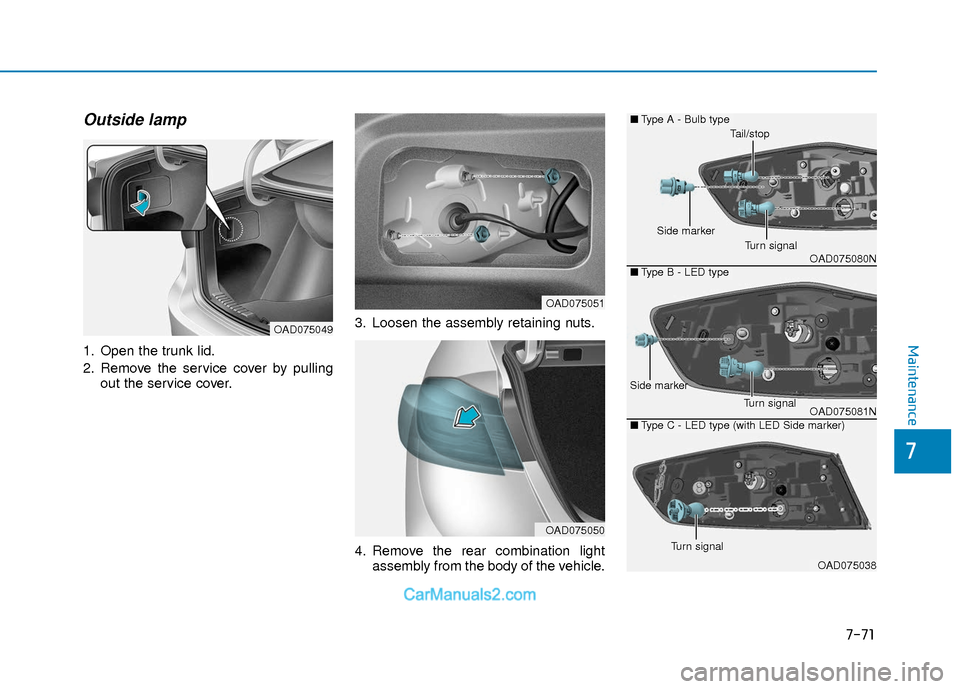

7-71
7
Maintenance
Outside lamp
1. Open the trunk lid.
2. Remove the service cover by pullingout the service cover. 3. Loosen the assembly retaining nuts.
4. Remove the rear combination light
assembly from the body of the vehicle.
OAD075051
OAD075050
OAD075049
OAD075080N
OAD075081N
OAD075038
■Type B - LED type
■Type A - Bulb type
■Type C - LED type (with LED Side marker)
Turn signalSide marker
Tail/stop
Side marker
Turn signal
Turn signal

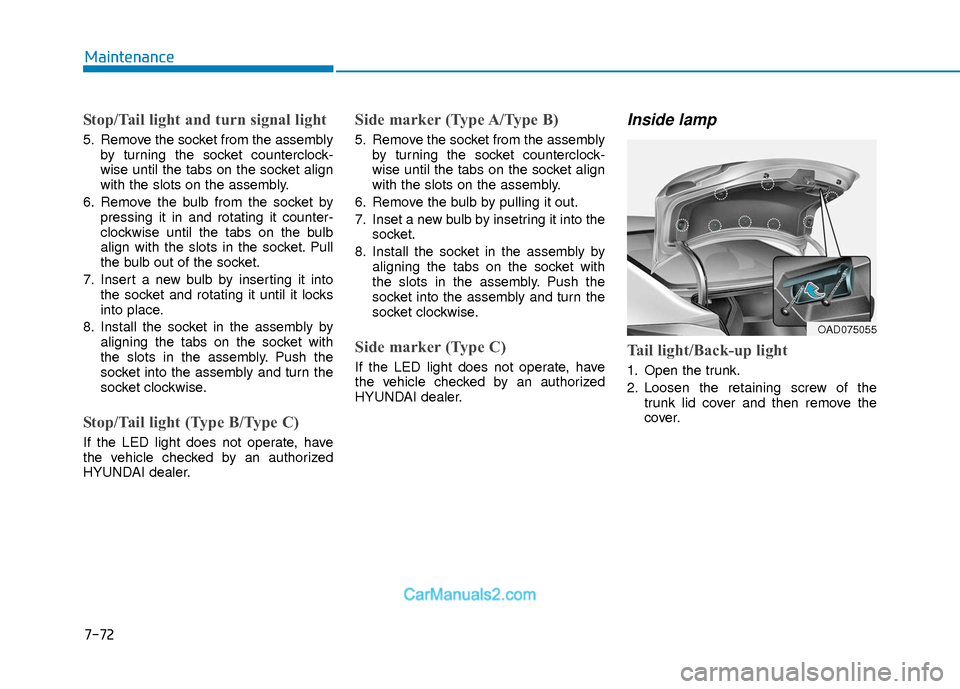

7-72
Maintenance
Stop/Tail light and turn signal light
5. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
Stop/Tail light (Type B/Type C)
If the LED light does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Side marker (Type A/Type B)
5. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
6. Remove the bulb by pulling it out.
7. Inset a new bulb by insetring it into the socket.
8. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
Side marker (Type C)
If the LED light does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Inside lamp
Tail light/Back-up light
1. Open the trunk.
2. Loosen the retaining screw of thetrunk lid cover and then remove the
cover.
OAD075055
