HYUNDAI ELANTRA 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: ELANTRA, Model: HYUNDAI ELANTRA 2022Pages: 584, PDF Size: 14.08 MB

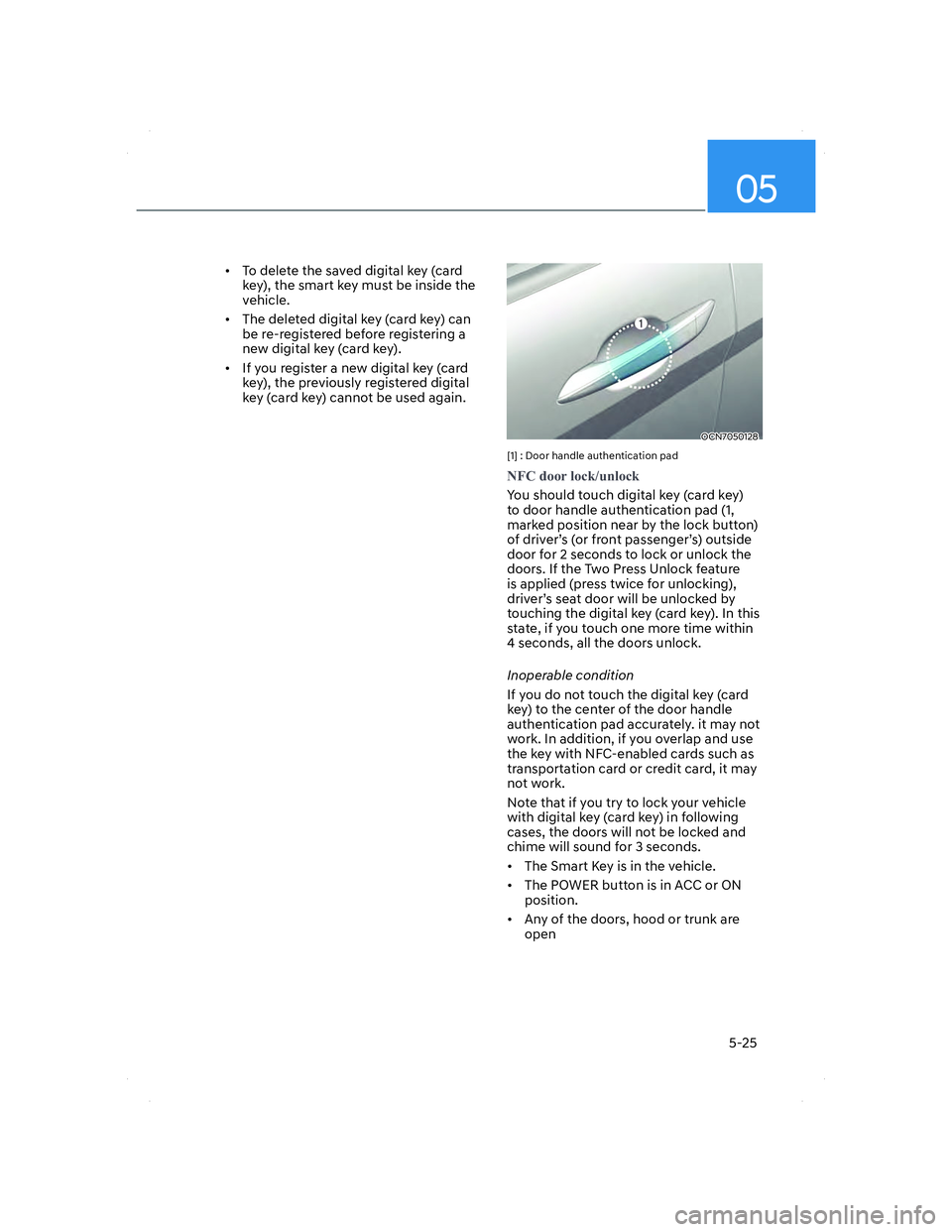

Page 161 of 584
05
5-25
• To delete the saved digital key (card
key), the smart key must be inside the
vehicle.
• The deleted digital key (card key) can
be re-registered before registering a
new digital key (card key).
• If you register a new digital key (card
key), the previously registered digital
key (card key) cannot be used again.
OCN7050128OCN7050128
[1] : Door handle authentication pad
1 ) & G R R U O R F N X Q O R F N
You should touch digital key (card key)
to door handle authentication pad (1,
marked position near by the lock button)
of driver’s (or front passenger’s) outside
door for 2 seconds to lock or unlock the
doors. If the Two Press Unlock feature
is applied (press twice for unlocking),
driver’s seat door will be unlocked by
touching the digital key (card key). In this
state, if you touch one more time within
4 seconds, all the doors unlock.
Inoperable condition
If you do not touch the digital key (card
key) to the center of the door handle
authentication pad accurately. it may not
work. In addition, if you overlap and use
the key with NFC-enabled cards such as
transportation card or credit card, it may
not work.
Note that if you try to lock your vehicle
with digital key (card key) in following
cases, the doors will not be locked and
chime will sound for 3 seconds.
• The Smart Key is in the vehicle.
• The POWER button is in ACC or ON
position.
• Any of the doors, hood or trunk are
open
CN7 HMA 5.indd 5-252020-12-03 9:20:45

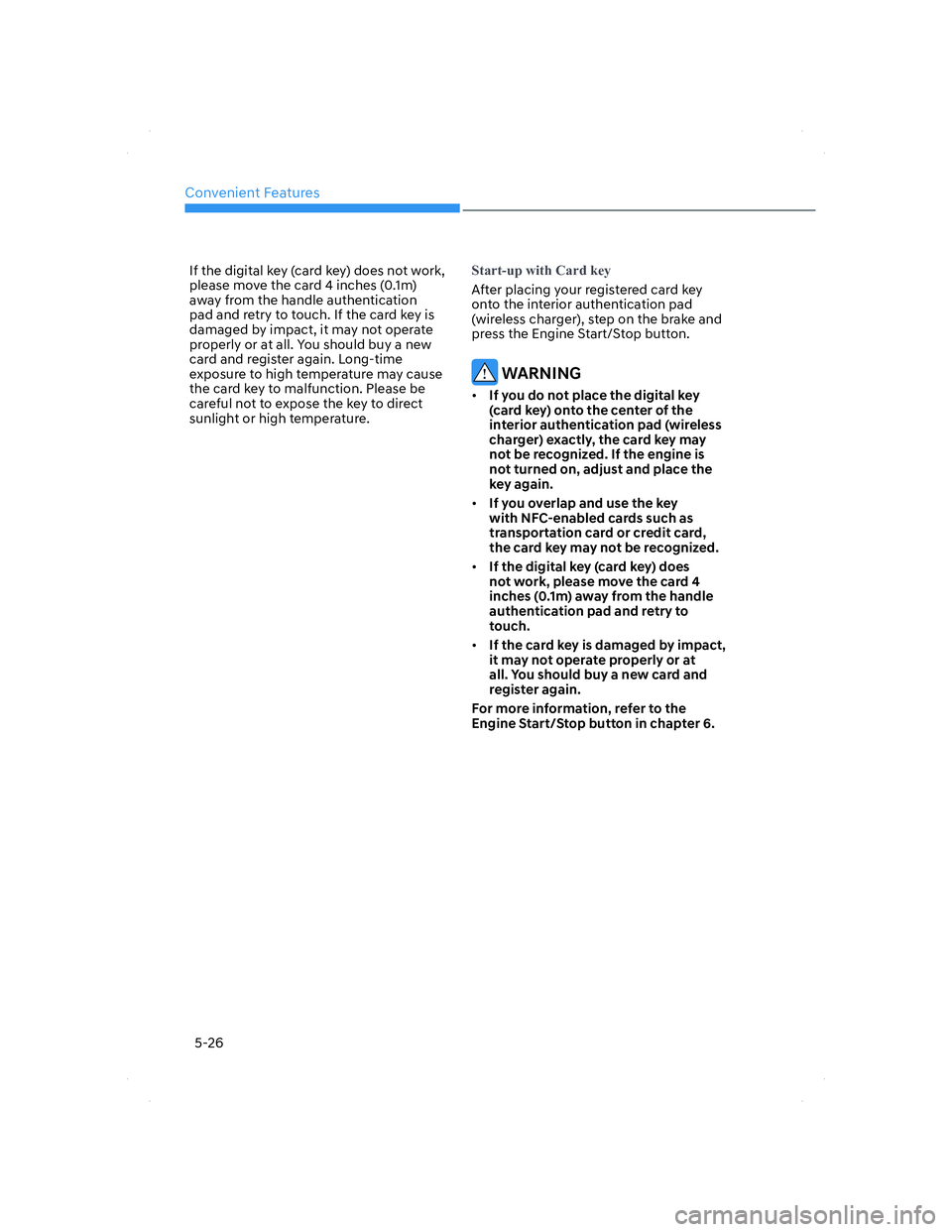

Page 162 of 584
Convenient Features
5-26
If the digital key (card key) does not work,
please move the card 4 inches (0.1m)
away from the handle authentication
pad and retry to touch. If the card key is
damaged by impact, it may not operate
properly or at all. You should buy a new
card and register again. Long-time
exposure to high temperature may cause
the card key to malfunction. Please be
careful not to expose the key to direct
sunlight or high temperature. 6 W D U W X S Z L W K & D U G N H \
After placing your registered card key
onto the interior authentication pad
(wireless charger), step on the brake and
press the Engine Start/Stop button.
WARNING
• If you do not place the digital key
(card key) onto the center of the
interior authentication pad (wireless
charger) exactly, the card key may
not be recognized. If the engine is
not turned on, adjust and place the
key again.
• If you overlap and use the key
with NFC-enabled cards such as
transportation card or credit card,
the card key may not be recognized.
• If the digital key (card key) does
not work, please move the card 4
inches (0.1m) away from the handle
authentication pad and retry to
touch.
• If the card key is damaged by impact,
it may not operate properly or at
all. You should buy a new card and
register again.
For more information, refer to the
Engine Start/Stop button in chapter 6.
CN7 HMA 5.indd 5-262020-12-03 9:20:45

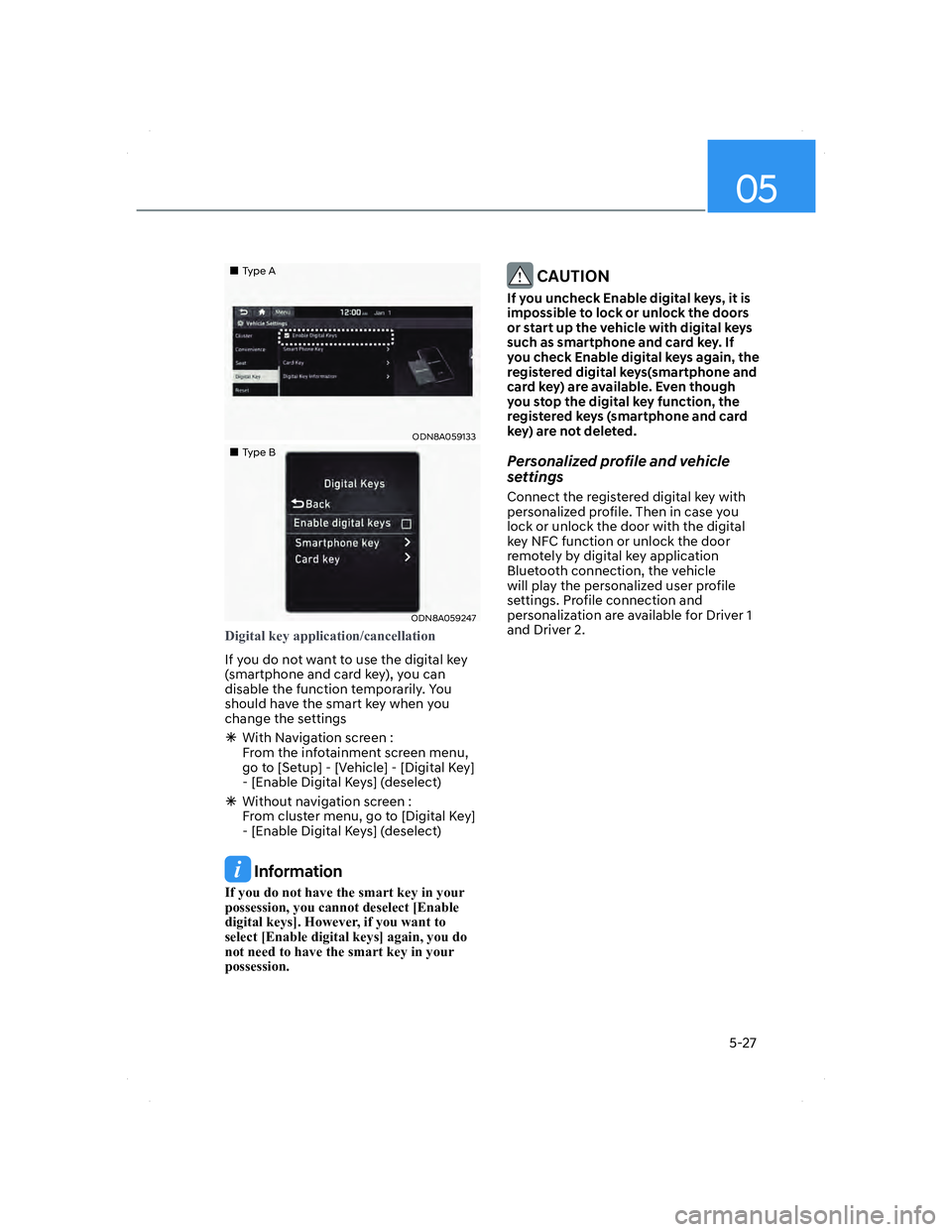

Page 163 of 584
05
5-27
„ „Type AType A
ODN8A059133ODN8A059133
„ „Type BType B
ODN8A059247ODN8A059247
' L J L W D O N H \ D S S O L F D W L R Q F D Q F H O O D W L R Q
If you do not want to use the digital key
(smartphone and card key), you can
disable the function temporarily. You
should have the smart key when you
change the settings
ÃWith Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Enable Digital Keys] (deselect)
ÃWithout navigation screen :
From cluster menu, go to [Digital Key]
- [Enable Digital Keys] (deselect)
Information
, I \ R X G R Q R W K D Y H W K H V P D U W N H \ L Q \ R X U
S R V V H V V L R Q \ R X F D Q Q R W G H V H O H F W > ( Q D E O H
G L J L W D O N H \ V @ + R Z H Y H U L I \ R X Z D Q W W R
V H O H F W > ( Q D E O H G L J L W D O N H \ V @ D J D L Q \ R X G R
Q R W Q H H G W R K D Y H W K H V P D U W N H \ L Q \ R X U
S R V V H V V L R Q
CAUTION
If you uncheck Enable digital keys, it is
impossible to lock or unlock the doors
or start up the vehicle with digital keys
such as smartphone and card key. If
you check Enable digital keys again, the
registered digital keys(smartphone and
card key) are available. Even though
you stop the digital key function, the
registered keys (smartphone and card
key) are not deleted.
Personalized profile and vehicle
settings
Connect the registered digital key with
personalized profile. Then in case you
lock or unlock the door with the digital
key NFC function or unlock the door
remotely by digital key application
Bluetooth connection, the vehicle
will play the personalized user profile
settings. Profile connection and
personalization are available for Driver 1
and Driver 2.
CN7 HMA 5.indd 5-272020-12-03 9:20:45

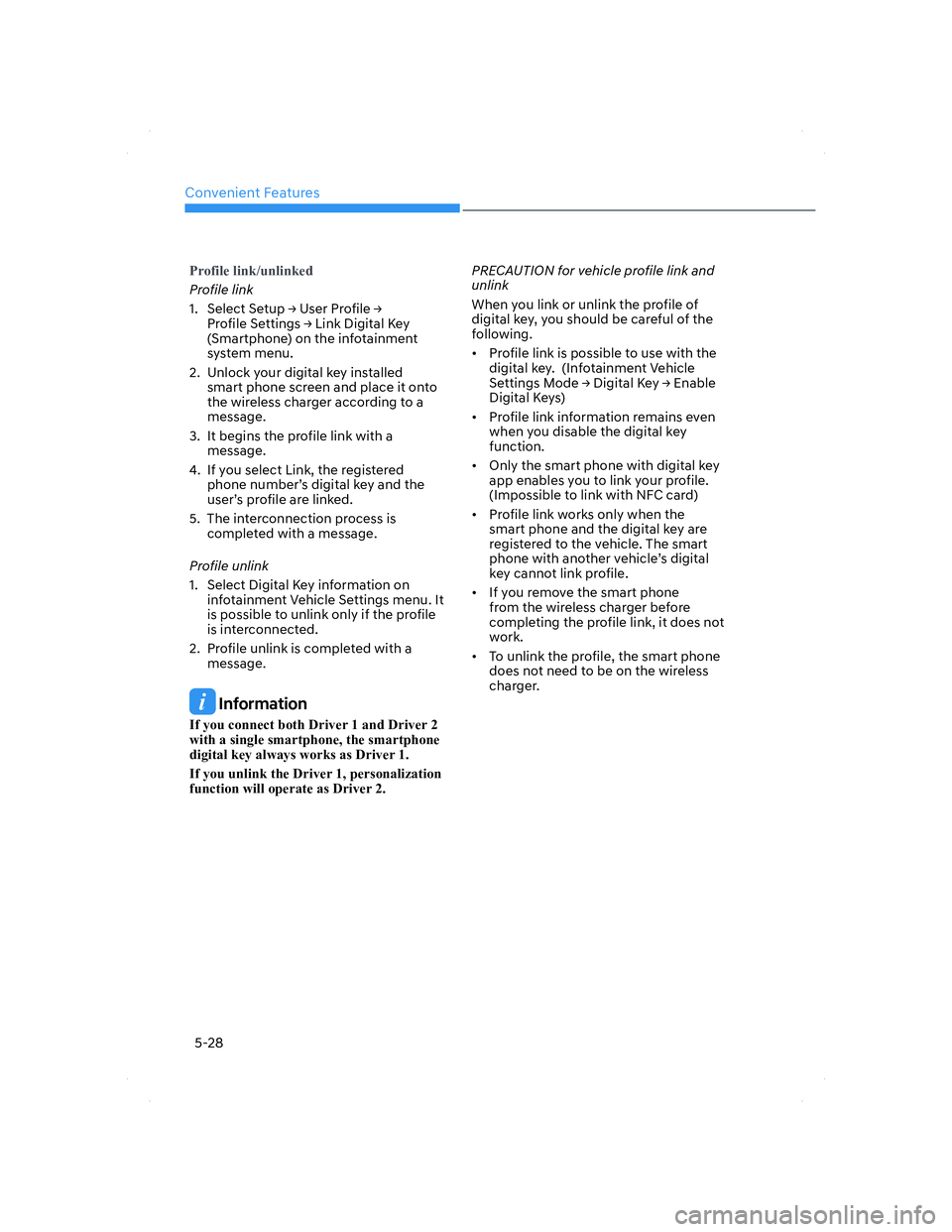

Page 164 of 584
Convenient Features
5-28
3 U R I L O H O L Q N X Q O L Q N H G
Profile link
1. Select Setup Ÿ User Profile Ÿ
Profile Settings Ÿ Link Digital Key
(Smartphone) on the infotainment
system menu.
2. Unlock your digital key installed
smart phone screen and place it onto
the wireless charger according to a
message.
3. It begins the profile link with a
message.
4. If you select Link, the registered
phone number’s digital key and the
user’s profile are linked.
5. The interconnection process is
completed with a message.
Profile unlink
1. Select Digital Key information on
infotainment Vehicle Settings menu. It
is possible to unlink only if the profile
is interconnected.
2. Profile unlink is completed with a
message.
Information
, I \ R X F R Q Q H F W E R W K ' U L Y H U D Q G ' U L Y H U
Z L W K D V L Q J O H V P D U W S K R Q H W K H V P D U W S K R Q H
G L J L W D O N H \ D O Z D \ V Z R U N V D V ' U L Y H U
, I \ R X X Q O L Q N W K H ' U L Y H U S H U V R Q D O L ] D W L R Q
I X Q F W L R Q Z L O O R S H U D W H D V ' U L Y H U PRECAUTION for vehicle profile link and
unlink
When you link or unlink the profile of
digital key, you should be careful of the
following.
• Profile link is possible to use with the
digital key. (Infotainment Vehicle
Settings Mode Ÿ Digital Key Ÿ Enable
Digital Keys)
• Profile link information remains even
when you disable the digital key
function.
• Only the smart phone with digital key
app enables you to link your profile.
(Impossible to link with NFC card)
• Profile link works only when the
smart phone and the digital key are
registered to the vehicle. The smart
phone with another vehicle’s digital
key cannot link profile.
• If you remove the smart phone
from the wireless charger before
completing the profile link, it does not
work.
• To unlink the profile, the smart phone
does not need to be on the wireless
charger.
CN7 HMA 5.indd 5-282020-12-03 9:20:46
Page 165 of 584

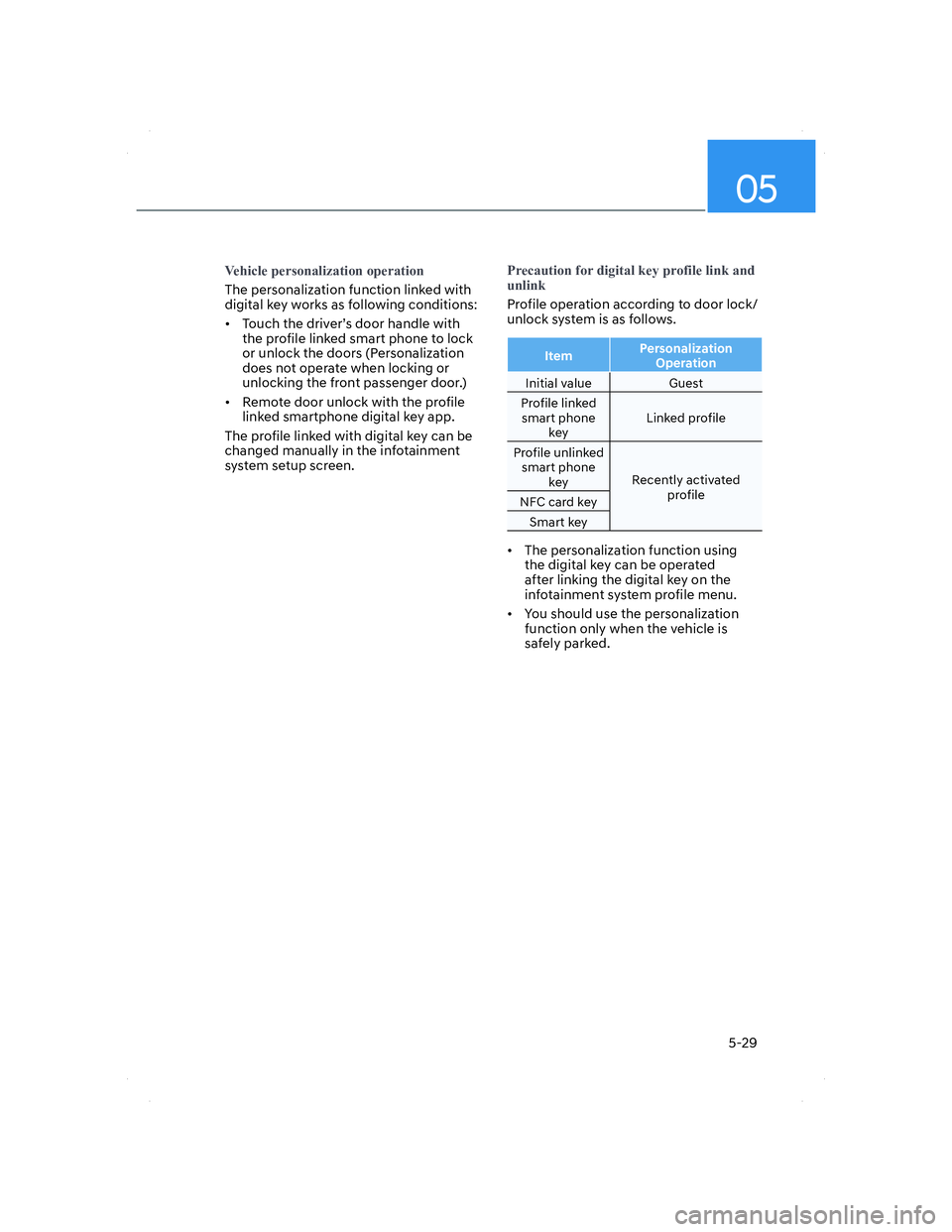

![HYUNDAI ELANTRA 2022 Owners Manual 05
5-29
9 H K L F O H S H U V R Q D O L ] D W L R Q R S H U D W L R Q
The personalization function linked with
digital key works as following conditions:
• Touch the driver’s door handle wi](/img/35/41167/w960_41167-164.png "HYUNDAI ELANTRA 2022 Owners Manual 05
5-29
9 H K L F O H S H U V R Q D O L ] D W L R Q R S H U D W L R Q
The personalization function linked with
digital key works as following conditions:
• Touch the driver’s door handle wi")
05
5-29
9 H K L F O H S H U V R Q D O L ] D W L R Q R S H U D W L R Q
The personalization function linked with
digital key works as following conditions:
• Touch the driver’s door handle with
the profile linked smart phone to lock
or unlock the doors (Personalization
does not operate when locking or
unlocking the front passenger door.)
• Remote door unlock with the profile
linked smartphone digital key app.
The profile linked with digital key can be
changed manually in the infotainment
system setup screen.
3 U H F D X W L R Q I R U G L J L W D O N H \ S U R I L O H O L Q N D Q G
X Q O L Q N
Profile operation according to door lock/
unlock system is as follows.
ItemPersonalization
Operation
Initial value Guest
Profile linked
smart phone
keyLinked profile
Profile unlinked
smart phone
keyRecently activated
profile
NFC card key
Smart key
• The personalization function using
the digital key can be operated
after linking the digital key on the
infotainment system profile menu.
• You should use the personalization
function only when the vehicle is
safely parked.
CN7 HMA 5.indd 5-292020-12-03 9:20:46
Page 166 of 584

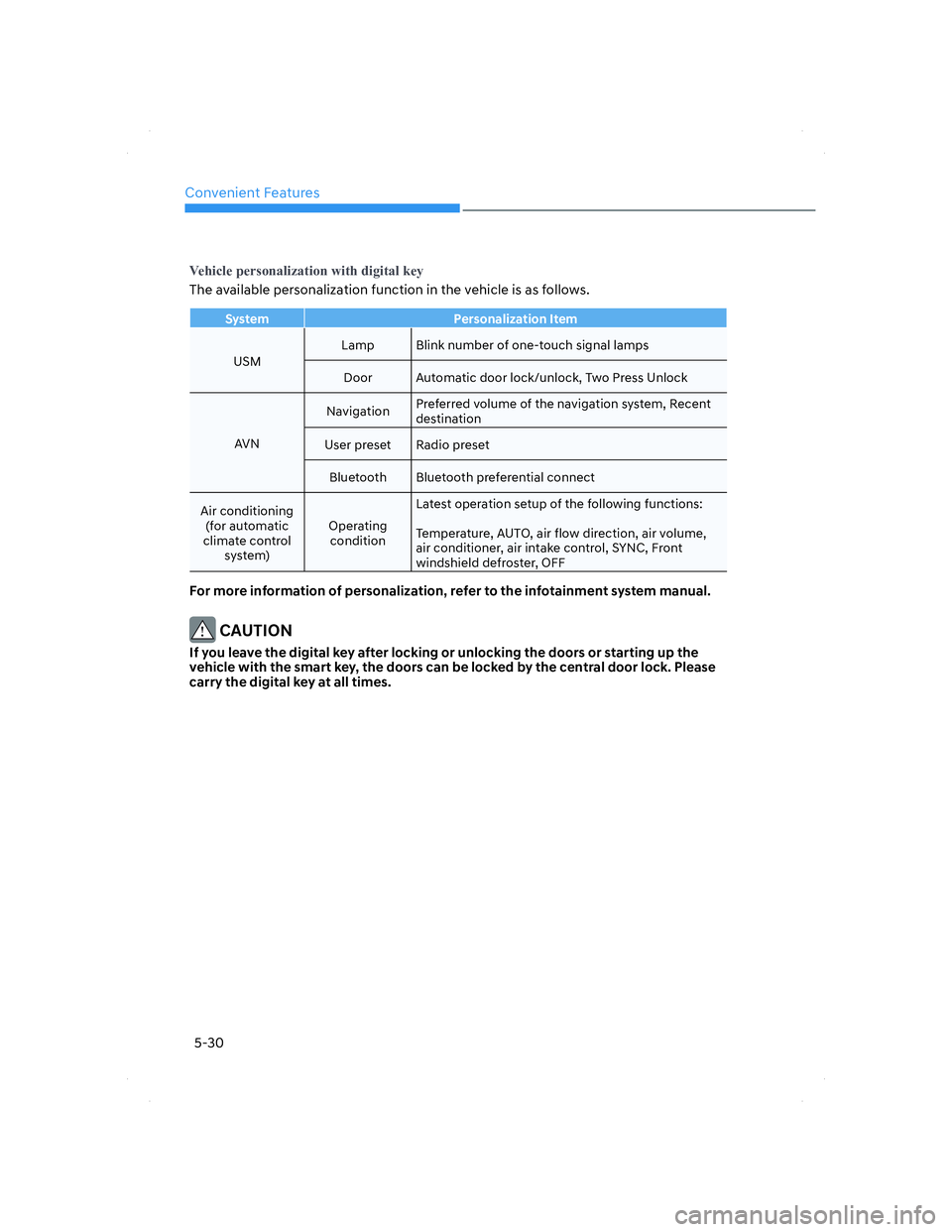

![HYUNDAI ELANTRA 2022 Owners Manual Convenient Features
5-30
9 H K L F O H S H U V R Q D O L ] D W L R Q Z L W K G L J L W D O N H \
The available personalization function in the vehicle is as follows.
System Personalization It](/img/35/41167/w960_41167-165.png "HYUNDAI ELANTRA 2022 Owners Manual Convenient Features
5-30
9 H K L F O H S H U V R Q D O L ] D W L R Q Z L W K G L J L W D O N H \
The available personalization function in the vehicle is as follows.
System Personalization It")
Convenient Features
5-30
9 H K L F O H S H U V R Q D O L ] D W L R Q Z L W K G L J L W D O N H \
The available personalization function in the vehicle is as follows.
System Personalization Item
USMLamp Blink number of one-touch signal lamps
Door Automatic door lock/unlock, Two Press Unlock
AVNNavigationPreferred volume of the navigation system, Recent
destination
User preset Radio preset
Bluetooth Bluetooth preferential connect
Air conditioning
(for automatic
climate control
system)Operating
conditionLatest operation setup of the following functions:
Temperature, AUTO, air flow direction, air volume,
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry the digital key at all times.
CN7 HMA 5.indd 5-302020-12-03 9:20:46
Page 167 of 584
05
5-31
DOOR LOCKS
Operating Door Locks from
Outside the Vehicle
Mechanical key
OCN7050009OCN70500091. Press the lever located under the
cover with mechanical key. (1)
2. While pushing the lever so that the
mechanical key does not fall out of
the cover hole, slowly push it towards
the rear of the vehicle and remove the
cover. (2)
3. After removing the cover, only driver’s
door can be locked or unlocked by
using mechanical key.
4. Turn the key toward the rear of the
vehicle to lock and toward the front of
the vehicle to unlock. (3)
If you lock/unlock the driver’s door with
a key, the driver’s door will lock/ unlock
automatically.
Once the door is unlocked, it may be
opened by pulling the door handle.
Make sure that doors are closed securely.
Information
% H F D U H I X O Z K H Q O R F N L Q J W K H G R R U E \
P H F K D Q L F D O N H \ R S H U D W L R Q R Q O \ W K H
G U L Y H U
Page 168 of 584
Convenient Features
5-32
Remote key
ODN8059279LODN8059279L
To lock the doors, press the Door Lock
button (1) on the remote key.
To unlock the doors, press the Door
Unlock button (2) on the remote key.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
Smart key
OCN7050078OCN7050078To lock the doors, press the button on
the outside door handle while carrying
the smart key with you or press the door
lock button on the smart key.
To unlock the doors, press the button on
the outside door handle while carrying
the smart key with you or press the door
unlock button on the smart key.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
Information
• , Q F R O G D Q G Z H W F O L P D W H V G R R U O R F N
D Q G G R R U P H F K D Q L V P V P D \ Q R W Z R U N
S U R S H U O \ G X H W R I U H H ] L Q J F R Q G L W L R Q V
• , I W K H G R R U L V O R F N H G X Q O R F N H G P X O W L S O H
W L P H V L Q U D S L G V X F F H V V L R Q Z L W K H L W K H U
W K H Y H K L F O H N H \ R U G R R U O R F N V Z L W F K W K H
V \ V W H P P D \ V W R S R S H U D W L Q J W H P S R U D U L O \
L Q R U G H U W R S U R W H F W W K H F L U F X L W D Q G
S U H Y H Q W G D P D J H W R V \ V W H P F R P S R Q H Q W V
• 7 Z R S U H V V X Q O R F N V H W W L Q J F D Q E H
F K D Q J H G L Q W K H 8 V H U 6 H W W L Q J V P R G H R Q
W K H F O X V W H U
CN7 HMA 5.indd 5-322020-12-03 9:20:46
Page 169 of 584

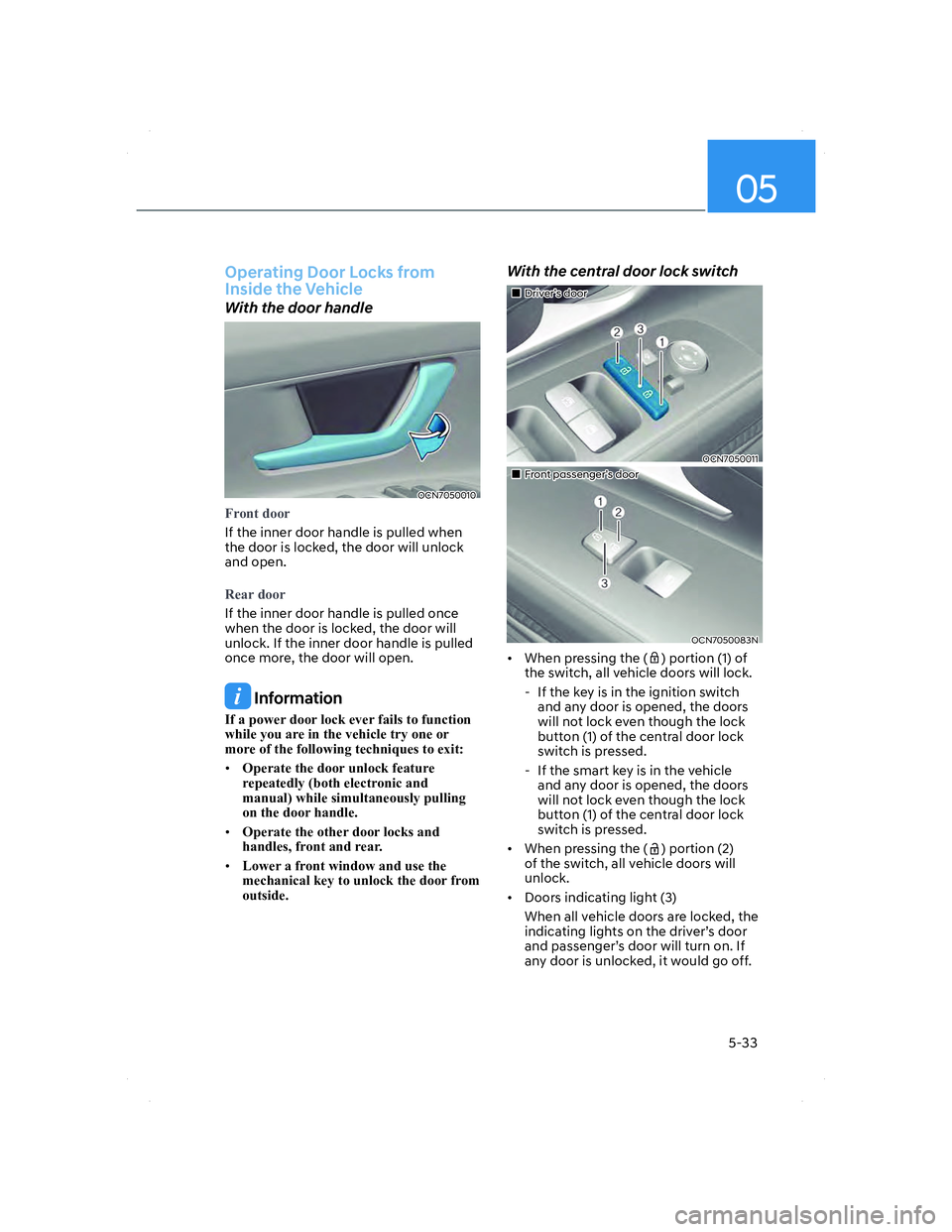

05
5-33
Operating Door Locks from
Inside the Vehicle
With the door handle
OCN7050010OCN7050010
) U R Q W G R R U
If the inner door handle is pulled when
the door is locked, the door will unlock
and open.
5 H D U G R R U
If the inner door handle is pulled once
when the door is locked, the door will
unlock. If the inner door handle is pulled
once more, the door will open.
Information
, I D S R Z H U G R R U O R F N H Y H U I D L O V W R I X Q F W L R Q
Z K L O H \ R X D U H L Q W K H Y H K L F O H W U \ R Q H R U
P R U H R I W K H I R O O R Z L Q J W H F K Q L T X H V W R H [ L W
• 2 S H U D W H W K H G R R U X Q O R F N I H D W X U H
U H S H D W H G O \ E R W K H O H F W U R Q L F D Q G
P D Q X D O Z K L O H V L P X O W D Q H R X V O \ S X O O L Q J
R Q W K H G R R U K D Q G O H
• 2 S H U D W H W K H R W K H U G R R U O R F N V D Q G
K D Q G O H V I U R Q W D Q G U H D U
• / R Z H U D I U R Q W Z L Q G R Z D Q G X V H W K H
P H F K D Q L F D O N H \ W R X Q O R F N W K H G R R U I U R P
R X W V L G H
With the central door lock switch
„ „Driver’s doorDriver’s door
OCN7050011OCN7050011
„ „Front passenger’s doorFront passenger’s door
OCN7050083NOCN7050083N
• When pressing the () portion (1) of
the switch, all vehicle doors will lock.
- If the key is in the ignition switch
and any door is opened, the doors
will not lock even though the lock
button (1) of the central door lock
switch is pressed.
- If the smart key is in the vehicle
and any door is opened, the doors
will not lock even though the lock
button (1) of the central door lock
switch is pressed.
• When pressing the (
) portion (2)
of the switch, all vehicle doors will
unlock.
• Doors indicating light (3)
When all vehicle doors are locked, the
indicating lights on the driver’s door
and passenger’s door will turn on. If
any door is unlocked, it would go off.
CN7 HMA 5.indd 5-332020-12-03 9:20:46
Page 170 of 584

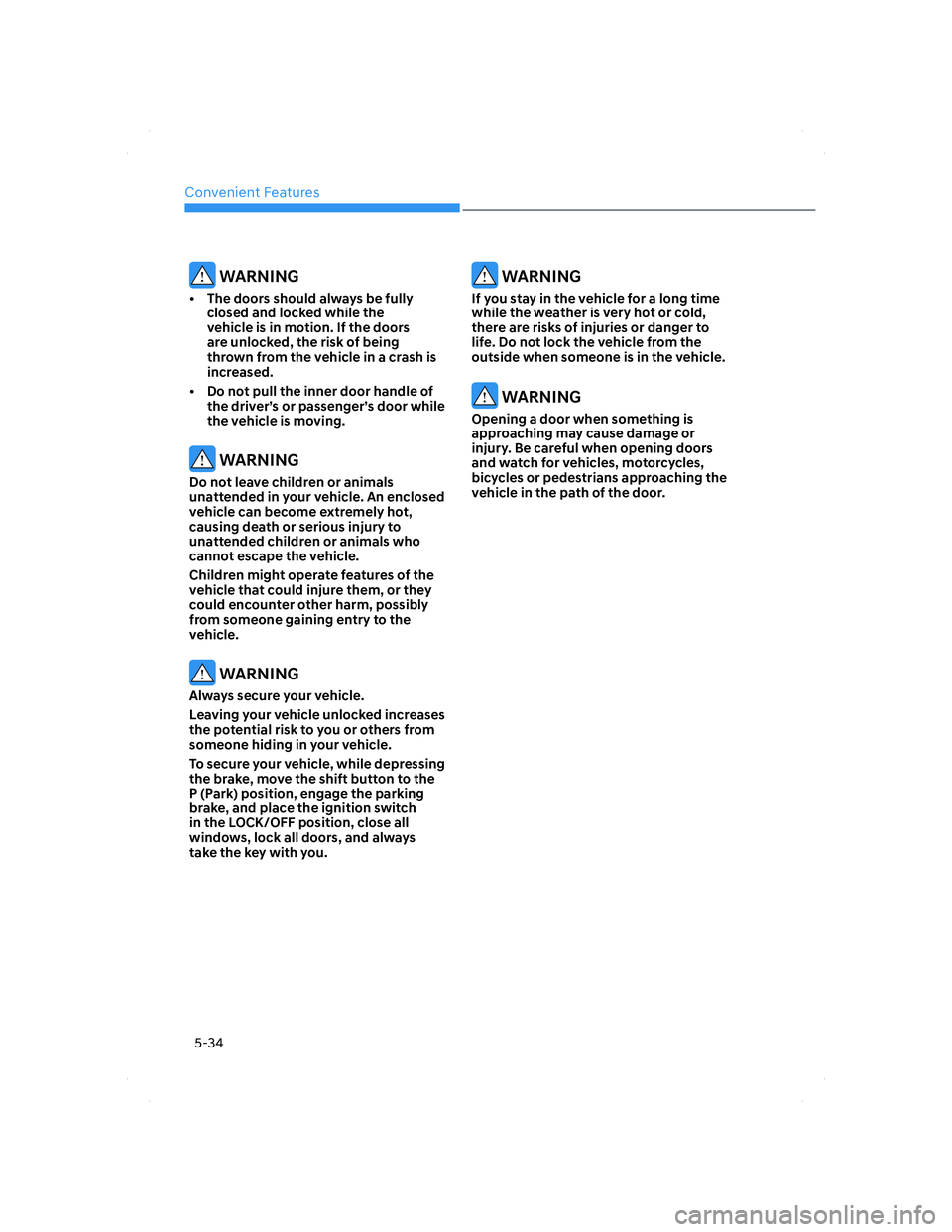

Convenient Features
5-34
WARNING
• The doors should always be fully
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.
• Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle.
Children might operate features of the
vehicle that could injure them, or they
could encounter other harm, possibly
from someone gaining entry to the
vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while depressing
the brake, move the shift button to the
P (Park) position, engage the parking
brake, and place the ignition switch
in the LOCK/OFF position, close all
windows, lock all doors, and always
take the key with you.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
WARNING
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
CN7 HMA 5.indd 5-342020-12-03 9:20:47
