HYUNDAI ELANTRA 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: ELANTRA, Model: HYUNDAI ELANTRA 2022Pages: 584, PDF Size: 14.08 MB

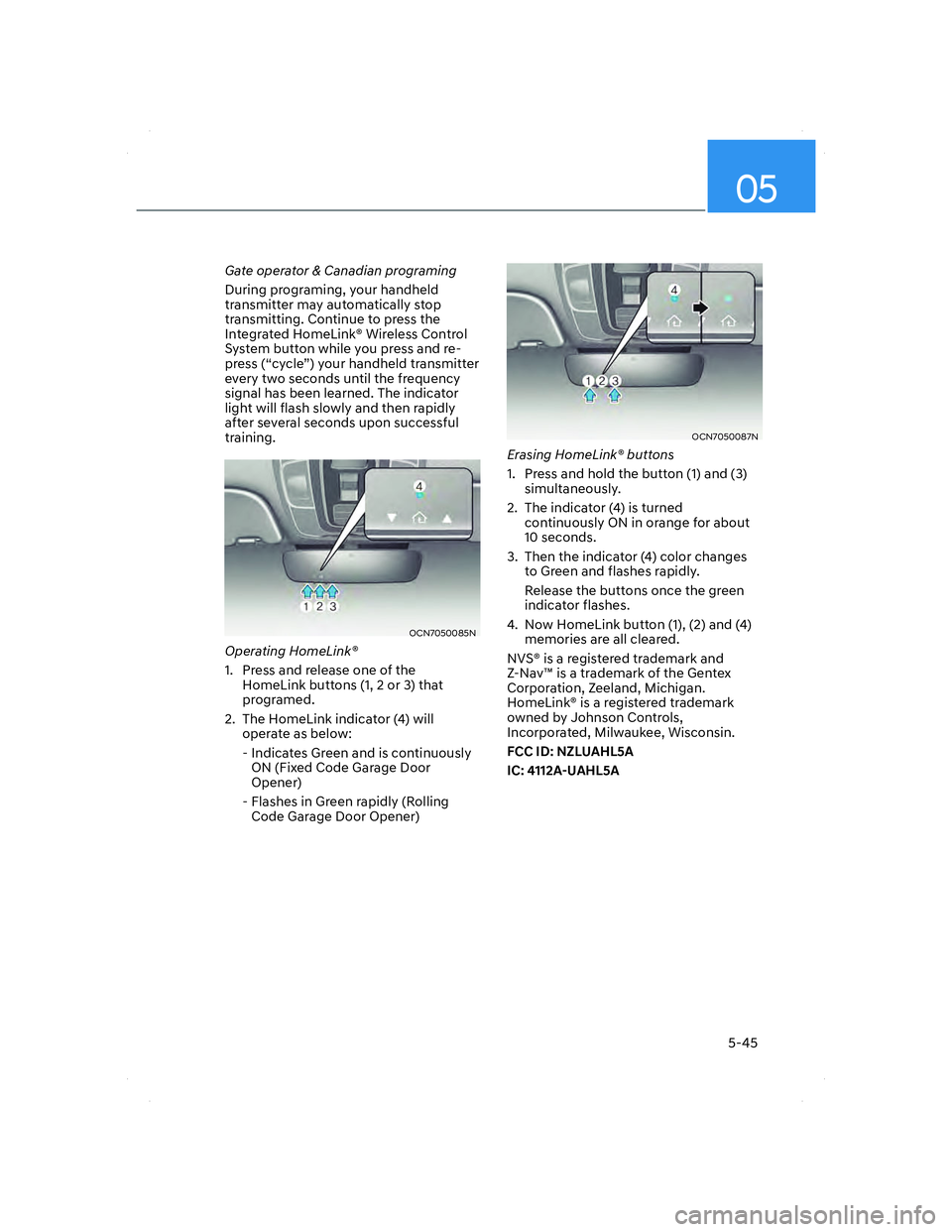

Page 181 of 584
05
5-45
Gate operator & Canadian programing
During programing, your handheld
transmitter may automatically stop
transmitting. Continue to press the
Integrated HomeLink® Wireless Control
System button while you press and re-
press (“cycle”) your handheld transmitter
every two seconds until the frequency
signal has been learned. The indicator
light will flash slowly and then rapidly
after several seconds upon successful
training.
OCN7050085NOCN7050085N
Operating HomeLink®
1. Press and release one of the
HomeLink buttons (1, 2 or 3) that
programed.
2. The HomeLink indicator (4) will
operate as below:
- Indicates Green and is continuously
ON (Fixed Code Garage Door
Opener)
- Flashes in Green rapidly (Rolling
Code Garage Door Opener)
OCN7050087NOCN7050087N
Erasing HomeLink® buttons
1. Press and hold the button (1) and (3)
simultaneously.
2. The indicator (4) is turned
continuously ON in orange for about
10 seconds.
3. Then the indicator (4) color changes
to Green and flashes rapidly.
Release the buttons once the green
indicator flashes.
4. Now HomeLink button (1), (2) and (4)
memories are all cleared.
NVS® is a registered trademark and
Z-Nav™ is a trademark of the Gentex
Corporation, Zeeland, Michigan.
HomeLink® is a registered trademark
owned by Johnson Controls,
Incorporated, Milwaukee, Wisconsin.
FCC ID: NZLUAHL5A
IC: 4112A-UAHL5A
CN7 HMA 5.indd 5-452020-12-03 9:20:49

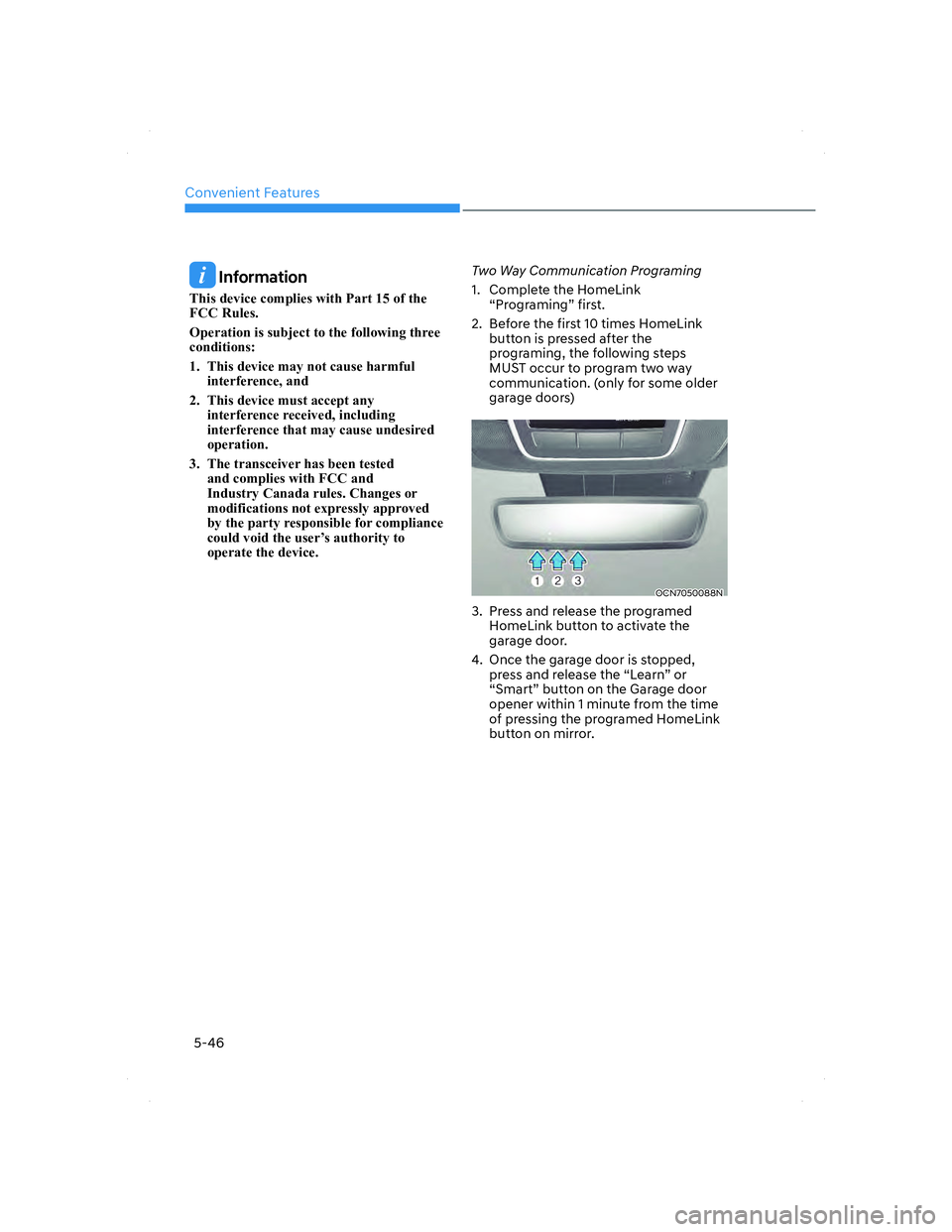

Page 182 of 584
Convenient Features
5-46
Information
7 K L V G H Y L F H F R P S O L H V Z L W K 3 D U W R I W K H
) & & 5 X O H V
2 S H U D W L R Q L V V X E M H F W W R W K H I R O O R Z L Q J W K U H H
F R Q G L W L R Q V
7 K L V G H Y L F H P D \ Q R W F D X V H K D U P I X O
L Q W H U I H U H Q F H D Q G
7 K L V G H Y L F H P X V W D F F H S W D Q \
L Q W H U I H U H Q F H U H F H L Y H G L Q F O X G L Q J
L Q W H U I H U H Q F H W K D W P D \ F D X V H X Q G H V L U H G
R S H U D W L R Q
7 K H W U D Q V F H L Y H U K D V E H H Q W H V W H G
D Q G F R P S O L H V Z L W K ) & & D Q G
, Q G X V W U \ & D Q D G D U X O H V & K D Q J H V R U
P R G L I L F D W L R Q V Q R W H [ S U H V V O \ D S S U R Y H G
E \ W K H S D U W \ U H V S R Q V L E O H I R U F R P S O L D Q F H
F R X O G Y R L G W K H X V H U

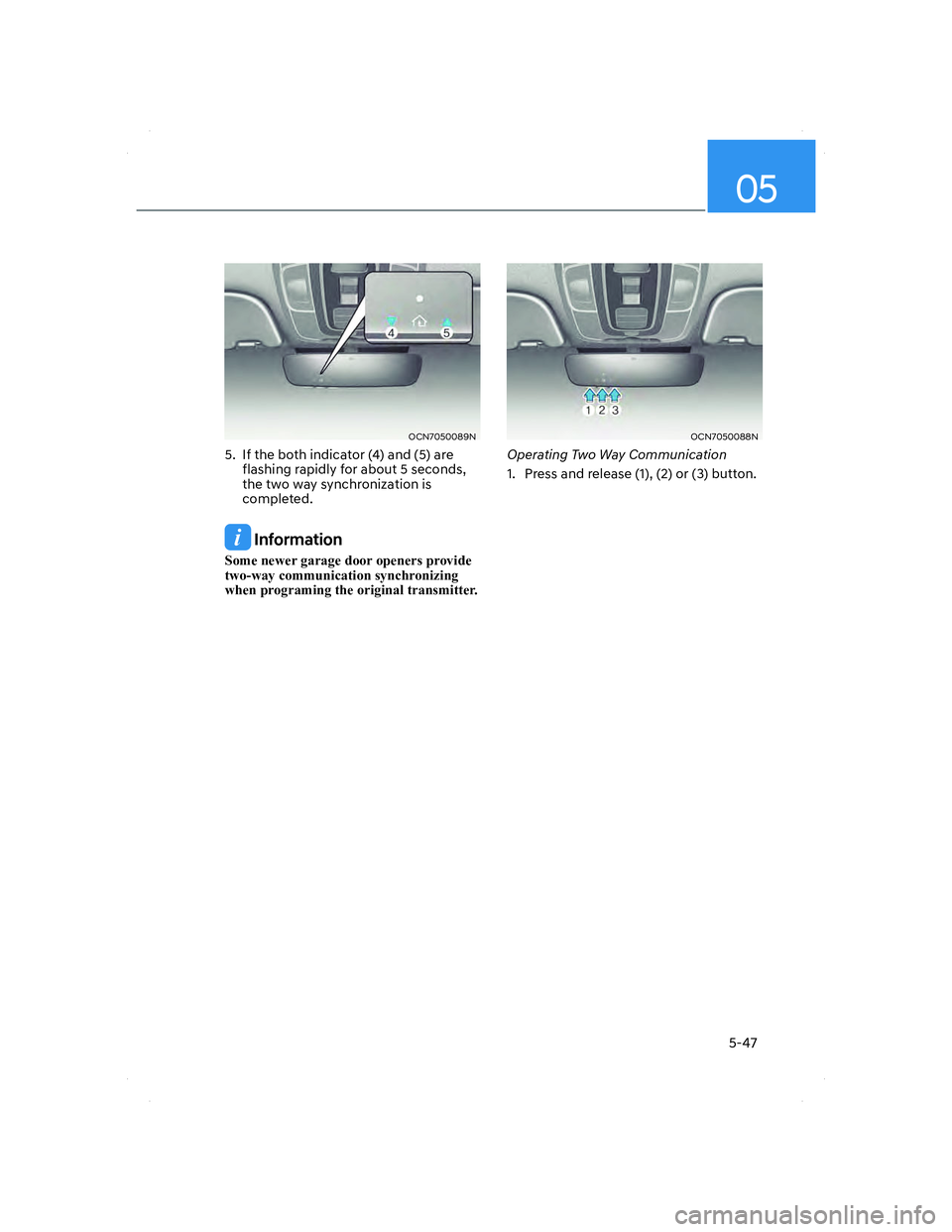

Page 183 of 584
05
5-47
OCN7050089NOCN7050089N
5. If the both indicator (4) and (5) are
flashing rapidly for about 5 seconds,
the two way synchronization is
completed.
Information
6 R P H Q H Z H U J D U D J H G R R U R S H Q H U V S U R Y L G H
W Z R Z D \ F R P P X Q L F D W L R Q V \ Q F K U R Q L ] L Q J
Z K H Q S U R J U D P L Q J W K H R U L J L Q D O W U D Q V P L W W H U
OCN7050088NOCN7050088N
Operating Two Way Communication
1. Press and release (1), (2) or (3) button.
CN7 HMA 5.indd 5-472020-12-03 9:20:49

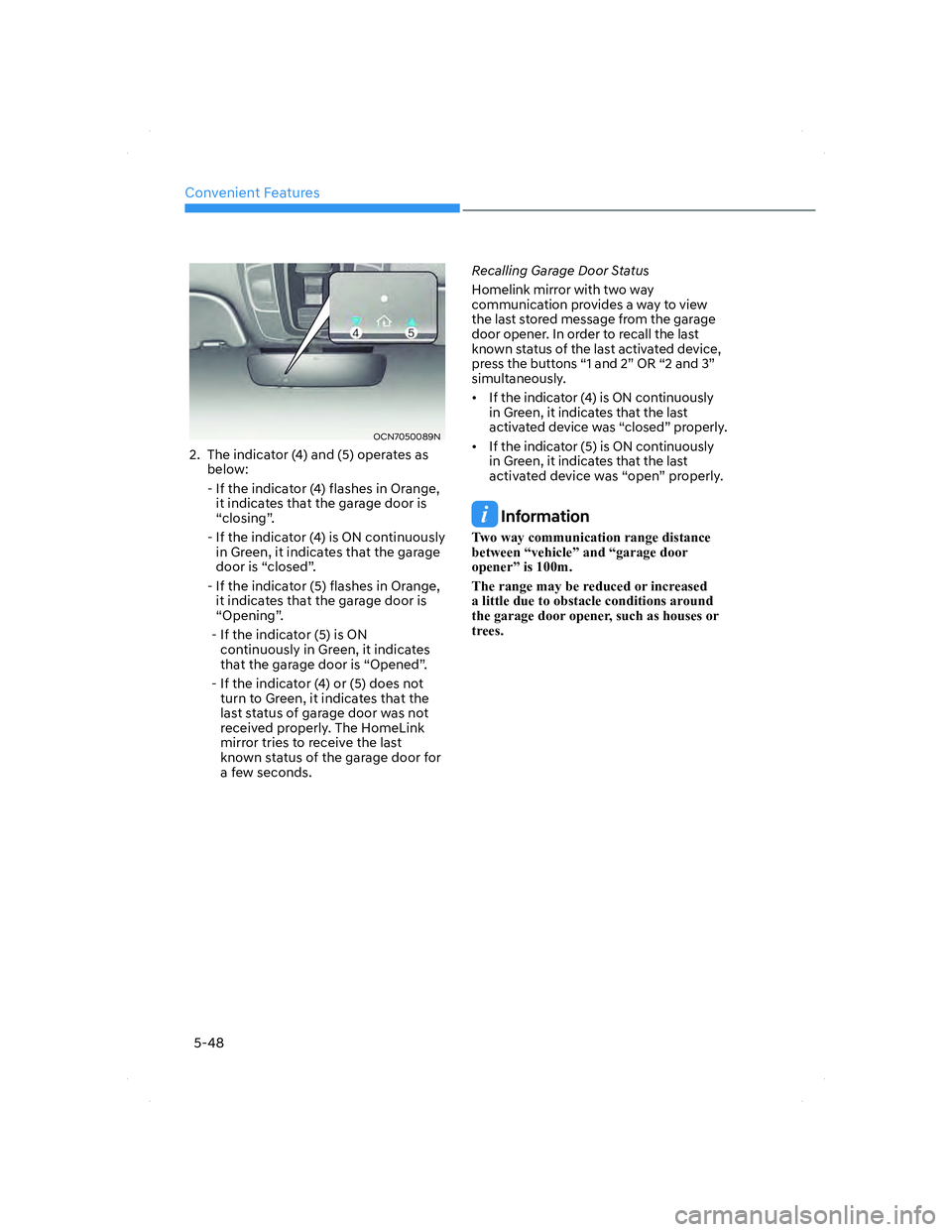

Page 184 of 584
Convenient Features
5-48
OCN7050089NOCN7050089N
2. The indicator (4) and (5) operates as
below:
- If the indicator (4) flashes in Orange,
it indicates that the garage door is
“closing”.
- If the indicator (4) is ON continuously
in Green, it indicates that the garage
door is “closed”.
- If the indicator (5) flashes in Orange,
it indicates that the garage door is
“Opening”.
- If the indicator (5) is ON
continuously in Green, it indicates
that the garage door is “Opened”.
- If the indicator (4) or (5) does not
turn to Green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last
known status of the garage door for
a few seconds.Recalling Garage Door Status
Homelink mirror with two way
communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons “1 and 2” OR “2 and 3”
simultaneously.
• If the indicator (4) is ON continuously
in Green, it indicates that the last
activated device was “closed” properly.
• If the indicator (5) is ON continuously
in Green, it indicates that the last
activated device was “open” properly.
Information
7 Z R Z D \ F R P P X Q L F D W L R Q U D Q J H G L V W D Q F H
E H W Z H H Q

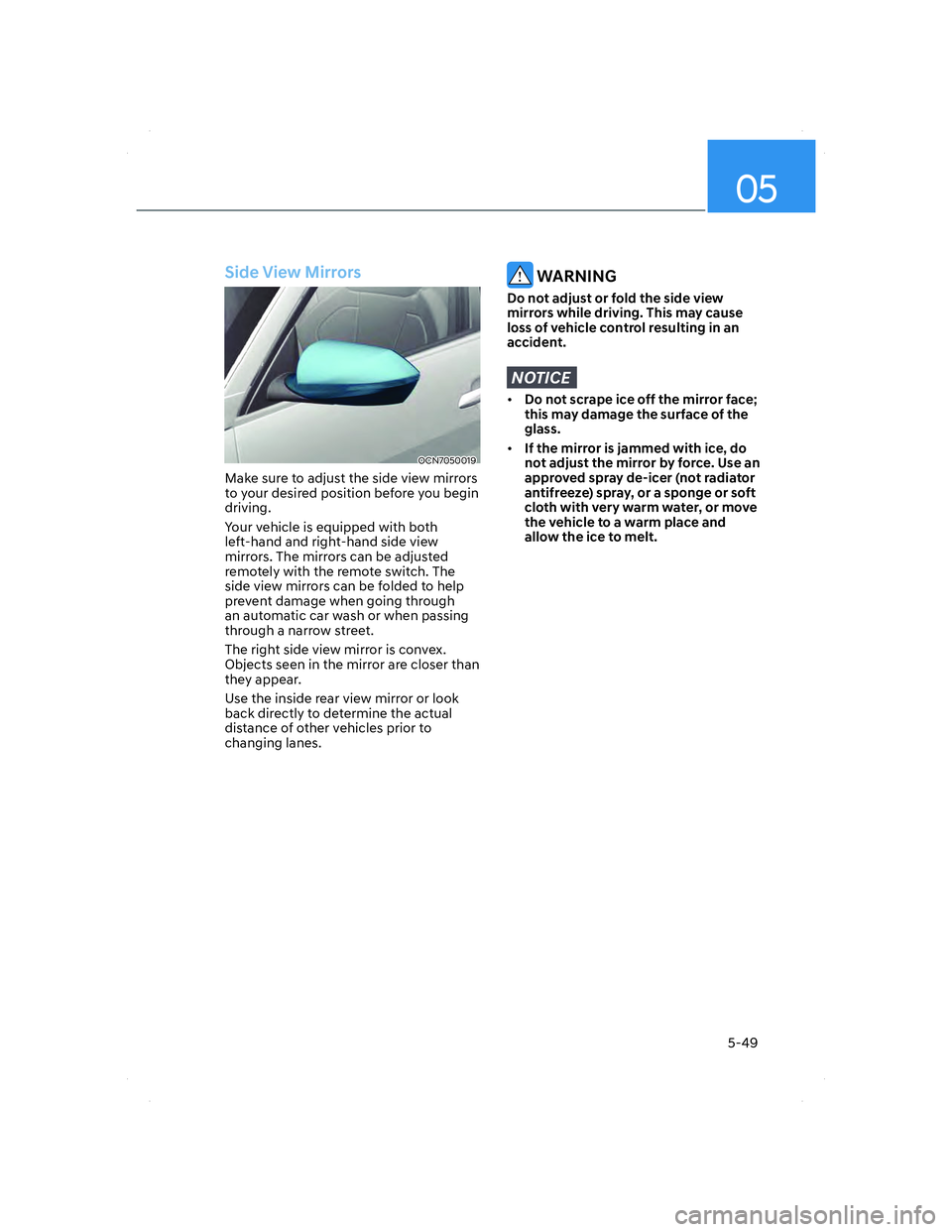

Page 185 of 584
05
5-49
Side View Mirrors
OCN7050019OCN7050019
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE
• Do not scrape ice off the mirror face;
this may damage the surface of the
glass.
• If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.
CN7 HMA 5.indd 5-492020-12-03 9:20:50

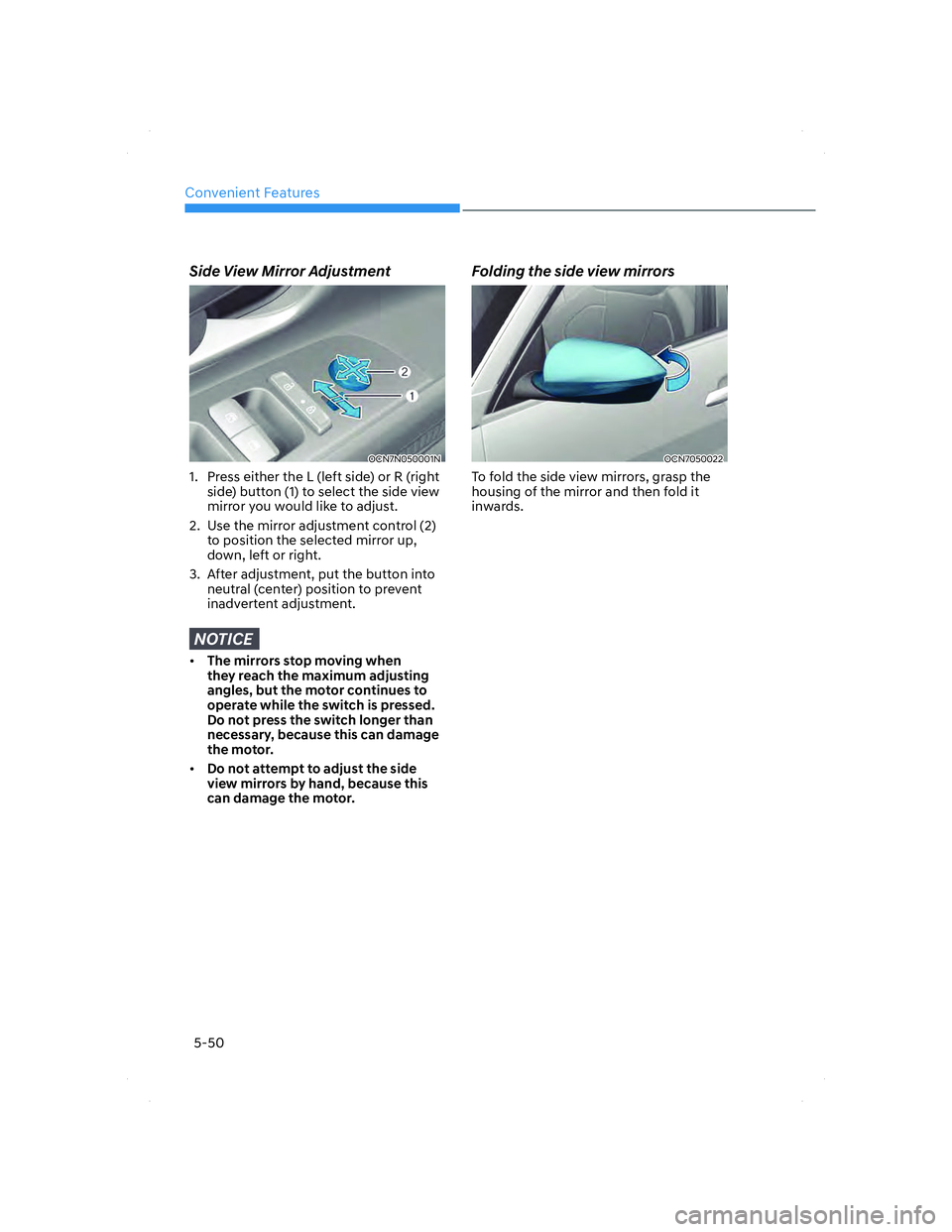

Page 186 of 584
Convenient Features
5-50
Side View Mirror Adjustment
OCN7N050001NOCN7N050001N
1. Press either the L (left side) or R (right
side) button (1) to select the side view
mirror you would like to adjust.
2. Use the mirror adjustment control (2)
to position the selected mirror up,
down, left or right.
3. After adjustment, put the button into
neutral (center) position to prevent
inadvertent adjustment.
NOTICE
• The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.
• Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side view mirrors
OCN7050022OCN7050022
To fold the side view mirrors, grasp the
housing of the mirror and then fold it
inwards.
CN7 HMA 5.indd 5-502020-12-03 9:20:50

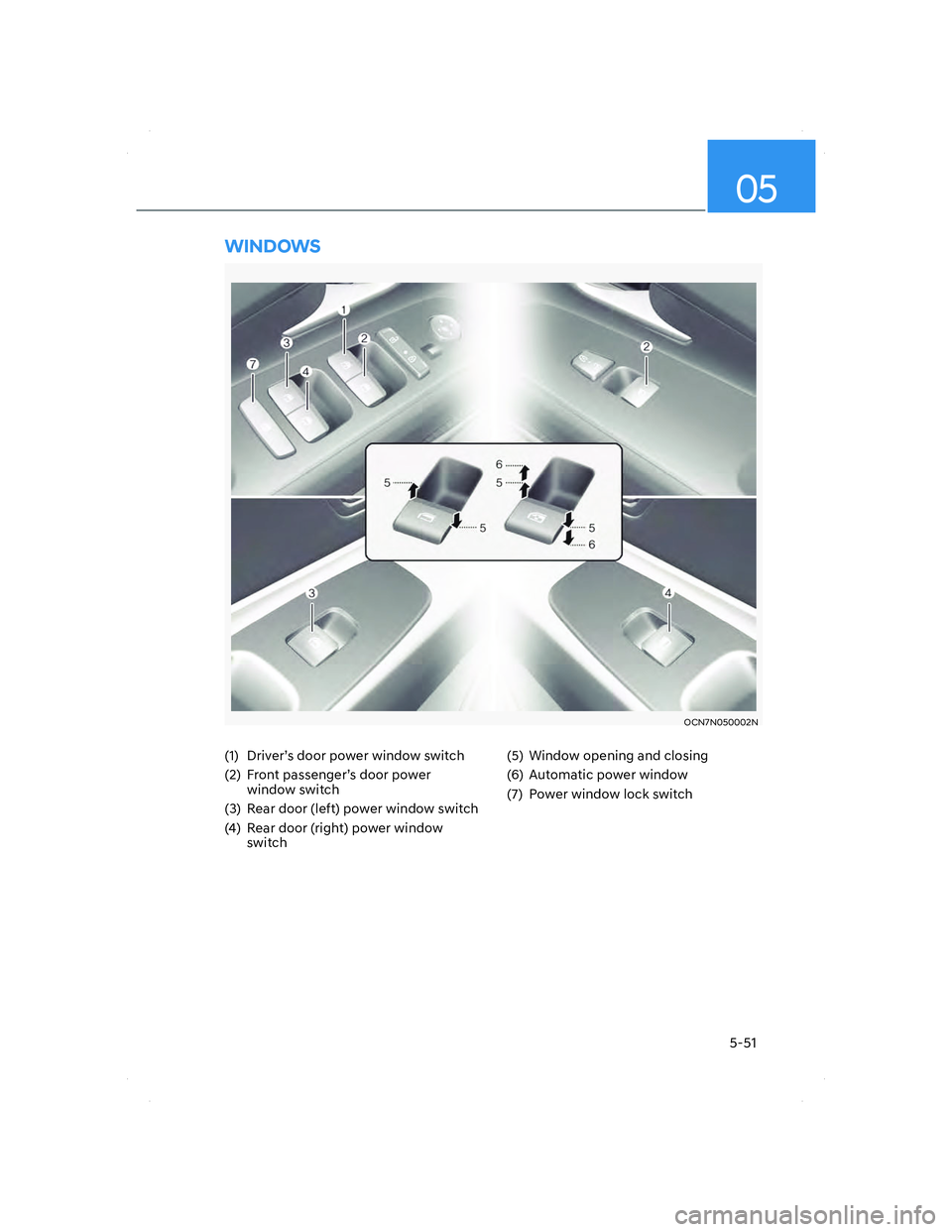

Page 187 of 584
5-51
05
(1) Driver’s door power window switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window
switch(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
WINDOWS
OCN7N050002NOCN7N050002N
CN7 HMA 5.indd 5-512020-12-03 9:20:50

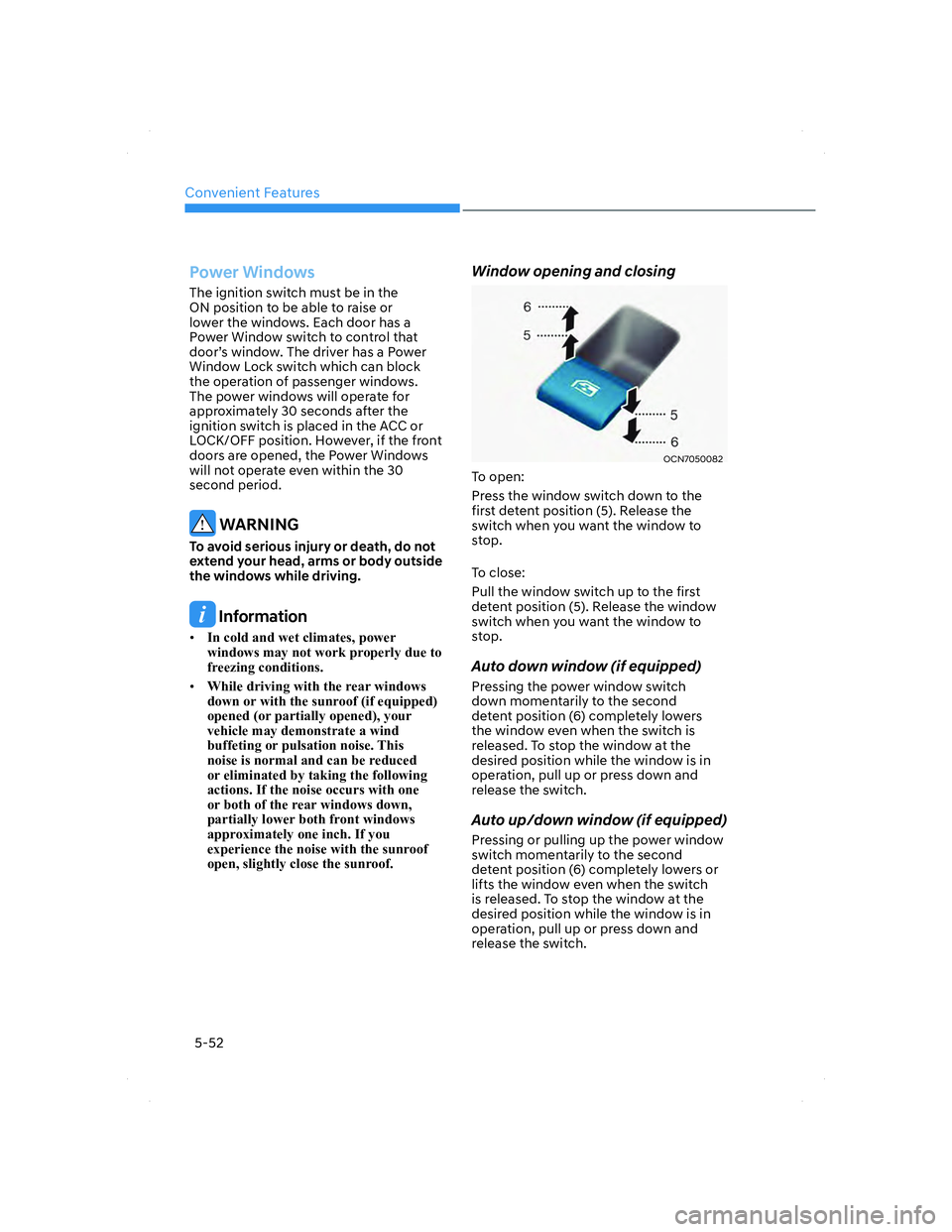

Page 188 of 584
Convenient Features
5-52
Power Windows
The ignition switch must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 30 seconds after the
ignition switch is placed in the ACC or
LOCK/OFF position. However, if the front
doors are opened, the Power Windows
will not operate even within the 30
second period.
WARNING
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows while driving.
Information
• , Q F R O G D Q G Z H W F O L P D W H V S R Z H U
Z L Q G R Z V P D \ Q R W Z R U N S U R S H U O \ G X H W R
I U H H ] L Q J F R Q G L W L R Q V
• : K L O H G U L Y L Q J Z L W K W K H U H D U Z L Q G R Z V
G R Z Q R U Z L W K W K H V X Q U R R I L I H T X L S S H G
R S H Q H G R U S D U W L D O O \ R S H Q H G \ R X U
Y H K L F O H P D \ G H P R Q V W U D W H D Z L Q G
E X I I H W L Q J R U S X O V D W L R Q Q R L V H 7 K L V
Q R L V H L V Q R U P D O D Q G F D Q E H U H G X F H G
R U H O L P L Q D W H G E \ W D N L Q J W K H I R O O R Z L Q J
D F W L R Q V , I W K H Q R L V H R F F X U V Z L W K R Q H
R U E R W K R I W K H U H D U Z L Q G R Z V G R Z Q
S D U W L D O O \ O R Z H U E R W K I U R Q W Z L Q G R Z V
D S S U R [ L P D W H O \ R Q H L Q F K , I \ R X
H [ S H U L H Q F H W K H Q R L V H Z L W K W K H V X Q U R R I
R S H Q V O L J K W O \ F O R V H W K H V X Q U R R I
Window opening and closing
OCN7050082OCN7050082
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto down window (if equipped)
Pressing the power window switch
down momentarily to the second
detent position (6) completely lowers
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
CN7 HMA 5.indd 5-522020-12-03 9:20:51

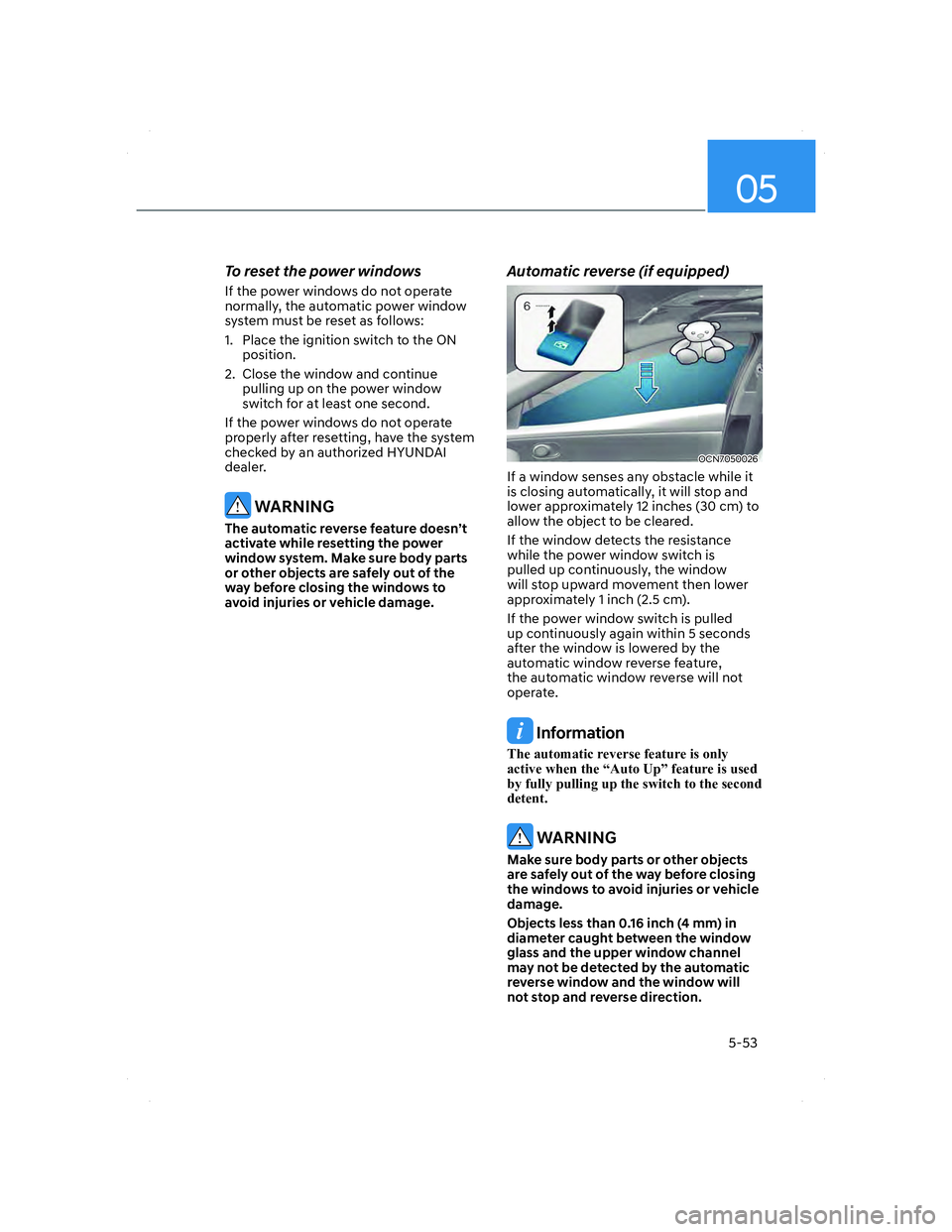

Page 189 of 584
05
5-53
To reset the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch to the ON
position.
2. Close the window and continue
pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
checked by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.
Automatic reverse (if equipped)
OCN7050026OCN7050026
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 inches (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 inch (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
7 K H D X W R P D W L F U H Y H U V H I H D W X U H L V R Q O \
D F W L Y H Z K H Q W K H

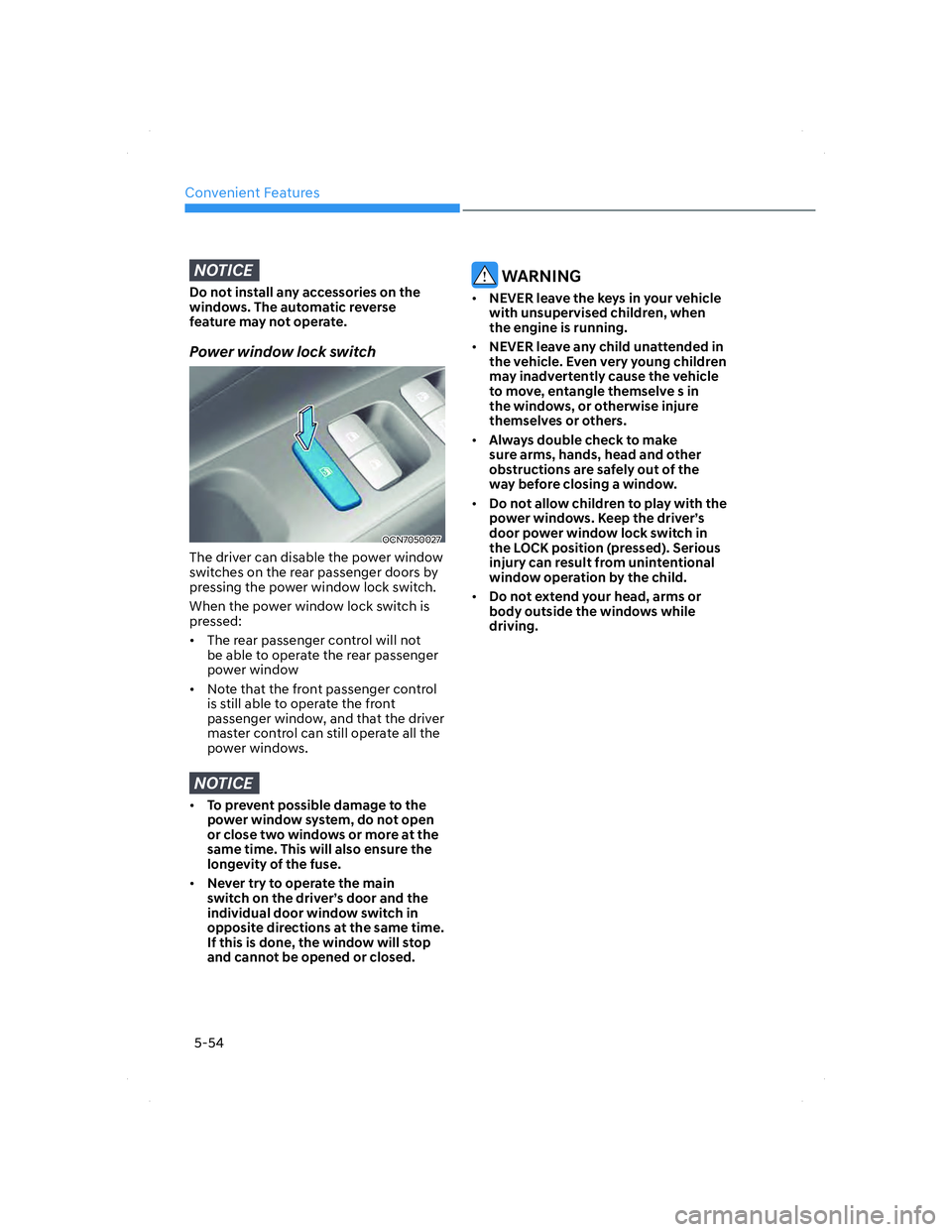

Page 190 of 584
Convenient Features
5-54
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
Power window lock switch
OCN7050027OCN7050027
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock switch.
When the power window lock switch is
pressed:
• The rear passenger control will not
be able to operate the rear passenger
power window
• Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
WARNING
• NEVER leave the keys in your vehicle
with unsupervised children, when
the engine is running.
• NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselve s in
the windows, or otherwise injure
themselves or others.
• Always double check to make
sure arms, hands, head and other
obstructions are safely out of the
way before closing a window.
• Do not allow children to play with the
power windows. Keep the driver’s
door power window lock switch in
the LOCK position (pressed). Serious
injury can result from unintentional
window operation by the child.
• Do not extend your head, arms or
body outside the windows while
driving.
CN7 HMA 5.indd 5-542020-12-03 9:20:51
