HYUNDAI ELANTRA 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: ELANTRA, Model: HYUNDAI ELANTRA 2022Pages: 584, PDF Size: 14.08 MB
Page 171 of 584
05
5-35

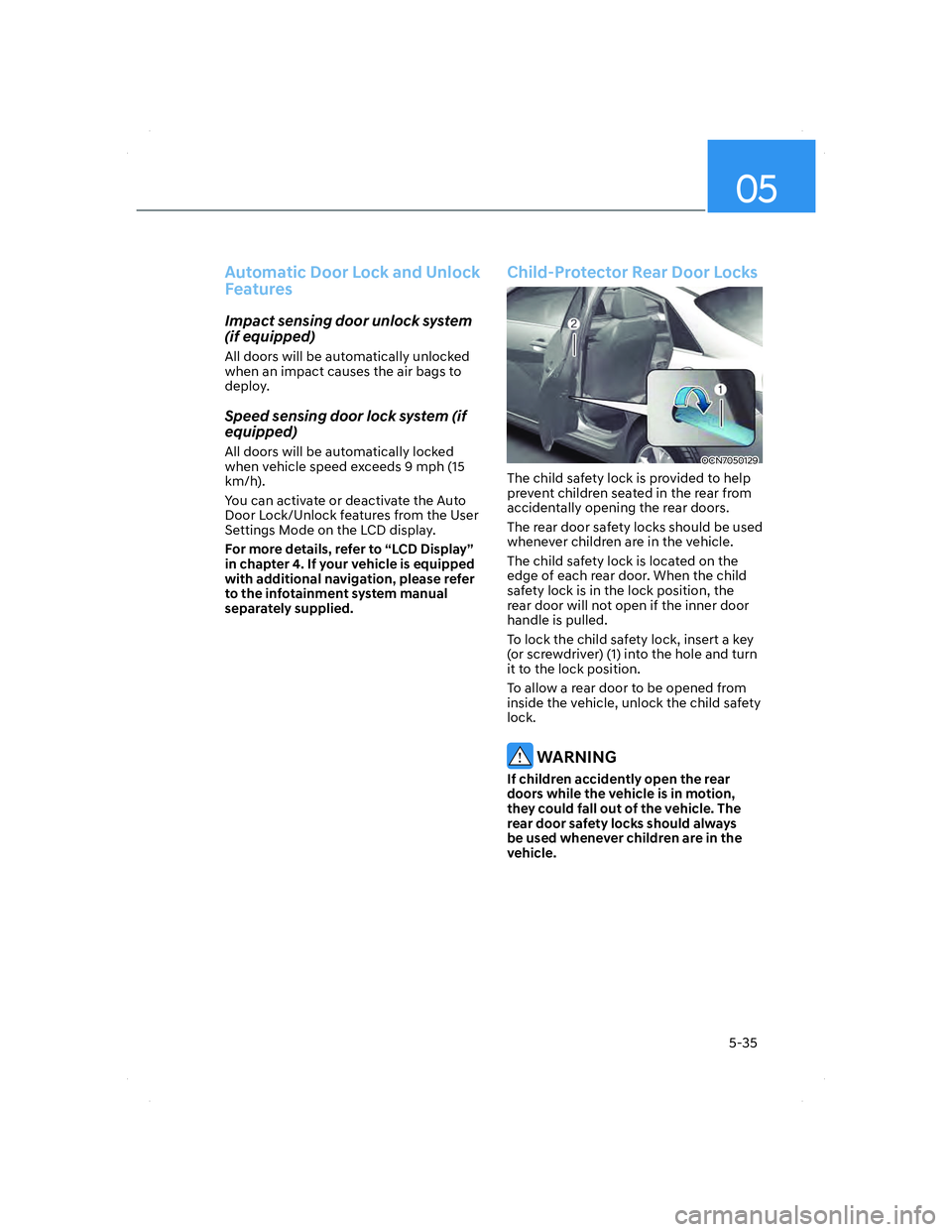

Automatic Door Lock and Unlock
Features
Impact sensing door unlock system
(if equipped)
All doors will be automatically unlocked
when an impact causes the air bags to
deploy.
Speed sensing door lock system (if
equipped)
All doors will be automatically locked
when vehicle speed exceeds 9 mph (15
km/h).
You can activate or deactivate the Auto
Door Lock/Unlock features from the User
Settings Mode on the LCD display.
For more details, refer to “LCD Display”
in chapter 4. If your vehicle is equipped
with additional navigation, please refer
to the infotainment system manual
separately supplied.
Child-Protector Rear Door Locks
OCN7050129OCN7050129
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors.
The rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the
rear door will not open if the inner door
handle is pulled.
To lock the child safety lock, insert a key
(or screwdriver) (1) into the hole and turn
it to the lock position.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING
If children accidently open the rear
doors while the vehicle is in motion,
they could fall out of the vehicle. The
rear door safety locks should always
be used whenever children are in the
vehicle.
CN7 HMA 5.indd 5-352020-12-03 9:20:47
Page 172 of 584
Convenient Features
5-36

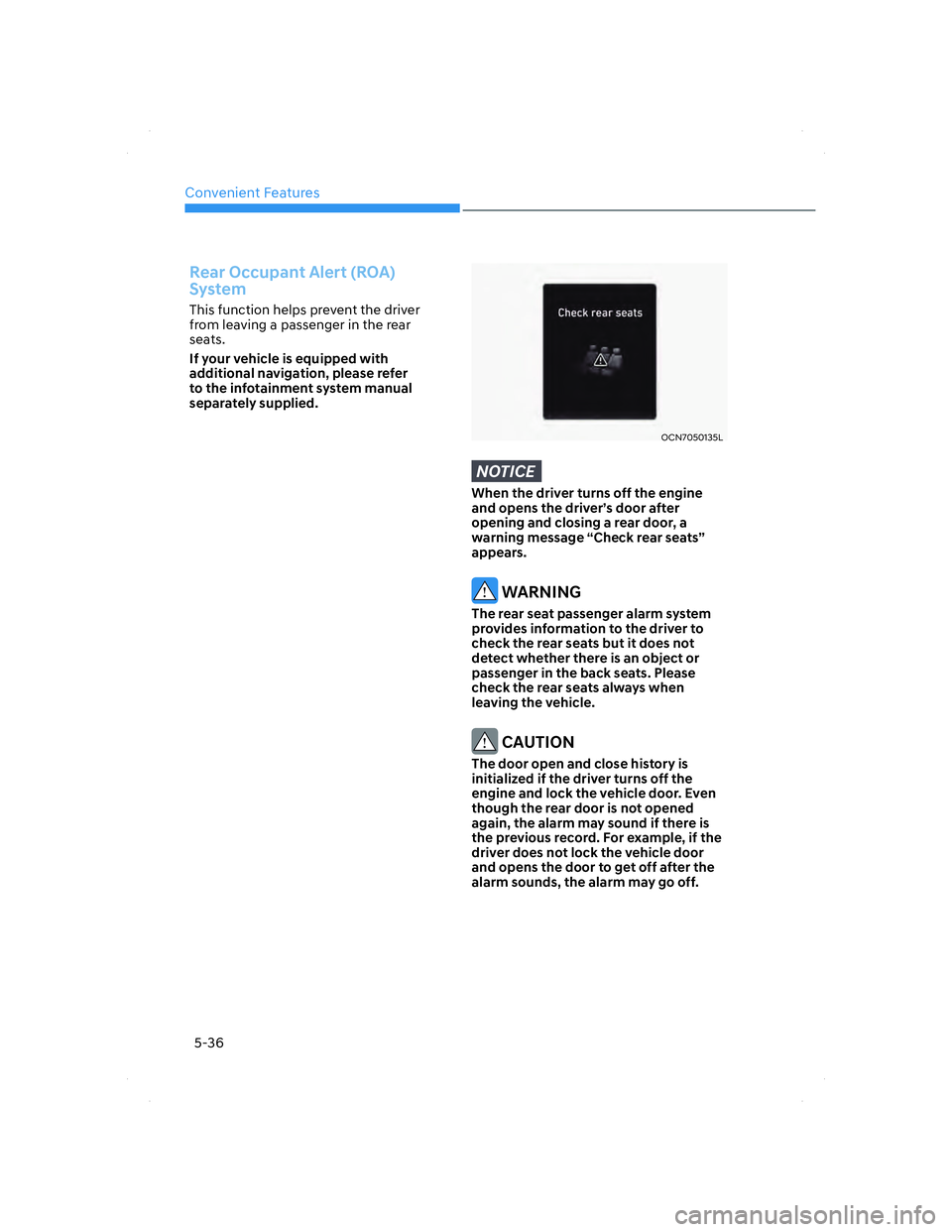

Rear Occupant Alert (ROA)
System
This function helps prevent the driver
from leaving a passenger in the rear
seats.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
OCN7050135LOCN7050135L
NOTICE
When the driver turns off the engine
and opens the driver’s door after
opening and closing a rear door, a
warning message “Check rear seats”
appears.
WARNING
The rear seat passenger alarm system
provides information to the driver to
check the rear seats but it does not
detect whether there is an object or
passenger in the back seats. Please
check the rear seats always when
leaving the vehicle.
CAUTION
The door open and close history is
initialized if the driver turns off the
engine and lock the vehicle door. Even
though the rear door is not opened
again, the alarm may sound if there is
the previous record. For example, if the
driver does not lock the vehicle door
and opens the door to get off after the
alarm sounds, the alarm may go off.
CN7 HMA 5.indd 5-362020-12-03 9:20:47
Page 173 of 584
05
5-37

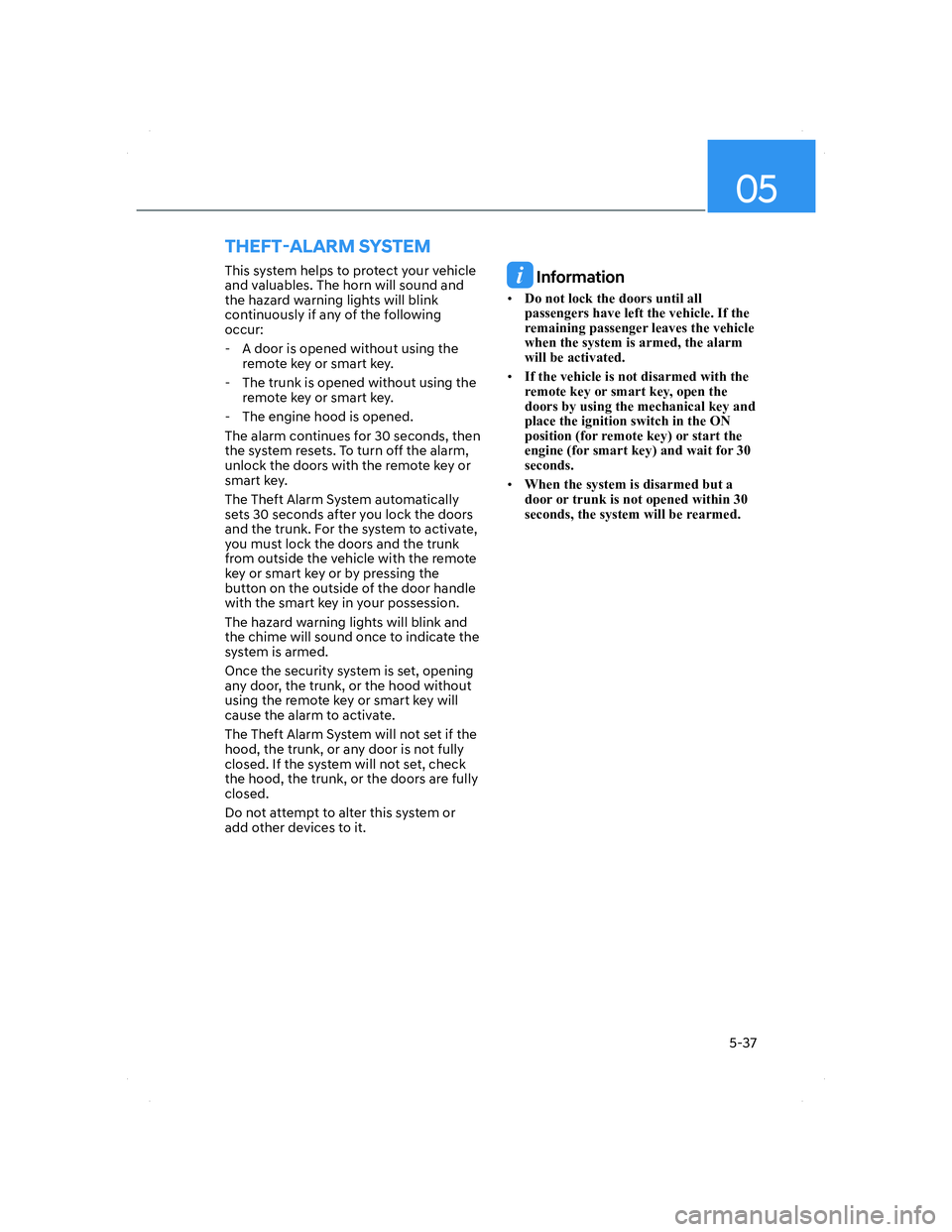

THEFT-ALARM SYSTEM
This system helps to protect your vehicle
and valuables. The horn will sound and
the hazard warning lights will blink
continuously if any of the following
occur:
- A door is opened without using the
remote key or smart key.
- The trunk is opened without using the
remote key or smart key.
- The engine hood is opened.
The alarm continues for 30 seconds, then
the system resets. To turn off the alarm,
unlock the doors with the remote key or
smart key.
The Theft Alarm System automatically
sets 30 seconds after you lock the doors
and the trunk. For the system to activate,
you must lock the doors and the trunk
from outside the vehicle with the remote
key or smart key or by pressing the
button on the outside of the door handle
with the smart key in your possession.
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the trunk, or the hood without
using the remote key or smart key will
cause the alarm to activate.
The Theft Alarm System will not set if the
hood, the trunk, or any door is not fully
closed. If the system will not set, check
the hood, the trunk, or the doors are fully
closed.
Do not attempt to alter this system or
add other devices to it. Information
• ' R Q R W O R F N W K H G R R U V X Q W L O D O O
S D V V H Q J H U V K D Y H O H I W W K H Y H K L F O H , I W K H
U H P D L Q L Q J S D V V H Q J H U O H D Y H V W K H Y H K L F O H
Z K H Q W K H V \ V W H P L V D U P H G W K H D O D U P
Z L O O E H D F W L Y D W H G
• , I W K H Y H K L F O H L V Q R W G L V D U P H G Z L W K W K H
U H P R W H N H \ R U V P D U W N H \ R S H Q W K H
G R R U V E \ X V L Q J W K H P H F K D Q L F D O N H \ D Q G
S O D F H W K H L J Q L W L R Q V Z L W F K L Q W K H 2 1
S R V L W L R Q I R U U H P R W H N H \ R U V W D U W W K H
H Q J L Q H I R U V P D U W N H \ D Q G Z D L W I R U
V H F R Q G V
• : K H Q W K H V \ V W H P L V G L V D U P H G E X W D
G R R U R U W U X Q N L V Q R W R S H Q H G Z L W K L Q
V H F R Q G V W K H V \ V W H P Z L O O E H U H D U P H G
CN7 HMA 5.indd 5-372020-12-03 9:20:47
Page 174 of 584
Convenient Features
5-38

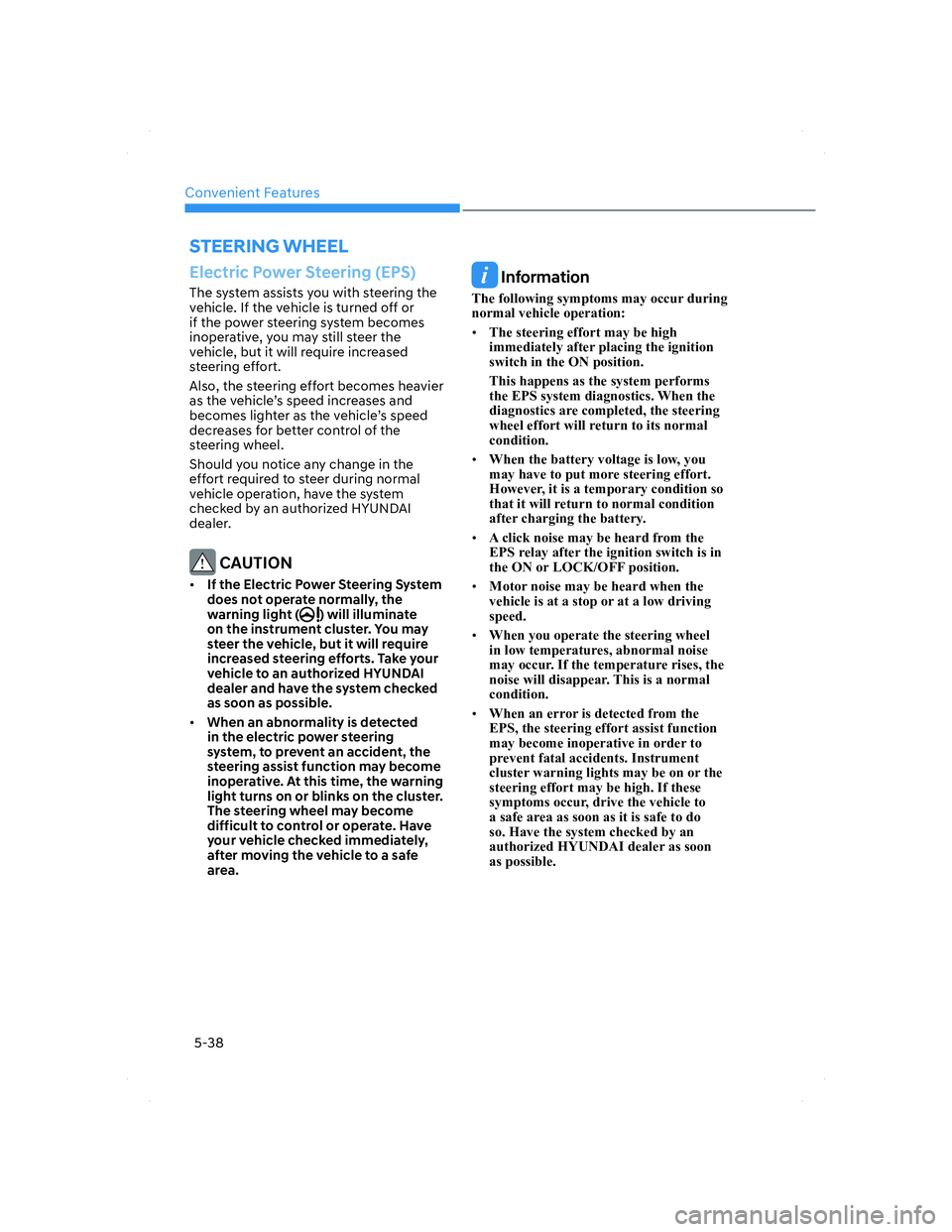

STEERING WHEEL
Electric Power Steering (EPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Also, the steering effort becomes heavier
as the vehicle’s speed increases and
becomes lighter as the vehicle’s speed
decreases for better control of the
steering wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION
• If the Electric Power Steering System
does not operate normally, the
warning light (
) will illuminate
on the instrument cluster. You may
steer the vehicle, but it will require
increased steering efforts. Take your
vehicle to an authorized HYUNDAI
dealer and have the system checked
as soon as possible.
• When an abnormality is detected
in the electric power steering
system, to prevent an accident, the
steering assist function may become
inoperative. At this time, the warning
light turns on or blinks on the cluster.
The steering wheel may become
difficult to control or operate. Have
your vehicle checked immediately,
after moving the vehicle to a safe
area.
Information
7 K H I R O O R Z L Q J V \ P S W R P V P D \ R F F X U G X U L Q J
Q R U P D O Y H K L F O H R S H U D W L R Q
• 7 K H V W H H U L Q J H I I R U W P D \ E H K L J K
L P P H G L D W H O \ D I W H U S O D F L Q J W K H L J Q L W L R Q
V Z L W F K L Q W K H 2 1 S R V L W L R Q
7 K L V K D S S H Q V D V W K H V \ V W H P S H U I R U P V
W K H ( 3 6 V \ V W H P G L D J Q R V W L F V : K H Q W K H
G L D J Q R V W L F V D U H F R P S O H W H G W K H V W H H U L Q J
Z K H H O H I I R U W Z L O O U H W X U Q W R L W V Q R U P D O
F R Q G L W L R Q
• : K H Q W K H E D W W H U \ Y R O W D J H L V O R Z \ R X
P D \ K D Y H W R S X W P R U H V W H H U L Q J H I I R U W
+ R Z H Y H U L W L V D W H P S R U D U \ F R Q G L W L R Q V R
W K D W L W Z L O O U H W X U Q W R Q R U P D O F R Q G L W L R Q
D I W H U F K D U J L Q J W K H E D W W H U \
• $ F O L F N Q R L V H P D \ E H K H D U G I U R P W K H
( 3 6 U H O D \ D I W H U W K H L J Q L W L R Q V Z L W F K L V L Q
W K H 2 1 R U / 2 & . 2 ) ) S R V L W L R Q
• 0 R W R U Q R L V H P D \ E H K H D U G Z K H Q W K H
Y H K L F O H L V D W D V W R S R U D W D O R Z G U L Y L Q J
V S H H G
• : K H Q \ R X R S H U D W H W K H V W H H U L Q J Z K H H O
L Q O R Z W H P S H U D W X U H V D E Q R U P D O Q R L V H
P D \ R F F X U , I W K H W H P S H U D W X U H U L V H V W K H
Q R L V H Z L O O G L V D S S H D U 7 K L V L V D Q R U P D O
F R Q G L W L R Q
• : K H Q D Q H U U R U L V G H W H F W H G I U R P W K H
( 3 6 W K H V W H H U L Q J H I I R U W D V V L V W I X Q F W L R Q
P D \ E H F R P H L Q R S H U D W L Y H L Q R U G H U W R
S U H Y H Q W I D W D O D F F L G H Q W V , Q V W U X P H Q W
F O X V W H U Z D U Q L Q J O L J K W V P D \ E H R Q R U W K H
V W H H U L Q J H I I R U W P D \ E H K L J K , I W K H V H
V \ P S W R P V R F F X U G U L Y H W K H Y H K L F O H W R
D V D I H D U H D D V V R R Q D V L W L V V D I H W R G R
V R + D Y H W K H V \ V W H P F K H F N H G E \ D Q
D X W K R U L ] H G + < 8 1 ' $ , G H D O H U D V V R R Q
D V S R V V L E O H
CN7 HMA 5.indd 5-382020-12-03 9:20:48
Page 175 of 584
05
5-39

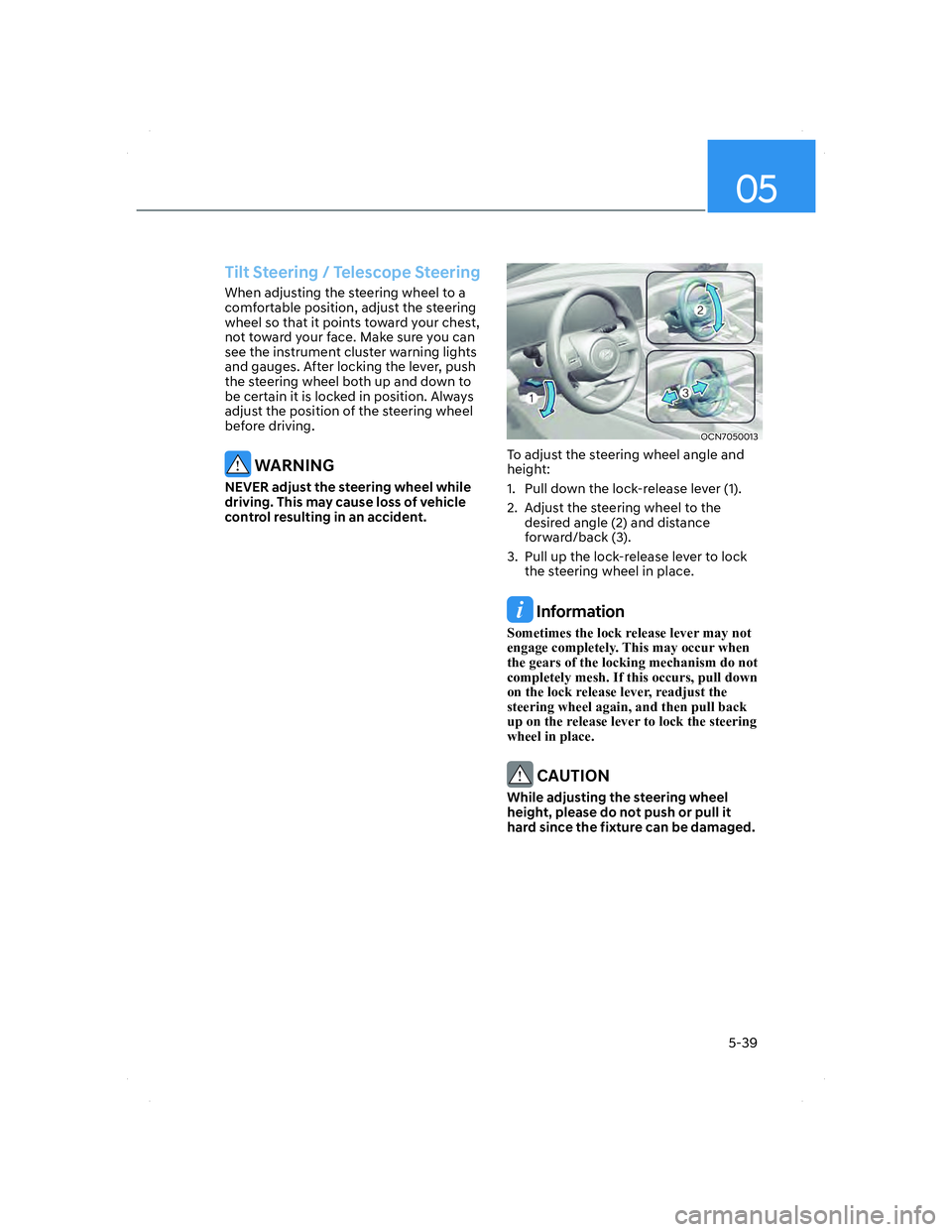

Tilt Steering / Telescope Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After locking the lever, push
the steering wheel both up and down to
be certain it is locked in position. Always
adjust the position of the steering wheel
before driving.
WARNING
NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.
OCN7050013OCN7050013
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and distance
forward/back (3).
3. Pull up the lock-release lever to lock
the steering wheel in place.
Information
6 R P H W L P H V W K H O R F N U H O H D V H O H Y H U P D \ Q R W
H Q J D J H F R P S O H W H O \ 7 K L V P D \ R F F X U Z K H Q
W K H J H D U V R I W K H O R F N L Q J P H F K D Q L V P G R Q R W
F R P S O H W H O \ P H V K , I W K L V R F F X U V S X O O G R Z Q
R Q W K H O R F N U H O H D V H O H Y H U U H D G M X V W W K H
V W H H U L Q J Z K H H O D J D L Q D Q G W K H Q S X O O E D F N
X S R Q W K H U H O H D V H O H Y H U W R O R F N W K H V W H H U L Q J
Z K H H O L Q S O D F H
CAUTION
While adjusting the steering wheel
height, please do not push or pull it
hard since the fixture can be damaged.
CN7 HMA 5.indd 5-392020-12-03 9:20:48
Page 176 of 584
Convenient Features
5-40

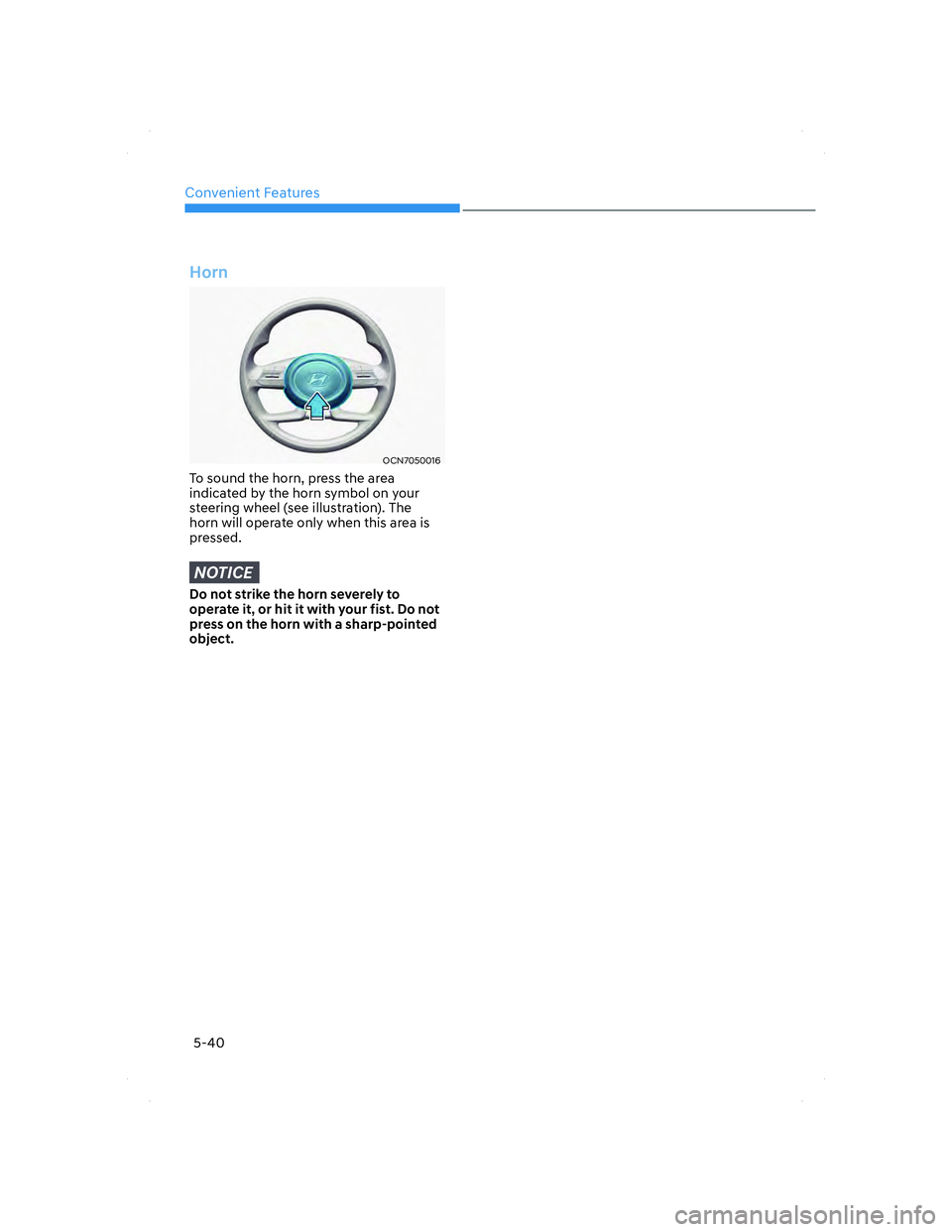

Horn
OCN7050016OCN7050016
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely to
operate it, or hit it with your fist. Do not
press on the horn with a sharp-pointed
object.
CN7 HMA 5.indd 5-402020-12-03 9:20:48
Page 177 of 584
05
5-41

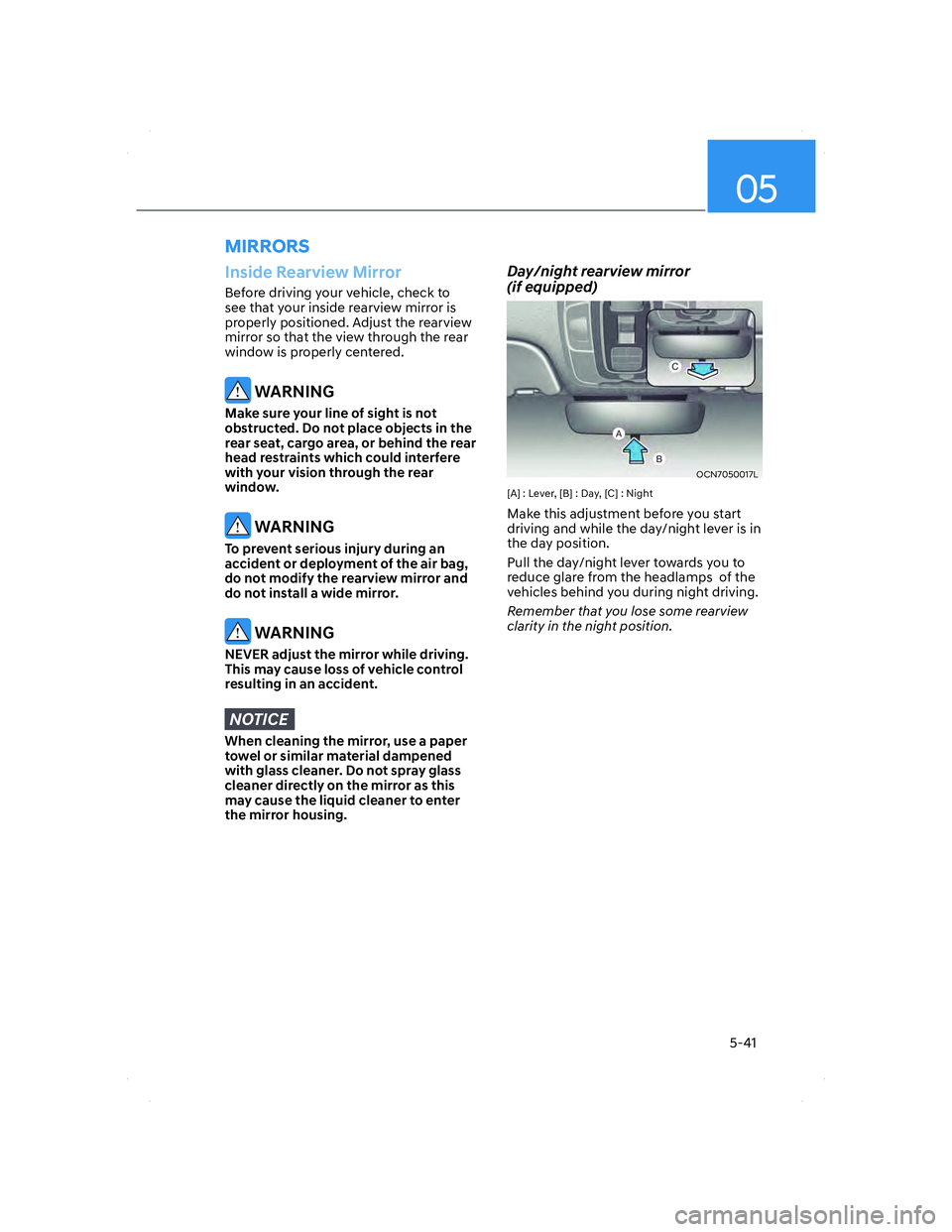

MIRRORS
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraints which could interfere
with your vision through the rear
window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror
(if equipped)
OCN7050017LOCN7050017L
[A] : Lever, [B] : Day, [C] : Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlamps of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
CN7 HMA 5.indd 5-412020-12-03 9:20:48
Page 178 of 584
Convenient Features
5-42

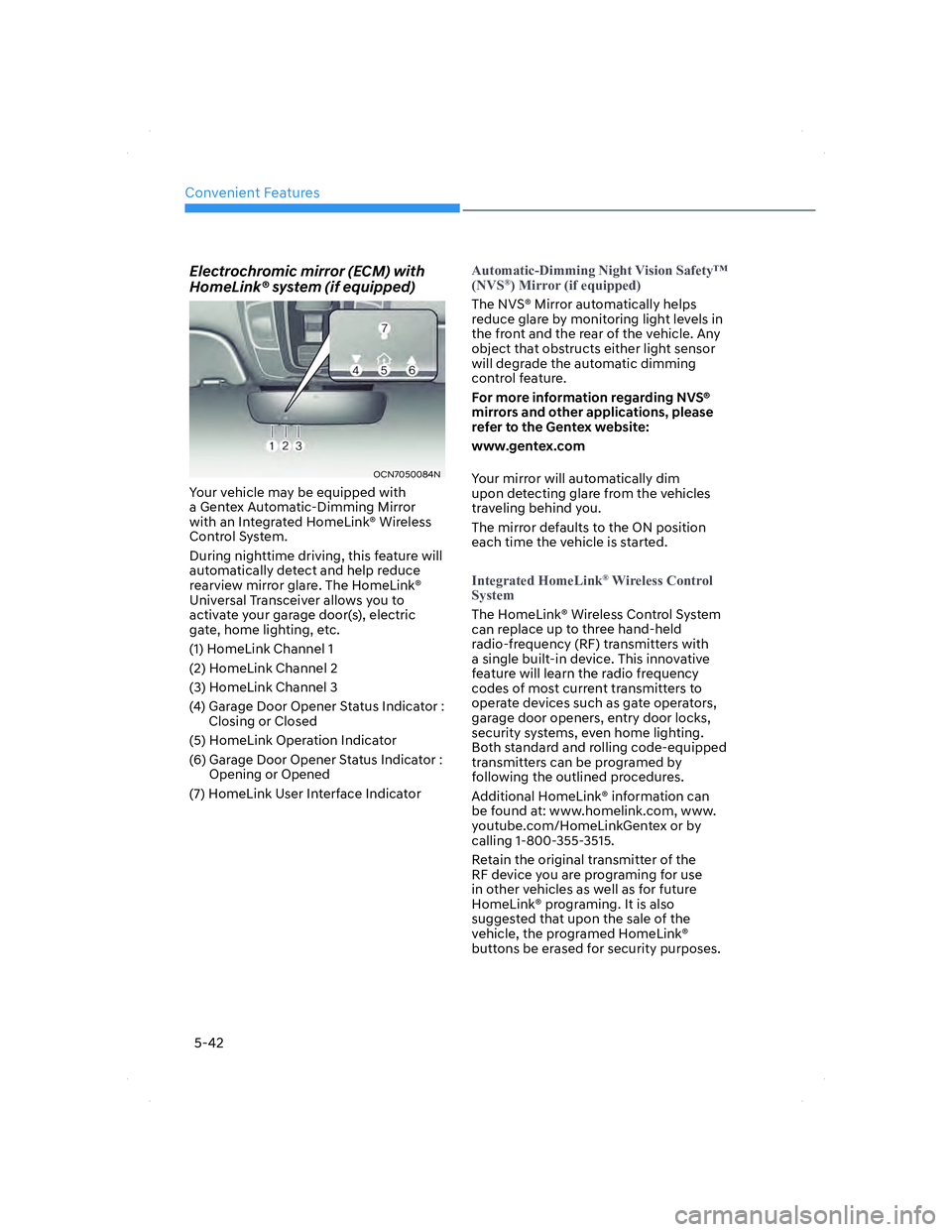

Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
OCN7050084NOCN7050084N
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature will
automatically detect and help reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4) Garage Door Opener Status Indicator :
Closing or Closed
(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator :
Opening or Opened
(7) HomeLink User Interface Indicator
$ X W R P D W L F ' L P P L Q J 1 L J K W 9 L V L R Q 6 D I H W \
Page 179 of 584
05
5-43

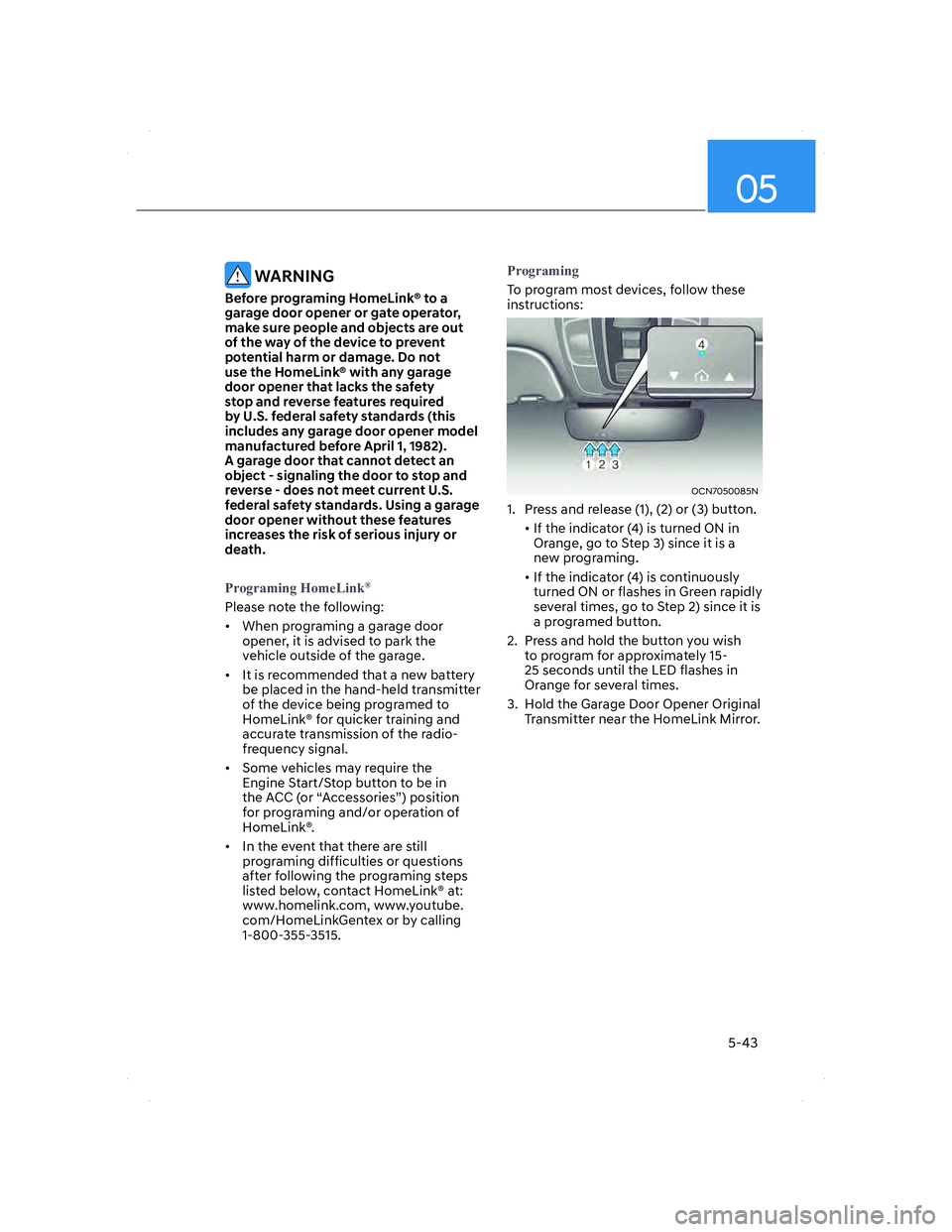

WARNING
Before programing HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
use the HomeLink® with any garage
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
3 U R J U D P L Q J + R P H / L Q N Š
Please note the following:
• When programing a garage door
opener, it is advised to park the
vehicle outside of the garage.
• It is recommended that a new battery
be placed in the hand-held transmitter
of the device being programed to
HomeLink® for quicker training and
accurate transmission of the radio-
frequency signal.
• Some vehicles may require the
Engine Start/Stop button to be in
the ACC (or “Accessories”) position
for programing and/or operation of
HomeLink®.
• In the event that there are still
programing difficulties or questions
after following the programing steps
listed below, contact HomeLink® at:
www.homelink.com, www.youtube.
com/HomeLinkGentex or by calling
1-800-355-3515.
3 U R J U D P L Q J
To program most devices, follow these
instructions:
OCN7050085NOCN7050085N
1. Press and release (1), (2) or (3) button.
• If the indicator (4) is turned ON in
Orange, go to Step 3) since it is a
new programing.
• If the indicator (4) is continuously
turned ON or flashes in Green rapidly
several times, go to Step 2) since it is
a programed button.
2. Press and hold the button you wish
to program for approximately 15-
25 seconds until the LED flashes in
Orange for several times.
3. Hold the Garage Door Opener Original
Transmitter near the HomeLink Mirror.
CN7 HMA 5.indd 5-432020-12-03 9:20:48
Page 180 of 584
Convenient Features
5-44
OCN7050086NOCN7050086N

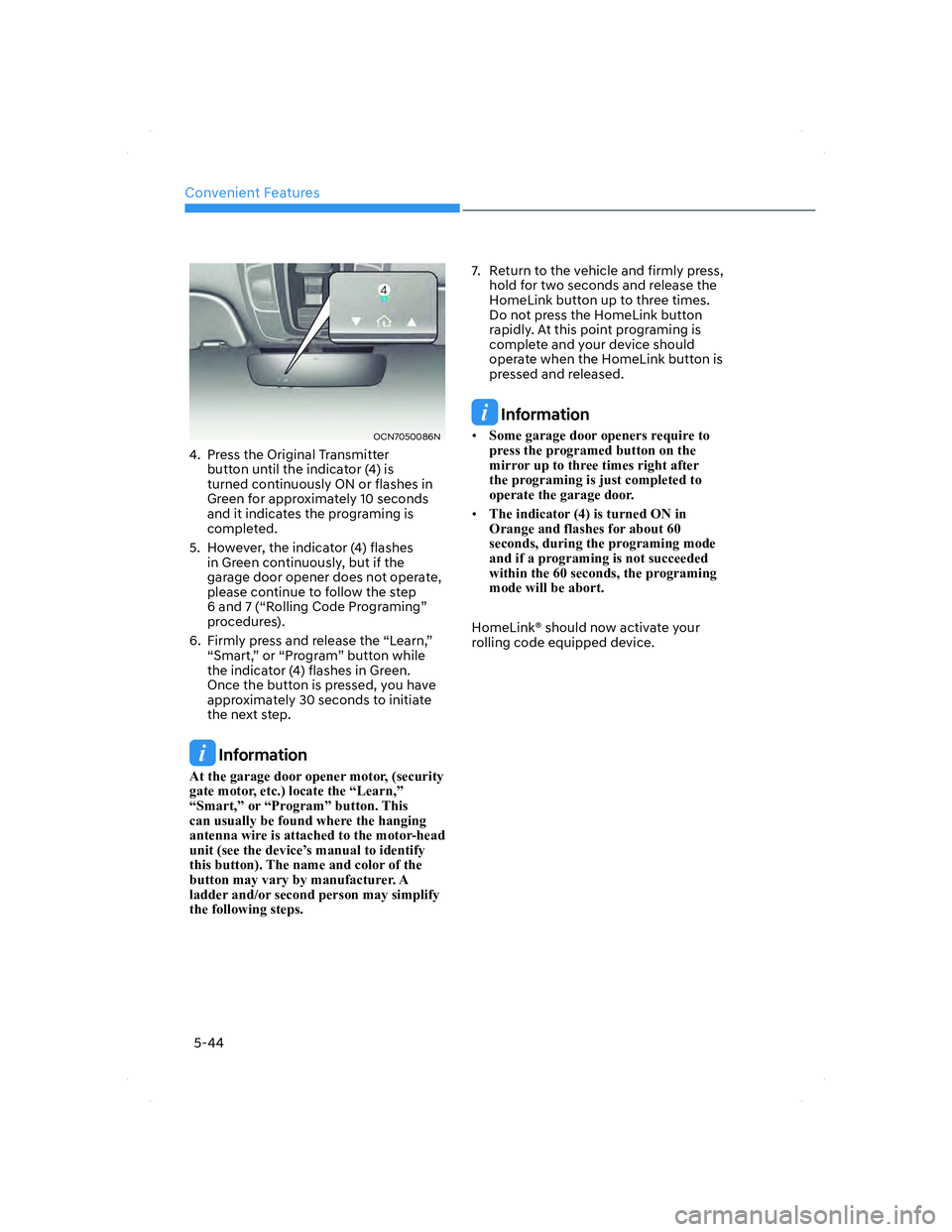

4. Press the Original Transmitter
button until the indicator (4) is
turned continuously ON or flashes in
Green for approximately 10 seconds
and it indicates the programing is
completed.
5. However, the indicator (4) flashes
in Green continuously, but if the
garage door opener does not operate,
please continue to follow the step
6 and 7 (“Rolling Code Programing”
procedures).
6. Firmly press and release the “Learn,”
“Smart,” or “Program” button while
the indicator (4) flashes in Green.
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
Information
$ W W K H J D U D J H G R R U R S H Q H U P R W R U V H F X U L W \
J D W H P R W R U H W F O R F D W H W K H
