HYUNDAI ELANTRA 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: ELANTRA, Model: HYUNDAI ELANTRA 2022Pages: 584, PDF Size: 14.08 MB
Page 231 of 584
05
5-95

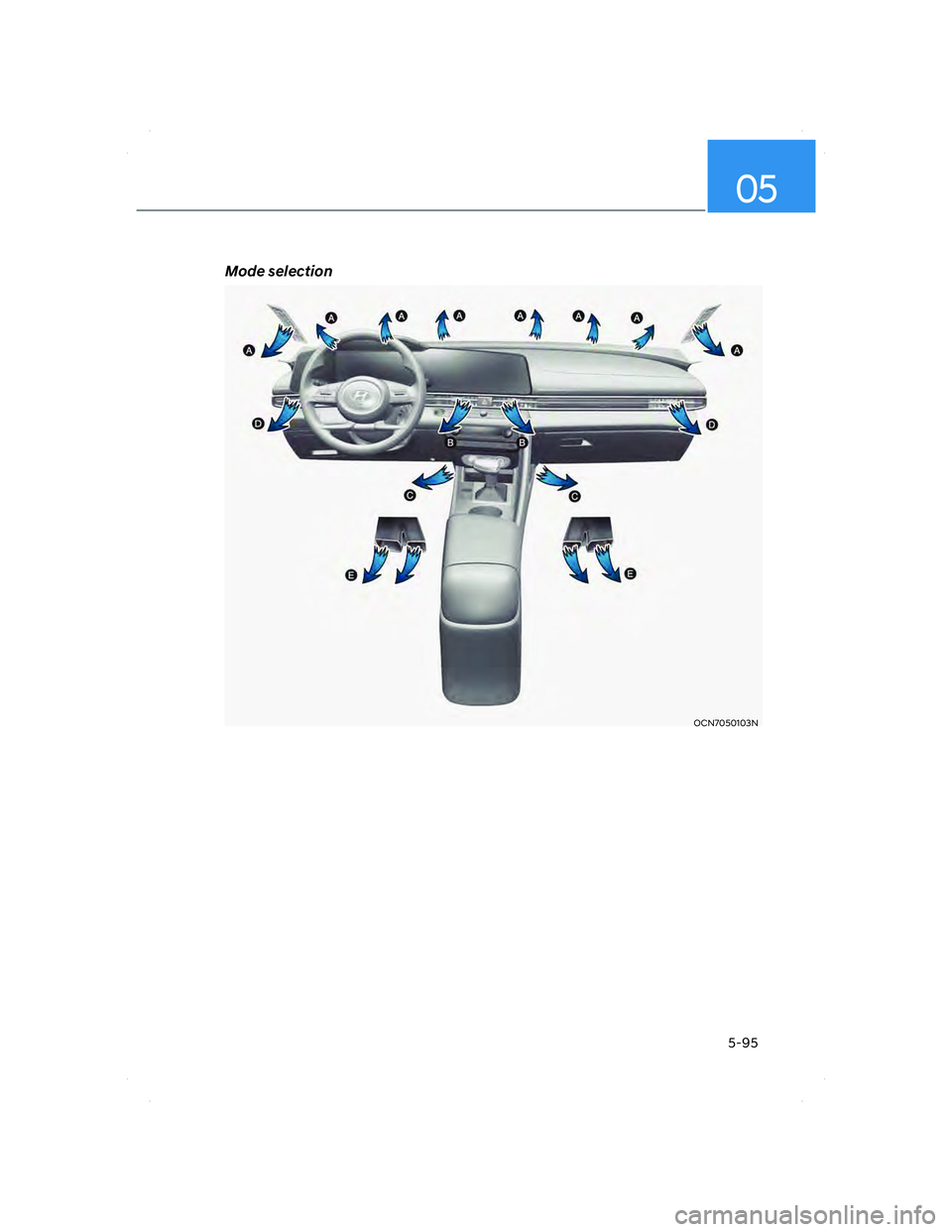

Mode selection
OCN7050103NOCN7050103N
CN7 HMA 5.indd 5-952020-12-03 9:21:07
Page 232 of 584

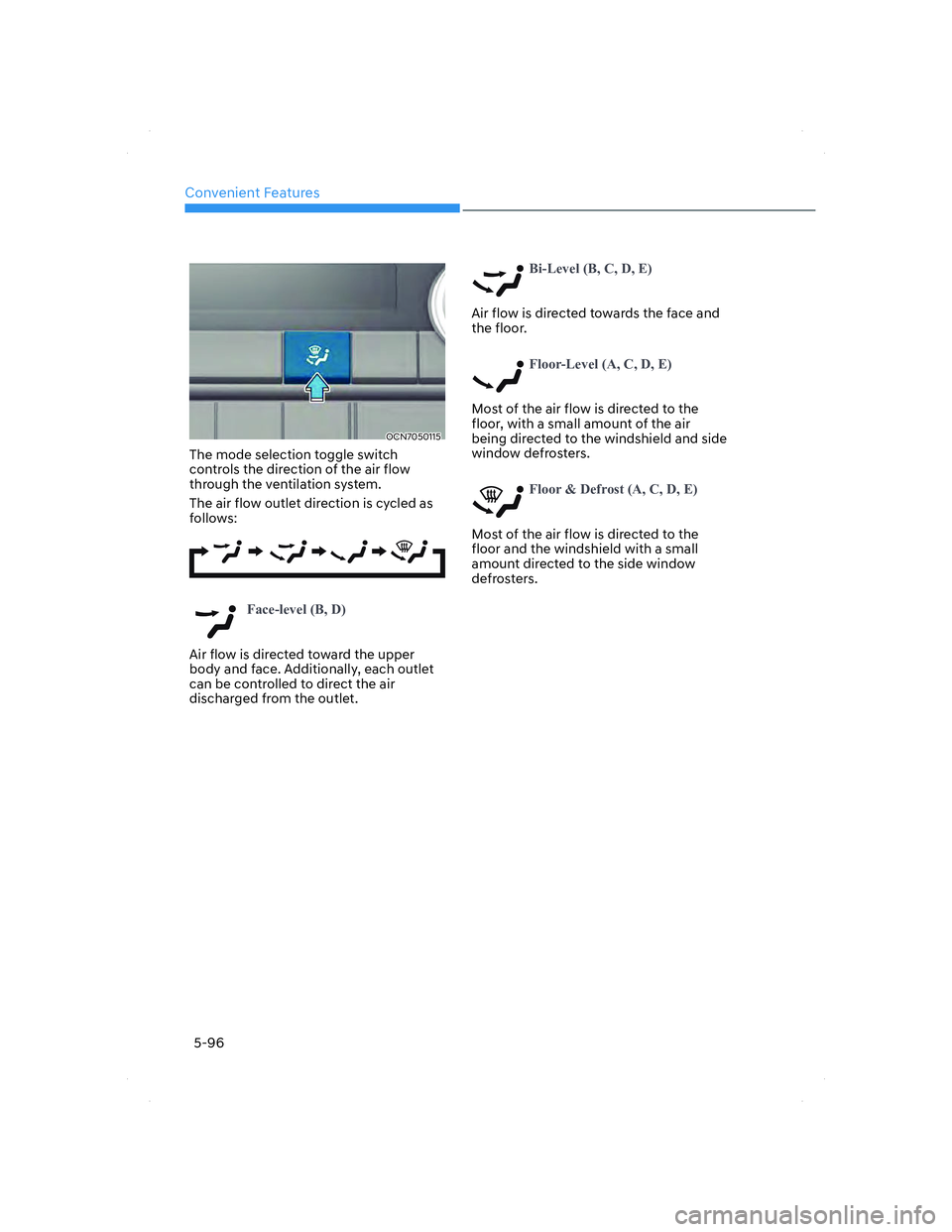

Convenient Features
5-96
OCN7050115OCN7050115
The mode selection toggle switch
controls the direction of the air flow
through the ventilation system.
The air flow outlet direction is cycled as
follows:
) D F H O H Y H O % '
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
% L / H Y H O % & ' (
Air flow is directed towards the face and
the floor.
) O R R U / H Y H O $ & ' (
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
) O R R U ' H I U R V W $ & ' (
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
CN7 HMA 5.indd 5-962020-12-03 9:21:07
Page 233 of 584

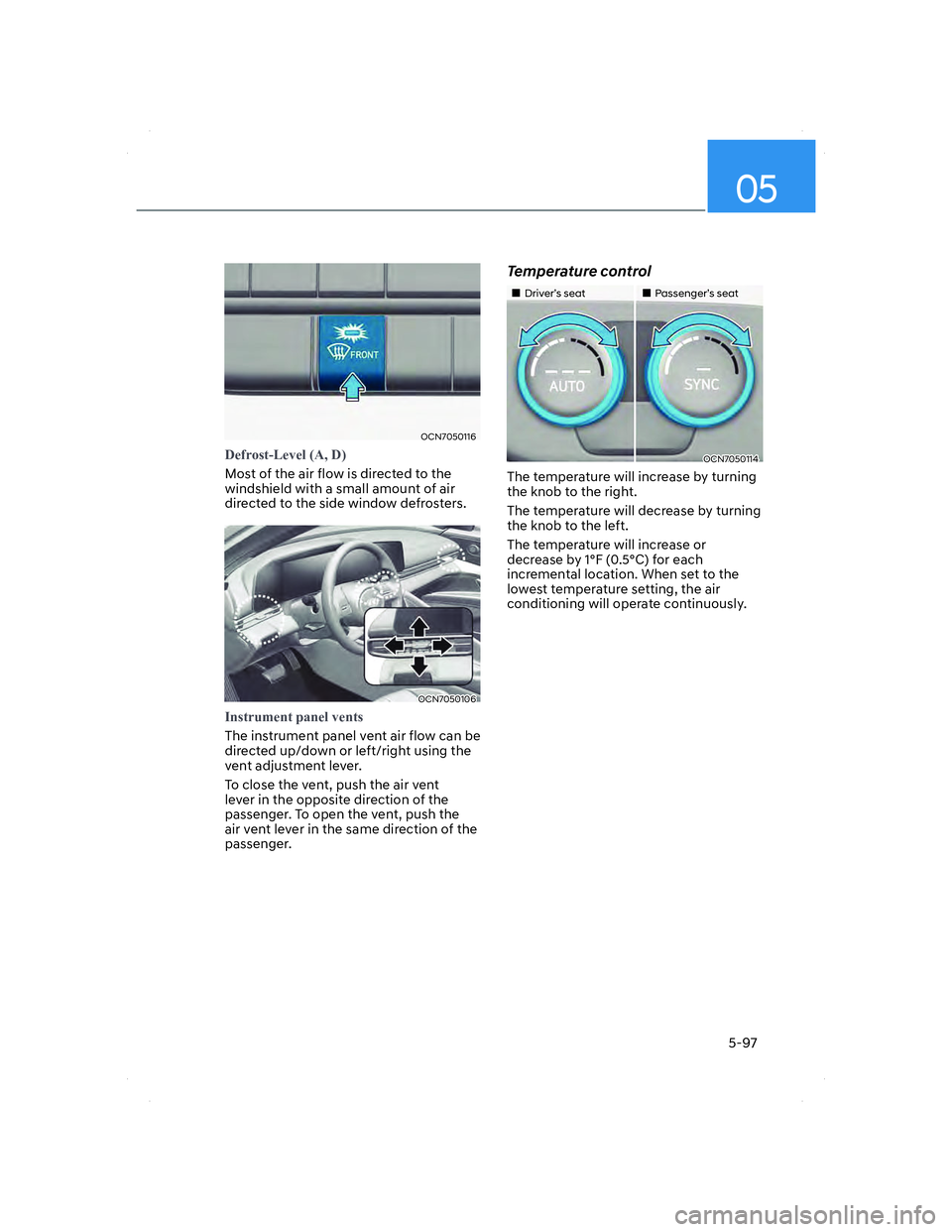

05
5-97
OCN7050116OCN7050116
' H I U R V W / H Y H O $ '
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
OCN7050106OCN7050106
, Q V W U X P H Q W S D Q H O Y H Q W V
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
To close the vent, push the air vent
lever in the opposite direction of the
passenger. To open the vent, push the
air vent lever in the same direction of the
passenger.
Temperature control
„ „Driver’s seatDriver’s seat „ „Passenger’s seatPassenger’s seat
OCN7050114OCN7050114
The temperature will increase by turning
the knob to the right.
The temperature will decrease by turning
the knob to the left.
The temperature will increase or
decrease by 1°F (0.5°C) for each
incremental location. When set to the
lowest temperature setting, the air
conditioning will operate continuously.
CN7 HMA 5.indd 5-972020-12-03 9:21:07
Page 234 of 584
![HYUNDAI ELANTRA 2022 Owners Manual Convenient Features
5-98
OCN7050117OCN7050117
$ G M X V W L Q J W K H G U L Y H U D Q G S D V V H Q J H U V L G H
W H P S H U D W X U H H T X D O O \
• Press the “SYNC” button t](/img/35/41167/w960_41167-233.png "HYUNDAI ELANTRA 2022 Owners Manual Convenient Features
5-98
OCN7050117OCN7050117
$ G M X V W L Q J W K H G U L Y H U D Q G S D V V H Q J H U V L G H
W H P S H U D W X U H H T X D O O \
• Press the “SYNC” button t")

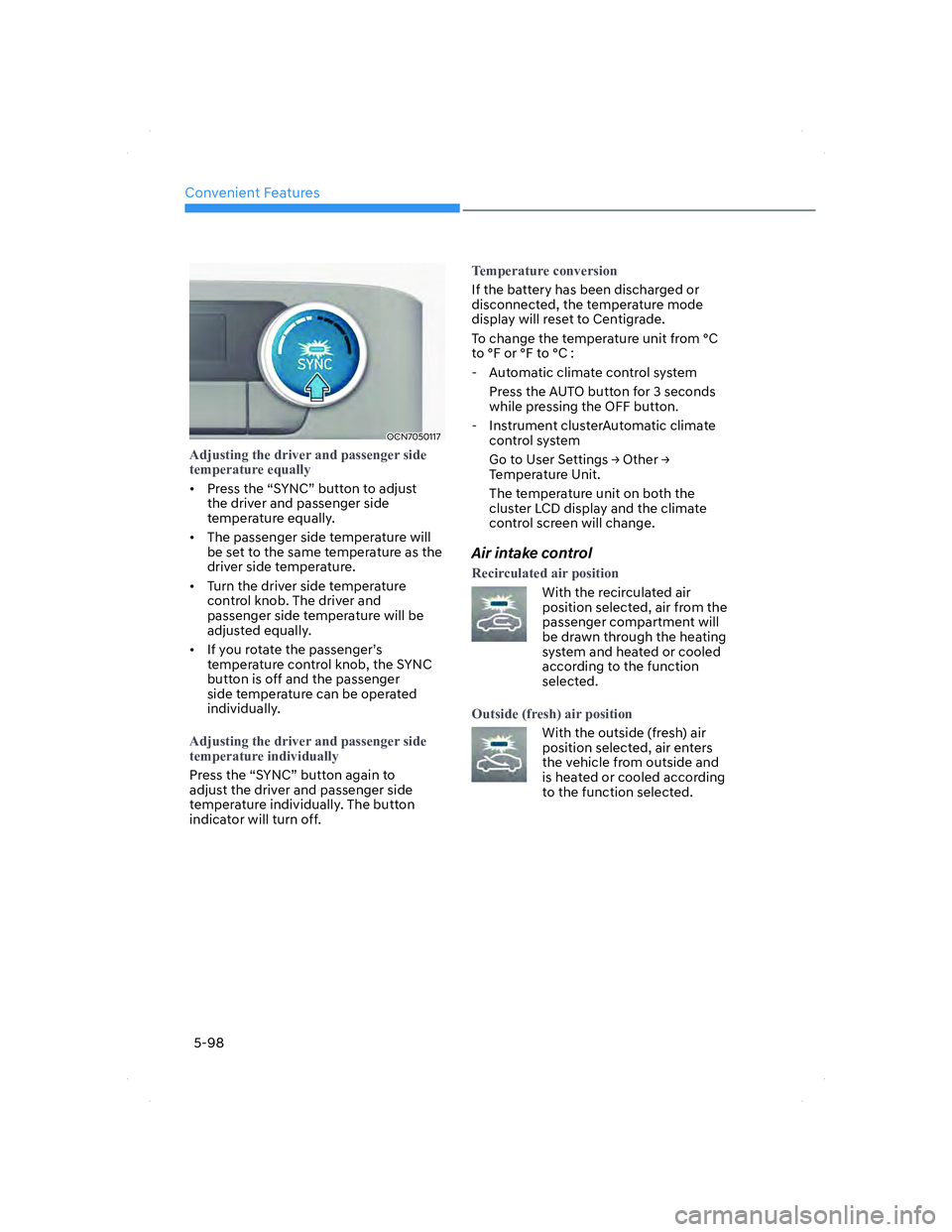

Convenient Features
5-98
OCN7050117OCN7050117
$ G M X V W L Q J W K H G U L Y H U D Q G S D V V H Q J H U V L G H
W H P S H U D W X U H H T X D O O \
• Press the “SYNC” button to adjust
the driver and passenger side
t
emperature equally.
• The passenger side temperature will
be set to the same temperature as the
driver side temperature.
• Turn the driver side temperature
control knob. The driver and
passenger side temperature will be
adjusted equally.
• If you rotate the passenger’s
temperature control knob, the SYNC
button is off and the passenger
side temperature can be operated
individually.
$ G M X V W L Q J W K H G U L Y H U D Q G S D V V H Q J H U V L G H
W H P S H U D W X U H L Q G L Y L G X D O O \
Press the “SYNC” button again to
adjust the driv
er and passenger side
temperature individually. The button
indicator will turn off.
7 H P S H U D W X U H F R Q Y H U V L R Q
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Centigrade.
To change the temperature unit from °C
to °F or °F to °C :
- Automatic climate control system
Press the AUTO button for 3 seconds
while pressing the OFF button.
- Instrument clusterAutomatic climate
control system
Go to User Settings Ÿ Other Ÿ
Temperature Unit.
The temperature unit on both the
cluster LCD display and the climate
control screen will change.
Air intake control
5 H F L U F X O D W H G D L U S R V L W L R Q
With the recirculated air
position selected, air from the
passenger compartment will
be drawn through the heating
system and heated or cooled
according to the function
selected.
2 X W V L G H I U H V K D L U S R V L W L R Q
With the outside (fresh) air
position selected, air enters
the vehicle from outside and
is heated or cooled according
to the function selected.
CN7 HMA 5.indd 5-982020-12-03 9:21:08

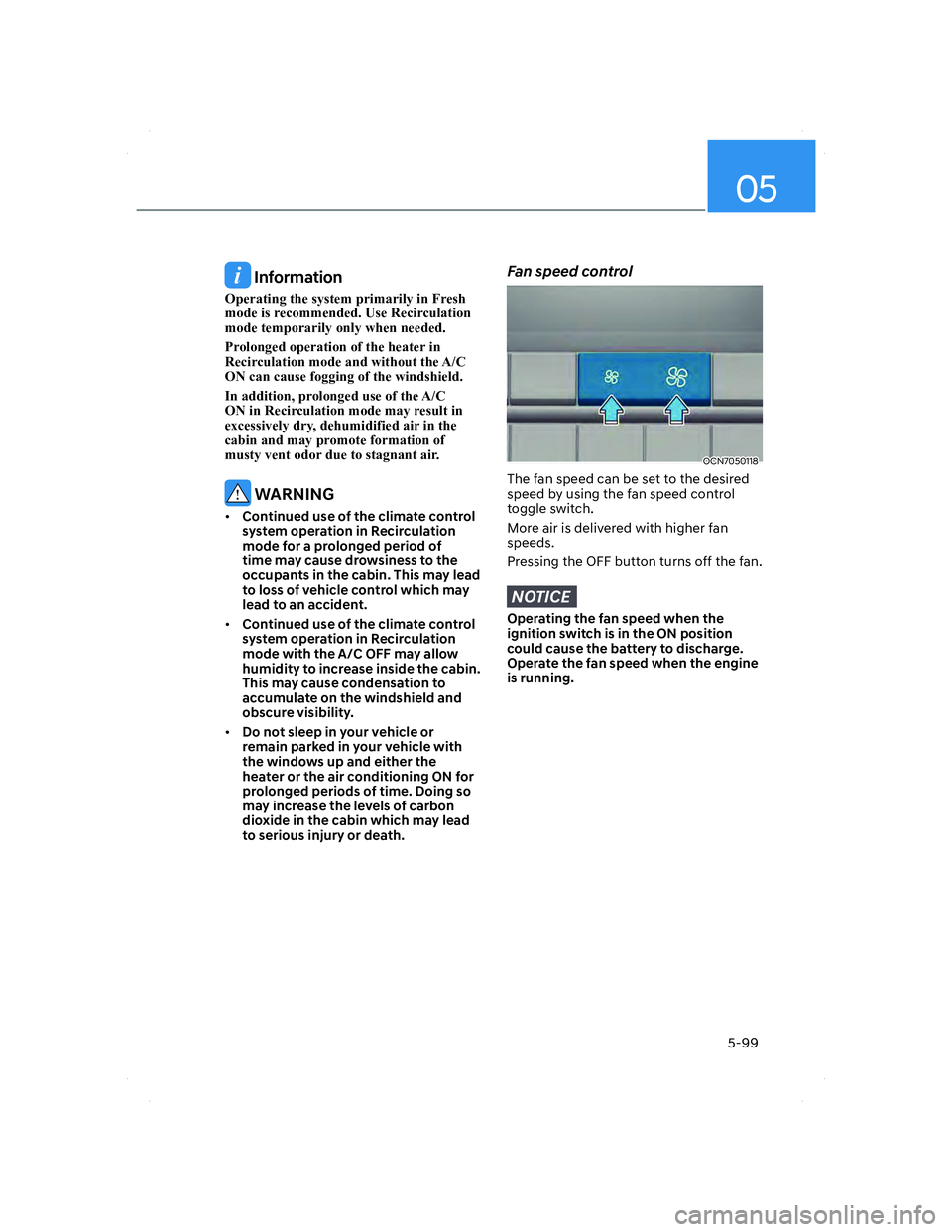

Page 235 of 584
05
5-99
Information
2 S H U D W L Q J W K H V \ V W H P S U L P D U L O \ L Q ) U H V K
P R G H L V U H F R P P H Q G H G 8 V H 5 H F L U F X O D W L R Q
P R G H W H P S R U D U L O \ R Q O \ Z K H Q Q H H G H G
3 U R O R Q J H G R S H U D W L R Q R I W K H K H D W H U L Q
5 H F L U F X O D W L R Q P R G H D Q G Z L W K R X W W K H $ &
2 1 F D Q F D X V H I R J J L Q J R I W K H Z L Q G V K L H O G
, Q D G G L W L R Q S U R O R Q J H G X V H R I W K H $ &
2 1 L Q 5 H F L U F X O D W L R Q P R G H P D \ U H V X O W L Q
H [ F H V V L Y H O \ G U \ G H K X P L G L I L H G D L U L Q W K H
F D E L Q D Q G P D \ S U R P R W H I R U P D W L R Q R I
P X V W \ Y H Q W R G R U G X H W R V W D J Q D Q W D L U
WARNING
• Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.
• Continued use of the climate control
system operation in Recirculation
mode with the A/C OFF may allow
humidity to increase inside the cabin.
This may cause condensation to
accumulate on the windshield and
obscure visibility.
• Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.
Fan speed control
OCN7050118OCN7050118
The fan speed can be set to the desired
speed by using the fan speed control
toggle switch.
More air is delivered with higher fan
speeds.
Pressing the OFF button turns off the fan.
NOTICE
Operating the fan speed when the
ignition switch is in the ON position
could cause the battery to discharge.
Operate the fan speed when the engine
is running.
CN7 HMA 5.indd 5-992020-12-03 9:21:08
Page 236 of 584

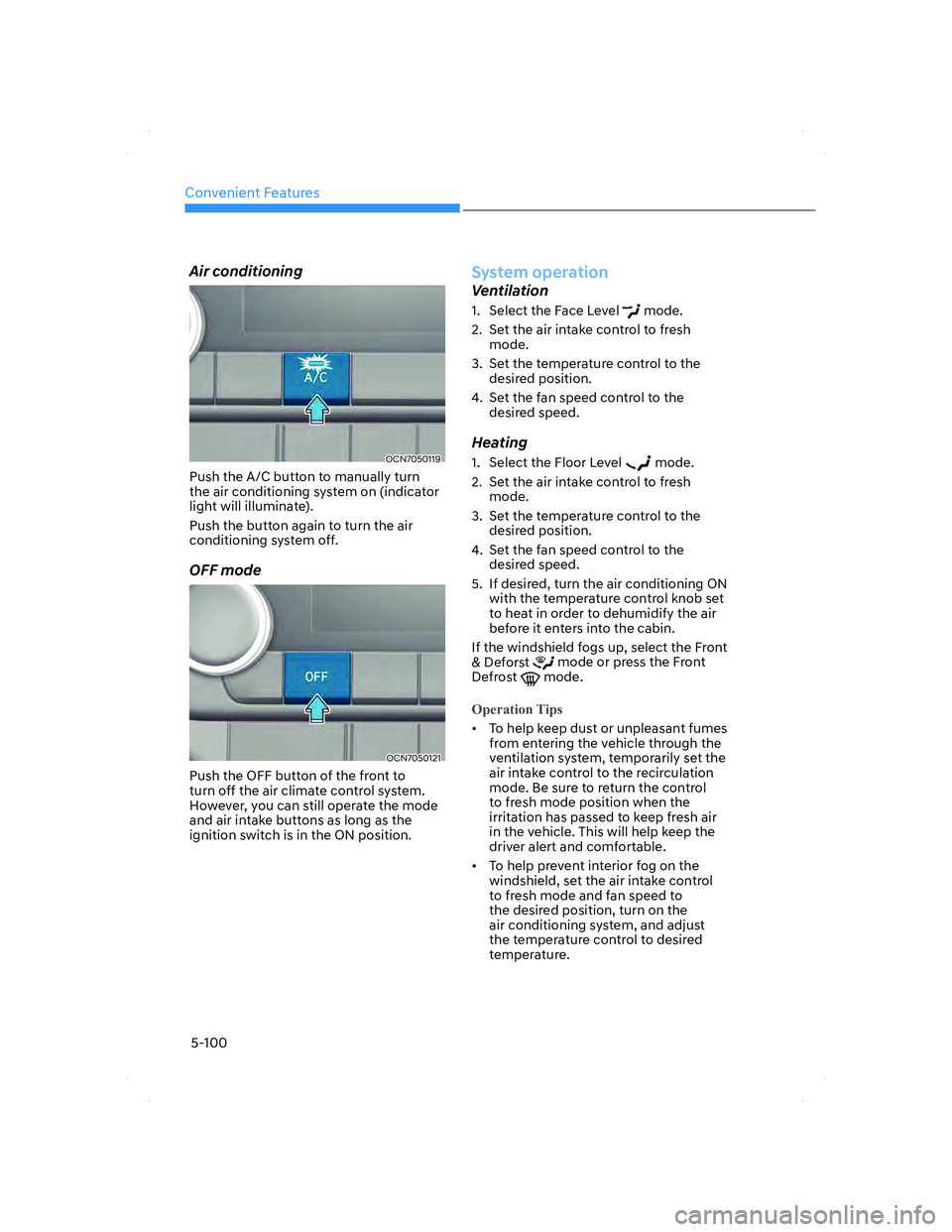

Convenient Features
5-100
Air conditioning
OCN7050119OCN7050119
Push the A/C button to manually turn
the air conditioning system on (indicator
light will illuminate).
Push the button again to turn the air
conditioning system off.
OFF mode
OCN7050121OCN7050121
Push the OFF button of the front to
turn off the air climate control system.
However, you can still operate the mode
and air intake buttons as long as the
ignition switch is in the ON position.
System operation
Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
5. If desired, turn the air conditioning ON
with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Front
& Deforst
mode or press the Front
Defrost mode.
2 S H U D W L R Q 7 L S V
• To help keep dust or unpleasant fumes
fr
om entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Be sure to return the control
to fresh mode position when the
irritation has passed to keep fresh air
in the vehicle. This will help keep the
driver alert and comfortable.
• To help prevent interior fog on the
windshield, set the air intake control
to fresh mode and fan speed to
the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.
CN7 HMA 5.indd 5-1002020-12-03 9:21:08
Page 237 of 584
05
5-101

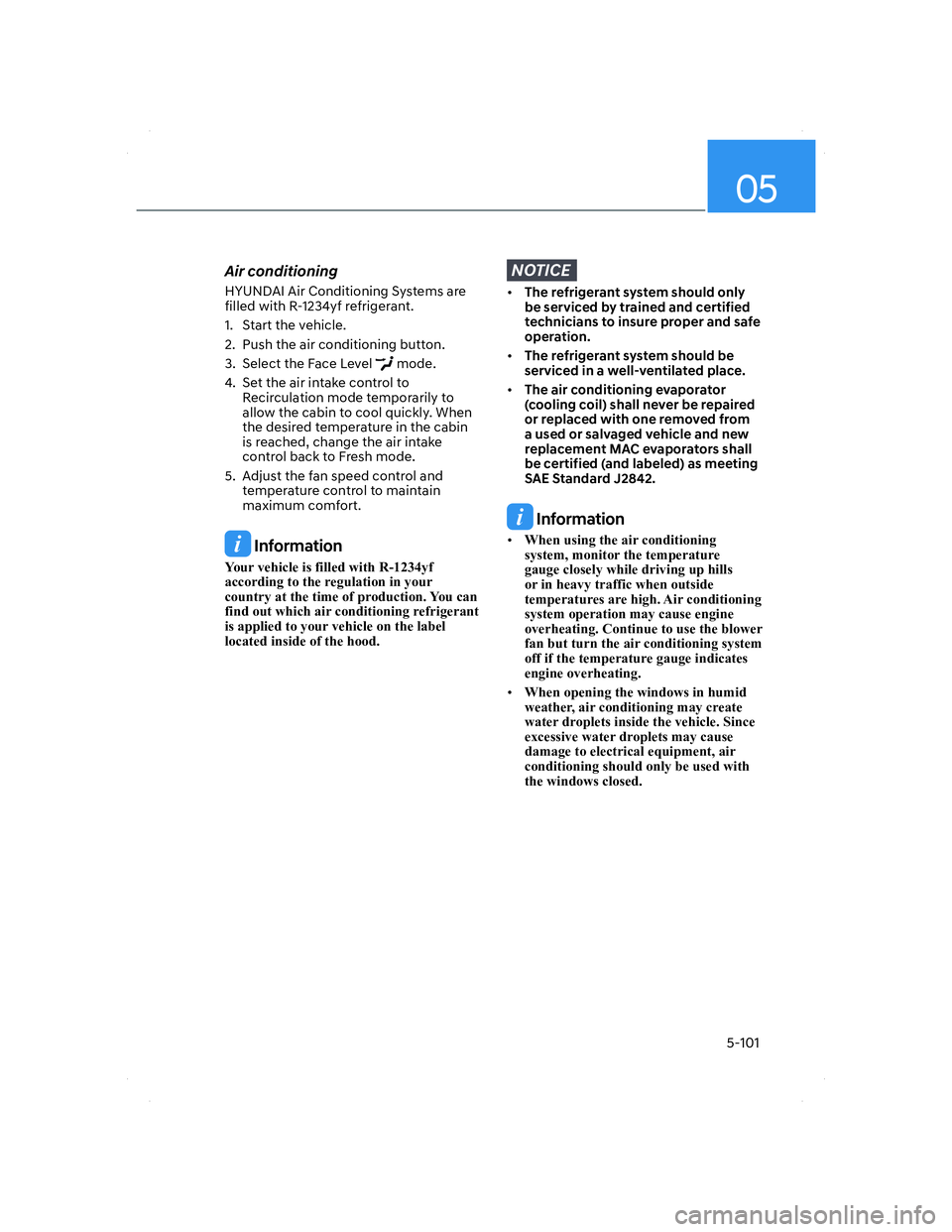

Air conditioning
HYUNDAI Air Conditioning Systems are
filled with R-1234yf refrigerant.
1. Start the vehicle.
2. Push the air conditioning button.
3. Select the Face Level
mode.
4. Set the air intake control to
Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and
temperature control to maintain
maximum comfort.
Information
< R X U Y H K L F O H L V I L O O H G Z L W K 5 \ I
D F F R U G L Q J W R W K H U H J X O D W L R Q L Q \ R X U
F R X Q W U \ D W W K H W L P H R I S U R G X F W L R Q < R X F D Q
I L Q G R X W Z K L F K D L U F R Q G L W L R Q L Q J U H I U L J H U D Q W
L V D S S O L H G W R \ R X U Y H K L F O H R Q W K H O D E H O
O R F D W H G L Q V L G H R I W K H K R R G
NOTICE
• The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.
• The refrigerant system should be
serviced in a well-ventilated place.
• The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
Information
• : K H Q X V L Q J W K H D L U F R Q G L W L R Q L Q J
V \ V W H P P R Q L W R U W K H W H P S H U D W X U H
J D X J H F O R V H O \ Z K L O H G U L Y L Q J X S K L O O V
R U L Q K H D Y \ W U D I I L F Z K H Q R X W V L G H
W H P S H U D W X U H V D U H K L J K $ L U F R Q G L W L R Q L Q J
V \ V W H P R S H U D W L R Q P D \ F D X V H H Q J L Q H
R Y H U K H D W L Q J & R Q W L Q X H W R X V H W K H E O R Z H U
I D Q E X W W X U Q W K H D L U F R Q G L W L R Q L Q J V \ V W H P
R I I L I W K H W H P S H U D W X U H J D X J H L Q G L F D W H V
H Q J L Q H R Y H U K H D W L Q J
• : K H Q R S H Q L Q J W K H Z L Q G R Z V L Q K X P L G
Z H D W K H U D L U F R Q G L W L R Q L Q J P D \ F U H D W H
Z D W H U G U R S O H W V L Q V L G H W K H Y H K L F O H 6 L Q F H
H [ F H V V L Y H Z D W H U G U R S O H W V P D \ F D X V H
G D P D J H W R H O H F W U L F D O H T X L S P H Q W D L U
F R Q G L W L R Q L Q J V K R X O G R Q O \ E H X V H G Z L W K
W K H Z L Q G R Z V F O R V H G
CN7 HMA 5.indd 5-1012020-12-03 9:21:09
Page 238 of 584
Convenient Features
5-102

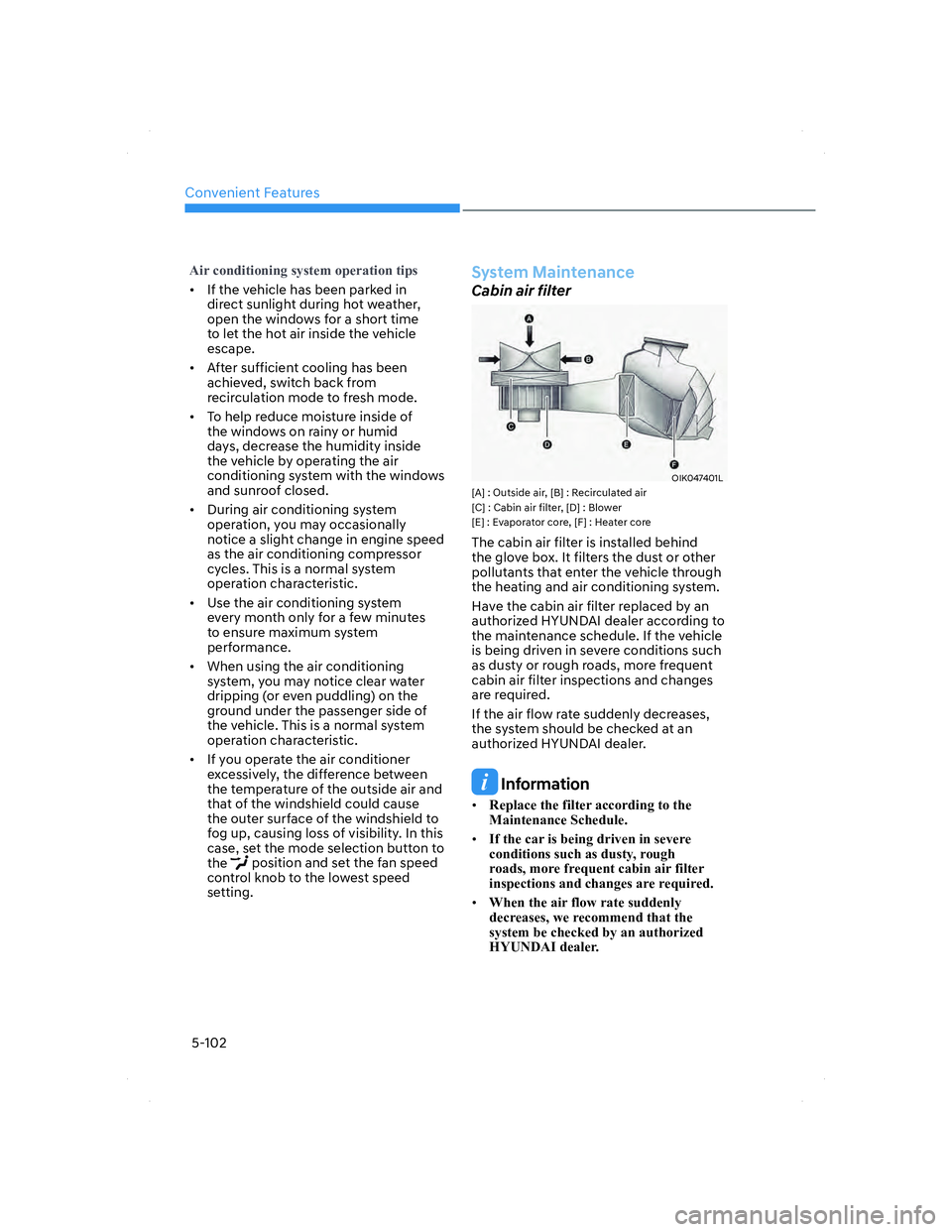

$ L U F R Q G L W L R Q L Q J V \ V W H P R S H U D W L R Q W L S V
• If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.
• During air conditioning system
operation, you may occasionally
notice a slight change in engine speed
as the air conditioning compressor
cycles. This is a normal system
operation characteristic.
• Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.
• When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• If you operate the air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
System Maintenance
Cabin air filter
OIK047401LOIK047401L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Information
• 5 H S O D F H W K H I L O W H U D F F R U G L Q J W R W K H
0 D L Q W H Q D Q F H 6 F K H G X O H
• , I W K H F D U L V E H L Q J G U L Y H Q L Q V H Y H U H
F R Q G L W L R Q V V X F K D V G X V W \ U R X J K
U R D G V P R U H I U H T X H Q W F D E L Q D L U I L O W H U
L Q V S H F W L R Q V D Q G F K D Q J H V D U H U H T X L U H G
• : K H Q W K H D L U I O R Z U D W H V X G G H Q O \
G H F U H D V H V Z H U H F R P P H Q G W K D W W K H
V \ V W H P E H F K H F N H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
CN7 HMA 5.indd 5-1022020-12-03 9:21:09
Page 239 of 584
05
5-103

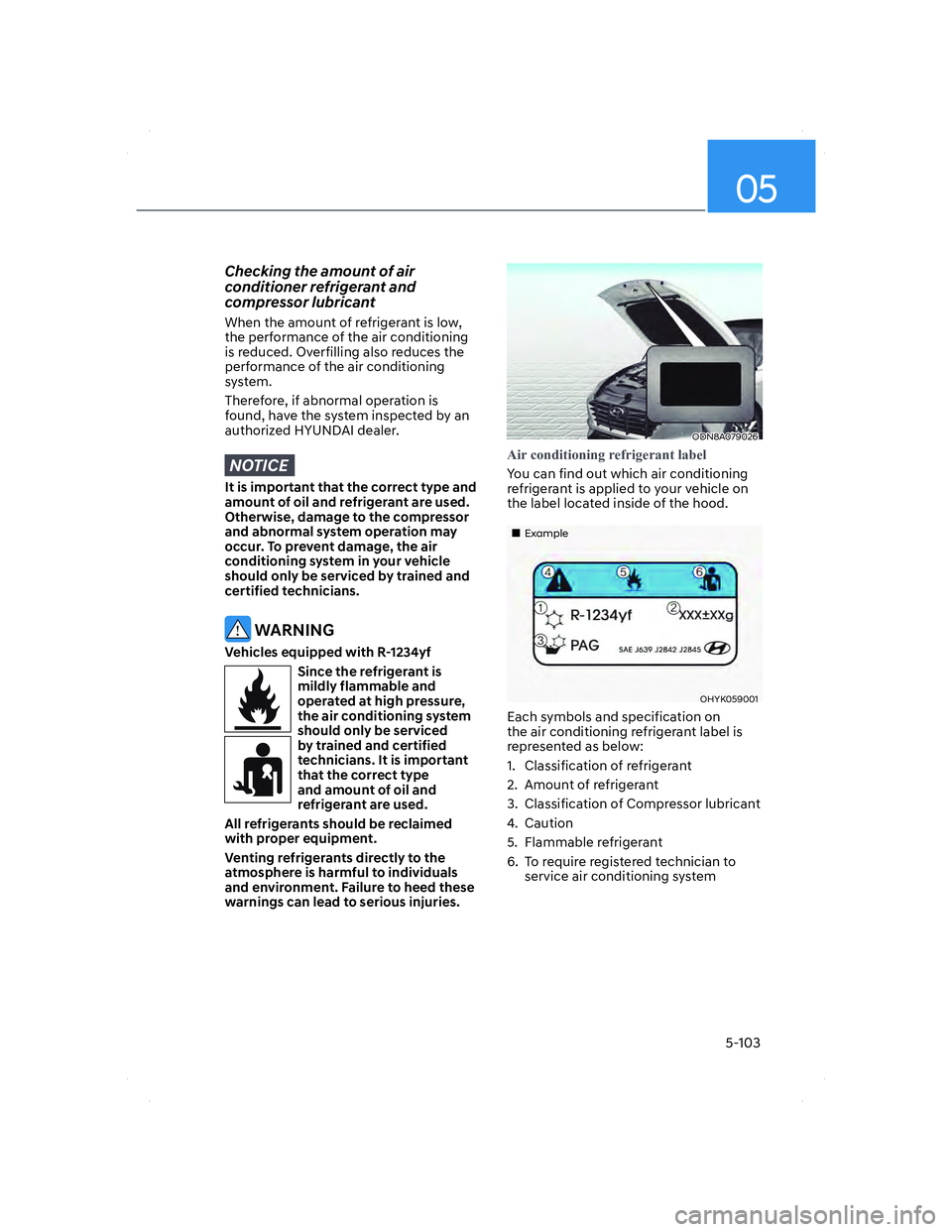

Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
It is important that the correct type and
amount of oil and refrigerant are used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pressure,
the air conditioning system
should only be serviced
by trained and certified
technicians. It is important
that the correct type
and amount of oil and
refrigerant are used.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
and environment. Failure to heed these
warnings can lead to serious injuries.
ODN8A079026ODN8A079026
$ L U F R Q G L W L R Q L Q J U H I U L J H U D Q W O D E H O
You can find out which air conditioning
refrigerant is applied to your vehicle on
the label located inside of the hood.
„ „ExampleExample
OHYK059001OHYK059001
Each symbols and specification on
the air conditioning refrigerant label is
represented as below:
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubricant
4. Caution
5. Flammable refrigerant
6. To require registered technician to
service air conditioning system
CN7 HMA 5.indd 5-1032020-12-03 9:21:09
Page 240 of 584

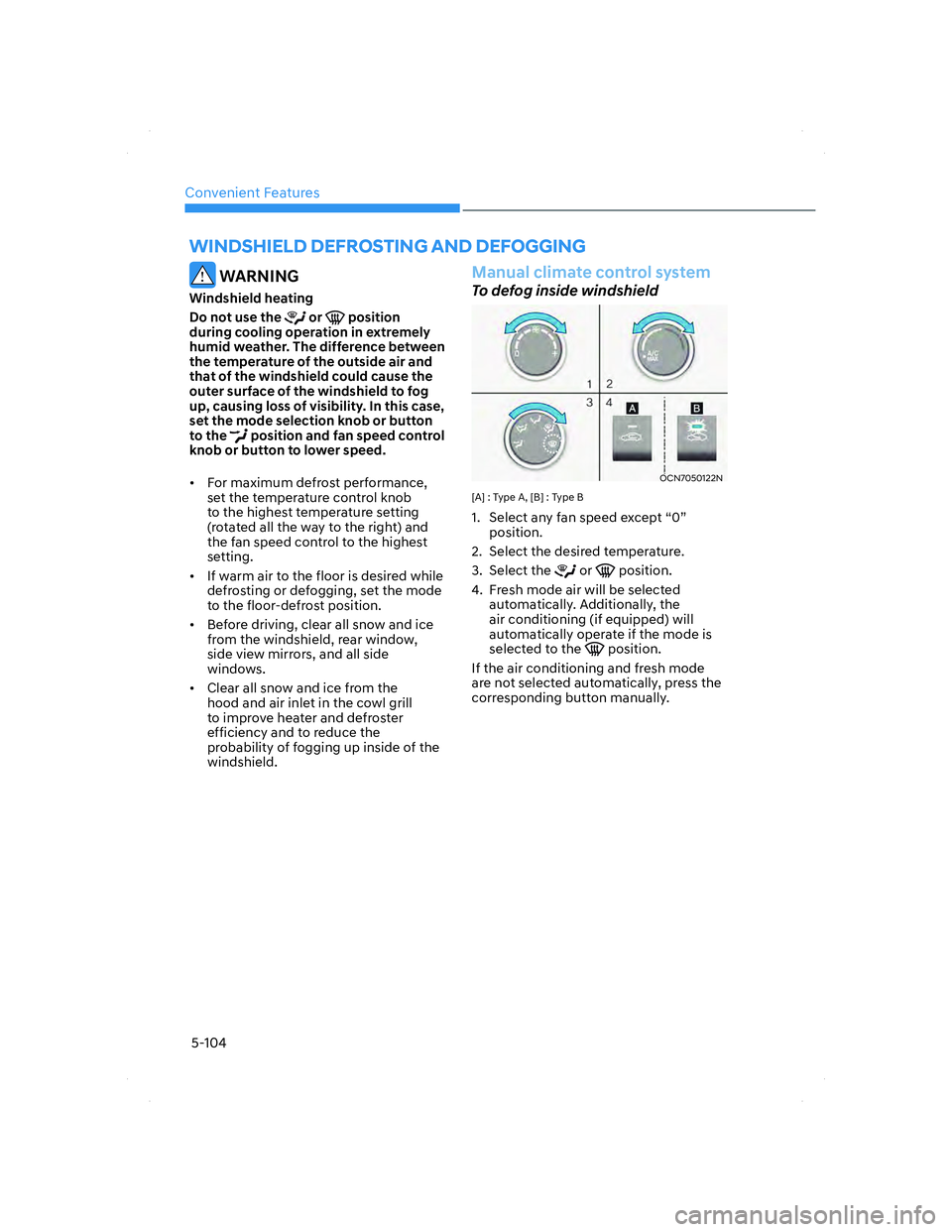

Convenient Features
5-104
WARNING
Windshield heating
Do not use the
or position
during cooling operation in extremely
humid weather. The difference between
the temperature of the outside air and
that of the windshield could cause the
outer surface of the windshield to fog
up, causing loss of visibility. In this case,
set the mode selection knob or button
to the
position and fan speed control
knob or button to lower speed.
• For maximum defrost performance,
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.
• If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.
• Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.
• Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up inside of the
windshield.
Manual climate control system
To defog inside windshield
OCN7050122NOCN7050122N
[A] : Type A, [B] : Type B
1. Select any fan speed except “0”
position.
2. Select the desired temperature.
3. Select the
or position.
4. Fresh mode air will be selected
automatically. Additionally, the
air conditioning (if equipped) will
automatically operate if the mode is
selected to the
position.
If the air conditioning and fresh mode
are not selected automatically, press the
corresponding button manually.
WINDSHIELD DEFROSTING AND DEFOGGING
CN7 HMA 5.indd 5-1042020-12-03 9:21:09
