HYUNDAI ELANTRA 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: ELANTRA, Model: HYUNDAI ELANTRA 2022Pages: 584, PDF Size: 14.08 MB

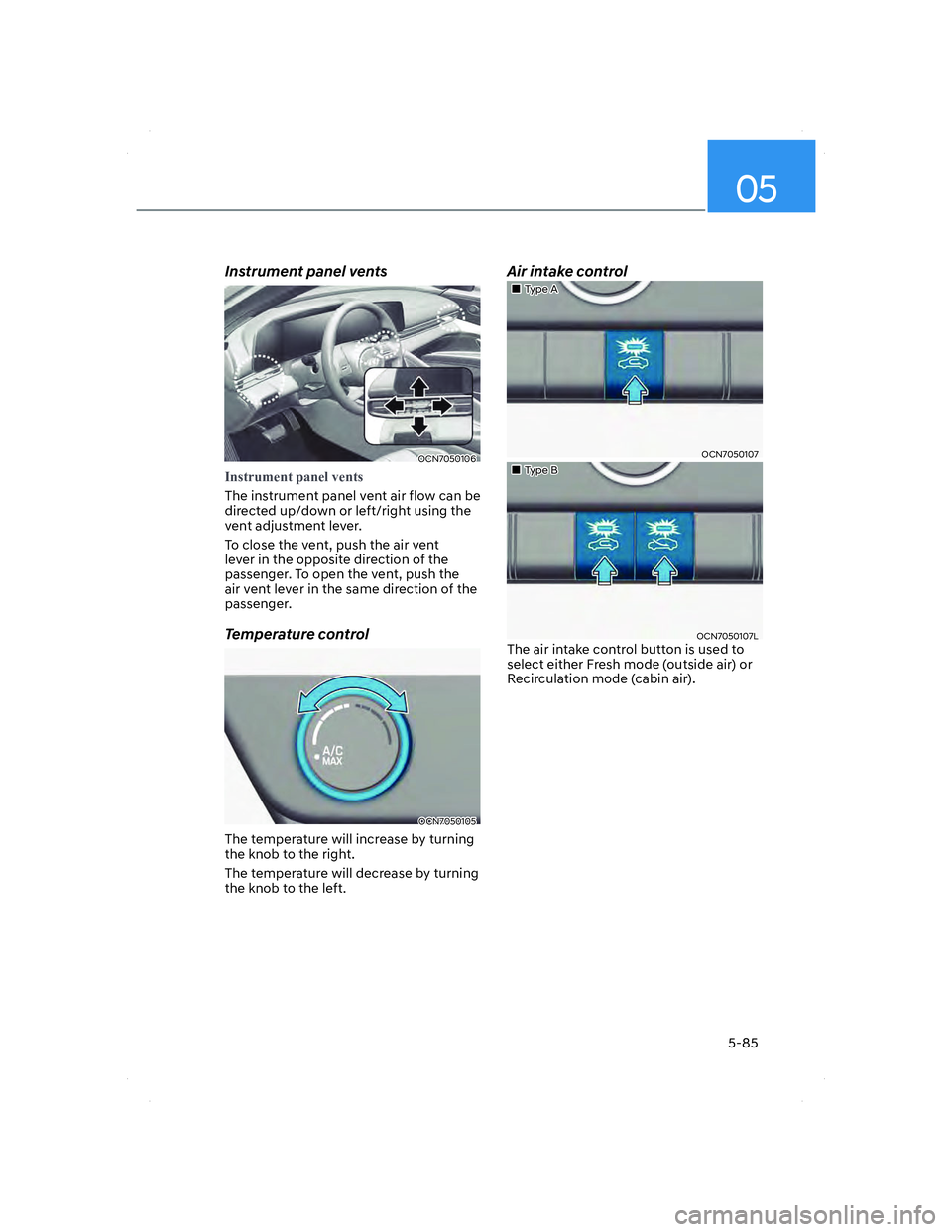

Page 221 of 584
05
5-85
Instrument panel vents
OCN7050106OCN7050106
, Q V W U X P H Q W S D Q H O Y H Q W V
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
To close the vent, push the air vent
lever in the opposite direction of the
passenger. To open the vent, push the
air vent lever in the same direction of the
passenger.
Temperature control
OCN7050105OCN7050105
The temperature will increase by turning
the knob to the right.
The temperature will decrease by turning
the knob to the left.
Air intake control
„ „Type AType A
OCN7050107OCN7050107
„ „Type BType B
OCN7050107LOCN7050107LThe air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).
CN7 HMA 5.indd 5-852020-12-03 9:21:03

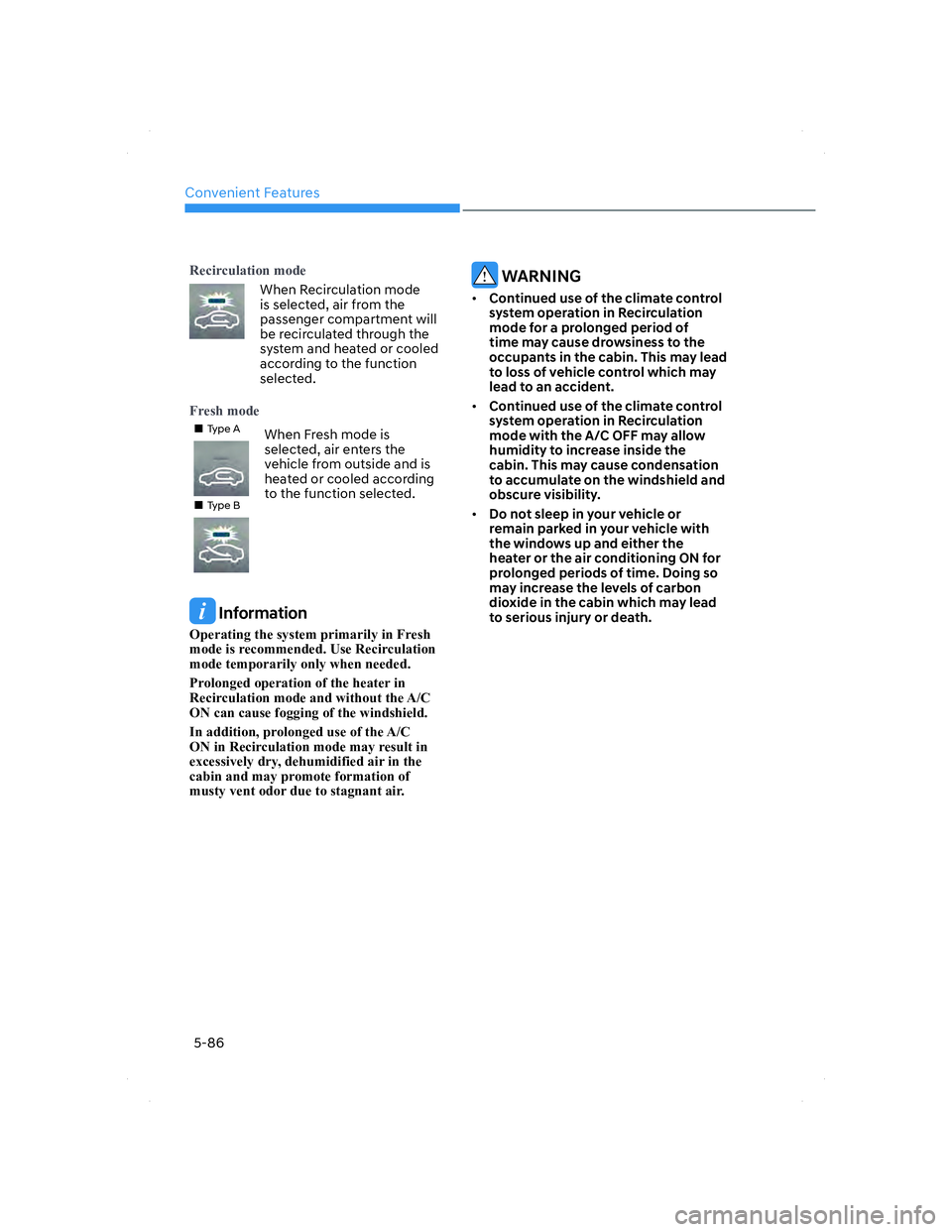

Page 222 of 584
Convenient Features
5-86
5 H F L U F X O D W L R Q P R G H
When Recirculation mode
is selected, air from the
passenger compartment will
be recirculated through the
system and heated or cooled
according to the function
selected.
) U H V K P R G H
„ „Type AType AWhen Fresh mode is
selected, air enters the
vehicle from outside and is
heated or cooled according
to the function selected.
„ „Type BType B
Information
2 S H U D W L Q J W K H V \ V W H P S U L P D U L O \ L Q ) U H V K
P R G H L V U H F R P P H Q G H G 8 V H 5 H F L U F X O D W L R Q
P R G H W H P S R U D U L O \ R Q O \ Z K H Q Q H H G H G
3 U R O R Q J H G R S H U D W L R Q R I W K H K H D W H U L Q
5 H F L U F X O D W L R Q P R G H D Q G Z L W K R X W W K H $ &
2 1 F D Q F D X V H I R J J L Q J R I W K H Z L Q G V K L H O G
, Q D G G L W L R Q S U R O R Q J H G X V H R I W K H $ &
2 1 L Q 5 H F L U F X O D W L R Q P R G H P D \ U H V X O W L Q
H [ F H V V L Y H O \ G U \ G H K X P L G L I L H G D L U L Q W K H
F D E L Q D Q G P D \ S U R P R W H I R U P D W L R Q R I
P X V W \ Y H Q W R G R U G X H W R V W D J Q D Q W D L U
WARNING
• Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.
• Continued use of the climate control
system operation in Recirculation
mode with the A/C OFF may allow
humidity to increase inside the
cabin. This may cause condensation
to accumulate on the windshield and
obscure visibility.
• Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.
CN7 HMA 5.indd 5-862020-12-03 9:21:04

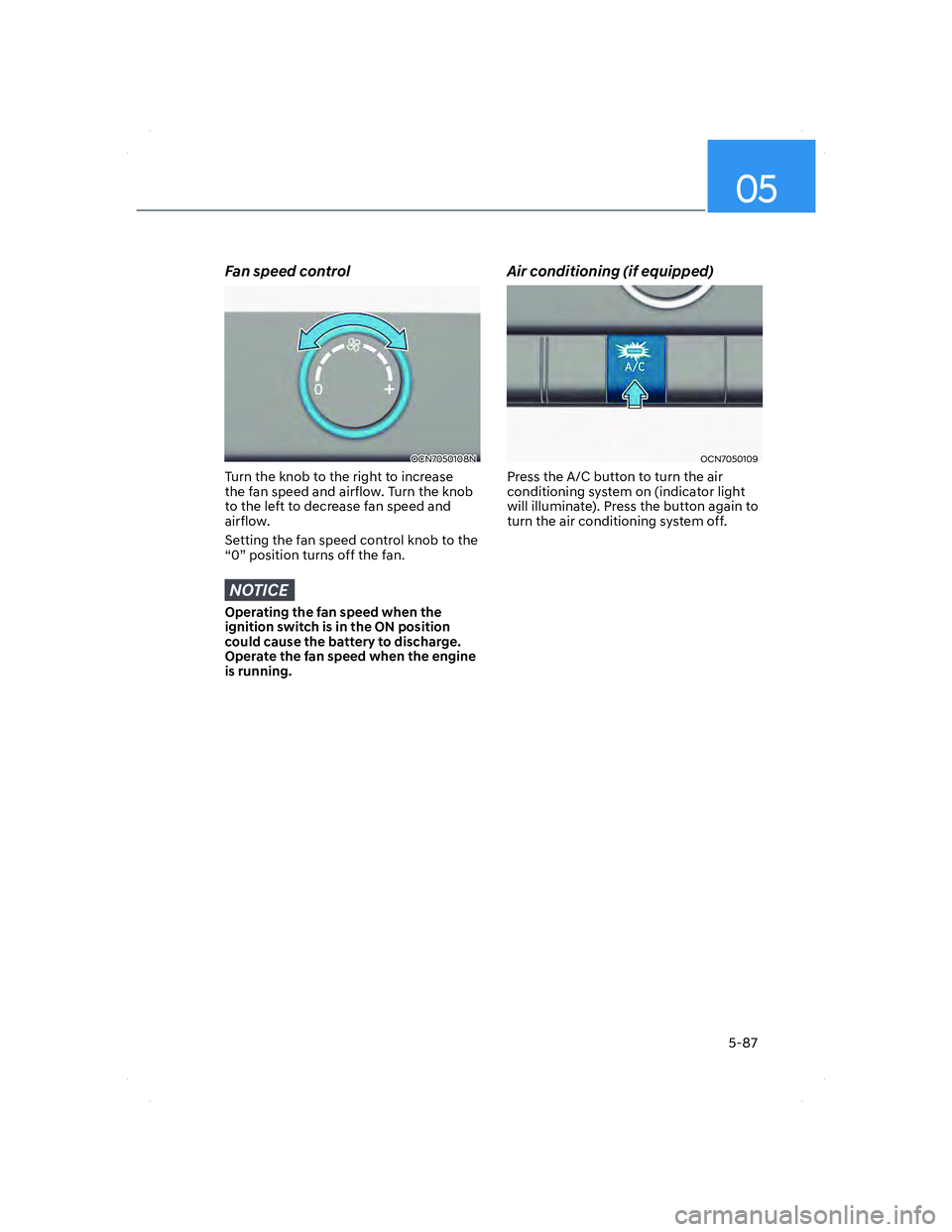

Page 223 of 584
05
5-87
Fan speed control
OCN7050108NOCN7050108N
Turn the knob to the right to increase
the fan speed and airflow. Turn the knob
to the left to decrease fan speed and
airflow.
Setting the fan speed control knob to the
“0” position turns off the fan.
NOTICE
Operating the fan speed when the
ignition switch is in the ON position
could cause the battery to discharge.
Operate the fan speed when the engine
is running.
Air conditioning (if equipped)
OCN7050109OCN7050109
Press the A/C button to turn the air
conditioning system on (indicator light
will illuminate). Press the button again to
turn the air conditioning system off.
CN7 HMA 5.indd 5-872020-12-03 9:21:04

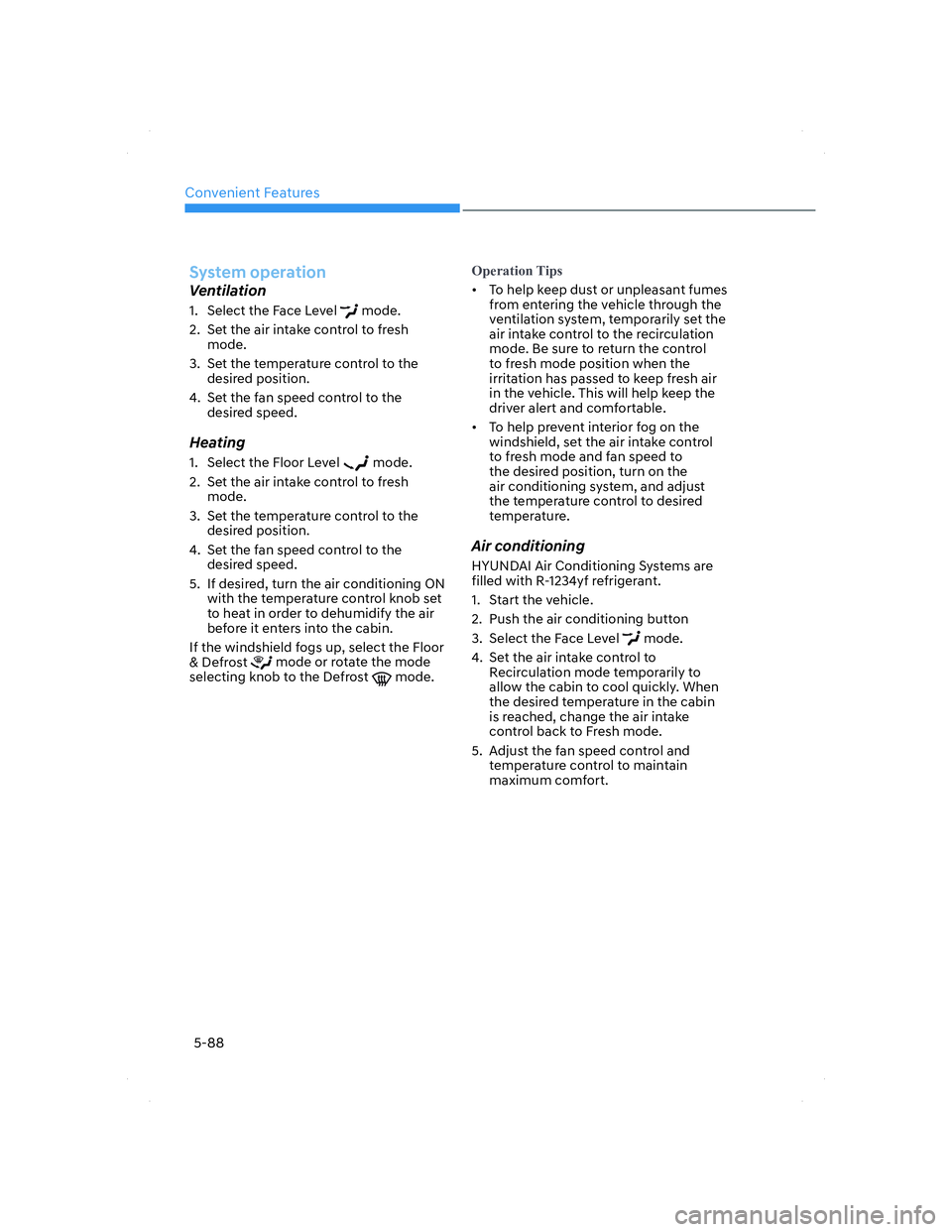

Page 224 of 584
Convenient Features
5-88
System operation
Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
5. If desired, turn the air conditioning ON
with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Floor
& Defrost
mode or rotate the mode
selecting knob to the Defrost
mode.
2 S H U D W L R Q 7 L S V
• To help keep dust or unpleasant fumes
from ent
ering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Be sure to return the control
to fresh mode position when the
irritation has passed to keep fresh air
in the vehicle. This will help keep the
driver alert and comfortable.
• To help prevent interior fog on the
windshield, set the air intake control
to fresh mode and fan speed to
the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.
Air conditioning
HYUNDAI Air Conditioning Systems are
filled with R-1234yf refrigerant.
1. Start the vehicle.
2. Push the air conditioning button
3. Select the Face Level
mode.
4. Set the air intake control to
Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and
temperature control to maintain
maximum comfort.
CN7 HMA 5.indd 5-882020-12-03 9:21:04

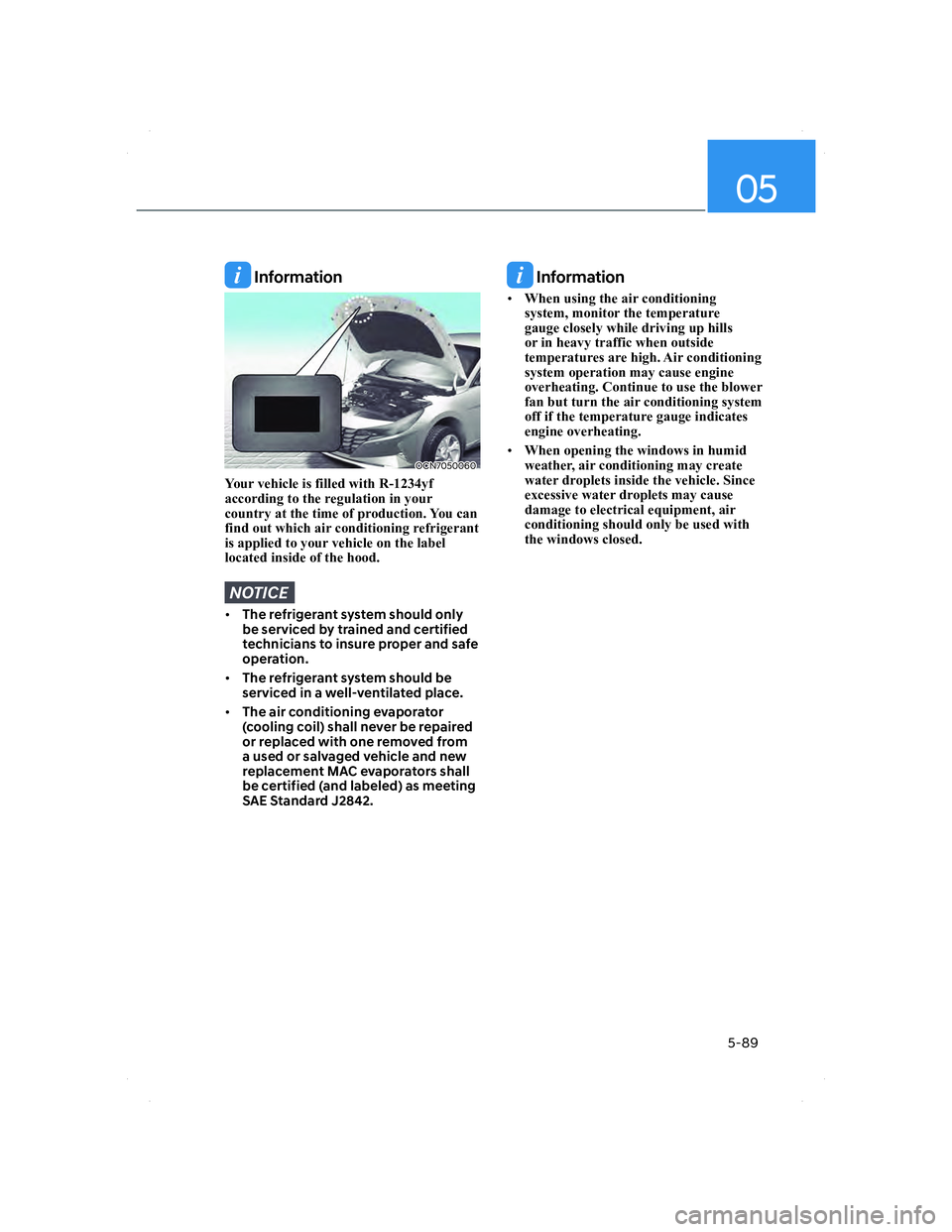

Page 225 of 584
05
5-89
Information
OCN7050060OCN7050060
< R X U Y H K L F O H L V I L O O H G Z L W K 5 \ I
D F F R U G L Q J W R W K H U H J X O D W L R Q L Q \ R X U
F R X Q W U \ D W W K H W L P H R I S U R G X F W L R Q < R X F D Q
I L Q G R X W Z K L F K D L U F R Q G L W L R Q L Q J U H I U L J H U D Q W
L V D S S O L H G W R \ R X U Y H K L F O H R Q W K H O D E H O
O R F D W H G L Q V L G H R I W K H K R R G
NOTICE
• The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.
• The refrigerant system should be
serviced in a well-ventilated place.
• The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
Information
• : K H Q X V L Q J W K H D L U F R Q G L W L R Q L Q J
V \ V W H P P R Q L W R U W K H W H P S H U D W X U H
J D X J H F O R V H O \ Z K L O H G U L Y L Q J X S K L O O V
R U L Q K H D Y \ W U D I I L F Z K H Q R X W V L G H
W H P S H U D W X U H V D U H K L J K $ L U F R Q G L W L R Q L Q J
V \ V W H P R S H U D W L R Q P D \ F D X V H H Q J L Q H
R Y H U K H D W L Q J & R Q W L Q X H W R X V H W K H E O R Z H U
I D Q E X W W X U Q W K H D L U F R Q G L W L R Q L Q J V \ V W H P
R I I L I W K H W H P S H U D W X U H J D X J H L Q G L F D W H V
H Q J L Q H R Y H U K H D W L Q J
• : K H Q R S H Q L Q J W K H Z L Q G R Z V L Q K X P L G
Z H D W K H U D L U F R Q G L W L R Q L Q J P D \ F U H D W H
Z D W H U G U R S O H W V L Q V L G H W K H Y H K L F O H 6 L Q F H
H [ F H V V L Y H Z D W H U G U R S O H W V P D \ F D X V H
G D P D J H W R H O H F W U L F D O H T X L S P H Q W D L U
F R Q G L W L R Q L Q J V K R X O G R Q O \ E H X V H G Z L W K
W K H Z L Q G R Z V F O R V H G
CN7 HMA 5.indd 5-892020-12-03 9:21:05

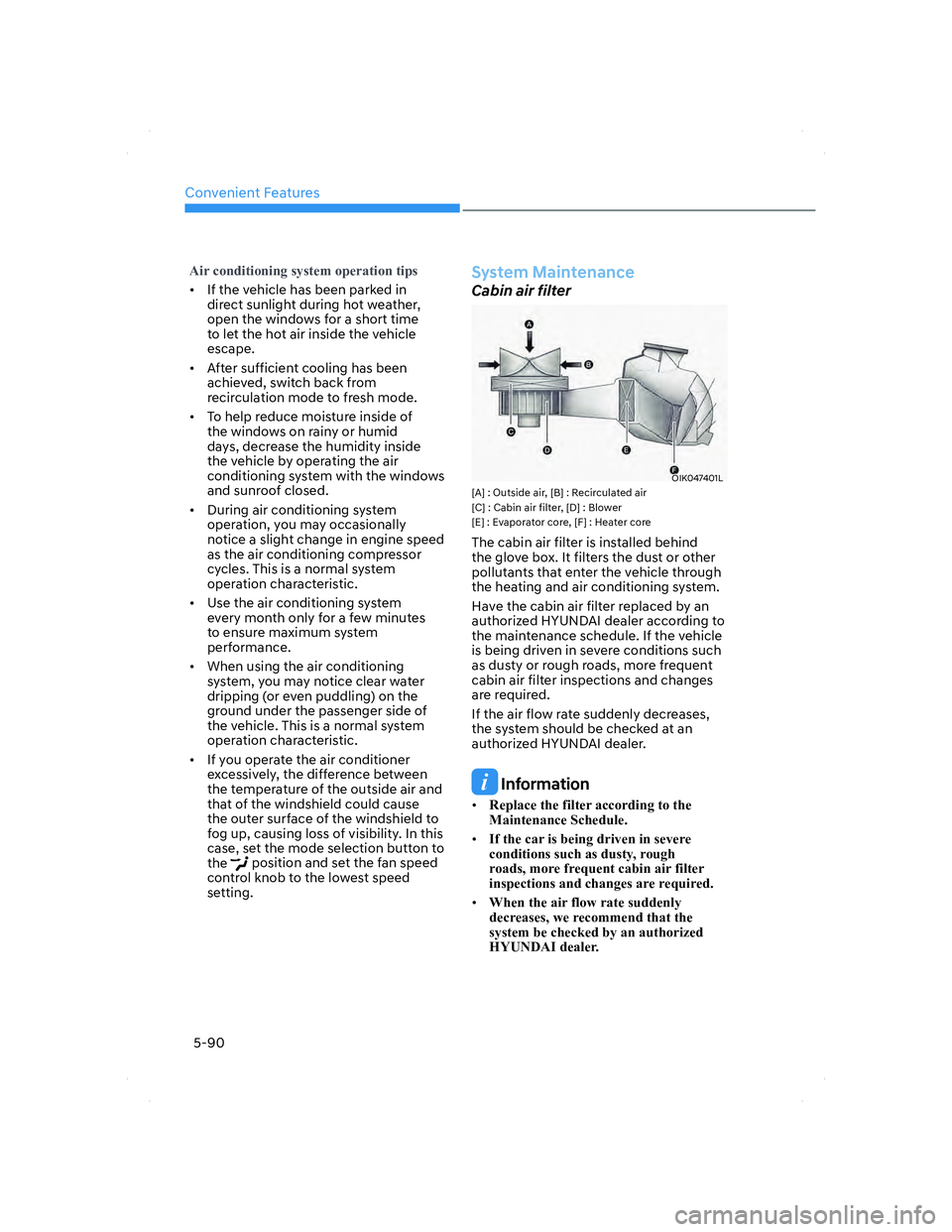

Page 226 of 584
Convenient Features
5-90
$ L U F R Q G L W L R Q L Q J V \ V W H P R S H U D W L R Q W L S V
• If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.
• During air conditioning system
operation, you may occasionally
notice a slight change in engine speed
as the air conditioning compressor
cycles. This is a normal system
operation characteristic.
• Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.
• When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• If you operate the air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
System Maintenance
Cabin air filter
OIK047401LOIK047401L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Information
• 5 H S O D F H W K H I L O W H U D F F R U G L Q J W R W K H
0 D L Q W H Q D Q F H 6 F K H G X O H
• , I W K H F D U L V E H L Q J G U L Y H Q L Q V H Y H U H
F R Q G L W L R Q V V X F K D V G X V W \ U R X J K
U R D G V P R U H I U H T X H Q W F D E L Q D L U I L O W H U
L Q V S H F W L R Q V D Q G F K D Q J H V D U H U H T X L U H G
• : K H Q W K H D L U I O R Z U D W H V X G G H Q O \
G H F U H D V H V Z H U H F R P P H Q G W K D W W K H
V \ V W H P E H F K H F N H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
CN7 HMA 5.indd 5-902020-12-03 9:21:05

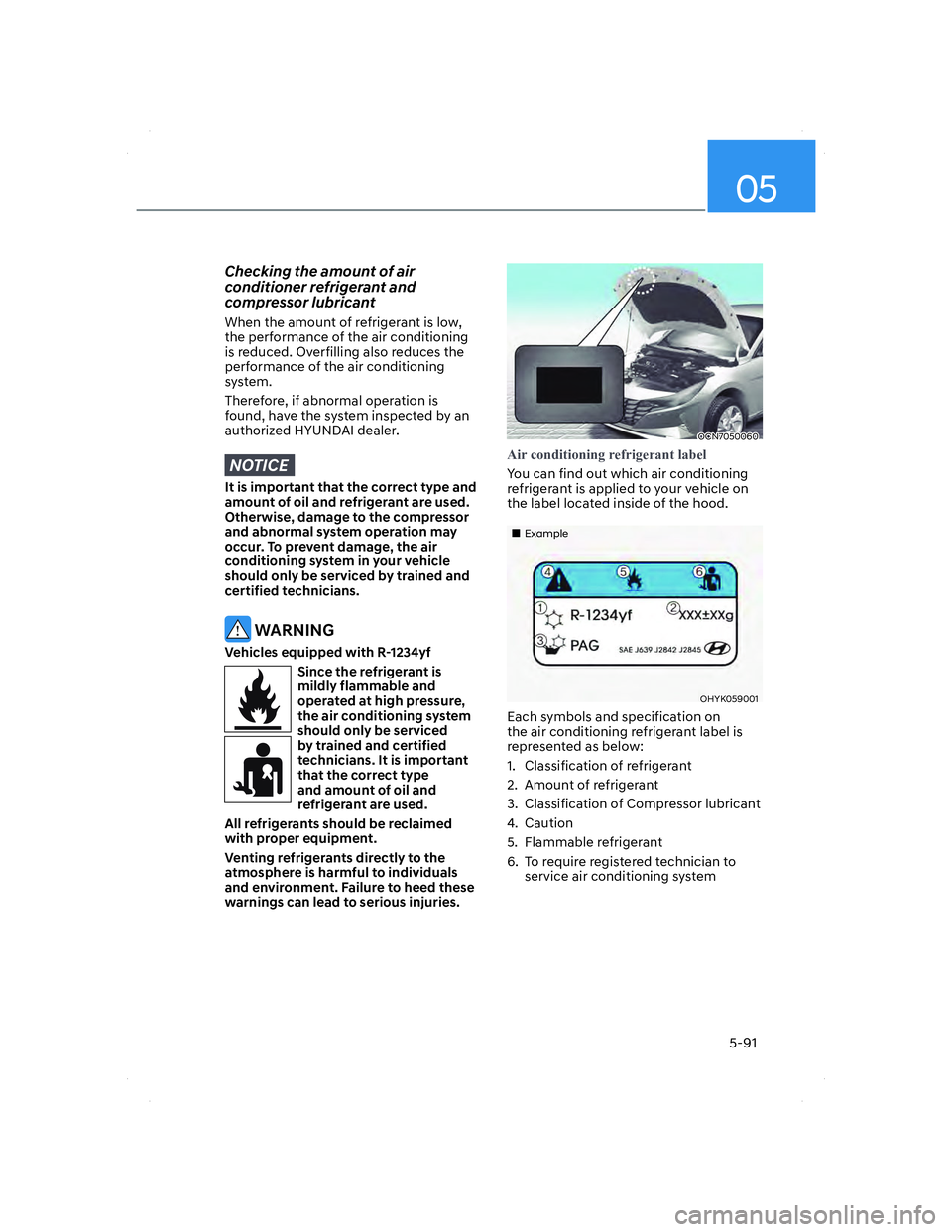

Page 227 of 584
05
5-91
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
It is important that the correct type and
amount of oil and refrigerant are used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pressure,
the air conditioning system
should only be serviced
by trained and certified
technicians. It is important
that the correct type
and amount of oil and
refrigerant are used.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
and environment. Failure to heed these
warnings can lead to serious injuries.
OCN7050060OCN7050060
$ L U F R Q G L W L R Q L Q J U H I U L J H U D Q W O D E H O
You can find out which air conditioning
refrigerant is applied to your vehicle on
the label located inside of the hood.
„ „ExampleExample
OHYK059001OHYK059001
Each symbols and specification on
the air conditioning refrigerant label is
represented as below:
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubricant
4. Caution
5. Flammable refrigerant
6. To require registered technician to
service air conditioning system
CN7 HMA 5.indd 5-912020-12-03 9:21:05
Page 228 of 584
Convenient Features
5-92

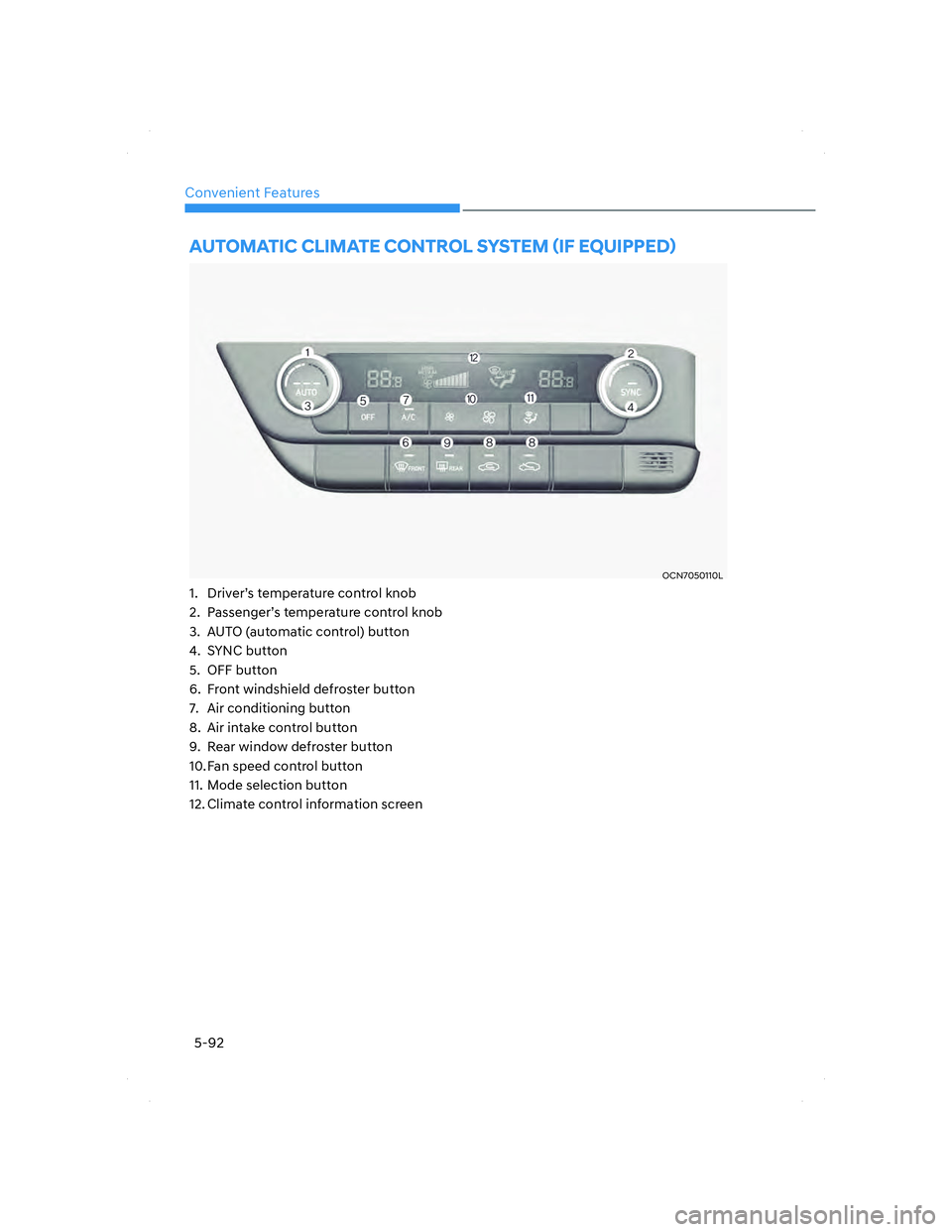

AUTOMATIC CLIMATE CONTROL SYSTEM ãIF EQUIPPEDä
OCN7050110LOCN7050110L
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. SYNC button
5. OFF button
6. Front windshield defroster button
7. Air conditioning button
8. Air intake control button
9. Rear window defroster button
10. Fan speed control button
11. Mode selection button
12. Climate control information screen
CN7 HMA 5.indd 5-922020-12-03 9:21:06
Page 229 of 584
05
5-93

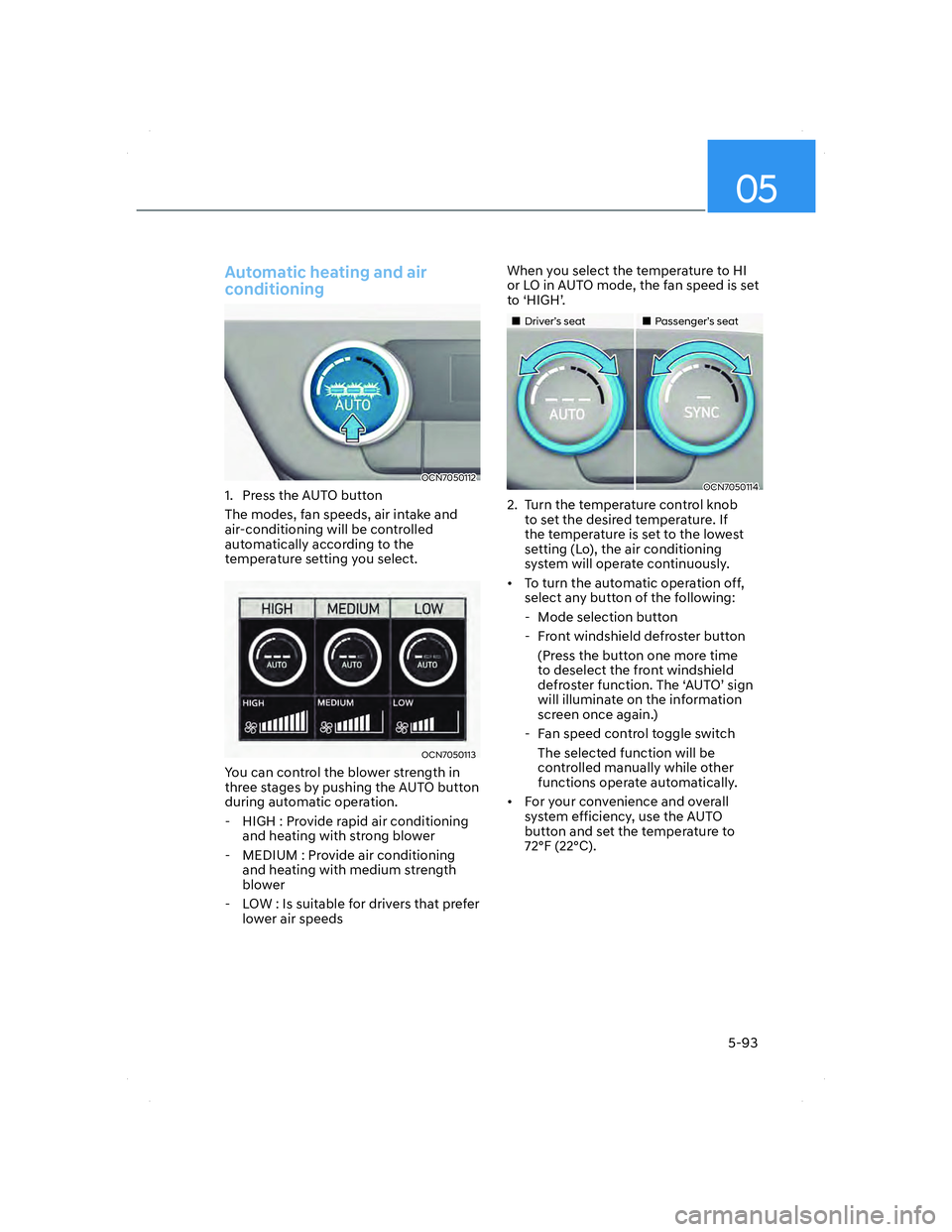

Automatic heating and air
conditioning
OCN7050112OCN7050112
1. Press the AUTO button
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically according to the
temperature setting you select.
OCN7050113OCN7050113
You can control the blower strength in
three stages by pushing the AUTO button
during automatic operation.
- HIGH : Provide rapid air conditioning
and heating with strong blower
- MEDIUM : Provide air conditioning
and heating with medium strength
blower
- LOW : Is suitable for drivers that prefer
lower air speedsWhen you select the temperature to HI
or LO in AUTO mode, the fan speed is set
to ‘HIGH’.
„ „Driver’s seatDriver’s seat „ „Passenger’s seatPassenger’s seat
OCN7050114OCN7050114
2. Turn the temperature control knob
to set the desired temperature. If
the temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.
• To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’ sign
will illuminate on the information
screen once again.)
- Fan speed control toggle switch
The selected function will be
controlled manually while other
functions operate automatically.
• For your convenience and overall
system efficiency, use the AUTO
button and set the temperature to
72°F (22°C).
CN7 HMA 5.indd 5-932020-12-03 9:21:06
Page 230 of 584
Convenient Features
5-94
OCN7050133OCN7050133
Information
1 H Y H U S O D F H D Q \ W K L Q J Q H D U W K H V H Q V R U W R
H Q V X U H E H W W H U F R Q W U R O R I W K H K H D W L Q J D Q G
F R R O L Q J V \ V W H P
Manual heating and air
conditioning
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected. When
pressing any button except the AUTO
button while using automatic operation,
the functions not selected will be
controlled automatically.
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button in order to
convert to full automatic control of
the system.
CN7 HMA 5.indd 5-942020-12-03 9:21:06
