HYUNDAI ELANTRA 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: ELANTRA, Model: HYUNDAI ELANTRA 2022Pages: 584, PDF Size: 14.08 MB

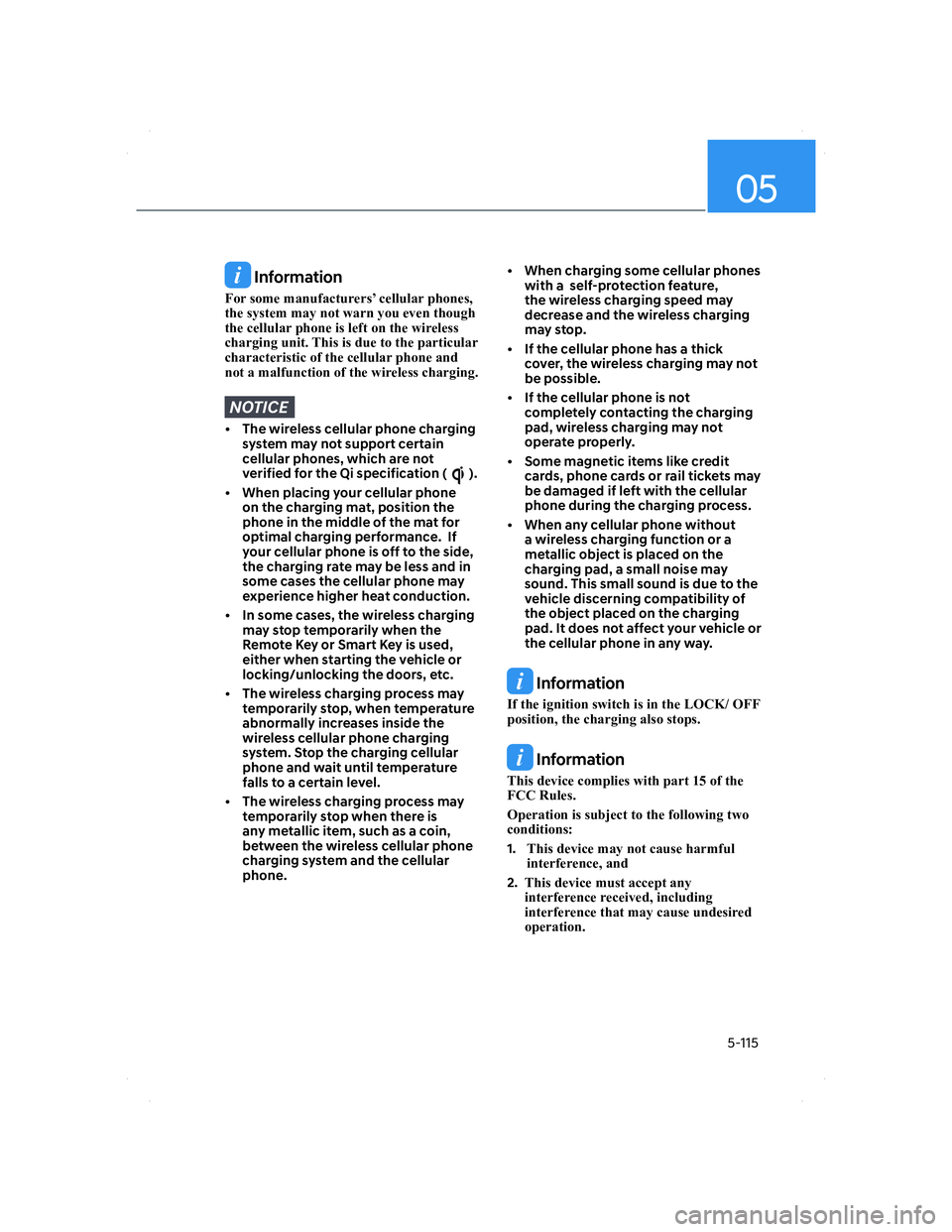

Page 251 of 584
5-115
05
Information
) R U V R P H P D Q X I D F W X U H U V
Page 252 of 584
Convenient Features
5-116

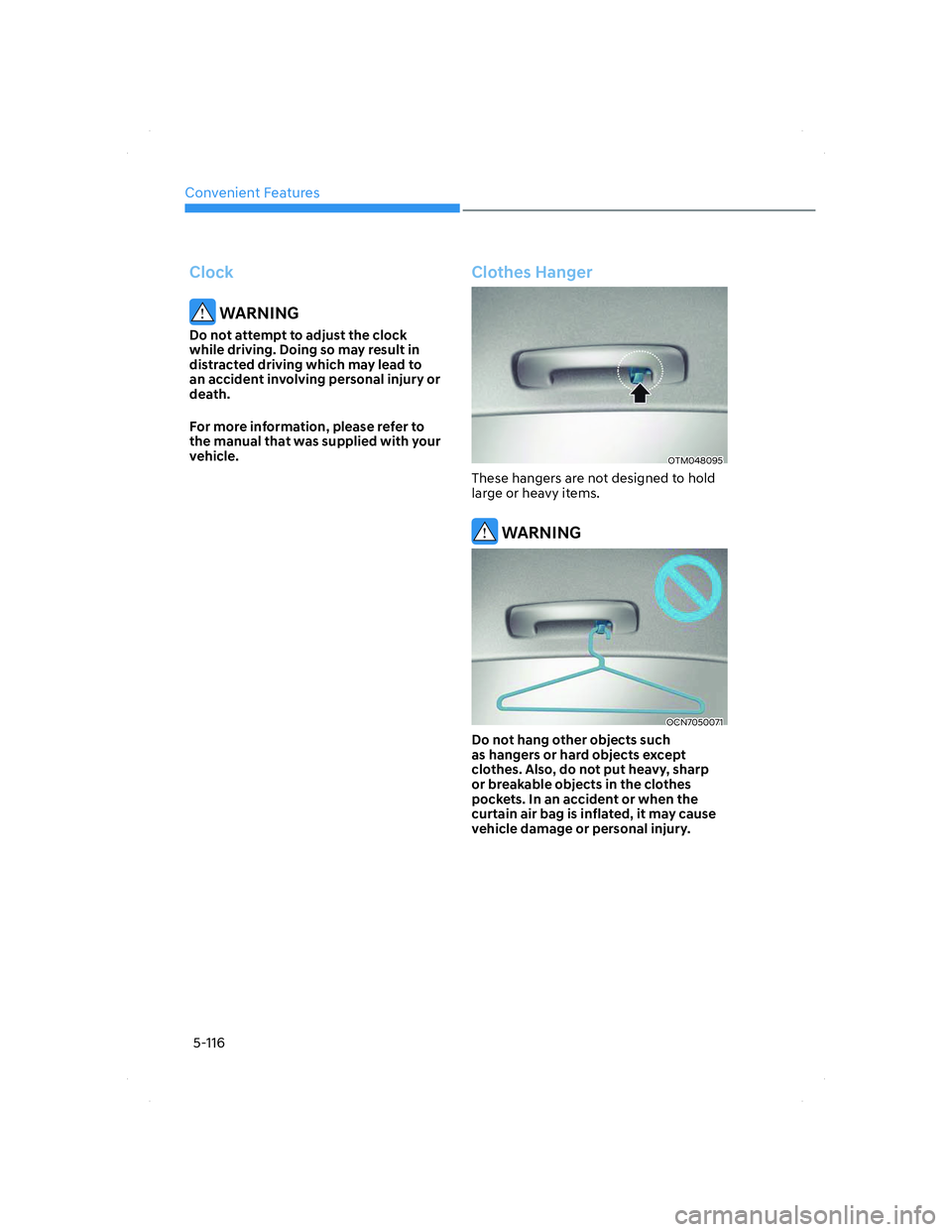

Clock
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
For more information, please refer to
the manual that was supplied with your
vehicle.
Clothes Hanger
OTM048095OTM048095
These hangers are not designed to hold
large or heavy items.
WARNING
OCN7050071OCN7050071
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.
CN7 HMA 5.indd 5-1162020-12-03 9:21:13
Page 253 of 584
05
5-117

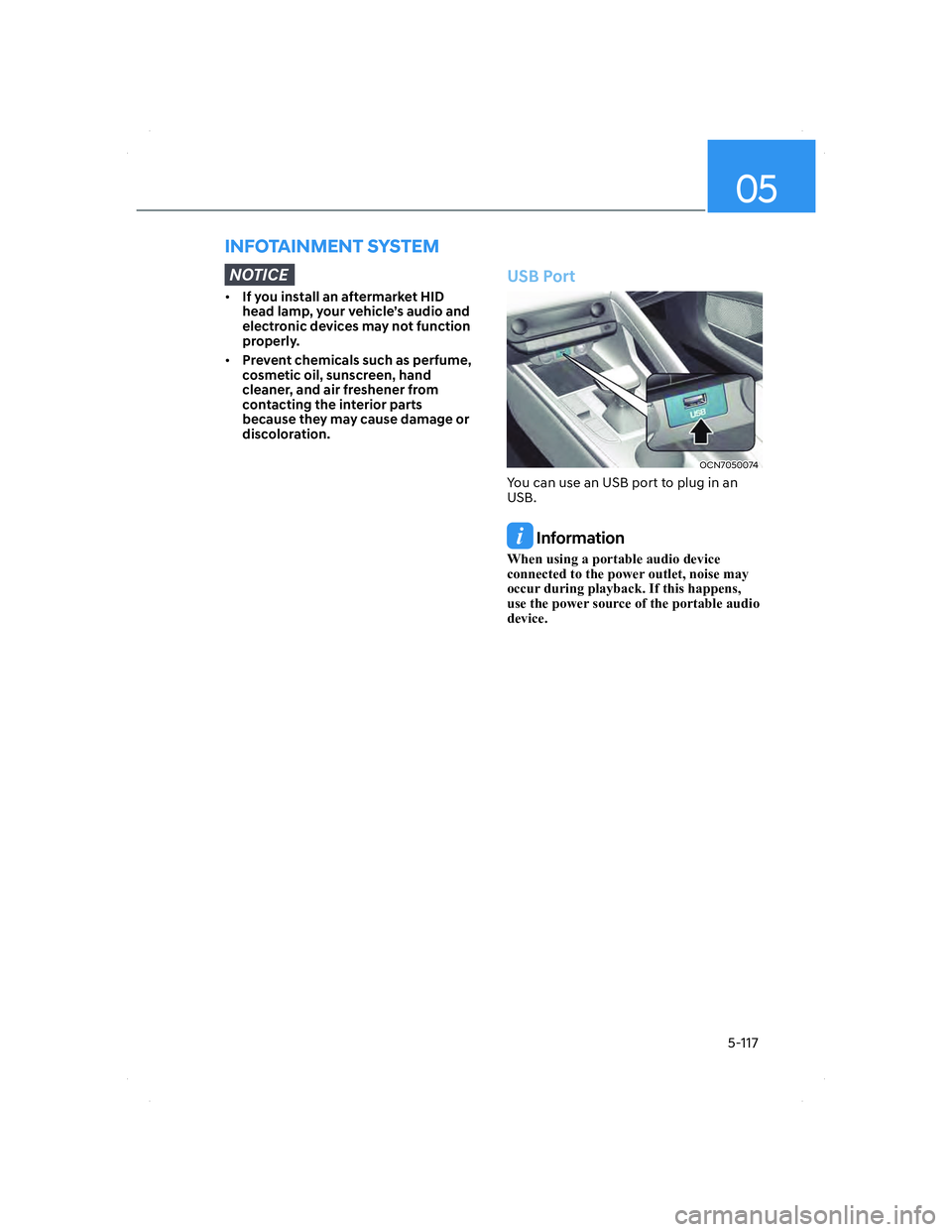

INFOTAINMENT SYSTEM
NOTICE
• If you install an aftermarket HID
head lamp, your vehicle’s audio and
electronic devices may not function
properly.
• Prevent chemicals such as perfume,
cosmetic oil, sunscreen, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB Port
OCN7050074OCN7050074
You can use an USB port to plug in an
USB.
Information
: K H Q X V L Q J D S R U W D E O H D X G L R G H Y L F H
F R Q Q H F W H G W R W K H S R Z H U R X W O H W Q R L V H P D \
R F F X U G X U L Q J S O D \ E D F N , I W K L V K D S S H Q V
X V H W K H S R Z H U V R X U F H R I W K H S R U W D E O H D X G L R
G H Y L F H
CN7 HMA 5.indd 5-1172020-12-03 9:21:14
Page 254 of 584
Convenient Features
5-118

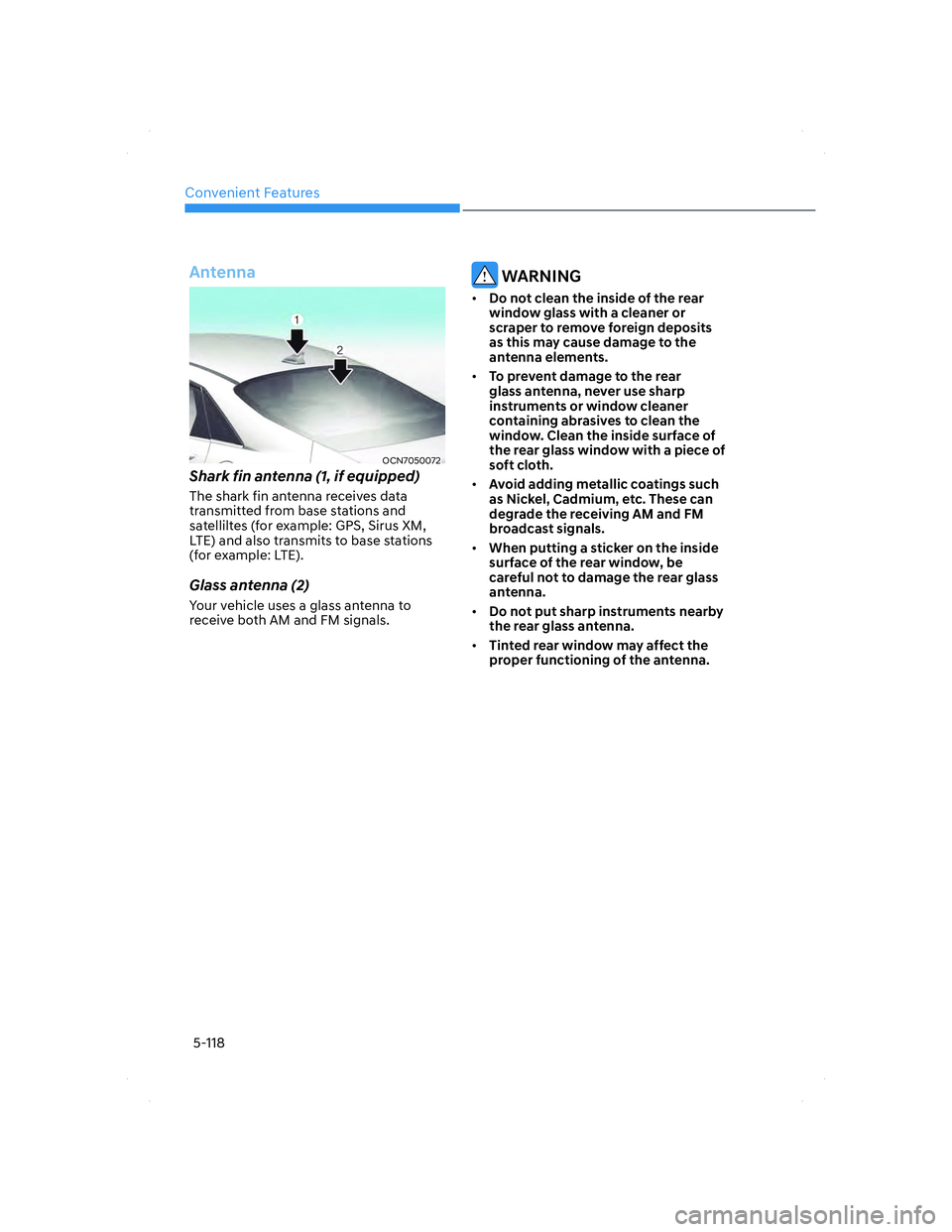

Antenna
OCN7050072OCN7050072
Shark fin antenna (1, if equipped)
The shark fin antenna receives data
transmitted from base stations and
satelliltes (for example: GPS, Sirus XM,
LTE) and also transmits to base stations
(for example: LTE).
Glass antenna (2)
Your vehicle uses a glass antenna to
receive both AM and FM signals.
WARNING
• Do not clean the inside of the rear
window glass with a cleaner or
scraper to remove foreign deposits
as this may cause damage to the
antenna elements.
• To prevent damage to the rear
glass antenna, never use sharp
instruments or window cleaner
containing abrasives to clean the
window. Clean the inside surface of
the rear glass window with a piece of
soft cloth.
• Avoid adding metallic coatings such
as Nickel, Cadmium, etc. These can
degrade the receiving AM and FM
broadcast signals.
• When putting a sticker on the inside
surface of the rear window, be
careful not to damage the rear glass
antenna.
• Do not put sharp instruments nearby
the rear glass antenna.
• Tinted rear window may affect the
proper functioning of the antenna.
CN7 HMA 5.indd 5-1182020-12-03 9:21:14
Page 255 of 584
05
5-119

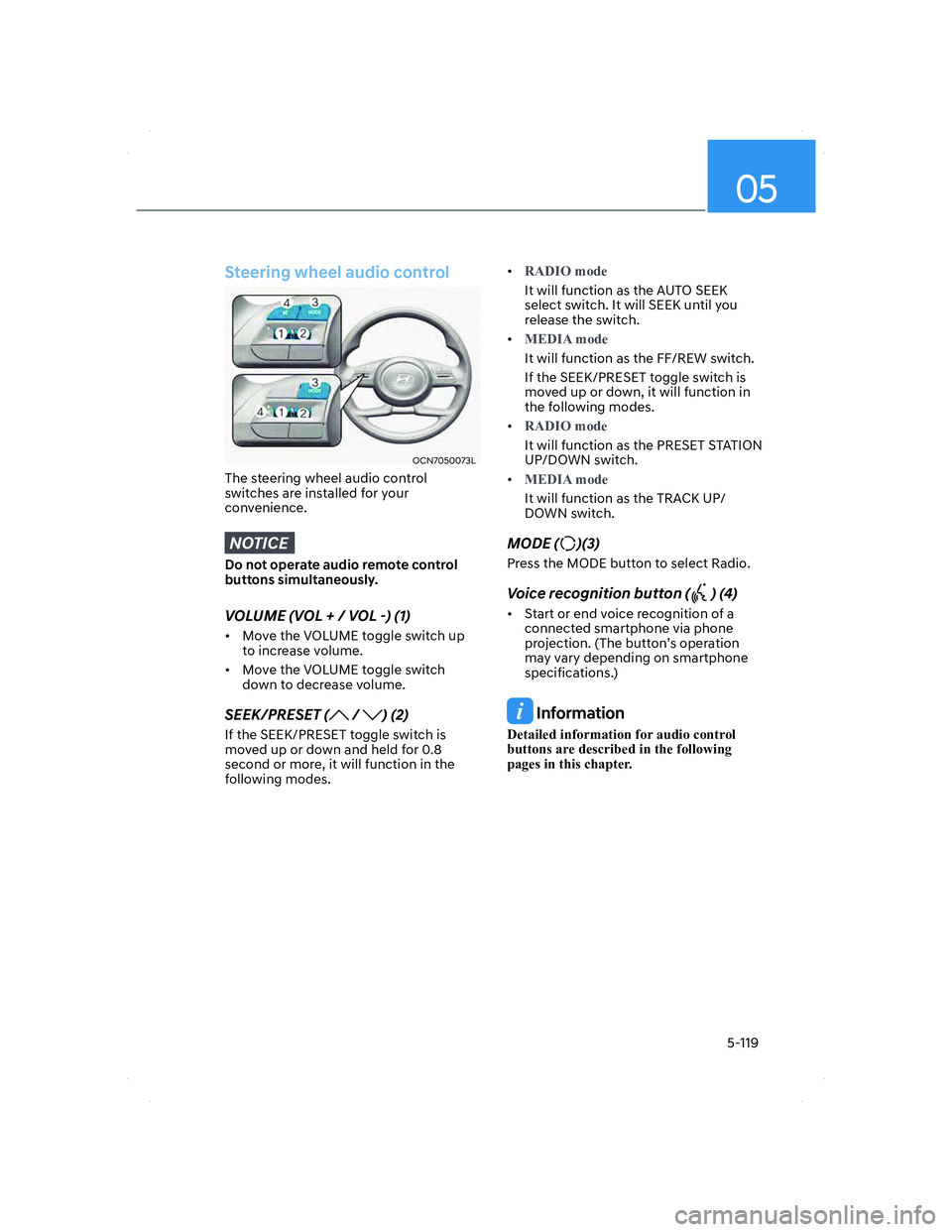

Steering wheel audio control
OCN7050073LOCN7050073L
The steering wheel audio control
switches are installed for your
convenience.
NOTICE
Do not operate audio remote control
buttons simultaneously.
VOLUME (VOL + / VOL -) (1)
• Move the VOLUME toggle switch up
to increase volume.
• Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET toggle switch is
moved up or down and held for 0.8
second or more, it will function in the
following modes.•
5 $ ' , 2 P R G H
It will function as the AUTO SEEK
select switch. It will SEEK until you
release the switch.
•
0 ( ' , $ P R G H
It will function as the FF/REW switch.
If the SEEK/PRESET toggle s
witch is
moved up or down, it will function in
the following modes.
•
5 $ ' , 2 P R G H
It will function as the PRESET STATION
UP/DOWN switch.
•
0 ( ' , $ P R G H
It will function as the TRACK UP/
DOWN switch.
MODE ()(3)
Press the MODE button to select Radio.
Voice recognition button ( ) (4)• Start or end voice recognition of a
connected smartphone via phone
projection. (The button’s operation
may vary depending on smartphone
specifications.)
Information
' H W D L O H G L Q I R U P D W L R Q I R U D X G L R F R Q W U R O
E X W W R Q V D U H G H V F U L E H G L Q W K H I R O O R Z L Q J
S D J H V L Q W K L V F K D S W H U
CN7 HMA 5.indd 5-1192020-12-03 9:21:14
Page 256 of 584
Convenient Features
5-120

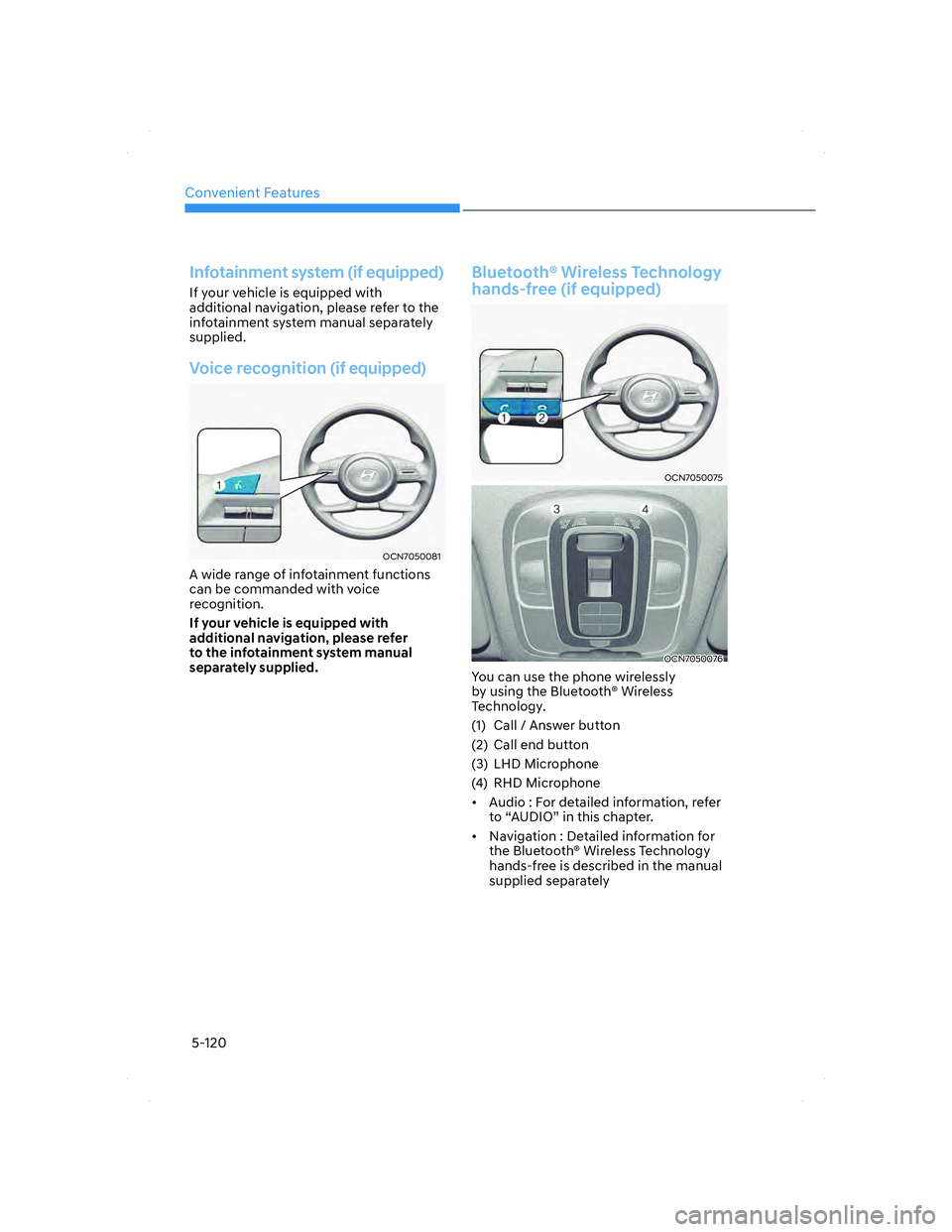

Infotainment system (if equipped)
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.
Voice recognition (if equipped)
OCN7050081OCN7050081
A wide range of infotainment functions
can be commanded with voice
recognition.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
Bluetooth® Wireless Technology
hands-free (if equipped)
OCN7050075OCN7050075
OCN7050076OCN7050076
You can use the phone wirelessly
by using the Bluetooth® Wireless
Technology.
(1) Call / Answer button
(2) Call end button
(3) LHD Microphone
(4) RHD Microphone
• Audio : For detailed information, refer
to “AUDIO” in this chapter.
• Navigation : Detailed information for
the Bluetooth® Wireless Technology
hands-free is described in the manual
supplied separately
CN7 HMA 5.indd 5-1202020-12-03 9:21:14
Page 257 of 584
05
5-121

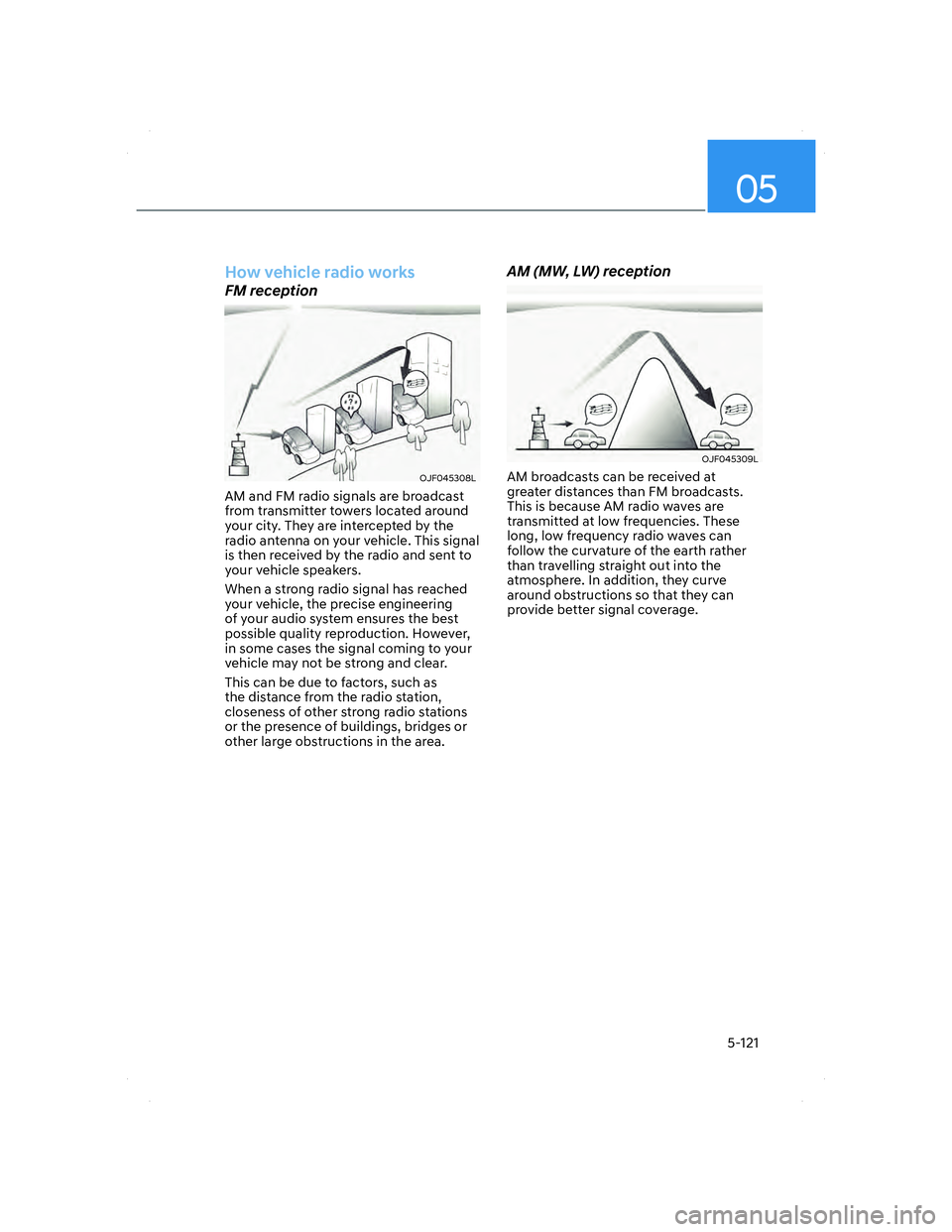

How vehicle radio works
FM reception
OJF045308LOJF045308L
AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your vehicle. This signal
is then received by the radio and sent to
your vehicle speakers.
When a strong radio signal has reached
your vehicle, the precise engineering
of your audio system ensures the best
possible quality reproduction. However,
in some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors, such as
the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.
AM (MW, LW) reception
OJF045309LOJF045309L
AM broadcasts can be received at
greater distances than FM broadcasts.
This is because AM radio waves are
transmitted at low frequencies. These
long, low frequency radio waves can
follow the curvature of the earth rather
than travelling straight out into the
atmosphere. In addition, they curve
around obstructions so that they can
provide better signal coverage.
CN7 HMA 5.indd 5-1212020-12-03 9:21:15
Page 258 of 584
Convenient Features
5-122

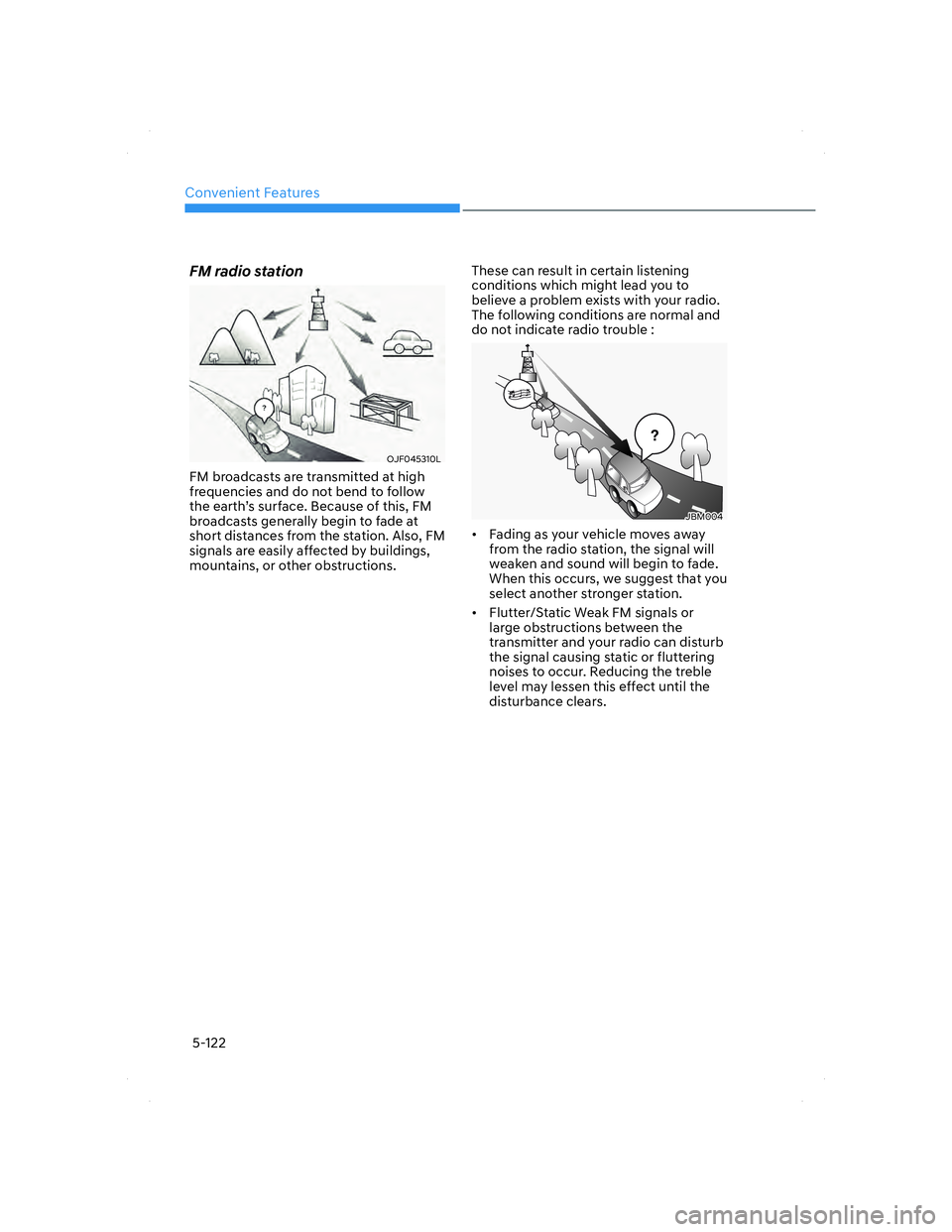

FM radio station
OJF045310LOJF045310L
FM broadcasts are transmitted at high
frequencies and do not bend to follow
the earth’s surface. Because of this, FM
broadcasts generally begin to fade at
short distances from the station. Also, FM
signals are easily affected by buildings,
mountains, or other obstructions.These can result in certain listening
conditions which might lead you to
believe a problem exists with your radio.
The following conditions are normal and
do not indicate radio trouble :
JBM004JBM004
• Fading as your vehicle moves away
from the radio station, the signal will
weaken and sound will begin to fade.
When this occurs, we suggest that you
select another stronger station.
• Flutter/Static Weak FM signals or
large obstructions between the
transmitter and your radio can disturb
the signal causing static or fluttering
noises to occur. Reducing the treble
level may lessen this effect until the
disturbance clears.
CN7 HMA 5.indd 5-1222020-12-03 9:21:15
Page 259 of 584
05
5-123
OJF045311LOJF045311L

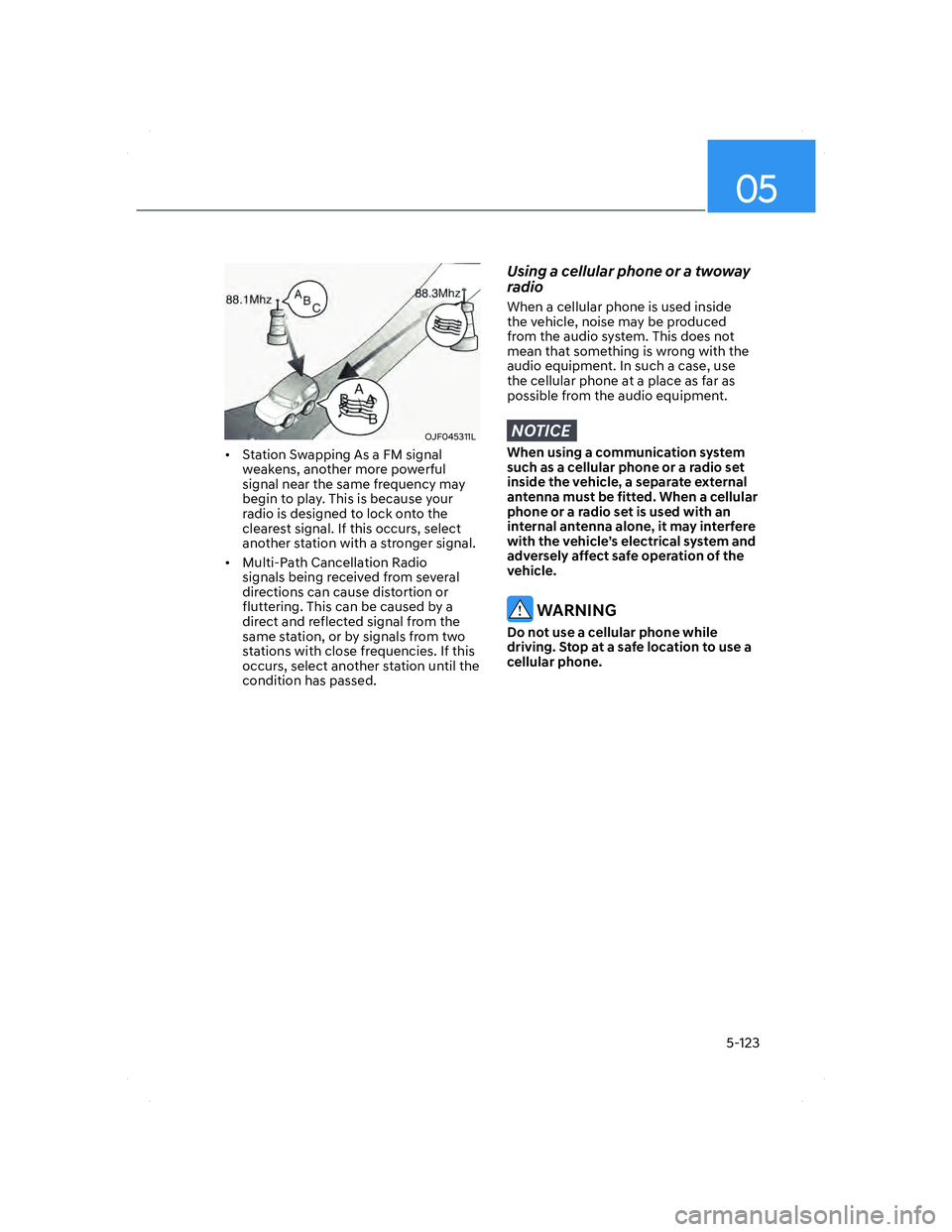

• Station Swapping As a FM signal
weakens, another more powerful
signal near the same frequency may
begin to play. This is because your
radio is designed to lock onto the
clearest signal. If this occurs, select
another station with a stronger signal.
• Multi-Path Cancellation Radio
signals being received from several
directions can cause distortion or
fluttering. This can be caused by a
direct and reflected signal from the
same station, or by signals from two
stations with close frequencies. If this
occurs, select another station until the
condition has passed.
Using a cellular phone or a twoway
radio
When a cellular phone is used inside
the vehicle, noise may be produced
from the audio system. This does not
mean that something is wrong with the
audio equipment. In such a case, use
the cellular phone at a place as far as
possible from the audio equipment.
NOTICE
When using a communication system
such as a cellular phone or a radio set
inside the vehicle, a separate external
antenna must be fitted. When a cellular
phone or a radio set is used with an
internal antenna alone, it may interfere
with the vehicle’s electrical system and
adversely affect safe operation of the
vehicle.
WARNING
Do not use a cellular phone while
driving. Stop at a safe location to use a
cellular phone.
CN7 HMA 5.indd 5-1232020-12-03 9:21:15
Page 260 of 584
6

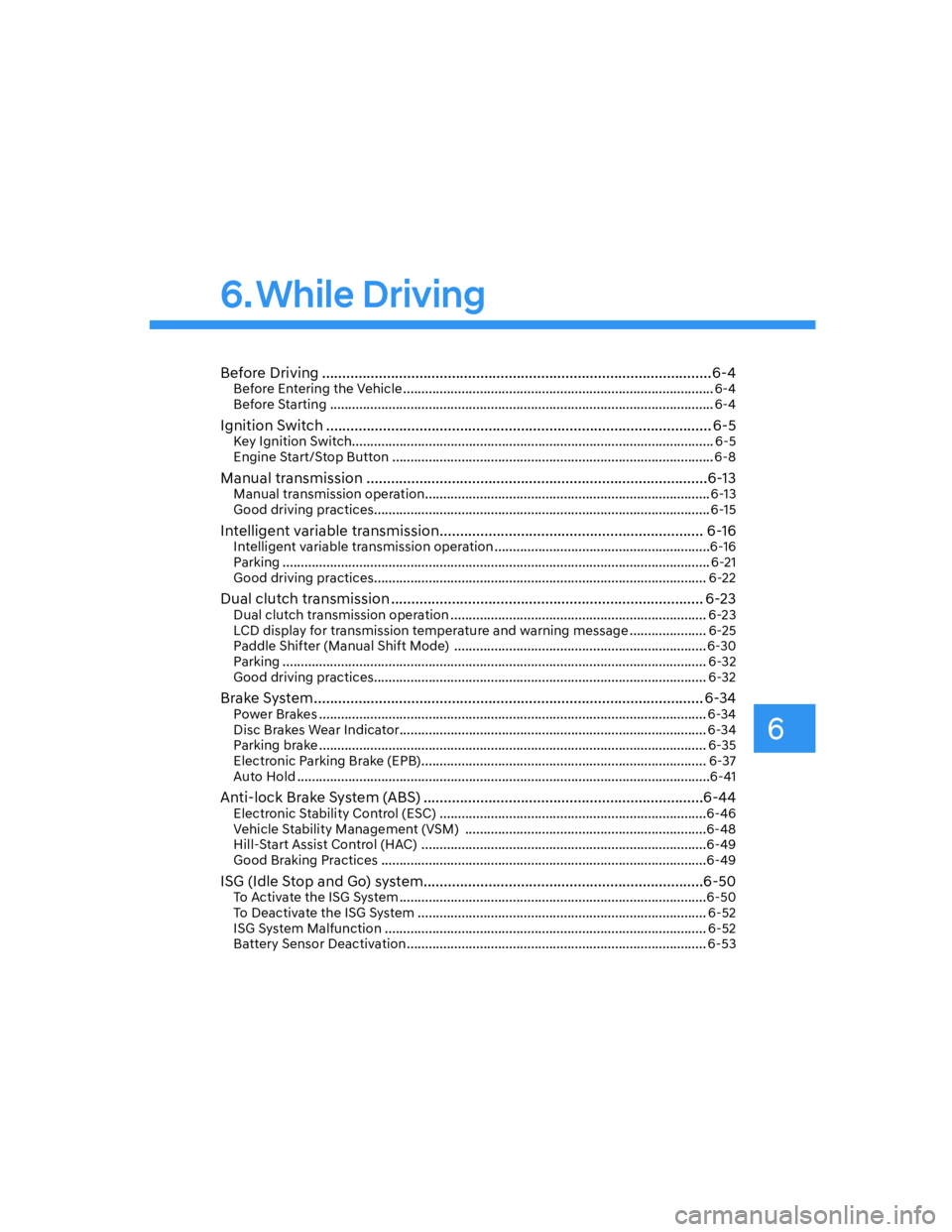

6. While Driving
Before Driving ................................................................................................6-4Before Entering the Vehicle ..................................................................................... 6-4
Before Starting ......................................................................................................... 6-4
Ignition Switch ............................................................................................... 6-5
Key Ignition Switch ................................................................................................... 6-5
Engine Start/Stop Button ........................................................................................ 6-8
Manual transmission ....................................................................................6-13Manual transmission operation ..............................................................................6-13
Good driving practices ............................................................................................ 6-15
Intelligent variable transmission ................................................................. 6-16Intelligent variable transmission operation ...........................................................6-16
Parking ..................................................................................................................... 6-21
Good driving practices ........................................................................................... 6-22
Dual clutch transmission ............................................................................. 6-23Dual clutch transmission operation ...................................................................... 6-23
LCD display for transmission temperature and warning message ..................... 6-25
Paddle Shifter (Manual Shift Mode) ..................................................................... 6-30
Parking .................................................................................................................... 6-32
Good driving practices ........................................................................................... 6-32
Brake System ................................................................................................ 6-34Power Brakes .......................................................................................................... 6-34
Disc Brakes Wear Indicator.................................................................................... 6-34
Parking brake .......................................................................................................... 6-35
Electronic Parking Brake (EPB) .............................................................................. 6-37
Auto Hold .................................................................................................................6-41
Anti-lock Brake System (ABS) .....................................................................6-44Electronic Stability Control (ESC) .........................................................................6-46
Vehicle Stability Management (VSM) ..................................................................6-48
Hill-Start Assist Control (HAC) ..............................................................................6-49
Good Braking Practices .........................................................................................6-49
ISG (Idle Stop and Go) system.....................................................................6-50To Activate the ISG System ....................................................................................6-50
To Deactivate the ISG System ............................................................................... 6-52
ISG System Malfunction ........................................................................................ 6-52
Battery Sensor Deactivation .................................................................................. 6-53
