Hyundai Elantra GT 2018 Quick Reference Guide

Elantra GT
www.hyundai.com
Roadside Assistance:
1-800-243-7766
Consumer Affairs:
1-800-633-5151
Sirius
XM®
Radio:
1-800-967-2346
Blue Link:
1-855-2BLUELINK
(1-855-225-8354)
HYUNDAI
Quick Reference Guide
☐Windshield Wiper Service Position
(to lift the wipers off the windshield) - page 10☐Tire Pressure Monitoring System (TPMS) - page 34NOTE: Tire pressure may vary in colder temperatures causing the low
tire pressure indicator
to illuminate. Inflate tires according to the Tire
Pressure Label located on the driver’s side door pillar.
LOW TIRE PRESSURE INDICATOR /
TPMS MALFUNCTION INDICATOR
MAINTENANCE
☐How to
Defrost - page 22-23

1 Press the front defrost button.
2 Set to warmest temperature setting.
3 Set to highest fan speed.
WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES☐ Blue Link - pages 28-30 - Assist with creating MyHyundai.com account
- Assist with Blue Link enrollment
- Show Blue Link Users Manual & tear out Voice Commands / Quick Tip Card
- Encourage customers to press the Blue Link button
☐Central Door Lock/ Unlock Switch - page 02☐Liftgate - page 03
Looking for more detailed information? This Quick Reference Guide does not replace your vehicle’s
Owner’s Manual. If you require additional information or are unsure of a specific issue,we recommend
that you always refer to the vehicle’s Owner’s Manual or contact your authorized Hyundai dealer. The
information contained in this Quick Reference Guide is correct at the time of printing; however,
specifications and equipment can change without notice. No warranty or guarantee is being
extended in this Quick Reference Guide, and Hyundai reserves the right to change product
specifications and equipment at any time without incurring obligations. Some vehicles are shown
with optional equipment.Scheduled Maintenance
(Normal Usage)2.0 GDI 1.6 T-GDIEngine Oil and Filter Replace 7,500 or 12 mos. Replace 6,000 or 12 mos.
Fuel Additives Add 7,500 or 12 mos. Add 6,000 or 12 mos.
Tire Rotation Perform 7,500 Perform 6,000
Vacuum Hose Inspect 7,500 or 12 mos. Inspect 6,000 or 12 mos.
Air Cleaner FilterInspect 7,500 or 12 mos. Inspect 6,000 or 12 mos.
Replace 22,500 or 36 mos. Replace 18,000 or 36 mos.
Climate Control Air Filter
(for Evaporator and Blower Unit)Replace 7,500 or 12 mos. Replace 6,000 or 12 mos.
Air Conditioning Refrigerant
Inspect 7,500 or 12 mos. Inspect 6,000 or 12 mos. Brake Hoses & Lines
Drive Shafts & Boots
Front Brake Disc/Pads, Calipers
Rear Brake Disc/Pads
Steering Gear Box, Linkage & Boots /
Lower Arm Ball Joint, Upper Arm Ball Joint
Suspension Mounting Bolts
Exhaust Pipe & Muffler
Inspect 15,000 or 24 mos. Inspect 12,000 or 24 mos. Fuel Tank Air Filter
Vapor Hose & Fuel Filler Cap, Fuel Tank
Brake/Clutch Fluid
Parking Brake
Fuel Filter
Fuel Lines, Fuel Hoses and Connections Inspect 30,000 or 48 mos. Inspect 24,000 or 48 mos.
Drive Belt InspectFirst
InspectFirst
60,000 or 72 mos. 60,000 or 72 mos.
Subsequent, every Subsequent, every
15,000 or 24 mos. 12,000 or 24 mos.
Spark Plugs
Replace 97,500 Replace 42,000
Coolant ReplaceFirst
ReplaceFirst
120,000 or 120 mos. 120,000 or 120 mos.
Subsequent, every Subsequent, every
30,000 or 24 mos. 30,000 or 24 mos.
Valve Clearance - Inspect 60,000 or 72 mos.
Dual Clutch Ttransmission Fluid
Inspect 30,000 or 48 mos. Inspect 24,000 or 48 mos.
Manual Transmission Fluid
Automatic Transmission Fluid No checks or services required for Normal Usage driving.
*Check the engine oil regularly between recommended oil change intervals.
We recommend Quaker State oil.
*See Owner's Manual for details regarding Severe Usage maintenance recommendations.
NP150-82018-A
(Rev 05/05/17)
Printing 05/08/17
Press the central door lock/unlock
switch to lock/unlock all vehicle doors.
Unlock the doors, press the liftgate
handle button and open the liftgate. Within 20 seconds of turning off the engine,
lift and hold the wiper lever up to the MIST
position until the wipers move to the top
wipe position☐Fuel Filler Door - page 03Unlock the doors and press the fuel
door lid at the 3 o'clock position.☐Emergency/ Manual Door Lock- page 02Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency door
lock hole and turn key horizontally to lock.
3. Close the door securely.

Steering wheel
audio controlPage24
Instrument
clusterPage17
NavigationPage31-32
Instrument
panel lillumination Page18
Climate
controlPage20-23
HeadlightsPage09
Table of contents
Cruise control/
Smart cruise controlPage42
Wiper and
washerPage10
TransmissionPage36

WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual.
* Some vehicles may not be equipped
with all the listed features.
Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More detailed
information about these features are
available in your Owner’s Manual.
Driver's main
controlsPage08
GETTING STARTEDCentral door lock/ unlock switch 02
Child-protector rear door lock 03
Emergency manual door lock 02
Engine start/stop button 07
Front seat adjustment (manual) 05
Front seat adjustment (power) 05
Fuel filler door 03
Head restraint adjustment 06
Inner door handle 02
Liftgate 03
Rear seat folding 06
Remote & smart key 04
Seat belt adjustment (front seat) 06
Steering wheel adjustments 07FEATURES AND CONTROLSAir ventilation seat (front seat) 13
Climate control 20-23
Clock adjustment 16
Driver’s main controls 08
Headlights 09
Homelink wireless control system 14
Instrument cluster 17
Instrument panel illumination 18
Interior lights 12
LCD display control 19
LCD display modes 19
Rear view camera 15
Seat warmer (front seats) 13
Sunroof 11
Warning and indicators 18
Wireless cellular phone charging system 15
Wipers and washer 10 MULTIMEDIAAUX, USB and iPod® port 32
Blue link telematics system 28-30
Bluetooth® phone call operational tips 24-25
Bluetooth® phone operation 2 7
Navigation 31-32
Steering wheel audio control 24
Voice recognition tips 26DRIVINGAuto hold 33
Automatic emergency braking (AEB) 39
Automatic transmission &
Dual clutch transmission 36
Blind spot detection system (BSD) 39Cruise control/advanced smart cruise control
42
Driver attention alert system 40
Drive mode integrated control system 41
Electronic parking brake (EPB) 33
Electronic stability control (ESC) 38
Lane keeping assist system (LKAS) 38
Manual transmission 35
Tire pressure monitoring system (TPMS) 34
Paddle shifter 37

Quick Reference Guide I 03
02 I Quick Reference Guide
Elantra GT HYUNDAI
GETTING STARTED
1. Push the center edge of the fuel
filler door when the driver’s door is
unlocked.
2. Remove the fuel tank cap.NOTE:Tighten the fuel filler cap until one click is
heard.
INNER DOOR HANDLECENTRAL DOOR LOCK/ UNLOCK SWITCHEMERGENCY / MANUAL DOOR LOCK
Front doorPull the inner door handle to
unlock and open the door.
Press the central door lock/unlock
switch to lock/unlock all vehicle
doors. All doors must be closed to
use the central door lock switch.
LED on = doors are locked.
LED off or blinking = doors are not
locked
Doors without an outside key hole
can be locked as follows:
1. Open the door.
2. Insert the key into the emergency
door lock hole and turn key
horizontally to lock.
3. Close the door securely.Rear doorPull the inner door handle :
Once -> Unlocks the door
Twice -> Opens the door
Lock Insert a key or screw
driver into the hole and
turn it to the lock position.UnlockInsert a key or screw
driver into the hole and
turn it clockwise to the
unlock position.
CHILD-PROTECTOR REAR DOOR LOCK FUEL FILLER DOOR
Remote KeyPress and hold to unlock
the trunk.
Press the Liftgate handle
button and open the liftgate.Smart KeyPress the liftgate handle
button to open.
LIFTGATE
Type B Type A

Quick Reference Guide I 05
04 I Quick Reference Guide
Elantra GT HYUNDAI
GETTING STARTED
Driver’s door Lock / UnlockSmart key must be within 28~40in.
from the outside door handle.Press:
Once - Unlock driver door
Twice - Unlock all doors
Third - Lock all doors
NOTE:
User selectable option : Please see section 3 from Owner’s
Manual for more details.
LockUnlockLiftgate Unlock Panic
Removing the mechanical keySlide and hold the release button
A
to remove the mechanical key.
To unfold the mechanical
key, press the release
button on the remote.
REMOTE & SMART KEY
A
FRONT SEAT ADJUSTMENT (Manual)
Push down/ Pull up on the lever
several times to lower/ raise the seat
cushion height.
FRONT SEAT ADJUSTMENT (Power)
Forward and backward
1
Seat cushion height
1
Lumbar support
3
1
2
3
2
3
Forward and backward

1
Seat cushion height
2
Seatback angle
3
1
Seatback angle
2

Quick Reference Guide I 07

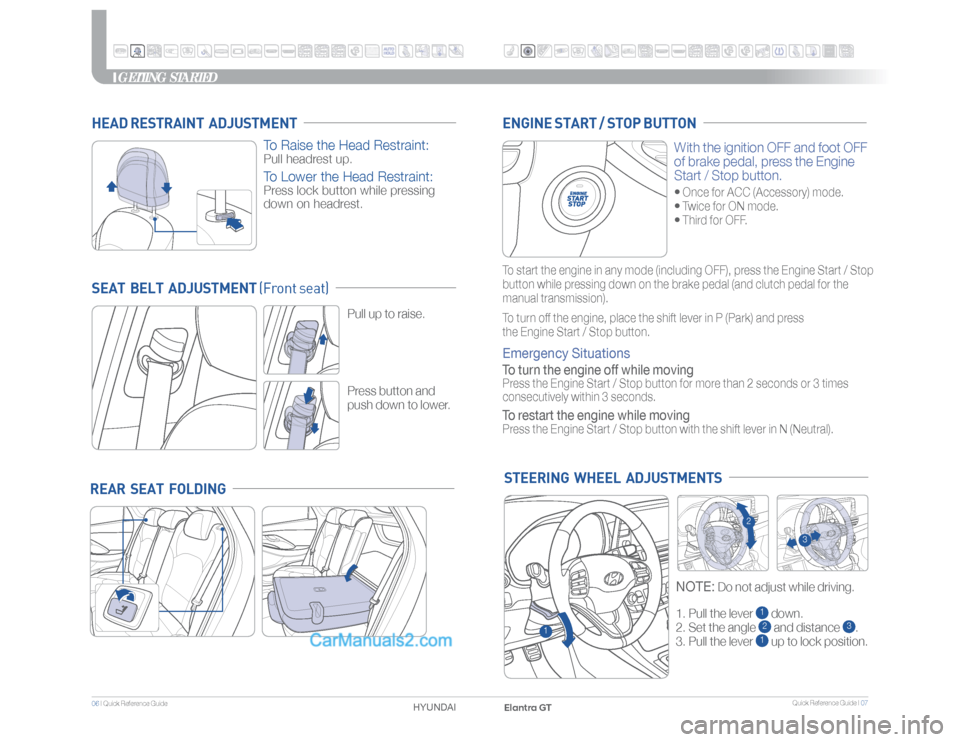

06 I Quick Reference Guide
Elantra GT HYUNDAI
GETTING STARTED
Pull up to raise.Press button and
push down to lower.
SEAT BELT ADJUSTMENT (Front seat) HEAD RESTRAINT ADJUSTMENT
To Raise the Head Restraint:

Pull headrest up.
To Lower the Head Restraint:

Press lock button while pressing
down on headrest.
With the ignition OFF and foot OFF
of brake pedal, press the Engine
Start / Stop button.• Once for ACC (Accessory) mode.• Twice for ON mode.• Third for OFF.
ENGINE START / STOP BUTTON To start the engine in any mode (including OFF), press the Engine Start / Stop
button while pressing down on the brake pedal (and clutch pedal for the
manual transmission).
To turn off the engine, place the shift lever in P (Park) and press
the Engine Start / Stop button.Emergency Situations To turn the engine off while moving Press the Engine Start / Stop button for more than 2 seconds or 3 times
consecutively within 3 seconds.To restart the engine while movingPress the Engine Start / Stop button with the shift lever in N (Neutral).
REAR SEAT FOLDING
1. Pull the lever
1 down.
2. Set the angle 2 and distance
3.
3. Pull the lever
1 up to lock position.
NOTE:
Do not adjust while driving.
STEERING WHEEL ADJUSTMENTS
1
2
3

Quick Reference Guide I 09
08 I Quick Reference Guide
Elantra GT HYUNDAI
FEATURES AND CONTROLS
DRIVER'S MAIN CONTROLS
Side view mirror • Press the L or R button. • Adjust the mirror by using
the directional switch.Power window lock buttonDisables the power window
switches on the rear passenger
doors. Window switches• Front doors power window
switches.• Rear doors power window
switches.
Headlight DelayHeadlights may stay on for 15 seconds after exiting and locking vehicle.
Press the lock button on the remote key or smart key twice to turn the
headlights off.Turn signals and lane change
signalsFlashing headlights
PULL
High beams Smart High Beam
Smart High Beam Function
PUSH PUSH
NOTE:
To turn off the high beam, pull the lever towards you.
Parking lights onDRL OFFAuto headlights onHeadlights on
HEADLIGHTS1. Select the AUTO position on stalk.
2. Push the lever forward to engage the Smart High beam.
3. Pull the lever towards you to disengage.

Quick Reference Guide I 11
10 I Quick Reference Guide
Elantra GT HYUNDAI
FEATURES AND CONTROLS
WIPERS AND WASHER
Windshield WasherFront: Pull the lever towards you to spray
washer fluid and run the wipers briefly.Rear Wiper ControlOFF -
Off
OFF -
Off
OFF
MIST -
Single wipe
MIST
INT -
Intermittent wipe
INT
LO -
Low wiper speed
LO -
Low wiper speed
LO
HI -
High wiper speed
HI -
High wiper speed
HI
Intermittent wipe time adjustmentMove the speed control switchFast wiper speed
Slow wiper speed
PULL
PUSH
SunshadeTo open the sunshade, pull the
sunroof control lever lightly
backward to the first detent position.
Push the sunroof control lever
forward to close.
Tilting the SunroofSUNROOF Sliding the Sunroof
Pull the sunroof control lever
backward past the first detent to
slide open the sunroof glass.
Push the sunroof control lever
forward to the second detent
position to close sunroof glass with
the sunshade.Push the sunroof control lever
upward to tilt open the sunroof.
Push again the sunroof control lever
upward to tilt the sunroof glass closed.
Windshield Wiper Service Position
(to lift the wipers off the windshield)Within 20 seconds of turning off the engine,
lift and hold the wiper lever up to the MIST
position until the wipers move to the top
wipe position.Rear: Push the lever away from you to
spray washer fluid on the rear window
and run the wiper briefly.

Quick Reference Guide I 13
12 I Quick Reference Guide
Elantra GT HYUNDAI
FEATURES AND CONTROLS
Front map lamp
1
Press the lens to turn the map lamp
on or off.Front door lamp ( )
2
Lights will turn on when any door is
open.Front room lamp ( )
3
Push the switch to turn the room lamp
on.Front room lamp ( )
4
Push the switch to turn the room lamp
off.
2
1
1
3
4
INTERIOR LIGHTS
SEAT WARMER (Front seat)
Each time you push the button,
the setting is changed as follows:OFFMIDDLE HIGH
LOW If you want to turn it off immediately,
press and hold the button.
AIR VENTILATION SEAT(Front seat)
Each time you push the button,
the setting is changed as follows:OFFMIDDLE HIGH
LOW If you want to turn it off immediately,
press and hold the button.
Type A
Type B

Quick Reference Guide I 15
14 I Quick Reference Guide
Elantra GT HYUNDAI
Standard Programming To train most devices, follow these instructions:
1. For the first-time programming, press and hold the two outside
buttons, HomeLink
® Channel 1 and Channel 3 buttons, until the
indicator light begins to flash (after 10 seconds). Release both
buttons. Do not hold the buttons for over 20 seconds.
2. Position the end of your hand-held transmitter 1-3in. (2-8cm)
away from the HomeLink
® buttons while keeping the indicator
light in view.
3. Simultaneously press and hold both the HomeLink
® and the
hand-held transmitter button. DO NOT release the buttons until
step 4 has been completed.
4. While continuing to hold the buttons, the red indicator Status LED
will flash slowly and then rapidly after HomeLink
® successfully
trains to the frequency signal from the hand-held transmitter.
Release both buttons.
For more detailed information, please refer to Section 3 of your Owner’s
Manual, or visit www.homelink.com or call (800) 355-3515.
HOMELINK WIRELESS CONTROL SYSTEM
FEATURES AND CONTROLS
WIRELESS CELLULAR PHONE CHARGING SYSTEM
There is a wireless cellular phone
charging system inside the front
console. The system operates with
all doors closed, and the ignition
switch is in the ACC/ON position.NOTE:The wireless cellular phone
charging system supports only
the Qi-enabled cellular phones (
).
NOTE: Do not place any metallic items
such as coins, keys on the charger.
Avoid to put credit cards, etc. on
the charger as they might get
damaged by the magnetic field.
REAR VIEW CAMERA
When the shift lever is moved
to R(Reverse), rear view camera
displays the area behind the vehicle.

Quick Reference Guide I 17
16 I Quick Reference Guide
Elantra GT HYUNDAI
FEATURES AND CONTROLS
With NavigationCLOCK ADJUSTMENT
1. Press the SETUP( ) button on the
audio head unit.
2. Select Date/Time.
3. Select the desired items.
Date/Time
If you tap any value, you can directly
enter the number in the screen.
Daylight Saving Time
The daylight saving time(DST) is
applied.
24 Hours
Choose between 12-hour and
24-hour time format.
With Audio
1 Tachometer2 Speedometer3 Engine coolant temperature gauge4 Fuel gauge5 Warning and indicator lights6 LCD display (including Trip computer)
55
5
4
1
2
3
6
5
55
4
1
2
3
6
INSTRUMENT CLUSTERType B Type A
1. Press the SETUP( ) button on the
navigation head unit.
2. Select Date/Time.
3. Select the desired items.
GPS time
Displays time according to the
received GNSS(Global Navigation
Satellite System) time.
