A : Wiper speed control· MIST – Single wipe · OFF – Off
· INT – Intermittent wipe
· LO – Low wiper speed· HI – High wiper speed
B : Intermittent control wipe time adjustment
C : Wash with brief wipes (pull lever towards you)
D : Rear wiper/washer control · HI – High wiper speed
· LO – Low wiper speed· OFF – Off
E : Wash with brief wipes (rear) (push lever away from you)
Windshield Wipers
Operates as follows when the igni-
tion switch is in the ON position.
MIST : For a single wiping cycle,
push the lever upward and
release. The wipers will oper-
ate continuously if the lever isheld in this position. OFF : Wiper is not in operation.
INT : Wiper operates intermittently at
the same wiping intervals. To
vary the speed setting, move
the speed control lever. The top
most setting will run the wipers
most frequently (for more rain).
The bottom setting will run the
wipers the least frequently (for
less rain).
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.
If you do not remove the snow and/or
ice before using the wiper and washer,
it may damage the wiper and washer
system.
i
WW IIPP EERR SS AA NN DD WW AASSHH EERR SS
OPD047454L
OTLA045318
■ Front windshield wiper/washer
■Rear windshield wiper/washer

3-94
Convenient features of your vehicle
Windshield Washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles. The spray and
wiper operation will continue until
you release the lever. If the washer
does not work, you may need to add
washer fluid to the washer fluid
reservoir. To prevent possible damage to
the washer pump, do not operatethe washer when the fluid reser-
voir is empty.
To prevent possible damage to the wipers or windshield, do not
operate the wipers when the wind-
shield is dry.
To prevent damage to the wiper arms and other components, do
not attempt to move the wipers
manually.
To prevent possible damage to the wipers and washer system,use anti-freezing washer fluids in
the winter season or cold weather.
Front windshield wiper service
position
This vehicle has a "hidden" wiperdesign which means that the wipers
cannot be lifted when they are in theirbottom resting position.
1. Within 20 seconds of turning off the engine, lift and hold the wiper lever
up to the MIST position for about 2
seconds until the wipers move to thetop wipe position.
2. At this time you can lift the wipers off the windshield.
3. Gently put the wipers back down onto the windshield.
4. Turn the wipers to any ON position to return the wipers to the bottomresting position.
NOTICE
When the outside temperature
is below freezing, ALWAYSwarm the windshield using the
defroster to help prevent the
washer fluid from freezing onthe windshield and obscuring
your vision which could resultin an accident and serious
injury or death.
WARNING
OTLE045164
OPD076027

3-95
Convenient features of your vehicle
Rear Window Wiper and Washer
The rear window wiper and washer
switch is located at the end of the
wiper and washer switch lever. Turn
the switch to the desired position to
operate the rear wiper and washer. HI – High wiper speed
LO – Low wiper speed OFF – OffPush the lever away from you to
spray rear washer fluid and to run the
rear wipers 1~3 cycles. The spray
and wiper operation will continue
until you release the lever.
Auto rear wiper (if equipped)
The rear wiper will operate while the
vehicle is in reverse with the front
wiper ON by selecting the function
on the LCD display. Go to 'User Settings

Convenience
Auto Rear Wiper (reverse)'.
3
OTLE045165
OTLE045166

6-24

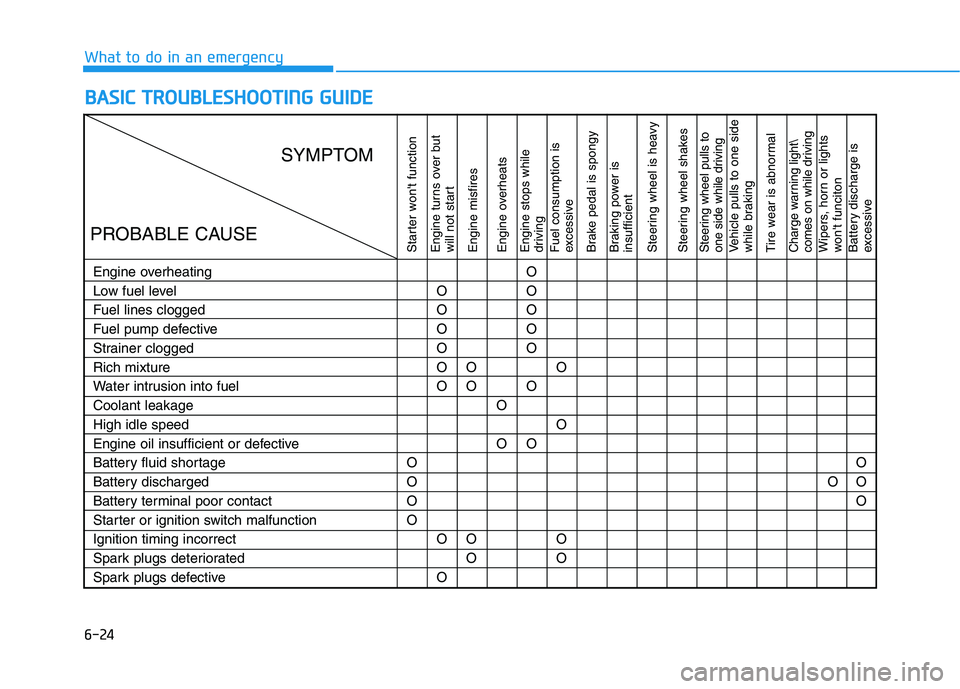

BBAA SSIICC TT RR OO UUBBLLEE SSHH OO OOTTIINN GG GG UU IIDD EE
What to do in an emergency
Starter won't function
Engine turns over but
will not start Engine misfires
Engine overheats Engine stops while
driving Fuel consumption is
excessive
Brake pedal is spongy
Braking power is insufficient
Steering wheel is heavy
Steering wheel shakesSteering wheel pulls to
one side while drivingVehicle pulls to one side
while braking
Tire wear is abnormalCharge warning light\
comes on while drivingWipers, horn or lights
won't funciton
Battery discharge is
excessive
Engine overheating
Low fuel levelFuel lines clogged
Fuel pump defective
Strainer cloggedRich mixture
Water intrusion into fuelCoolant leakageHigh idle speed
Engine oil insufficient or defective
Battery fluid shortage
Battery discharged
Battery terminal poor contact
Starter or ignition switch malfunctionIgnition timing incorrect
Spark plugs deteriorated
Spark plugs defective OOOOOOOOOO O O
O O O O
O OO OOOO O O
OO O O
O
OOO
SYMPTOM
PROBABLE CAUSE

6-25
What to do in an emergency
6
Starter won't function
Engine turns over but
will not start Engine misfires
Engine overheats Engine stops while
driving Fuel consumption is
excessive
Brake pedal is spongy
Braking power is insufficient
Steering wheel is heavy
Steering wheel shakesSteering wheel pulls to
one side while drivingVehicle pulls to one side
while braking
Tire wear is abnormalCharge warning light\
comes on while drivingWipers, horn or lights
won't funciton
Battery discharge is
excessive
Ignition circuit faulty
Ignition coil or condensor faulty
Distributor faulty
Alternator belt loose
Check fuses, bulbs or wiring
Brake dragging
Shift lever not positioned in "P" or "N" range
Frequent driving in lower gear
Air intrusion into brake lines
Brake fluid insufficient
Brake disc and pads wet
Brake pad wearWheel alignment incorrectWheel balance incorrect
Tire pressure incorrect (too low or high)
Tire size incorrectO
O OO
O
OOOO O OO O O O O O
OOOO
OOO O
O O O
OO O O O O
O
SYMPTOM
PROBABLE CAUSE

7-29
7
Maintenance
WWIIPP EERR BB LLAA DDEESS
Blade Inspection
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wiper functionality.Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commercial
car washes. If the blades are not wip-
ing properly, clean both the window
and the blades with a clean cloth
dampened with washer fluid.
To prevent damage to the wiper
blades, arms or other compo-
nents, do not:
Use gasoline, kerosene, paint
thinner, or other solvents on or near them.
Attempt to move the wipers manually.
Use non-specified wiper blades.
Information
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windshield difficult to clean.
Blade Replacement
When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
To prevent damage to the wiper
arms or other components, do not
attempt to move the wipers manu-
ally. The use of a non-specified wiper
blade could result in wiper mal-
function and failure.
In order to prevent damage to the hood and the wiper arms, the
wiper arms should only be liftedwhen in the top wiping position.
Always return the wiper arms to the windshield before driving.
Front windshield wiper service
positions
This vehicle has a "hidden" wiperdesign which means that the wipers
cannot be lifted when they are intheir bottom resting position.
1. Within 20 seconds of turning off the engine, lift and hold the wiper
lever up to the MIST position forabout 2 seconds until the wipers
move to the top wipe position.
2. At this time you can lift the wipers off the windshield.
NOTICE
NOTICE
NOTICE
i
NOTICEOPD076027

7-30
Maintenance
3. Gently put the wipers back downonto the windshield.
4. Turn the wipers to any ON position to return the wipers to the bottom resting position.Front windshield wiper blade
replacement
1. Put the front windshield wipers into the service position.
2. Raise the wiper arm and slightly rotate the wiper blade assembly to
expose the plastic locking clip.
Do not allow the wiper arm to fall
against the windshield, since it
may chip or crack the windshield. 3. Press the clip (1) and slide the
blade assembly downward (2).
4. Lift it off the arm.
5. Install the blade assembly in the reverse order of removal.
6. Return the wiper arm on the wind- shield.
NOTICE
OLMB073020
OLMB073021
OLMB073022

I-14
Warning and indicator lights...........................................3-54
Air bag warning light .................................................3-54
Anti-lock Brake System (ABS) warning light ...........3-55
AUTO HOLD indicator light .....................................3-60
Charging system warning light ..................................3-57
Cruise indicator light ..................................................3-64
Cruise SET indicator light..........................................3-64
ECO mode indicator light ..........................................3-64
Electric power steering (EPS) warning light .............3-56
Electronic brake force warning light..........................3-56
Electronic parking brake (EPB) warning light...........3-60
Electronic stability control (ESC) indicator light ......3-61
Electronic stability control (ESC) OFF indicator light .........................................................................3-61
Engine oil pressure warning light ..............................3-58
Forward Collision-Avoidance Assist (FCA) Warning light ...........................................................3-65
High beam indicator light ..........................................3-63
Icy road warning light ................................................3-64
Immobilizer indicator light ........................................3-61
Lane keeping assist system (LKA) warning light......3-65
LED headlamp warning light .....................................3-63
Light ON indicator light .............................................3-63
Low fuel level warning light ......................................3-58
Low tire pressure warning light .................................3-59
Malfunction indicator lamp (MIL) .............................3-57 Master warning light ..................................................3-59
Parking brake & brake fluid warning light ................3-54
Seat belt warning light ...............................................3-54
Smart high beam indicator light .................................3-63
SPORT mode indicator light ......................................3-64
Turn signal indicator light ..........................................3-62
Washer fluid warning light .........................................3-59
Warning light ..................................................................3-54
Washer fluid ....................................................................7-25
Welcome system .............................................................3-92
Headlamp and parking lamp ......................................3-92
Interior lamp ...............................................................3-92
Wheel alignment and tire balance ..................................7-38
Wheel replacement .........................................................7-41
Windows .........................................................................3-32 Auto down window ....................................................3-34
Auto up/down window ...............................................3-34
Automatic reverse ......................................................3-34
Power windows ..........................................................3-33
Power window lock switch ........................................3-35
Resetting the windows ...............................................3-34
Window opening and closing .....................................3-33
Windshield defrosting and defogging ...........................3-117
Windshield washers ........................................................3-94
Windshield wipers...........................................................3-93
Index
W

I-15
Winter driving ...............................................................5-119
Snow tires .................................................................5-119
Winter Precautions ........................................................5-120
Wiper blades replacement ...............................................7-29 Front windshield wiper blade replacement ................7-30
Front windshield wiper service positions...................7-29
Rear window wiper blade replacement ......................7-31
Wipers and washers ........................................................3-93 Auto rear wiper ..........................................................3-95
Front windshield wiper service position ....................3-94
Rear window wiper and washer .................................3-95
Windshield washers ....................................................3-94
Windshield wipers ......................................................3-93
Wireless cellular phone charging system......................3-128
I
Index
