HYUNDAI ELANTRA GT 2020  Owners Manual 7-67
7
Maintenance
■2.0L GDI
Fuse NameFuse RatingProtected Component
SENSOR210APurge Control Solenoid Valve, Oil Control Valve #1/#2, Variable Intake Solenoid Valve,
E/R Junction Block (Cooling Fan

Page 442 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-68
Maintenance

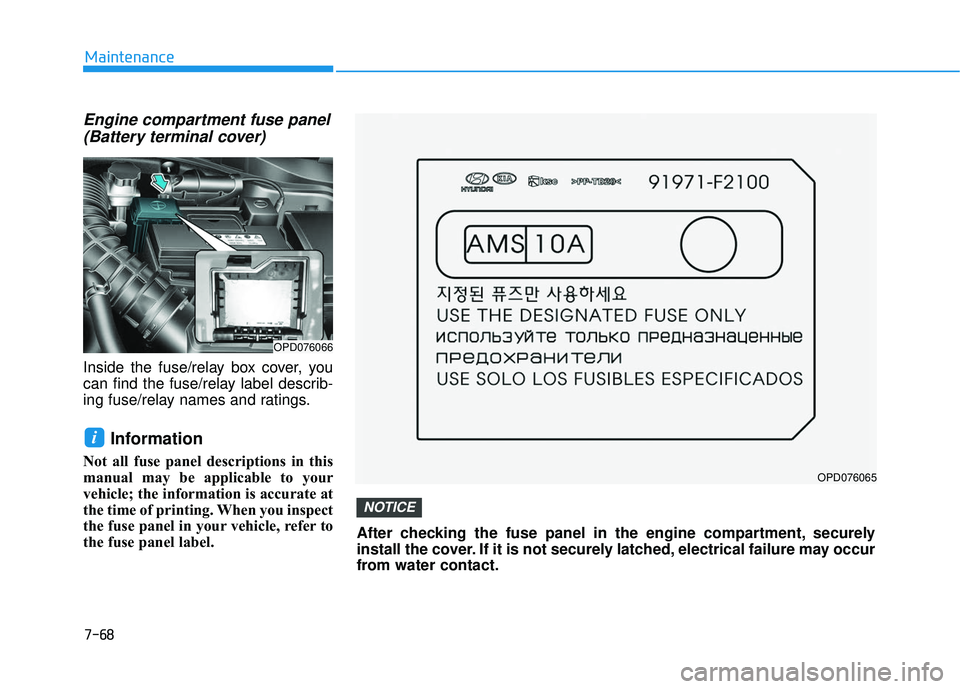

Engine compartment fuse panel(Battery terminal cover)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all

Page 443 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-69
7
Maintenance
L
LI
IG
G H
H T
T
 B
B U
U L
LB
B S
S

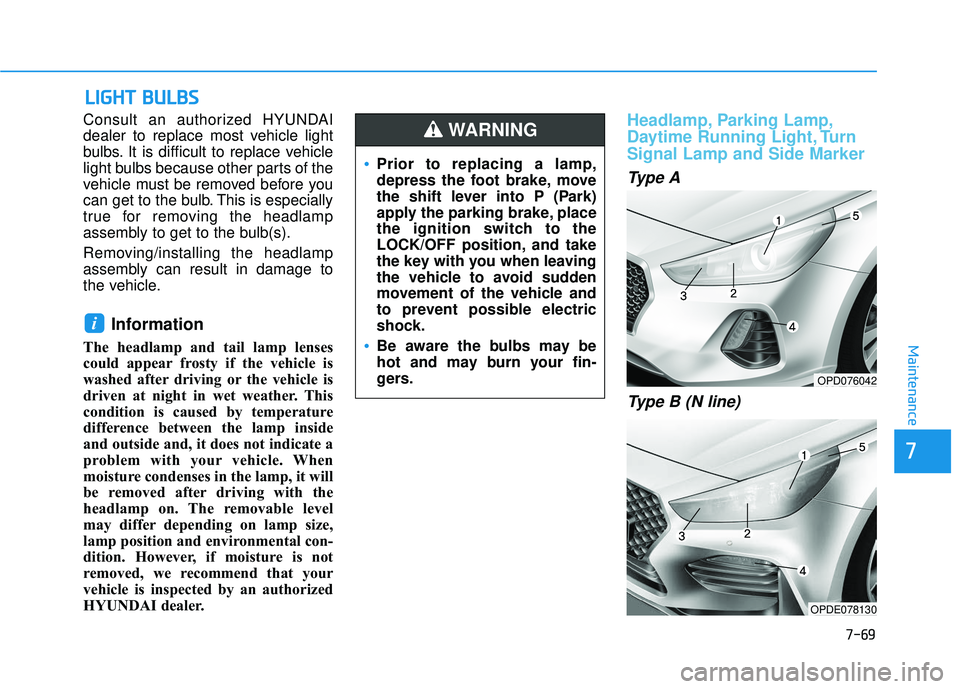

Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts o

Page 444 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-70
Maintenance
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Parking lamp &  Daytime running light
(5) Side marker  Always handle them carefully, and
avoid scratches and abrasions.

Page 445 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-71
7
Maintenance

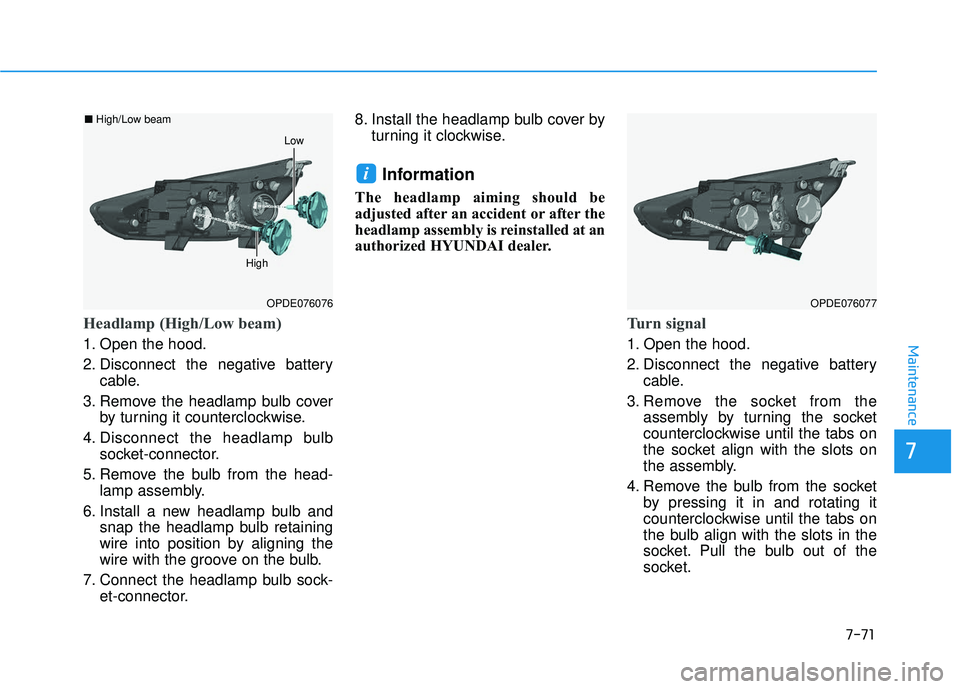

Headlamp (High/Low beam)
1. Open the hood.
2. Disconnect the negative batterycable.
3. Remove the headlamp bulb cover by turning it counterclockwise.
4. Disconnect the headlamp bulb

Page 446 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-72
Maintenance

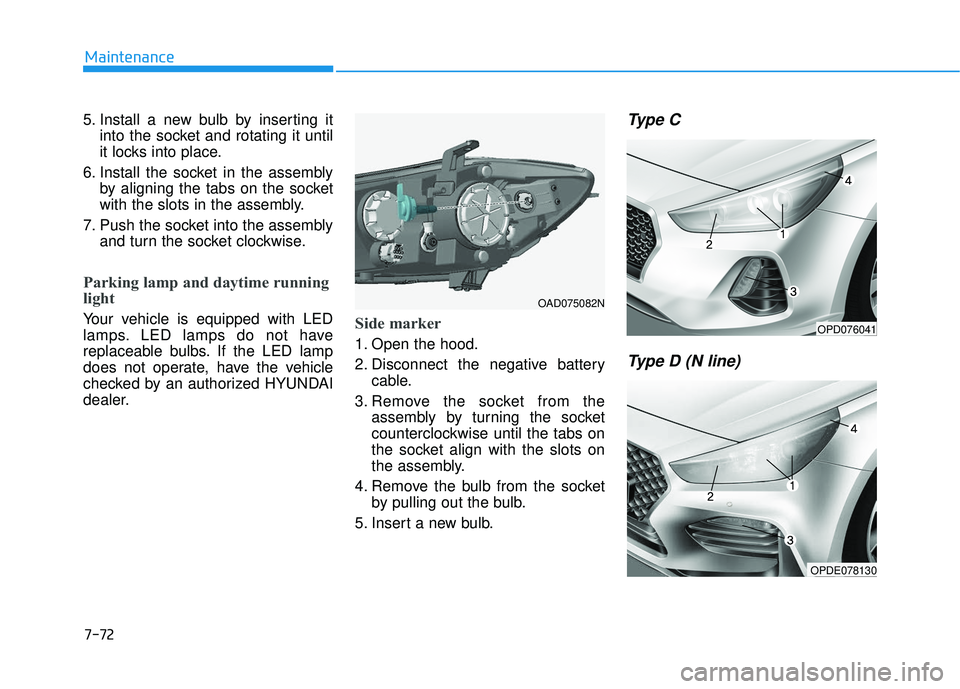

5. Install a new bulb by inserting it into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slot

Page 447 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-73
7
Maintenance

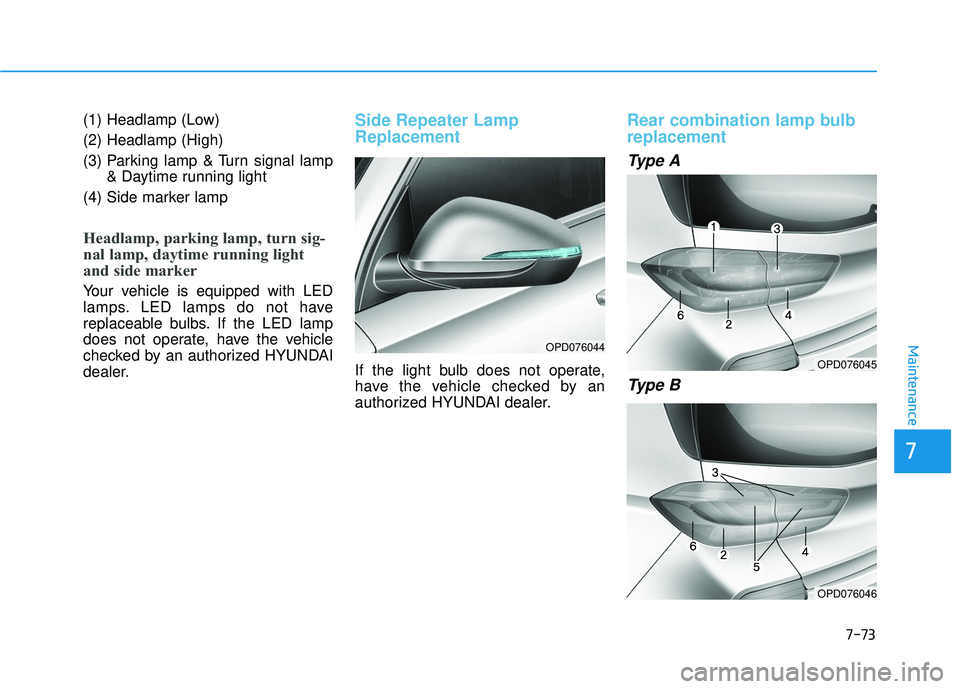

(1) Headlamp (Low)
(2) Headlamp (High)
(3) Parking lamp & Turn signal lamp& Daytime running light
(4) Side marker lamp
Headlamp, parking lamp, turn sig-
nal lamp, daytime running l

Page 448 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-74
Maintenance

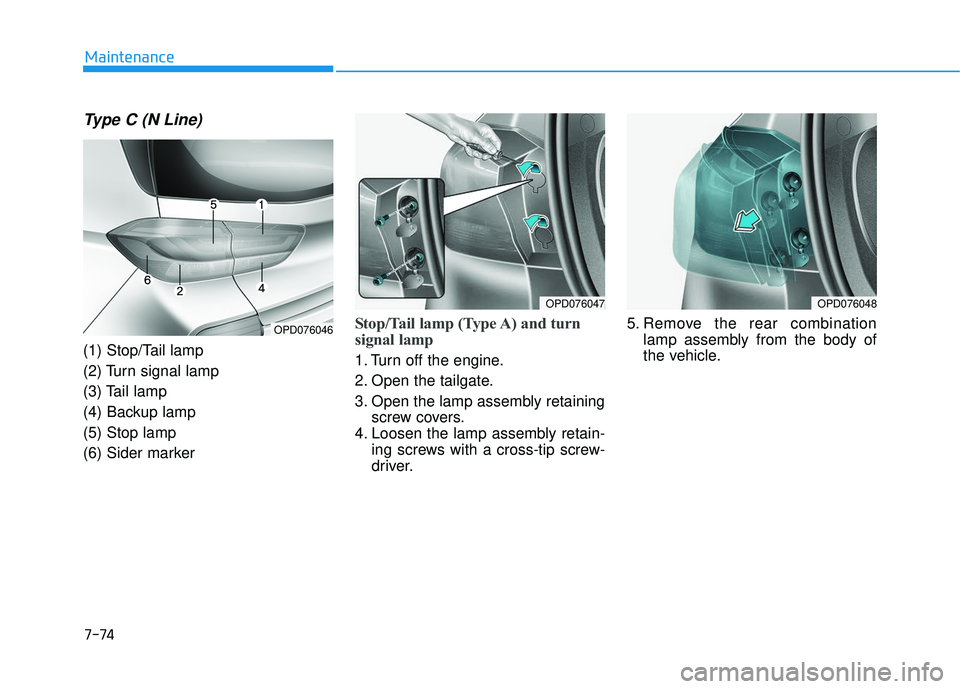

Type C (N Line)
(1) Stop/Tail lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Backup lamp
(5) Stop lamp
(6) Sider marker
Stop/Tail lamp (Type A) and turn
signal lamp
1. Turn off the eng

Page 449 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-75
7
Maintenance

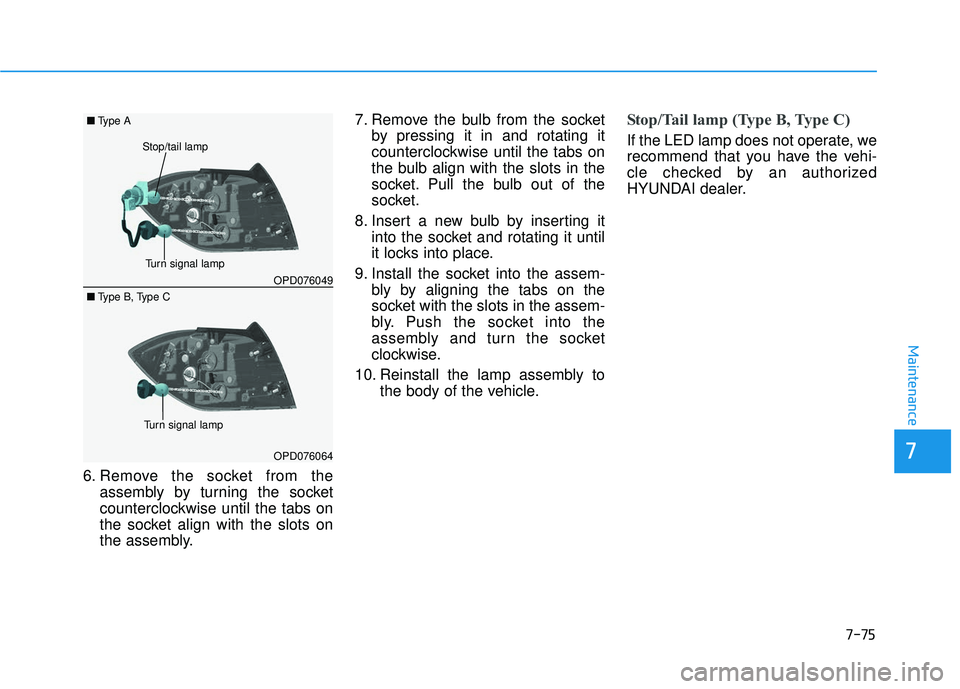

6. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 7. Remove the bulb from the socket
by

Page 450 of 495

HYUNDAI ELANTRA GT 2020  Owners Manual 7-76
Maintenance

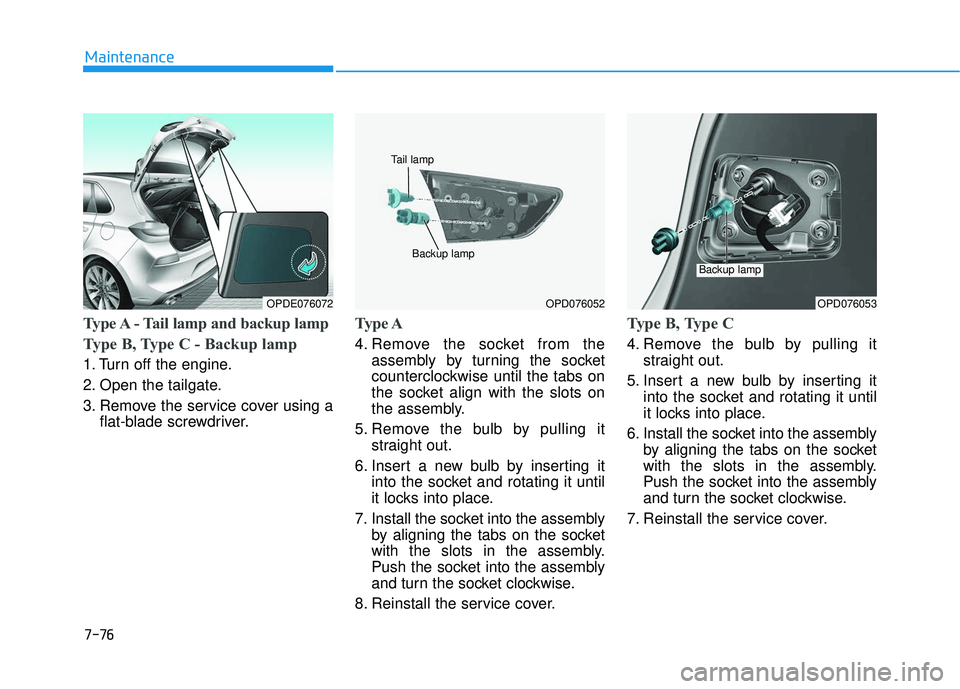

Type A - Tail lamp and backup lamp
Type B, Type C - Backup lamp
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using aflat-blade screwdriver.
Type A
4. R
