Page 221 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual Convenient Features
5-68

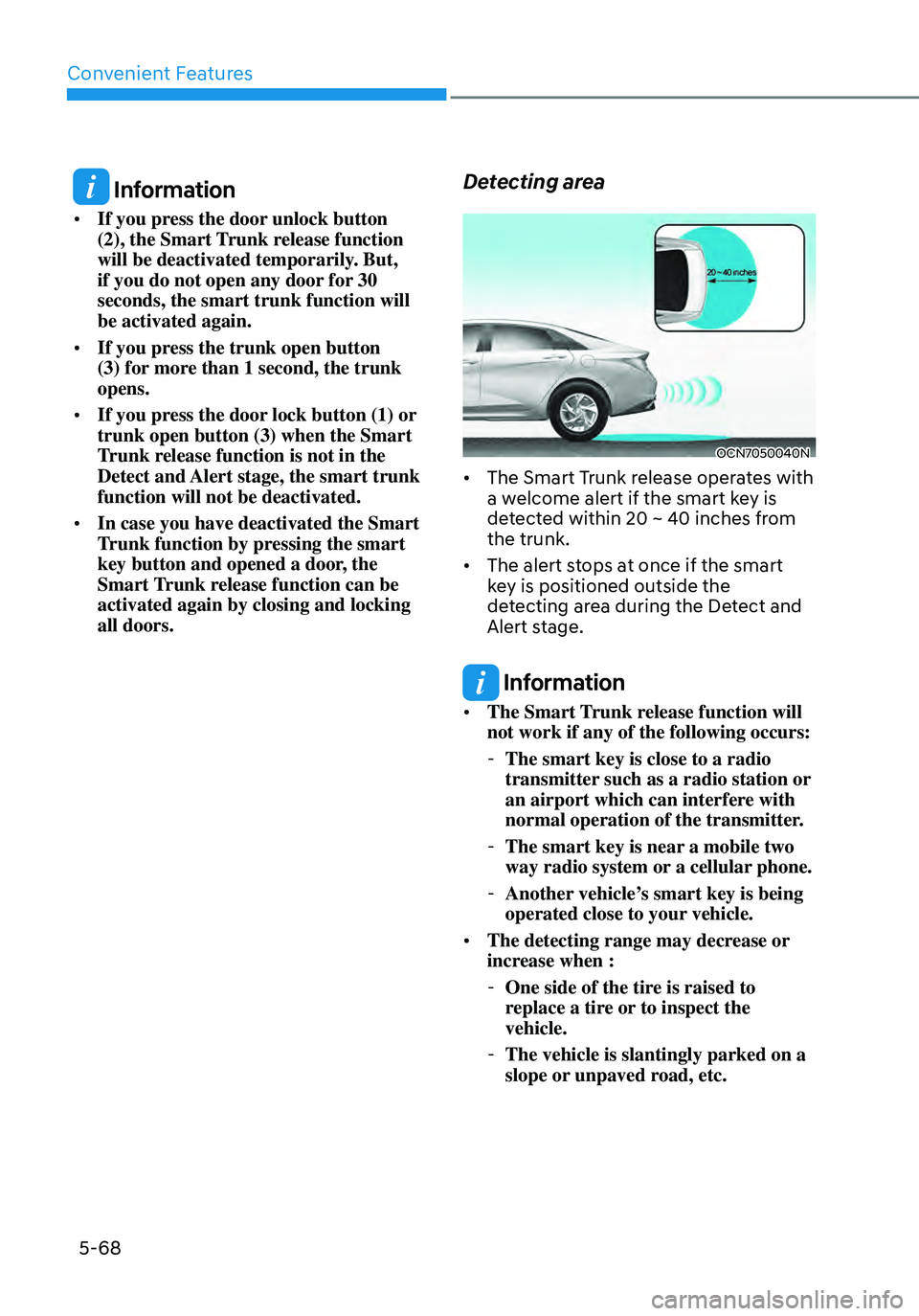

 Information
•	If you press the door unlock button
(2), the Smart Trunk release function
will be deactivated temporarily. But,
if you do not open any door for 30
seconds

Page 222 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual 05
5-69

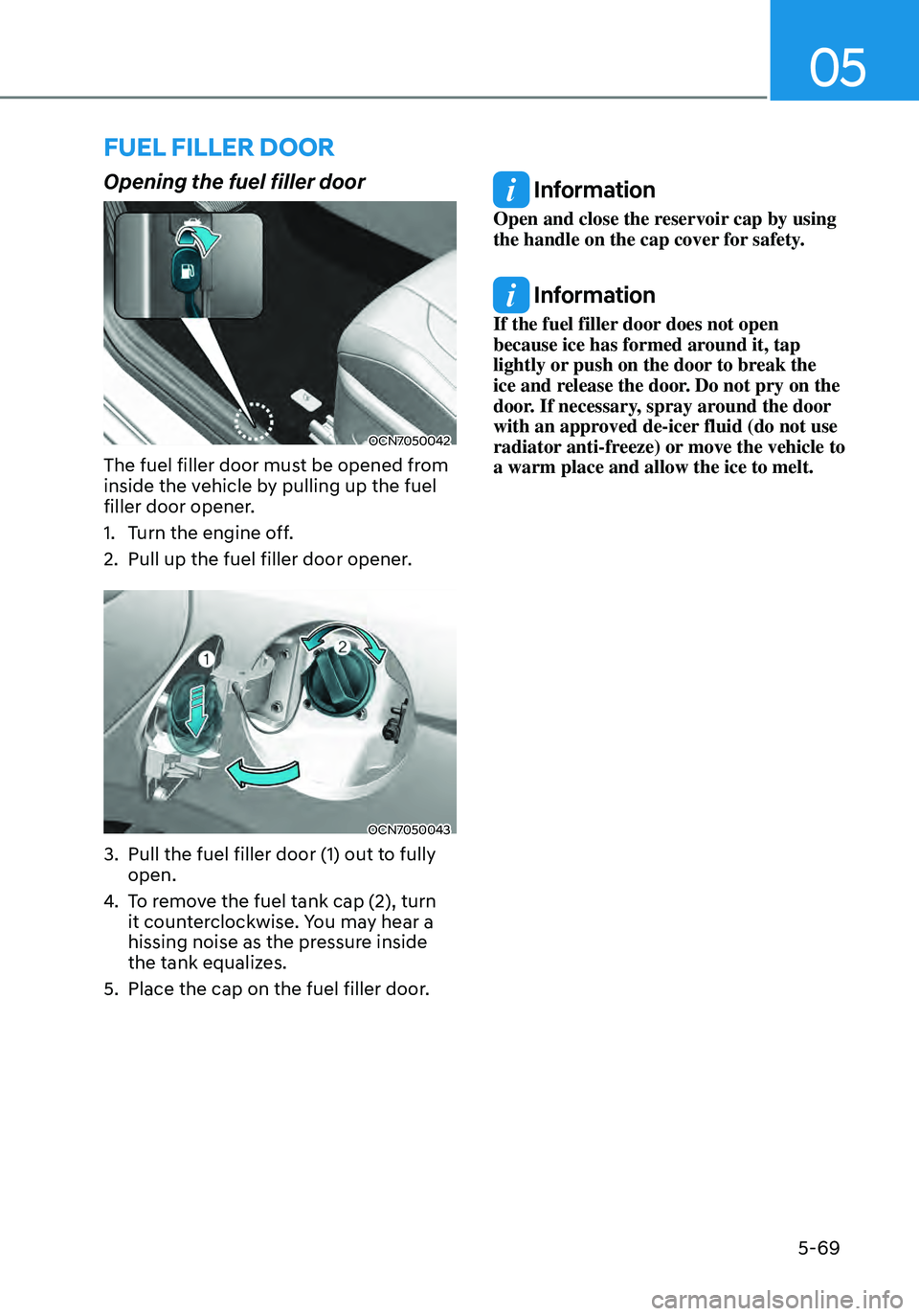

FUEL FILLER DOOR
Opening the fuel filler door
OCN7050042
The fuel filler door must be opened from
inside the vehicle by pulling up the fuel
filler door opener.
1. Turn the engine off.
2. Pul

Page 223 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual Convenient Features
5-70

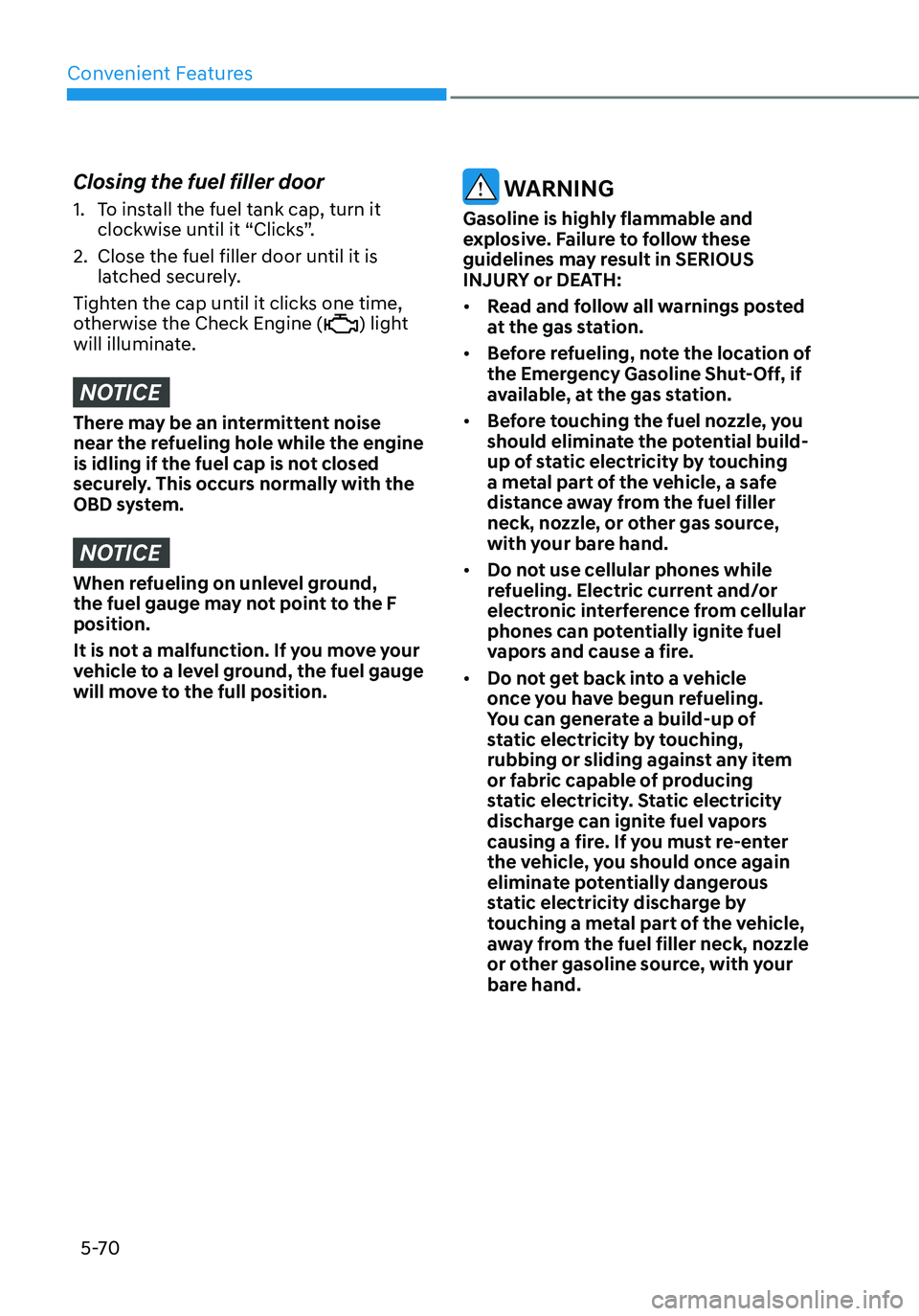

Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “Clicks”.
2. Close the fuel filler door until it is
latched securely.
Tighten th

Page 224 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual 05
5-71

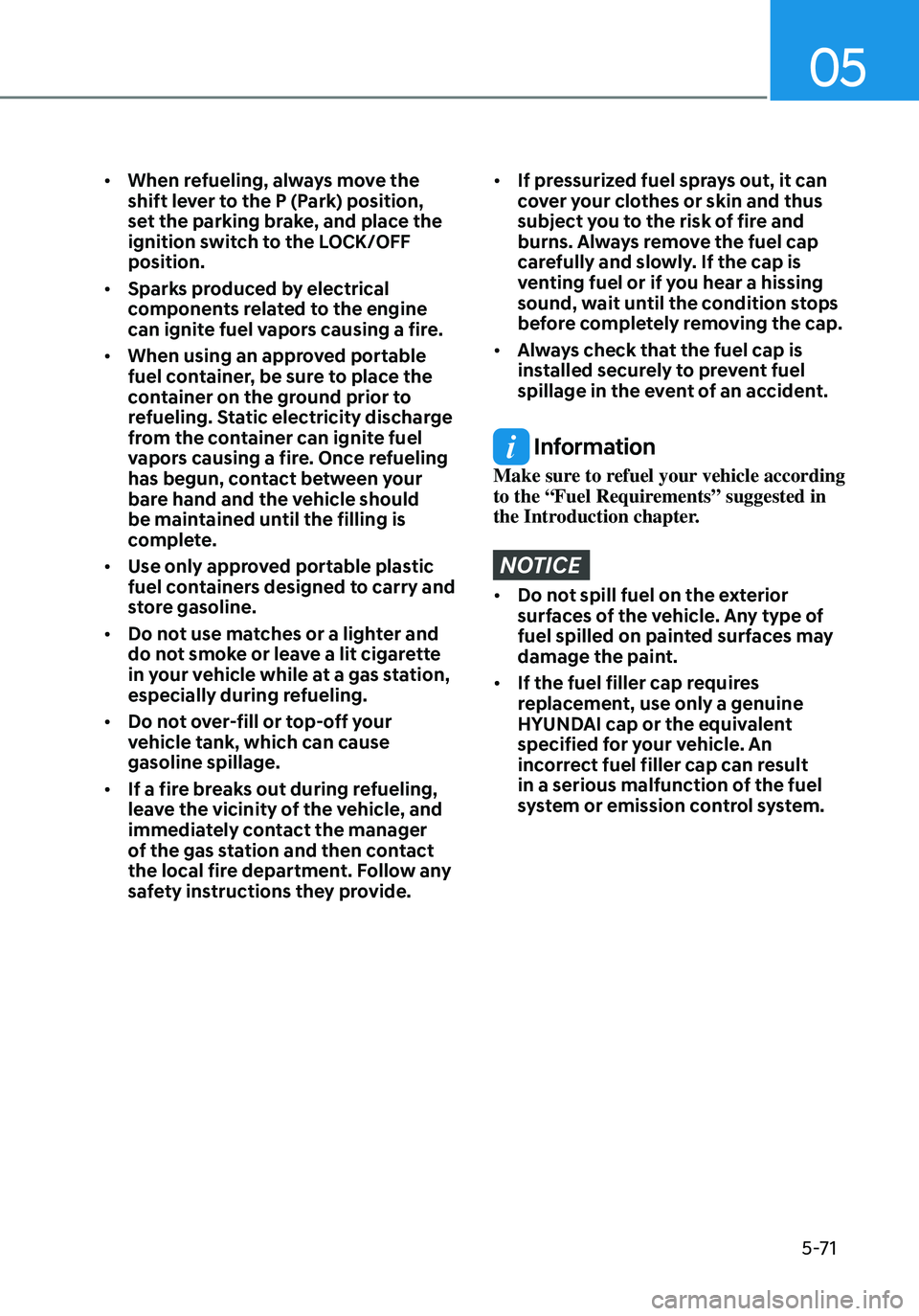

•	When refueling, always move the
shift lever to the P (Park) position,
set the parking brake, and place the
ignition switch to the LOCK/OFF
position.
•	 Sparks produced by electrical

Page 225 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual Convenient Features5-72

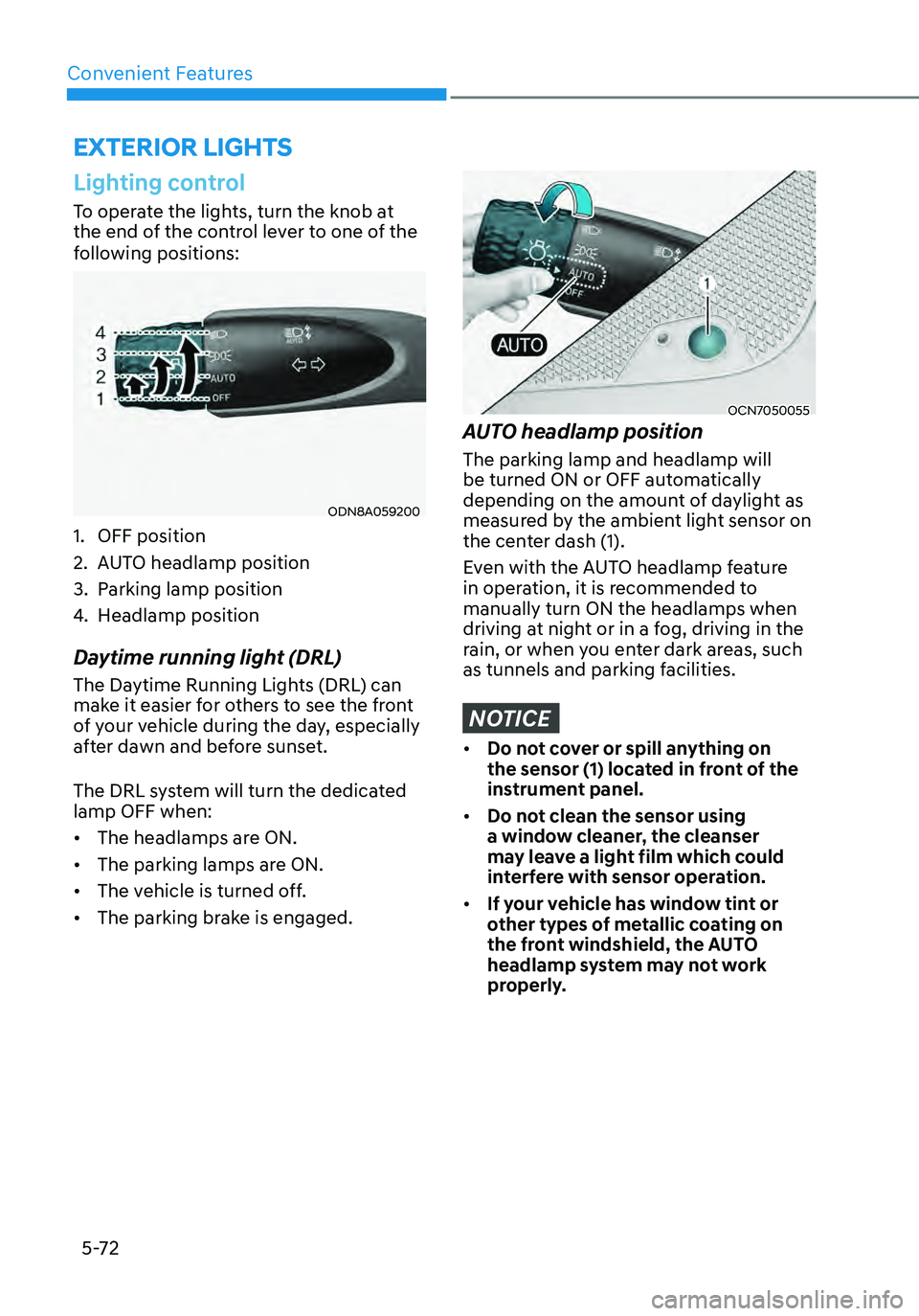

EXTERIOR LIGHTS
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
ODN8A059200
1. OFF position
2. AUTO h

Page 226 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual 05
5-73

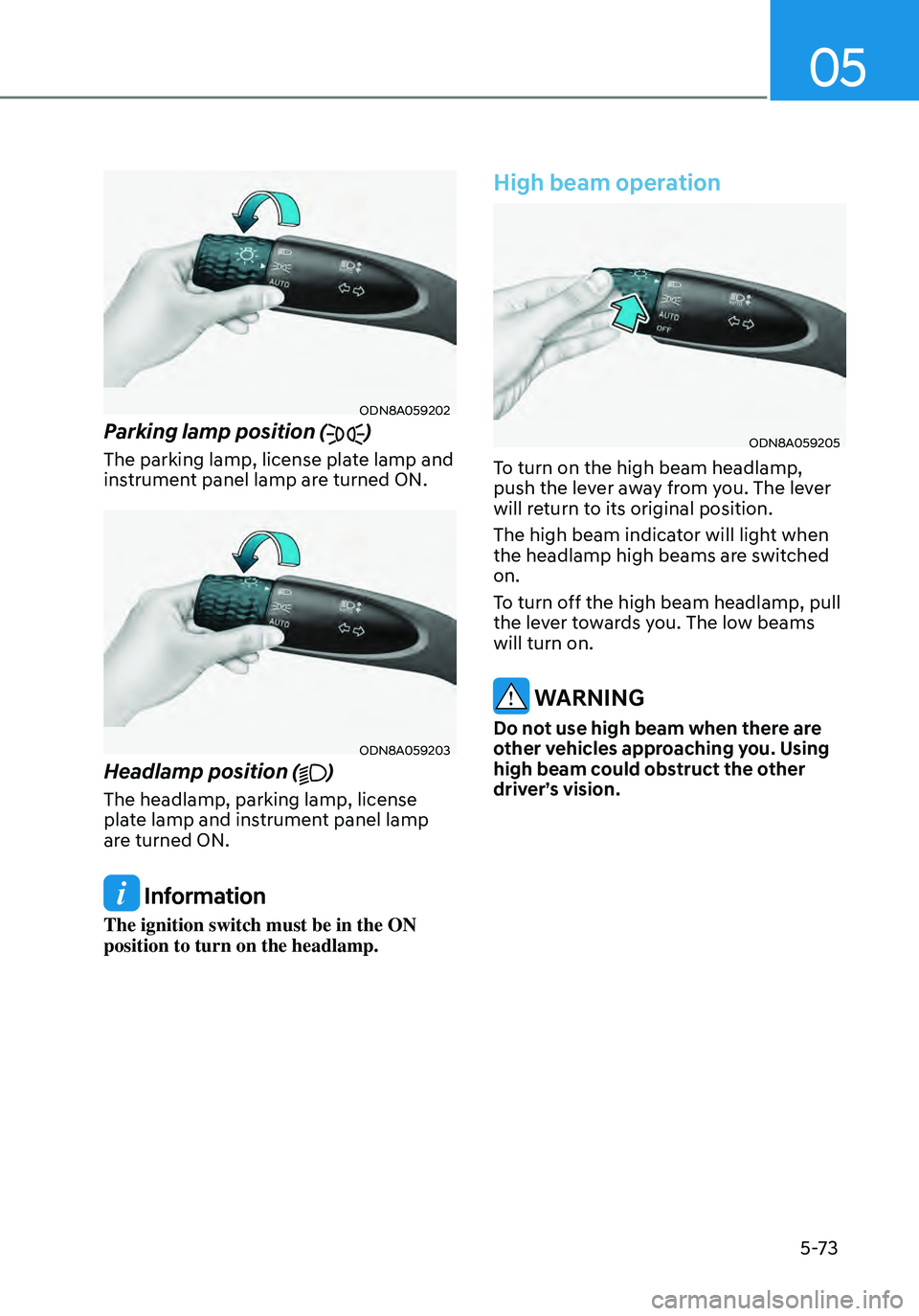

ODN8A059202
Parking lamp position ()
The parking lamp, license plate lamp and
instrument panel lamp are turned ON.
ODN8A059203
Headlamp position ()
The headlamp, parking lamp, license
plate

Page 227 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual Convenient Features
5 -74
ODN8A059204
To flash the high beam headlamp, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
T

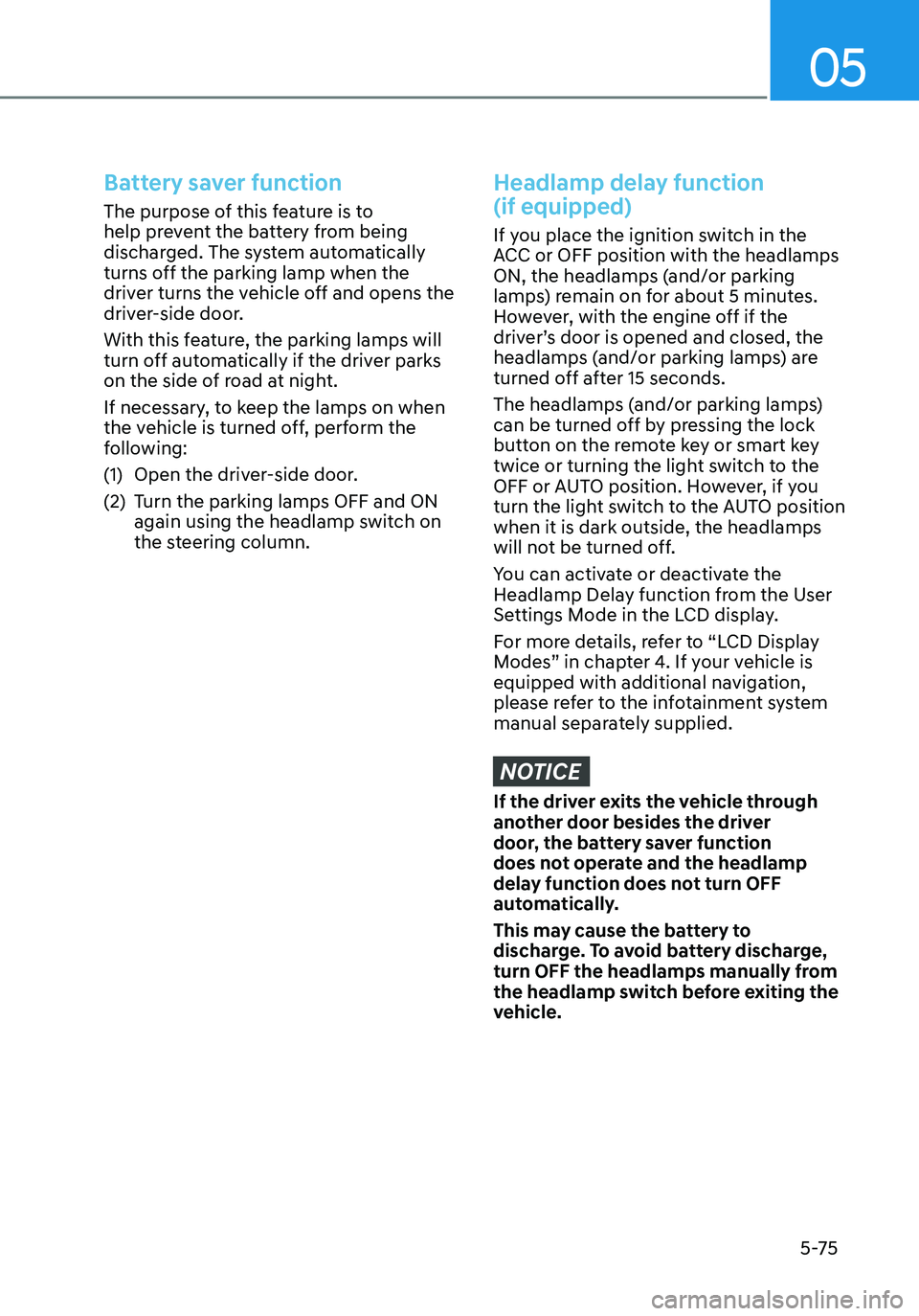

Page 228 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual 05
5-75
Battery saver function
The purpose of this feature is to
help prevent the battery from being
discharged. The system automatically
turns off the parking lamp when the
driver turns the vehic

Page 229 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual Convenient Features
5 -76

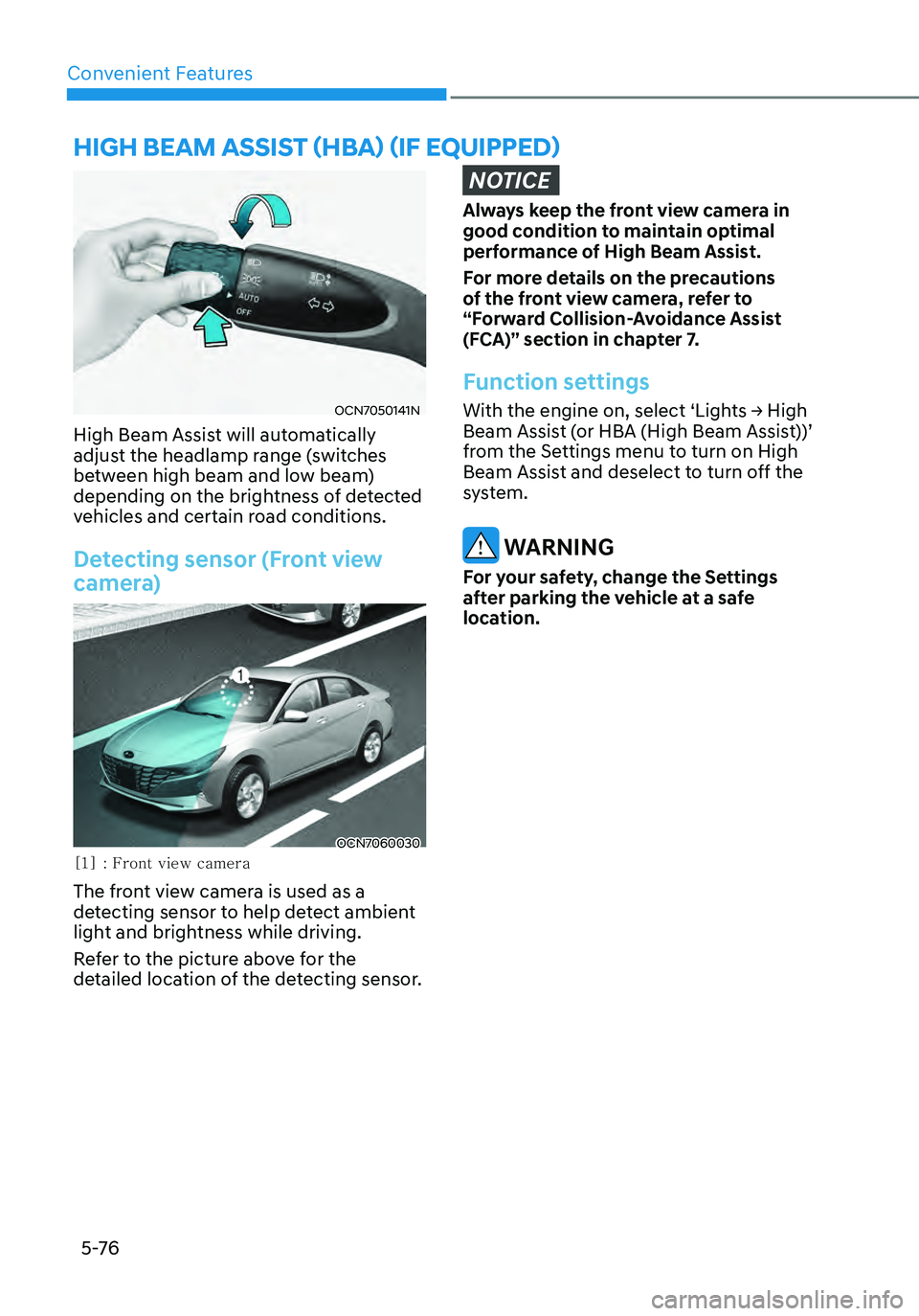

HIGH BEAM ASSIST (HBA) (IF EQUIPPED)
OCN7050141N
High Beam Assist will automatically
adjust the headlamp range (switches
between high beam and low beam)
depending on the b

Page 230 of 555

HYUNDAI ELANTRA HYBRID 2021  Owners Manual 05
5-77

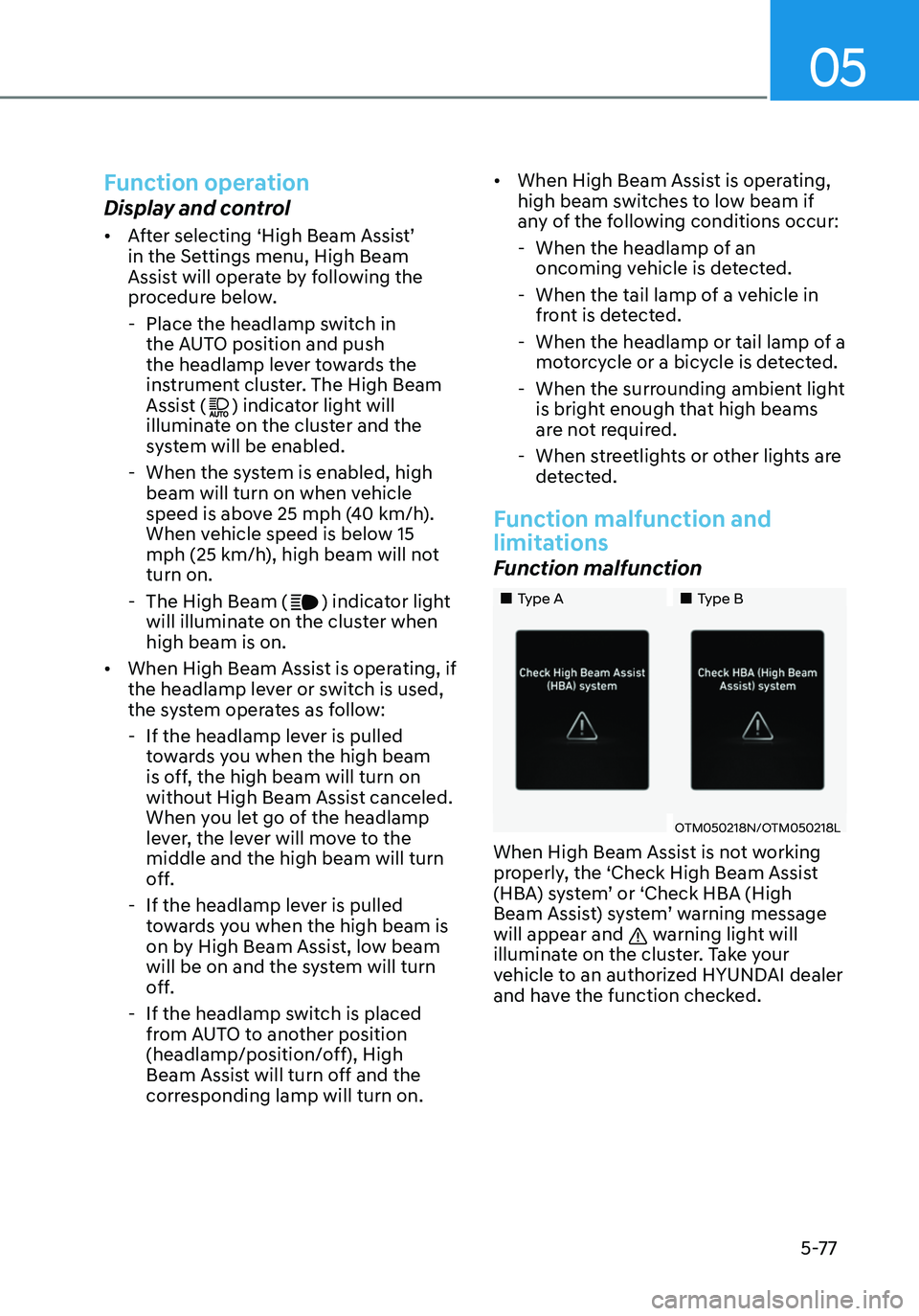

Function operation
Display and control
•	After selecting ‘High Beam Assist’
in the Settings menu, High Beam
Assist will operate by following the
procedure below.
 -Place the headlamp
