HYUNDAI ELANTRA HYBRID 2022 Owner's Guide

2-4
Vehicle Information and Reporting Safety Defects
The actual shape may differ from the illustration.OCN7H010003N
1. Inside door handle .................................5-17
2. Seat position memory system ..............5-23
3. Side view mirror control switch ...........5-38
4. Central door lock switch .......................5-18
5. Power window switches ......................5-39
6. Power window lock button ..................5-42
7. Steering wheel tilt/telescopic lever .....5-27
8. Steering wheel ...................................... 5-26
9. Instrument panel illumination control
switch ...................................................... 4-510. 12V battery reset button
.........................8-5
11. Lane Safety button ................................7-31
12. ESC OFF button .................................... 6-33
13. Fuel filler door release lever .................5-54
14. Trunk release lever ................................5-49
15. Hood release lever ................................5-47
16. Light control/Turn signals ....................5-56
17. Seat adjusting switch .............................3-3
18. Wiper/Washer switch ...........................5-66
intErior ovErviEw

2-5
02
The actual shape may differ from the illustration.OCN7010004N
1. Instrument cluster ..................................4-4
2. Driver’s front air bag .............................3-38
3. Engine start button................................. 6-8
4. Key ignition switch ................................. 6-5
5. Infotainment system ............................5-93
6. Hazard warning flasher switch ..............8-2
7. Climate control system ........................5-688. Passenger’s front air bag ..................... 3-38
9.
Glove box .............................................. 5-86
10. Shift lever ............................................... 6-13
11. Drive mode button ...............................6-38
12. Parking/View button ............................7-99
13. Electronic parking brake switch ..........6-25
14. AUTO HOLD button ..............................6-29

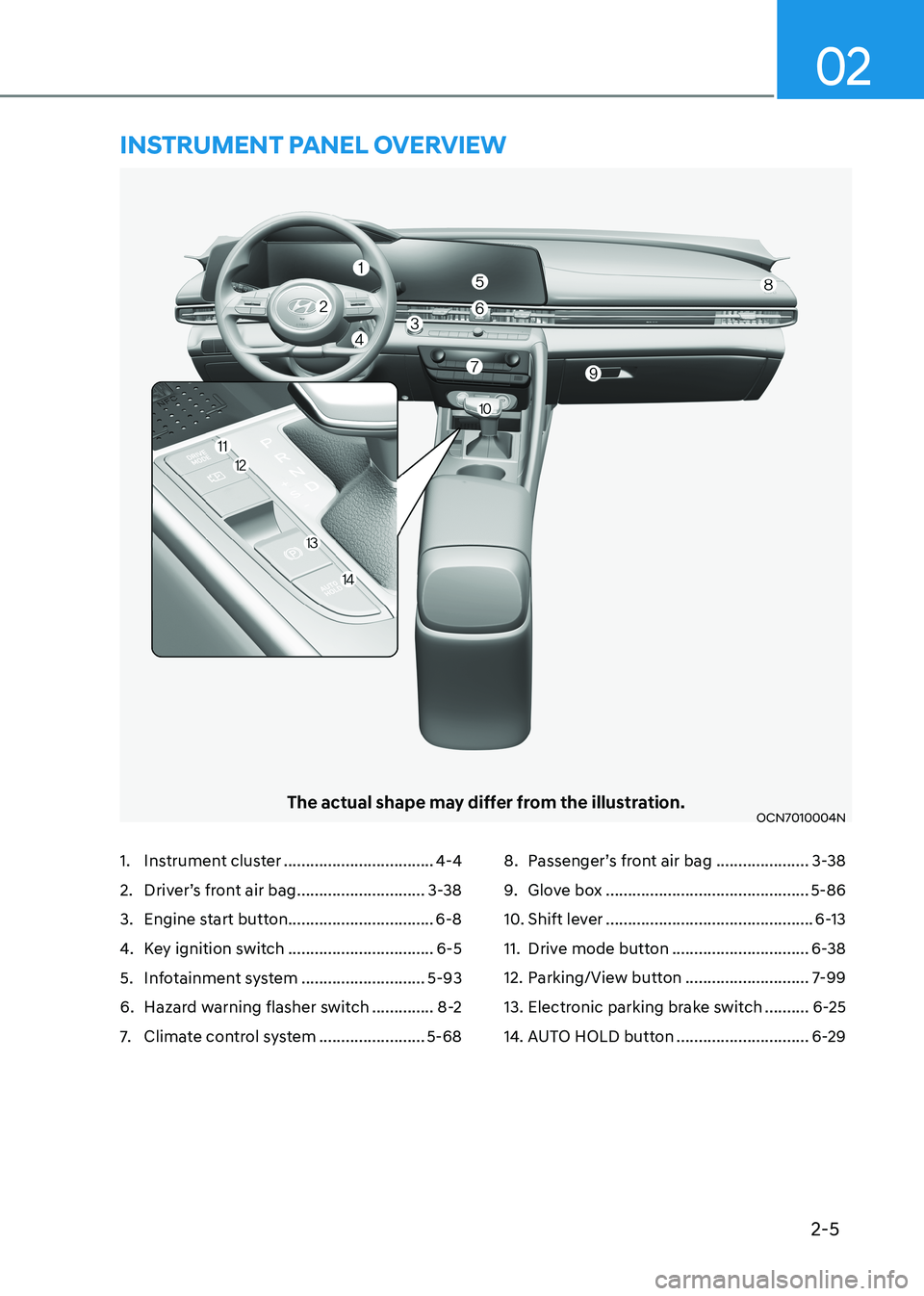

instrumEnt PanEl ovErviEw

2-6
Vehicle Information and Reporting Safety Defects
„„Gasoline 1.6 GDi HEV
The actual engine room in the vehicle may differ from the illustration.OCN7H090001

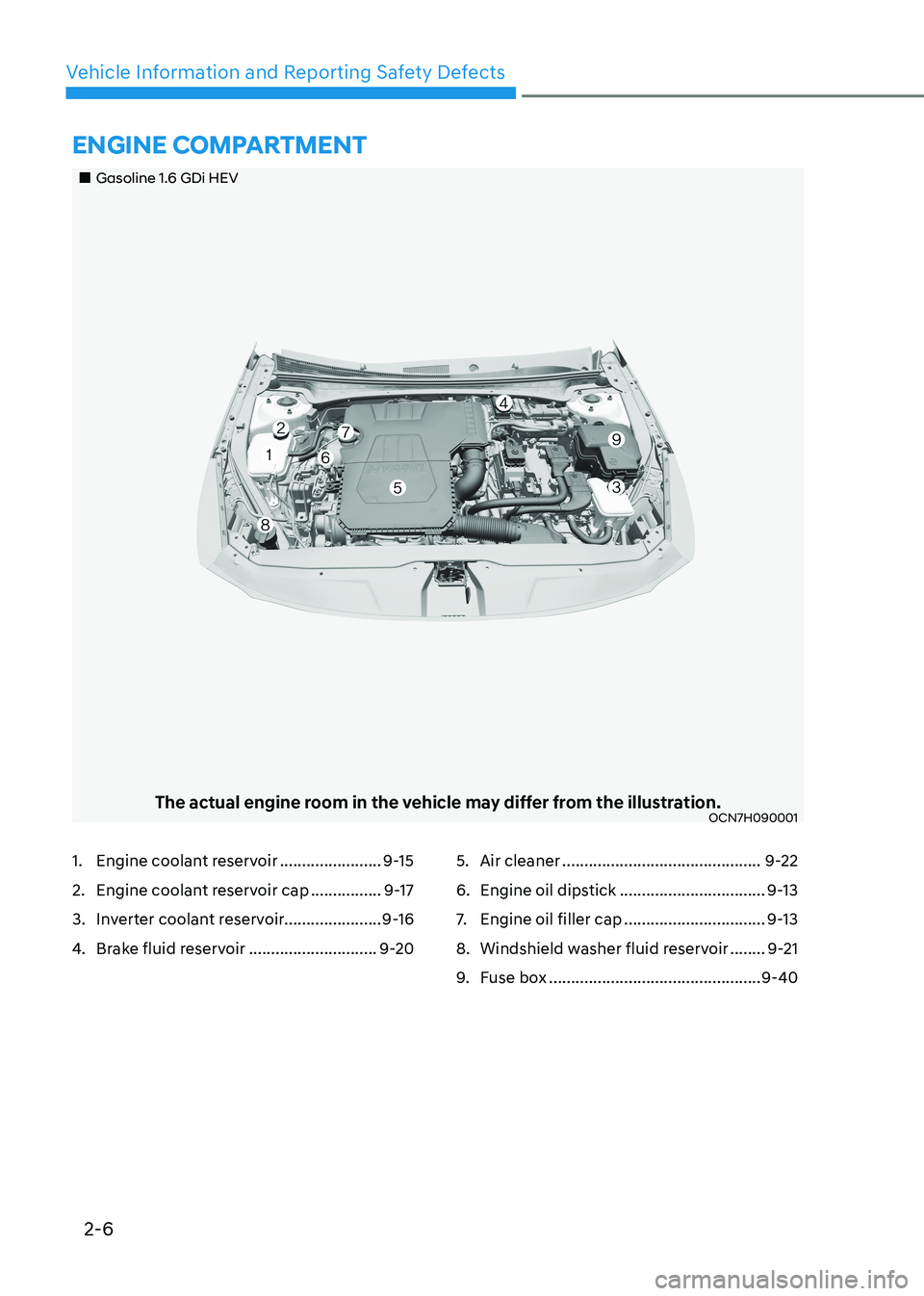

EnginE ComPartmEnt
1. Engine coolant reservoir .......................9-15
2. Engine coolant reservoir cap ................9-17
3. Inverter coolant reservoir...................... 9-16
4. Brake fluid reservoir .............................9-205. Air cleaner
............................................. 9-22
6. Engine oil dipstick .................................9-13
7. Engine oil filler cap ................................ 9-13
8. Windshield washer fluid reservoir ........9-21
9. Fuse box ................................................ 9-40

02
2-7

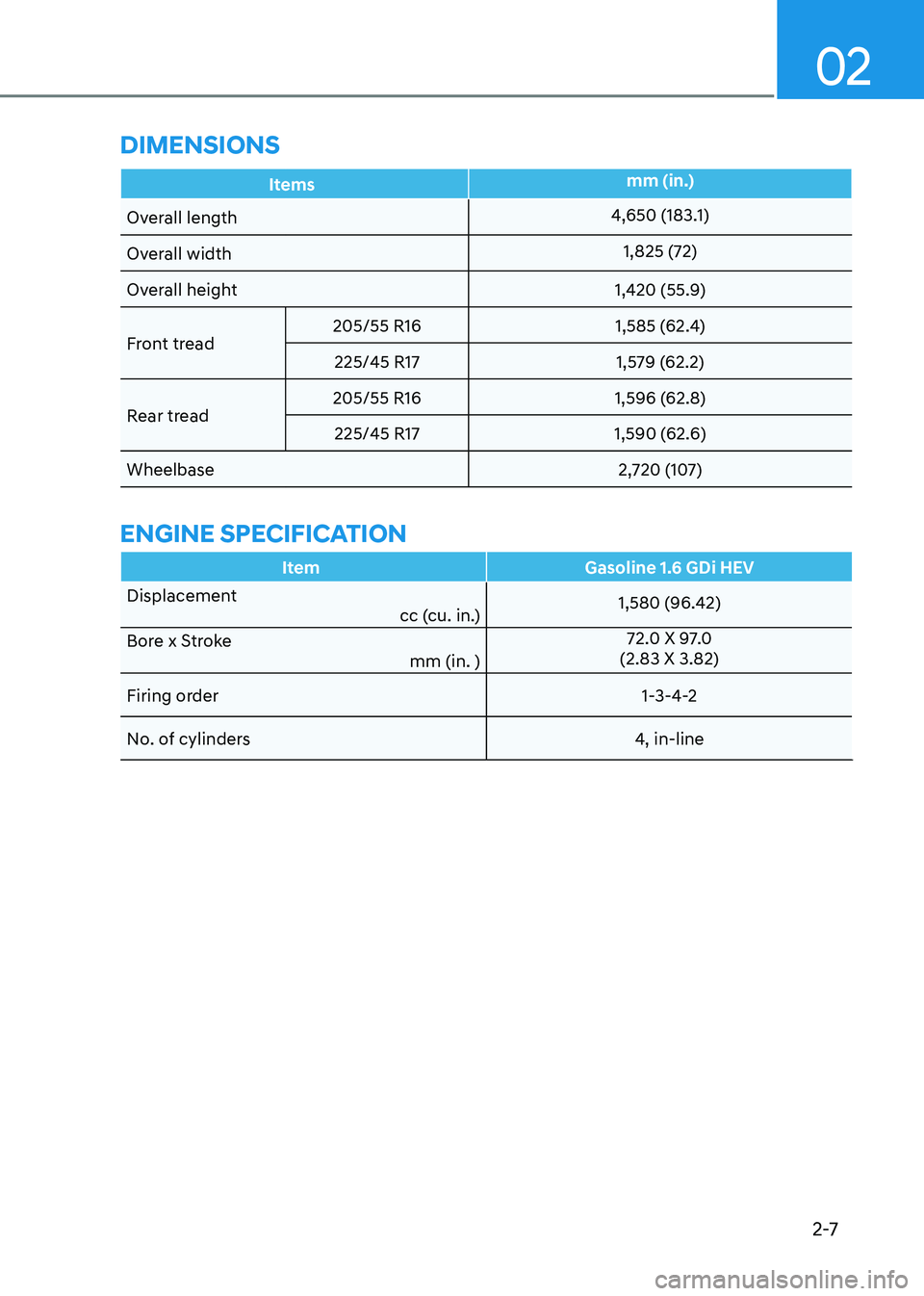

DimEnsions
Itemsmm (in.)
Overall length
4,650 (183.1)
Overall width 1,825 (72)
Overall height 1,420 (55.9)
Front tread 205/55 R16 1,585 (62.4)
225/45 R17 1,579 (62.2)
Rear tread 205/55 R16 1,596 (62.8)
225/45 R17 1,590 (62.6)
Wheelbase 2,720 (107)
EnginE sPECifiCation
Item Gasoline 1.6 GDi HEV
Displacement
cc (cu. in.) 1,580 (96.42)
Bore x Stroke mm (in. )72.0 X 97.0
(2.83 X 3.82)
Firing order 1-3-4-2
No. of cylinders 4, in-line

Vehicle Information and Reporting Safety Defects
2-8

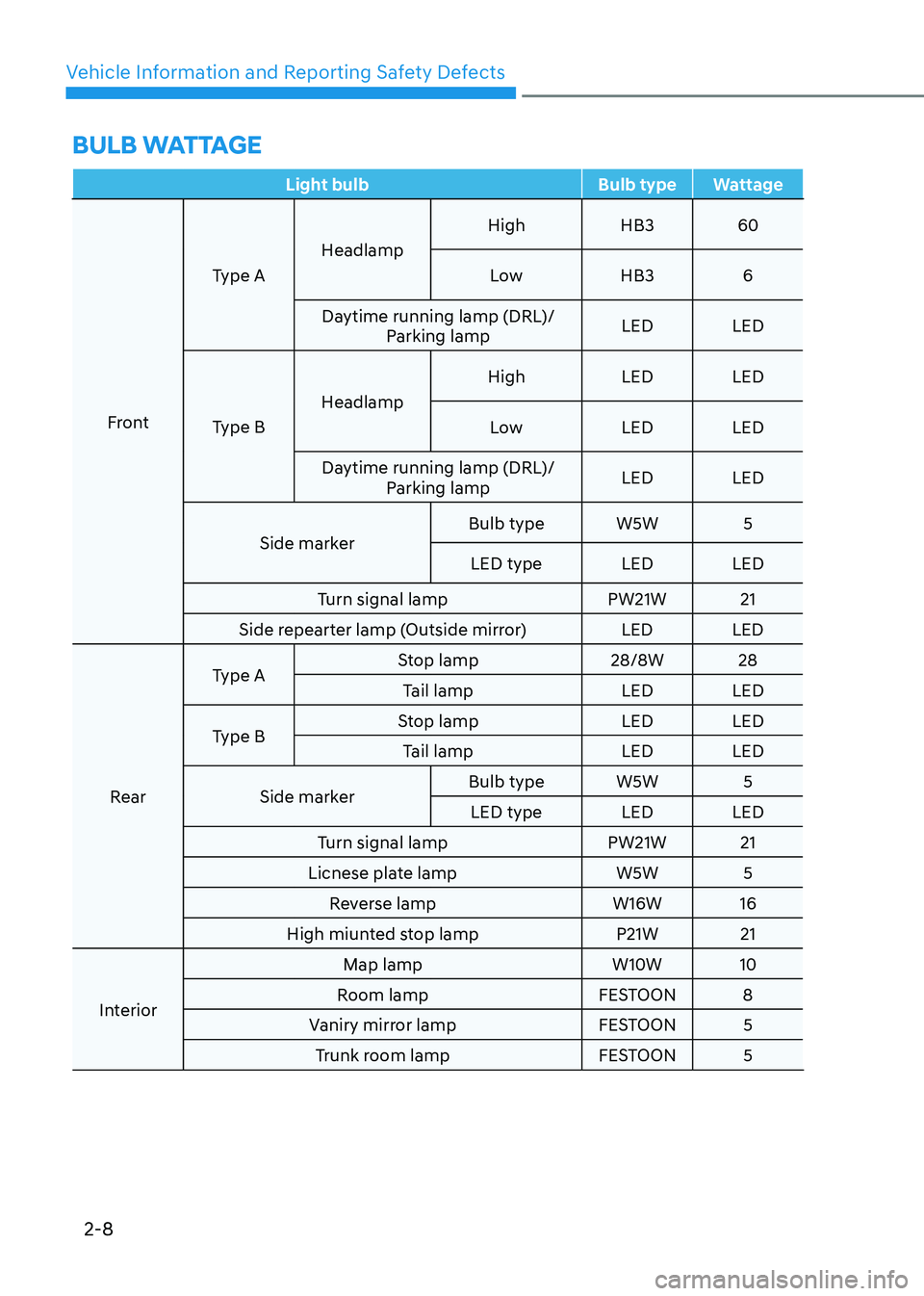

BulB wattagE
Light bulb Bulb type Wattage
FrontType A
Headlamp High HB3 60
Low HB3 6
Daytime running lamp (DRL)/ Parking lamp LED LED
Type B Headlamp High LED LED
Low LED LED
Daytime running lamp (DRL)/ Parking lamp LED LED
Side marker Bulb type W5W 5
LED type LED LED
Turn signal lamp PW21W 21
Side repearter lamp (Outside mirror) LED LED
Rear Type A
Stop lamp 28/8W 28
Tail lamp LED LED
Type B Stop lamp LED LED
Tail lamp LED LED
Side marker Bulb type W5W 5
LED type LED LED
Turn signal lamp PW21W 21
Licnese plate lamp W5W 5 Reverse lamp W16W 16
High miunted stop lamp P21W 21
Interior Map lamp W10W 10
Room lamp FESTOON 8
Vaniry mirror lamp FESTOON 5 Trunk room lamp FESTOON 5

02
2-9

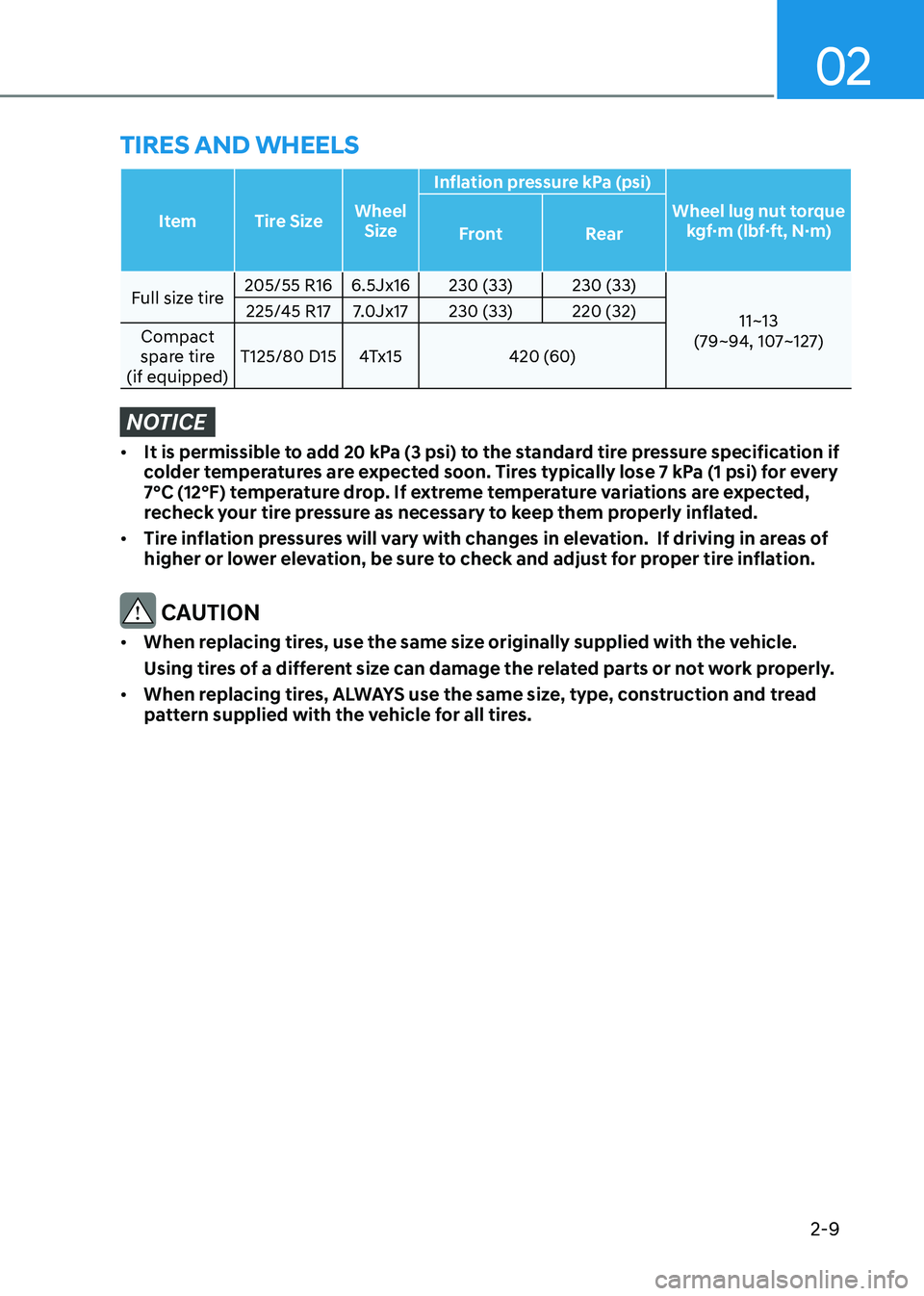

tirEs anD whEEls
Item Tire SizeWheel
Size Inflation pressure kPa (psi)
Wheel lug nut torque kgf·m (lbf·ft, N·m)
Front Rear
Full size tire205/55 R16 6.5Jx16 230 (33) 230 (33)
11~13
(79~94, 107~127)
225/45 R17 7.0Jx17 230 (33) 220 (32)
Compact
spare tire
(if equipped) T125/80 D15 4Tx15 420 (60)
NOTICE
•
It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 7 kPa (1 psi) for every
7°C (12°F) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.
• Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
• When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
• When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information and Reporting Safety Defects
2-10

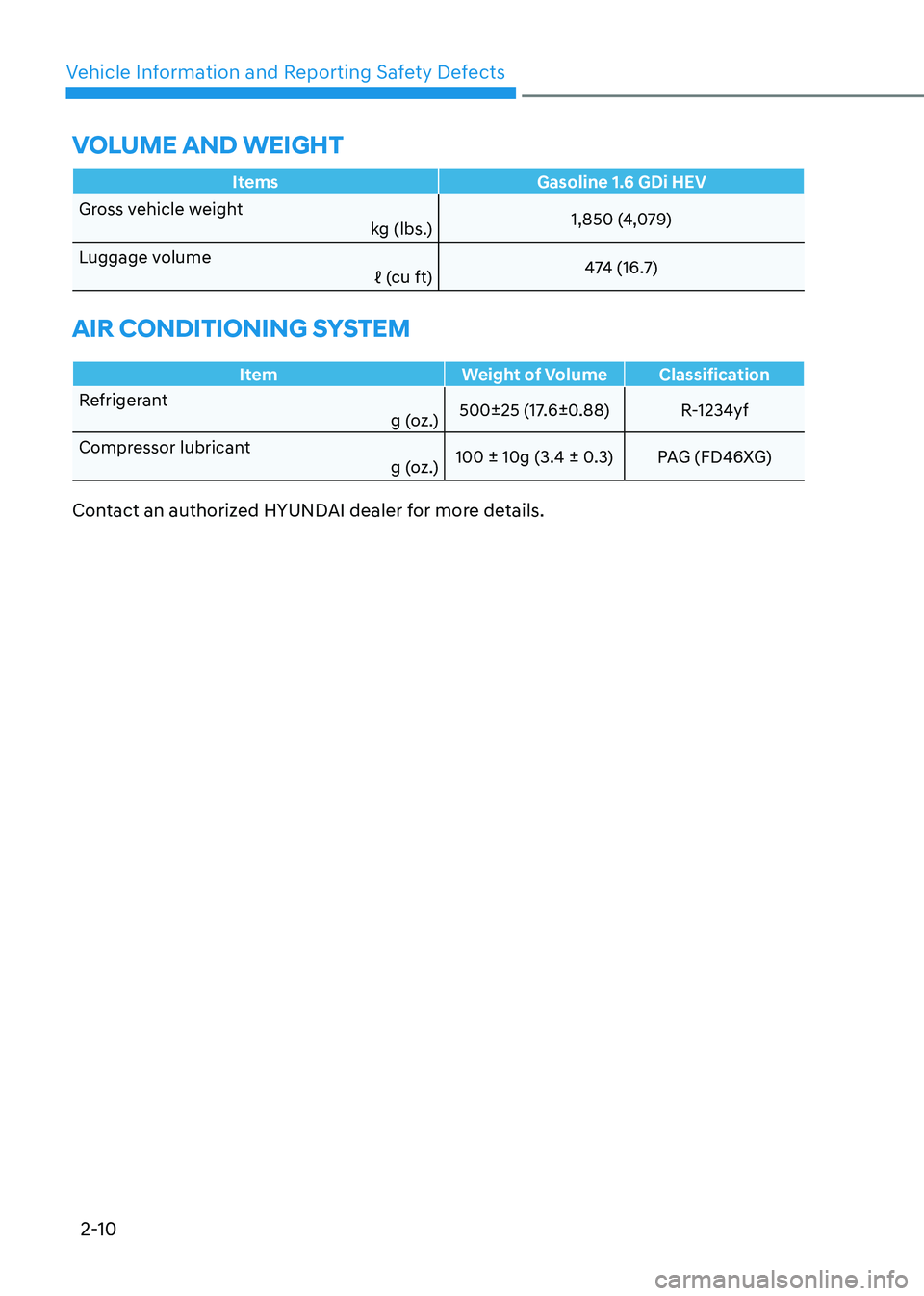

volumE anD wEight
Items Gasoline 1.6 GDi HEV
Gross vehicle weightkg (lbs.)1,850 (4,079)
Luggage volume ℓ (cu ft)474 (16.7)
air ConDitioning systEm
Item Weight of Volume Classification
Refrigerant
g (oz.) 500±25 (17.6±0.88) R-1234yf
Compressor lubricant g (oz.) 100 ± 10g (3.4 ± 0.3) PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.

02
2-11

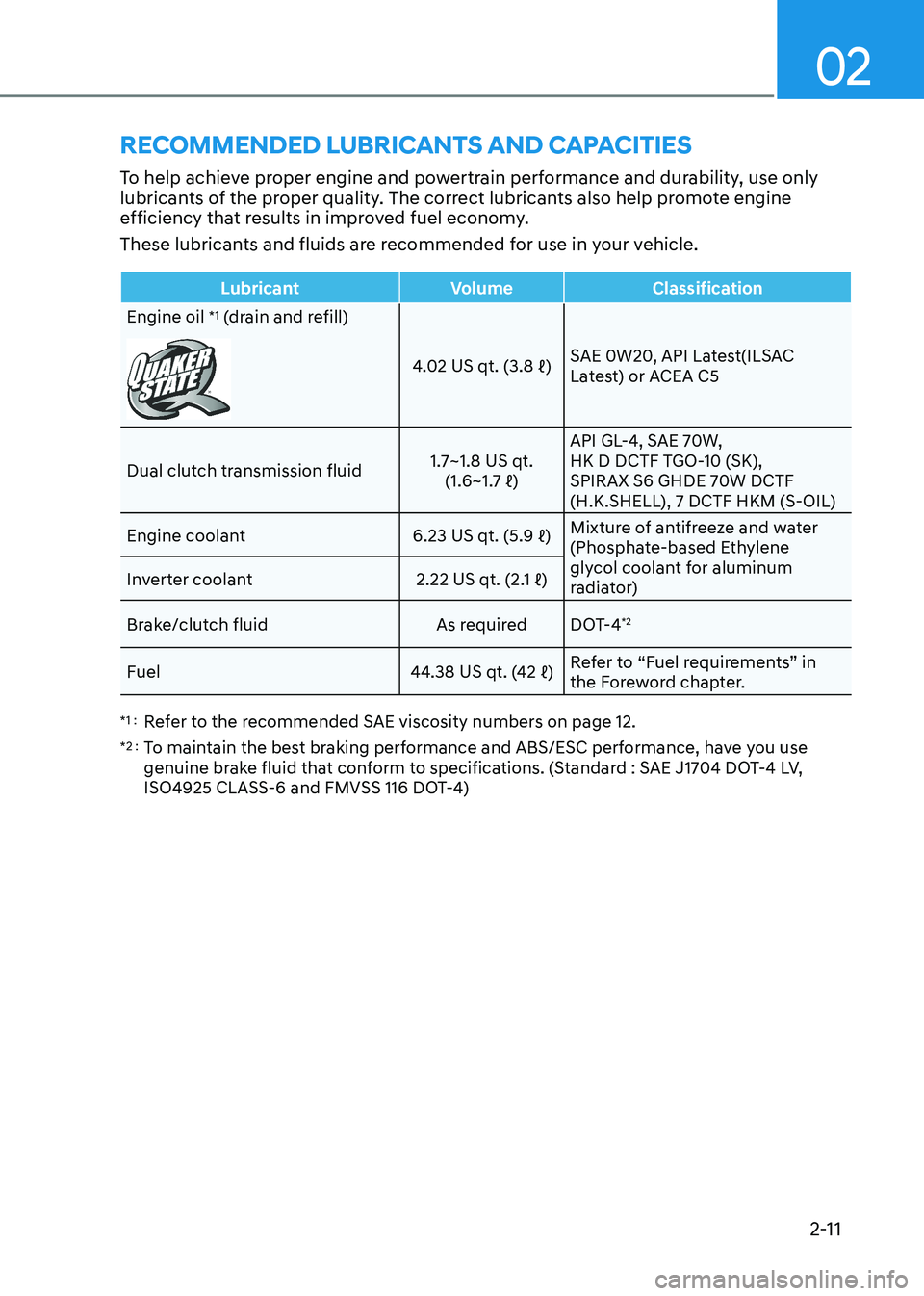

rECommEnDED luBriCants anD CaPaCitiEs
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1
(drain and refill)
4.02 US qt. (3.8 ℓ) SAE 0W20, API Latest(ILSAC
Latest) or ACEA C5
Dual clutch transmission fluid 1.7~1.8 US qt.
(1.6~1.7 ℓ) API GL-4, SAE 70W,
HK D DCTF TGO-10 (SK),
SPIRAX S6 GHDE 70W DCTF
(H.K.SHELL), 7 DCTF HKM (S-OIL)
Engine coolant 6.23 US qt. (5.9 ℓ)Mixture of antifreeze and water
(Phosphate-based Ethylene
glycol coolant for aluminum
radiator)
Inverter coolant
2.22 US qt. (2.1 ℓ)
Brake/clutch fluid As required DOT-4 *2
Fuel 44.38 US qt. (42 ℓ)Refer to “Fuel requirements” in
the Foreword chapter.
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : To maintain the best braking performance and ABS/ESC performance, have you use
genuine brake fluid that conform to specifications. (Standard : SAE J1704 DOT-4 LV,
ISO4925 CLASS-6 and FMVSS 116 DOT-4)

Vehicle Information and Reporting Safety Defects
2-12
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any
lubricant. This is especially important
in dusty or sandy areas and when the
vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms that
could be damaged. Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and
cold weather performance, however,
higher viscosity engine oils are required
for satisfactory lubrication in hot
weather.
Using oils of any viscosity other than
those recommended could result in engine damage. When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C
-30-20 -10 0 10 20 30 40 50
(°F) -100 20 40 60 80 100 120
Engine Oil * 1
Gasoline 1.6 GDi
HEV
0W-20 /5W-30
*1 : Requires grade engine oil. If a
lower grade engine oil(mineral oil including Semi-synthetic) is used, then the engine oil
and oil filter must be replaced as indicated severe maintenance condition.
An engine oil displaying this American Petroleum Institute(API) Certification
Mark conforms to the International Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold this API
Certification Mark.

02
2-13

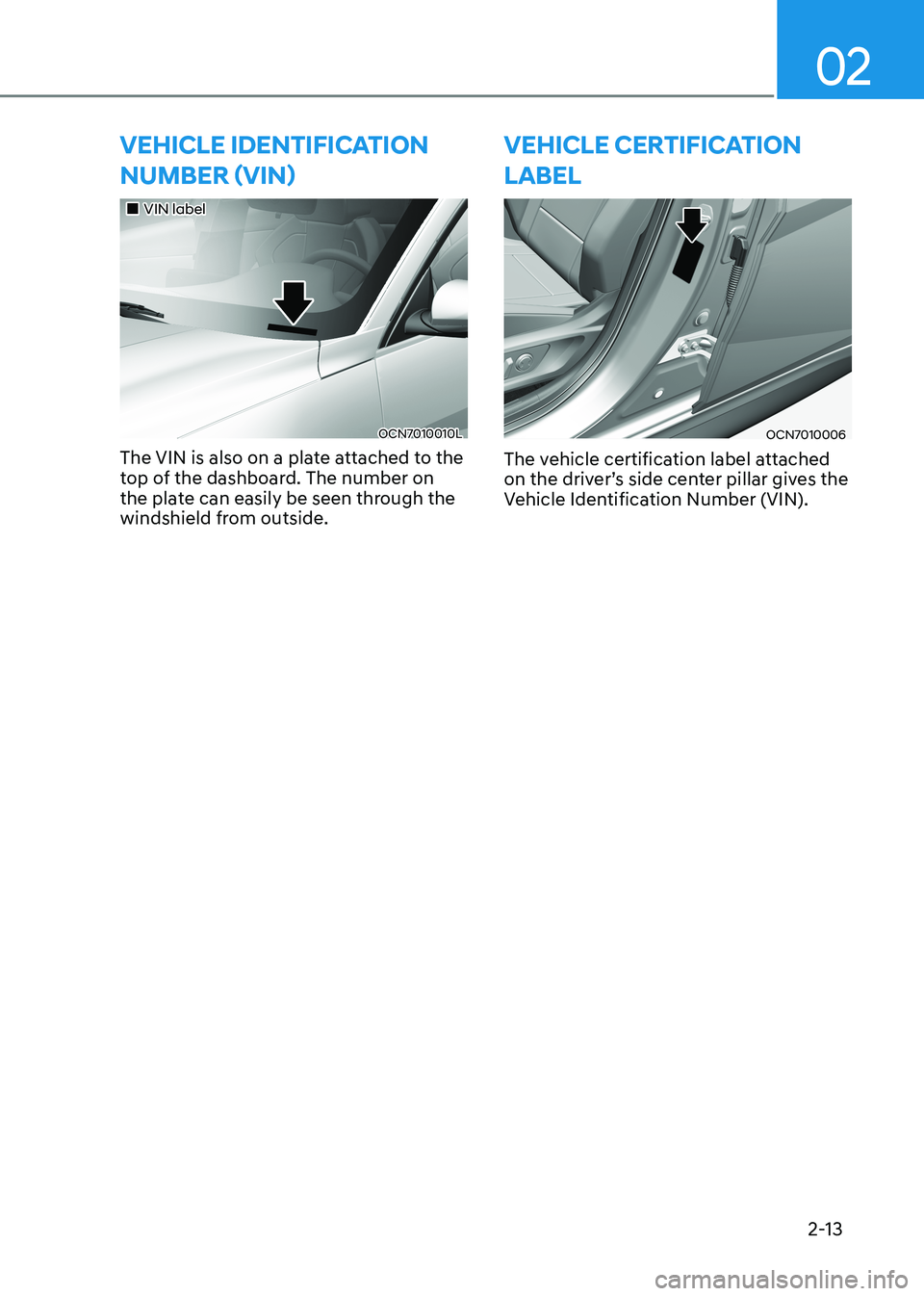

vEhiClE iDEntifiCation Number (viN)
„„VIN label
OCN7010010L
The VIN is also on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
vEhiClE CErtifiCation laBEl
OCN7010006
The vehicle certification label attached
on the driver’s side center pillar gives the
Vehicle Identification Number (VIN).
