HYUNDAI ELANTRA SPORT 2019 Owners Manual

7-86
Maintenance
Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in orout of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart

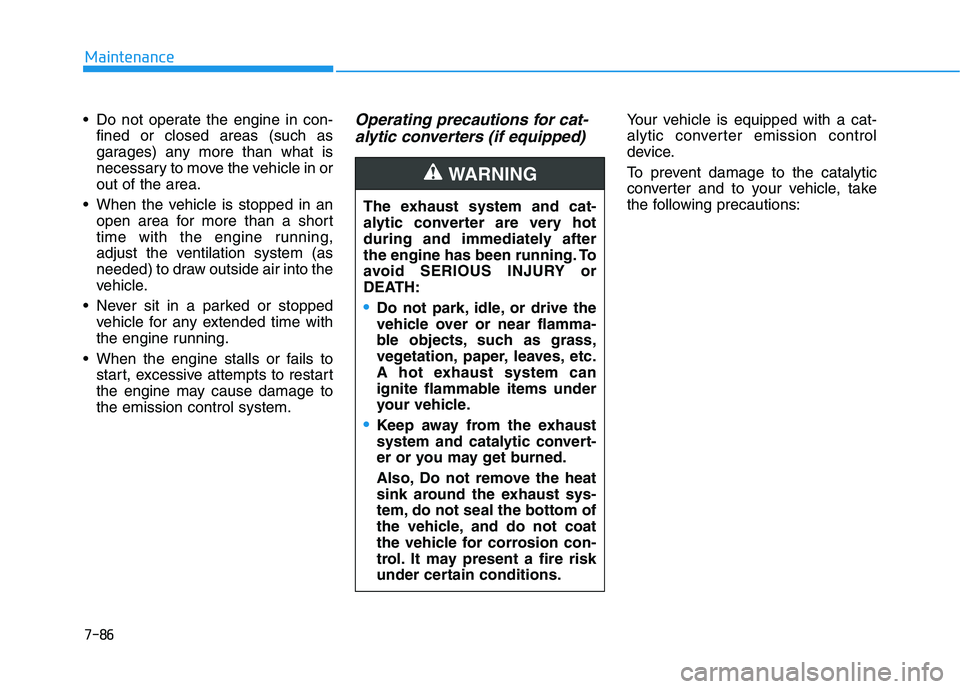

the engine may cause damage tothe emission control system.Operating precautions for cat-
alytic converters (if equipped)Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
The exhaust system and cat-
alytic converter are very hot
during and immediately after
the engine has been running. To
avoid SERIOUS INJURY or
DEATH:
Do not park, idle, or drive the
vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Keep away from the exhaust
system and catalytic convert-
er or you may get burned.
Also, Do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle, and do not coat
the vehicle for corrosion con-
trol. It may present a fire risk
under certain conditions.
WARNING

7-87
7
Maintenance

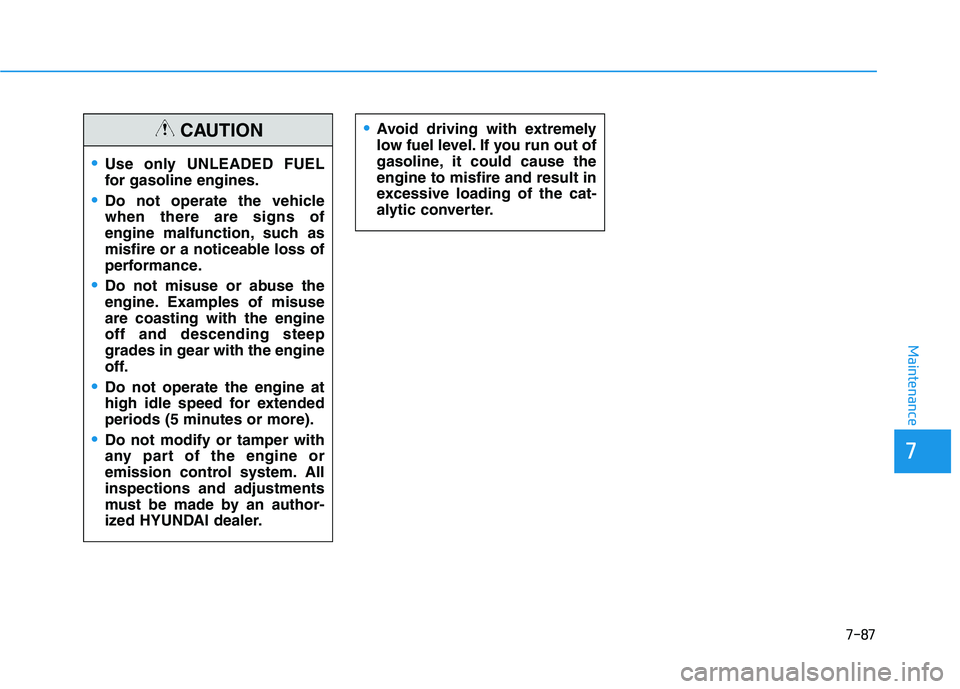

Use only UNLEADED FUEL
for gasoline engines.
Do not operate the vehicle when there are signs of
engine malfunction, such as
misfire or a noticeable loss of
performance.
Do not misuse or abuse the
engine. Examples of misuseare coasting with the engineoff and descending steep
grades in gear with the engine
off.
Do not operate the engine at
high idle speed for extended
periods (5 minutes or more).
Do not modify or tamper with
any part of the engine or
emission control system. Allinspections and adjustments
must be made by an author-
ized HYUNDAI dealer.
Avoid driving with extremely
low fuel level. If you run out of
gasoline, it could cause theengine to misfire and result in
excessive loading of the cat-
alytic converter.CAUTION

888

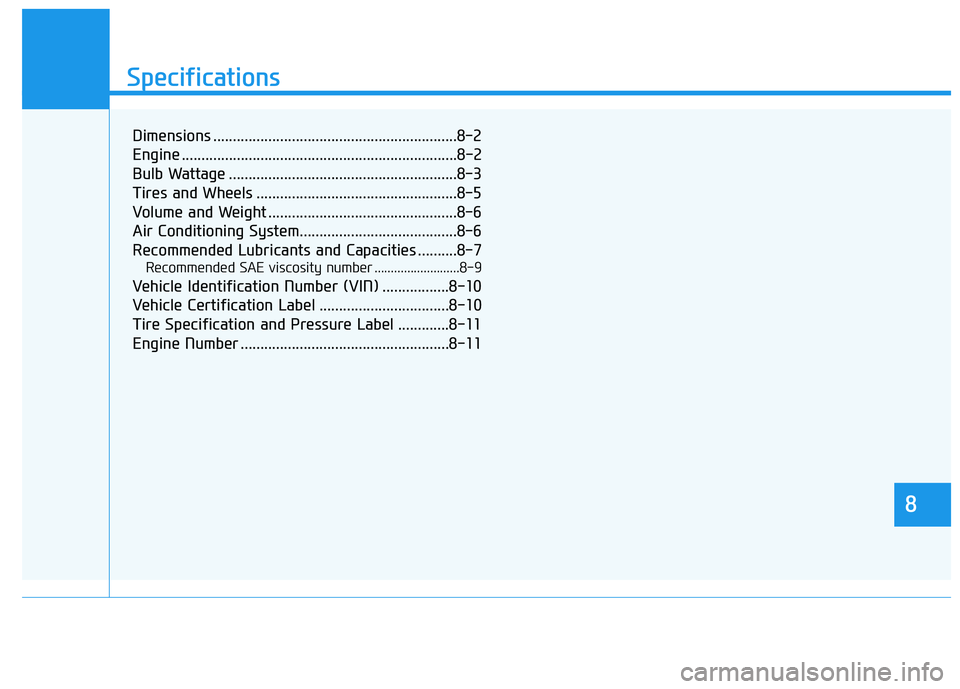

Specifications & Consumer information
8
Specifications
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7Recommended SAE viscosity number ..........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11

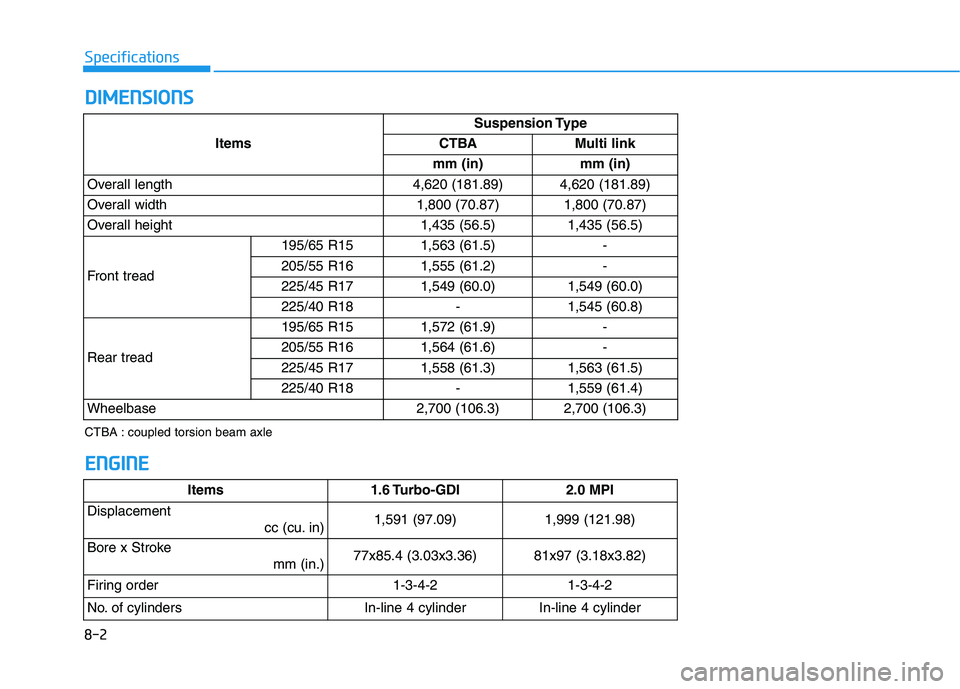

DDIIMM EENN SSIIOO NNSS
8-2
Specifications
E
E NN GGIINN EE
Items
Suspension Type
CTBA Multi link
mm (in)mm (in)
Overall length4,620 (181.89)4,620 (181.89)
Overall width1,800 (70.87)1,800 (70.87)
Overall height1,435 (56.5)1,435 (56.5)
Front tread
195/65 R151,563 (61.5)-
205/55 R161,555 (61.2)-
225/45 R171,549 (60.0)1,549 (60.0)
225/40 R18-1,545 (60.8)
Rear tread
195/65 R151,572 (61.9)-
205/55 R161,564 (61.6)-
225/45 R171,558 (61.3)1,563 (61.5)
225/40 R18-1,559 (61.4)
Wheelbase2,700 (106.3)2,700 (106.3)
Items 1.6 Turbo-GDI2.0 MPI
Displacement
cc (cu. in)1,591 (97.09)1,999 (121.98)
Bore x Stroke mm (in.)77x85.4 (3.03x3.36)81x97 (3.18x3.82)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
CTBA : coupled torsion beam axle

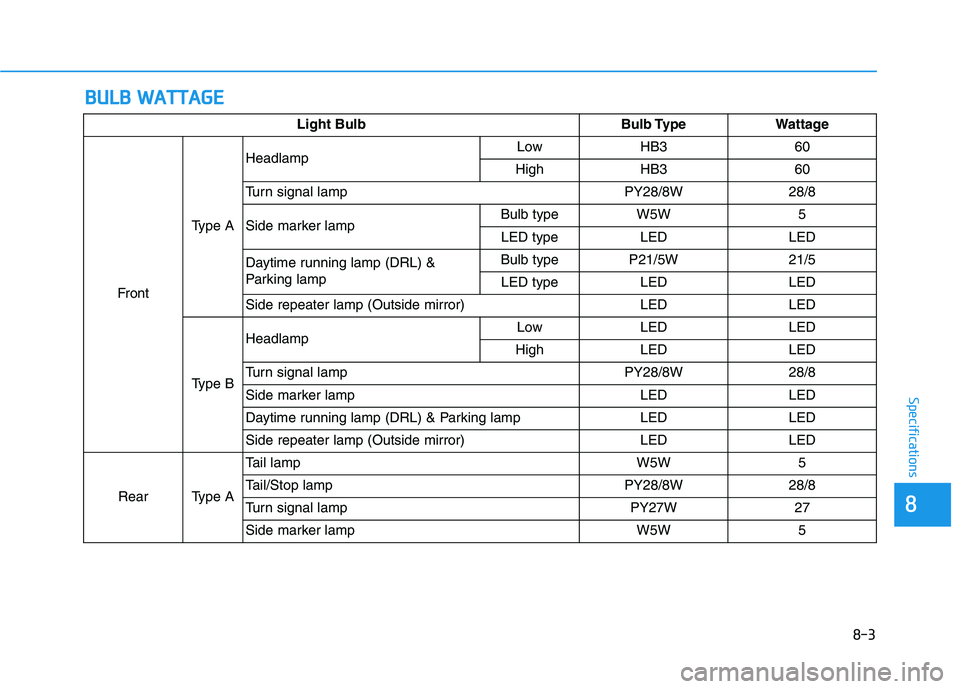

BBUU LLBB WW AATTTTAA GG EE
8-3
88
Specifications
Light Bulb Bulb Type Wattage
Front Type AHeadlamp
Low HB3 60
High HB3 60
Turn signal lamp PY28/8W 28/8
Side marker lamp Bulb type W5W 5
LED type LED LED
Daytime running lamp (DRL) &
Parking lamp Bulb type P21/5W 21/5
LED type LED LED
Side repeater lamp (Outside mirror) LED LED
Type B Headlamp
Low LED LED
High LED LED
Turn signal lamp PY28/8W 28/8
Side marker lamp LED LED
Daytime running lamp (DRL) & Parking lamp LED LED
Side repeater lamp (Outside mirror) LED LED
Rear Type A Tail lamp
W5W 5
Tail/Stop lamp PY28/8W 28/8
Turn signal lamp PY27W 27
Side marker lamp W5W 5

8-4
Specifications

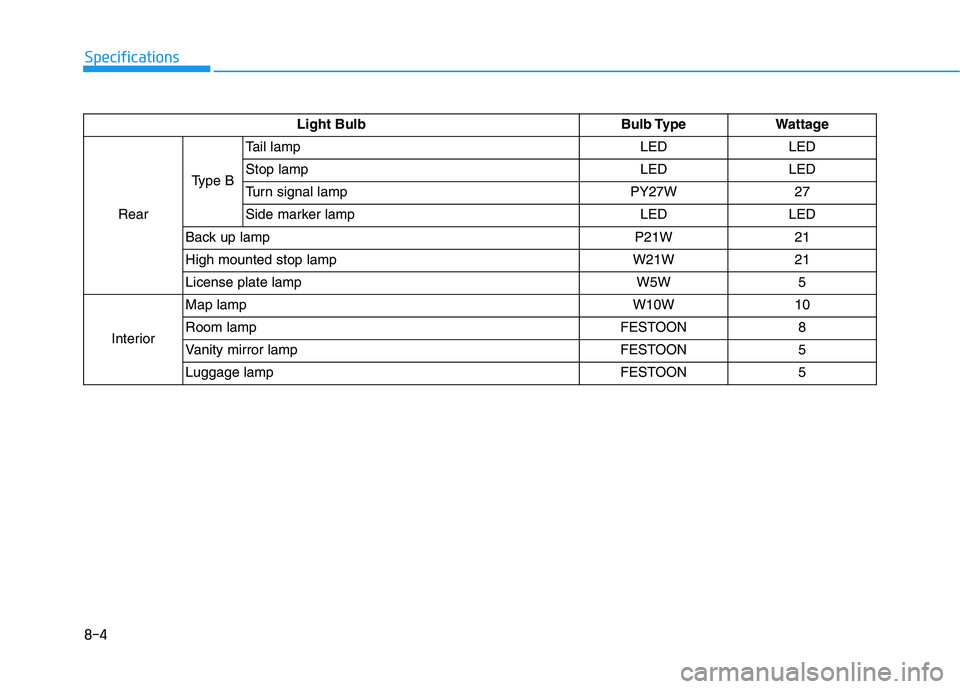

Light BulbBulb Type Wattage
Rear Type B
Tail lamp
LED LED
Stop lamp LED LED
Turn signal lamp PY27W 27
Side marker lamp LED LED
Back up lamp P21W 21
High mounted stop lamp W21W 21
License plate lamp W5W 5
Interior Map lamp
W10W 10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Luggage lamp FESTOON 5

If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.
Items Tire SizeWheel Size
Inflation PressurekPa (psi)Wheel lug nuttorque kgf •m
(lbf ft, N m)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire
195/65 R156.0J X 15250 (36)250 (36)250 (36)250 (36)
11~13
(79~94,
107~127)
205/55 R166.5J X 16250 (36)250 (36)250 (36)250 (36)
225/45 R177.0J X 17230 (33)230 (33)230 (33)230 (33)
225/40 R187.5J X 18230 (33)230 (33)230 (33)230 (33)
Compact spare tire (if equipped)T125/80 D154.0T X 15420 (60)420 (60)420 (60)420 (60)
T125/80 D164.0T X 16420 (60)420 (60)420 (60)420 (60)

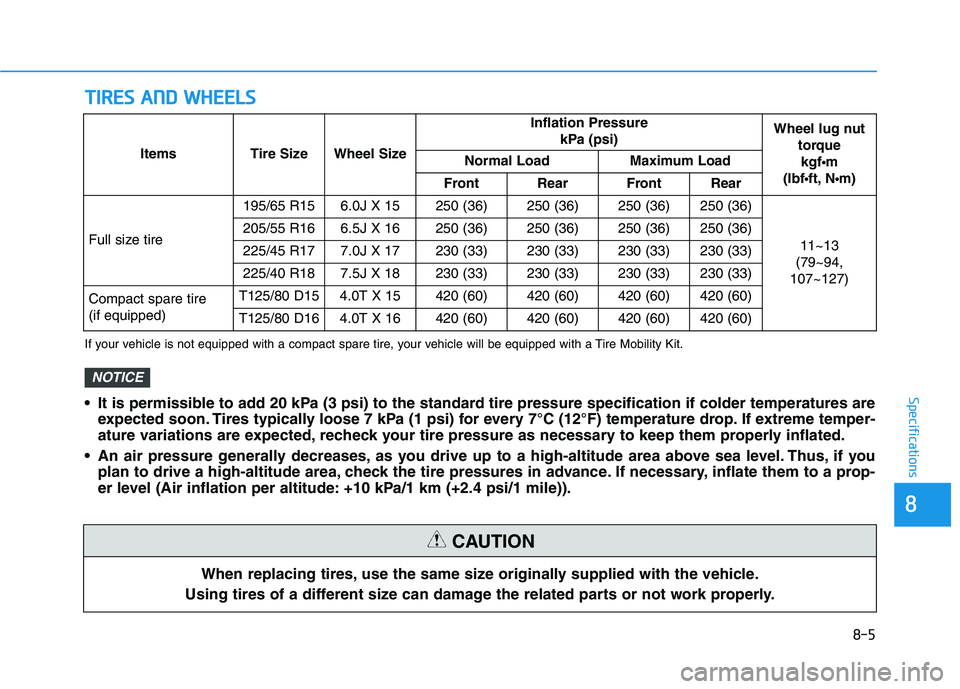

TT IIRR EESS AA NN DD WW HHEEEELLSS
8-5
88
Specifications It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if colder temperatures are
expected soon. Tires typically loose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme temper-
ature variations are expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level (Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile)).
NOTICE
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION

8-6
SpecificationsV

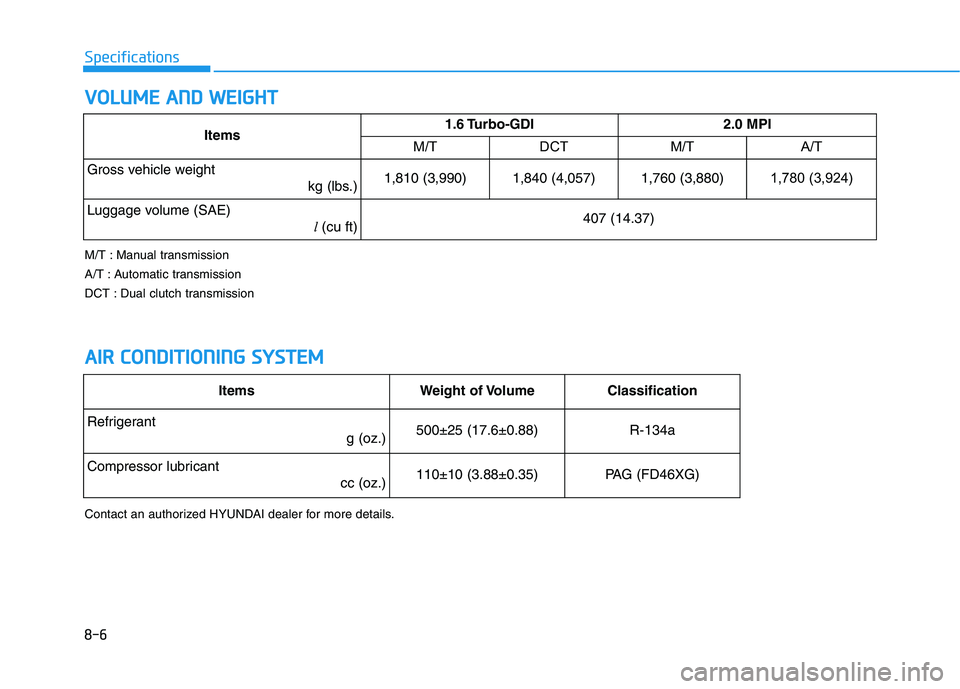

V OO LLUU MM EE AA NN DD WW EEIIGG HH TT
A
A IIRR CC OO NNDDIITT IIOO NNIINN GG SS YY SSTT EEMM
Contact an authorized HYUNDAI dealer for more details.
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission
Items1.6 Turbo-GDI2.0 MPI
M/TDCTM/TA/T
Gross vehicle weight
kg (lbs.)1,810 (3,990)1,840 (4,057)1,760 (3,880)1,780 (3,924)
Luggage volume (SAE) l(cu ft)407 (14.37)
ItemsWeight of VolumeClassification
Refrigerant
g (oz.) 500±25 (17.6±0.88)R-134a
Compressor lubricantcc (oz.) 110±10 (3.88±0.35)PAG (FD46XG)

8-7
88
Specifications
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy. These lubricants and
fluids are recommended for use in your vehicle.

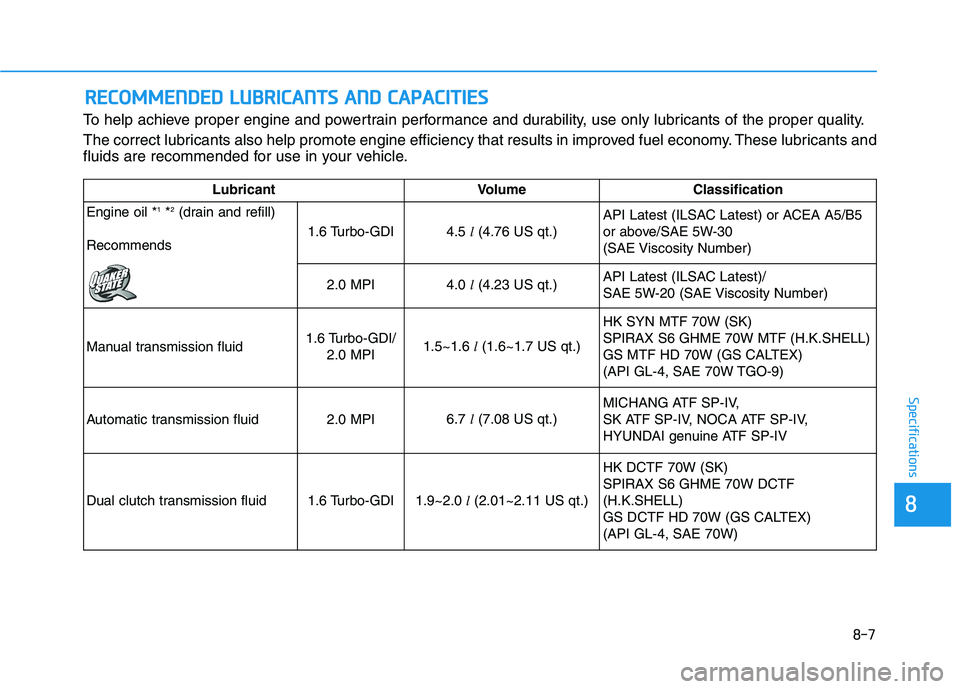

RREECCOO MM MMEENN DDEEDD LL UU BBRRIICC AA NN TTSS AA NN DD CC AA PPAA CCIITT IIEE SS
LubricantVolume Classification
Engine oil * 1
*2
(drain and refill)
Recommends
1.6 Turbo-GDI4.5 l(4.76 US qt.) API Latest (ILSAC Latest) or ACEA A5/B5
or above/SAE 5W-30
(SAE Viscosity Number)
2.0 MPI4.0
l(4.23 US qt.) API Latest (ILSAC Latest)/
SAE 5W-20 (SAE Viscosity Number)
Manual transmission fluid
1.6 Turbo-GDI/ 2.0 MPI1.5~1.6 l(1.6~1.7 US qt.) HK SYN MTF 70W (SK) SPIRAX S6 GHME 70W MTF (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Automatic transmission fluid2.0 MPI6.7
l(7.08 US qt.)
MICHANG ATF SP-IV,
SK ATF SP-IV, NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
Dual clutch transmission fluid1.6 Turbo-GDI1.9~2.0 l(2.01~2.11 US qt.)
HK DCTF 70W (SK) SPIRAX S6 GHME 70W DCTF(H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)(API GL-4, SAE 70W)

8-8
Specifications
*1
: Refer to the recommended SAE viscosity numbers on the next page.
* 2
: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year's
time, they can offer significant cost and energy savings. Lubricant
Volume Classification

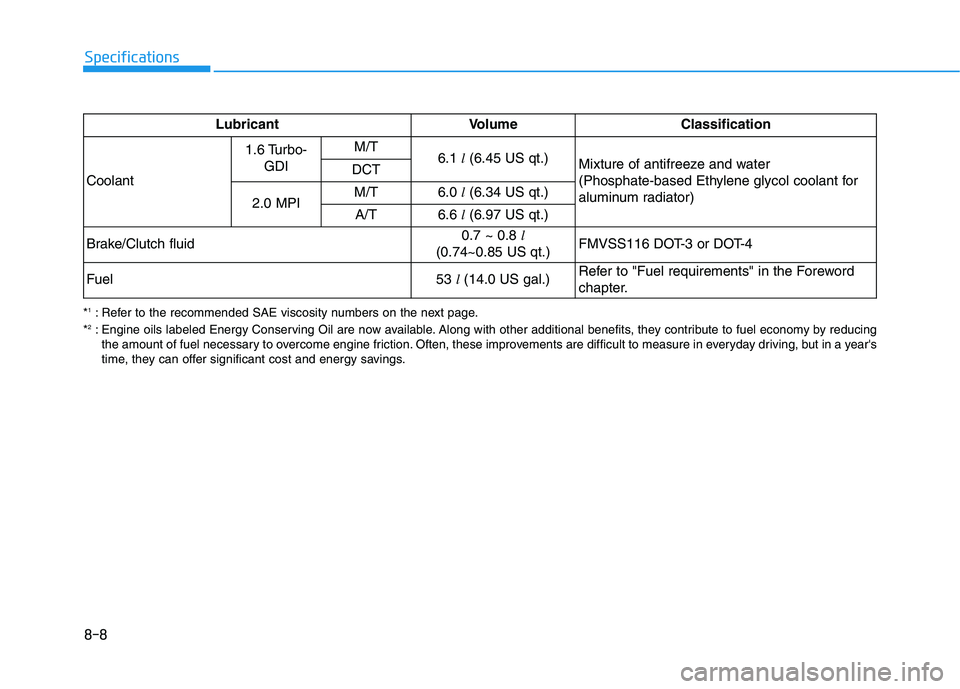

Coolant 1.6 Turbo-
GDI M/T
6.1
l(6.45 US qt.)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for
aluminum radiator)
DCT
2.0 MPI M/T
6.0
l(6.34 US qt.)
A/T
6.6 l(6.97 US qt.)
Brake/Clutch fluid
0.7 ~ 0.8 l
(0.74~0.85 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel53
l(14.0 US gal.)Refer to "Fuel requirements" in the Foreword
chapter.
