Hyundai Equus 2010 Owner's Manual

537
Driving your vehicle

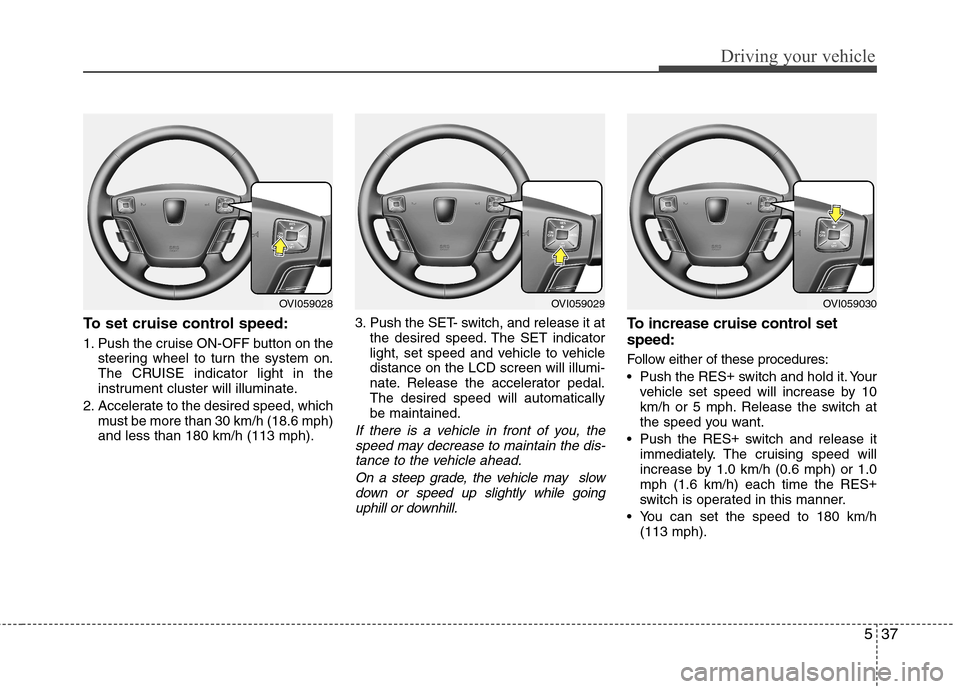

To set cruise control speed:
1. Push the cruise ON-OFF button on thesteering wheel to turn the system on.
The CRUISE indicator light in the
instrument cluster will illuminate.
2. Accelerate to the desired speed, which must be more than 30 km/h (18.6 mph)and less than 180 km/h (113 mph). 3. Push the SET- switch, and release it at
the desired speed. The SET indicator
light, set speed and vehicle to vehicledistance on the LCD screen will illumi-
nate. Release the accelerator pedal.The desired speed will automaticallybe maintained.
If there is a vehicle in front of you, the
speed may decrease to maintain the dis-tance to the vehicle ahead.
On a steep grade, the vehicle may slowdown or speed up slightly while goinguphill or downhill.
To increase cruise control set speed:
Follow either of these procedures:
Push the RES +
switch and hold it. Your
vehicle set speed will increase by 10
km/h or 5 mph. Release the switch at
the speed you want.
Push the RES +
switch and release it
immediately. The cruising speed will
increase by 1.0 km/h (0.6 mph) or 1.0mph (1.6 km/h) each time the RES +
switch is operated in this manner.
You can set the speed to 180 km/h (113 mph).
OVI059029OVI059030OVI059028

Driving your vehicle
38
5

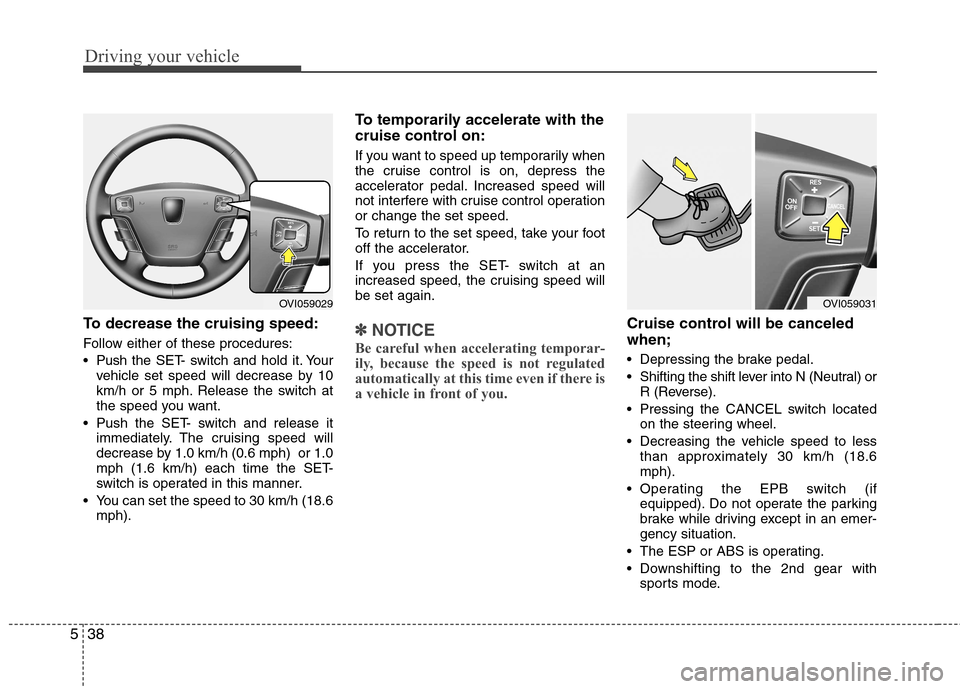

To decrease the cruising speed:
Follow either of these procedures:
Push the SET- switch and hold it. Your
vehicle set speed will decrease by 10
km/h or 5 mph. Release the switch at
the speed you want.
Push the SET- switch and release it immediately. The cruising speed will
decrease by 1.0 km/h (0.6 mph) or 1.0
mph (1.6 km/h) each time the SET-
switch is operated in this manner.
You can set the speed to 30 km/h (18.6 mph). To temporarily accelerate with the
cruise control on:
If you want to speed up temporarily when
the cruise control is on, depress the
accelerator pedal. Increased speed will
not interfere with cruise control operationor change the set speed.
To return to the set speed, take your foot
off the accelerator.
If you press the SET- switch at an
increased speed, the cruising speed willbe set again.✽✽
NOTICE
Be careful when accelerating temporar-
ily, because the speed is not regulated
automatically at this time even if there is
a vehicle in front of you.Cruise control will be canceled when;
Depressing the brake pedal.
Shifting the shift lever into N (Neutral) or R (Reverse).
Pressing the CANCEL switch located on the steering wheel.
Decreasing the vehicle speed to less than approximately 30 km/h (18.6 mph).
Operating the EPB switch (if equipped). Do not operate the parking
brake while driving except in an emer-gency situation.
The ESP or ABS is operating.
Downshifting to the 2nd gear with sports mode.
OVI059029OVI059031

539
Driving your vehicle
Decreasing the vehicle speed to lessthan approximately 10km/h (6.2mph)
as the vehicle in front of you.
Accelerating the vehicle speed to more than approximately 180km/h(113mph).
The ESP is turned off.
The sensor or the cover is stained with foreign matter.
Each of these actions will cancel smart
cruise control operation (the SET indica-
tor light, set speed and vehicle to vehicledistance on the LCD screen will go out),but it will not turn the system off. If youwish to resume smart cruise control
operation, push the RES+ switch locatedon your steering wheel. You will return toyour previously preset speed.
To resume cruising speed at
more than approximately 10 km/h(6.2 mph):
If any method other than the cruise
ON/OFF switch was used to cancel cruis-
ing speed and the system is still activat-ed, the most recent set speed will auto-
matically resume when the RES+ switchis pushed.
It will not resume, however, if the vehicle
speed has dropped below approximately10 km/h (6.2 mph) when the sensor
detects the vehicle ahead or if the vehicle
speed has dropped below approximately30 km/h (18.6 mph) when there is no
vehicle in front of your vehicle.
✽✽ NOTICE
Always check the road conditions when
pressing the RES+ switch to resume the
speed.
To turn cruise control off, do one
of the following:
Push the cruise ON/OFF button (the CRUISE indicator light in the instru- ment cluster will go out).
Turn the engine off.
Both of these actions cancel smart cruise control operation. If you want to resume smart cruise control operation, repeat
the steps provided in “To set cruise con- trol speed” on the previous page.OVI059030
CAUTION
If the sensor cover is dirty orobstructed, the smart cruise control
operation will cancel automatically.

Driving your vehicle
40
5

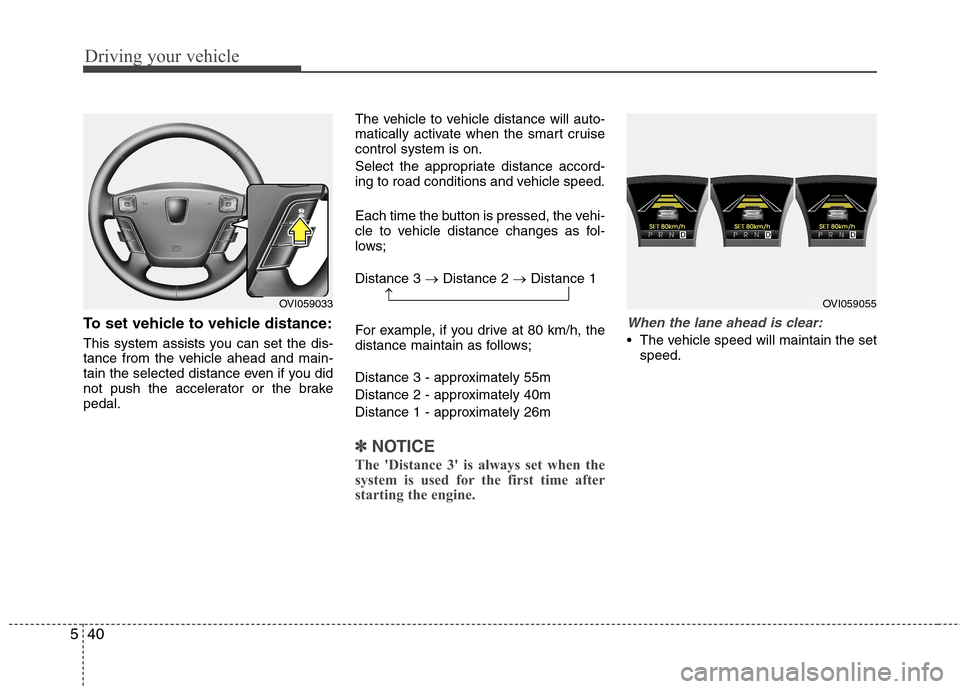

To set vehicle to vehicle distance:
This system assists you can set the dis-
tance from the vehicle ahead and main-
tain the selected distance even if you did
not push the accelerator or the brakepedal. The vehicle to vehicle distance will auto-
matically activate when the smart cruisecontrol system is on.
Select the appropriate distance accord-
ing to road conditions and vehicle speed.
Each time the button is pressed, the vehi-
cle to vehicle distance changes as fol-
lows; Distance 3
Distance 2 Distance 1
For example, if you drive at 80 km/h, the
distance maintain as follows;
Distance 3 - approximately 55m
Distance 2 - approximately 40m
Distance 1 - approximately 26m
✽✽ NOTICE
The 'Distance 3' is always set when the
system is used for the first time after
starting the engine.
When the lane ahead is clear:
The vehicle speed will maintain the set speed.
OVI059033OVI059055

541
Driving your vehicle

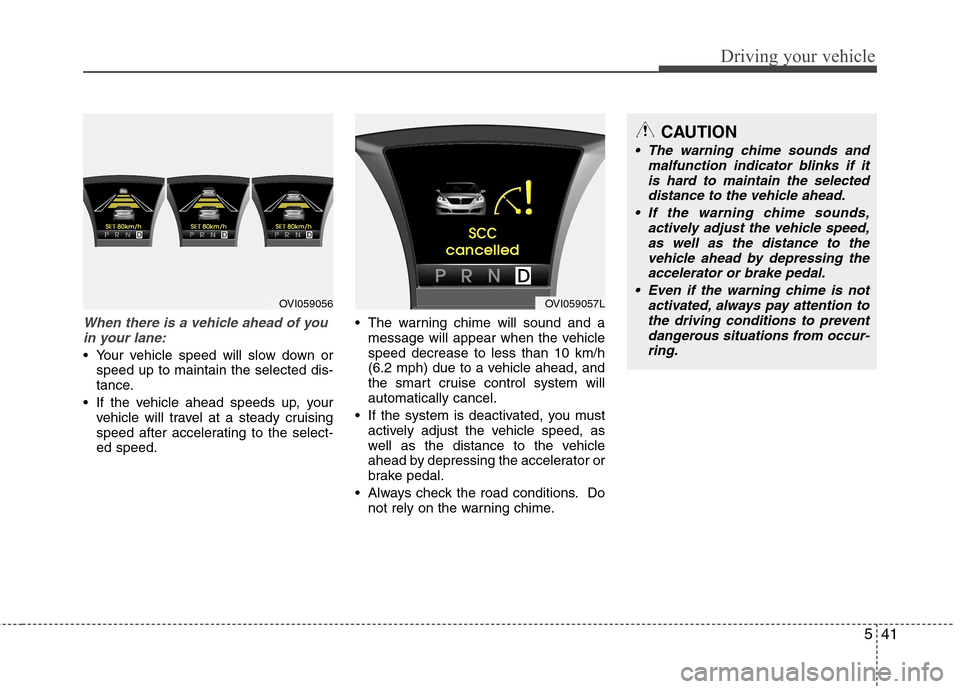

When there is a vehicle ahead of youin your lane:
Your vehicle speed will slow down or speed up to maintain the selected dis-
tance.
If the vehicle ahead speeds up, your vehicle will travel at a steady cruising
speed after accelerating to the select-ed speed. The warning chime will sound and a
message will appear when the vehiclespeed decrease to less than 10 km/h
(6.2 mph) due to a vehicle ahead, and
the smart cruise control system willautomatically cancel.
If the system is deactivated, you must actively adjust the vehicle speed, as
well as the distance to the vehicle
ahead by depressing the accelerator or
brake pedal.
Always check the road conditions. Do not rely on the warning chime.
OVI059056OVI059057L
CAUTION
The warning chime sounds and
malfunction indicator blinks if it
is hard to maintain the selected distance to the vehicle ahead.
If the warning chime sounds, actively adjust the vehicle speed,
as well as the distance to the vehicle ahead by depressing theaccelerator or brake pedal.
Even if the warning chime is not activated, always pay attention to
the driving conditions to preventdangerous situations from occur-ring.

Driving your vehicle
42
5

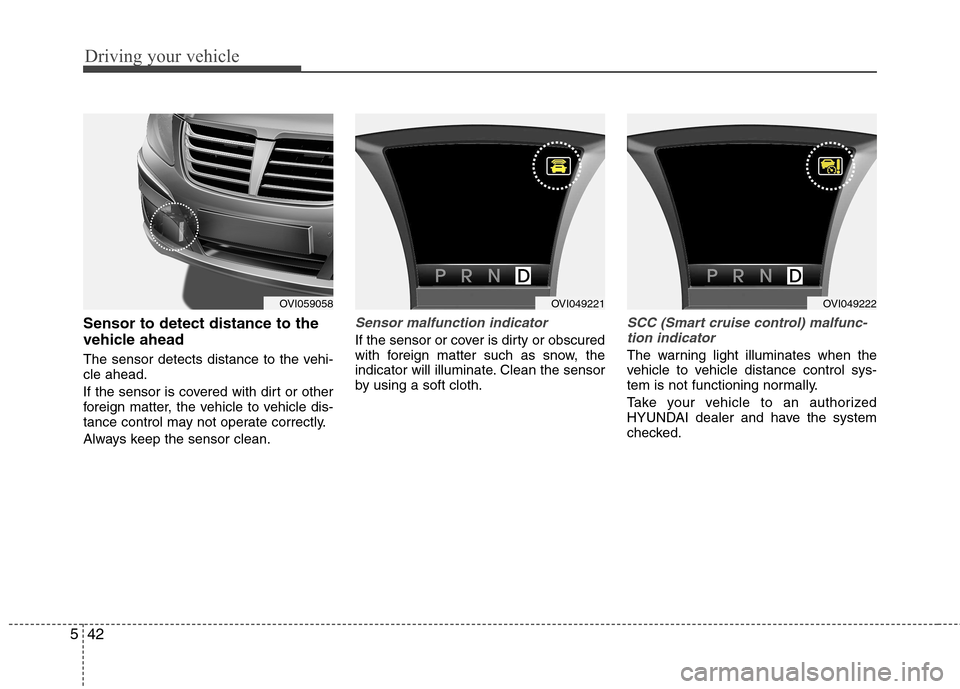

Sensor to detect distance to the
vehicle ahead
The sensor detects distance to the vehi- cle ahead.
If the sensor is covered with dirt or other
foreign matter, the vehicle to vehicle dis-
tance control may not operate correctly.
Always keep the sensor clean.Sensor malfunction indicator
If the sensor or cover is dirty or obscured
with foreign matter such as snow, the
indicator will illuminate. Clean the sensor
by using a soft cloth.
SCC (Smart cruise control) malfunc-
tion indicator
The warning light illuminates when the
vehicle to vehicle distance control sys-
tem is not functioning normally.
Take your vehicle to an authorized
HYUNDAI dealer and have the system
checked.
OVI059058OVI049221OVI049222

543
Driving your vehicle

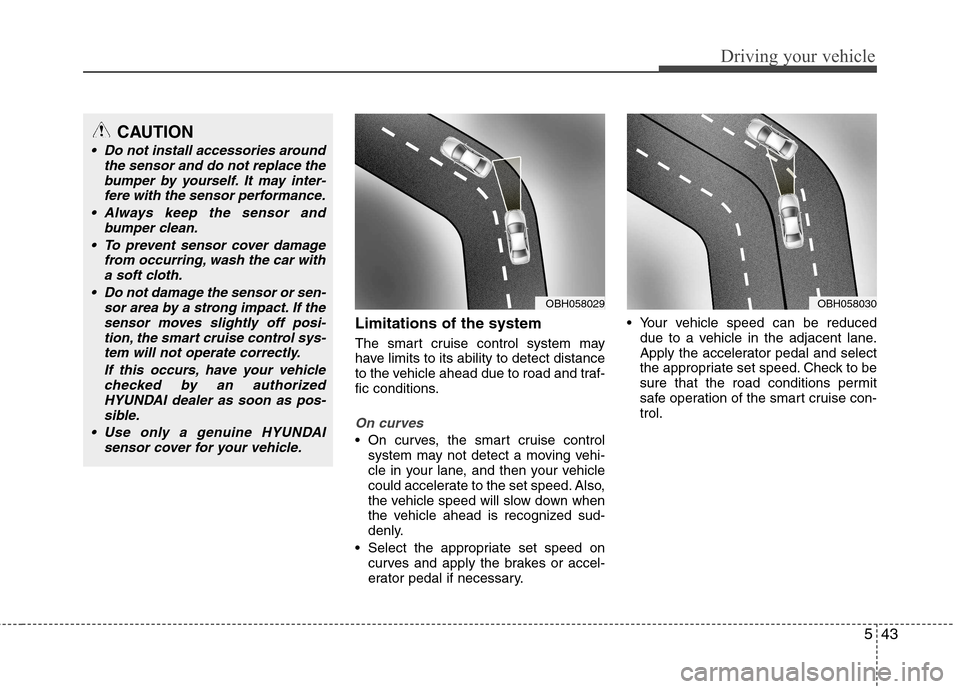

Limitations of the system
The smart cruise control system may
have limits to its ability to detect distance
to the vehicle ahead due to road and traf-
fic conditions.
On curves
On curves, the smart cruise controlsystem may not detect a moving vehi-
cle in your lane, and then your vehicle
could accelerate to the set speed. Also,
the vehicle speed will slow down when
the vehicle ahead is recognized sud-
denly.
Select the appropriate set speed on curves and apply the brakes or accel-
erator pedal if necessary. Your vehicle speed can be reduced
due to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate set speed. Check to be
sure that the road conditions permit
safe operation of the smart cruise con-trol.
OBH058030OBH058029
CAUTION
Do not install accessories around
the sensor and do not replace the
bumper by yourself. It may inter-fere with the sensor performance.
Always keep the sensor and bumper clean.
To prevent sensor cover damage from occurring, wash the car witha soft cloth.
Do not damage the sensor or sen- sor area by a strong impact. If thesensor moves slightly off posi-
tion, the smart cruise control sys-tem will not operate correctly.
If this occurs, have your vehiclechecked by an authorizedHYUNDAI dealer as soon as pos-
sible.
Use only a genuine HYUNDAI sensor cover for your vehicle.

Driving your vehicle
44
5

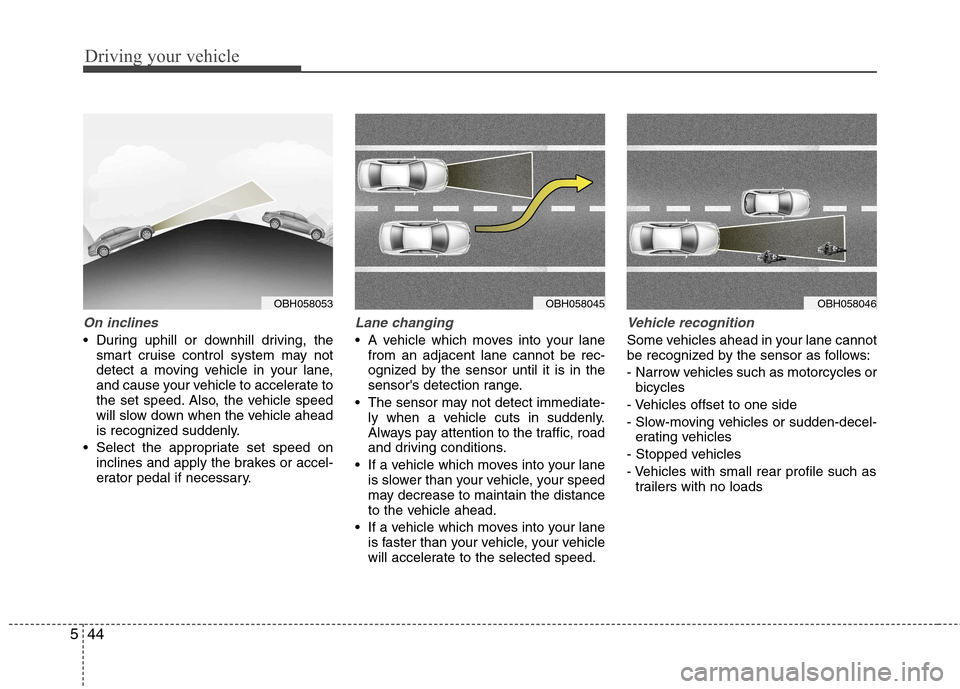

On inclines
During uphill or downhill driving, the
smart cruise control system may not
detect a moving vehicle in your lane,
and cause your vehicle to accelerate to
the set speed. Also, the vehicle speed
will slow down when the vehicle ahead
is recognized suddenly.
Select the appropriate set speed on inclines and apply the brakes or accel-
erator pedal if necessary.
Lane changing
A vehicle which moves into your lanefrom an adjacent lane cannot be rec-
ognized by the sensor until it is in the
sensor's detection range.
The sensor may not detect immediate- ly when a vehicle cuts in suddenly.
Always pay attention to the traffic, road
and driving conditions.
If a vehicle which moves into your lane is slower than your vehicle, your speed
may decrease to maintain the distance
to the vehicle ahead.
If a vehicle which moves into your lane is faster than your vehicle, your vehicle
will accelerate to the selected speed.
Vehicle recognition
Some vehicles ahead in your lane cannot
be recognized by the sensor as follows:
- Narrow vehicles such as motorcycles orbicycles
- Vehicles offset to one side
- Slow-moving vehicles or sudden-decel- erating vehicles
- Stopped vehicles
- Vehicles with small rear profile such as trailers with no loads
OBH058046OBH058045OBH058053

545
Driving your vehicle

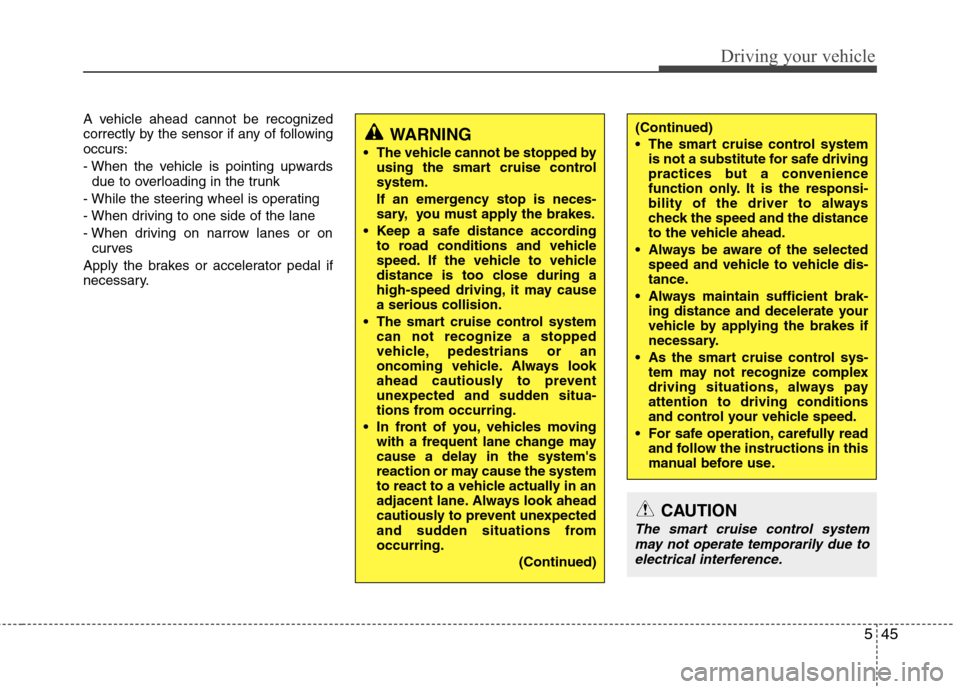

A vehicle ahead cannot be recognized
correctly by the sensor if any of followingoccurs:
- When the vehicle is pointing upwardsdue to overloading in the trunk
- While the steering wheel is operating
- When driving to one side of the lane
- When driving on narrow lanes or on curves
Apply the brakes or accelerator pedal if
necessary.(Continued)
The smart cruise control system is not a substitute for safe driving
practices but a convenience
function only. It is the responsi-
bility of the driver to always
check the speed and the distance
to the vehicle ahead.
Always be aware of the selected speed and vehicle to vehicle dis-
tance.
Always maintain sufficient brak- ing distance and decelerate your
vehicle by applying the brakes if
necessary.
As the smart cruise control sys- tem may not recognize complex
driving situations, always payattention to driving conditions
and control your vehicle speed.
For safe operation, carefully read and follow the instructions in this
manual before use.WARNING
The vehicle cannot be stopped by using the smart cruise control system.
If an emergency stop is neces-
sary, you must apply the brakes.
Keep a safe distance according to road conditions and vehicle
speed. If the vehicle to vehicle
distance is too close during a
high-speed driving, it may causea serious collision.
The smart cruise control system can not recognize a stopped
vehicle, pedestrians or an
oncoming vehicle. Always look
ahead cautiously to prevent
unexpected and sudden situa-
tions from occurring.
In front of you, vehicles moving with a frequent lane change may
cause a delay in the system's
reaction or may cause the system
to react to a vehicle actually in an
adjacent lane. Always look ahead
cautiously to prevent unexpected
and sudden situations fromoccurring.
(Continued)
CAUTION
The smart cruise control systemmay not operate temporarily due to electrical interference.

Driving your vehicle
46
5
This system detects the lane with the
sensor at the front windshield and warns
you when your vehicle leaves the lane. To operate the LDWS, pull the switch or
press the switch with the engine
start/stop button in the ON position. The
indicator illuminates on the cluster. To
cancel the LDWS, pull the switch or
press the switch again.
LANE DEPARTURE WARNING SYSTEM (LDWS) (IF EQUIPPED)
OVI059012
OVI059013
WARNING
The LDWS does not make the vehicle change lanes. It is driver's
responsibility to always check
the road conditions.
Do not turn the steering wheel suddenly, when the LDWS warns
that your vehicle leaving the lane.
If the sensor can not detect the lane or if the vehicle speed does
not exceed 60km/h, the LDWS
won't warn you even though vehi-
cle leaves the lane.
If your vehicle has window tint or other types of coating on the
front windshield, the LDWS may
not work properly.
Prevent the LDWS sensor from water or any liquid.
Do not remove the LDWS parts and do not affect the sensor by a
strong impact.
Do not put objects that reflect light on the dash board.
Always check the road conditions because you may not hear the
warning chime because of audio,
and external conditions.
OVI059062L
Type AType B
