INFO/Setup
INFO/Setup l 6-15

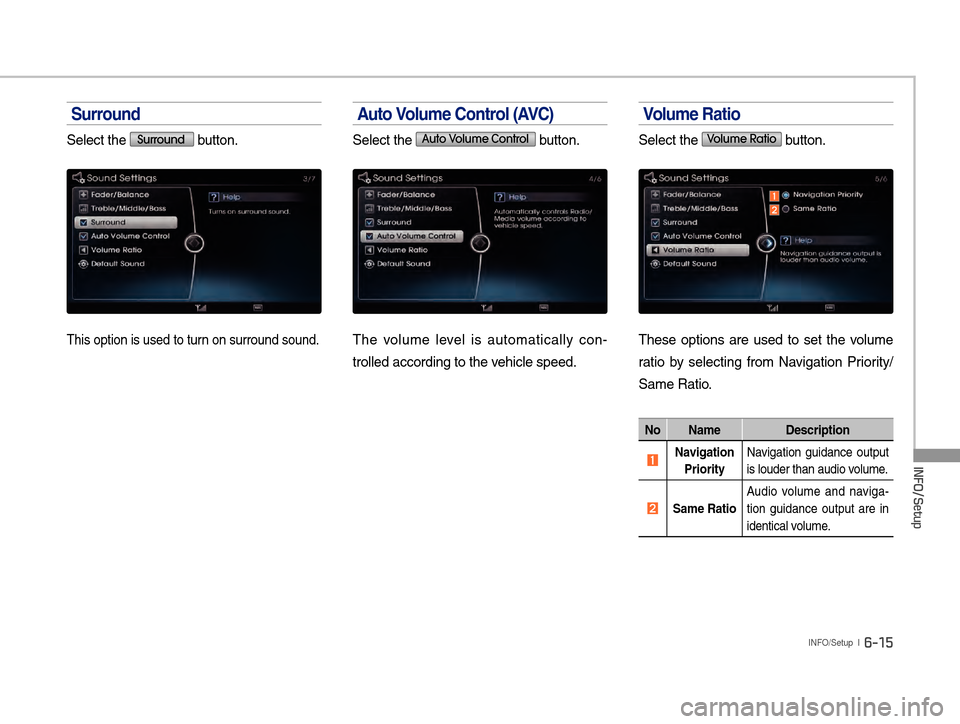

Surround
Select the Surround button.
This option is used to turn on surround sound.
Auto Volume Control (AVC)
Select the Auto Volume Control button.
The volume level is automatically con-
trolled according to the vehicle speed.
Volum e Rat io
Select the Volume Ratio button.
ò ó
These options are used to set the volume
ratio by selecting from Navigation Priority/
Same Ratio.
No NameDescription
ò Navigation
Priority Na
vigation guidance output
is louder than audio volume.
ó Same Ratio A
udio v
olume and naviga-
tion guidance output are in
identical volume.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 222 of 261
INFO/Setup
6-16
Default Sound
Select the Default Sound button.
This option is used to restore all Sound
settings back to the default state.
Display Settings
In the INFO/Setup Home screen Ü
Select the Display Settings icon.
LCD Brightness
Select the LCD Brightness button.
This option is used to change the LCD
brightness.
Press and hold the controller for approx 3
seconds to restore brightness to the default
setting
Illumination
Select the Illumination button.
ò ó ô
No Name Description
ò Automatic Adjusts the br
ightness
automatically according to
surrounding br
ightness.
ó Daylight Alw
a
ys maintains the
brightness on high.
ô Night Alw
a
ys maintains the
brightness on low.
i Information
!Ÿ When set to Automatic, the screen bright-
ness and color will automatically be
adjusted according to the surrounding
brightness.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 223 of 261
INFO/Setup
INFO/Setup l 6-17

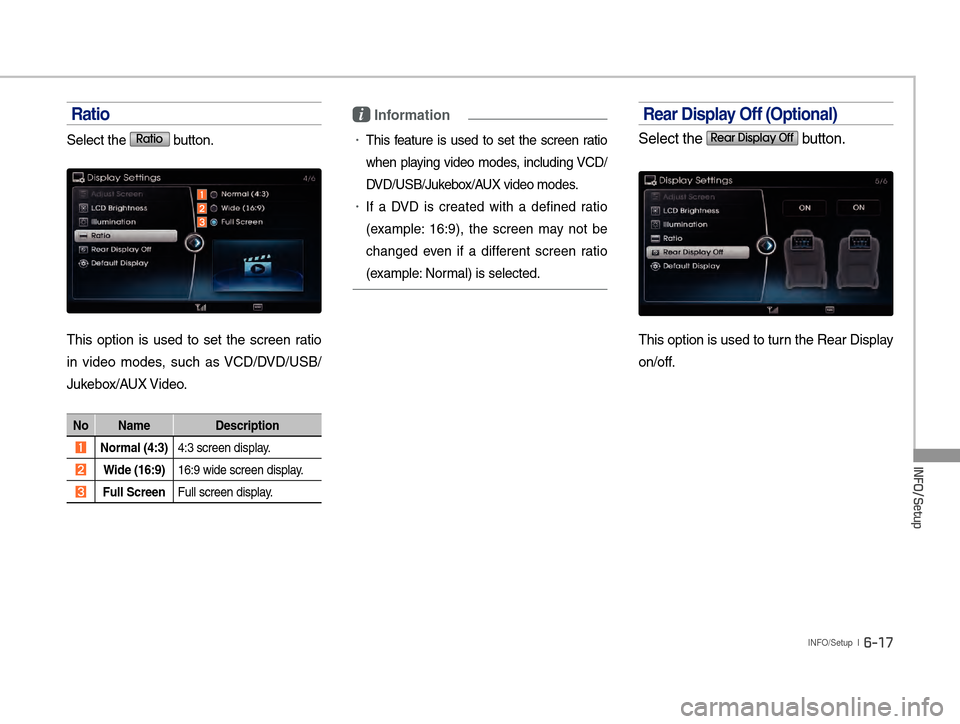

Ratio
Select the Ratio button.
ò ó ô
This option is used to set the screen ratio
in video modes, such as VCD/DVD/USB/
Jukebox/AUX Video.
No NameDescription
ò Normal (4:3) 4:3 screen displa y
.
ó Wide (16:9) 16:9 wide screen displa
y
.
ô Full Screen Full screen displa y
.
i Information
!Ÿ This feature is used to set the screen ratio
when playing video modes, including VCD/
DVD/USB/Jukebox/AUX video modes.
!Ÿ If a DVD is created with a defined ratio
(example: 16:9), the screen may not be
changed even if a different screen ratio
(example: Normal) is selected.
Rear Display Off (Optional)
Select the Rear Display Off button.
This option is used to turn the Rear Display
on/off.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 224 of 261
INFO/Setup
6-18

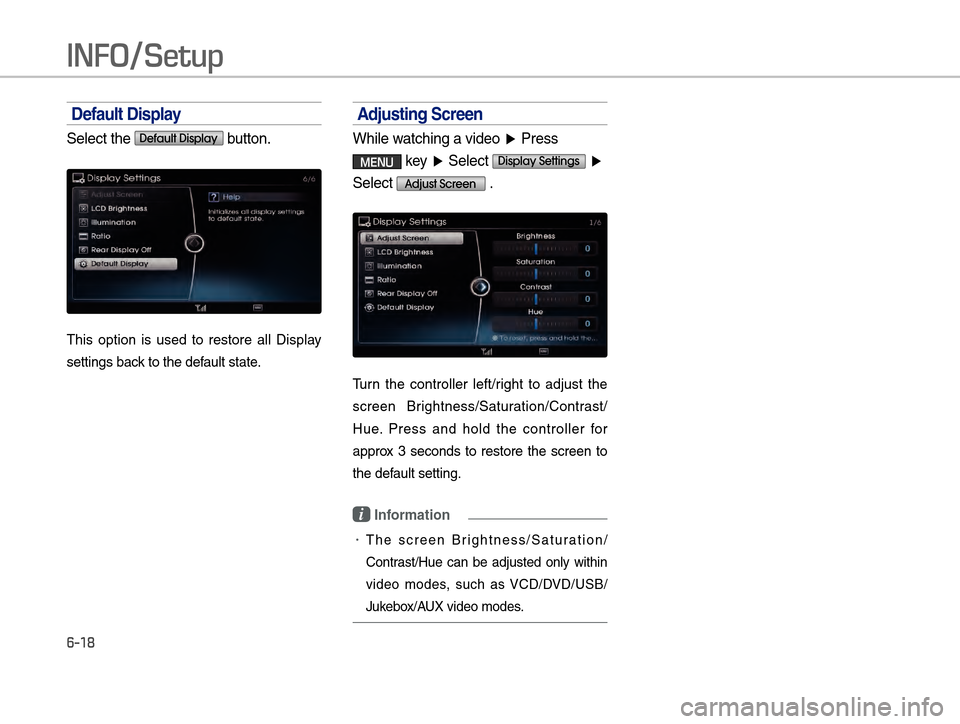

Default Display
Select the Default Display button.
This option is used to restore all Display
settings back to the default state.
Adjusting Screen
While watching a video Ü Press
MENU key Ü Select Display Settings Ü
Select
Adjust Screen .
Turn the controller left/right to adjust the
screen Brightness/Saturation/Contrast/
Hue. Press and hold the controller for
approx 3 seconds to restore the screen to
the default setting.
i Information
!Ÿ The screen Brightness/Saturation/
Contrast/Hue can be adjusted only within
video modes, such as VCD/DVD/USB/
Jukebox/AUX video modes.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 225 of 261
INFO/Setup
INFO/Setup l 6-19
About the Front View
Camera (Optional)
"
Page 226 of 261
INFO/Setup
6-20
PGS (Optional)
PGS (Parking Guide System) is a system dis-
played when the gear is placed in R. PGS is an
optional feature equipped in select vehicles.
No NameDescription
ò
Top View / Rear View
conversionChanges the view angle
of the rear cameras
ó
Steering sync
guidelinesLine displayed to help
with parking guidance
that displays the car posi-
tion and steering angle
Changing Rear View Angle
Press the Top or Rear button to change the rear
view angle between Top View and Rear View.
When Top View is selected, the rear view angle
is displayed as if looking down from above.
If Rear View is selected, the rear view
angle is displayed in a customary view with
a normal rear view perspective.
ò
ó
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 227 of 261
INFO/Setup
INFO/Setup l 6-21
About AVM (Optional)
AVM (Around View Monitoring System) refers to a system that
allows you to see the front, rear, left and right sides through the 4
cameras installed within the vehicle.
Operating the Front AVM
After turning on the ignition, shifting the gear to N or D and press-
ing the
key will start the Front AVM.
i Information
!Ÿ Shifting the gear to P or R or turning OFF the BLIND key will turn
the front AVM off.
ò
ó
ô õ ö ÷ ø
ù
No NameDescription
ò Front Camera
Screen Displa
ys the front side of the v
ehicle on the screen
through the camera
ó AVM aspect
camera screen
Displays the AVM or the left/right side depending on the se-
lected option
ô Front+AVM
Displa yDispla
ys the front side and AVM simultaneously on the
screen
õ Front Display Displays the front side on the screen
ö Fr
ont+Left
Displa yDispla
ys the front side and left side simultaneously on
the screen
÷ Front+Right
Displa yDispla
ys the front side and right side simultaneously
on the screen
ø AVM Settings Displays A
VM Settings
ù
Door Open WarningDisplays whether the driver-side/passenger-side
doors, side mirrors, and trunk are open
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 228 of 261
INFO/Setup
6-22
Operating the Rear AVM
After turning on the ignition, shifting the gear to R will start the Rear
AVM.
Changing the gear from R to a different position will turn the Rear
AVM off.
i Information
!Ÿ The AVM camera is equipped with an optical lens to provide a
wider range of vision and may appear different from the actual dis-
tance. For safety, directly check the rear and left/right.
No NameDescription
ò Rear Camera
Screen Displa
ys the rear side of the v
ehicle on the screen
through the camera
ó AVM aspect
camera screen Displa
ys the A
VM or the left/right side depending on
the selected option
ô Rear+AVM
Displa yDispla
ys the rear side and AVM simultaneously on the
screen
õ Rear Display Displays the rear side on the screen
ö Rear+Left
Displa yDispla
ys the rear side and left side simultaneously on
the screen
÷ Rear+Right
Displa yDispla
ys the rear side and right side simultaneously
on the screen
ø AVM Settings Displays A
VM Settings
ù
Door Open WarningDisplays whether the driver-side/passenger-side doors,
side mirrors, and trunk are open
ò
ó
ô õ ö ÷ ø
ù
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 229 of 261
INFO/Setup
INFO/Setup l 6-23
AV M S e t t i n g s
Press the button in the Front or Rear AVM screen to display
the AVM settings.
No Name Description
ò Sync Guidelines
with Steering Set whether to sync guidelines with the steer
ing
handle
ó Front/Rear
W arning Sets whether to displa
y warning when obstacles ap-
proach the front and rear of the vehicle within AVM
view mode
ô Initial Front
View Sets the initial displa
y when entering Front AVM
mode
õ Initial Rear
Vie w Sets the initial displa
y when entering Rear AVM
mode
ò
ó
ô
õ
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 230 of 261
MEMO
6-24
