Hyundai Equus 2016 Digital Navigation System
Manufacturer: HYUNDAI, Model Year: 2016, Model line: Equus, Model: Hyundai Equus 2016Pages: 261, PDF Size: 7.39 MB
Page 231 of 261
7
Blue Link
Starting Mode
Blue Link Safety and Security Service
Location Information Service
Car Management Information
Blue Link System Information
7
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 232 of 261
Blue Link
7-2
Blue Link
Starting Mode
Press the key.
ò ó ô
i Information
!Ÿ If you have not subscribed to the Blue
Link service, then only the Eco Driving
and System Info buttons can be used.
No NameDescription
ò
Downloaded POICheck POI information
downloaded from the Blue
Link center or website.
ó Eco
Driving Displa
ys car fuel econom
y
graphs and eco driving
information.
ô System
Inf o Chec
k Blue Link system
information.
Blue Link Safety and Security Service
Auto Crash Notification (ACN)
Provides immediate assistance when an
accident occurs and an airbag is deployed.
In this event, an ACN signal, containing cus-
tomer and location information, will automati-
cally be transmitted to the response center.
Upon receipt of the signal, a response
specialist will attempt to establish voice com-
munications with the vehicle occupants and
forward any pertinent information to emer-
gency services.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 233 of 261
Blue Link
Blue Link l 7-3
SOS
Customers may request emergency assis-
tance by pressing the dedicated
key in the
vehicle. This action transmits vehicle information
and location to specially trained response spe-
cialists, who will then assist in coordinating the
dispatch of appropriate emergency assistance
to the customer.
The response specialist remains on the line
with the customer until advised assistance
has arrived.
Stolen Vehicle Recovery
In the event a customer’s vehicle is reported
stolen (and a stolen vehicle report has been
filed with the appropriate police department),
the response center can provide assistance
to the police in an attempt to recover the
vehicle.
Vehicle Immobilization
Used with Stolen Vehicle Recovery, this
enables law enforcement to send a signal
to the vehicle which immobilizes the engine
management system, thus preventing
startup. This capability is only valid when
the ignition is off, but can be saved for later
immobilization if the vehicle is on or in
motion at the time of signal transmission.
Vehicle Slowdown
Used with Stolen Vehicle Recovery, this
enables law enforcement to gradually
reduce the engine power of the vehicle, thus
slowing it down to safe levels. A warning
shall be transmitted to the driver prior to the
slowdown procedure.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 234 of 261
Blue Link
7-4
Location Information Service
Downloading POIs from the Blue
Link Center
1. Press the key on the Rear View Mirror
to connect with the Blue Link Center.
2. Once connection is established, request
the desired POI information through voice
recognition to the Blue Link Center.
3. Once the request is completed,
The requested POI information will be
downloaded and displayed on the screen.
Downloading POIs through the
Owner’s Website
1. Visit the Blue Link website
(www.myhyundai.com) to search for
desired POI information to send to your
vehicle.
2. After transmission is complete, the follow-
ing POI downloaded message is displayed
the next time you turn on your vehicle.
3. Select the Ye s button to check the infor-
mation of downloaded POIs.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 235 of 261
Blue Link
Blue Link l 7-5
Checking Downloaded POI
Information
Press the key Ü Select the
Downloaded POI icon.
Select a POI on the POI list to view addi-
tional POI information.
Car Management Information
Eco Driving
Press the key Ü Select the Eco
Driving icon.
ò
õ
ó ô
No Name Description
ò Fuel
Econom y
Graph Displa
ys the average fuel
economy (Community) in 2.5
minute intervals.
ó Average
Fuel
Econom y Displa
ys the average fuel
economy after starting the
ignition.
ô
Fuel
Consumption last 2.5 min Displays the fuel economy
and consumption for the last
2.5 minutes.
õ Help Pro
vides additional
inf
ormation on Eco Driving.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 236 of 261
Blue Link
7-6
Parts Replacement /Inspection
Alerts
Parts replacement/inspection alerts are
also provided regularly through the website,
emails and text messages.
Automated DTC (Diagnostic Trouble
Code) Notification
This feature provides an explanation and
repair assistance using vehicle data and off-
board diagnosis capabilities. Through a com-
bination of in-vehicle display alerts and guided
voice messages, the owner will get additional
instructions and what to do next. This informa-
tion is automatically sent to the owner`s pre-
ferred dealer to assist with the repair process.
Recall and Campaign Advisor
The following message alerts are displayed
once vehicle recall or campaign information
or received.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 237 of 261
Blue Link
Blue Link l 7-7

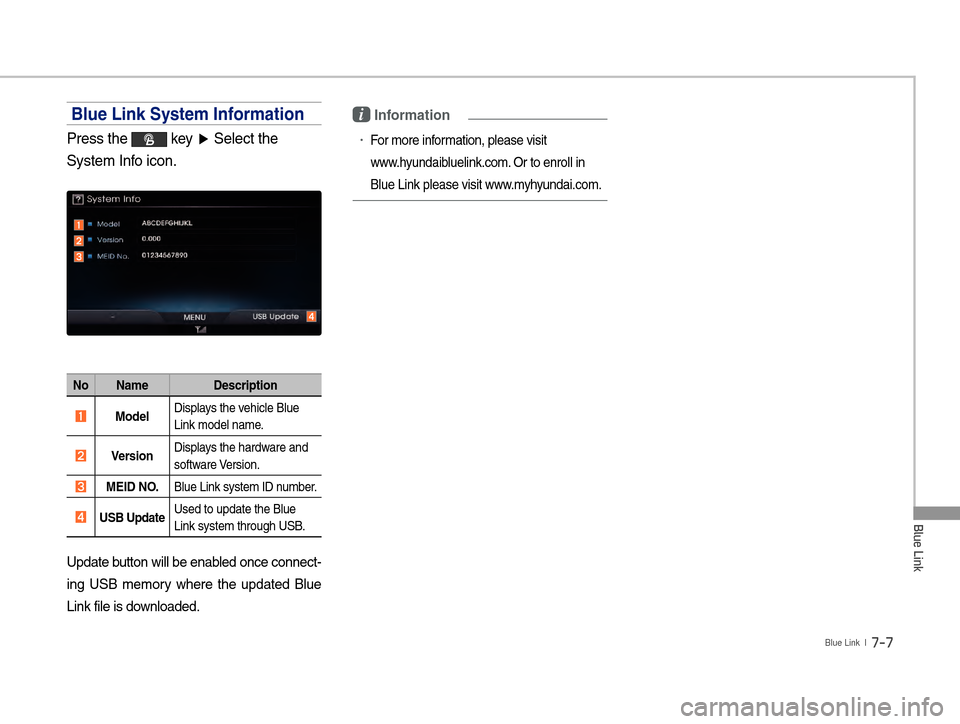

Blue Link System Information
Press the key Ü Select the
System Info icon.
No Name Description
ò Model Displa
ys the v
ehicle Blue
Link model name.
ó Version Displa
ys the hardw
are and
software Version.
ô MEID NO. Blue Link system ID n umber
.
õ USB Update Used to update the Blue
Link system through USB
.
Update button will be enabled once connect-
ing USB memory where the updated Blue
Link file is downloaded.
i Information
!Ÿ For more information, please visit
www.hyundaibluelink.com. Or to enroll in
Blue Link please visit www.myhyundai.com.
ò
ó
ô
õ
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 238 of 261
MEMO
7-8
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 239 of 261
8
Appendix
Product Specification
DVD Language Code
Before thinking there is a product defect
Before thinking there is a product malfunction
Troubleshooting
FAQ
8
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 240 of 261
Appendix
8-2
Product Specification
DOLBY
Manufactured under license from Dolby Laboratories. Dolby and double-D
symbol
are trademarks of Dolby Laboratories.
DTS
Manufactured under license under U.S. Patent Nos : 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks & DTS
Digital Surround and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc.
All Rights Reserved.
AV/Navigation Product Specifications
Power &
Specifi ca-
tion Power Voltage
14.4V (10~15V supported)
Negative ground
Dimensions (WxHxD) 178x102x175 Weight 2.7 kg
Tuner FMFrequency Range 87.5MHz~107.9MHz
Sensitivity (mono) (30dB S/N) Under 10dBu
Signal to Noise Ratio Over 50dB Stereo Separation (1kHz) Over 20dB
AM Frequency Range 530kHz~1710kHz
Sensitivity (20dB S/N) Under 40dBu Signal to Noise Ratio Over 40dB
Audio Max Output 45W PER CHANNEL
BASS 8dB ± 3dB
MIDDLE 8dB ± 3dB
TREBLE 8dB ± 3dB
DVD
Player AUDIO
SPDIF 2CH OUT
VIDEO Analog video out (Composite)
Supported Disc Type CD/DVD
Supported Disc Format MP3/CD-DA/WMA/VIDEO CD/
MPEG4 (VIDEO)
