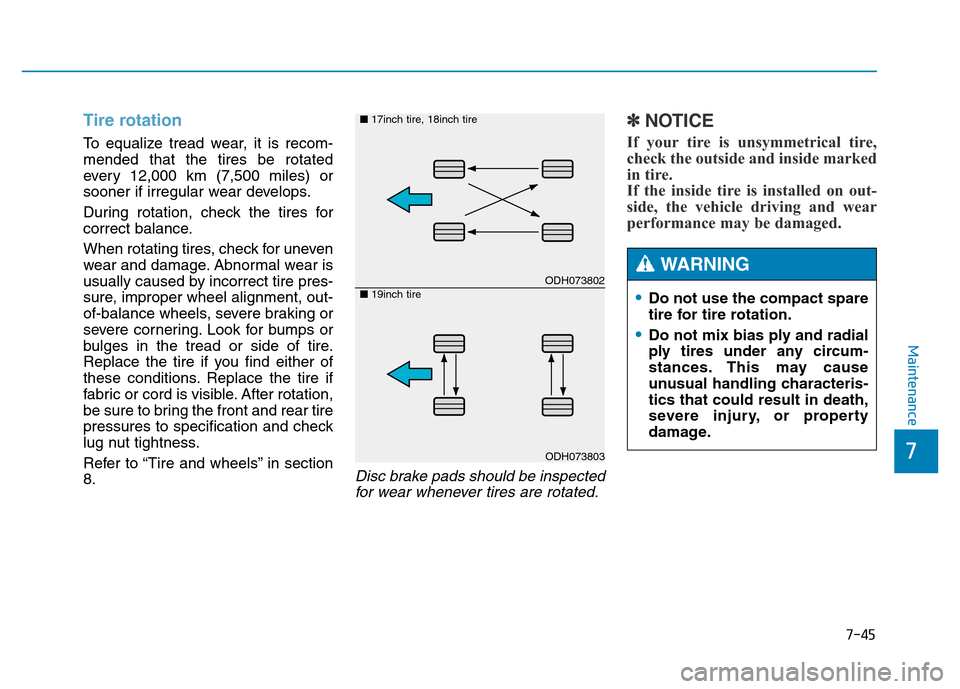

Page 481 of 546

Hyundai Genesis 2014  Owners Manual 7-45
7
Maintenance
Tire rotation
To equalize tread wear, it is recom-
mended that the tires be rotated
every 12,000 km (7,500 miles) or
sooner if irregular wear develops.
During rotation, check the t

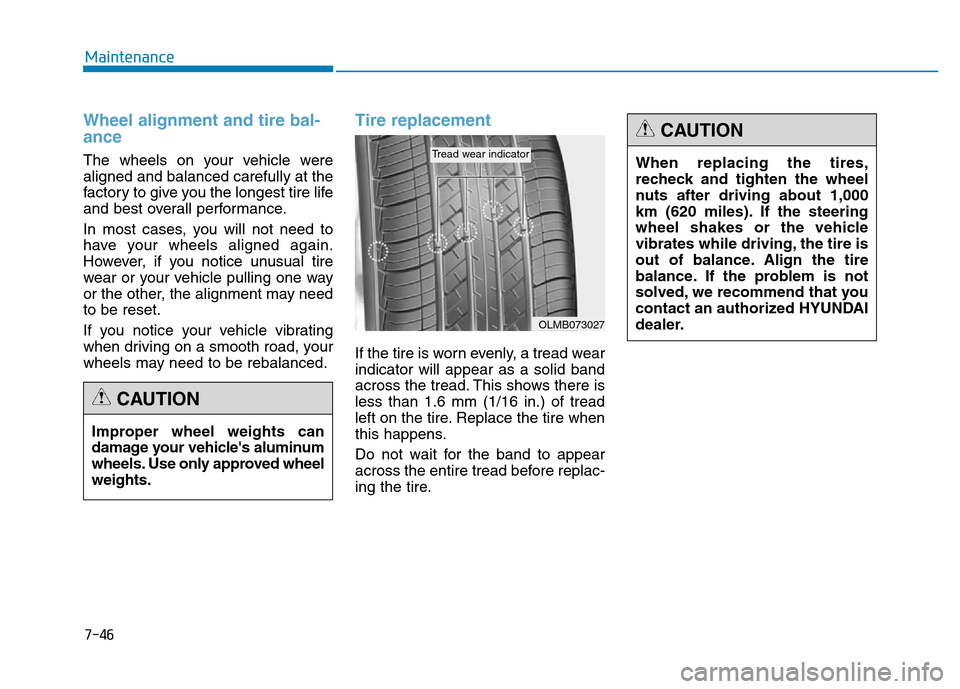

Page 482 of 546

Hyundai Genesis 2014  Owners Manual 7-46
Maintenance
Wheel alignment and tire bal-
ance
The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire life
and best overall performance.
In m

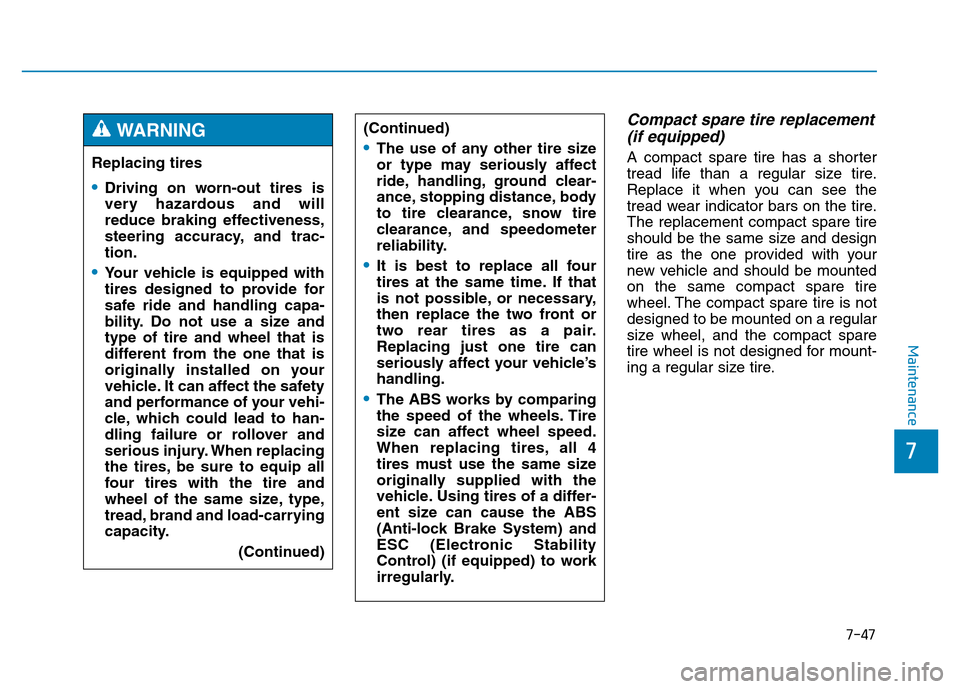

Page 483 of 546

Hyundai Genesis 2014  Owners Manual 7-47
7
Maintenance
Compact spare tire replacement
(if equipped)
A compact spare tire has a shorter
tread life than a regular size tire.
Replace it when you can see the
tread wear indicator bars on th

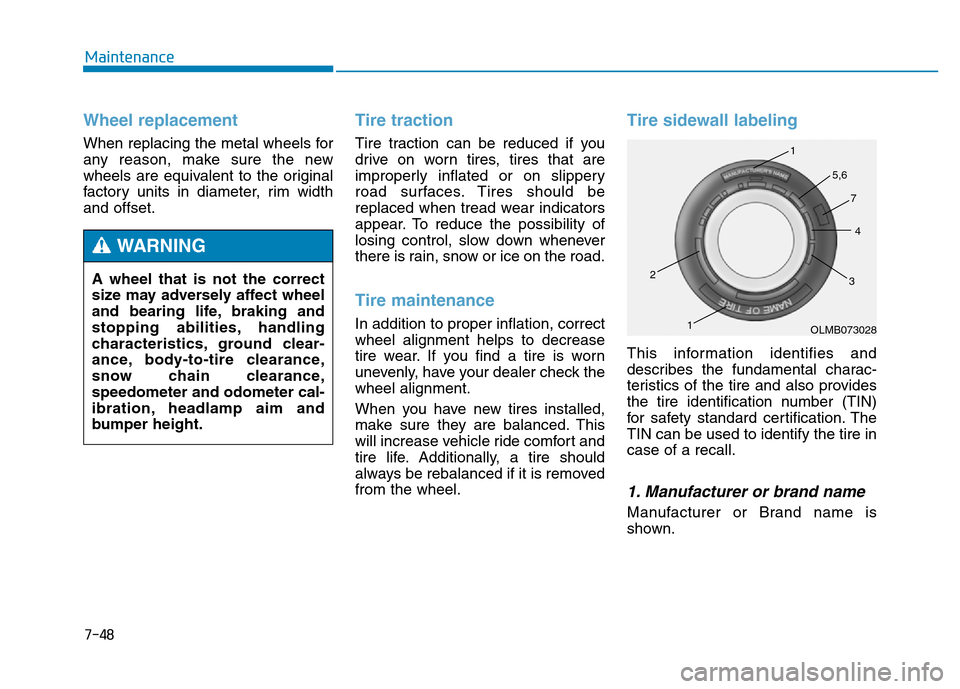

Page 484 of 546

Hyundai Genesis 2014  Owners Manual 7-48
Maintenance
Wheel replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.
Tire tracti

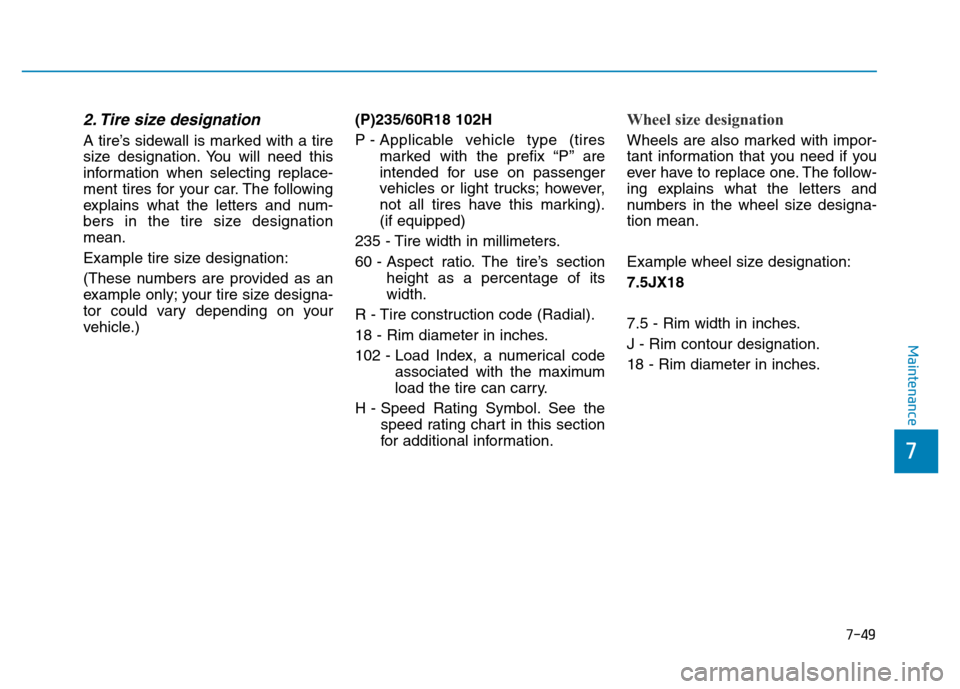

Page 485 of 546

Hyundai Genesis 2014  Owners Manual 7-49
7
Maintenance
2. Tire size designation
A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replace-
ment tires for your car. The following

Page 486 of 546

Hyundai Genesis 2014  Owners Manual 7-50
Maintenance
Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation on

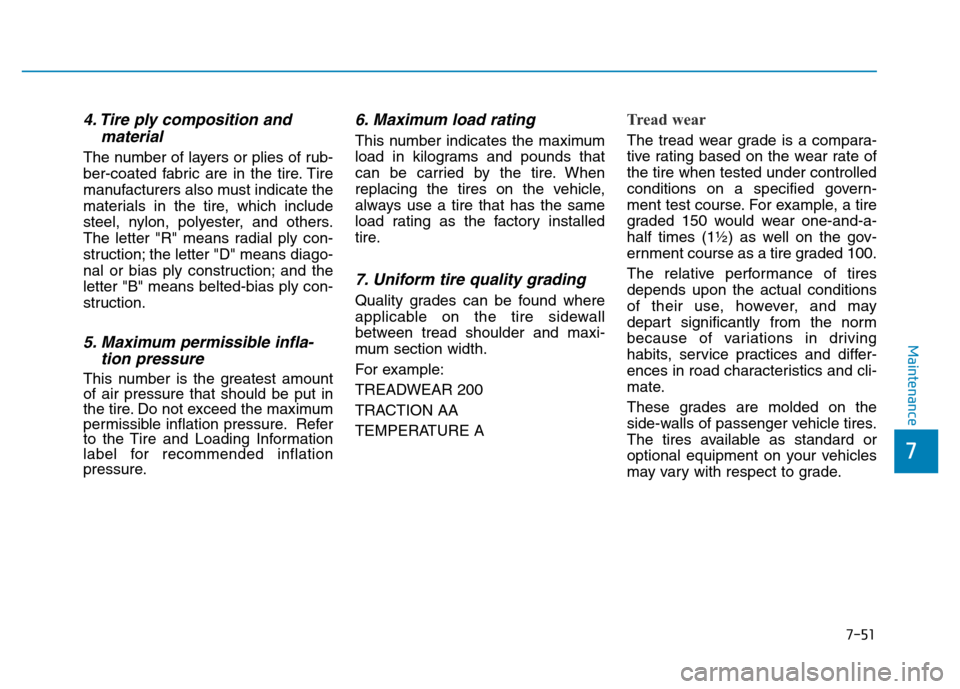

Page 487 of 546

Hyundai Genesis 2014  Owners Manual 7-51
7
Maintenance
4. Tire ply composition and
material
The number of layers or plies of rub-
ber-coated fabric are in the tire. Tire
manufacturers also must indicate the
materials in the tire, which

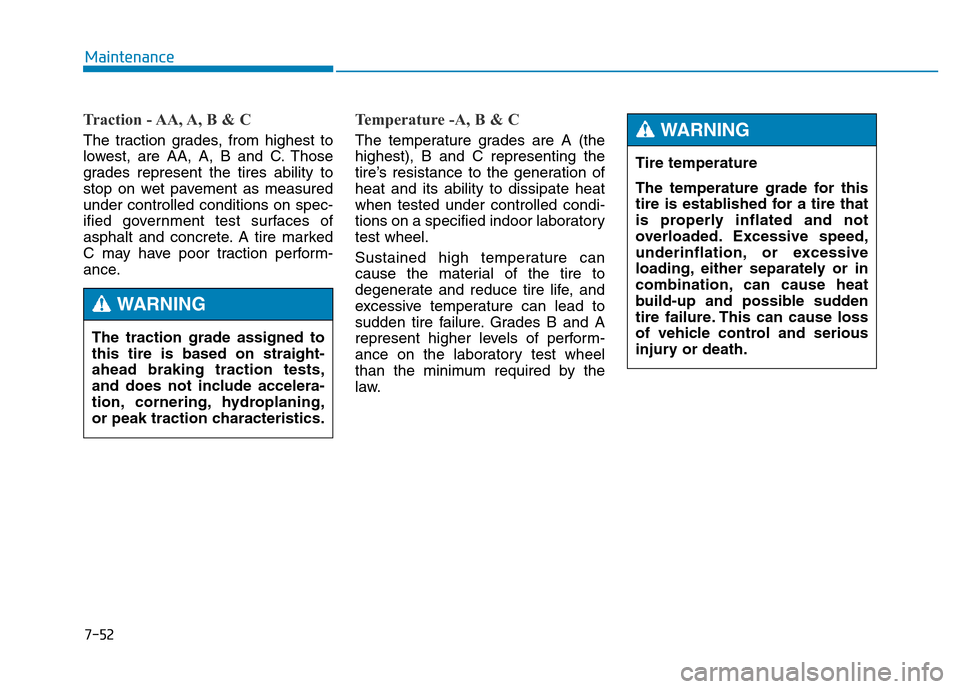

Page 488 of 546

Hyundai Genesis 2014  Owners Manual 7-52
Maintenance
Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tires ability to
stop on wet pavement as measured
under controlled

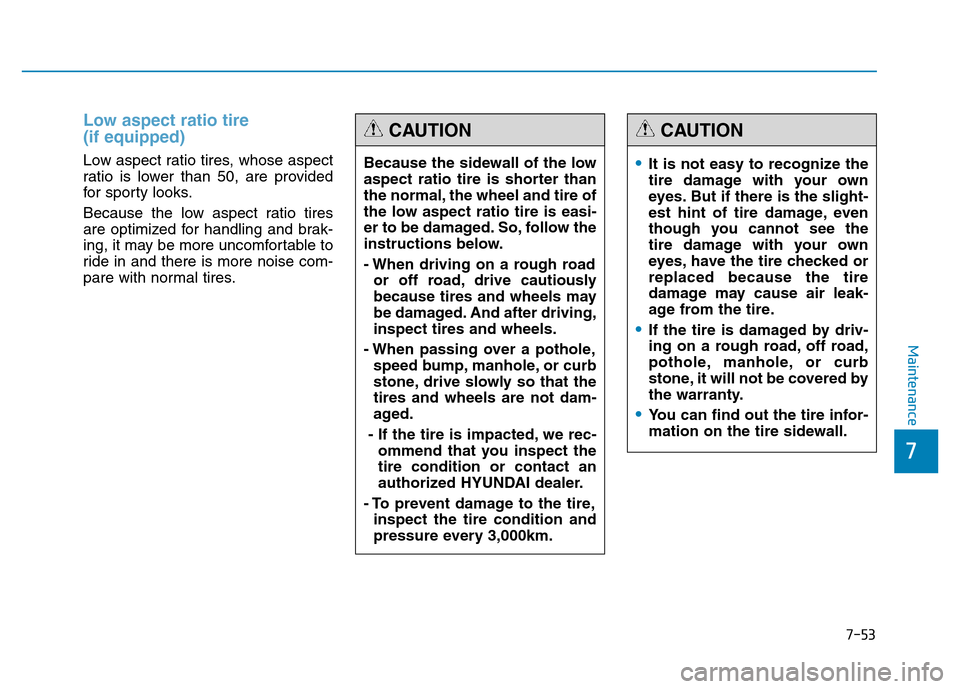

Page 489 of 546

Hyundai Genesis 2014  Owners Manual 7-53
7
Maintenance
Low aspect ratio tire
(if equipped)
Low aspect ratio tires, whose aspect
ratio is lower than 50, are provided
for sporty looks.
Because the low aspect ratio tires
are optimized fo

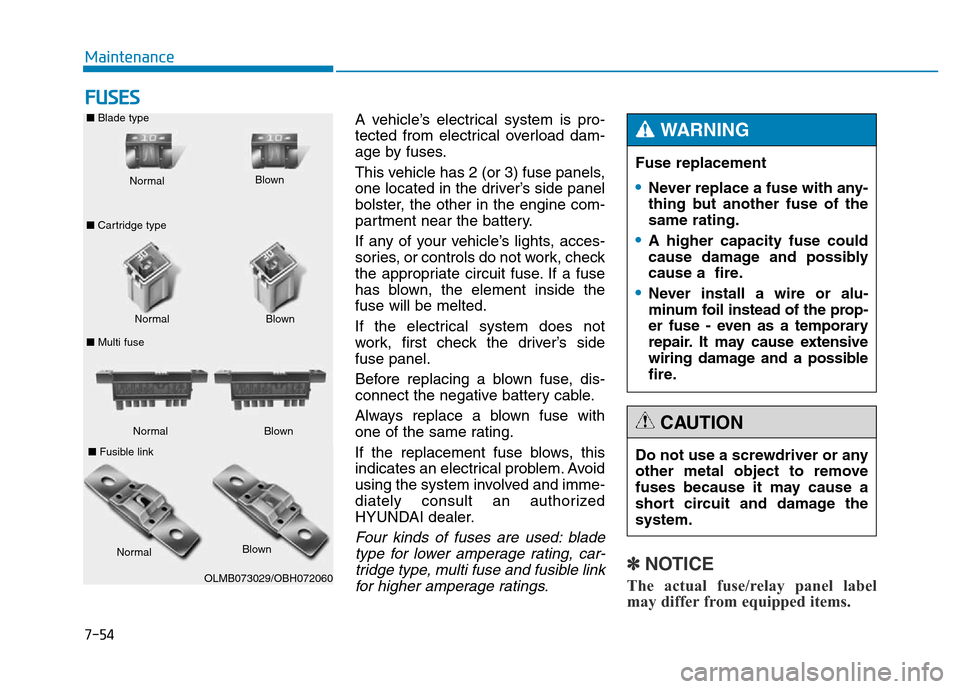

Page 490 of 546

Hyundai Genesis 2014  Owners Manual 7-54
Maintenance
FUSES
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 (or 3) fuse panels,
one located in the driver’s side panel
bolste
