Page 491 of 546

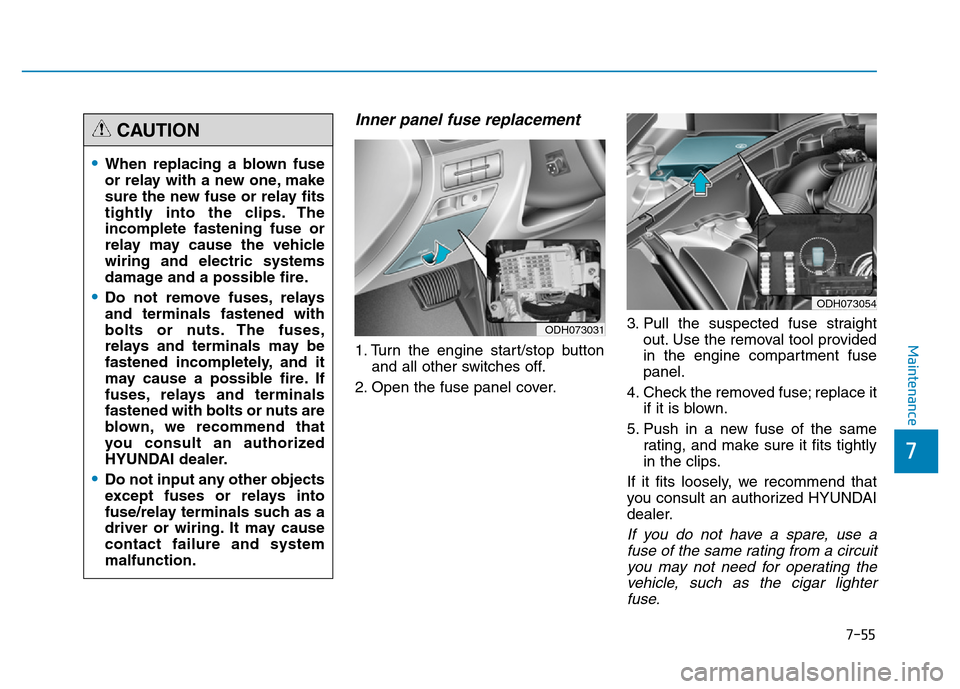

Hyundai Genesis 2014  Owners Manual 7-55
7
Maintenance
Inner panel fuse replacement
1. Turn the engine start/stop button
and all other switches off.
2. Open the fuse panel cover.3. Pull the suspected fuse straight
out. Use the removal t

Page 492 of 546

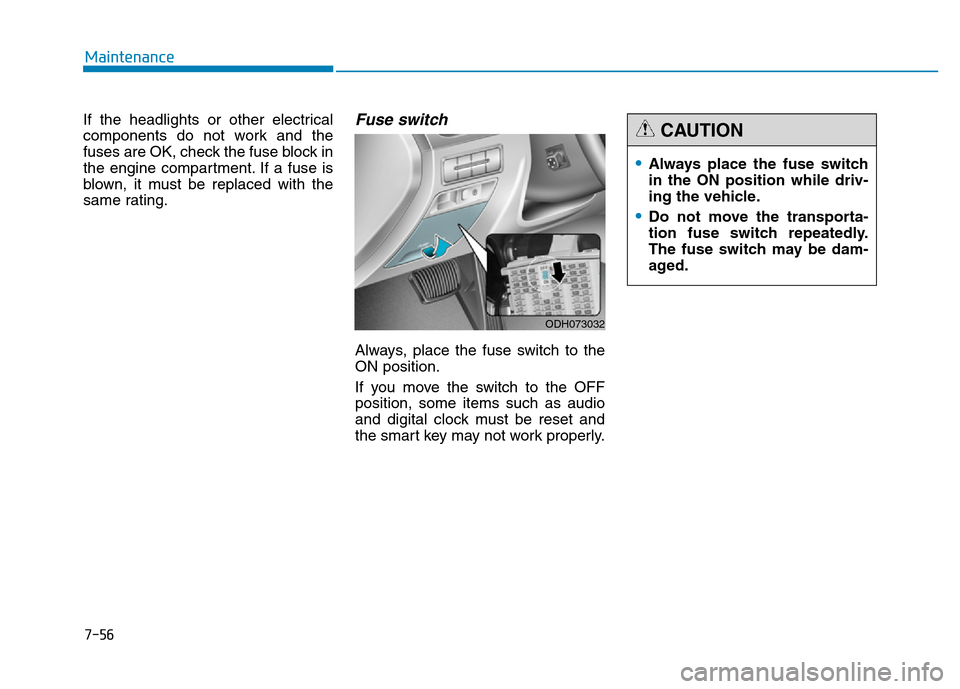

Hyundai Genesis 2014  Owners Manual 7-56
Maintenance
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced with the
sam

Page 493 of 546

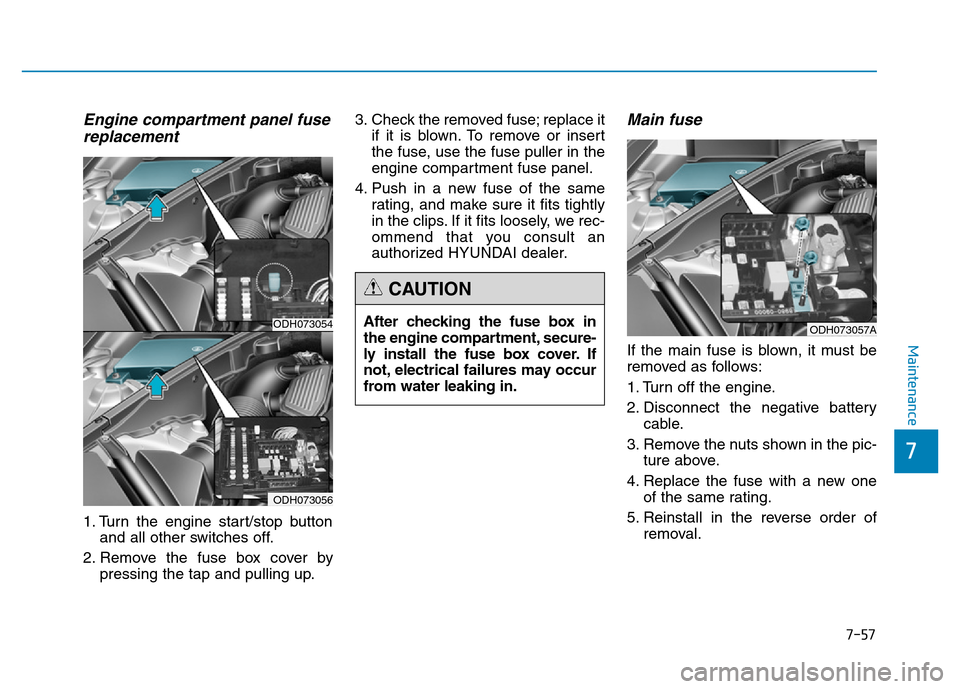

Hyundai Genesis 2014  Owners Manual 7-57
7
Maintenance
Engine compartment panel fuse
replacement
1. Turn the engine start/stop button
and all other switches off.
2. Remove the fuse box cover by
pressing the tap and pulling up.3. Check t

Page 494 of 546

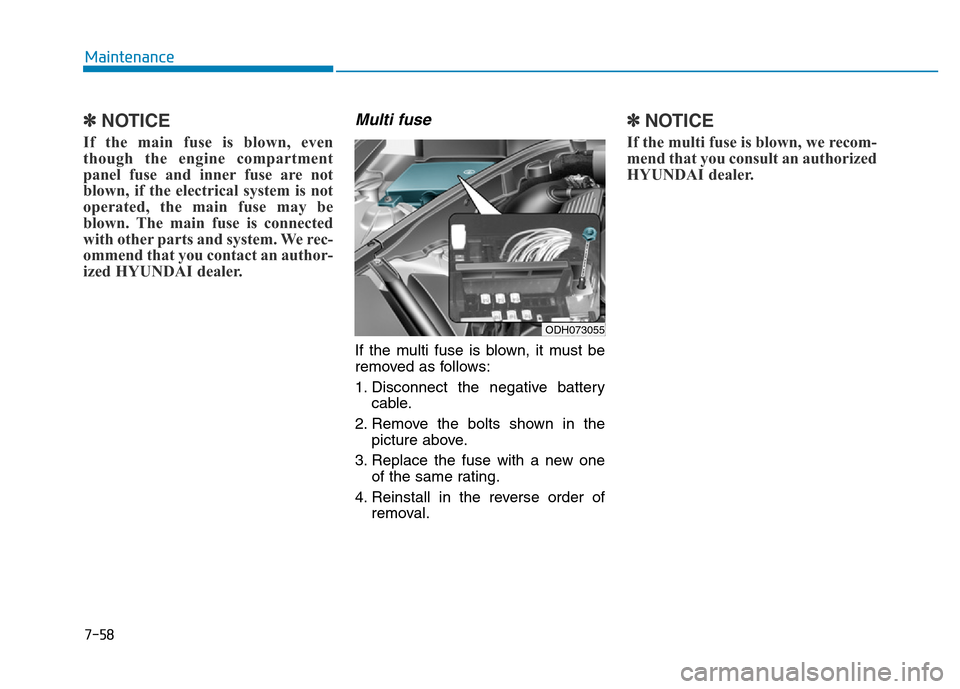

Hyundai Genesis 2014  Owners Manual 7-58
Maintenance
✽NOTICE
If the main fuse is blown, even
though the engine compartment
panel fuse and inner fuse are not
blown, if the electrical system is not
operated, the main fuse may be
blown.

Page 495 of 546

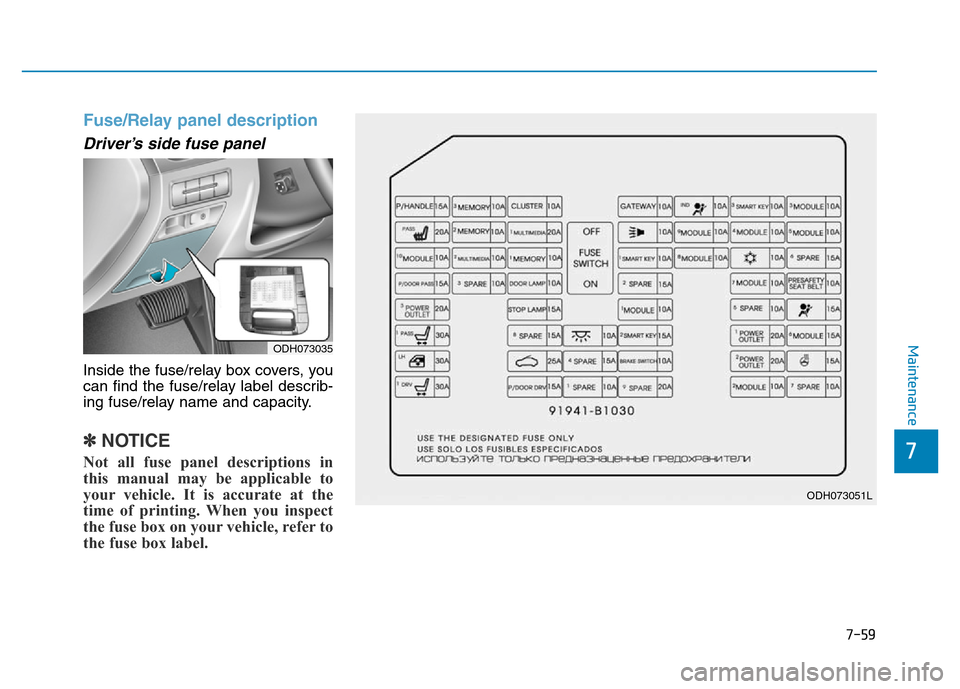

Hyundai Genesis 2014  Owners Manual 7-59
7
Maintenance
Fuse/Relay panel description
Driver’s side fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
✽NOTICE
Not

Page 496 of 546

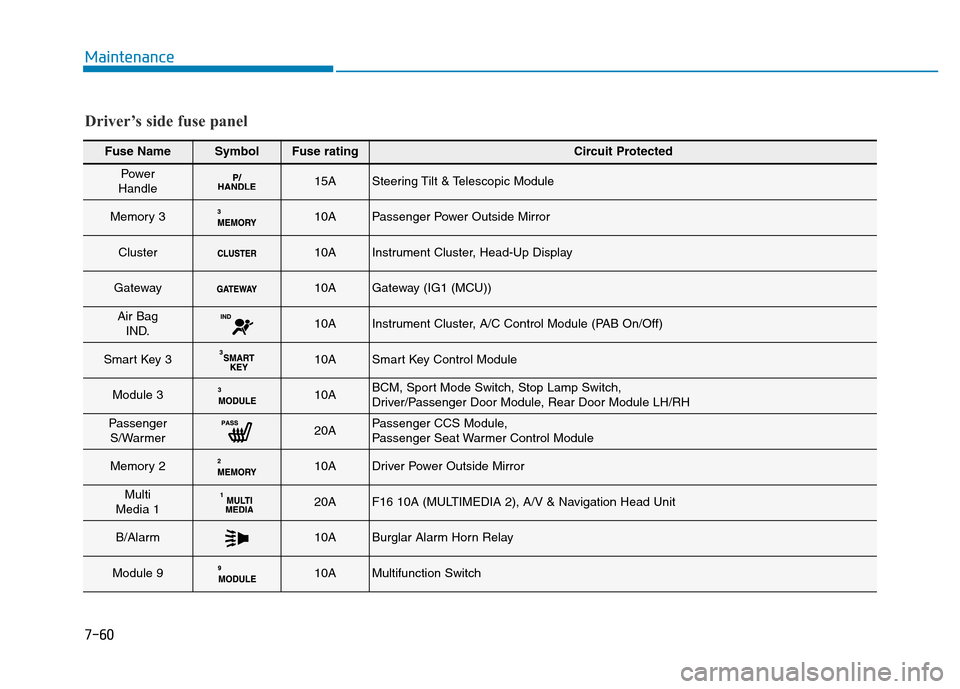

Hyundai Genesis 2014  Owners Manual 7-60
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Power
Handle15ASteering Tilt & Telescopic Module
Memory 310APassenger Power Outside Mirror
Cluster10AInstrument Cluster, Head-Up Display
Ga

Page 497 of 546

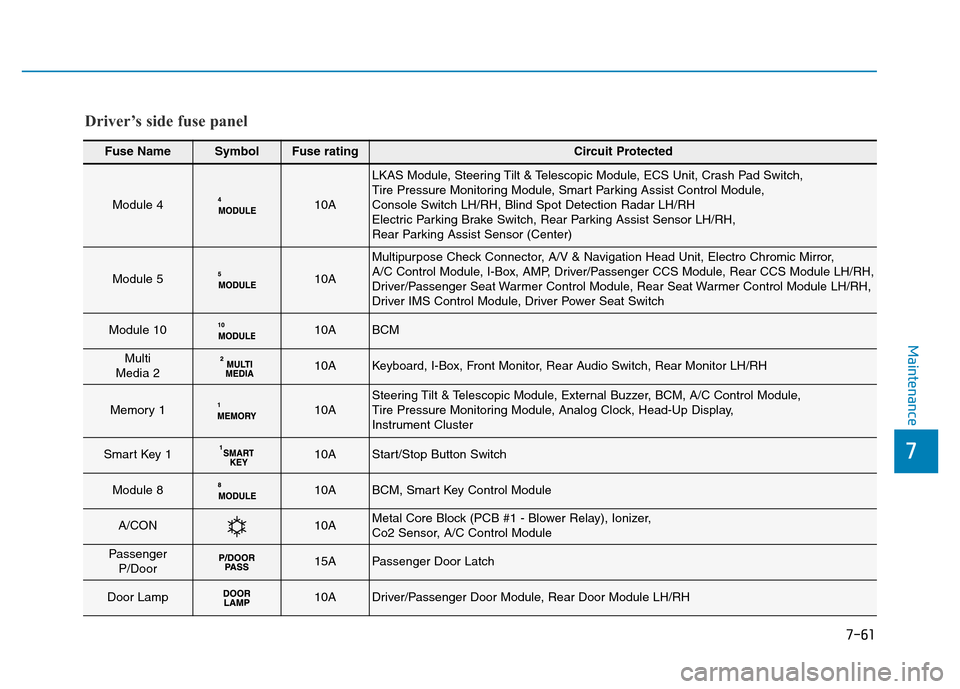

Hyundai Genesis 2014  Owners Manual 7-61
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Module 410A
LKAS Module, Steering Tilt & Telescopic Module, ECS Unit, Crash Pad Switch,
Tire Pressure Monitoring Module, Smart Parking A

Page 498 of 546

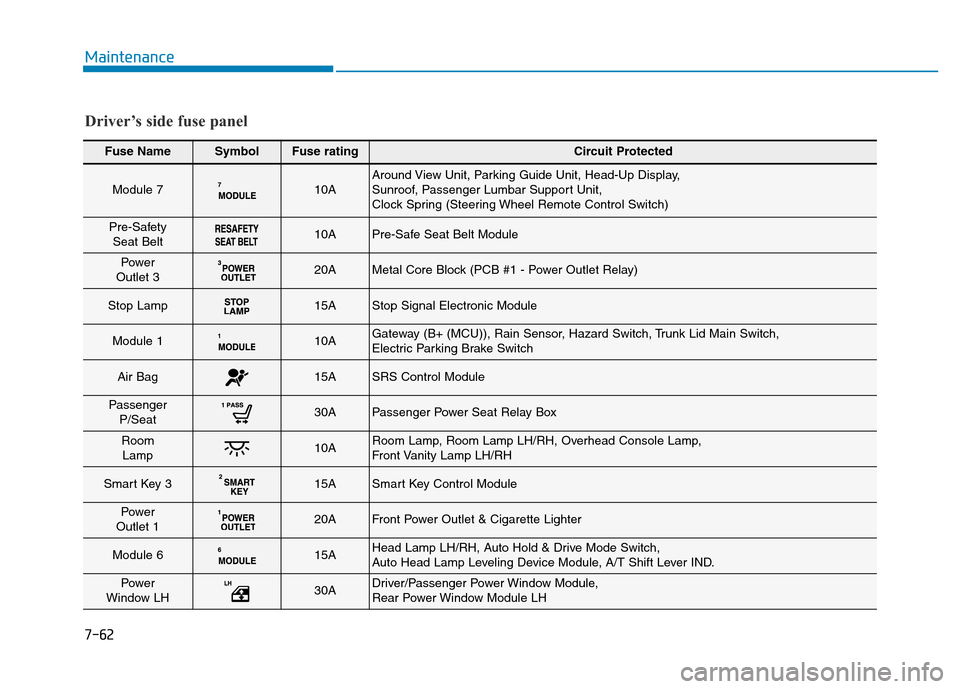

Hyundai Genesis 2014  Owners Manual 7-62
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Module 710AAround View Unit, Parking Guide Unit, Head-Up Display,
Sunroof, Passenger Lumbar Support Unit,
Clock Spring (Steering Wheel Remo

Page 499 of 546

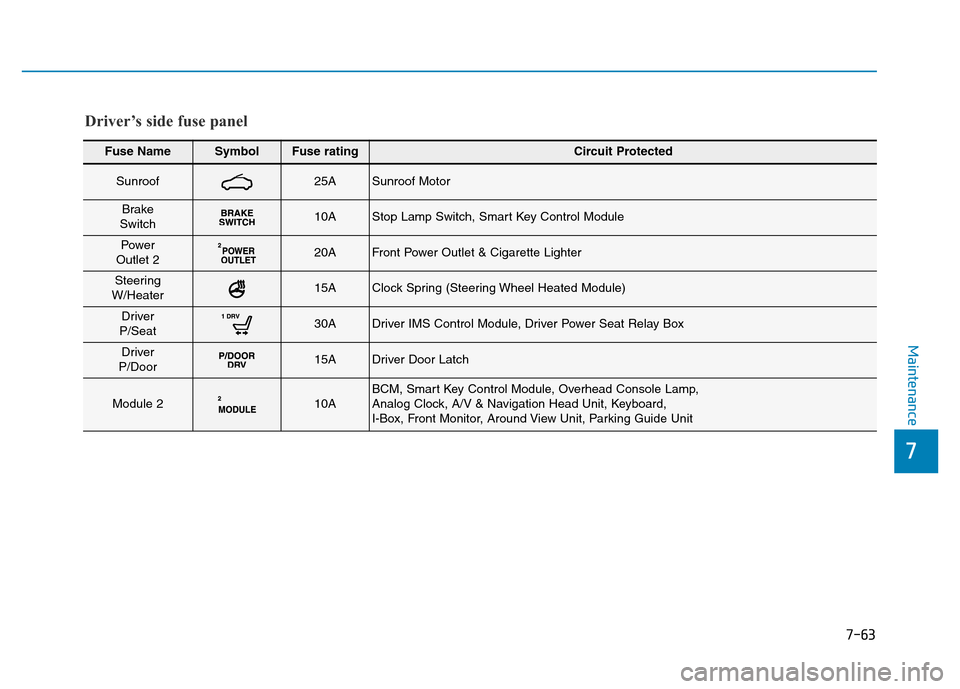

Hyundai Genesis 2014  Owners Manual 7-63
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Sunroof25ASunroof Motor
Brake
Switch10AStop Lamp Switch, Smart Key Control Module
Power
Outlet 220AFront Power Outlet & Cigarette Lighter

Page 500 of 546

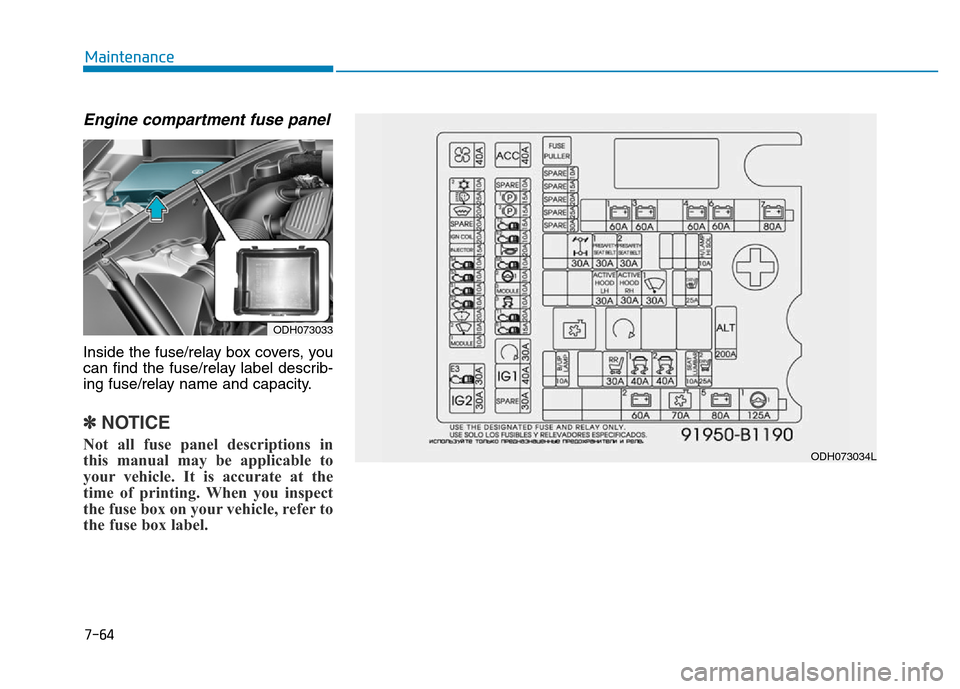

Hyundai Genesis 2014  Owners Manual 7-64
Maintenance
Engine compartment fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions
