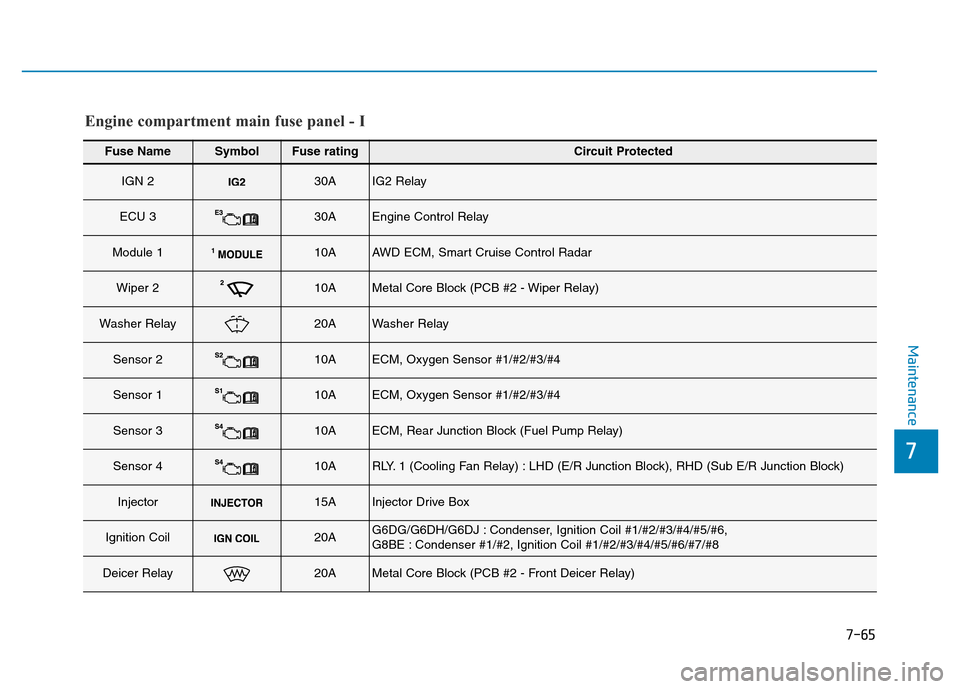

Page 501 of 546

Hyundai Genesis 2014  Owners Manual 7-65
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
IGN 230AIG2 Relay
ECU 330AEngine Control Relay
Module 110AAWD ECM, Smart Cruise Control Radar
Wiper 210AMetal Core Block (PCB #2 - Wiper

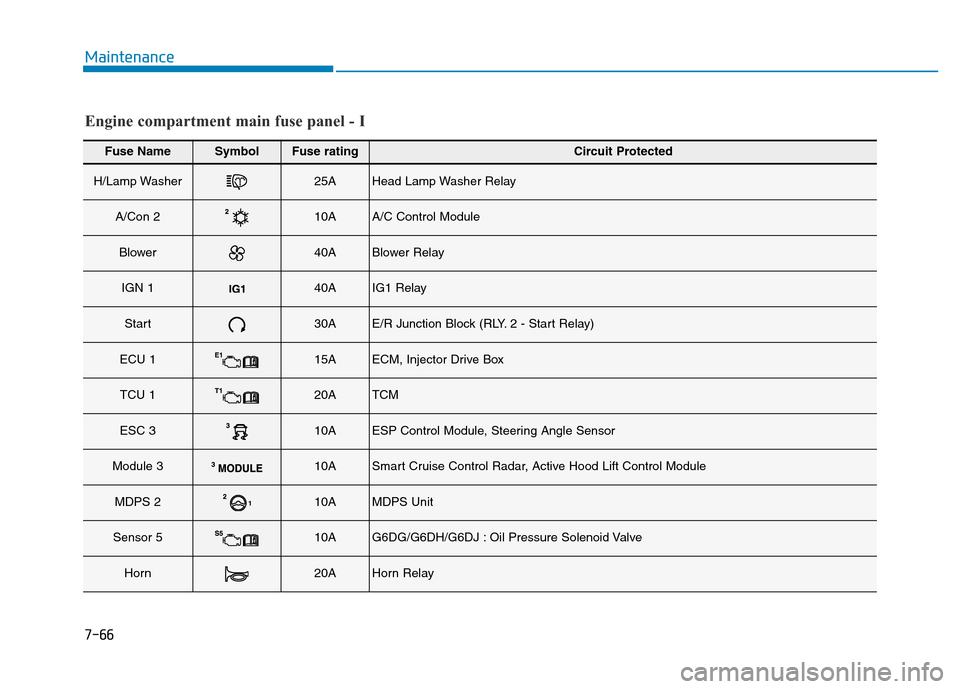

Page 502 of 546

Hyundai Genesis 2014  Owners Manual 7-66
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
H/Lamp Washer25AHead Lamp Washer Relay
A/Con 210AA/C Control Module
Blower40ABlower Relay
IGN 140AIG1 Relay
Start30AE/R Junction Block (RLY

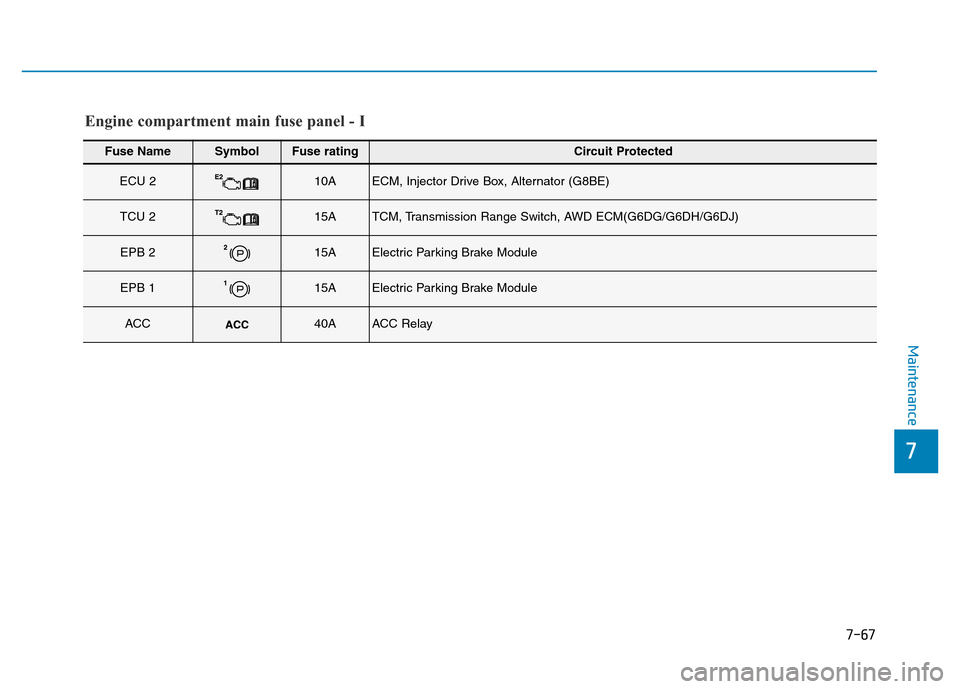

Page 503 of 546

Hyundai Genesis 2014  Owners Manual 7-67
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
ECU 210AECM, Injector Drive Box, Alternator (G8BE)
TCU 215ATCM, Transmission Range Switch, AWD ECM(G6DG/G6DH/G6DJ)
EPB 215AElectric Parki

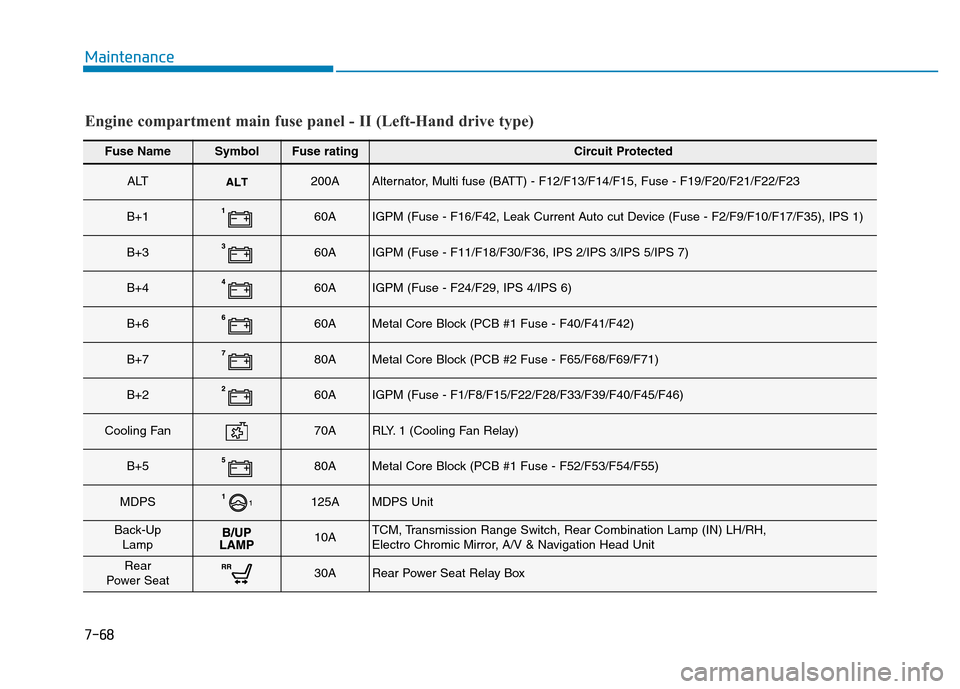

Page 504 of 546

Hyundai Genesis 2014  Owners Manual 7-68
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
ALT200AAlternator, Multi fuse (BATT) - F12/F13/F14/F15, Fuse - F19/F20/F21/F22/F23
B+160AIGPM (Fuse - F16/F42, Leak Current Auto cut Device

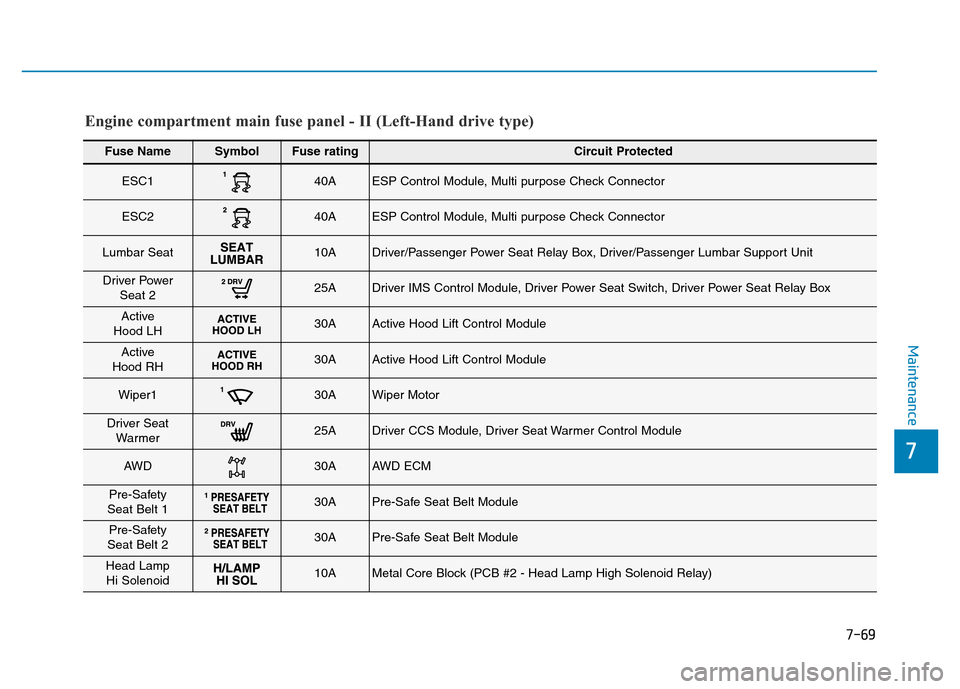

Page 505 of 546

Hyundai Genesis 2014  Owners Manual 7-69
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
ESC140AESP Control Module, Multi purpose Check Connector
ESC240AESP Control Module, Multi purpose Check Connector
Lumbar Seat10ADriver/Pa

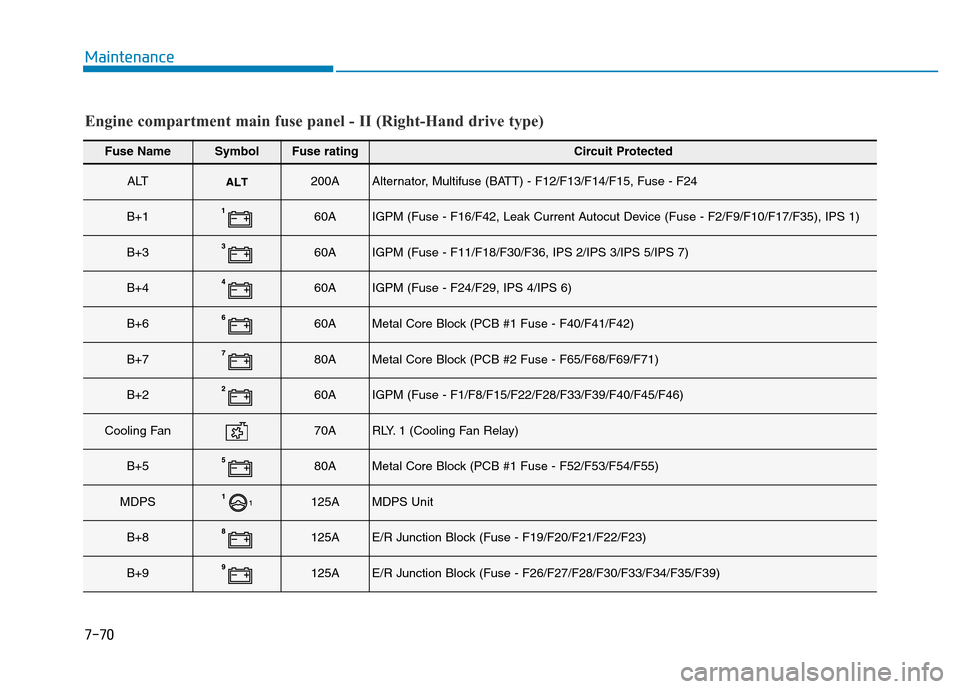

Page 506 of 546

Hyundai Genesis 2014  Owners Manual 7-70
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
ALT200AAlternator, Multifuse (BATT) - F12/F13/F14/F15, Fuse - F24
B+160AIGPM (Fuse - F16/F42, Leak Current Autocut Device (Fuse - F2/F9/F10

Page 507 of 546

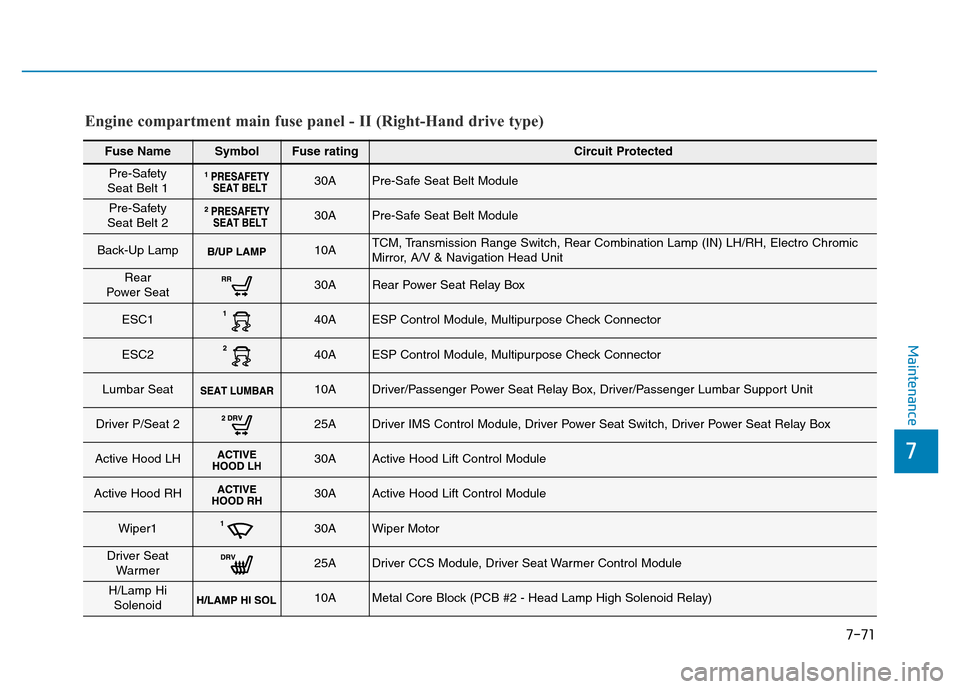

Hyundai Genesis 2014  Owners Manual 7-71
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Pre-Safety
Seat Belt 130APre-Safe Seat Belt Module
Pre-Safety
Seat Belt 230APre-Safe Seat Belt Module
Back-Up Lamp10ATCM, Transmission Ra

Page 508 of 546

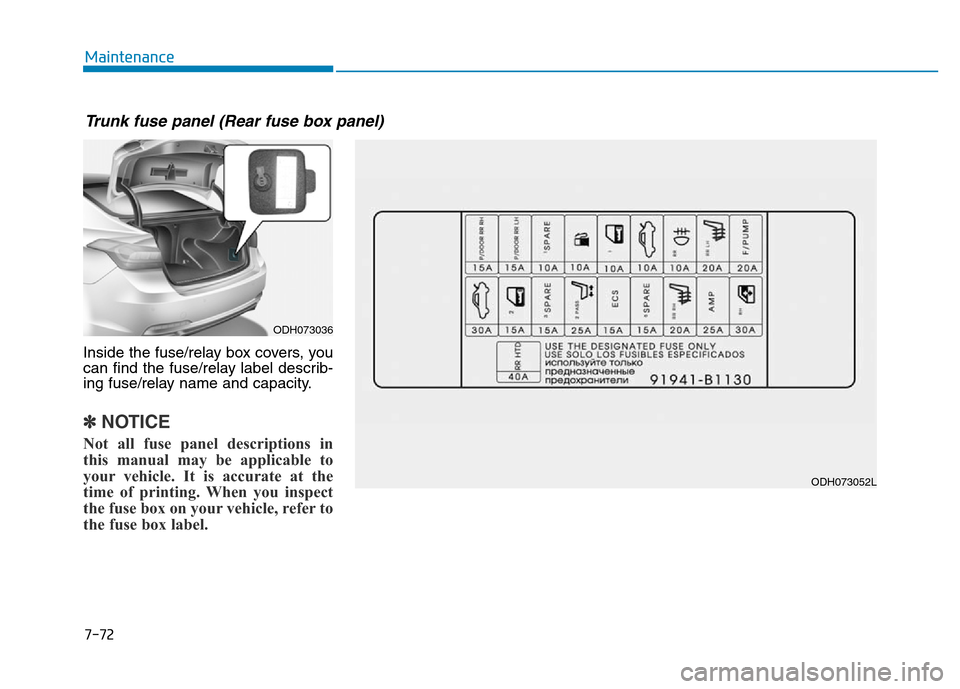

Hyundai Genesis 2014  Owners Manual Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicl

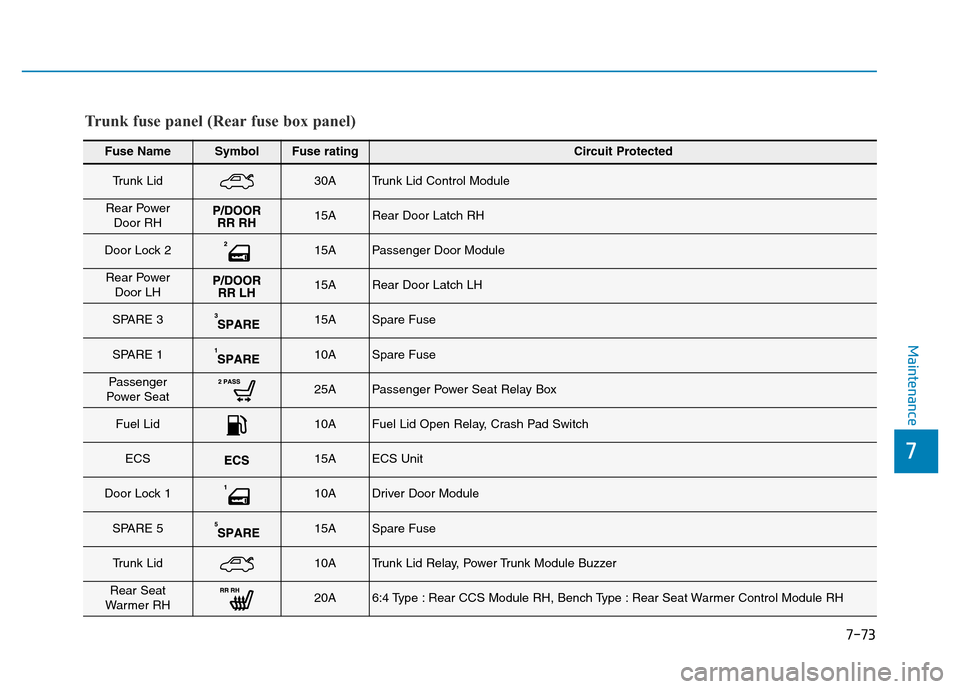

Page 509 of 546

Hyundai Genesis 2014  Owners Manual 7-73
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Trunk Lid30ATrunk Lid Control Module
Rear Power
Door RH15ARear Door Latch RH
Door Lock 215APassenger Door Module
Rear Power
Door LH15ARea

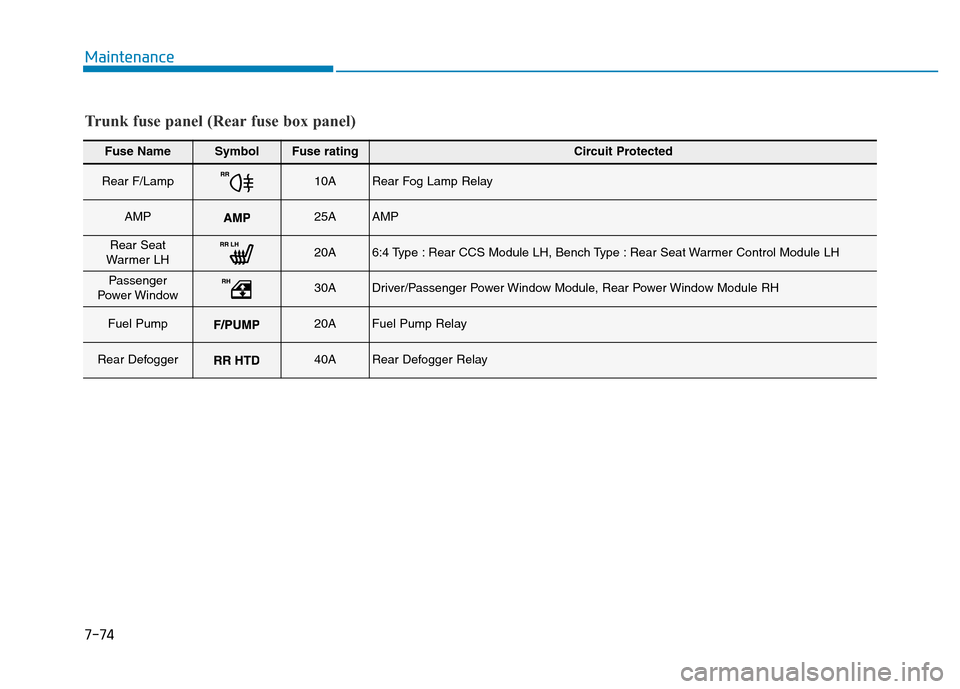

Page 510 of 546

Hyundai Genesis 2014  Owners Manual 7-74
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Rear F/Lamp10ARear Fog Lamp Relay
AMP25AAMP
Rear Seat
Warmer LH20A6:4 Type : Rear CCS Module LH, Bench Type : Rear Seat Warmer Control Modu
