Hyundai Genesis 2014 Owner's Manual

7-95
7
Maintenance

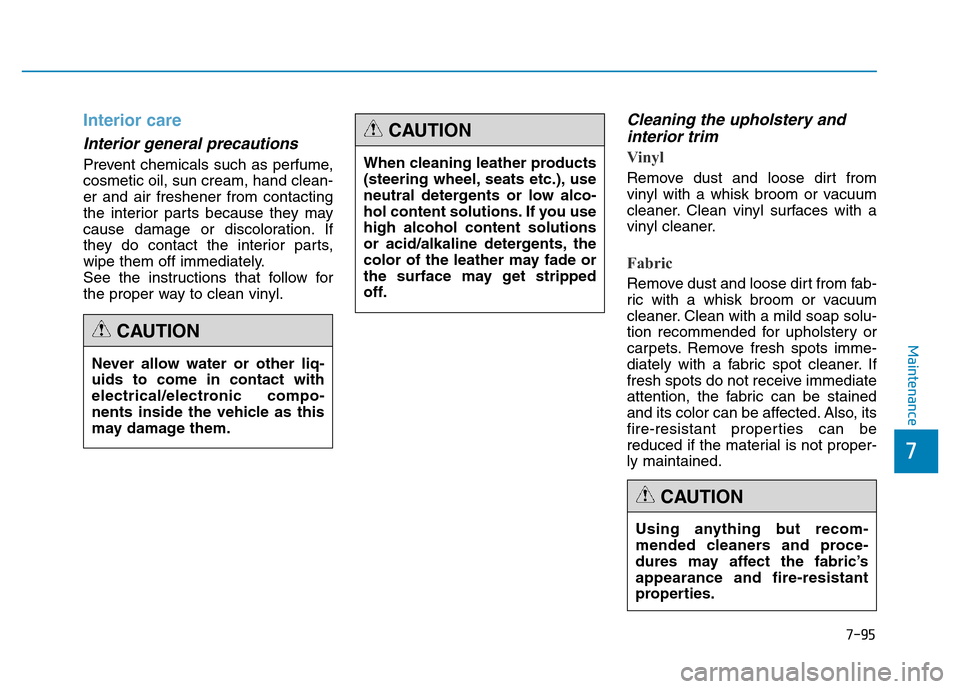

Interior care
Interior general precautions
Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand clean-
er and air freshener from contacting
the interior parts because they may
cause damage or discoloration. If
they do contact the interior parts,
wipe them off immediately.
See the instructions that follow for
the proper way to clean vinyl.
Cleaning the upholstery and
interior trim
Vinyl
Remove dust and loose dirt from
vinyl with a whisk broom or vacuum
cleaner. Clean vinyl surfaces with a
vinyl cleaner.
Fabric
Remove dust and loose dirt from fab-
ric with a whisk broom or vacuum
cleaner. Clean with a mild soap solu-
tion recommended for upholstery or
carpets. Remove fresh spots imme-
diately with a fabric spot cleaner. If
fresh spots do not receive immediate
attention, the fabric can be stained
and its color can be affected. Also, its
fire-resistant properties can be
reduced if the material is not proper-
ly maintained. Never allow water or other liq-
uids to come in contact with
electrical/electronic compo-
nents inside the vehicle as this
may damage them.
CAUTION
When cleaning leather products
(steering wheel, seats etc.), use
neutral detergents or low alco-
hol content solutions. If you use
high alcohol content solutions
or acid/alkaline detergents, the
color of the leather may fade or
the surface may get stripped
off.
CAUTION
Using anything but recom-
mended cleaners and proce-
dures may affect the fabric’s
appearance and fire-resistant
properties.
CAUTION

7-96
Maintenance

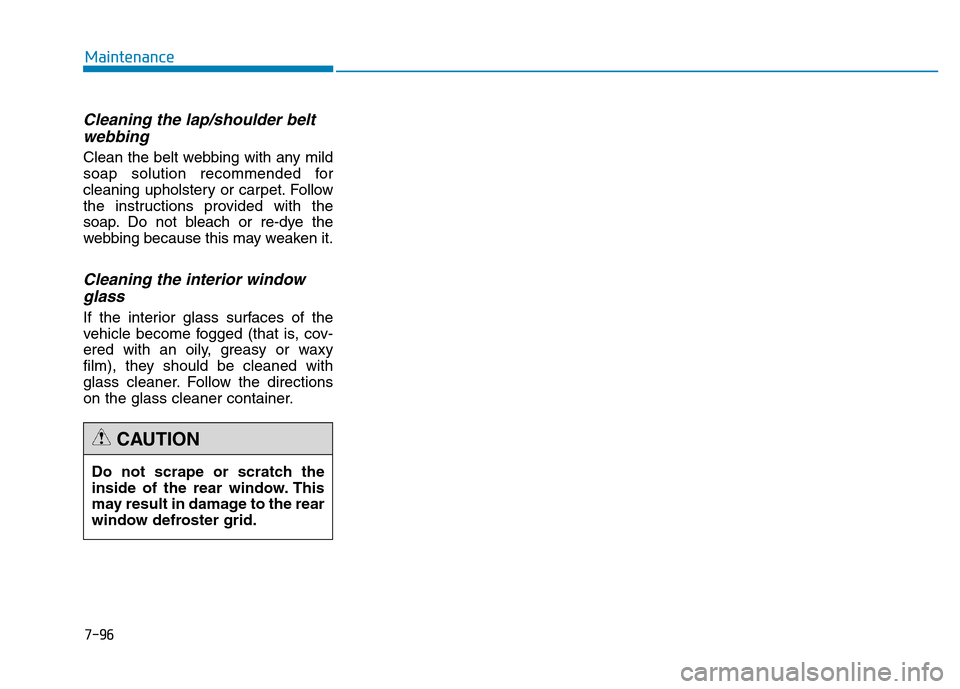

Cleaning the lap/shoulder belt
webbing
Clean the belt webbing with any mild
soap solution recommended for
cleaning upholstery or carpet. Follow
the instructions provided with the
soap. Do not bleach or re-dye the
webbing because this may weaken it.
Cleaning the interior window
glass
If the interior glass surfaces of the
vehicle become fogged (that is, cov-
ered with an oily, greasy or waxy
film), they should be cleaned with
glass cleaner. Follow the directions
on the glass cleaner container.
Do not scrape or scratch the
inside of the rear window. This
may result in damage to the rear
window defroster grid.
CAUTION

7-97
7
Maintenance

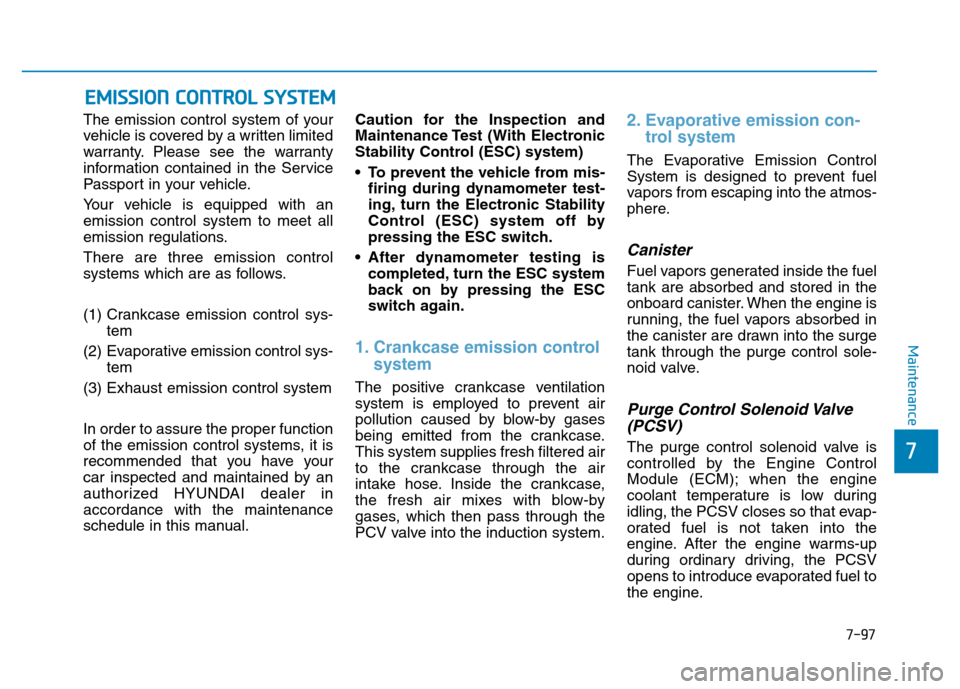

EMISSION CONTROL SYSTEM
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Service
Passport in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
emission regulations.
There are three emission control
systems which are as follows.
(1) Crankcase emission control sys-
tem
(2) Evaporative emission control sys-
tem
(3) Exhaust emission control system
In order to assure the proper function
of the emission control systems, it is
recommended that you have your
car inspected and maintained by an
authorized HYUNDAI dealer in
accordance with the maintenance
schedule in this manual.Caution for the Inspection and
Maintenance Test (With Electronic
Stability Control (ESC) system)
• To prevent the vehicle from mis-
firing during dynamometer test-
ing, turn the Electronic Stability
Control (ESC) system off by
pressing the ESC switch.
• After dynamometer testing is
completed, turn the ESC system
back on by pressing the ESC
switch again.
1. Crankcase emission control
system
The positive crankcase ventilation
system is employed to prevent air
pollution caused by blow-by gases
being emitted from the crankcase.
This system supplies fresh filtered air
to the crankcase through the air
intake hose. Inside the crankcase,
the fresh air mixes with blow-by
gases, which then pass through the
PCV valve into the induction system.
2. Evaporative emission con-
trol system
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
phere.
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve
(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.

7-98
Maintenance

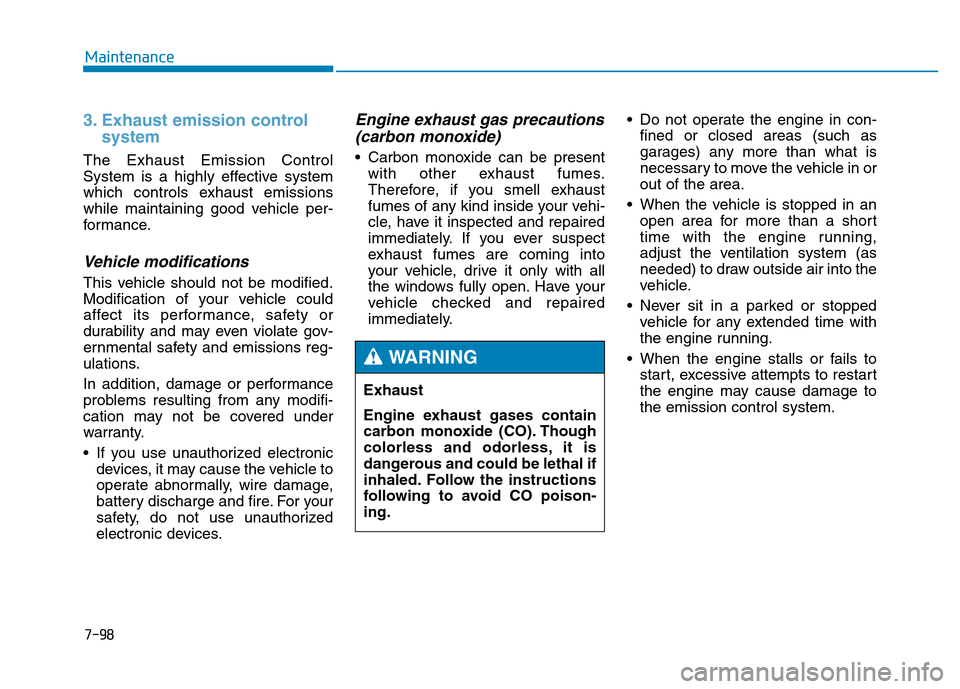

3. Exhaust emission control
system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
• If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
• Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.• Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
• When the vehicle is stopped in an
open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
• Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
• When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to
the emission control system. Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poison-
ing.
WARNING

7-99
7
Maintenance
Operating precautions for cat-
alytic converters (if equipped)Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
• Use only UNLEADED FUEL for
gasoline engine.
• Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
• Do not misuse or abuse the
engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
• Do not operate the engine at high
idle speed for extended periods (5
minutes or more).
• Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
• Avoid driving with a very low fuel
level. If you run out of gasoline, it
could cause the engine to misfire
and result in excessive loading of
the catalytic converter.Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Fire
•A hot exhaust system can
ignite flammable items under
your vehicle. Do not park,
idle, or drive the vehicle over
or near flammable objects,
such as dry grass, paper,
leaves, etc.
•The exhaust system and cat-
alytic system are very hot
while the engine is running or
immediately after the engine
is turned off. Keep away from
the exhaust system and cat-
alytic, you may get burned.
Also, do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
WARNING

8
Specifications & Consumer information
8
Specifications & Consumer information
8

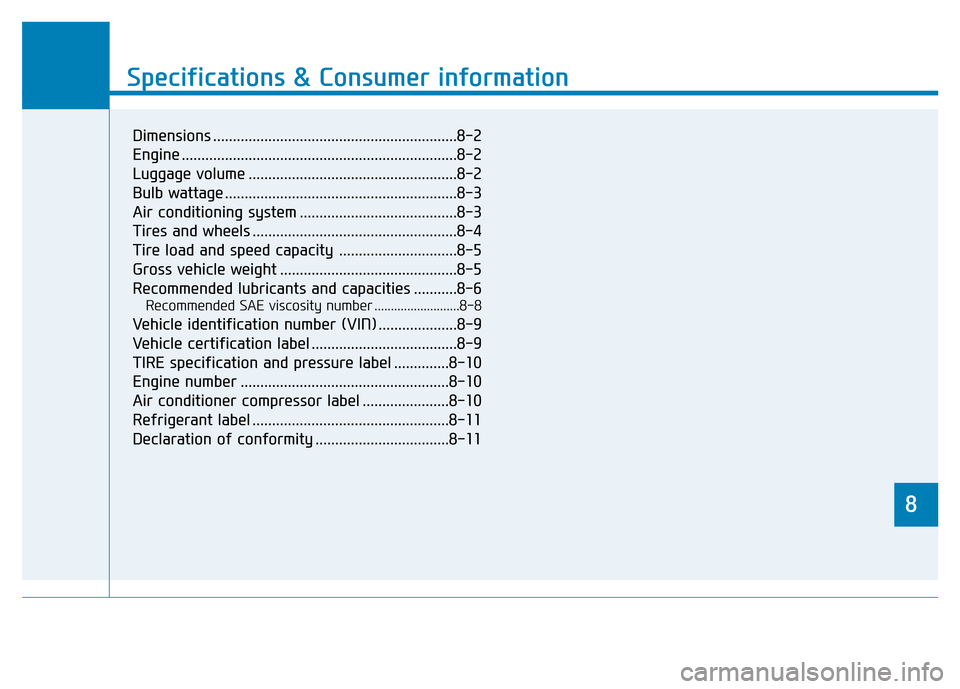

Dimensions ..............................................................8-2
Engine ......................................................................8-2
Luggage volume .....................................................8-2
Bulb wattage ...........................................................8-3
Air conditioning system ........................................8-3
Tires and wheels ....................................................8-4
Tire load and speed capacity ..............................8-5
Gross vehicle weight .............................................8-5
Recommended lubricants and capacities ...........8-6
Recommended SAE viscosity number ..........................8-8
Vehicle identification number (VIN) ....................8-9
Vehicle certification label .....................................8-9
TIRE specification and pressure label ..............8-10
Engine number .....................................................8-10
Air conditioner compressor label ......................8-10
Refrigerant label ..................................................8-11
Declaration of conformity ..................................8-11

8-2
Specifications & Consumer information

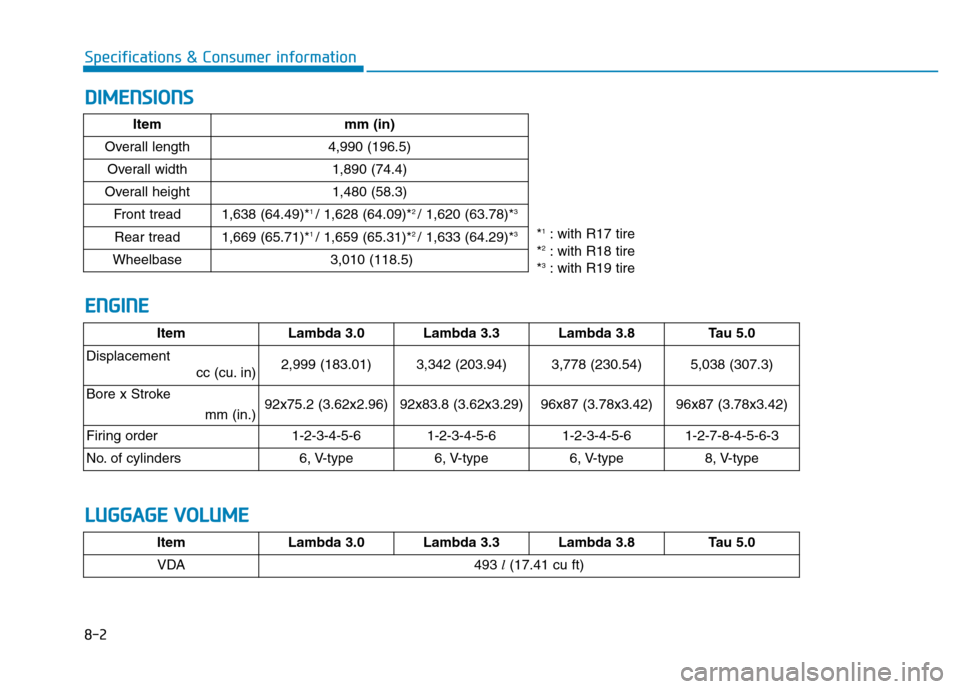

DIMENSIONS
ENGINE
ItemLambda 3.0 Lambda 3.3Lambda 3.8Tau 5.0
Displacement
cc (cu. in)
2,999 (183.01) 3,342 (203.94)3,778 (230.54)5,038 (307.3)
Bore x Stroke
mm (in.)
92x75.2 (3.62x2.96) 92x83.8 (3.62x3.29)96x87 (3.78x3.42)96x87 (3.78x3.42)
Firing order
1-2-3-4-5-6 1-2-3-4-5-61-2-3-4-5-61-2-7-8-4-5-6-3
No. of cylinders
6, V-type 6, V-type6, V-type8, V-type
Item mm (in)
Overall length 4,990 (196.5)
Overall width 1,890 (74.4)
Overall height 1,480 (58.3)
Front tread 1,638 (64.49)*
1 / 1,628 (64.09)*2 / 1,620 (63.78)*3
Rear tread 1,669 (65.71)*1 / 1,659 (65.31)*2 / 1,633 (64.29)*3
Wheelbase 3,010 (118.5)
*1: with R17 tire
*2: with R18 tire
*3: with R19 tire
ltem Lambda 3.0 Lambda 3.3 Lambda 3.8 Tau 5.0
VDA493 l(17.41 cu ft)
LUGGAGE VOLUME

8-3
8
Specifications & Consumer information

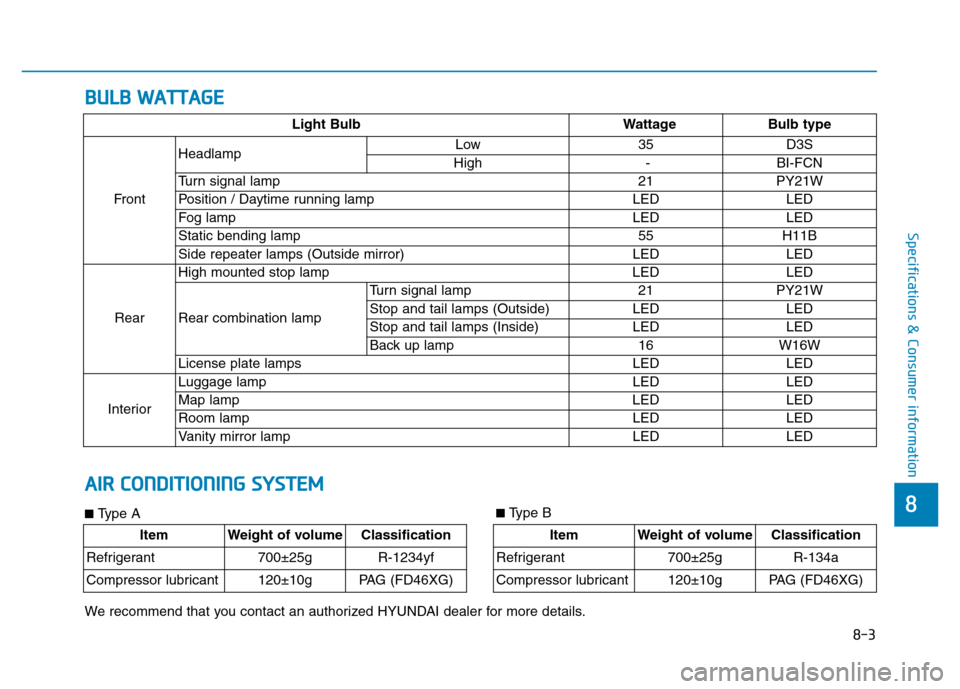

BULB WATTAGE
Light Bulb Wattage Bulb type
FrontHeadlamp
Low 35 D3S
High - BI-FCN
Turn signal lamp 21 PY21W
Position / Daytime running lamp LED LED
Fog lamp LED LED
Static bending lamp 55 H11B
Side repeater lamps (Outside mirror) LED LED
Rear
High mounted stop lampLEDLED
Rear combination lamp
Turn signal lamp 21 PY21W
Stop and tail lamps (Outside) LED LED
Stop and tail lamps (Inside) LED LED
Back up lamp 16 W16W
License plate lamps LED LED
InteriorLuggage lamp LED LED
Map lamp LED LED
Room lamp LED LED
Vanity mirror lamp LED LED
AIR CONDITIONING SYSTEM
ItemWeight of volume Classification
Refrigerant
700±25g R-1234yf
Compressor lubricant
120±10g PAG (FD46XG)
■Type A
Item
Weight of volume Classification
Refrigerant
700±25g R-134a
Compressor lubricant
120±10g PAG (FD46XG)
■Type B
We recommend that you contact an authorized HYUNDAI dealer for more details.

8-4
Specifications & Consumer information

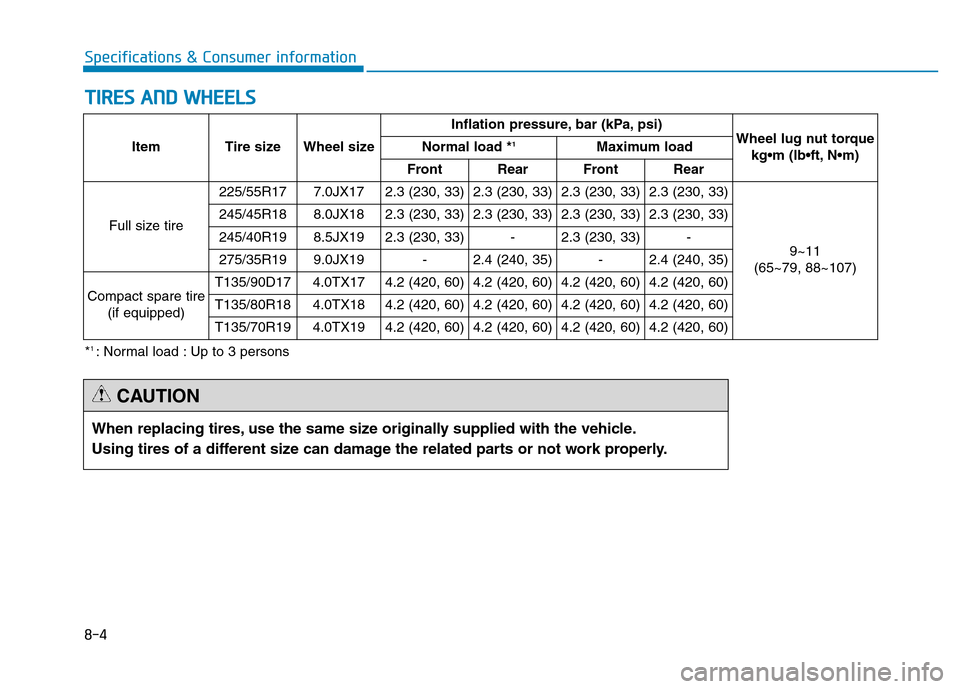

TIRES AND WHEELS
Item Tire size Wheel sizeInflation pressure, bar (kPa, psi)
Wheel lug nut torque
kg•m (lb•ft, N•m) Normal load *1Maximum load
Front Rear Front Rear
Full size tire225/55R17 7.0JX17 2.3 (230, 33) 2.3 (230, 33) 2.3 (230, 33) 2.3 (230, 33)
9~11
(65~79, 88~107) 245/45R18 8.0JX18 2.3 (230, 33) 2.3 (230, 33) 2.3 (230, 33) 2.3 (230, 33)
245/40R19 8.5JX19 2.3 (230, 33) - 2.3 (230, 33) -
275/35R199.0JX19-2.4 (240, 35)-2.4 (240, 35)
Compact spare tire
(if equipped)T135/90D174.0TX174.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
T135/80R184.0TX184.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
T135/70R194.0TX194.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
*1 : Normal load : Up to 3 persons

8-5
8
Specifications & Consumer information
TIRE LOAD AND SPEED CAPACITY
*1LI : LOAD INDEX
*2SS : SPEED SYMBOLItem Tire size Wheel sizeLoad Capacity Speed Capacity
LI *
1kg SS *2km/h
Full size tire225/55R17 7.0JX17 97 730 W 270
245/45R18 8.0JX18 96 710 W 270
245/40R198.5JX1994670W270
275/35R199.0JX1996710W270
Compact spare tire
(if equipped)
T135/90D174.0TX17103875M130
T135/90D174.0TX17104900M130
T135/80R184.0TX18104900M130
T135/70R194.0TX19105925M130
GROSS VEHICLE WEIGHT
ItemLambda 3.0 Lambda 3.3 Lambda 3.8 Tau 5.0
2WD AWD 2WD 2WD AWD 2WD
For Europe2470 (5445.4) 2520 (5555.65) - 2470 (5445.4) 2520 (5555.65) -
kg (lbs)
ItemLambda 3.0 Lambda 3.3 Lambda 3.8 Tau 5.0
2WD AWD 2WD 2WD AWD 2WD
Except Europe- - 2450 (5401.3) 2470 (5445.4) - 2520 (5555.65)
kg (lbs)
