3-30
Convenient features of your vehicle

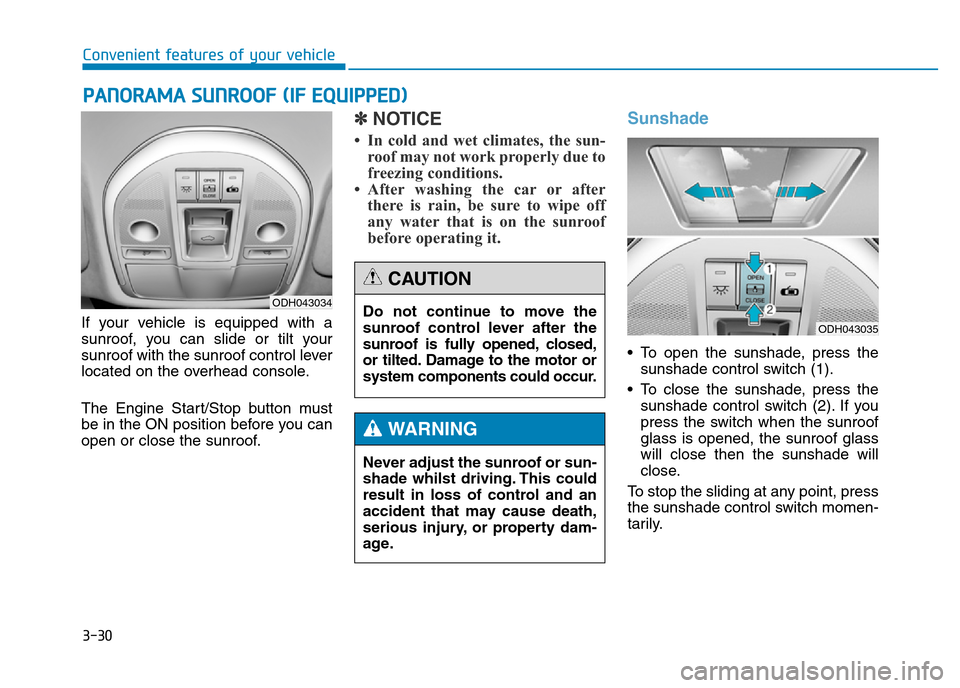

If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the overhead console.
The Engine Start/Stop button must
be in the ON position before you can
open or close the sunroof.
✽NOTICE
• In cold and wet climates, the sun-
roof may not work properly due to
freezing conditions.
• After washing the car or after
there is rain, be sure to wipe off
any water that is on the sunroof
before operating it.
Sunshade
• To open the sunshade, press the
sunshade control switch (1).
• To close the sunshade, press the
sunshade control switch (2). If you
press the switch when the sunroof
glass is opened, the sunroof glass
will close then the sunshade will
close.
To stop the sliding at any point, press
the sunshade control switch momen-
tarily.
PANORAMA SUNROOF (IF EQUIPPED)
ODH043034Do not continue to move the
sunroof control lever after the
sunroof is fully opened, closed,
or tilted. Damage to the motor or
system components could occur.
CAUTION
Never adjust the sunroof or sun-
shade whilst driving. This could
result in loss of control and an
accident that may cause death,
serious injury, or property dam-
age.
WARNING
ODH043035

3-31
Convenient features of your vehicle
3

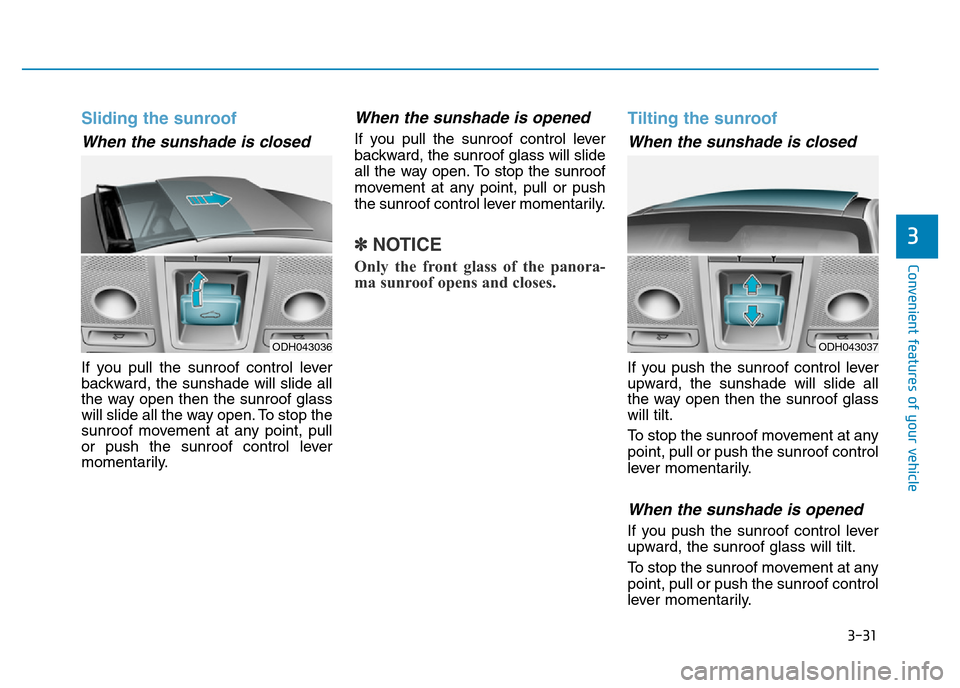

Sliding the sunroof
When the sunshade is closed
If you pull the sunroof control lever
backward, the sunshade will slide all
the way open then the sunroof glass
will slide all the way open. To stop the
sunroof movement at any point, pull
or push the sunroof control lever
momentarily.
When the sunshade is opened
If you pull the sunroof control lever
backward, the sunroof glass will slide
all the way open. To stop the sunroof
movement at any point, pull or push
the sunroof control lever momentarily.
✽NOTICE
Only the front glass of the panora-
ma sunroof opens and closes.
Tilting the sunroof
When the sunshade is closed
If you push the sunroof control lever
upward, the sunshade will slide all
the way open then the sunroof glass
will tilt.
To stop the sunroof movement at any
point, pull or push the sunroof control
lever momentarily.
When the sunshade is opened
If you push the sunroof control lever
upward, the sunroof glass will tilt.
To stop the sunroof movement at any
point, pull or push the sunroof control
lever momentarily.
ODH043036ODH043037

3-32
Convenient features of your vehicle

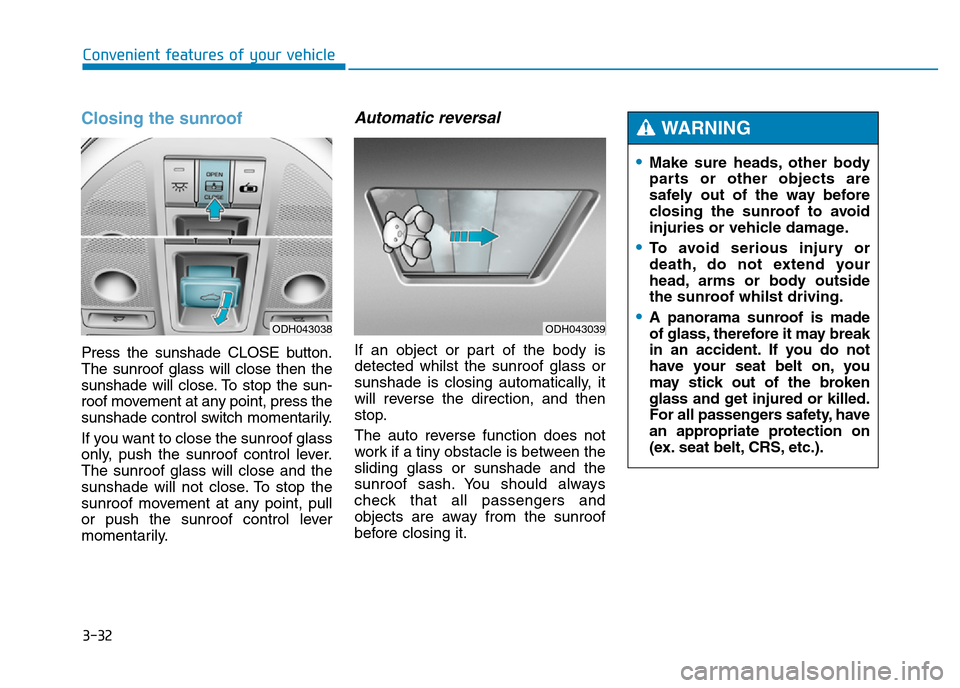

Closing the sunroof
Press the sunshade CLOSE button.
The sunroof glass will close then the
sunshade will close. To stop the sun-
roof movement at any point, press the
sunshade control switch momentarily.
If you want to close the sunroof glass
only, push the sunroof control lever.
The sunroof glass will close and the
sunshade will not close. To stop the
sunroof movement at any point, pull
or push the sunroof control lever
momentarily.
Automatic reversal
If an object or part of the body is
detected whilst the sunroof glass or
sunshade is closing automatically, it
will reverse the direction, and then
stop.
The auto reverse function does not
work if a tiny obstacle is between the
sliding glass or sunshade and the
sunroof sash. You should always
check that all passengers and
objects are away from the sunroof
before closing it.
ODH043038ODH043039
•Make sure heads, other body
parts or other objects are
safely out of the way before
closing the sunroof to avoid
injuries or vehicle damage.
•To avoid serious injury or
death, do not extend your
head, arms or body outside
the sunroof whilst driving.
•A panorama sunroof is made
of glass, therefore it may break
in an accident. If you do not
have your seat belt on, you
may stick out of the broken
glass and get injured or killed.
For all passengers safety, have
an appropriate protection on
(ex. seat belt, CRS, etc.).
WARNING

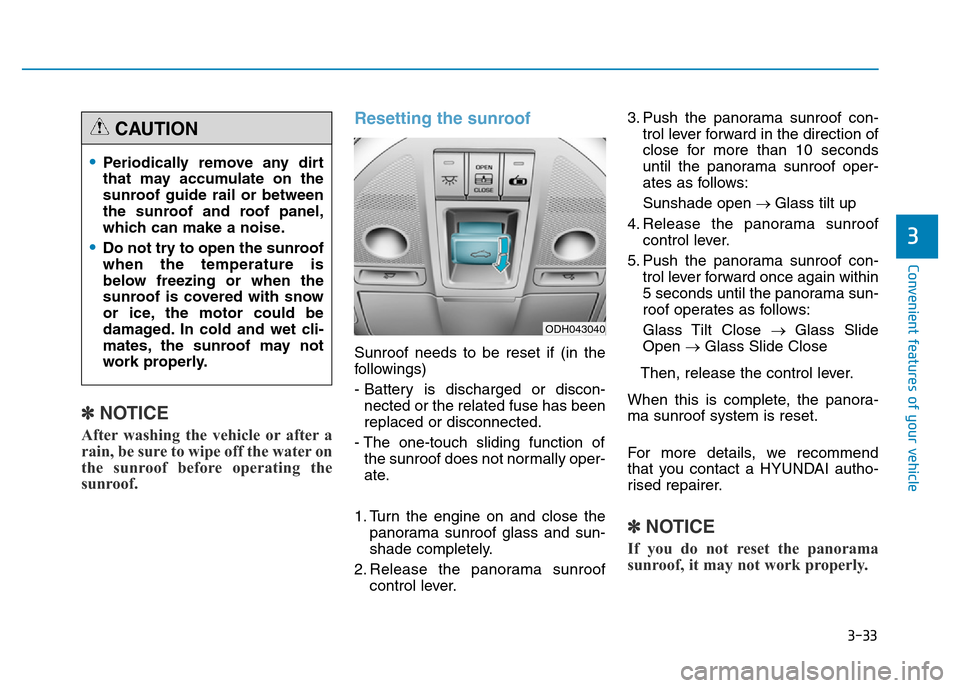

3-33
Convenient features of your vehicle
3
✽NOTICE
After washing the vehicle or after a
rain, be sure to wipe off the water on
the sunroof before operating the
sunroof.
Resetting the sunroof
Sunroof needs to be reset if (in the
followings)
- Battery is discharged or discon-
nected or the related fuse has been
replaced or disconnected.
- The one-touch sliding function of
the sunroof does not normally oper-
ate.
1. Turn the engine on and close the
panorama sunroof glass and sun-
shade completely.
2. Release the panorama sunroof
control lever.3. Push the panorama sunroof con-
trol lever forward in the direction of
close for more than 10 seconds
until the panorama sunroof oper-
ates as follows:
Sunshade open→ Glass tilt up
4. Release the panorama sunroof
control lever.
5. Push the panorama sunroof con-
trol lever forward once again within
5 seconds until the panorama sun-
roof operates as follows:
Glass Tilt Close → Glass Slide
Open → Glass Slide Close
Then, release the control lever.
When this is complete, the panora-
ma sunroof system is reset.
For more details, we recommend
that you contact a HYUNDAI autho-
rised repairer.
✽NOTICE
If you do not reset the panorama
sunroof, it may not work properly.
•Periodically remove any dirt
that may accumulate on the
sunroof guide rail or between
the sunroof and roof panel,
which can make a noise.
•Do not try to open the sunroof
when the temperature is
below freezing or when the
sunroof is covered with snow
or ice, the motor could be
damaged. In cold and wet cli-
mates, the sunroof may not
work properly.
CAUTION
ODH043040

3-34
Convenient features of your vehicle

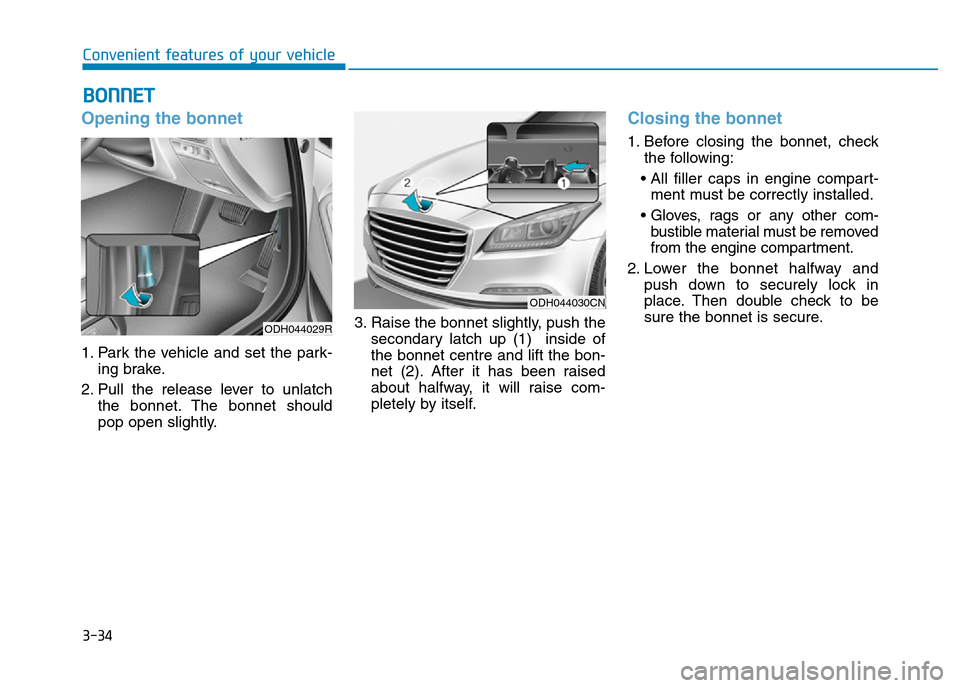

Opening the bonnet
1. Park the vehicle and set the park-
ing brake.
2. Pull the release lever to unlatch
the bonnet. The bonnet should
pop open slightly.3. Raise the bonnet slightly, push the
secondary latch up (1) inside of
the bonnet centre and lift the bon-
net (2). After it has been raised
about halfway, it will raise com-
pletely by itself.
Closing the bonnet
1. Before closing the bonnet, check
the following:
• All filler caps in engine compart-
ment must be correctly installed.
• Gloves, rags or any other com-
bustible material must be removed
from the engine compartment.
2. Lower the bonnet halfway and
push down to securely lock in
place. Then double check to be
sure the bonnet is secure.
BONNET
ODH044029R
ODH044030CN

3-35
Convenient features of your vehicle
3

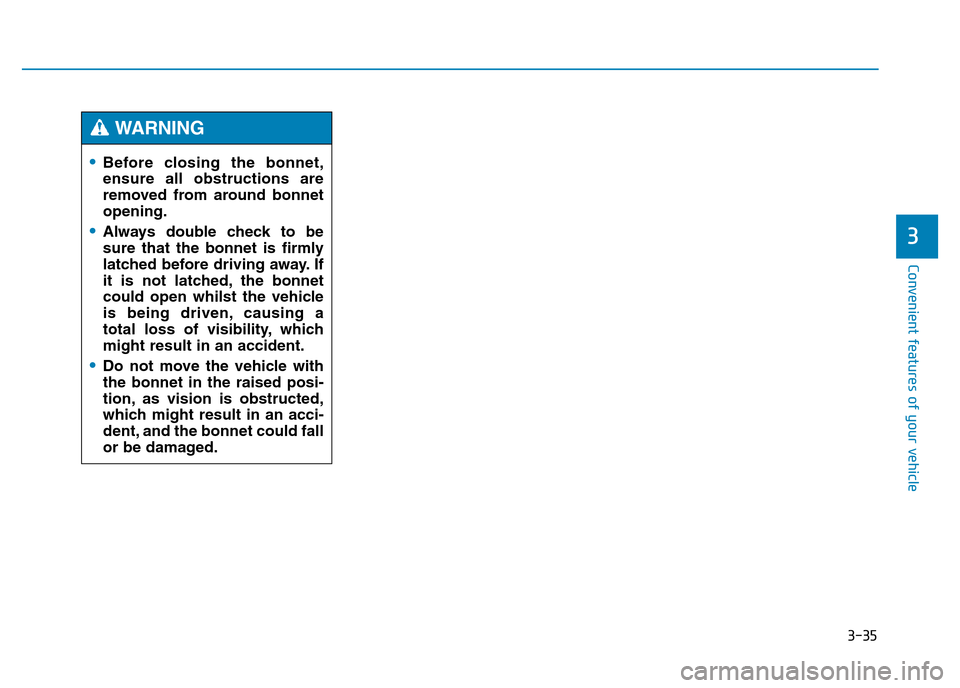

•Before closing the bonnet,
ensure all obstructions are
removed from around bonnet
opening.
•Always double check to be
sure that the bonnet is firmly
latched before driving away. If
it is not latched, the bonnet
could open whilst the vehicle
is being driven, causing a
total loss of visibility, which
might result in an accident.
•Do not move the vehicle with
the bonnet in the raised posi-
tion, as vision is obstructed,
which might result in an acci-
dent, and the bonnet could fall
or be damaged.
WARNING

3-36
Convenient features of your vehicle

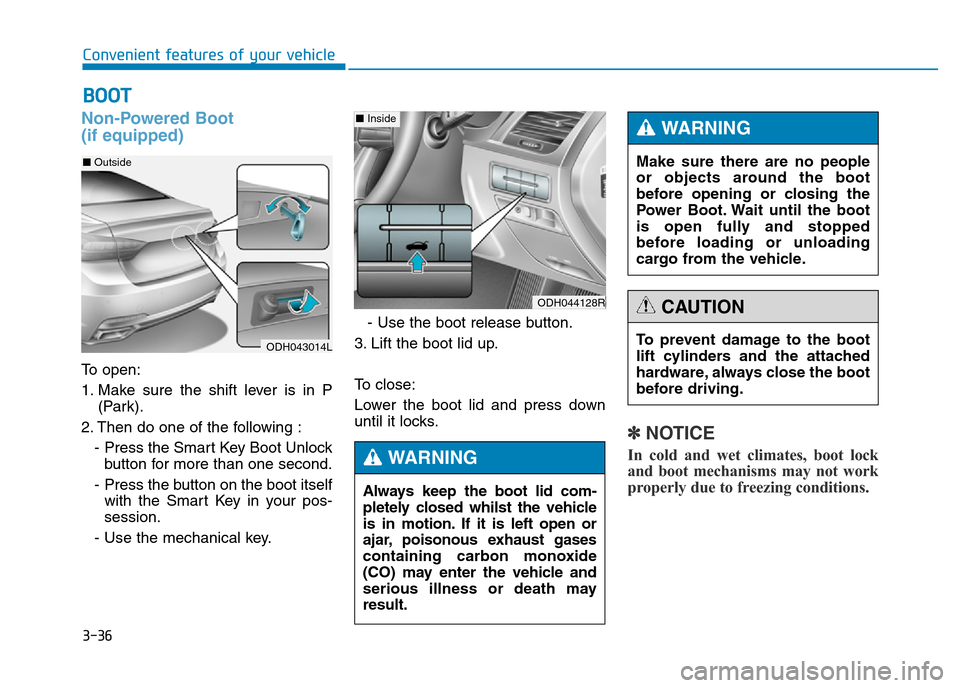

Non-Powered Boot
(if equipped)
To open:
1. Make sure the shift lever is in P
(Park).
2. Then do one of the following :
- Press the Smart Key Boot Unlock
button for more than one second.
- Press the button on the boot itself
with the Smart Key in your pos-
session.
- Use the mechanical key.- Use the boot release button.
3. Lift the boot lid up.
To close:
Lower the boot lid and press down
until it locks.
✽NOTICE
In cold and wet climates, boot lock
and boot mechanisms may not work
properly due to freezing conditions.
BOOT
Always keep the boot lid com-
pletely closed whilst the vehicle
is in motion. If it is left open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle and
serious illness or death may
result.
WARNING
Make sure there are no people
or objects around the boot
before opening or closing the
Power Boot. Wait until the boot
is open fully and stopped
before loading or unloading
cargo from the vehicle.
WARNING
To prevent damage to the boot
lift cylinders and the attached
hardware, always close the boot
before driving.
CAUTION
ODH043014L
ODH044128R
■Inside
■Outside

3-37
Convenient features of your vehicle
3

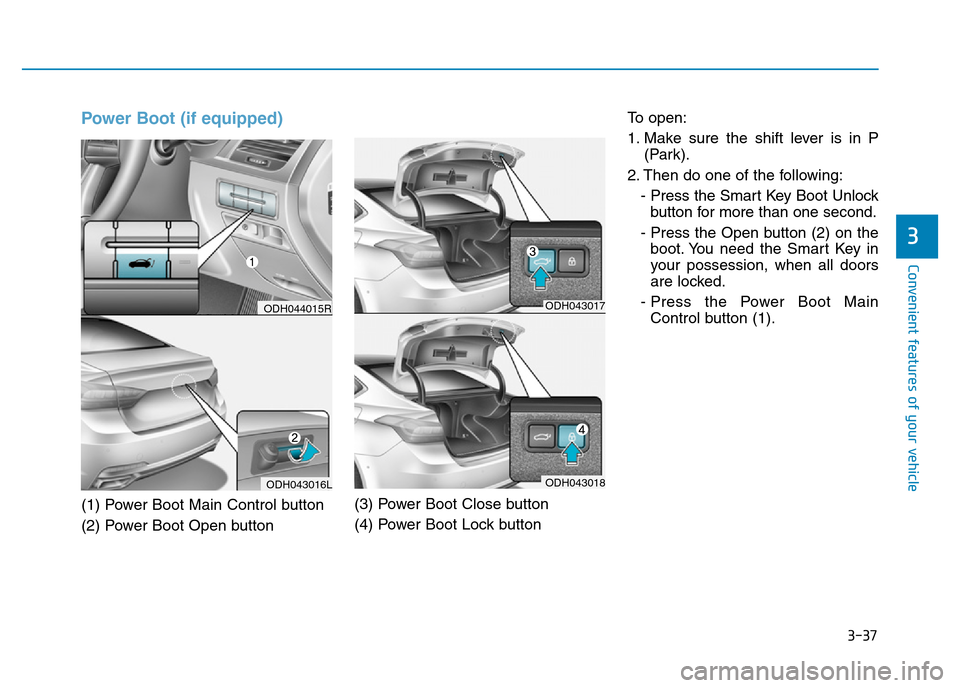

Power Boot (if equipped)
(1) Power Boot Main Control button
(2) Power Boot Open button(3) Power Boot Close button
(4) Power Boot Lock buttonTo open:
1. Make sure the shift lever is in P
(Park).
2. Then do one of the following:
- Press the Smart Key Boot Unlock
button for more than one second.
- Press the Open button (2) on the
boot. You need the Smart Key in
your possession, when all doors
are locked.
- Press the Power Boot Main
Control button (1).
ODH043016L
ODH044015RODH043017
ODH043018

3-38
Convenient features of your vehicle

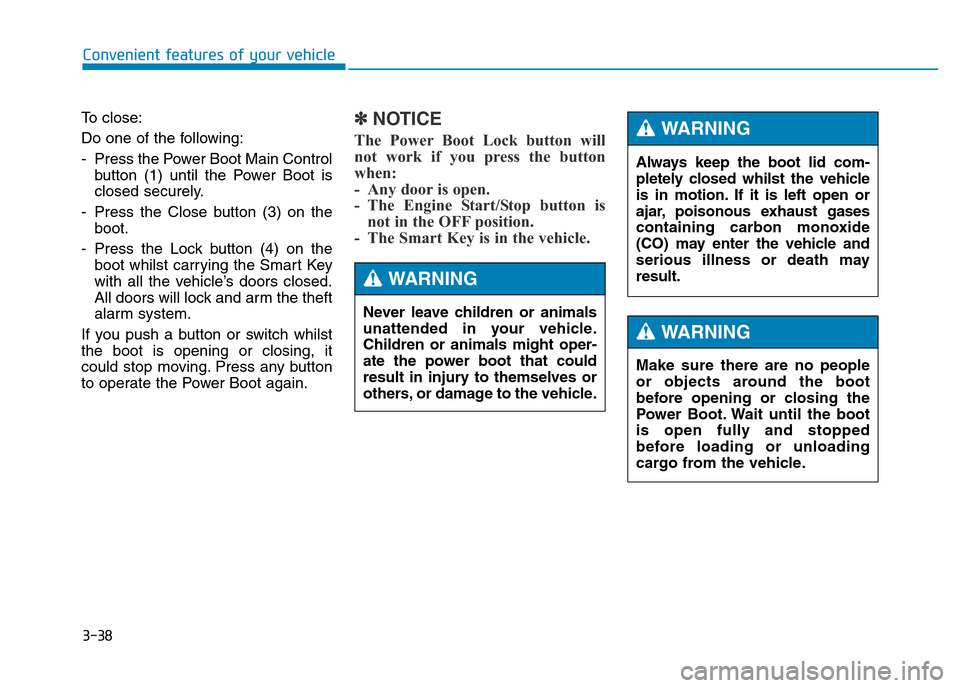

To close:
Do one of the following:
- Press the Power Boot Main Control
button (1) until the Power Boot is
closed securely.
- Press the Close button (3) on the
boot.
- Press the Lock button (4) on the
boot whilst carrying the Smart Key
with all the vehicle’s doors closed.
All doors will lock and arm the theft
alarm system.
If you push a button or switch whilst
the boot is opening or closing, it
could stop moving. Press any button
to operate the Power Boot again.
✽NOTICE
The Power Boot Lock button will
not work if you press the button
when:
- Any door is open.
- The Engine Start/Stop button is
not in the OFF position.
- The Smart Key is in the vehicle.
Never leave children or animals
unattended in your vehicle.
Children or animals might oper-
ate the power boot that could
result in injury to themselves or
others, or damage to the vehicle.
WARNING
Always keep the boot lid com-
pletely closed whilst the vehicle
is in motion. If it is left open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle and
serious illness or death may
result.
WARNING
Make sure there are no people
or objects around the boot
before opening or closing the
Power Boot. Wait until the boot
is open fully and stopped
before loading or unloading
cargo from the vehicle.
WARNING

3-39
Convenient features of your vehicle
3
✽NOTICE
In cold and wet climates, boot lock
and boot mechanisms may not work
properly due to freezing conditions.
Power Boot Non-Opening or
Closing Conditions:
• The Power Boot will not open or
close automatically, when the vehi-
cle is moving more than 1.8 mph
(3 km/h).
• The Power Boot can be operated
when the engine is not running.
However, the Power Boot operation
consumes large amounts of vehicle
electric power. To prevent the bat-
tery from draining, do not operate it
excessively (e.g., more than
approximately 10 times repeatedly.)
• Do not modify or repair any part of
the Power Boot by yourself. This
must be done by a HYUNDAI
authorised repairer.
• Before jacking up the vehicle to
change a tyre or repair the vehicle,
open the Power Boot. Do not oper-
ate the Power Boot when the vehi-
cle is raised or this could cause the
Power Boot to operate improperly.
• If there are obstacles such as snow
on the Power Boot, it may not open
automatically. After removing the
obstacle, try to open it again.
Automatic stop and reverse
If, during power opening or closing,
the boot is blocked by an object or
part of someone’s body, the power
boot will detect the resistance and it
will stop movement or move to the
full open position to allow the object
to be cleared.
However, if the resistance is weak
such as from an object that is thin or
soft, or the boot is near the latched
position, the automatic stop and
reversal may not detect the resist-
ance and the closing operation will
continue. Also, if the Power Boot is
forced by a strong impact, the auto-
matic stop and reversal may operate.
•Do not close or open the Power
Boot manually. This may cause
damage to the Power Boot. If it
is necessary to close or open
the Power Boot manually when
the battery is drained or dis-
connected, do not apply exces-
sive force.
•Do not leave the Power Boot
open for a long period of time.
This may drain the battery.
•To prevent damage to the
boot lift cylinders and the
attached hardware, always
close the boot before driving.
CAUTION
ODH043019
