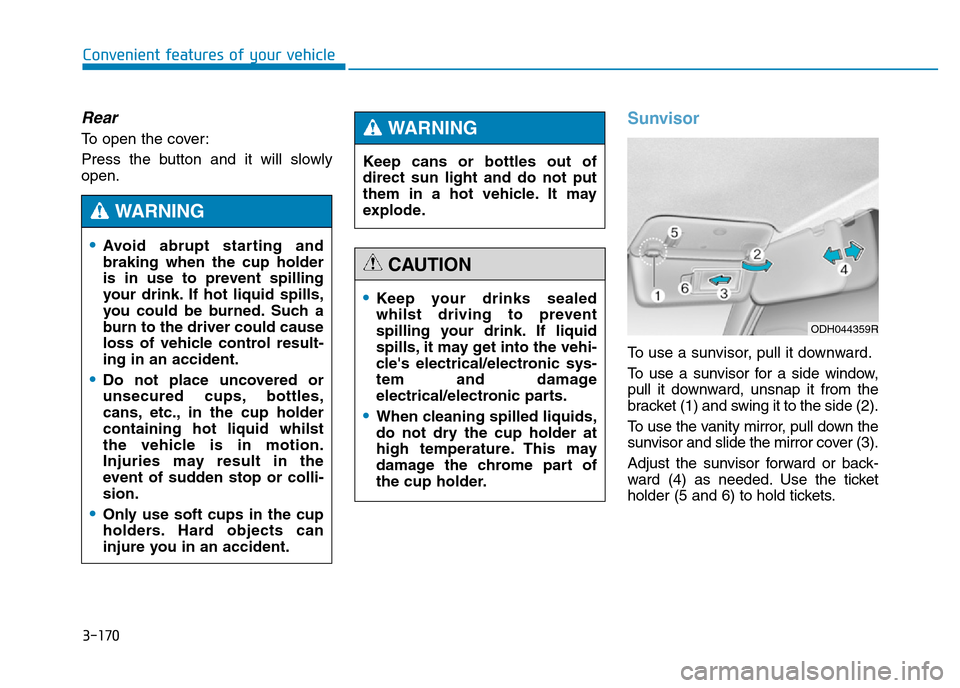

3-170
Convenient features of your vehicle
Rear
To open the cover:
Press the button and it will slowly
open.
Sunvisor
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or back-
ward (4) as needed. Use the ticket
holder (5 and 6) to hold tickets.
•Keep your drinks sealed
whilst driving to prevent
spilling your drink. If liquid
spills, it may get into the vehi-
cle's electrical/electronic sys-
tem and damage
electrical/electronic parts.
•When cleaning spilled liquids,
do not dry the cup holder at
high temperature. This may
damage the chrome part of
the cup holder.
CAUTION
•Avoid abrupt starting and
braking when the cup holder
is in use to prevent spilling
your drink. If hot liquid spills,
you could be burned. Such a
burn to the driver could cause
loss of vehicle control result-
ing in an accident.
•Do not place uncovered or
unsecured cups, bottles,
cans, etc., in the cup holder
containing hot liquid whilst
the vehicle is in motion.
Injuries may result in the
event of sudden stop or colli-
sion.
•Only use soft cups in the cup
holders. Hard objects can
injure you in an accident.
WARNING
Keep cans or bottles out of
direct sun light and do not put
them in a hot vehicle. It may
explode.
WARNING
ODH044359R

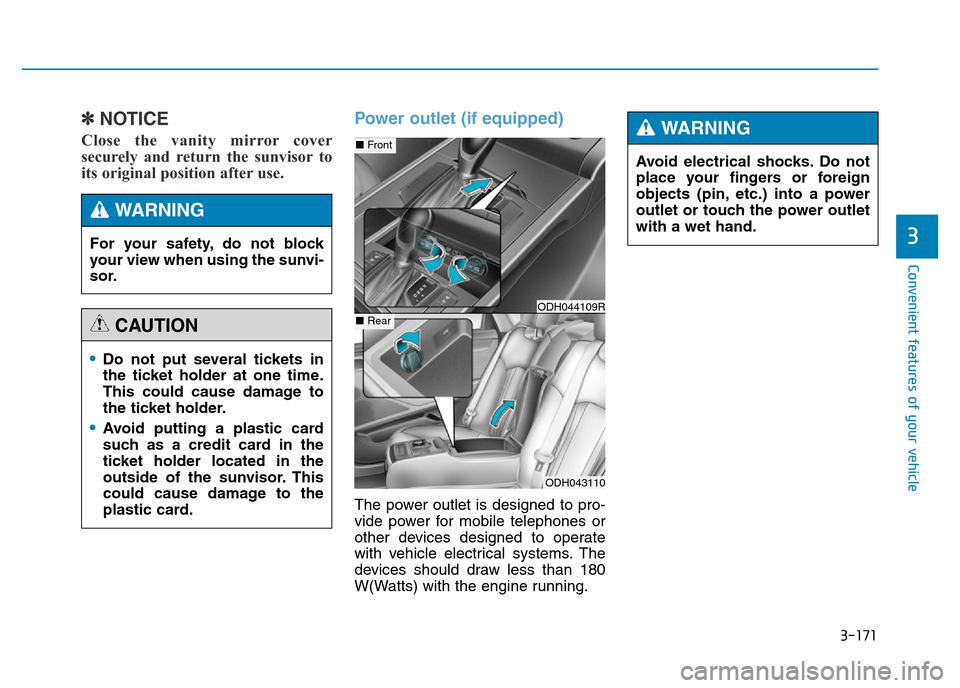

3-171
Convenient features of your vehicle
3
✽NOTICE
Close the vanity mirror cover
securely and return the sunvisor to
its original position after use.
Power outlet (if equipped)
The power outlet is designed to pro-
vide power for mobile telephones or
other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 180
W(Watts) with the engine running.
•Do not put several tickets in
the ticket holder at one time.
This could cause damage to
the ticket holder.
•Avoid putting a plastic card
such as a credit card in the
ticket holder located in the
outside of the sunvisor. This
could cause damage to the
plastic card.
CAUTION
For your safety, do not block
your view when using the sunvi-
sor.
WARNING
ODH043110
■Front
■RearODH044109R
Avoid electrical shocks. Do not
place your fingers or foreign
objects (pin, etc.) into a power
outlet or touch the power outlet
with a wet hand.
WARNING

3-172
Convenient features of your vehicle

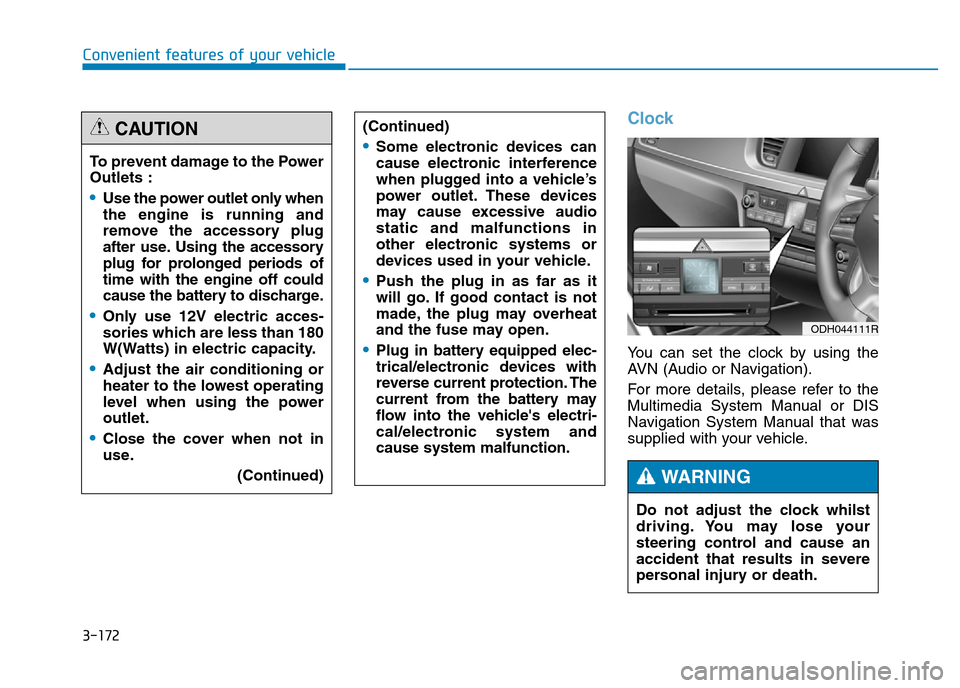

Clock
You can set the clock by using the
AVN (Audio or Navigation).
For more details, please refer to the
Multimedia System Manual or DIS
Navigation System Manual that was
supplied with your vehicle. To prevent damage to the Power
Outlets :
•Use the power outlet only when
the engine is running and
remove the accessory plug
after use. Using the accessory
plug for prolonged periods of
time with the engine off could
cause the battery to discharge.
•Only use 12V electric acces-
sories which are less than 180
W(Watts) in electric capacity.
•Adjust the air conditioning or
heater to the lowest operating
level when using the power
outlet.
•Close the cover when not in
use.
(Continued)
(Continued)
•Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices
may cause excessive audio
static and malfunctions in
other electronic systems or
devices used in your vehicle.
•Push the plug in as far as it
will go. If good contact is not
made, the plug may overheat
and the fuse may open.
•Plug in battery equipped elec-
trical/electronic devices with
reverse current protection. The
current from the battery may
flow into the vehicle's electri-
cal/electronic system and
cause system malfunction.
CAUTION
Do not adjust the clock whilst
driving. You may lose your
steering control and cause an
accident that results in severe
personal injury or death.
WARNING
ODH044111R

3-173
Convenient features of your vehicle
3

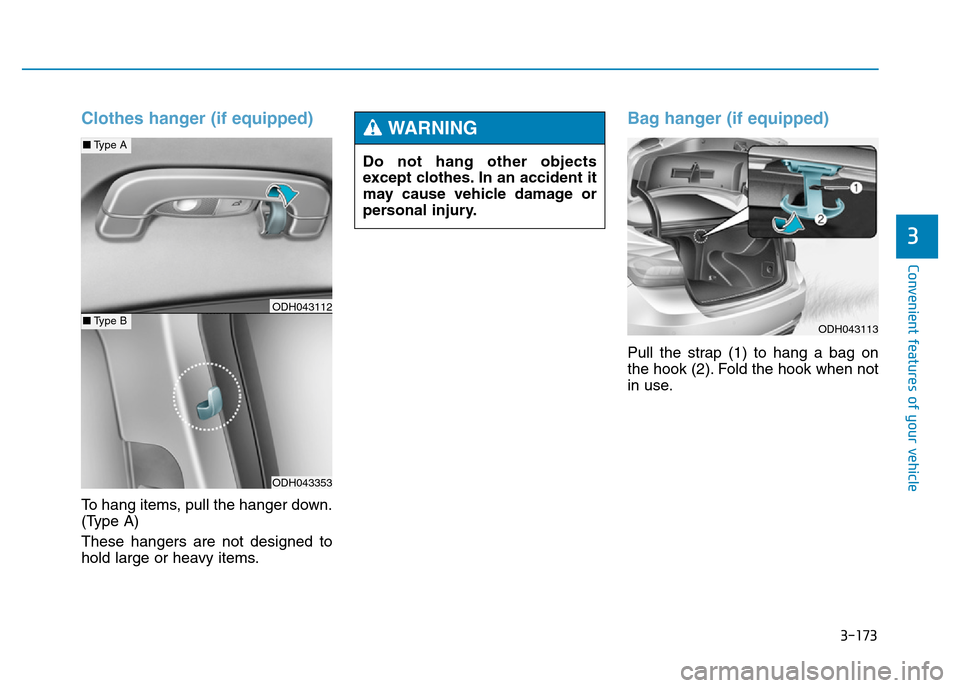

Clothes hanger (if equipped)
To hang items, pull the hanger down.
(Type A)
These hangers are not designed to
hold large or heavy items.
Bag hanger (if equipped)
Pull the strap (1) to hang a bag on
the hook (2). Fold the hook when not
in use.
ODH043353
■Type A
■Type BODH043112
Do not hang other objects
except clothes. In an accident it
may cause vehicle damage or
personal injury.
WARNING
ODH043113

3-174
Convenient features of your vehicle

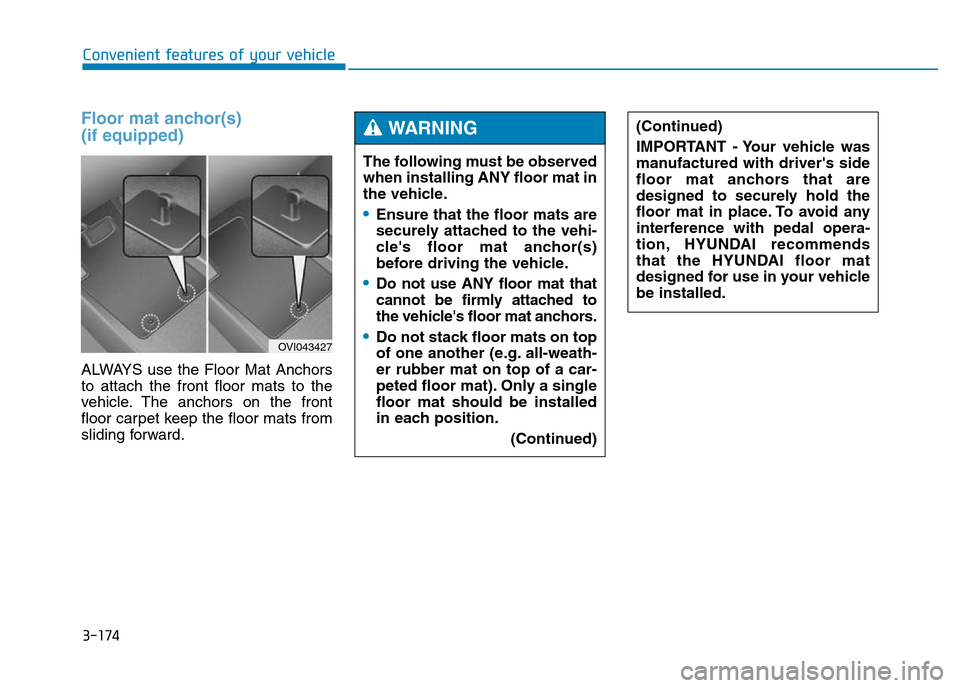

Floor mat anchor(s)
(if equipped)
ALWAYS use the Floor Mat Anchors
to attach the front floor mats to the
vehicle. The anchors on the front
floor carpet keep the floor mats from
sliding forward.
OVI043427
The following must be observed
when installing ANY floor mat in
the vehicle.
•Ensure that the floor mats are
securely attached to the vehi-
cle's floor mat anchor(s)
before driving the vehicle.
•Do not use ANY floor mat that
cannot be firmly attached to
the vehicle's floor mat anchors.
•Do not stack floor mats on top
of one another (e.g. all-weath-
er rubber mat on top of a car-
peted floor mat). Only a single
floor mat should be installed
in each position.
(Continued)
(Continued)
IMPORTANT - Your vehicle was
manufactured with driver's side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal opera-
tion, HYUNDAI recommends
that the HYUNDAI floor mat
designed for use in your vehicle
be installed.WARNING

3-175
Convenient features of your vehicle
3

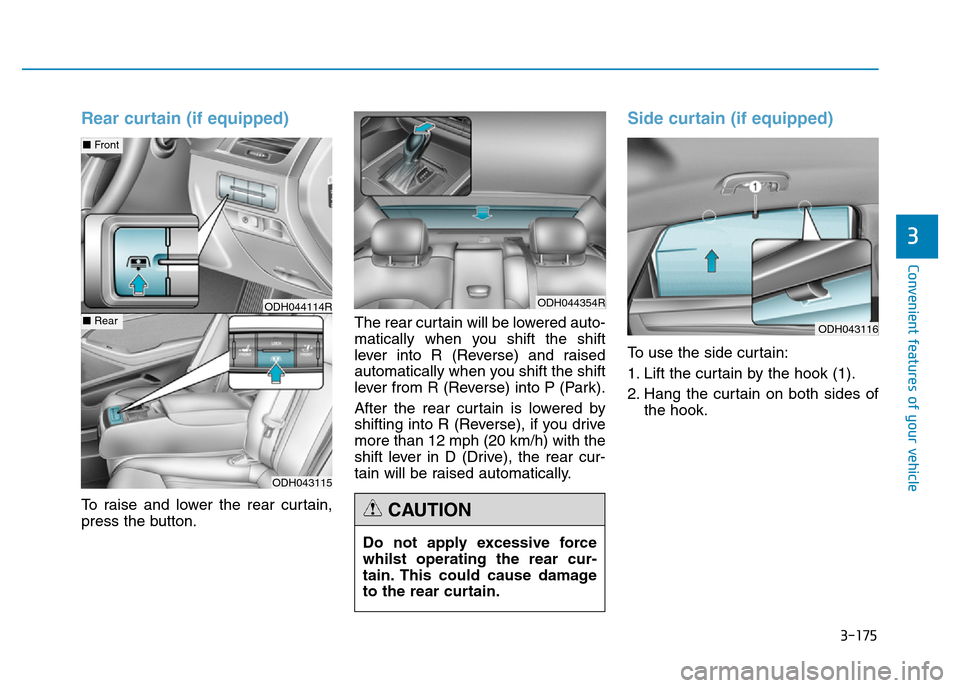

Rear curtain (if equipped)
To raise and lower the rear curtain,
press the button.The rear curtain will be lowered auto-
matically when you shift the shift
lever into R (Reverse) and raised
automatically when you shift the shift
lever from R (Reverse) into P (Park).
After the rear curtain is lowered by
shifting into R (Reverse), if you drive
more than 12 mph (20 km/h) with the
shift lever in D (Drive), the rear cur-
tain will be raised automatically.
Side curtain (if equipped)
To use the side curtain:
1. Lift the curtain by the hook (1).
2. Hang the curtain on both sides of
the hook.
Do not apply excessive force
whilst operating the rear cur-
tain. This could cause damage
to the rear curtain.
CAUTION
ODH043115
■Front
■RearODH044114RODH044354R
ODH043116

3-176
Convenient features of your vehicle

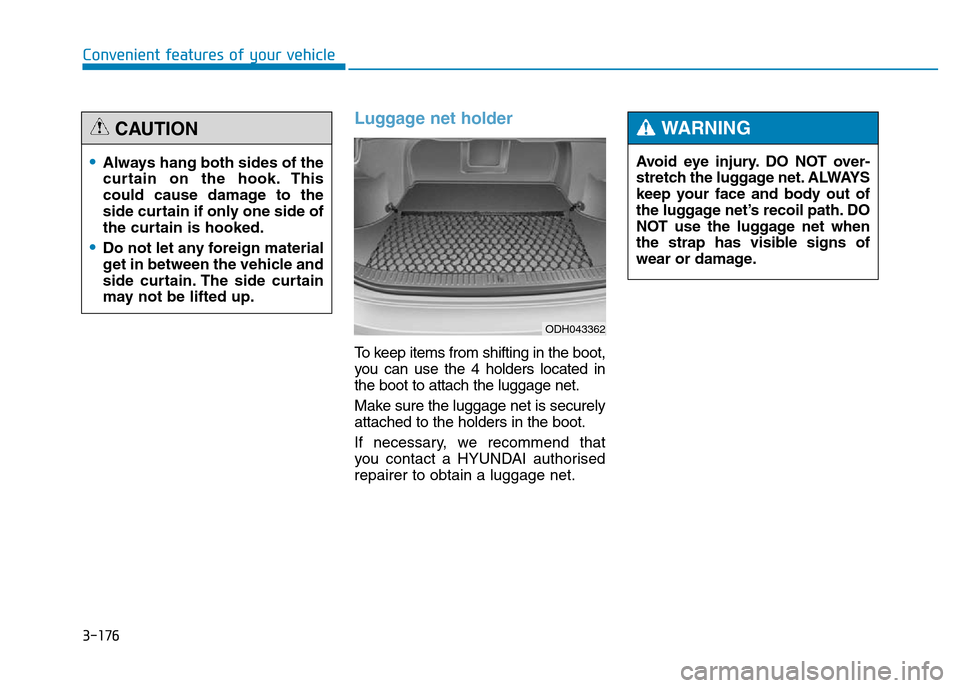

Luggage net holder
To keep items from shifting in the boot,
you can use the 4 holders located in
the boot to attach the luggage net.
Make sure the luggage net is securely
attached to the holders in the boot.
If necessary, we recommend that
you contact a HYUNDAI authorised
repairer to obtain a luggage net.
•Always hang both sides of the
curtain on the hook. This
could cause damage to the
side curtain if only one side of
the curtain is hooked.
•Do not let any foreign material
get in between the vehicle and
side curtain. The side curtain
may not be lifted up.
CAUTION
Avoid eye injury. DO NOT over-
stretch the luggage net. ALWAYS
keep your face and body out of
the luggage net’s recoil path. DO
NOT use the luggage net when
the strap has visible signs of
wear or damage.
WARNING
ODH043362

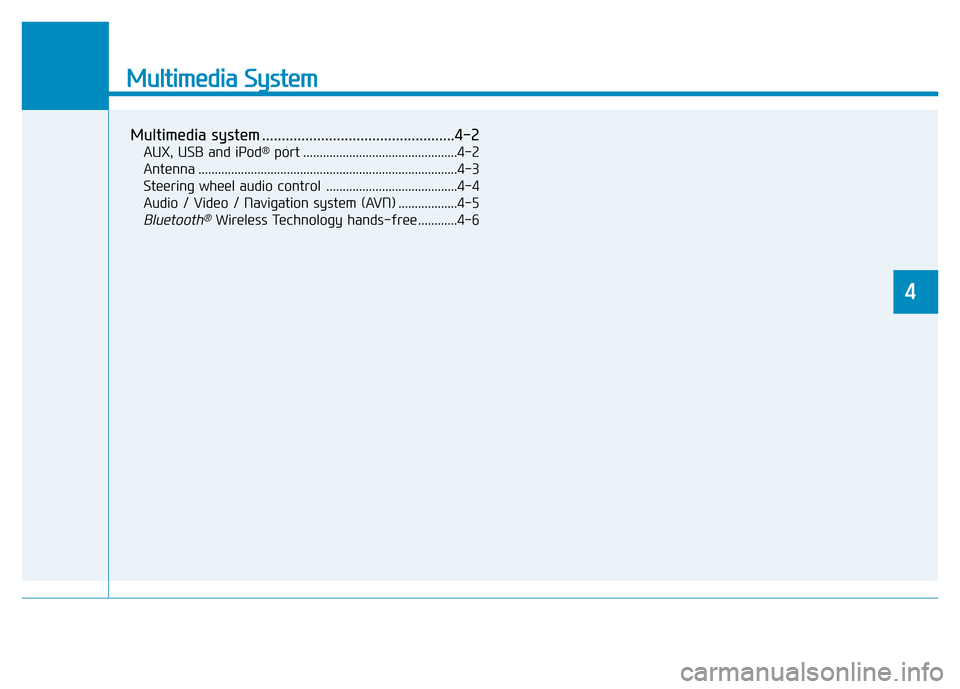

Multimedia System
Multimedia system .................................................4-2
AUX, USB and iPod®port ...............................................4-2
Antenna ...............................................................................4-3
Steering wheel audio control ........................................4-4
Audio / Video / Navigation system (AVN) ..................4-5
Bluetooth®Wireless Technology hands-free ............4-6
4

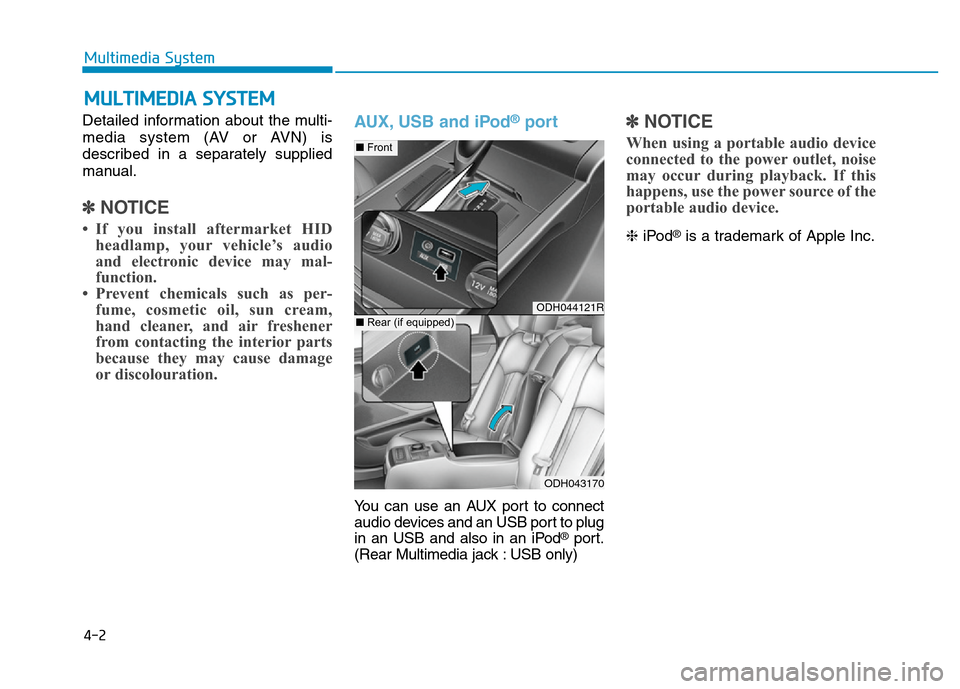

Detailed information about the multi-
media system (AV or AVN) is
described in a separately supplied
manual.
✽NOTICE
• If you install aftermarket HID
headlamp, your vehicle’s audio
and electronic device may mal-
function.
• Prevent chemicals such as per-
fume, cosmetic oil, sun cream,
hand cleaner, and air freshener
from contacting the interior parts
because they may cause damage
or discolouration.
AUX, USB and iPod®port
You can use an AUX port to connect
audio devices and an USB port to plug
in an USB and also in an iPod
®port.
(Rear Multimedia jack : USB only)
✽NOTICE
When using a portable audio device
connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of the
portable audio device.
❈iPod®is a trademark of Apple Inc.
MULTIMEDIA SYSTEM
4-2
Multimedia System
ODH044121R
ODH043170
■Front
■Rear (if equipped)

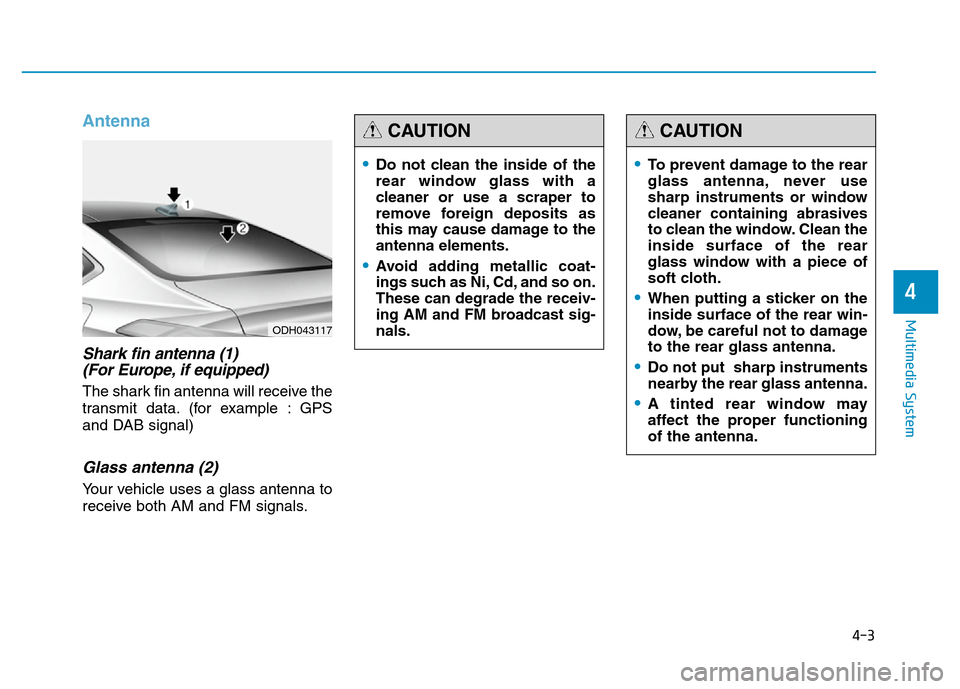

Antenna
Shark fin antenna (1)
(For Europe, if equipped)
The shark fin antenna will receive the
transmit data. (for example : GPS
and DAB signal)
Glass antenna (2)
Your vehicle uses a glass antenna to
receive both AM and FM signals.
4-3
Multimedia System
4
ODH043117
•Do not clean the inside of the
rear window glass with a
cleaner or use a scraper to
remove foreign deposits as
this may cause damage to the
antenna elements.
•Avoid adding metallic coat-
ings such as Ni, Cd, and so on.
These can degrade the receiv-
ing AM and FM broadcast sig-
nals.
CAUTION
•To prevent damage to the rear
glass antenna, never use
sharp instruments or window
cleaner containing abrasives
to clean the window. Clean the
inside surface of the rear
glass window with a piece of
soft cloth.
•When putting a sticker on the
inside surface of the rear win-
dow, be careful not to damage
to the rear glass antenna.
•Do not put sharp instruments
nearby the rear glass antenna.
•A tinted rear window may
affect the proper functioning
of the antenna.
CAUTION
