Hyundai Genesis 2016 Owner's Manual - RHD (UK, Australia)

7-65
7
Maintenance

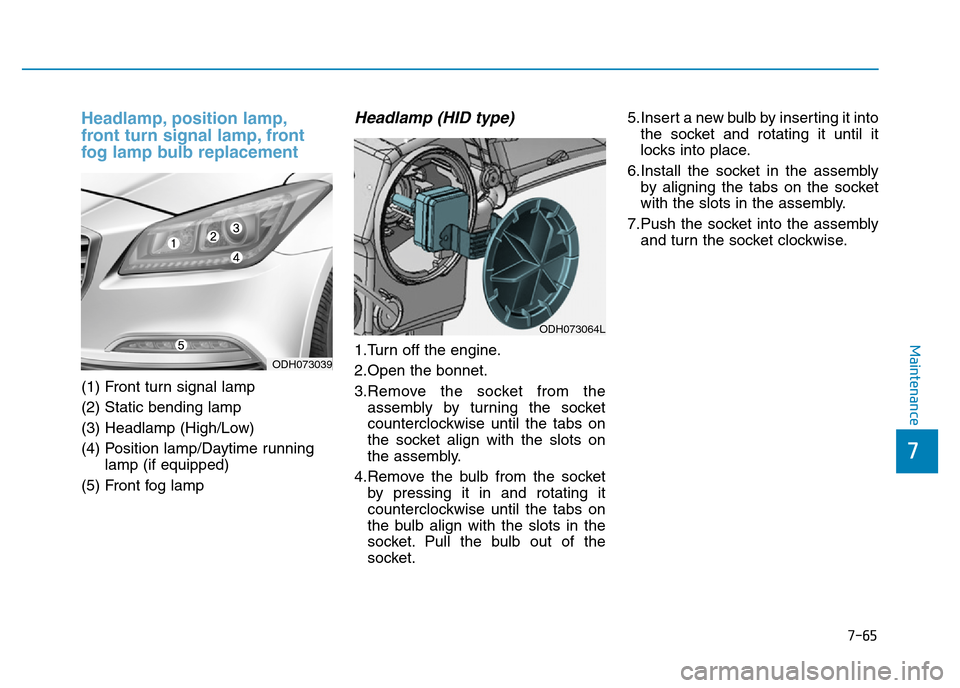

Headlamp, position lamp,
front turn signal lamp, front
fog lamp bulb replacement
(1) Front turn signal lamp
(2) Static bending lamp
(3) Headlamp (High/Low)
(4) Position lamp/Daytime running
lamp (if equipped)
(5) Front fog lamp
Headlamp (HID type)
1.Turn off the engine.
2.Open the bonnet.
3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly
and turn the socket clockwise.ODH073039
ODH073064L

7-66
Maintenance

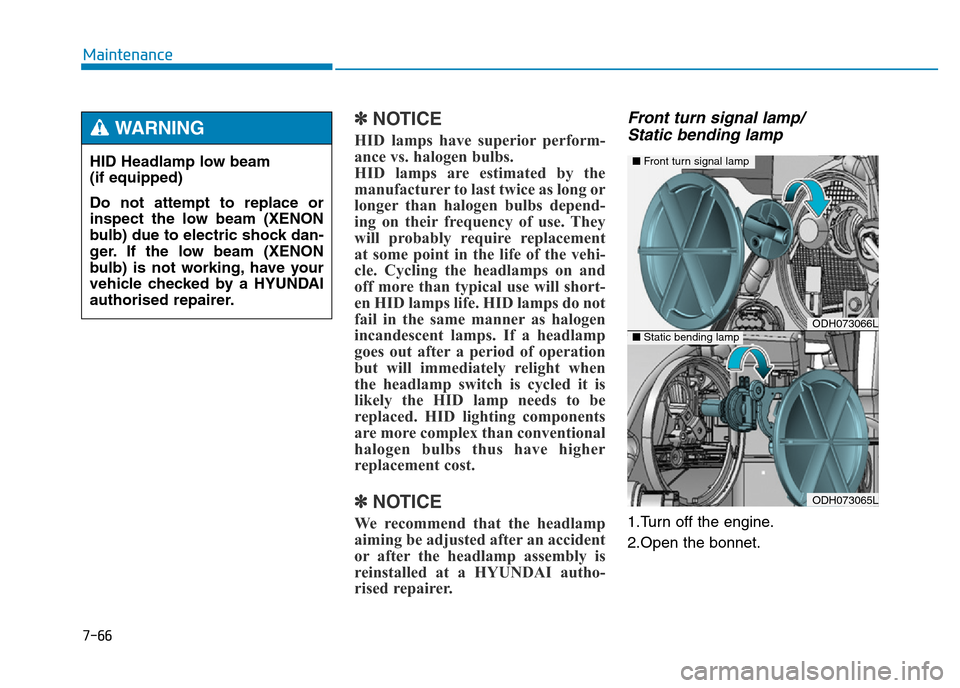

✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs.
HID lamps are estimated by the
manufacturer to last twice as long or
longer than halogen bulbs depend-
ing on their frequency of use. They
will probably require replacement
at some point in the life of the vehi-
cle. Cycling the headlamps on and
off more than typical use will short-
en HID lamps life. HID lamps do not
fail in the same manner as halogen
incandescent lamps. If a headlamp
goes out after a period of operation
but will immediately relight when
the headlamp switch is cycled it is
likely the HID lamp needs to be
replaced. HID lighting components
are more complex than conventional
halogen bulbs thus have higher
replacement cost.
✽NOTICE
We recommend that the headlamp
aiming be adjusted after an accident
or after the headlamp assembly is
reinstalled at a HYUNDAI autho-
rised repairer.
Front turn signal lamp/
Static bending lamp
1.Turn off the engine.
2.Open the bonnet. HID Headlamp low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by a HYUNDAI
authorised repairer.
WARNING
ODH073066L
ODH073065L
■Front turn signal lamp
■Static bending lamp

7-67
7
Maintenance

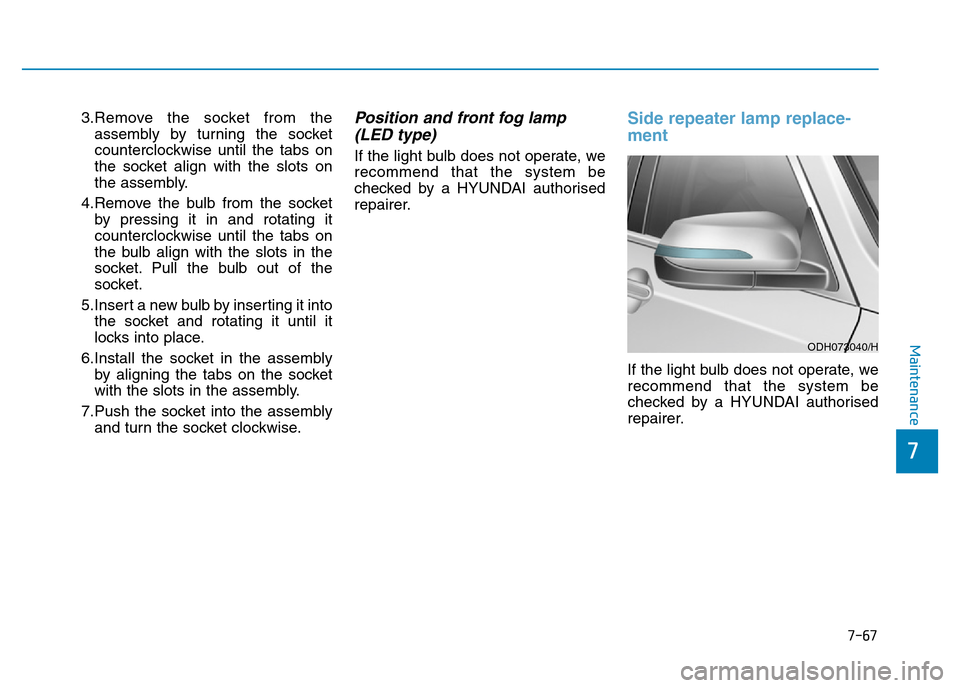

3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly
and turn the socket clockwise.Position and front fog lamp
(LED type)
If the light bulb does not operate, we
recommend that the system be
checked by a HYUNDAI authorised
repairer.
Side repeater lamp replace-
ment
If the light bulb does not operate, we
recommend that the system be
checked by a HYUNDAI authorised
repairer.
ODH073040/H

7-68
Maintenance

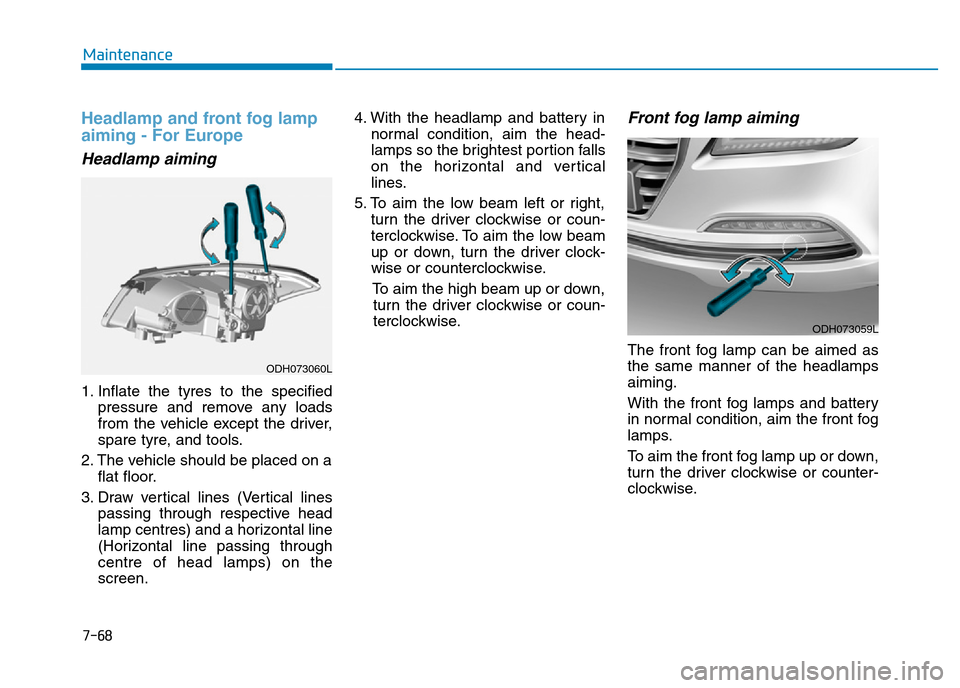

Headlamp and front fog lamp
aiming - For Europe
Headlamp aiming
1. Inflate the tyres to the specified
pressure and remove any loads
from the vehicle except the driver,
spare tyre, and tools.
2. The vehicle should be placed on a
flat floor.
3. Draw vertical lines (Vertical lines
passing through respective head
lamp centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the
screen.4. With the headlamp and battery in
normal condition, aim the head-
lamps so the brightest portion falls
on the horizontal and vertical
lines.
5. To aim the low beam left or right,
turn the driver clockwise or coun-
terclockwise. To aim the low beam
up or down, turn the driver clock-
wise or counterclockwise.
To aim the high beam up or down,
turn the driver clockwise or coun-
terclockwise.
Front fog lamp aiming
The front fog lamp can be aimed as
the same manner of the headlamps
aiming.
With the front fog lamps and battery
in normal condition, aim the front fog
lamps.
To aim the front fog lamp up or down,
turn the driver clockwise or counter-
clockwise.
ODH073059L
ODH073060L

7-69
7
Maintenance

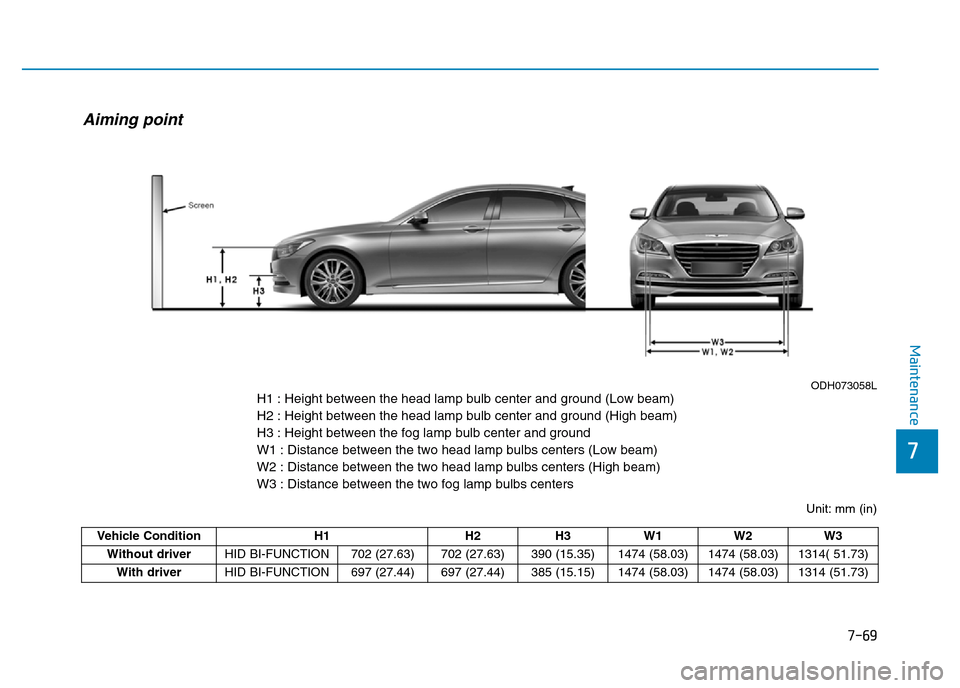

Vehicle Condition H1 H2 H3 W1 W2 W3
Without driverHID BI-FUNCTION 702 (27.63) 702 (27.63) 390 (15.35) 1474 (58.03) 1474 (58.03) 1314( 51.73)
With driverHID BI-FUNCTION 697 (27.44) 697 (27.44) 385 (15.15) 1474 (58.03) 1474 (58.03) 1314 (51.73)
Unit: mm (in)
Aiming point
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centersODH073058L

7-70
Maintenance

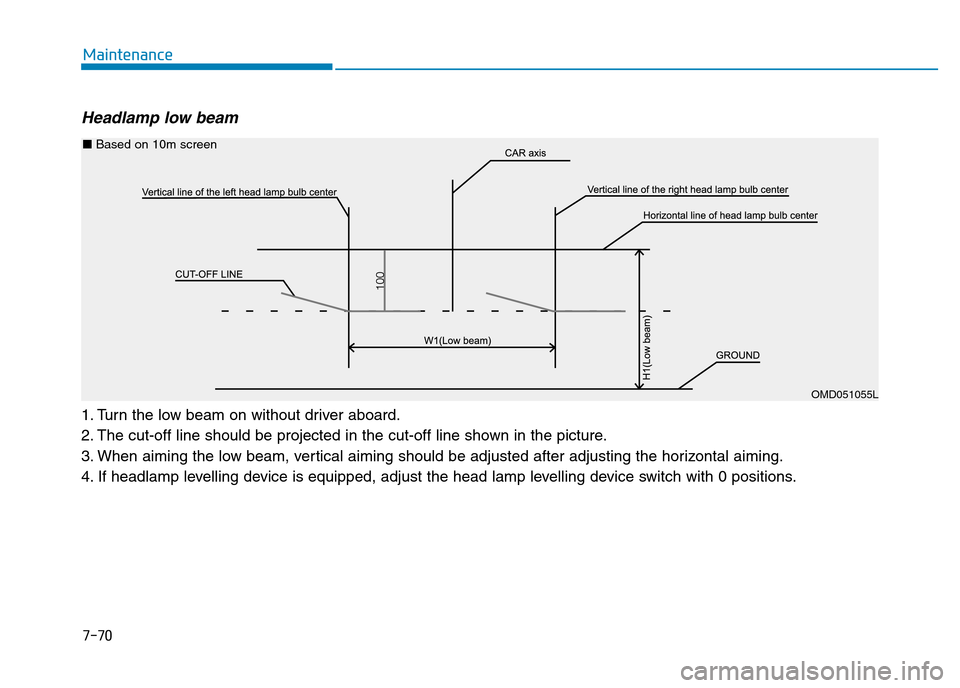

Headlamp low beam
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
OMD051055L
■Based on 10m screen

7-71
7
Maintenance

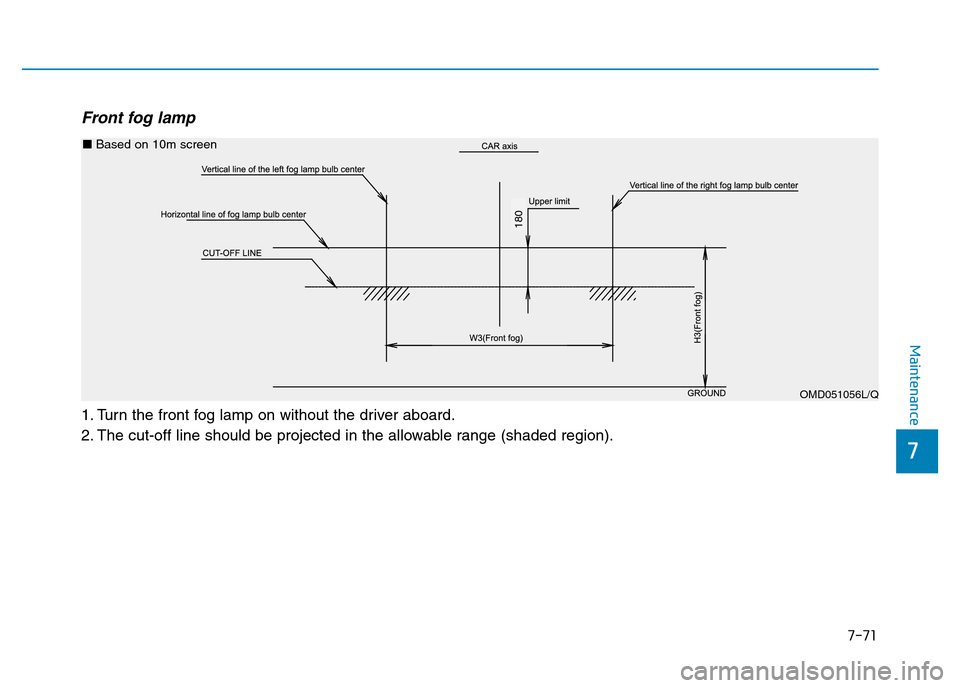

Front fog lamp
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
OMD051056L/Q
180
■Based on 10m screen

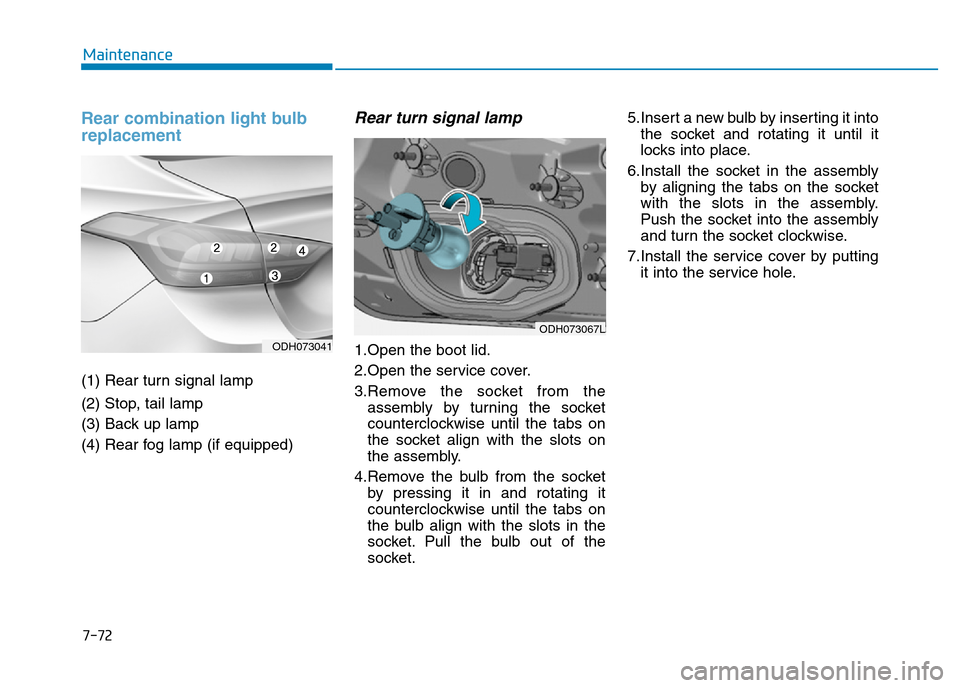

7-72
Maintenance
Rear combination light bulb
replacement
(1) Rear turn signal lamp
(2) Stop, tail lamp
(3) Back up lamp
(4) Rear fog lamp (if equipped)
Rear turn signal lamp
1.Open the boot lid.
2.Open the service cover.
3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7.Install the service cover by putting
it into the service hole.ODH073041
ODH073067L

7-73
7
Maintenance

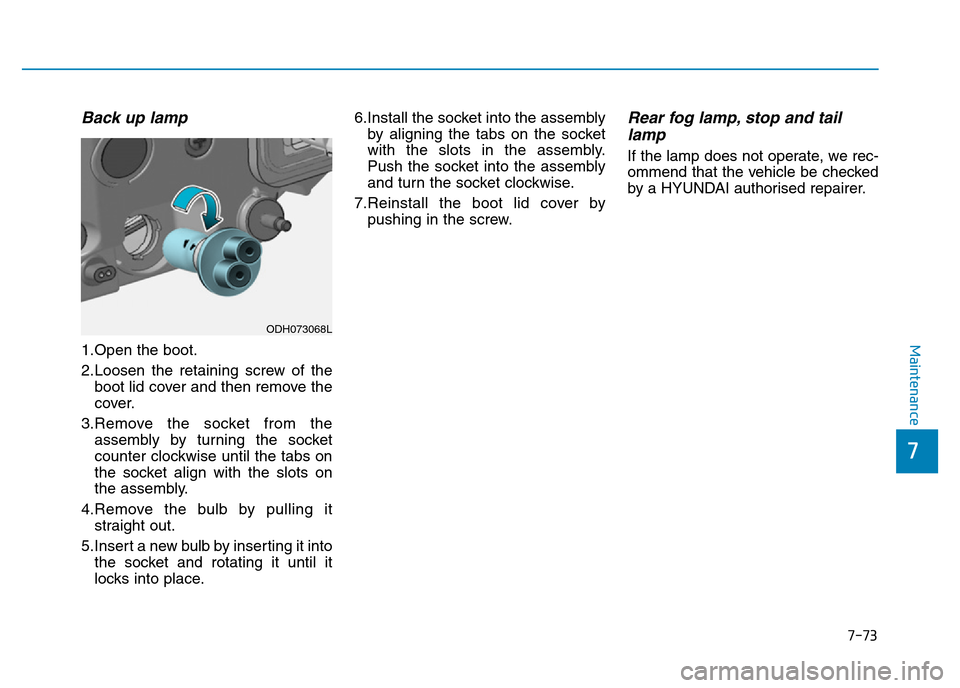

Back up lamp
1.Open the boot.
2.Loosen the retaining screw of the
boot lid cover and then remove the
cover.
3.Remove the socket from the
assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb by pulling it
straight out.
5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.6.Install the socket into the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7.Reinstall the boot lid cover by
pushing in the screw.
Rear fog lamp, stop and tail
lamp
If the lamp does not operate, we rec-
ommend that the vehicle be checked
by a HYUNDAI authorised repairer.
ODH073068L

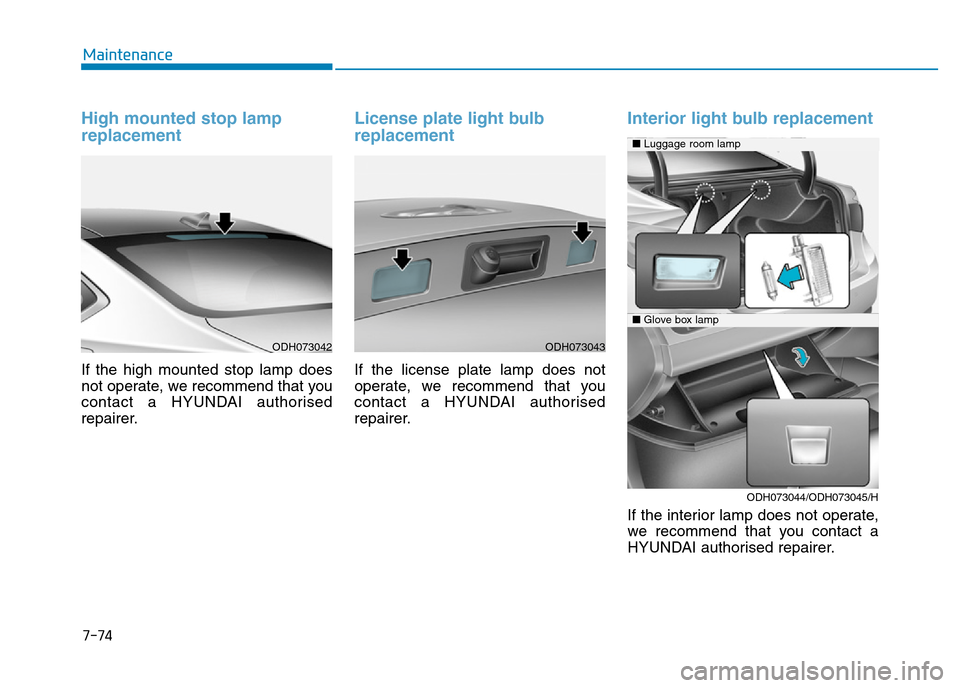

7-74
Maintenance
High mounted stop lamp
replacement
If the high mounted stop lamp does
not operate, we recommend that you
contact a HYUNDAI authorised
repairer.
License plate light bulb
replacement
If the license plate lamp does not
operate, we recommend that you
contact a HYUNDAI authorised
repairer.
Interior light bulb replacement
If the interior lamp does not operate,
we recommend that you contact a
HYUNDAI authorised repairer.
■Luggage room lamp
■Glove box lamp
ODH073044/ODH073045/H
ODH073043 ODH073042
