Hyundai Genesis 2016 Owner's Manual - RHD (UK, Australia)

7-55
7
Maintenance

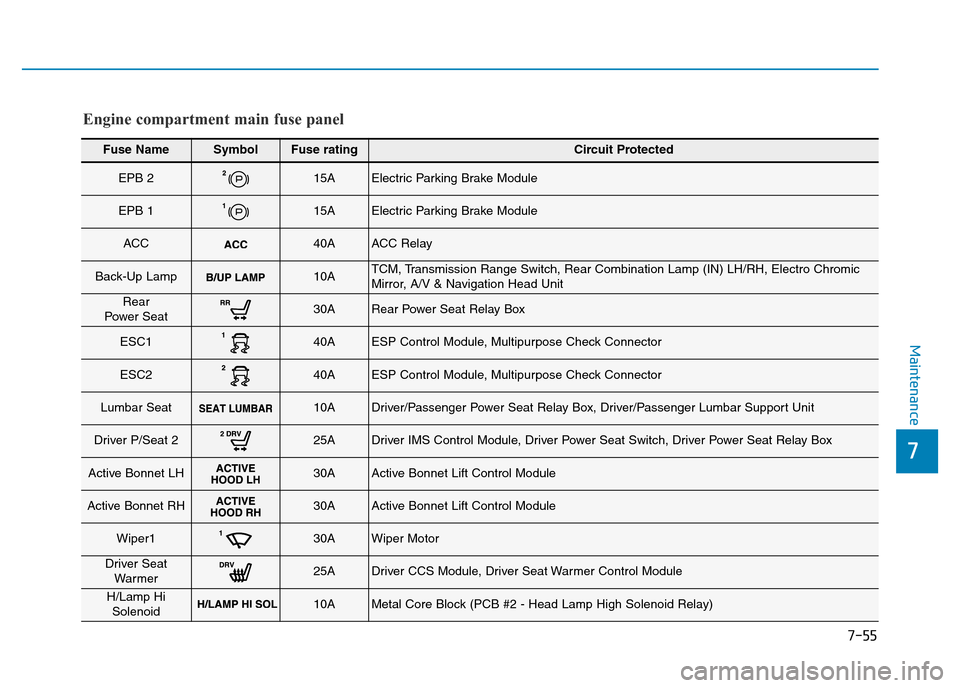

Engine compartment main fuse panel
Fuse NameSymbolFuse ratingCircuit Protected
EPB 215AElectric Parking Brake Module
EPB 115AElectric Parking Brake Module
ACC40AACC Relay
Back-Up Lamp10ATCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic
Mirror, A/V & Navigation Head Unit
Rear
Power Seat30ARear Power Seat Relay Box
ESC140AESP Control Module, Multipurpose Check Connector
ESC240AESP Control Module, Multipurpose Check Connector
Lumbar Seat10ADriver/Passenger Power Seat Relay Box, Driver/Passenger Lumbar Support Unit
Driver P/Seat 225ADriver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box
Active Bonnet LH30AActive Bonnet Lift Control Module
Active Bonnet RH30AActive Bonnet Lift Control Module
Wiper130AWiper Motor
Driver Seat
Warmer25ADriver CCS Module, Driver Seat Warmer Control Module
H/Lamp Hi
Solenoid10AMetal Core Block (PCB #2 - Head Lamp High Solenoid Relay)

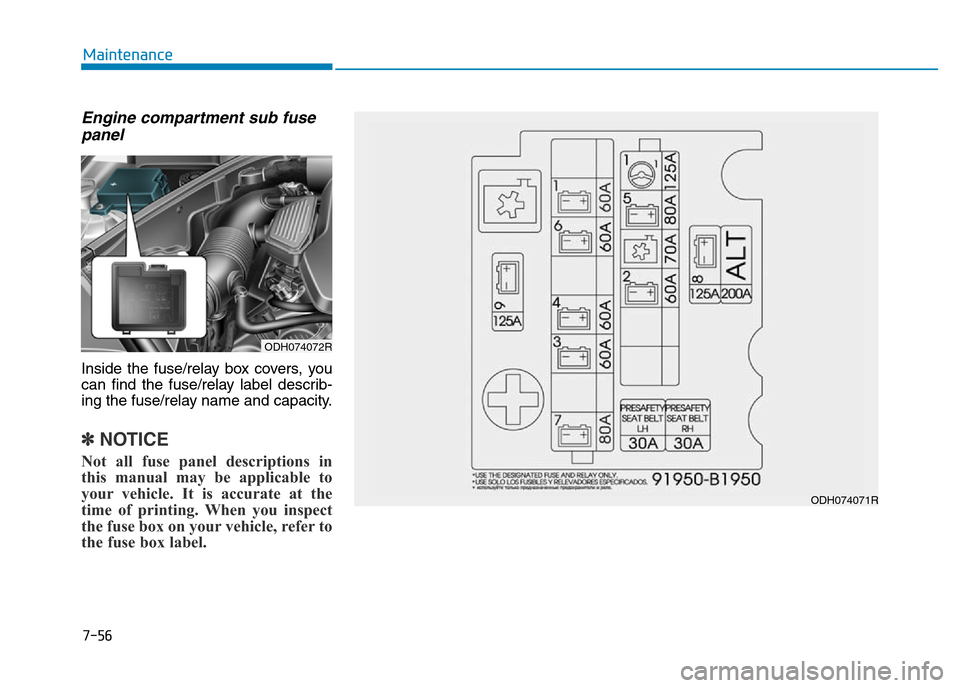

Engine compartment sub fuse
panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
7-56
Maintenance
ODH074072R
ODH074071R

7-57
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
ALT200AAlternator, Multifuse (BATT) - F12/F13/F14/F15, Fuse - F24
B+160AIGPM (Fuse - F16/F42, Leak Current Autocut Device (Fuse - F2/F9/F10/F17/F35), IPS 1)
B+360AIGPM (Fuse - F11/F18/F30/F36, IPS 2/IPS 3/IPS 5/IPS 7)
B+460AIGPM (Fuse - F24/F29, IPS 4/IPS 6)
B+660AMetal Core Block (PCB #1 Fuse - F40/F41/F42)
B+780AMetal Core Block (PCB #2 Fuse - F65/F68/F69/F71)
B+260AIGPM (Fuse - F1/F8/F15/F22/F28/F33/F39/F40/F45/F46)
Cooling Fan70ARLY. 1 (Cooling Fan Relay)
B+580AMetal Core Block (PCB #1 Fuse - F52/F53/F54/F55)
MDPS125AMDPS Unit
B+8125AE/R Junction Block (Fuse - F19/F20/F21/F22/F23)
B+9125AE/R Junction Block (Fuse - F26/F27/F28/F30/F33/F34/F35/F39)

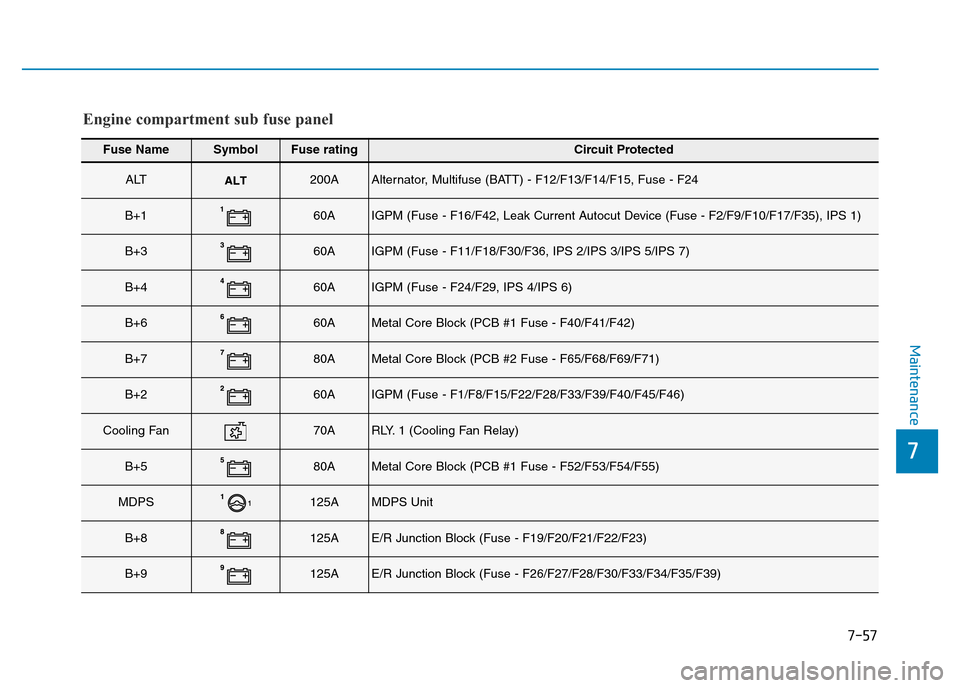

Engine compartment sub fuse panel

7-58
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Pre-Safety
Seat Belt 130APre-Safe Seat Belt Module
Pre-Safety
Seat Belt 230APre-Safe Seat Belt Module

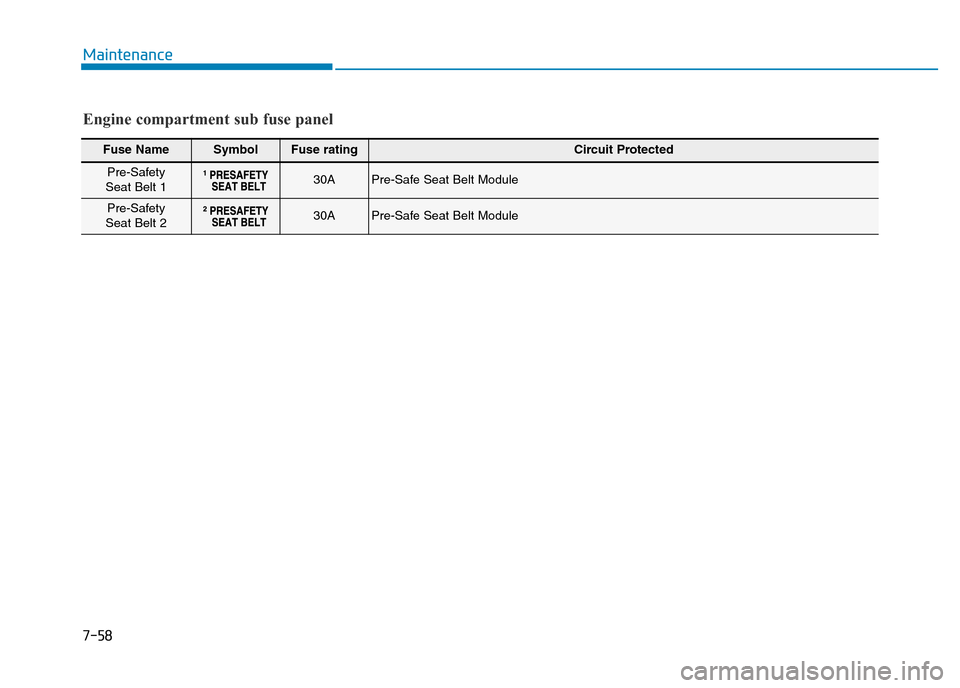

Engine compartment sub fuse panel

7-59
7
MaintenanceInside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
ODH073052L
ODH073036

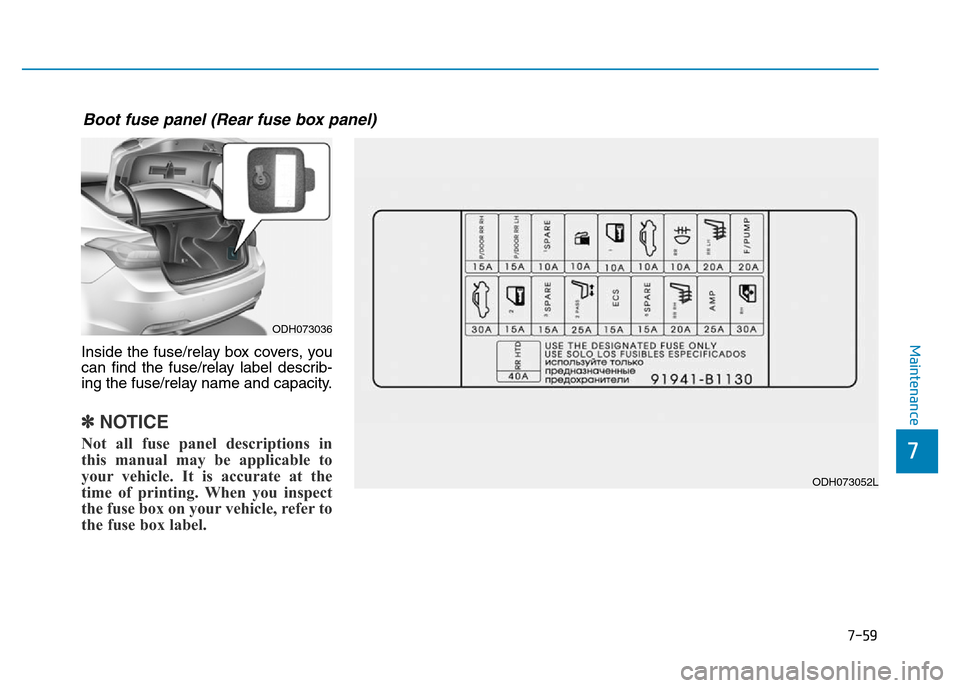

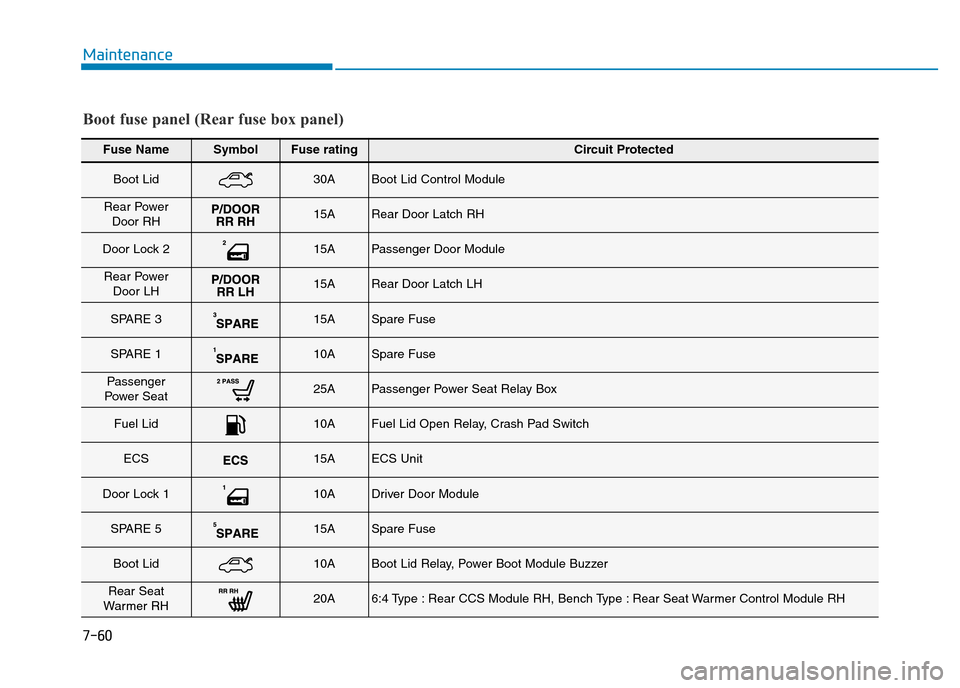

Boot fuse panel (Rear fuse box panel)

7-60
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Boot Lid30ABoot Lid Control Module
Rear Power
Door RH15ARear Door Latch RH
Door Lock 215APassenger Door Module
Rear Power
Door LH15ARear Door Latch LH
SPARE 315ASpare Fuse
SPARE 110ASpare Fuse
Passenger
Power Seat25APassenger Power Seat Relay Box
Fuel Lid10AFuel Lid Open Relay, Crash Pad Switch
ECS15AECS Unit
Door Lock 110ADriver Door Module
SPARE 515ASpare Fuse
Boot Lid10ABoot Lid Relay, Power Boot Module Buzzer
Rear Seat
Warmer RH20A6:4 Type : Rear CCS Module RH, Bench Type : Rear Seat Warmer Control Module RH

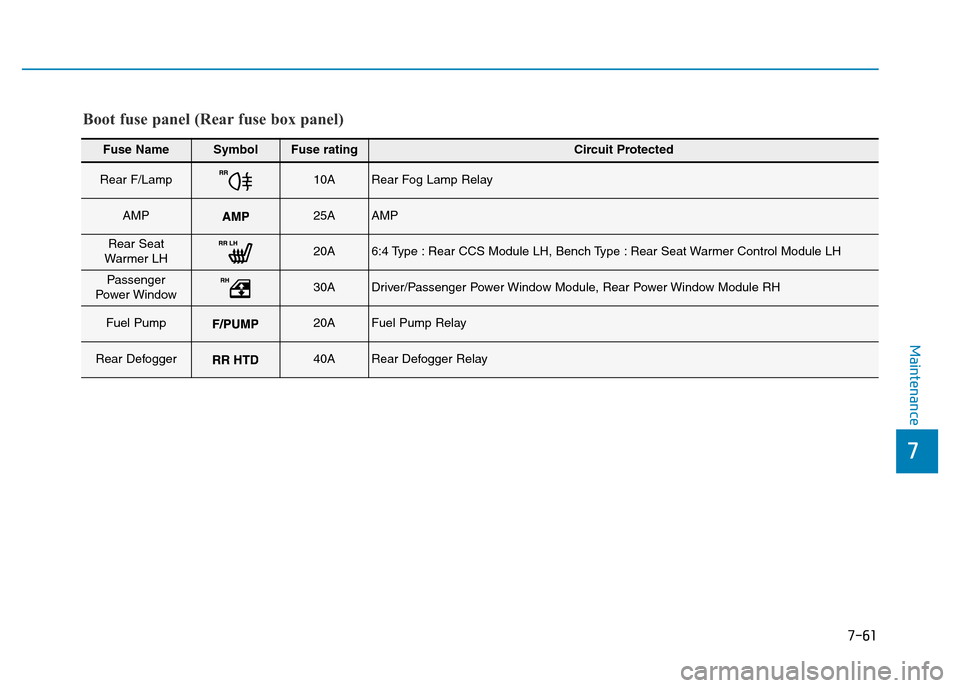

Boot fuse panel (Rear fuse box panel)

7-61
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
Rear F/Lamp10ARear Fog Lamp Relay
AMP25AAMP
Rear Seat
Warmer LH20A6:4 Type : Rear CCS Module LH, Bench Type : Rear Seat Warmer Control Module LH
Passenger
Power Window30ADriver/Passenger Power Window Module, Rear Power Window Module RH
Fuel Pump20AFuel Pump Relay
Rear Defogger40ARear Defogger Relay
Boot fuse panel (Rear fuse box panel)

7-62
Maintenance
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay name and capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
ODH073038L

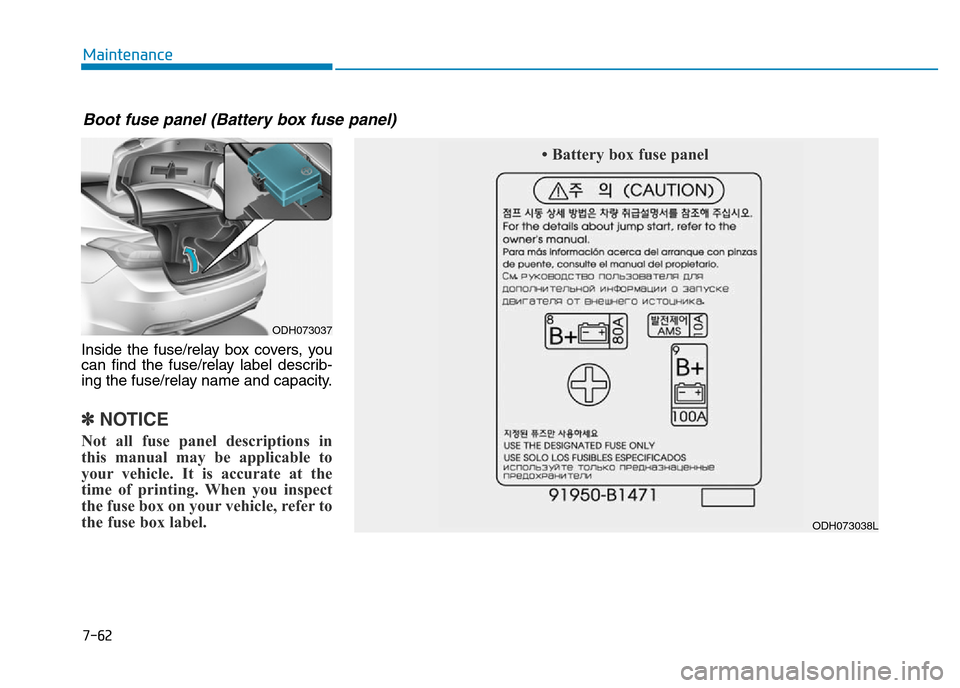

• Battery box fuse panel
ODH073037

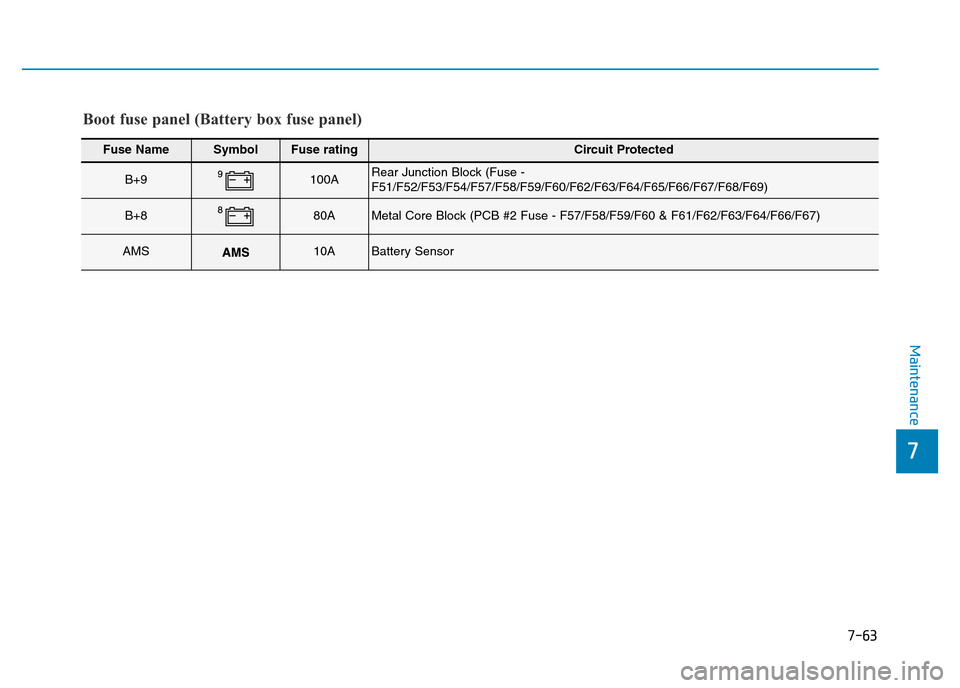

Boot fuse panel (Battery box fuse panel)

7-63
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
B+9100ARear Junction Block (Fuse -
F51/F52/F53/F54/F57/F58/F59/F60/F62/F63/F64/F65/F66/F67/F68/F69)
B+880AMetal Core Block (PCB #2 Fuse - F57/F58/F59/F60 & F61/F62/F63/F64/F66/F67)
AMS10ABattery Sensor
Boot fuse panel (Battery box fuse panel)

7-64
Maintenance

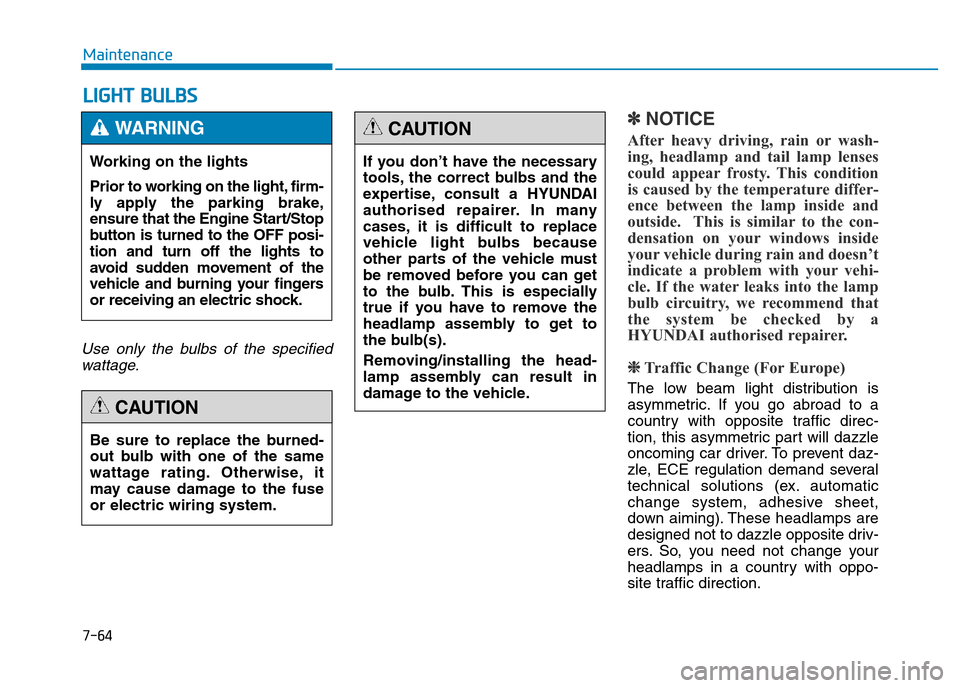

LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽NOTICE
After heavy driving, rain or wash-
ing, headlamp and tail lamp lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during rain and doesn’t
indicate a problem with your vehi-
cle. If the water leaks into the lamp
bulb circuitry, we recommend that
the system be checked by a
HYUNDAI authorised repairer.
❈Traffic Change (For Europe)
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direc-
tion, this asymmetric part will dazzle
oncoming car driver. To prevent daz-
zle, ECE regulation demand several
technical solutions (ex. automatic
change system, adhesive sheet,
down aiming). These headlamps are
designed not to dazzle opposite driv-
ers. So, you need not change your
headlamps in a country with oppo-
site traffic direction. Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
If you don’t have the necessary
tools, the correct bulbs and the
expertise, consult a HYUNDAI
authorised repairer. In many
cases, it is difficult to replace
vehicle light bulbs because
other parts of the vehicle must
be removed before you can get
to the bulb. This is especially
true if you have to remove the
headlamp assembly to get to
the bulb(s).
Removing/installing the head-
lamp assembly can result in
damage to the vehicle.
CAUTION
Working on the lights
Prior to working on the light, firm-
ly apply the parking brake,
ensure that the Engine Start/Stop
button is turned to the OFF posi-
tion and turn off the lights to
avoid sudden movement of the
vehicle and burning your fingers
or receiving an electric shock.
WARNING
