Hyundai Genesis Coupe 2011 Owner's Manual

Specifications & Consumer information
4
8

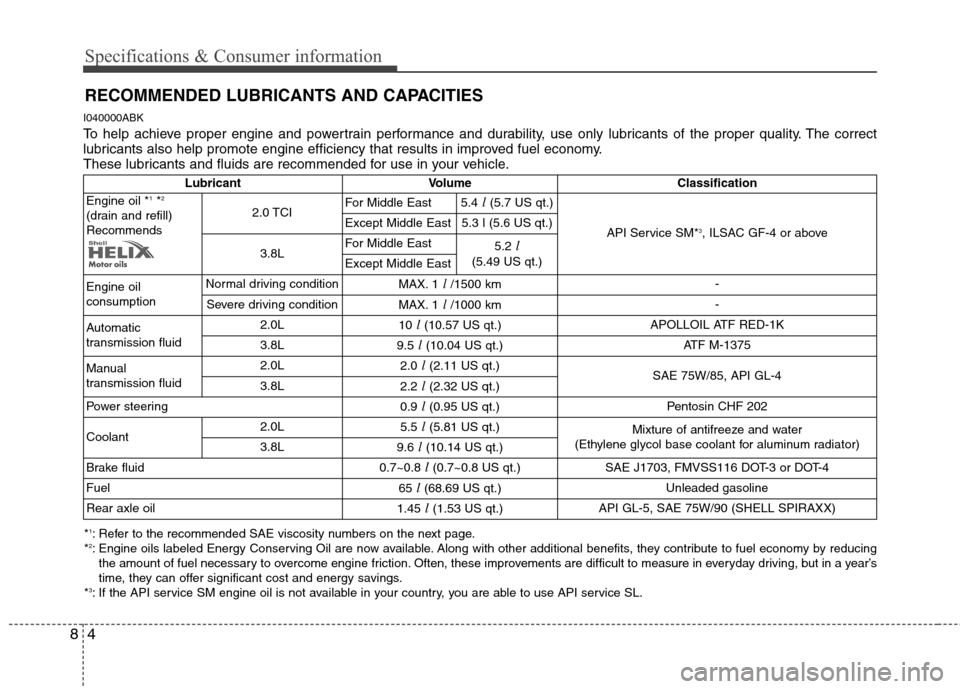

RECOMMENDED LUBRICANTS AND CAPACITIES
I040000ABK
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
* 1
: Refer to the recommended SAE viscosity numbers on the next page.
* 2
: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
: If the API service SM engine oil is not available in your country, you are able to use API service SL. Lubricant Volume
Classification
Engine oil * 1
*2
(drain and refill)Recommends 2.0 TCI
For Middle East
5.4l (5.7 US qt.)
API Service SM*3
, ILSAC GF-4 or above
Except Middle East 5.3 l (5.6 US qt.)
3.8L For Middle East
5.2l
(5.49 US qt.)
Except Middle East
Engine oil consumption Normal driving condition
MAX. 1l /1500 km -
Severe driving condition MAX. 1l /1000 km -
Automatic
transmission fluid 2.0L
10l (10.57 US qt.) APOLLOIL ATF RED-1K
3.8L 9.5l (10.04 US qt.) ATF M-1375
Manual
transmission fluid 2.0L
2.0l (2.11 US qt.)
SAE 75W/85, API GL-4
3.8L 2.2l (2.32 US qt.)
Power steering 0.9l (0.95 US qt.) Pentosin CHF 202
Coolant 2.0L
5.5l (5.81 US qt.)
Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
3.8L 9.6l (10.14 US qt.)
Brake fluid 0.7~0.8l (0.7~0.8 US qt.) SAE J1703, FMVSS116 DOT-3 or DOT-4
Fuel 65l (68.69 US qt.) Unleaded gasoline
Rear axle oil 1.45l (1.53 US qt.) API GL-5, SAE 75W/90 (SHELL SPIRAXX)

85
Specifications & Consumer information
I040100AUN Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas
and when the vehicle is used on unpaved roads. Cleaning the plugand dipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil (3.8L) * 1
Gasoline
Engine Oil (2.0 TCI) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
*1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20* 3
(API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
* 2
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
20W-50
10W-30
15W-40
5W-20* 3
(5W-30)
5W-30, 5W-40, 5W-20* 2

Specifications & Consumer information
6
8
VEHICLE IDENTIFICATION NUMBER (VIN)
H010000AUN
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the passenger’s seat. The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.VEHICLE CERTIFICATION LABEL H020000AEN
The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
OBK089001
Frame number
OBK089002OBK089006N
VIN label (if equipped)

87
Specifications & Consumer information

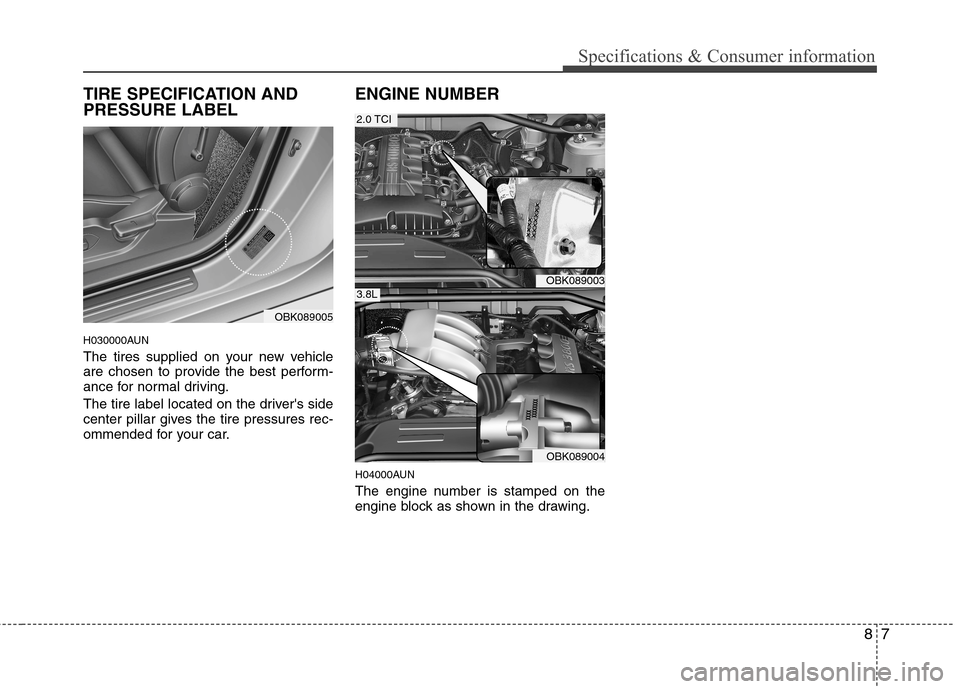

TIRE SPECIFICATION AND PRESSURE LABEL
H030000AUN
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.ENGINE NUMBER
H04000AUN
The engine number is stamped on the
engine block as shown in the drawing.
OBK089003
OBK089004
3.8L
2.0 TCI
OBK089005

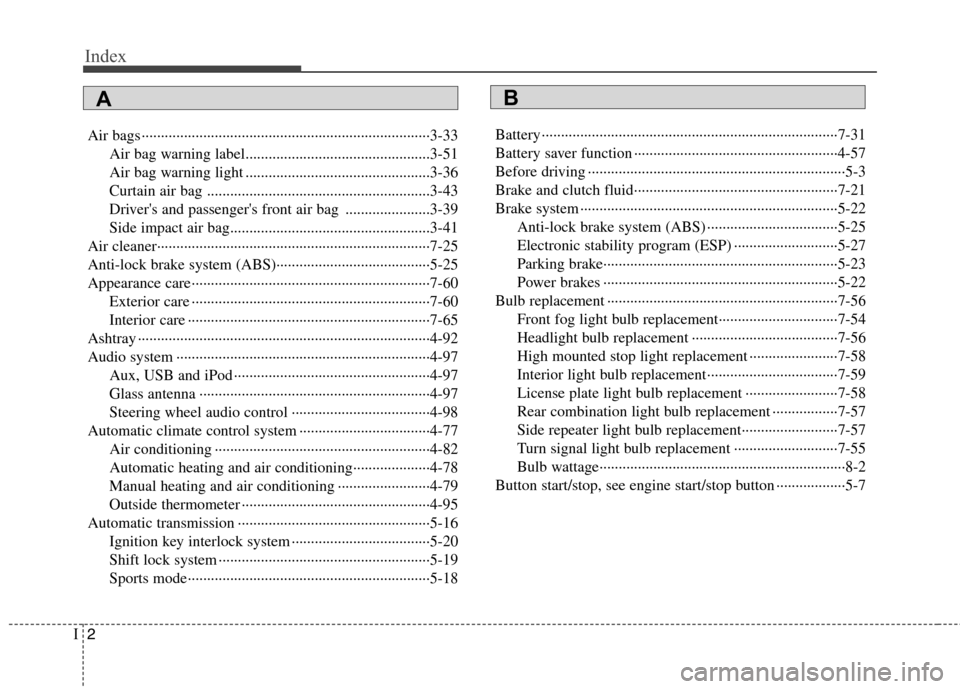

IIndex

Index
2
I
Air bags ···········································································3-33
Air bag warning label................................................3-51
Air bag warning light ................................................3-36
Curtain air bag ..........................................................3-43
Driver's and passenger's front air bag ......................3-39
Side impact air bag....................................................3-41
Air cleaner·······································································7-25
Anti-lock brake system (ABS)········································5-25
Appearance care······························································7-60 Exterior care ······························································7-60
Interior care ·······························································7-65
Ashtray ············································································4-92
Audio system ··································································4-97 Aux, USB and iPod ···················································4-97
Glass antenna ····························································4-97
Steering wheel audio control ····································4-98
Automatic climate control system ··································4-77 Air conditioning ························································4-82
Automatic heating and air conditioning····················4-78
Manual heating and air conditioning ························4-79
Outside thermometer ·················································4-95
Automatic transmission ··················································5-16 Ignition key interlock system ····································5-20
Shift lock system ·······················································5-19
Sports mode·······························································5-18 Battery ·············································································7-31
Battery saver function ·····················································4-57
Before driving ···································································5-3
Brake and clutch fluid·····················································7-21
Brake system ···································································5-22
Anti-lock brake system (ABS) ··································5-25
Electronic stability program (ESP) ···························5-27
Parking brake·····························································5-23
Power brakes ·····························································5-22
Bulb replacement ····························································7-56 Front fog light bulb replacement·······························7-54
Headlight bulb replacement ······································7-56
High mounted stop light replacement ·······················7-58
Interior light bulb replacement··································7-59
License plate light bulb replacement ························7-58
Rear combination light bulb replacement ·················7-57
Side repeater light bulb replacement·························7-57
Turn signal light bulb replacement ···························7-55
Bulb wattage································································8-2
Button start/stop, see engine start/stop button ··················5-7
AB

I3
Index

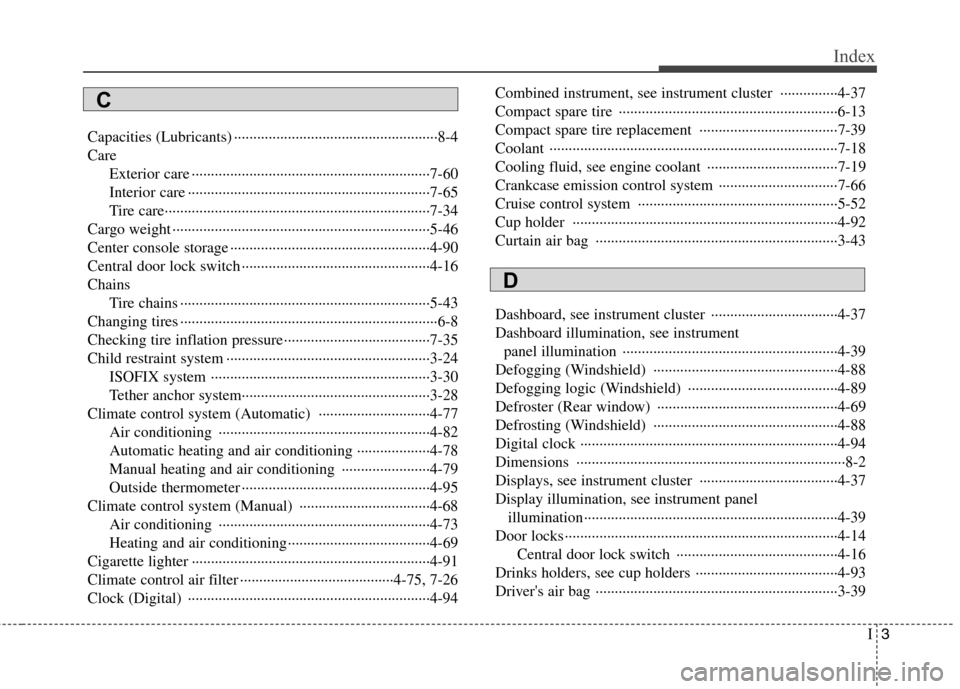

Capacities (Lubricants) ·····················································8-4 Care
Exterior care ······························································7-60
Interior care ·······························································7-65
Tire care·····································································7-34
Cargo weight ···································································5-46
Center console storage ····················································4-90
Central door lock switch ·················································4-16Chains Tire chains ·································································5-43
Changing tires ···································································6-8
Checking tire inflation pressure ······································7-35
Child restraint system ·····················································3-24 ISOFIX system ·························································3-30
Tether anchor system·················································3-28
Climate control system (Automatic) ·····························4-77 Air conditioning ·······················································4-82Automatic heating and air conditioning ···················4-78
Manual heating and air conditioning ·······················4-79
Outside thermometer ·················································4-95
Climate control system (Manual) ··································4-68 Air conditioning ·······················································4-73
Heating and air conditioning ·····································4-69
Cigarette lighter ······························································4-91
Climate control air filter ········································4-75, 7-26
Clock (Digital) ·······························································4-94 Combined instrument, see instrument cluster ···············4-37
Compact spare tire ·························································6-13
Compact spare tire replacement ····································7-39Coolant ···········································································7-18
Cooling fluid, see engine coolant ··································7-19
Crankcase emission control system ·······························7-66
Cruise control system ····················································5-52
Cup holder ·····································································4-92
Curtain air bag ·······························································3-43
Dashboard, see instrument cluster ·································4-37
Dashboard illumination, see instrument
panel illumination ························································4-39
Defogging (Windshield) ················································4-88
Defogging logic (Windshield) ·······································4-89
Defroster (Rear window) ···············································4-69
Defrosting (Windshield) ················································4-88
Digital clock ···································································4-94Dimensions ······································································8-2
Displays, see instrument cluster ····································4-37
Display illumination, see instrument panel illumination··································································4-39
Door locks ·······································································4-14 Central door lock switch ··········································4-16
Drinks holders, see cup holders ·····································4-93
Driver's air bag ·······························································3-39
C
D

Index
4
I
Driving at night ······························································5-39
Driving in flooded areas ················································5-40
Driving in the rain ··························································5-40
Economical operation ····················································5-36
Electrochromic mirror (ECM) ·······································4-34
Electronic stability program (ESP) ································5-27
Emergency commodity ··················································6-19
Emergency starting ··························································6-4
Jump starting ······························································6-4
Push starting ·······························································6-5
Emergency trunk safety release ·····································4-19
Emergency towing ·························································6-17
Emergency while driving ·················································6-2
Emission control system ················································7-66 Crankcase emission control system ·························7-66
Evaporative emission control system ·······················7-66
Exhaust emission control system ·····························7-67
Engine compartment ················································2-4, 7-2
Engine coolant ·······························································7-18
Engine number ·································································8-7
Engine oil ·······································································7-17
Engine overheats ······························································6-6
Engine start/stop button ···················································5-7
Engine temperature gauge ·············································4-41
Engine will not start ·························································6-3 Evaporative emission control system ····························7-66
Exhaust emission control system ···································7-67Explanation of scheduled maintenance items ················7-14
Exterior care ···································································7-60
Flat tire (with spare tire) ···················································6-7
Changing tires ····························································6-8
Compact spare tire ···················································6-13
Jack and tools ·····························································6-7
Removing and storing the spare tire ··························6-8
Floor mat anchor(s) ·······················································4-96Fluid Washer fluid ·····························································7-23
Brake and cluch fluid ···············································7-21
Folding the rear seat ······················································3-11
Front fog light bulb replacement ···································7-56Front seat adjustment - manual ········································3-4
Front seat adjustment - power ·········································3-9
Fuel filler lid ··································································4-25
Fuel gauge ······································································4-41
Fuel requirements ····························································1-2Fuses ··············································································7-44 Fuse/relay panel description ····································7-48
Memory fuse ·····························································7-46
Multi fuse ··································································7-47
E
F

I5
Index

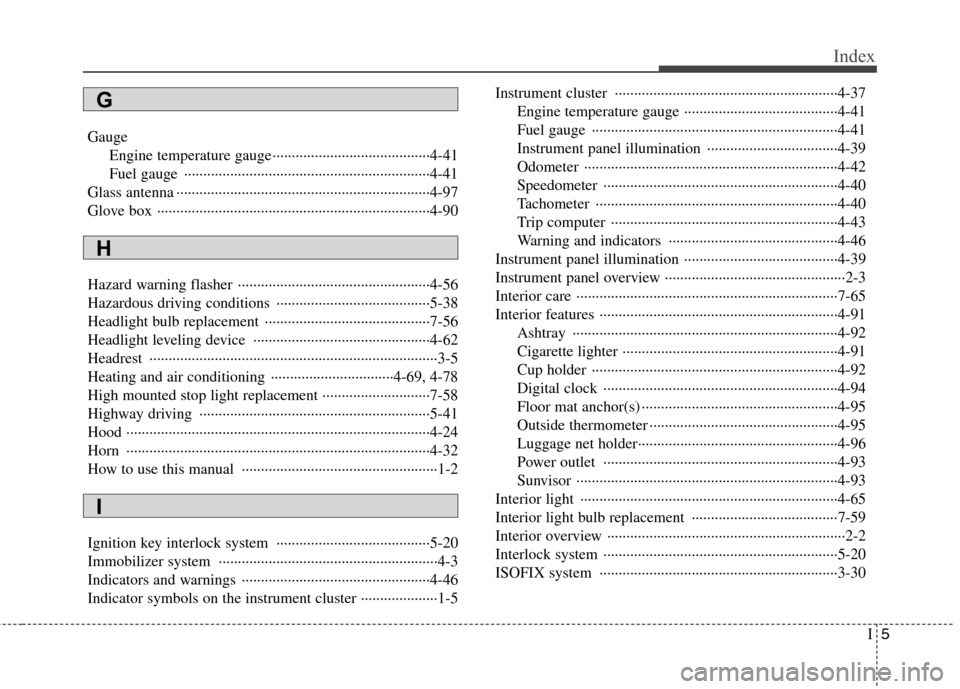

Gauge
Engine temperature gauge ·········································4-41
Fuel gauge ································································4-41
Glass antenna ··································································4-97
Glove box ·······································································4-90
Hazard warning flasher ··················································4-56
Hazardous driving conditions ········································5-38
Headlight bulb replacement ···········································7-56
Headlight leveling device ··············································4-62Headrest ···········································································3-5
Heating and air conditioning ································4-69, 4-78High mounted stop light replacement ····························7-58
Highway driving ····························································5-41Hood ···············································································4-24Horn ···············································································4-32
How to use this manual ···················································1-2
Ignition key interlock system ········································5-20
Immobilizer system ·························································4-3
Indicators and warnings ·················································4-46
Indicator symbols on the instrument cluster ····················1-5 Instrument cluster ··························································4-37
Engine temperature gauge ········································4-41
Fuel gauge ································································4-41
Instrument panel illumination ··································4-39Odometer ··································································4-42Speedometer ·····························································4-40
Tachometer ·······························································4-40
Trip computer ···························································4-43
Warning and indicators ············································4-46
Instrument panel illumination ········································4-39
Instrument panel overview ···············································2-3
Interior care ····································································7-65
Interior features ······························································4-91 Ashtray ·····································································4-92
Cigarette lighter ························································4-91
Cup holder ································································4-92
Digital clock ·····························································4-94
Floor mat anchor(s) ···················································4-95
Outside thermometer ·················································4-95
Luggage net holder····················································4-96
Power outlet ·····························································4-93
Sunvisor ····································································4-93
Interior light ···································································4-65
Interior light bulb replacement ······································7-59
Interior overview ······························································2-2
Interlock system ·····························································5-20
ISOFIX system ······························································3-30
G
H
I

Index
6
I

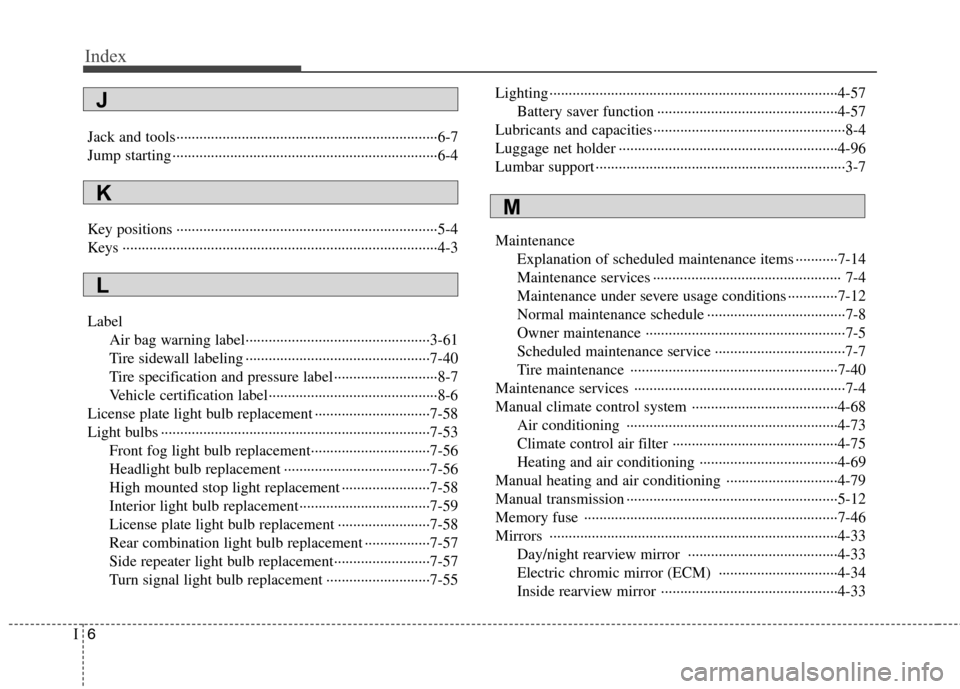

Jack and tools····································································6-7
Jump starting ·····································································6-4
Key positions ····································································5-4
Keys ··················································································4-3 Label
Air bag warning label················································3-61
Tire sidewall labeling ················································7-40
Tire specification and pressure label ···························8-7
Vehicle certification label············································8-6
License plate light bulb replacement ······························7-58
Light bulbs ······································································7-53 Front fog light bulb replacement·······························7-56
Headlight bulb replacement ······································7-56
High mounted stop light replacement ·······················7-58
Interior light bulb replacement··································7-59
License plate light bulb replacement ························7-58
Rear combination light bulb replacement ·················7-57
Side repeater light bulb replacement·························7-57
Turn signal light bulb replacement ···························7-55 Lighting ···········································································4-57
Battery saver function ···············································4-57
Lubricants and capacities ··················································8-4
Luggage net holder ·························································4-96
Lumbar support ·································································3-7 Maintenance Explanation of scheduled maintenance items ···········7-14Maintenance services ················································· 7-4
Maintenance under severe usage conditions ·············7-12 Normal maintenance schedule ····································7-8
Owner maintenance ····················································7-5
Scheduled maintenance service ··································7-7
Tire maintenance ······················································7-40
Maintenance services ·······················································7-4
Manual climate control system ······································4-68 Air conditioning ·······················································4-73
Climate control air filter ···········································4-75
Heating and air conditioning ····································4-69
Manual heating and air conditioning ·····························4-79
Manual transmission ·······················································5-12
Memory fuse ··································································7-46Mirrors ···········································································4-33 Day/night rearview mirror ·······································4-33
Electric chromic mirror (ECM) ·······························4-34
Inside rearview mirror ··············································4-33
L
MK
J
