Hyundai Genesis Coupe 2013 Owner's Manual

445
Features of your vehicle

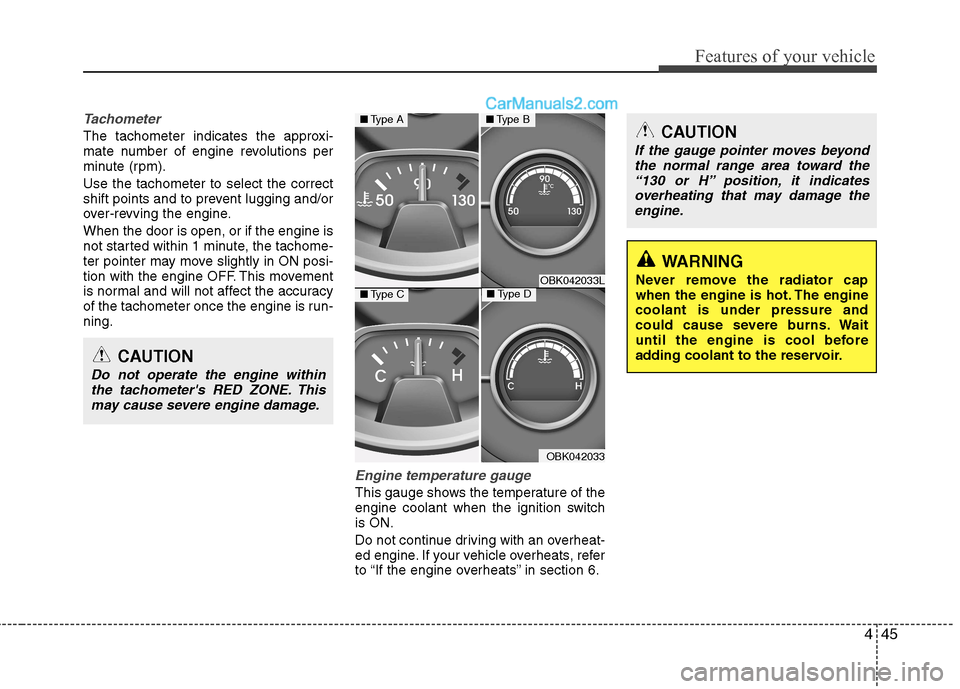

Tachometer
The tachometer indicates the approxi-
mate number of engine revolutions per
minute (rpm). Use the tachometer to select the correct
shift points and to prevent lugging and/or
over-revving the engine. When the door is open, or if the engine is
not started within 1 minute, the tachome-
ter pointer may move slightly in ON posi-
tion with the engine OFF. This movement
is normal and will not affect the accuracy
of the tachometer once the engine is run-ning.
Engine temperature gauge
This gauge shows the temperature of the
engine coolant when the ignition switchis ON.
Do not continue driving with an overheat-
ed engine. If your vehicle overheats, refer
to “If the engine overheats” in section 6.
CAUTION
Do not operate the engine withinthe tachometer's RED ZONE. This
may cause severe engine damage.
CAUTION
If the gauge pointer moves beyondthe normal range area toward the
“130 or H” position, it indicates overheating that may damage theengine.
WARNING
Never remove the radiator cap
when the engine is hot. The enginecoolant is under pressure and
could cause severe burns. Wait
until the engine is cool before
adding coolant to the reservoir.
OBK042033L
OBK042033
■ Type A
■Type C
■ Type B
■Type D

Features of your vehicle
46
4

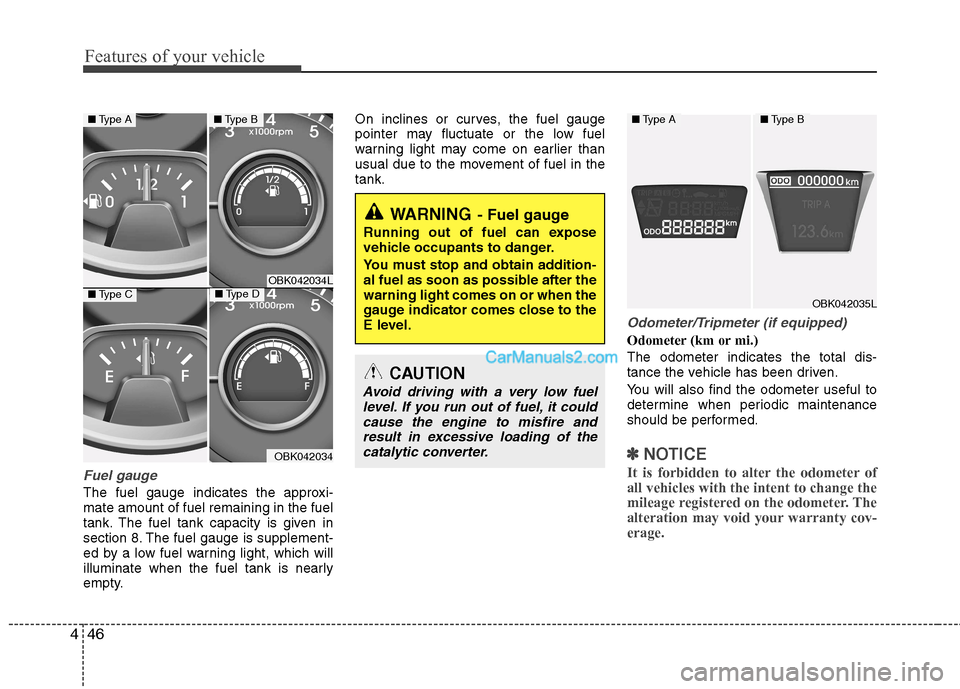

Fuel gauge
The fuel gauge indicates the approxi- mate amount of fuel remaining in the fuel
tank. The fuel tank capacity is given in
section 8. The fuel gauge is supplement-
ed by a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty. On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in thetank.
Odometer/Tripmeter (if equipped)
Odometer (km or mi.) The odometer indicates the total dis-
tance the vehicle has been driven.
You will also find the odometer useful to
determine when periodic maintenance
should be performed.
✽✽
NOTICE
It is forbidden to alter the odometer of all vehicles with the intent to change the
mileage registered on the odometer. The
alteration may void your warranty cov-erage.
WARNING - Fuel gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addition-
al fuel as soon as possible after thewarning light comes on or when the
gauge indicator comes close to the
E level.
CAUTION
Avoid driving with a very low fuel level. If you run out of fuel, it could
cause the engine to misfire andresult in excessive loading of thecatalytic converter.
OBK042035L
■ Type A■Type B
OBK042034L
OBK042034
■ Type A
■Type C
■Type B
■Type D

447
Features of your vehicle

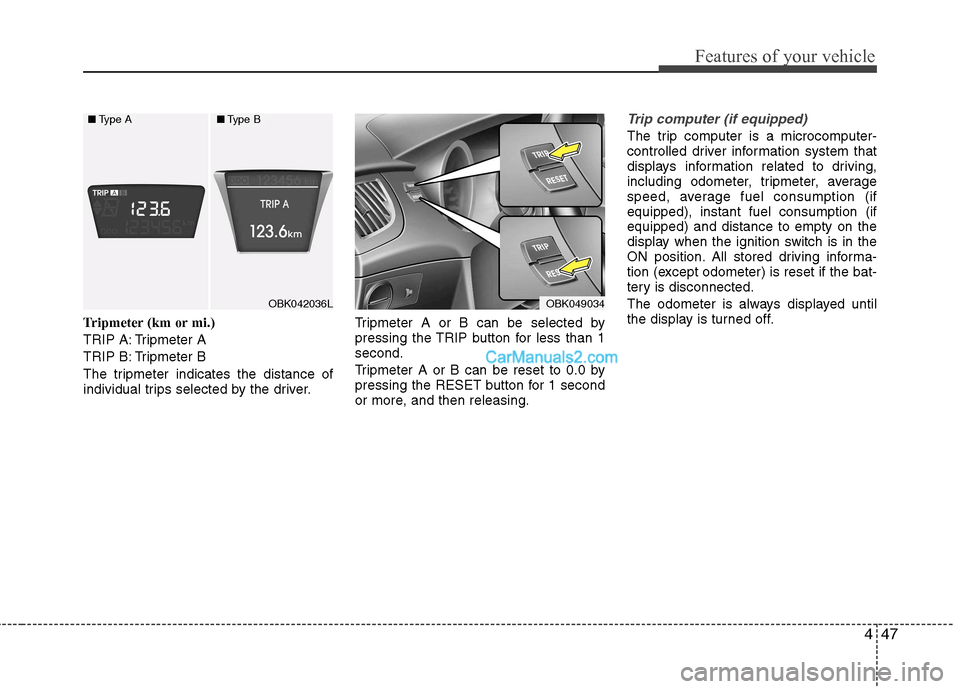

Tripmeter (km or mi.)
TRIP A: Tripmeter A
TRIP B: Tripmeter B
The tripmeter indicates the distance of
individual trips selected by the driver.Tripmeter A or B can be selected by
pressing the TRIP button for less than 1second.
Tripmeter A or B can be reset to 0.0 by
pressing the RESET button for 1 second
or more, and then releasing.
Trip computer (if equipped)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving,
including odometer, tripmeter, average
speed, average fuel consumption (ifequipped), instant fuel consumption (ifequipped) and distance to empty on the
display when the ignition switch is in the
ON position. All stored driving informa-
tion (except odometer) is reset if the bat-
tery is disconnected.
The odometer is always displayed until
the display is turned off.
OBK049034OBK042036L
■
Type A■Type B

Features of your vehicle
48
4

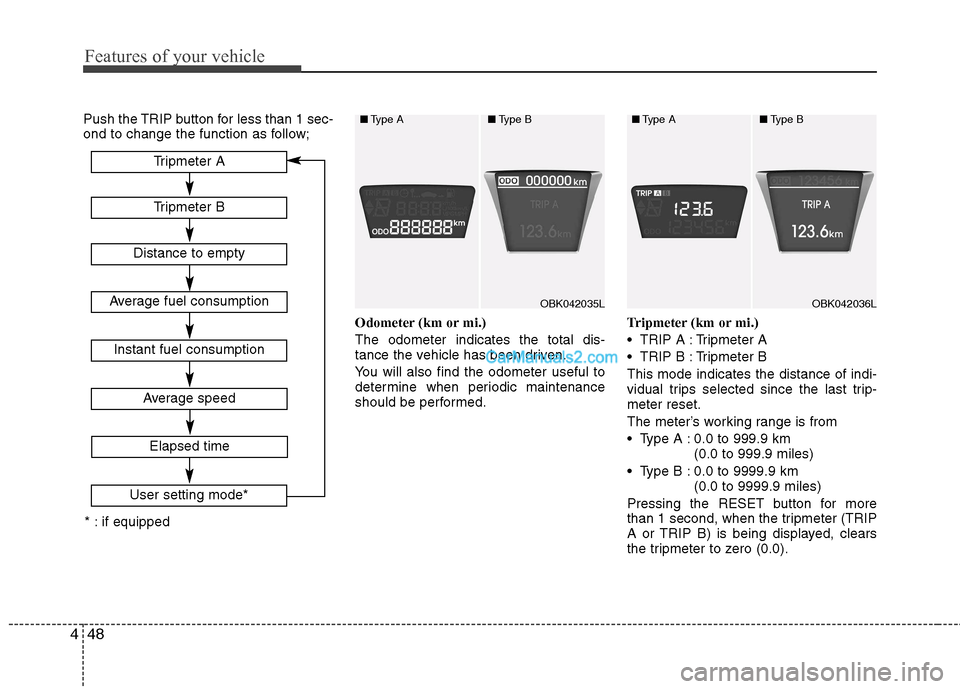

Push the TRIP button for less than 1 sec-
ond to change the function as follow;
Odometer (km or mi.) The odometer indicates the total dis-
tance the vehicle has been driven.
You will also find the odometer useful to
determine when periodic maintenance
should be performed.Tripmeter (km or mi.)
TRIP A : Tripmeter A
TRIP B : Tripmeter BThis mode indicates the distance of indi-
vidual trips selected since the last trip-meter reset.
The meter’s working range is from
Type A : 0.0 to 999.9 km
(0.0 to 999.9 miles)
Type B : 0.0 to 9999.9 km (0.0 to 9999.9 miles)
Pressing the RESET button for more
than 1 second, when the tripmeter (TRIP
A or TRIP B) is being displayed, clears
the tripmeter to zero (0.0).
Tripmeter B
Instant fuel consumption
Tripmeter A
Distance to empty
Average speed
Average fuel consumption
Elapsed time
OBK042035L
■
Type A ■Type BOBK042036L
■
Type A ■Type B
User setting mode*
* : if equipped

449
Features of your vehicle

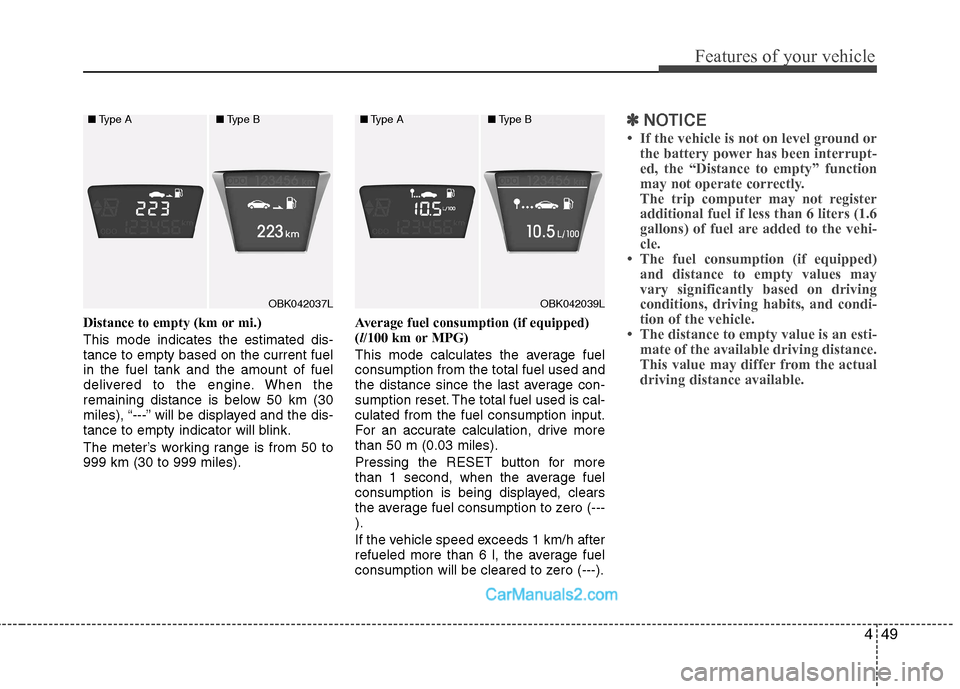

Distance to empty (km or mi.) This mode indicates the estimated dis- tance to empty based on the current fuelin the fuel tank and the amount of fuel
delivered to the engine. When the
remaining distance is below 50 km (30
miles), “---” will be displayed and the dis-
tance to empty indicator will blink.
The meter’s working range is from 50 to 999 km (30 to 999 miles).Average fuel consumption (if equipped)(
l/100 km or MPG)
This mode calculates the average fuelconsumption from the total fuel used and
the distance since the last average con-
sumption reset. The total fuel used is cal-culated from the fuel consumption input.
For an accurate calculation, drive morethan 50 m (0.03 miles).
Pressing the RESET button for more
than 1 second, when the average fuel
consumption is being displayed, clears
the average fuel consumption to zero (---).
If the vehicle speed exceeds 1 km/h after
refueled more than 6 l, the average fuel
consumption will be cleared to zero (---).
✽✽ NOTICE

Features of your vehicle
50
4

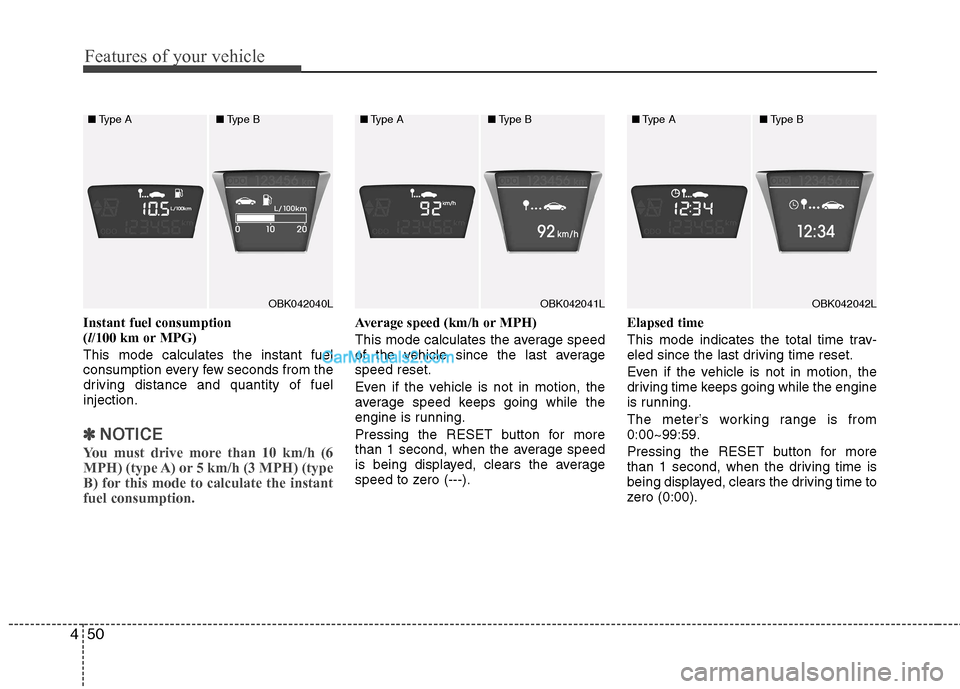

Instant fuel consumption ( l/100 km or MPG)
This mode calculates the instant fuel
consumption every few seconds from the
driving distance and quantity of fuelinjection.
✽✽ NOTICE
You must drive more than 10 km/h (6
MPH) (type A) or 5 km/h (3 MPH) (type
B) for this mode to calculate the instantfuel consumption.
Average speed (km/h or MPH)
This mode calculates the average speed
of the vehicle since the last averagespeed reset.
Even if the vehicle is not in motion, the
average speed keeps going while the
engine is running.
Pressing the RESET button for more
than 1 second, when the average speed
is being displayed, clears the average
speed to zero (---). Elapsed time
This mode indicates the total time trav-
eled since the last driving time reset.
Even if the vehicle is not in motion, the
driving time keeps going while the engine
is running.
The meter’s working range is from 0:00~99:59.
Pressing the RESET button for more
than 1 second, when the driving time is
being displayed, clears the driving time to
zero (0:00).
OBK042040L
■
Type A ■Type BOBK042041L
■
Type A ■Type BOBK042042L
■
Type A ■Type B

451
Features of your vehicle

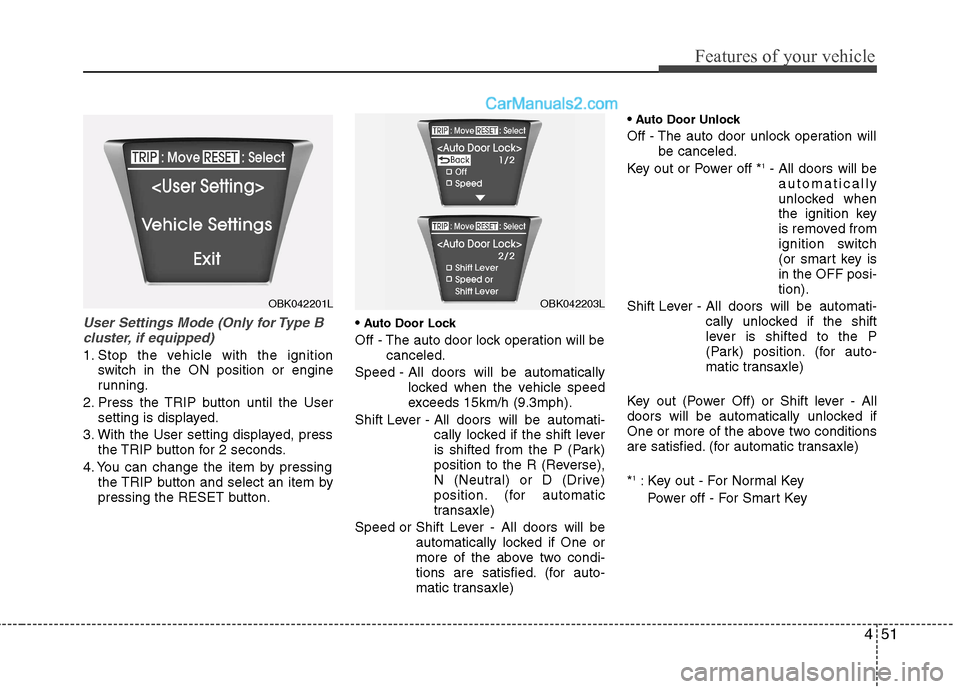

User Settings Mode (Only for Type Bcluster, if equipped)
1. Stop the vehicle with the ignition switch in the ON position or engine
running.
2. Press the TRIP button until the User setting is displayed.
3. With the User setting displayed, press the TRIP button for 2 seconds.
4. You can change the item by pressing the TRIP button and select an item by
pressing the RESET button.
Auto Door Lock
Off - The auto door lock operation will be canceled.
Speed - All doors will be automatically locked when the vehicle speed
exceeds 15km/h (9.3mph).
Shift Lever - All doors will be automati- cally locked if the shift lever
is shifted from the P (Park)
position to the R (Reverse),
N (Neutral) or D (Drive)
position. (for automatic
transaxle)
Speed or Shift Lever - All doors will be automatically locked if One or
more of the above two condi-
tions are satisfied. (for auto-
matic transaxle)
Auto Door Unlock
Off - The auto door unlock operation will be canceled.
Key out or Power off * 1
- All doors will be
automatically
unlocked when
the ignition key
is removed from
ignition switch
(or smart key isin the OFF posi-tion).
Shift Lever - All doors will be automati- cally unlocked if the shift
lever is shifted to the P
(Park) position. (for auto-
matic transaxle)
Key out (Power Off) or Shift lever - All
doors will be automatically unlocked if
One or more of the above two conditions
are satisfied. (for automatic transaxle) * 1
: Key out - For Normal Key
Power off - For Smart Key
OBK042201LOBK042203L

Features of your vehicle
52
4

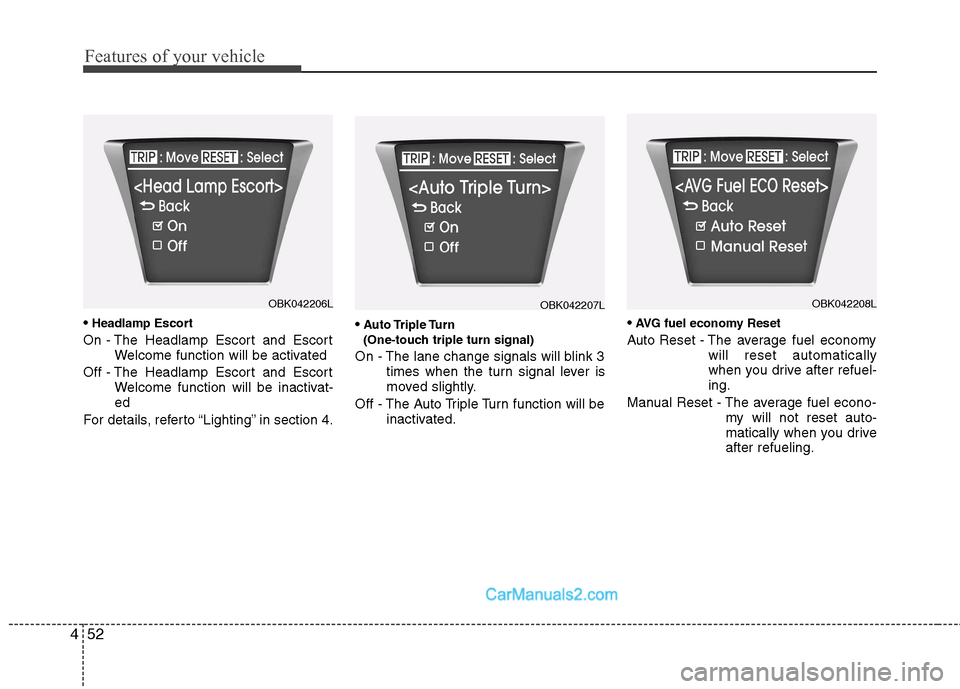

Headlamp Escort
On - The Headlamp Escort and Escort Welcome function will be activated
Off - The Headlamp Escort and Escort Welcome function will be inactivat- ed
For details, referto “Lighting” in section 4.
Auto Triple Turn
(One-touch triple turn signal)
On - The lane change signals will blink 3 times when the turn signal lever is
moved slightly.
Off - The Auto Triple Turn function will be inactivated.
AVG fuel economy Reset
Auto Reset - The average fuel economy will reset automatically
when you drive after refuel-ing.
Manual Reset - The average fuel econo- my will not reset auto-
matically when you driveafter refueling.
OBK042206LOBK042207LOBK042208L

453
Features of your vehicle

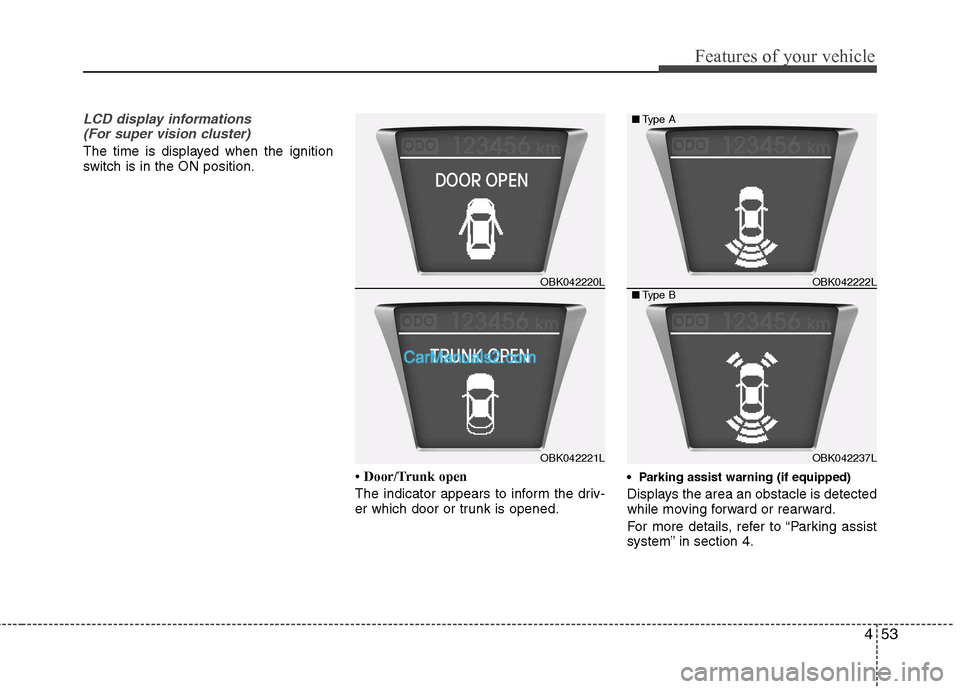

LCD display informations (For super vision cluster)
The time is displayed when the ignition
switch is in the ON position.

Features of your vehicle
54
4

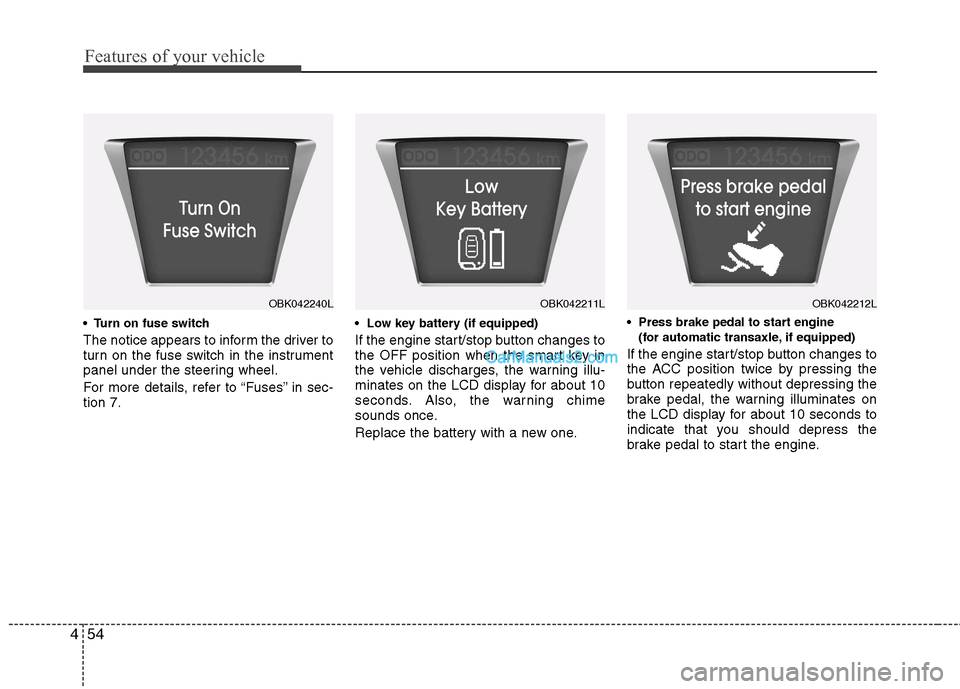

The notice appears to inform the driver to
turn on the fuse switch in the instrument
panel under the steering wheel.
For more details, refer to “Fuses” in sec- tion 7.
If the engine start/stop button changes to
the OFF position when the smart key in
the vehicle discharges, the warning illu-
minates on the LCD display for about 10
seconds. Also, the warning chime
sounds once.
Replace the battery with a new one.
(for automatic transaxle, if equipped)
If the engine start/stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing the
brake pedal, the warning illuminates on
the LCD display for about 10 seconds to
indicate that you should depress the
brake pedal to start the engine.
OBK042240LOBK042211LOBK042212L
