Hyundai Genesis Coupe 2013 Owner's Manual

475
Features of your vehicle

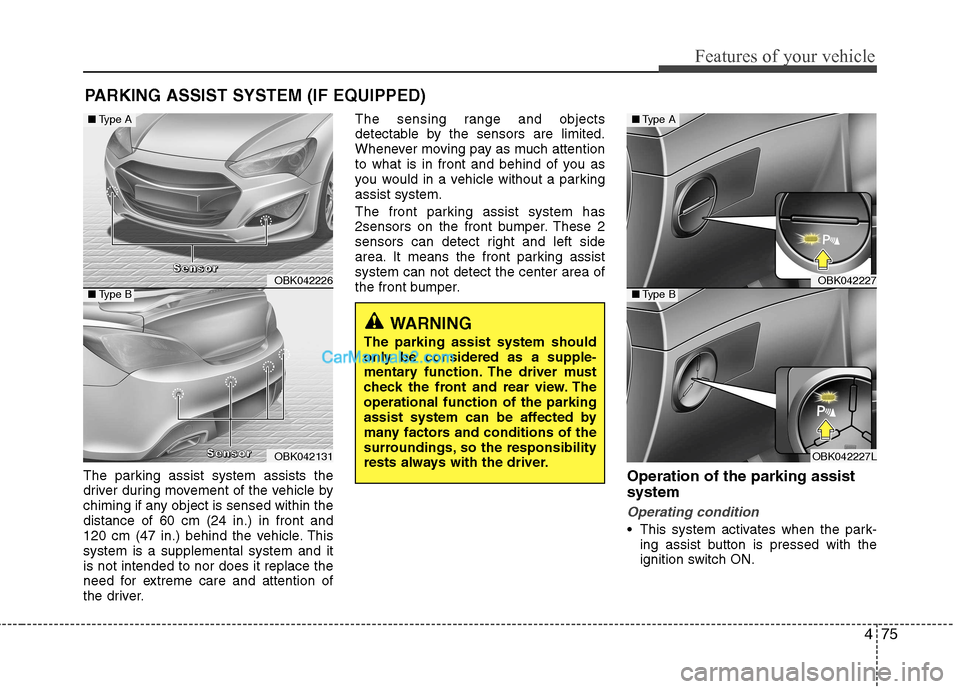

PARKING ASSIST SYSTEM (IF EQUIPPED)
The parking assist system assists the
driver during movement of the vehicle by
chiming if any object is sensed within thedistance of 60 cm (24 in.) in front and
120 cm (47 in.) behind the vehicle. Thissystem is a supplemental system and itis not intended to nor does it replace the
need for extreme care and attention of
the driver. The sensing range and objects
detectable by the sensors are limited.
Whenever moving pay as much attention
to what is in front and behind of you as
you would in a vehicle without a parkingassist system.
The front parking assist system has
2sensors on the front bumper. These 2
sensors can detect right and left side
area. It means the front parking assistsystem can not detect the center area of
the front bumper.
Operation of the parking assist system
Operating condition
This system activates when the park-ing assist button is pressed with the
ignition switch ON.
OBK042226
OBK042131
■Type A
■Type B
SSSSeeeennnnssssoooorrrr
SSSSeeeennnnssssoooorrrr
WARNING
The parking assist system should
only be considered as a supple-
mentary function. The driver must
check the front and rear view. Theoperational function of the parking
assist system can be affected by
many factors and conditions of the
surroundings, so the responsibility
rests always with the driver.
OBK042227
OBK042227L
■ Type A
■Type B

Features of your vehicle
76
4

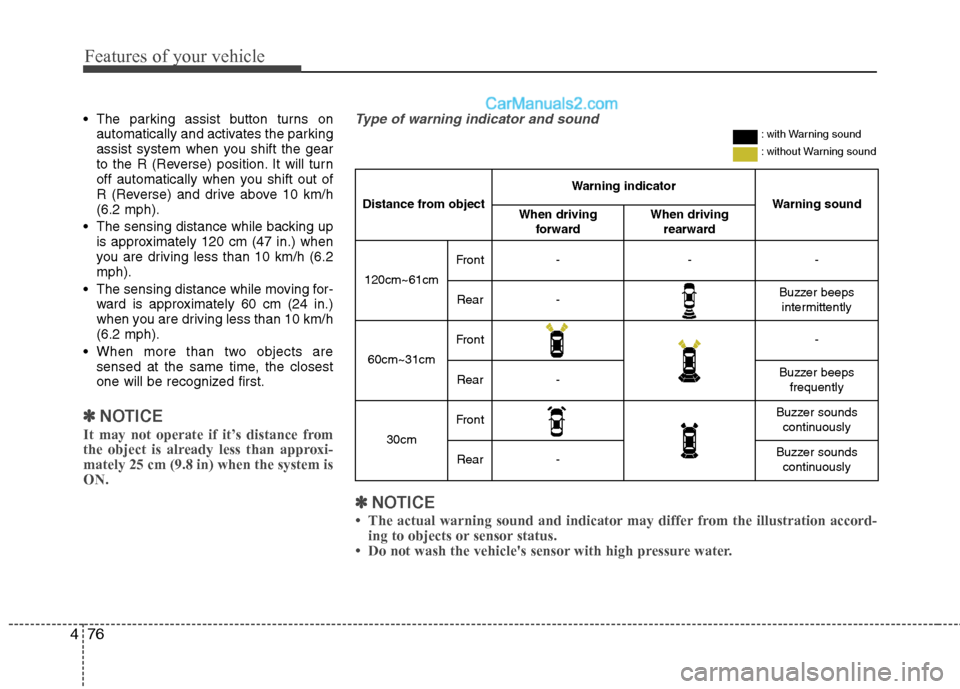

The parking assist button turns on
automatically and activates the parking
assist system when you shift the gear
to the R (Reverse) position. It will turn
off automatically when you shift out of
R (Reverse) and drive above 10 km/h(6.2 mph).
The sensing distance while backing up is approximately 120 cm (47 in.) when
you are driving less than 10 km/h (6.2mph).
The sensing distance while moving for- ward is approximately 60 cm (24 in.)
when you are driving less than 10 km/h(6.2 mph).
When more than two objects are sensed at the same time, the closest
one will be recognized first.
✽✽ NOTICE
It may not operate if it’s distance from
the object is already less than approxi-mately 25 cm (9.8 in) when the system isON.
Distance from object
Warning indicator
Warning soundWhen driving forwardWhen driving rearward
120cm~61cm
Front---
Rear-Buzzer beeps intermittently
60cm~31cm
Front-
Rear-Buzzer beeps frequently
30cm
FrontBuzzer sounds continuously
Rear-Buzzer sounds continuously
✽✽ NOTICE

477
Features of your vehicle

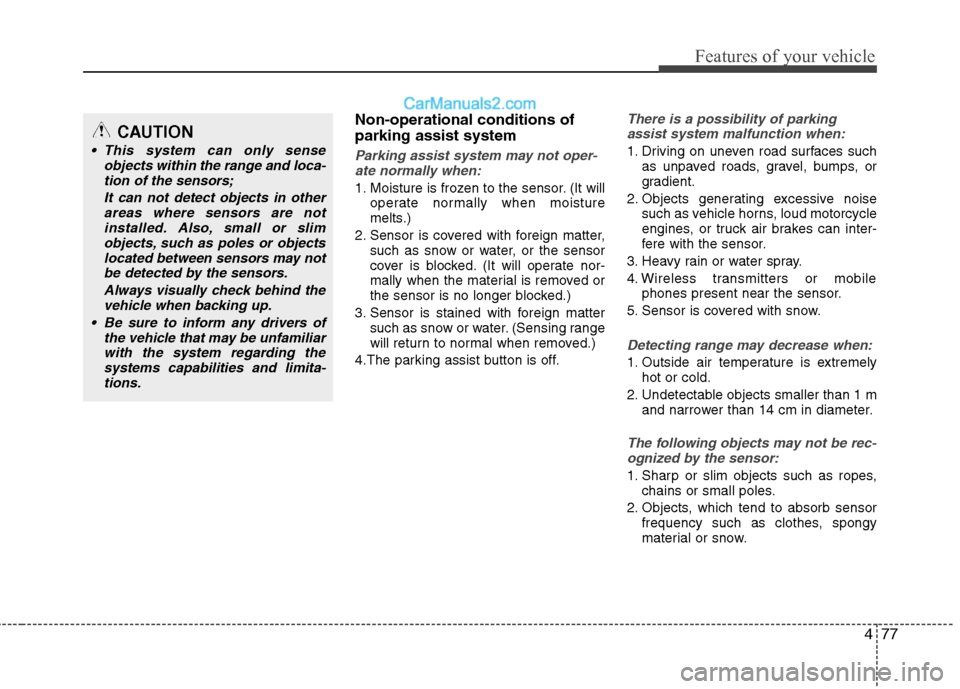

Non-operational conditions of parking assist system
Parking assist system may not oper-ate normally when:
1. Moisture is frozen to the sensor. (It will operate normally when moisture
melts.)
2. Sensor is covered with foreign matter, such as snow or water, or the sensor
cover is blocked. (It will operate nor-
mally when the material is removed or
the sensor is no longer blocked.)
3. Sensor is stained with foreign matter such as snow or water. (Sensing range
will return to normal when removed.)
4.The parking assist button is off.
There is a possibility of parking assist system malfunction when:
1. Driving on uneven road surfaces such as unpaved roads, gravel, bumps, or
gradient.
2. Objects generating excessive noise such as vehicle horns, loud motorcycle
engines, or truck air brakes can inter-
fere with the sensor.
3. Heavy rain or water spray.
4. Wireless transmitters or mobile phones present near the sensor.
5. Sensor is covered with snow.
Detecting range may decrease when:
1. Outside air temperature is extremely hot or cold.
2. Undetectable objects smaller than 1 m and narrower than 14 cm in diameter.
The following objects may not be rec-
ognized by the sensor:
1. Sharp or slim objects such as ropes, chains or small poles.
2. Objects, which tend to absorb sensor frequency such as clothes, spongy
material or snow.
CAUTION
This system can only sense
objects within the range and loca-
tion of the sensors;
It can not detect objects in otherareas where sensors are notinstalled. Also, small or slim
objects, such as poles or objects located between sensors may notbe detected by the sensors.
Always visually check behind thevehicle when backing up.
Be sure to inform any drivers of the vehicle that may be unfamiliarwith the system regarding the systems capabilities and limita-tions.

Features of your vehicle
78
4
✽✽

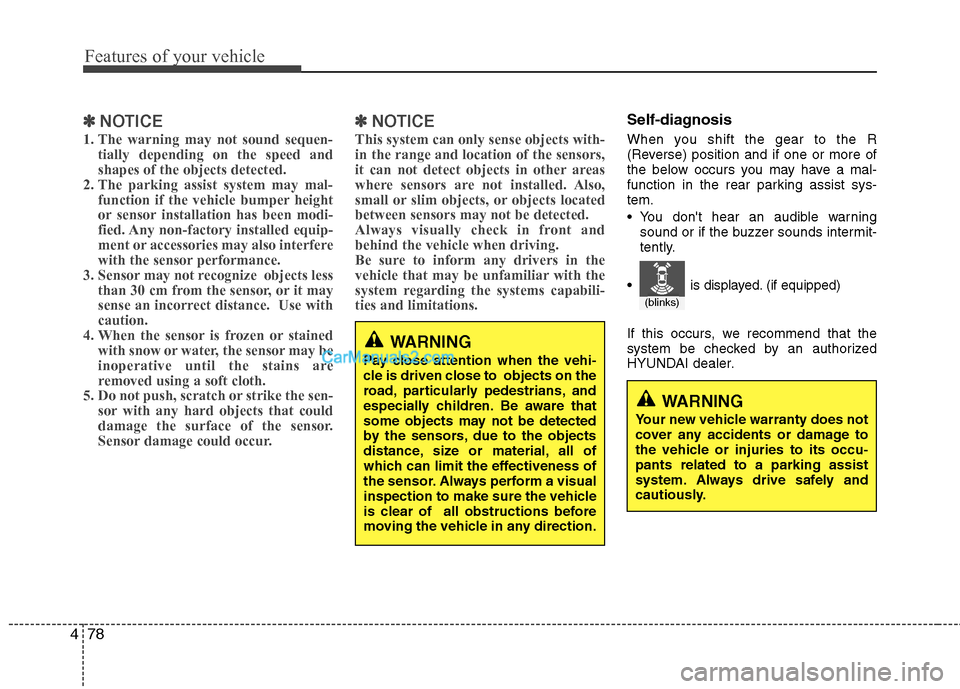

NOTICE
1. The warning may not sound sequen- tially depending on the speed and shapes of the objects detected.
2. The parking assist system may mal-
function if the vehicle bumper height
or sensor installation has been modi-
fied. Any non-factory installed equip-
ment or accessories may also interfere
with the sensor performance.
3. Sensor may not recognize objects less
than 30 cm from the sensor, or it may
sense an incorrect distance. Use withcaution.
4. When the sensor is frozen or stained
with snow or water, the sensor may be
inoperative until the stains are
removed using a soft cloth.
5. Do not push, scratch or strike the sen-
sor with any hard objects that could
damage the surface of the sensor.
Sensor damage could occur. ✽✽
NOTICE
This system can only sense objects with- in the range and location of the sensors,
it can not detect objects in other areas
where sensors are not installed. Also,
small or slim objects, or objects locatedbetween sensors may not be detected.
Always visually check in front andbehind the vehicle when driving.
Be sure to inform any drivers in the
vehicle that may be unfamiliar with the
system regarding the systems capabili-ties and limitations.Self-diagnosis
When you shift the gear to the R
(Reverse) position and if one or more of
the below occurs you may have a mal-
function in the rear parking assist sys-tem.
You don't hear an audible warning sound or if the buzzer sounds intermit-
tently.
If this occurs, we recommend that the
system be checked by an authorized
HYUNDAI dealer.
WARNING
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-pants related to a parking assist
system. Always drive safely and
cautiously.
WARNING
Pay close attention when the vehi-
cle is driven close to objects on the
road, particularly pedestrians, and
especially children. Be aware that
some objects may not be detected
by the sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor. Always perform a visual
inspection to make sure the vehicle
is clear of all obstructions before
moving the vehicle in any direction.
(blinks)
is displayed. (if equipped)

479
Features of your vehicle

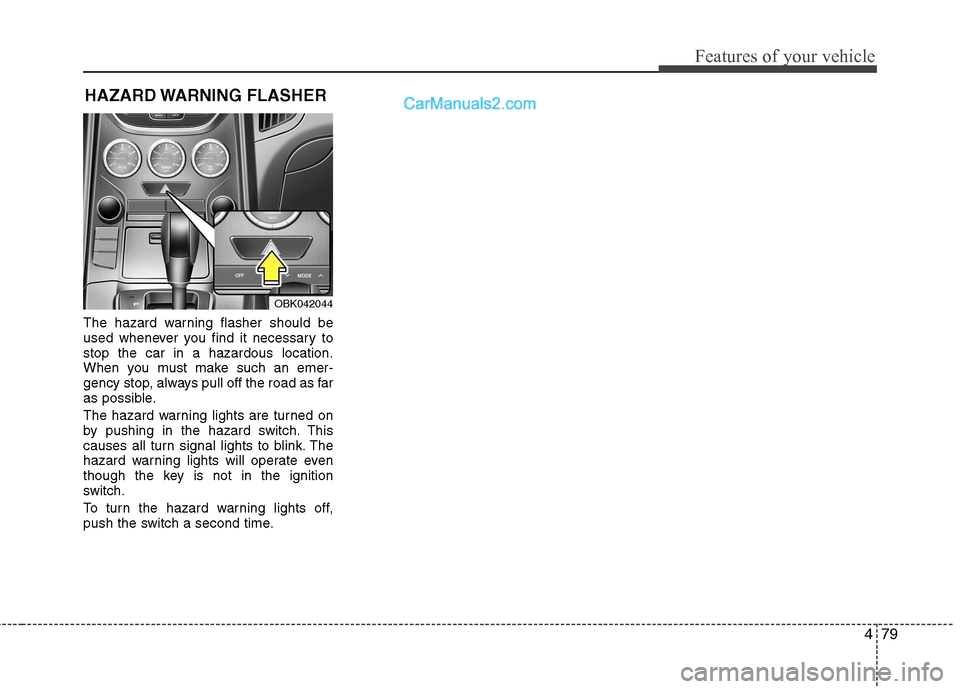

HAZARD WARNING FLASHER
The hazard warning flasher should be
used whenever you find it necessary tostop the car in a hazardous location.
When you must make such an emer-
gency stop, always pull off the road as far
as possible.
The hazard warning lights are turned on
by pushing in the hazard switch. This
causes all turn signal lights to blink. The
hazard warning lights will operate even
though the key is not in the ignition
switch.
To turn the hazard warning lights off,
push the switch a second time.
OBK042044

Features of your vehicle
80
4

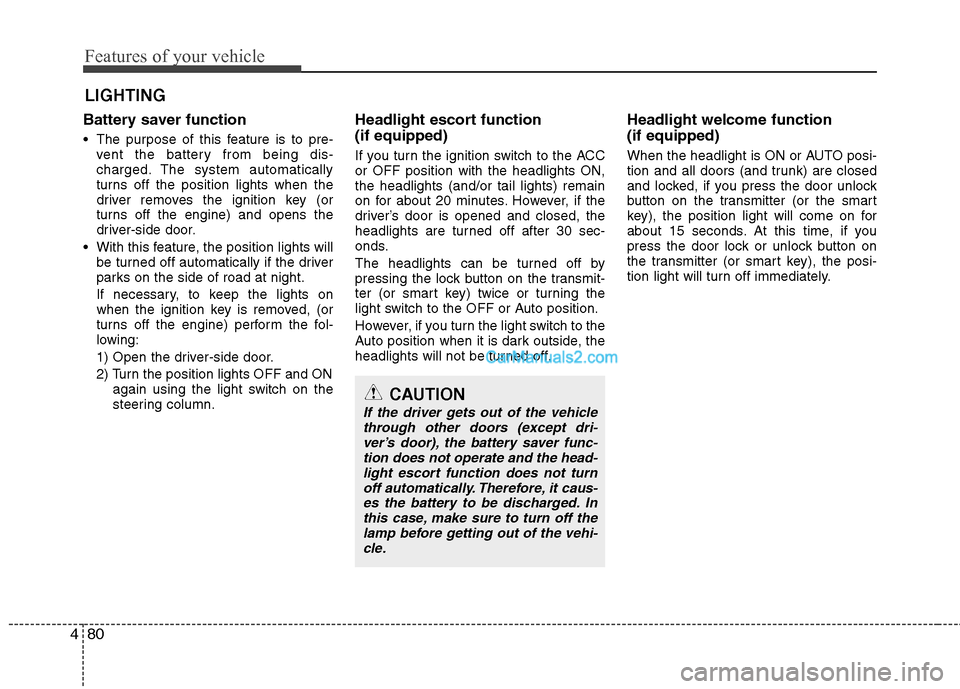

Battery saver function
The purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the position lights when the
driver removes the ignition key (or
turns off the engine) and opens the
driver-side door.
With this feature, the position lights will be turned off automatically if the driver
parks on the side of road at night.
If necessary, to keep the lights on
when the ignition key is removed, (or
turns off the engine) perform the fol-
lowing:
1) Open the driver-side door.
2) Turn the position lights OFF and ON again using the light switch on the
steering column. Headlight escort function (if equipped)
If you turn the ignition switch to the ACC or OFF position with the headlights ON,the headlights (and/or tail lights) remain
on for about 20 minutes. However, if the
driver’s door is opened and closed, the
headlights are turned off after 30 sec-
onds.
The headlights can be turned off by
pressing the lock button on the transmit-
ter (or smart key) twice or turning the
light switch to the OFF or Auto position.
However, if you turn the light switch to the
Auto position when it is dark outside, the
headlights will not be turned off.
Headlight welcome function (if equipped)
When the headlight is ON or AUTO posi-
tion and all doors (and trunk) are closed
and locked, if you press the door unlock
button on the transmitter (or the smart
key), the position light will come on for
about 15 seconds. At this time, if you
press the door lock or unlock button on
the transmitter (or smart key), the posi-
tion light will turn off immediately.
LIGHTING
CAUTION
If the driver gets out of the vehicle
through other doors (except dri-ver’s door), the battery saver func-
tion does not operate and the head-light escort function does not turnoff automatically. Therefore, it caus-es the battery to be discharged. In
this case, make sure to turn off the lamp before getting out of the vehi-cle.

481
Features of your vehicle

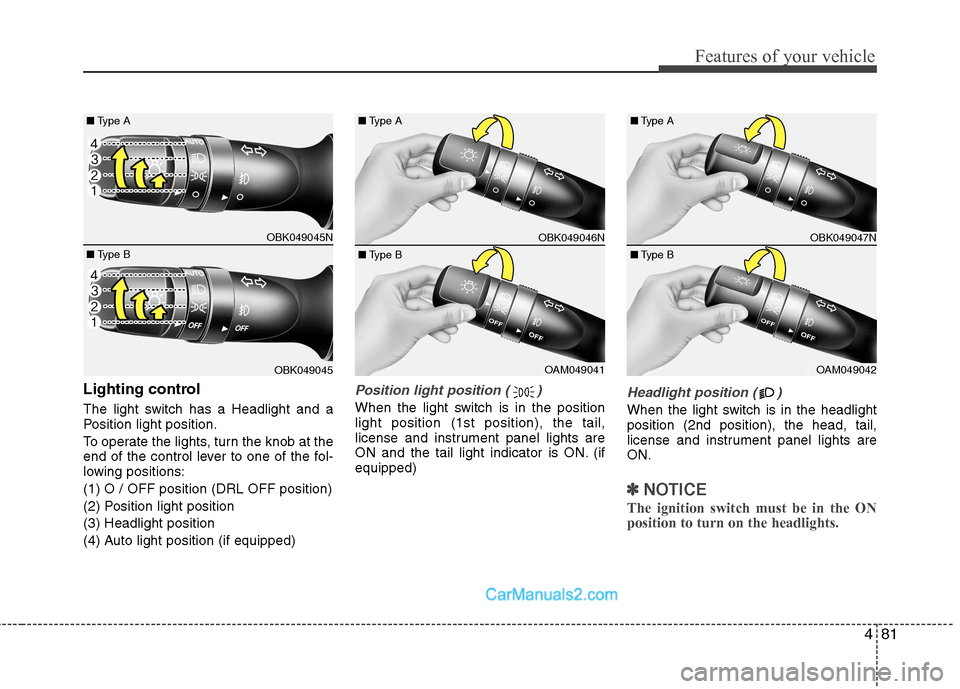

Lighting control
The light switch has a Headlight and a
Position light position.
To operate the lights, turn the knob at the
end of the control lever to one of the fol-
lowing positions: (1) O / OFF position (DRL OFF position)
(2) Position light position(3) Headlight position
(4) Auto light position (if equipped)Position light position ( )
When the light switch is in the position light position (1st position), the tail,
license and instrument panel lights are
ON and the tail light indicator is ON. (ifequipped) Headlight position ( )
When the light switch is in the headlight position (2nd position), the head, tail,
license and instrument panel lights areON.
✽✽NOTICE
The ignition switch must be in the ON position to turn on the headlights.
OBK049046N
OAM049041
■
Type B
■
Type A
OBK049047N
OAM049042
■
Type B
■
Type A
OBK049045N
OBK049045
■
Type B
■
Type A

Features of your vehicle
82
4
❋❋

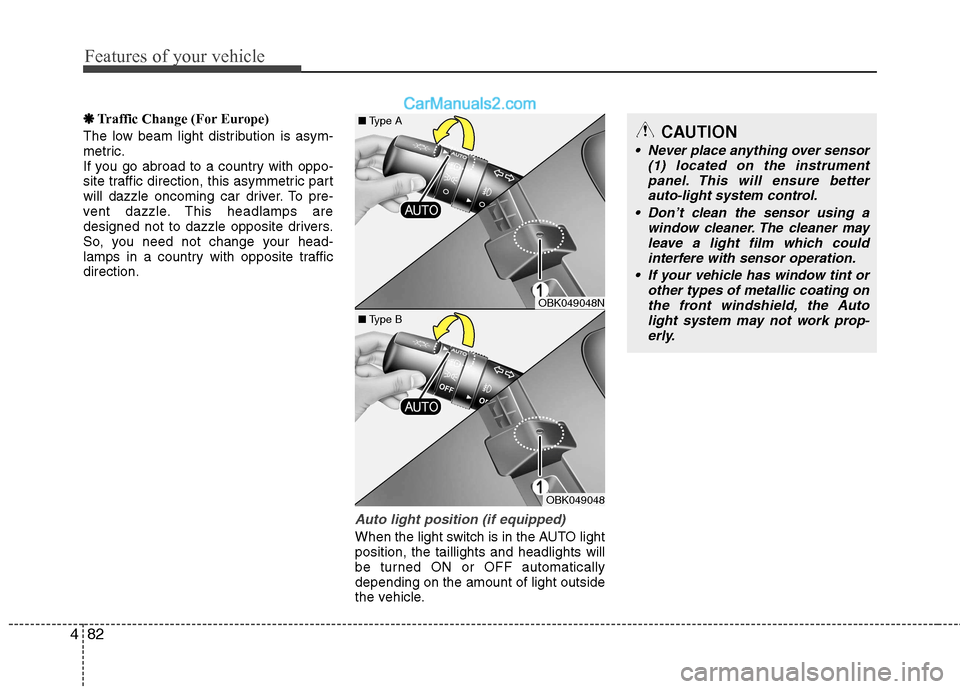

Traffic Change (For Europe)
The low beam light distribution is asym-
metric.
If you go abroad to a country with oppo-
site traffic direction, this asymmetric part
will dazzle oncoming car driver. To pre-
vent dazzle. This headlamps are
designed not to dazzle opposite drivers.
So, you need not change your head-
lamps in a country with opposite trafficdirection.
Auto light position (if equipped)
When the light switch is in the AUTO light position, the taillights and headlights will
be turned ON or OFF automaticallydepending on the amount of light outside
the vehicle.
CAUTION
Never place anything over sensor (1) located on the instrument
panel. This will ensure better auto-light system control.
Don’t clean the sensor using a window cleaner. The cleaner may
leave a light film which could interfere with sensor operation.
If your vehicle has window tint or other types of metallic coating onthe front windshield, the Auto
light system may not work prop-erly.
OBK049048
■
Type B
■
Type A
OBK049048N

483
Features of your vehicle

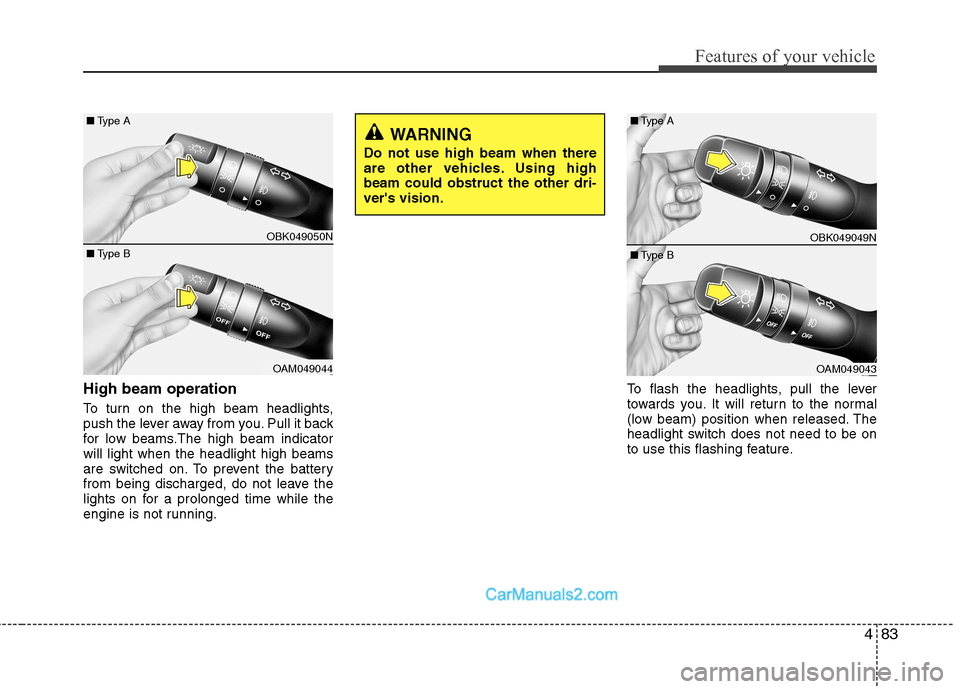

High beam operation
To turn on the high beam headlights,
push the lever away from you. Pull it back
for low beams.The high beam indicatorwill light when the headlight high beams
are switched on. To prevent the battery
from being discharged, do not leave the
lights on for a prolonged time while the
engine is not running.To flash the headlights, pull the lever
towards you. It will return to the normal
(low beam) position when released. The
headlight switch does not need to be on
to use this flashing feature.
WARNING
Do not use high beam when there
are other vehicles. Using highbeam could obstruct the other dri-ver's vision.
OBK049049N
OAM049043
■
Type B
■
Type A
OBK049050N
OAM049044
■
Type B
■
Type A

Features of your vehicle
84
4

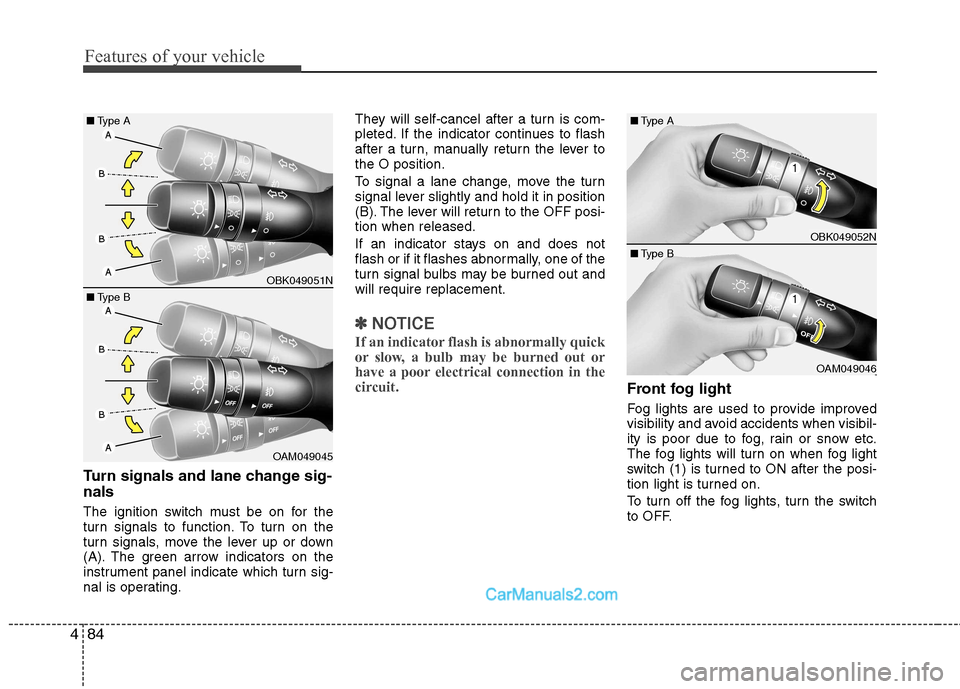

Turn signals and lane change sig- nals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or down
(A). The green arrow indicators on the
instrument panel indicate which turn sig-
nal is operating. They will self-cancel after a turn is com-
pleted. If the indicator continues to flash
after a turn, manually return the lever tothe O position.
To signal a lane change, move the turn
signal lever slightly and hold it in position
(B). The lever will return to the OFF posi-tion when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of the
turn signal bulbs may be burned out andwill require replacement.
✽✽
NOTICE
If an indicator flash is abnormally quick
or slow, a bulb may be burned out or
have a poor electrical connection in the
circuit.
Front fog light
Fog lights are used to provide improved
visibility and avoid accidents when visibil-
ity is poor due to fog, rain or snow etc.
The fog lights will turn on when fog light
switch (1) is turned to ON after the posi-
tion light is turned on.
To turn off the fog lights, turn the switch
to OFF.
OBK049052N
OAM049046
■
Type B
■
Type A
OBK049051N
OAM049045
■
Type B
■
Type A
