Hyundai Genesis Coupe 2013 Owner's Manual

Maintenance
14
7

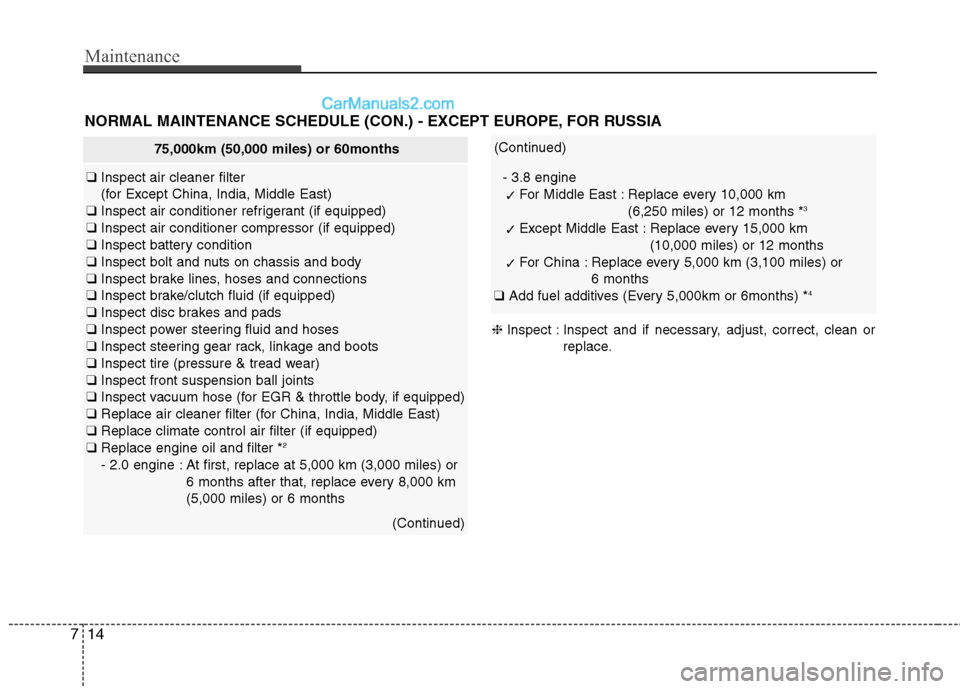

NORMAL MAINTENANCE SCHEDULE (CON.) - EXCEPT EUROPE, FOR RUSSIA
75,000km (50,000 miles) or 60months
❑ Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect disc brakes and pads
❑ Inspect power steering fluid and hoses
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Replace air cleaner filter (for China, India, Middle East)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km(5,000 miles) or 6 months
(Continued)
(Continued)
- 3.8 engine ✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

715
Maintenance

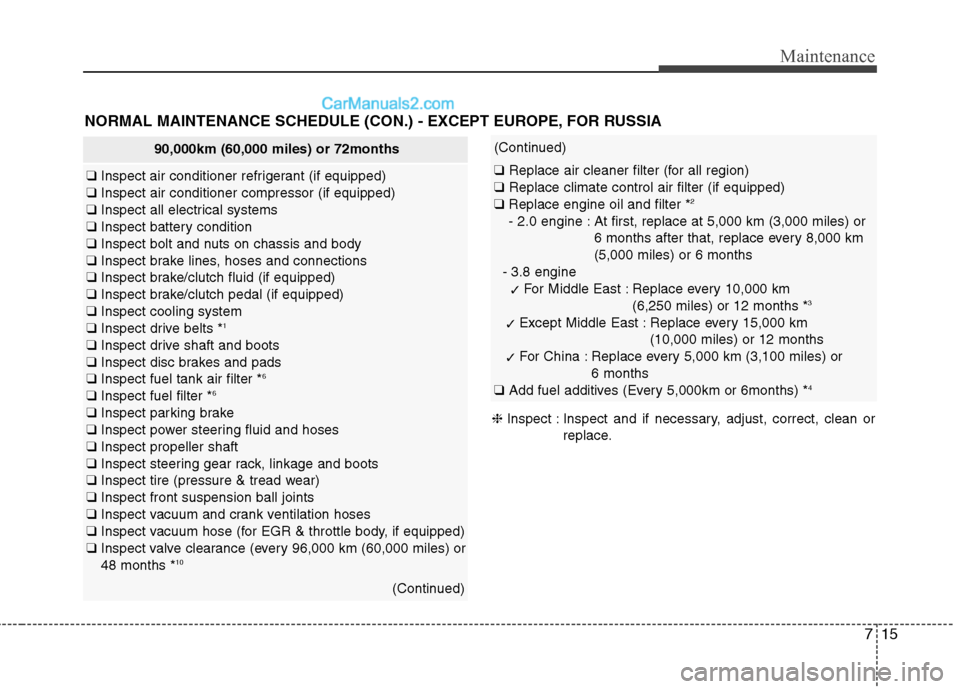

NORMAL MAINTENANCE SCHEDULE (CON.) - EXCEPT EUROPE, FOR RUSSIA
90,000km (60,000 miles) or 72months
❑Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect all electrical systems
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect cooling system
❑ Inspect drive belts * 1
❑ Inspect drive shaft and boots
❑ Inspect disc brakes and pads
❑ Inspect fuel tank air filter * 6
❑ Inspect fuel filter * 6
❑ Inspect parking brake
❑ Inspect power steering fluid and hoses
❑ Inspect propeller shaft
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum and crank ventilation hoses
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Inspect valve clearance (every 96,000 km (60,000 miles) or 48 months * 10
(Continued)
(Continued)
❑
Replace air cleaner filter (for all region)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km (5,000 miles) or 6 months
- 3.8 engine
✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
16
7
(Continued)
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4

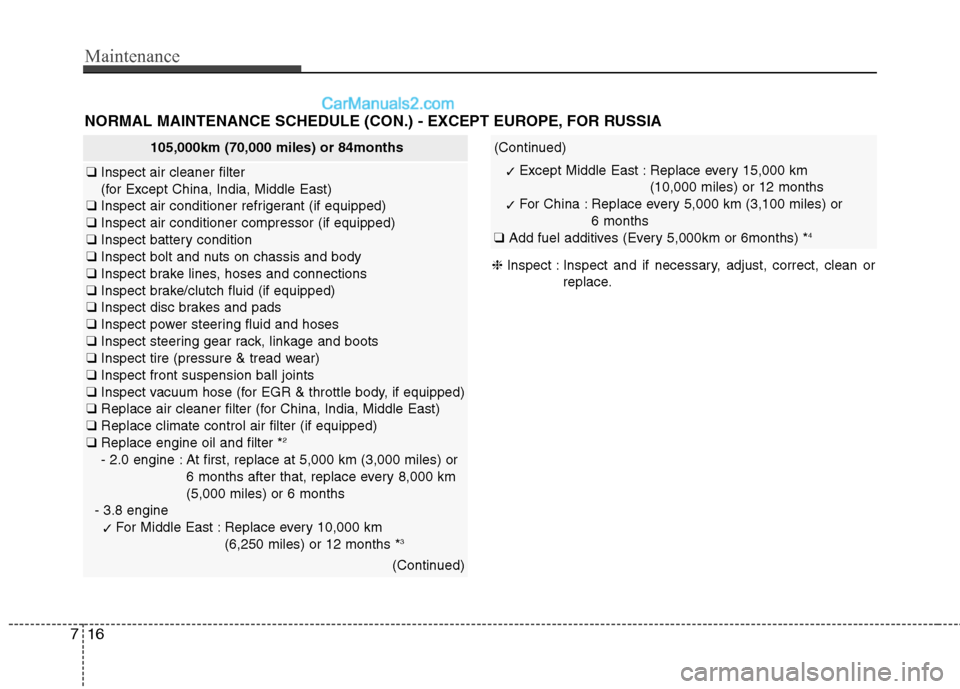

NORMAL MAINTENANCE SCHEDULE (CON.) - EXCEPT EUROPE, FOR RUSSIA
105,000km (70,000 miles) or 84months
❑
Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect disc brakes and pads
❑ Inspect power steering fluid and hoses
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Replace air cleaner filter (for China, India, Middle East)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km(5,000 miles) or 6 months
- 3.8 engine
✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
(Continued)
❈
Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

717
Maintenance

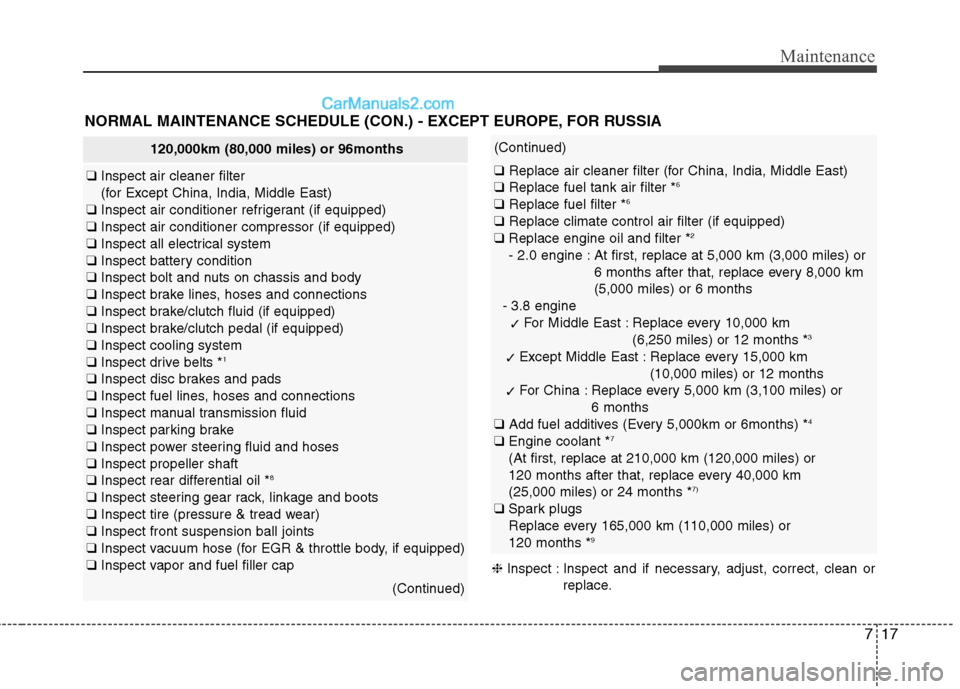

NORMAL MAINTENANCE SCHEDULE (CON.) - EXCEPT EUROPE, FOR RUSSIA
120,000km (80,000 miles) or 96months
❑Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect all electrical system
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect cooling system
❑ Inspect drive belts * 1
❑ Inspect disc brakes and pads
❑ Inspect fuel lines, hoses and connections
❑ Inspect manual transmission fluid
❑ Inspect parking brake
❑ Inspect power steering fluid and hoses
❑ Inspect propeller shaft
❑ Inspect rear differential oil * 8
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Inspect vapor and fuel filler cap
(Continued)
(Continued)
❑Replace air cleaner filter (for China, India, Middle East)
❑ Replace fuel tank air filter * 6
❑ Replace fuel filter * 6
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km (5,000 miles) or 6 months
- 3.8 engine
✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4
❑ Engine coolant * 7
(At first, replace at 210,000 km (120,000 miles) or
120 months after that, replace every 40,000 km (25,000 miles) or 24 months * 7)
❑ Spark plugs
Replace every 165,000 km (110,000 miles) or 120 months * 9
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
18
7

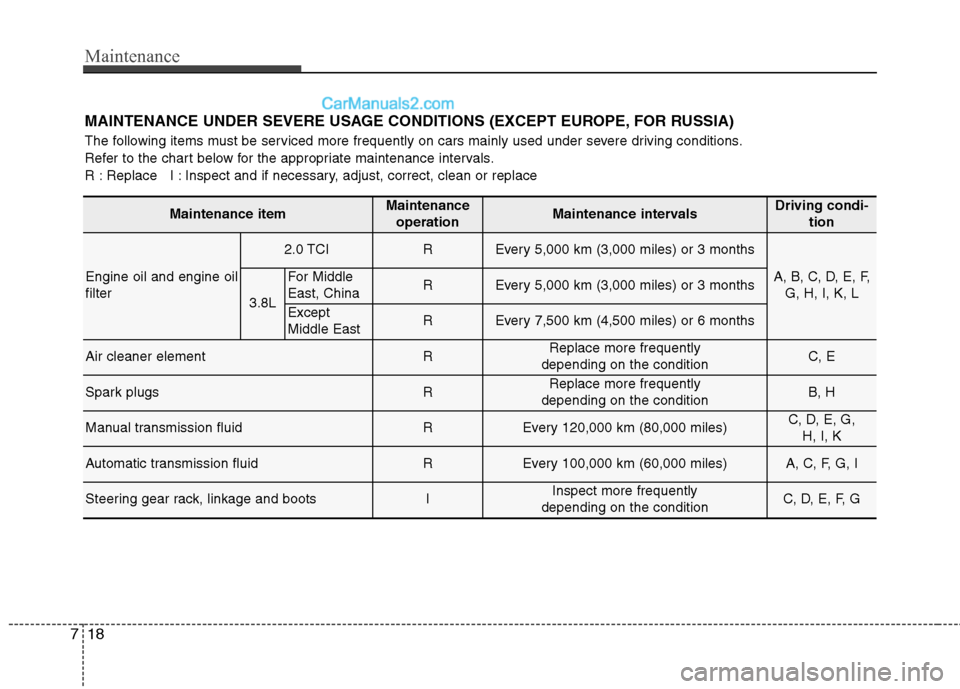

MAINTENANCE UNDER SEVERE USAGE CONDITIONS (EXCEPT EUROPE, FOR RUSSIA)
The following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenance
operationMaintenance intervalsDriving condi- tion
Engine oil and engine oil filter
2.0 TCIREvery 5,000 km (3,000 miles) or 3 months
A, B, C, D, E, F,G, H, I, K, L
3.8L
For Middle East, ChinaREvery 5,000 km (3,000 miles) or 3 months
Except Middle EastREvery 7,500 km (4,500 miles) or 6 months
Air cleaner elementRReplace more frequently
depending on the conditionC, E
Spark plugs RReplace more frequently
depending on the conditionB, H
Manual transmission fluid REvery 120,000 km (80,000 miles)C, D, E, G, H, I, K
Automatic transmission fluidREvery 100,000 km (60,000 miles)A, C, F, G, I
Steering gear rack, linkage and bootsIInspect more frequently
depending on the conditionC, D, E, F, G

719
Maintenance

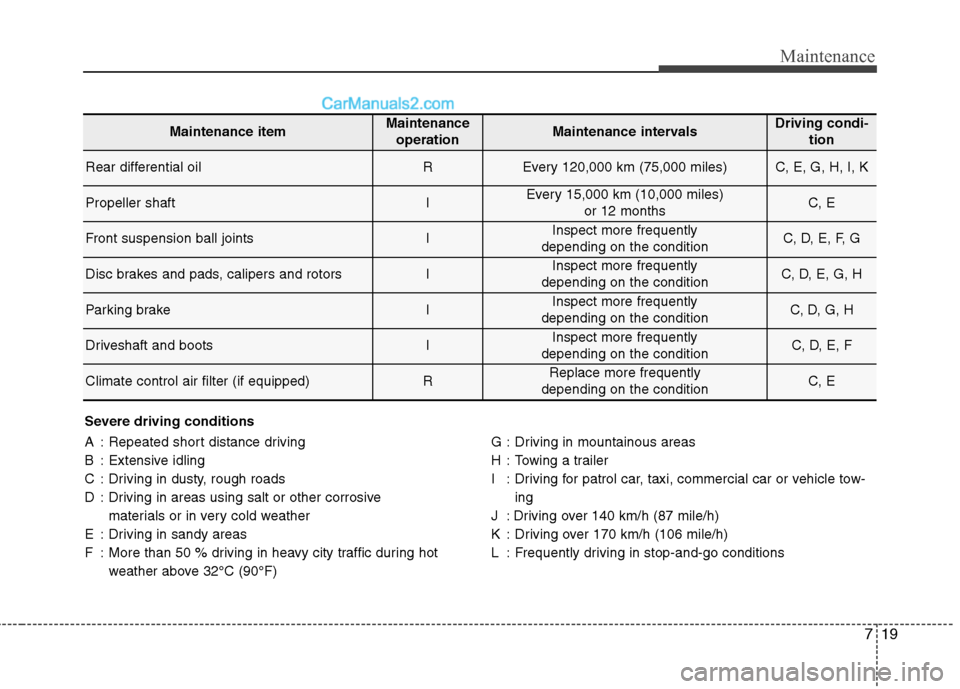

Severe driving conditions
A : Repeated short distance driving
B : Extensive idling
C : Driving in dusty, rough roads
D : Driving in areas using salt or other corrosive materials or in very cold weather
E : Driving in sandy areas
F : More than 50 % driving in heavy city traffic during hot weather above 32°C (90°F) G : Driving in mountainous areas
H : Towing a trailer
I : Driving for patrol car, taxi, commercial car or vehicle tow-
ing
J : Driving over 140 km/h (87 mile/h)
K : Driving over 170 km/h (106 mile/h)
L : Frequently driving in stop-and-go conditions
Maintenance itemMaintenance operationMaintenance intervalsDriving condi- tion
Rear differential oilREvery 120,000 km (75,000 miles)C, E, G, H, I, K
Propeller shaftIEvery 15,000 km (10,000 miles) or 12 monthsC, E
Front suspension ball jointsIInspect more frequently
depending on the conditionC, D, E, F, G
Disc brakes and pads, calipers and rotorsIInspect more frequently
depending on the conditionC, D, E, G, H
Parking brakeIInspect more frequently
depending on the conditionC, D, G, H
Driveshaft and bootsIInspect more frequently
depending on the conditionC, D, E, F
Climate control air filter (if equipped)RReplace more frequently
depending on the conditionC, E

Maintenance
20
7

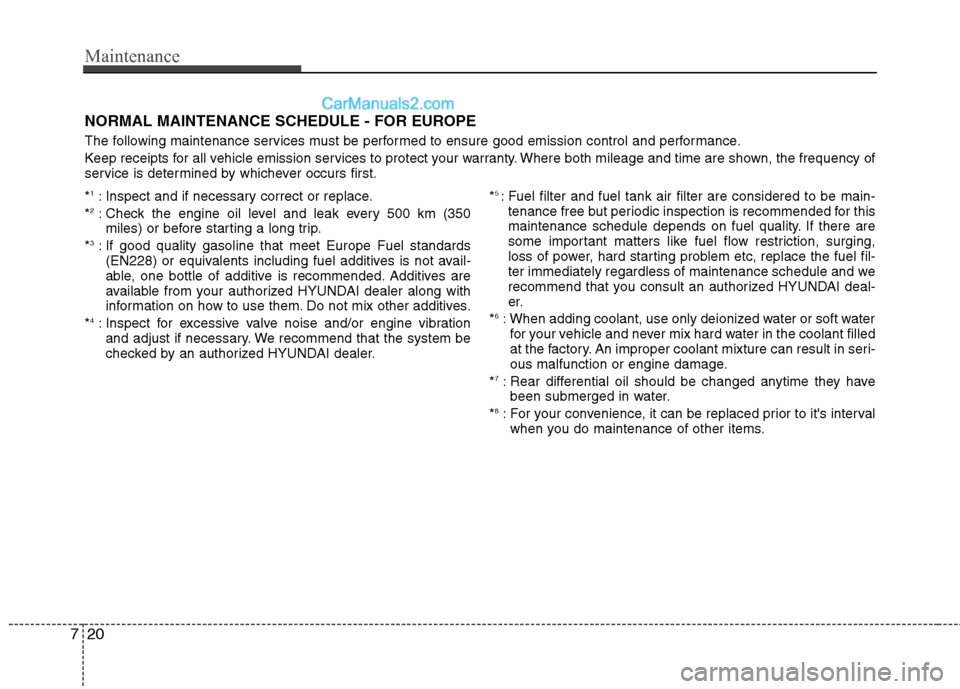

NORMAL MAINTENANCE SCHEDULE - FOR EUROPE
The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency o f
service is determined by whichever occurs first. * 1
: Inspect and if necessary correct or replace.
* 2
: Check the engine oil level and leak every 500 km (350
miles) or before starting a long trip.
* 3
: If good quality gasoline that meet Europe Fuel standards
(EN228) or equivalents including fuel additives is not avail-
able, one bottle of additive is recommended. Additives are
available from your authorized HYUNDAI dealer along with
information on how to use them. Do not mix other additives.
* 4
: Inspect for excessive valve noise and/or engine vibration
and adjust if necessary. We recommend that the system be
checked by an authorized HYUNDAI dealer. *
5
: Fuel filter and fuel tank air filter are considered to be main-
tenance free but periodic inspection is recommended for this
maintenance schedule depends on fuel quality. If there are
some important matters like fuel flow restriction, surging,
loss of power, hard starting problem etc, replace the fuel fil-
ter immediately regardless of maintenance schedule and we
recommend that you consult an authorized HYUNDAI deal-
er.
* 6
: When adding coolant, use only deionized water or soft water
for your vehicle and never mix hard water in the coolant filled
at the factory. An improper coolant mixture can result in seri-
ous malfunction or engine damage.
* 7
: Rear differential oil should be changed anytime they have
been submerged in water.
* 8
: For your convenience, it can be replaced prior to it's interval
when you do maintenance of other items.

721
Maintenance

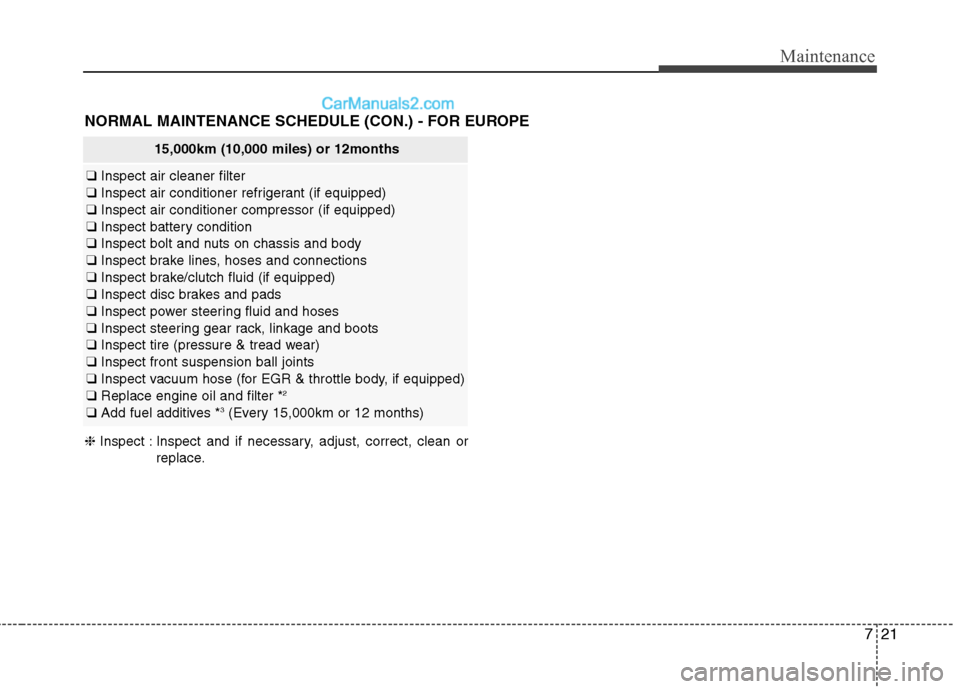

NORMAL MAINTENANCE SCHEDULE (CON.) - FOR EUROPE
15,000km (10,000 miles) or 12months
❑Inspect air cleaner filter
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect disc brakes and pads
❑ Inspect power steering fluid and hoses
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Replace engine oil and filter * 2
❑ Add fuel additives * 3
(Every 15,000km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
22
7

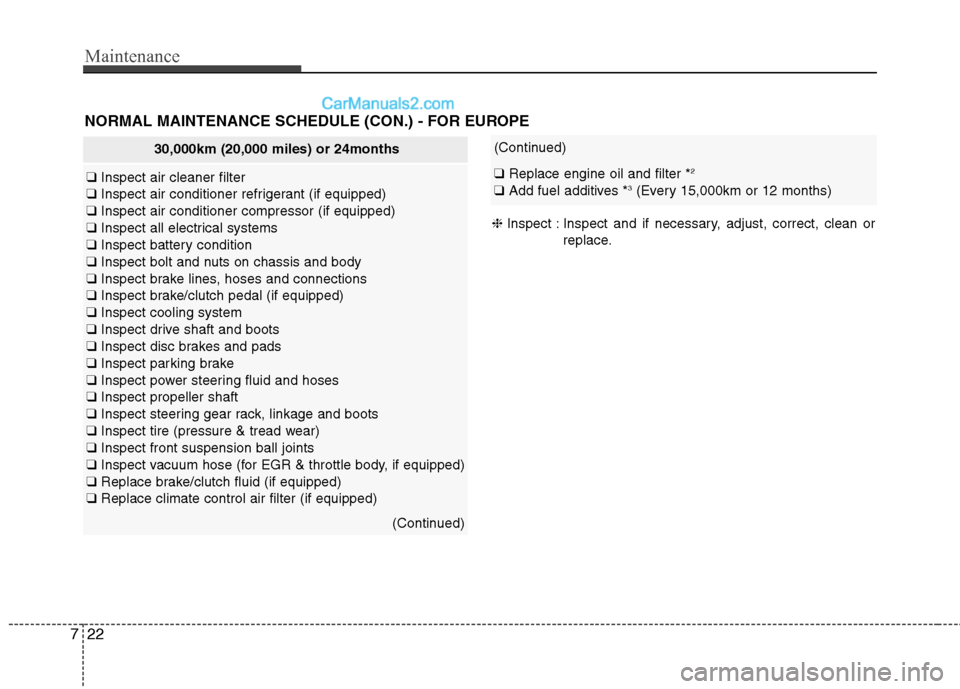

30,000km (20,000 miles) or 24months
❑ Inspect air cleaner filter
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect all electrical systems
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect cooling system
❑ Inspect drive shaft and boots
❑ Inspect disc brakes and pads
❑ Inspect parking brake
❑ Inspect power steering fluid and hoses
❑ Inspect propeller shaft
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Replace brake/clutch fluid (if equipped)
❑ Replace climate control air filter (if equipped)
(Continued)
NORMAL MAINTENANCE SCHEDULE (CON.) - FOR EUROPE
(Continued)
❑Replace engine oil and filter * 2
❑ Add fuel additives * 3
(Every 15,000km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

723
Maintenance

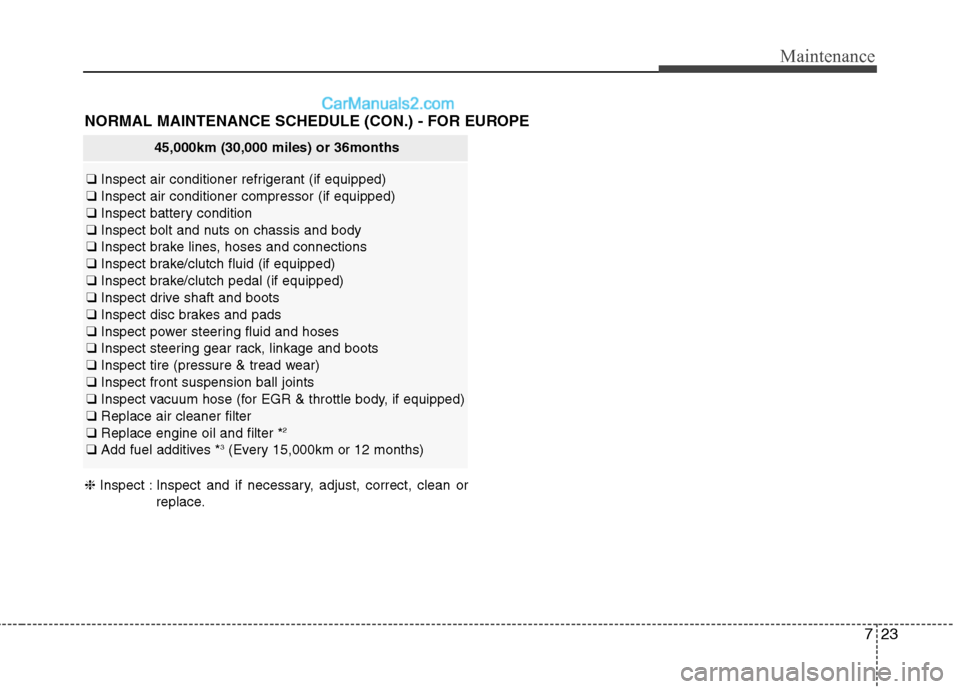

NORMAL MAINTENANCE SCHEDULE (CON.) - FOR EUROPE
45,000km (30,000 miles) or 36months
❑Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect drive shaft and boots
❑ Inspect disc brakes and pads
❑ Inspect power steering fluid and hoses
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Replace air cleaner filter
❑ Replace engine oil and filter * 2
❑ Add fuel additives * 3
(Every 15,000km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
