Hyundai Genesis Coupe 2013 Owner's Manual

Maintenance
4
7

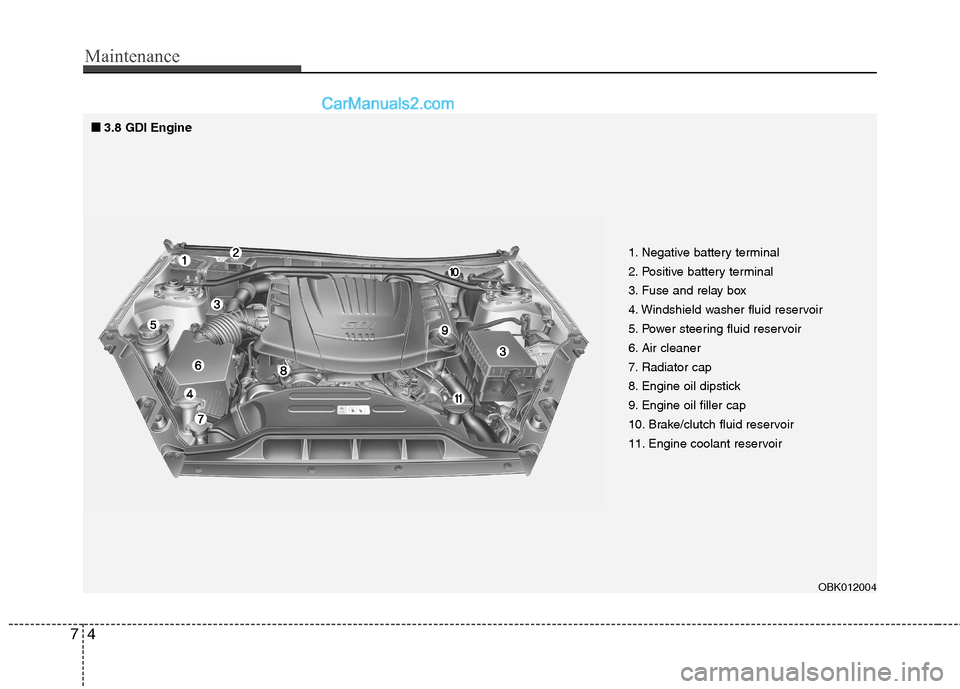

1. Negative battery terminal
2. Positive battery terminal
3. Fuse and relay box
4. Windshield washer fluid reservoir
5. Power steering fluid reservoir
6. Air cleaner
7. Radiator cap
8. Engine oil dipstick
9. Engine oil filler cap
10. Brake/clutch fluid reservoir
11. Engine coolant reservoir
■
■
3.8 GDI Engine
OBK012004

75
Maintenance

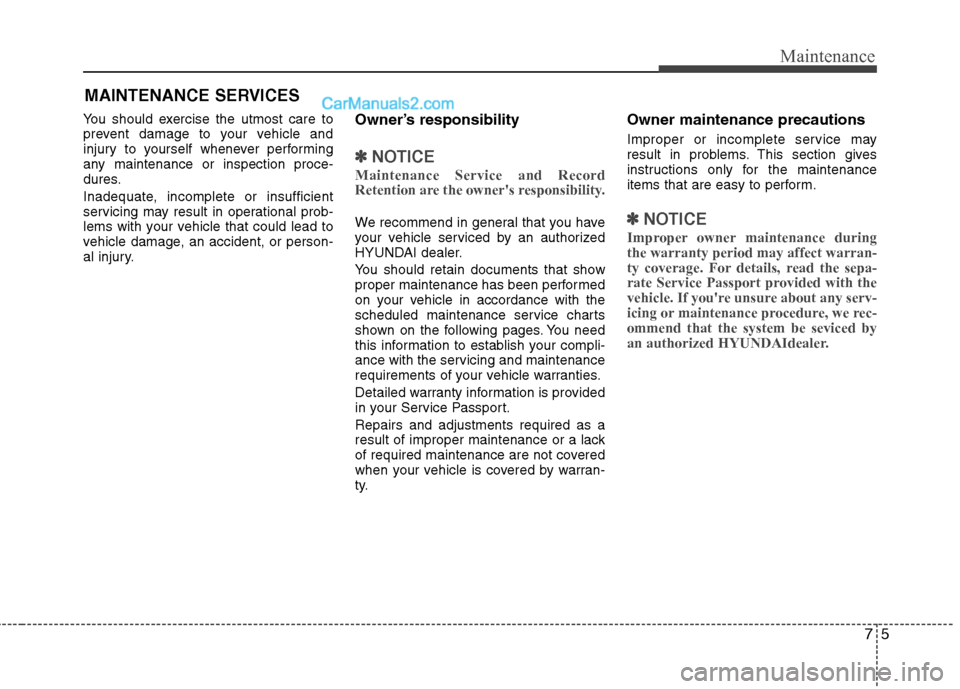

MAINTENANCE SERVICES
You should exercise the utmost care to
prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection proce-
dures.
Inadequate, incomplete or insufficient
servicing may result in operational prob-
lems with your vehicle that could lead to
vehicle damage, an accident, or person-
al injury. Owner’s responsibility
✽✽
NOTICE
Maintenance Service and Record
Retention are the owner's responsibility.
We recommend in general that you have
your vehicle serviced by an authorized
HYUNDAI dealer.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with the
scheduled maintenance service charts
shown on the following pages. You need
this information to establish your compli-
ance with the servicing and maintenance
requirements of your vehicle warranties.
Detailed warranty information is provided
in your Service Passport. Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered
when your vehicle is covered by warran-
ty. Owner maintenance precautions
Improper or incomplete service may
result in problems. This section gives
instructions only for the maintenance
items that are easy to perform.✽✽
NOTICE
Improper owner maintenance during the warranty period may affect warran-
ty coverage. For details, read the sepa-
rate Service Passport provided with the
vehicle. If you're unsure about any serv-
icing or maintenance procedure, we rec-ommend that the system be seviced by
an authorized HYUNDAIdealer.

Maintenance
6
7

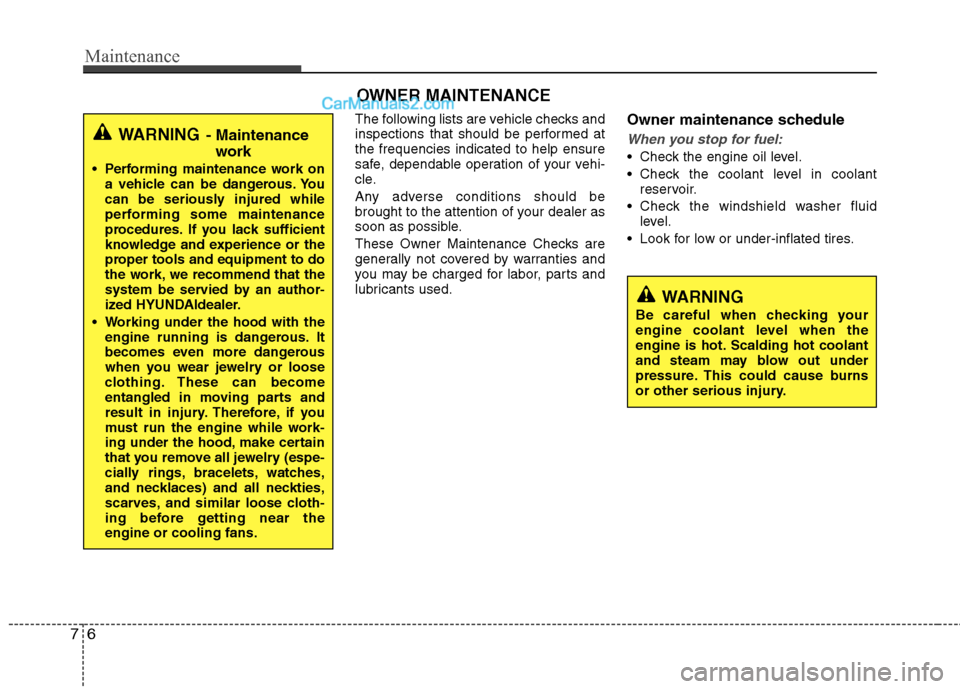

OWNER MAINTENANCE
The following lists are vehicle checks and
inspections that should be performed atthe frequencies indicated to help ensure
safe, dependable operation of your vehi-
cle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance Checks are
generally not covered by warranties and
you may be charged for labor, parts and
lubricants used. Owner maintenance schedule
When you stop for fuel:
• Check the engine oil level.
Check the coolant level in coolant
reservoir.
Check the windshield washer fluid level.
Look for low or under-inflated tires.
WARNING - Maintenance
work
Performing maintenance work on a vehicle can be dangerous. You
can be seriously injured while
performing some maintenance
procedures. If you lack sufficient
knowledge and experience or the
proper tools and equipment to do
the work, we recommend that the
system be servied by an author-
ized HYUNDAIdealer.
Working under the hood with the engine running is dangerous. It
becomes even more dangerous
when you wear jewelry or loose
clothing. These can become
entangled in moving parts and
result in injury. Therefore, if you
must run the engine while work-
ing under the hood, make certain
that you remove all jewelry (espe-
cially rings, bracelets, watches,
and necklaces) and all neckties,
scarves, and similar loose cloth-
ing before getting near theengine or cooling fans.
WARNING
Be careful when checking your
engine coolant level when the
engine is hot. Scalding hot coolant
and steam may blow out under
pressure. This could cause burns
or other serious injury.

77
Maintenance

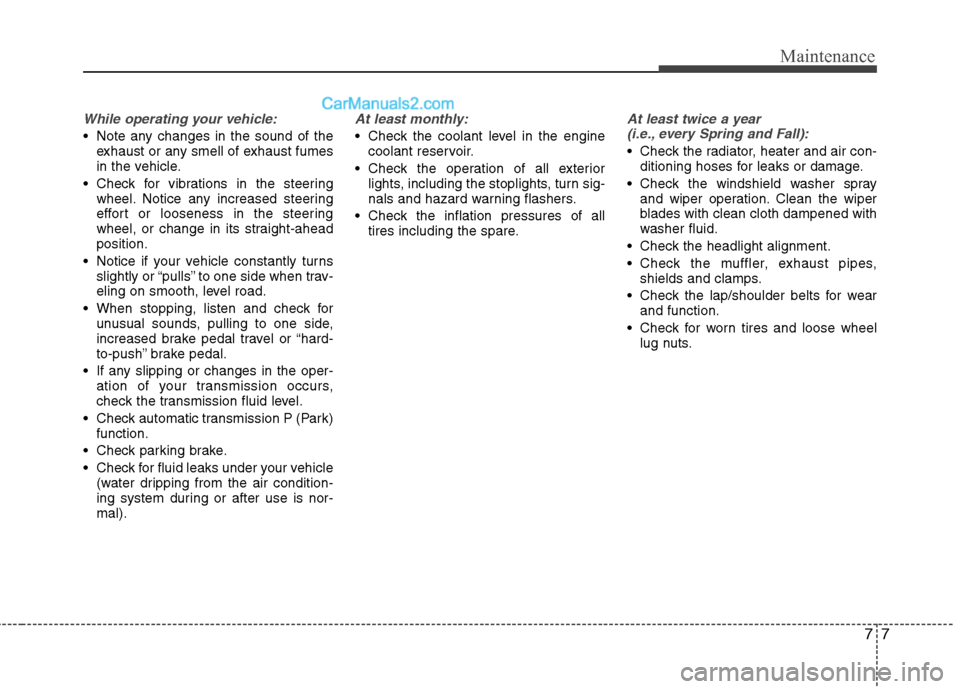

While operating your vehicle:
Note any changes in the sound of theexhaust or any smell of exhaust fumes
in the vehicle.
Check for vibrations in the steering wheel. Notice any increased steering
effort or looseness in the steering
wheel, or change in its straight-aheadposition.
Notice if your vehicle constantly turns slightly or “pulls” to one side when trav-
eling on smooth, level road.
When stopping, listen and check for unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
If any slipping or changes in the oper- ation of your transmission occurs,
check the transmission fluid level.
Check automatic transmission P (Park) function.
Check parking brake.
Check for fluid leaks under your vehicle (water dripping from the air condition-
ing system during or after use is nor-mal).
At least monthly:
Check the coolant level in the enginecoolant reservoir.
Check the operation of all exterior lights, including the stoplights, turn sig-
nals and hazard warning flashers.
Check the inflation pressures of all tires including the spare.
At least twice a year
(i.e., every Spring and Fall):
Check the radiator, heater and air con- ditioning hoses for leaks or damage.
Check the windshield washer spray and wiper operation. Clean the wiper
blades with clean cloth dampened with
washer fluid.
Check the headlight alignment.
Check the muffler, exhaust pipes, shields and clamps.
Check the lap/shoulder belts for wear and function.
Check for worn tires and loose wheel lug nuts.

Maintenance
8
7

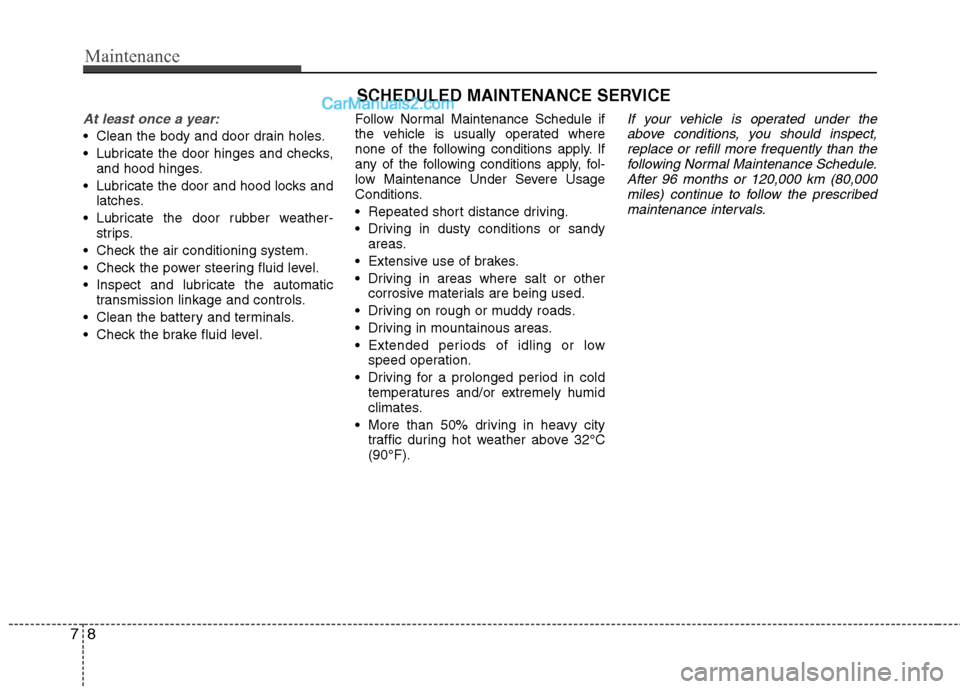

SCHEDULED MAINTENANCE SERVICE
At least once a year:
Clean the body and door drain holes.
Lubricate the door hinges and checks,
and hood hinges.
Lubricate the door and hood locks and latches.
Lubricate the door rubber weather- strips.
Check the air conditioning system.
Check the power steering fluid level.
Inspect and lubricate the automatic transmission linkage and controls.
Clean the battery and terminals.
Check the brake fluid level. Follow Normal Maintenance Schedule if
the vehicle is usually operated where
none of the following conditions apply. If
any of the following conditions apply, fol-
low Maintenance Under Severe Usage
Conditions.
Repeated short distance driving.
Driving in dusty conditions or sandy
areas.
Extensive use of brakes.
Driving in areas where salt or other corrosive materials are being used.
Driving on rough or muddy roads.
Driving in mountainous areas.
Extended periods of idling or low speed operation.
Driving for a prolonged period in cold temperatures and/or extremely humid
climates.
More than 50% driving in heavy city traffic during hot weather above 32°C(90°F).
If your vehicle is operated under the
above conditions, you should inspect, replace or refill more frequently than thefollowing Normal Maintenance Schedule.
After 96 months or 120,000 km (80,000miles) continue to follow the prescribedmaintenance intervals.

79
Maintenance

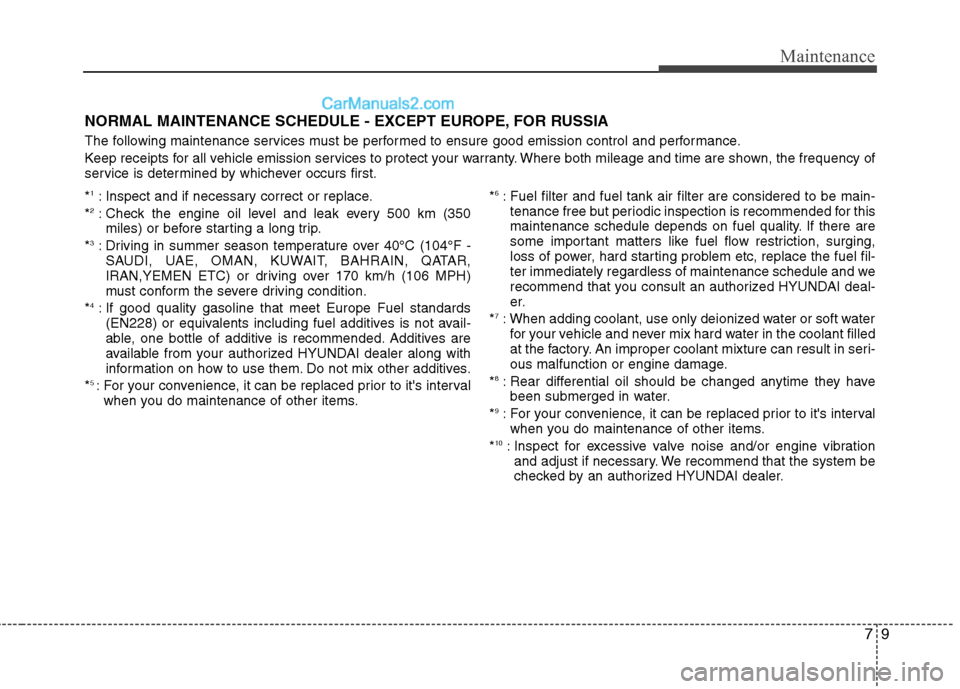

NORMAL MAINTENANCE SCHEDULE - EXCEPT EUROPE, FOR RUSSIA
The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of
service is determined by whichever occurs first. * 1
: Inspect and if necessary correct or replace.
* 2
: Check the engine oil level and leak every 500 km (350
miles) or before starting a long trip.
* 3
: Driving in summer season temperature over 40°C (104°F -
SAUDI, UAE, OMAN, KUWAIT, BAHRAIN, QATAR,
IRAN,YEMEN ETC) or driving over 170 km/h (106 MPH)
must conform the severe driving condition.
* 4
: If good quality gasoline that meet Europe Fuel standards
(EN228) or equivalents including fuel additives is not avail-
able, one bottle of additive is recommended. Additives are
available from your authorized HYUNDAI dealer along with
information on how to use them. Do not mix other additives.
* 5
: For your convenience, it can be replaced prior to it's interval
when you do maintenance of other items. *
6
: Fuel filter and fuel tank air filter are considered to be main-
tenance free but periodic inspection is recommended for this
maintenance schedule depends on fuel quality. If there are
some important matters like fuel flow restriction, surging,
loss of power, hard starting problem etc, replace the fuel fil-
ter immediately regardless of maintenance schedule and we
recommend that you consult an authorized HYUNDAI deal-
er.
* 7
: When adding coolant, use only deionized water or soft water
for your vehicle and never mix hard water in the coolant filled
at the factory. An improper coolant mixture can result in seri-
ous malfunction or engine damage.
* 8
: Rear differential oil should be changed anytime they have
been submerged in water.
* 9
: For your convenience, it can be replaced prior to it's interval
when you do maintenance of other items.
* 10
: Inspect for excessive valve noise and/or engine vibration
and adjust if necessary. We recommend that the system be
checked by an authorized HYUNDAI dealer.

Maintenance
10
7

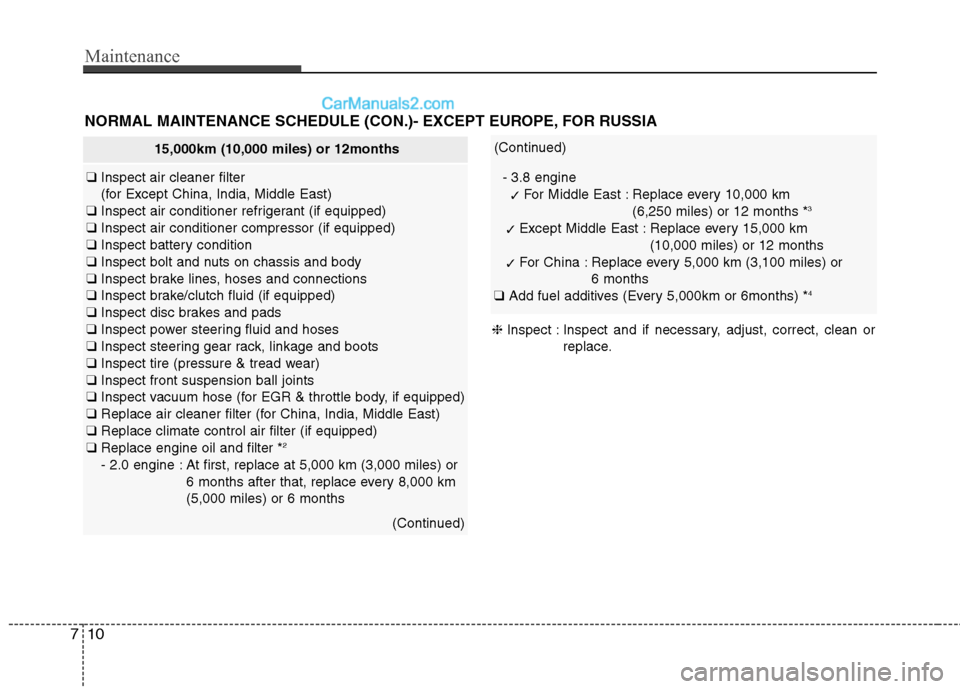

15,000km (10,000 miles) or 12months
❑ Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect disc brakes and pads
❑ Inspect power steering fluid and hoses
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Replace air cleaner filter (for China, India, Middle East)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km(5,000 miles) or 6 months
(Continued)
NORMAL MAINTENANCE SCHEDULE (CON.)- EXCEPT EUROPE, FOR RUSSIA
(Continued)
- 3.8 engine ✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

711
Maintenance

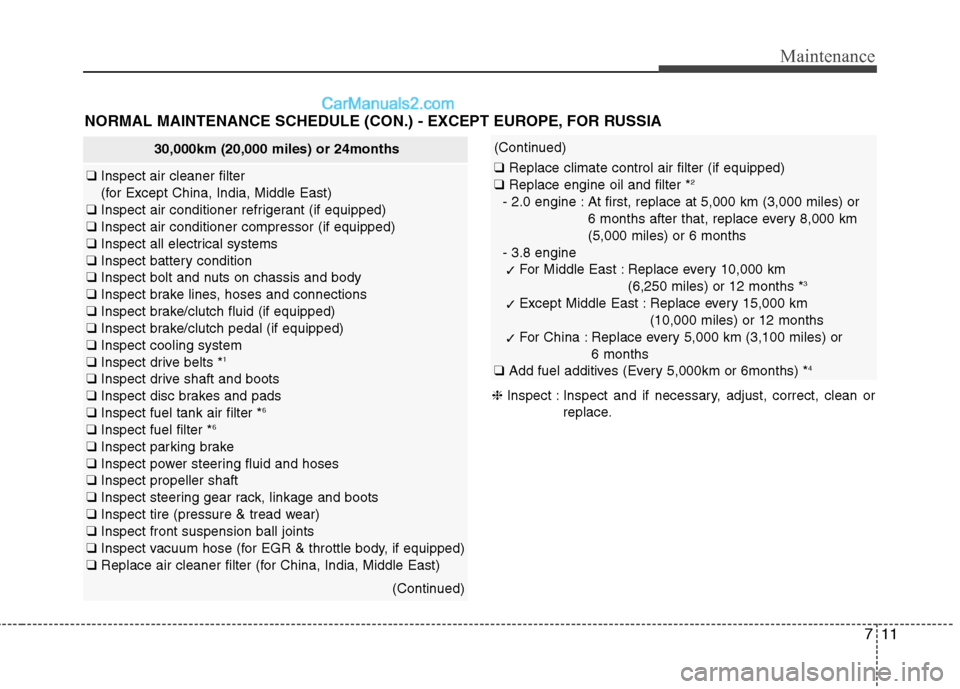

30,000km (20,000 miles) or 24months
❑Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect all electrical systems
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect cooling system
❑ Inspect drive belts * 1
❑ Inspect drive shaft and boots
❑ Inspect disc brakes and pads
❑ Inspect fuel tank air filter * 6
❑ Inspect fuel filter * 6
❑ Inspect parking brake
❑ Inspect power steering fluid and hoses
❑ Inspect propeller shaft
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Replace air cleaner filter (for China, India, Middle East)
(Continued)
NORMAL MAINTENANCE SCHEDULE (CON.) - EXCEPT EUROPE, FOR RUSSIA
(Continued)
❑Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km (5,000 miles) or 6 months
- 3.8 engine
✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
12
7
(Continued)
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4

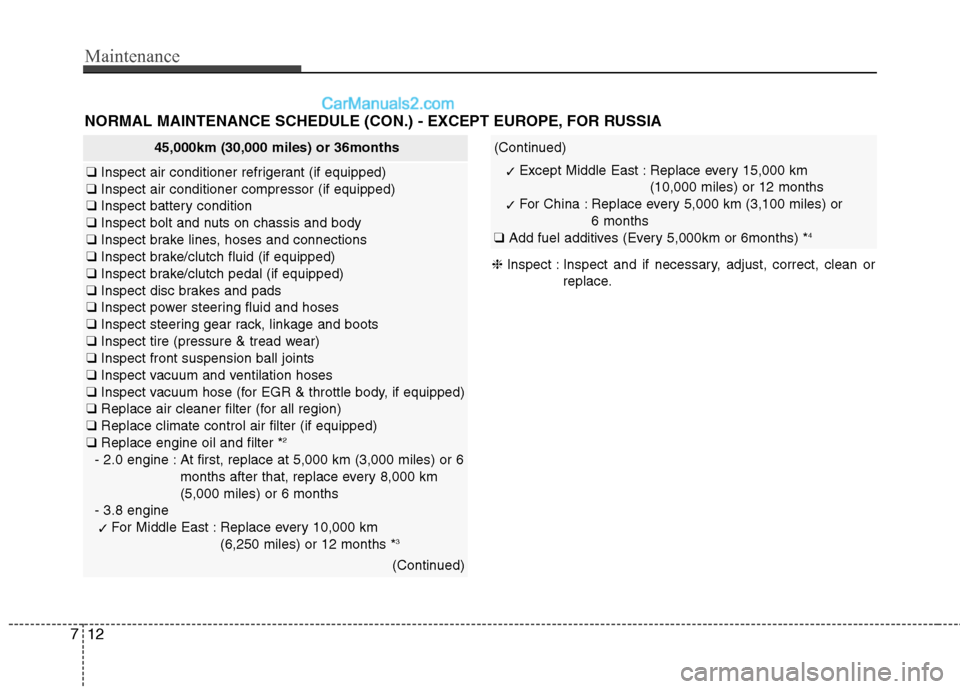

45,000km (30,000 miles) or 36months
❑
Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect disc brakes and pads
❑ Inspect power steering fluid and hoses
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum and ventilation hoses
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Replace air cleaner filter (for all region)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km (5,000 miles) or 6 months
- 3.8 engine ✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
(Continued)
NORMAL MAINTENANCE SCHEDULE (CON.) - EXCEPT EUROPE, FOR RUSSIA
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

713
Maintenance

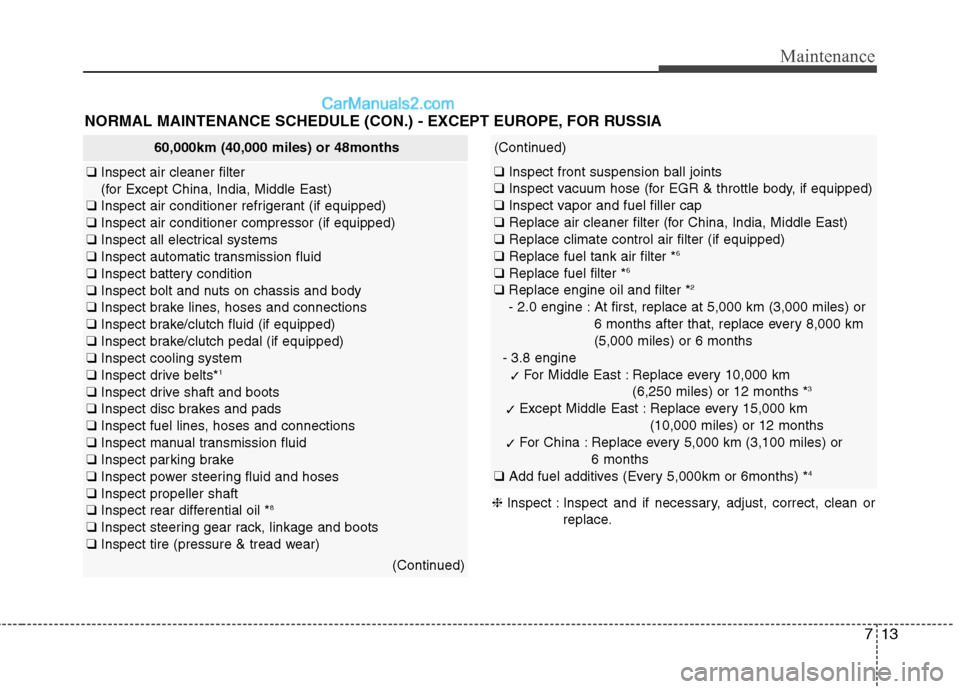

NORMAL MAINTENANCE SCHEDULE (CON.) - EXCEPT EUROPE, FOR RUSSIA
60,000km (40,000 miles) or 48months
❑Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect all electrical systems
❑ Inspect automatic transmission fluid
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect cooling system
❑ Inspect drive belts* 1
❑ Inspect drive shaft and boots
❑ Inspect disc brakes and pads
❑ Inspect fuel lines, hoses and connections
❑ Inspect manual transmission fluid
❑ Inspect parking brake
❑ Inspect power steering fluid and hoses
❑ Inspect propeller shaft
❑ Inspect rear differential oil * 8
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
(Continued)
(Continued)
❑Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Inspect vapor and fuel filler cap
❑ Replace air cleaner filter (for China, India, Middle East)
❑ Replace climate control air filter (if equipped)
❑ Replace fuel tank air filter * 6
❑ Replace fuel filter * 6
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km (5,000 miles) or 6 months
- 3.8 engine ✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
