Features of your vehicle

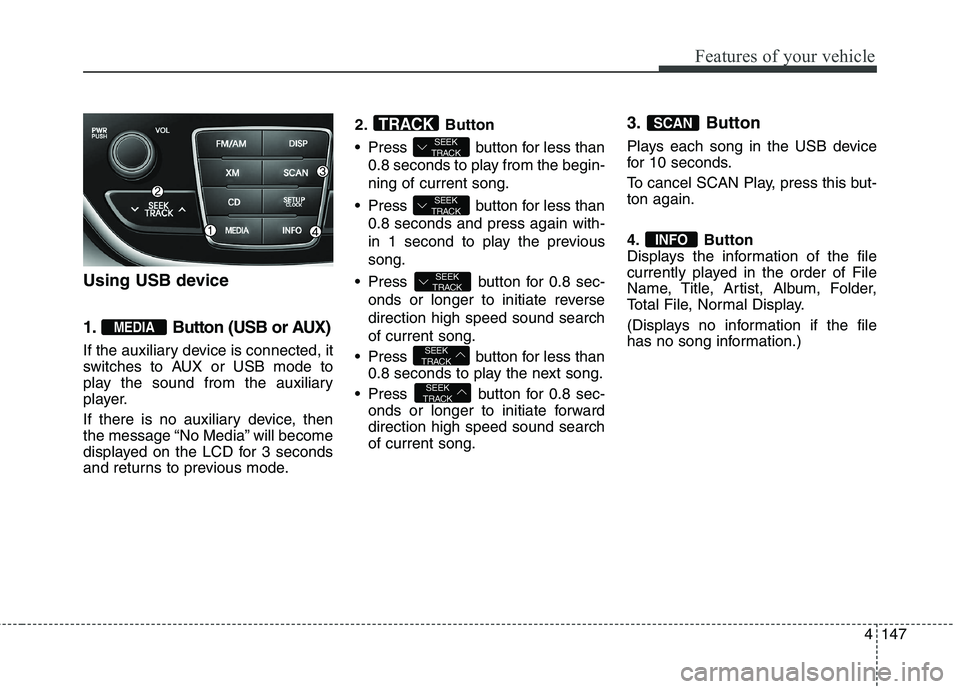

Using USB device
1. Button (USB or AUX)
If the auxiliary device is connected, it
switches to AUX or USB mode to
play the sound from the auxiliary
player.
If there is no auxiliary device, then
the message “No Media” will become
displayed on the LCD for 3 seconds
and returns to previous mode.2. Button
Press button for less than
0.8 seconds to play from the begin-
ning of current song.
Press button for less than
0.8 seconds and press again with-
in 1 second to play the previous
song.
Press button for 0.8 sec-
onds or longer to initiate reverse
direction high speed sound search
of current song.
Press button for less than
0.8 seconds to play the next song.
Press button for 0.8 sec-
onds or longer to initiate forward
direction high speed sound search
of current song.
3. Button
Plays each song in the USB device
for 10 seconds.
To cancel SCAN Play, press this but-
ton again.
4. Button
Displays the information of the file
currently played in the order of File
Name, Title, Artist, Album, Folder,
Total File, Normal Display.
(Displays no information if the file
has no song information.)
INFO
SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACKTRACK
MEDIA

Features of your vehicle
148 4

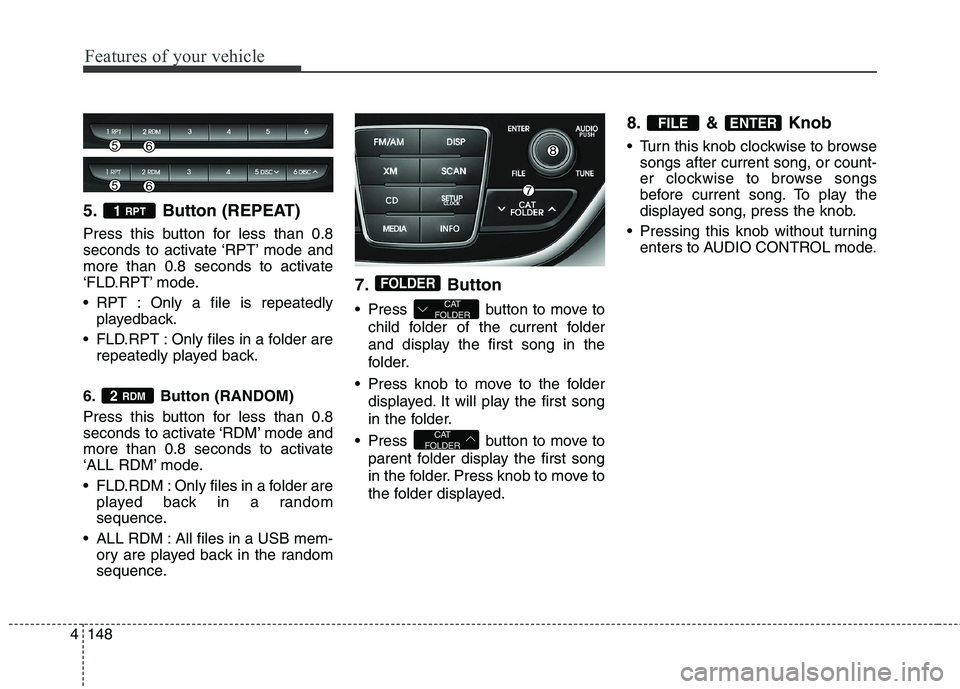

5. Button (REPEAT)
Press this button for less than 0.8
seconds to activate ‘RPT’ mode and
more than 0.8 seconds to activate
‘FLD.RPT’ mode.
RPT : Only a file is repeatedly
playedback.
FLD.RPT : Only files in a folder are
repeatedly played back.
6. Button (RANDOM)
Press this button for less than 0.8
seconds to activate ‘RDM’ mode and
more than 0.8 seconds to activate
‘ALL RDM’ mode.
FLD.RDM : Only files in a folder are
played back in a random
sequence.
ALL RDM : All files in a USB mem-
ory are played back in the random
sequence.
7. Button
Press button to move to
child folder of the current folder
and display the first song in the
folder.
Press knob to move to the folder
displayed. It will play the first song
in the folder.
Press button to move to
parent folder display the first song
in the folder. Press knob to move to
the folder displayed.
8. & Knob
Turn this knob clockwise to browse
songs after current song, or count-
er clockwise to browse songs
before current song. To play the
displayed song, press the knob.
Pressing this knob without turning
enters to AUDIO CONTROL mode.
ENTERFILE
CAT
FOLDER
CAT
FOLDER
FOLDER
2 RDM
1 RPT

4149
Features of your vehicle
✽ ✽

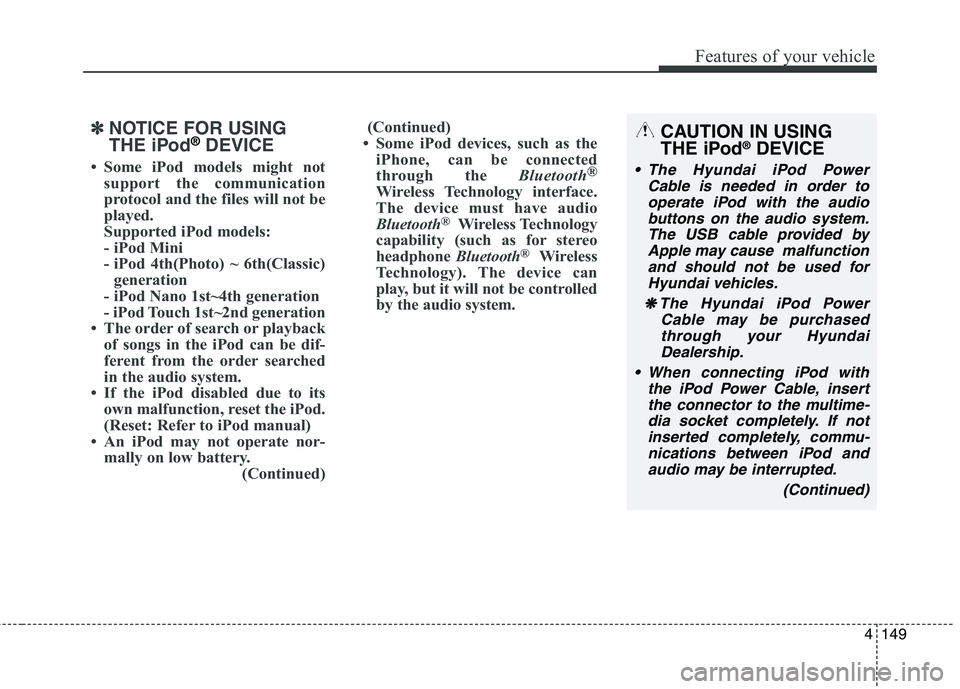

NOTICE FOR USING
THE iPod®DEVICE
• Some iPod models might not
support the communication
protocol and the files will not be
played.
Supported iPod models:
- iPod Mini
- iPod 4th(Photo) ~ 6th(Classic)
generation
- iPod Nano 1st~4th generation
- iPod Touch 1st~2nd generation
• The order of search or playback
of songs in the iPod can be dif-
ferent from the order searched
in the audio system.
• If the iPod disabled due to its
own malfunction, reset the iPod.
(Reset: Refer to iPod manual)
• An iPod may not operate nor-
mally on low battery.
(Continued)(Continued)
• Some iPod devices, such as the
iPhone, can be connected
through the Bluetooth®
Wireless Technology interface.
The device must have audio
Bluetooth
®Wireless Technology
capability (such as for stereo
headphone Bluetooth
®Wireless
Technology). The device can
play, but it will not be controlled
by the audio system.
CAUTION IN USING
THE iPod®DEVICE
The Hyundai iPod Power
Cable is needed in order to
operate iPod with the audio
buttons on the audio system.
The USB cable provided by
Apple may cause malfunction
and should not be used for
Hyundai vehicles.
❋ ❋
The Hyundai iPod Power
Cable may be purchased
through your Hyundai
Dealership.
When connecting iPod with
the iPod Power Cable, insert
the connector to the multime-
dia socket completely. If not
inserted completely, commu-
nications between iPod and
audio may be interrupted.
(Continued)

Features of your vehicle
150 4
(Continued)

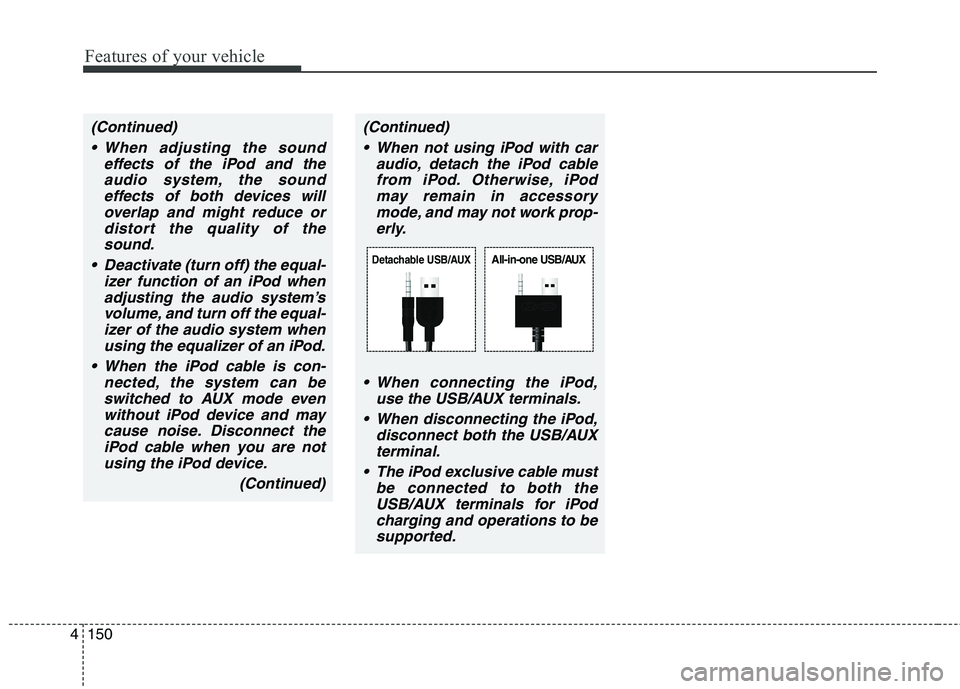

When adjusting the sound
effects of the iPod and the
audio system, the sound
effects of both devices will
overlap and might reduce or
distort the quality of the
sound.
Deactivate (turn off) the equal-
izer function of an iPod when
adjusting the audio system’s
volume, and turn off the equal-
izer of the audio system when
using the equalizer of an iPod.
When the iPod cable is con-
nected, the system can be
switched to AUX mode even
without iPod device and may
cause noise. Disconnect the
iPod cable when you are not
using the iPod device.
(Continued)(Continued)
When not using iPod with car
audio, detach the iPod cable
from iPod. Otherwise, iPod
may remain in accessory
mode, and may not work prop-
erly.
When connecting the iPod,
use the USB/AUX terminals.
When disconnecting the iPod,
disconnect both the USB/AUX
terminal.
The iPod exclusive cable must
be connected to both the
USB/AUX terminals for iPod
charging and operations to be
supported.
Detachable USB/AUXAll-in-one USB/AUX

4151
Features of your vehicle

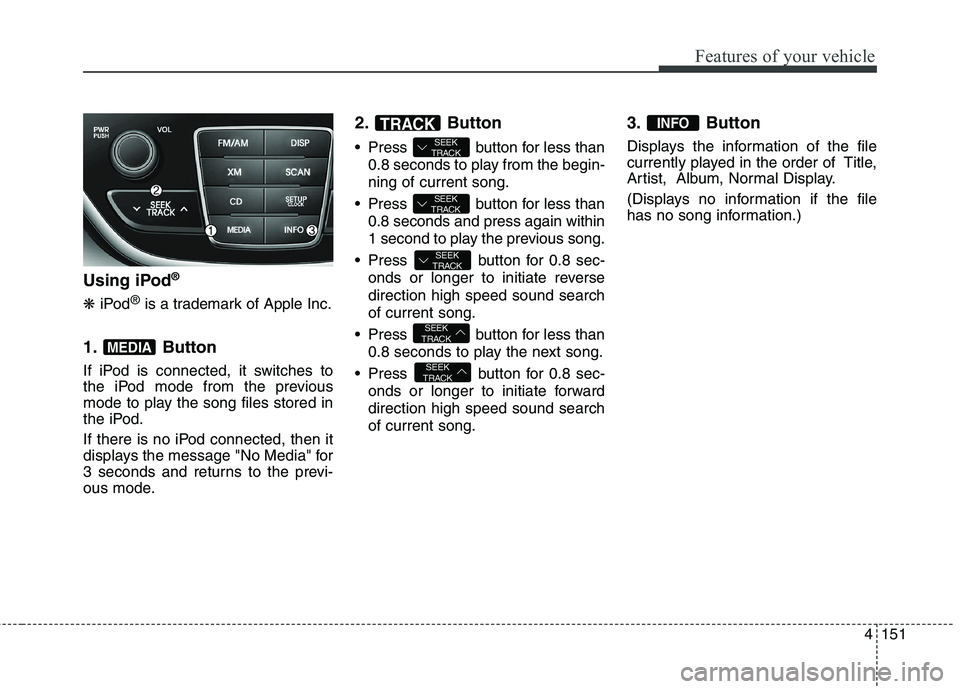

Using iPod®
❋iPod®is a trademark of Apple Inc.
1. Button
If iPod is connected, it switches to
the iPod mode from the previous
mode to play the song files stored in
the iPod.
If there is no iPod connected, then it
displays the message "No Media" for
3 seconds and returns to the previ-
ous mode.
2. Button
Press button for less than
0.8 seconds to play from the begin-
ning of current song.
Press button for less than
0.8 seconds and press again within
1 second to play the previous song.
Press button for 0.8 sec-
onds or longer to initiate reverse
direction high speed sound search
of current song.
Press button for less than
0.8 seconds to play the next song.
Press button for 0.8 sec-
onds or longer to initiate forward
direction high speed sound search
of current song.
3. Button
Displays the information of the file
currently played in the order of Title,
Artist, Album, Normal Display.
(Displays no information if the file
has no song information.)
INFO
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACKTRACK
MEDIA

Features of your vehicle
152 4

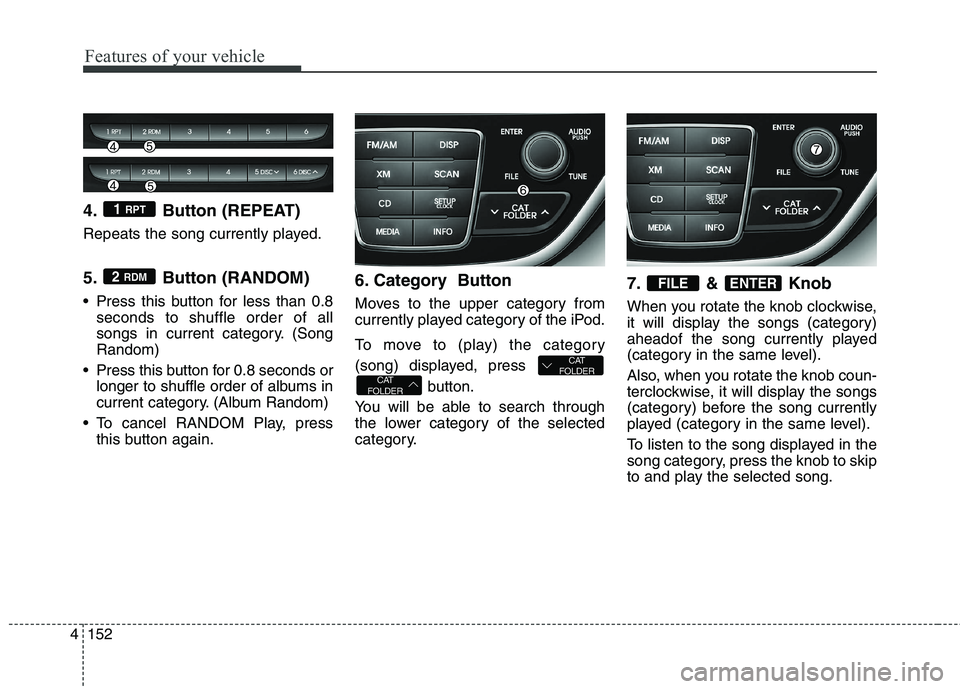

4. Button (REPEAT)
Repeats the song currently played.
5. Button (RANDOM)
Press this button for less than 0.8
seconds to shuffle order of all
songs in current category. (Song
Random)
Press this button for 0.8 seconds or
longer to shuffle order of albums in
current category. (Album Random)
To cancel RANDOM Play, press
this button again.
6. Category Button
Moves to the upper category from
currently played category of the iPod.
To move to (play) the category
(song) displayed, press
button.
You will be able to search through
the lower category of the selected
category.
7. & Knob
When you rotate the knob clockwise,
it will display the songs (category)
aheadof the song currently played
(category in the same level).
Also, when you rotate the knob coun-
terclockwise, it will display the songs
(category) before the song currently
played (category in the same level).
To listen to the song displayed in the
song category, press the knob to skip
to and play the selected song.
ENTERFILE
CAT
FOLDER
CAT
FOLDER
2 RDM
1 RPT

4153
Features of your vehicle

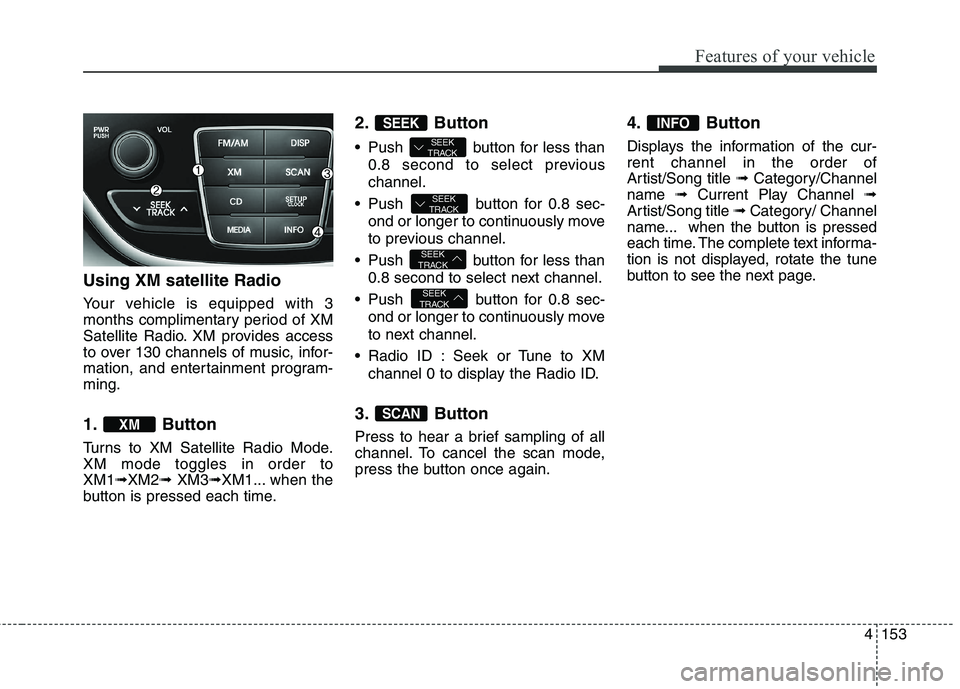

Using XM satellite Radio
Your vehicle is equipped with 3
months complimentary period of XM
Satellite Radio. XM provides access
to over 130 channels of music, infor-
mation, and entertainment program-
ming.
1. Button
Turns to XM Satellite Radio Mode.
XM mode toggles in order to
XM1➟XM2➟ XM3➟XM1... when the
button is pressed each time.
2. Button
Push button for less than
0.8 second to select previous
channel.
Push button for 0.8 sec-
ond or longer to continuously move
to previous channel.
Push button for less than
0.8 second to select next channel.
Push button for 0.8 sec-
ond or longer to continuously move
to next channel.
Radio ID : Seek or Tune to XM
channel 0 to display the Radio ID.
3. Button
Press to hear a brief sampling of all
channel. To cancel the scan mode,
press the button once again.
4. Button
Displays the information of the cur-
rent channel in the order of
Artist/Song title ➟ Category/Channel
name ➟ Current Play Channel ➟
Artist/Song title ➟ Category/ Channel
name... when the button is pressed
each time. The complete text informa-
tion is not displayed, rotate the tune
button to see the next page.
INFO
SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
XM

Features of your vehicle
154 4

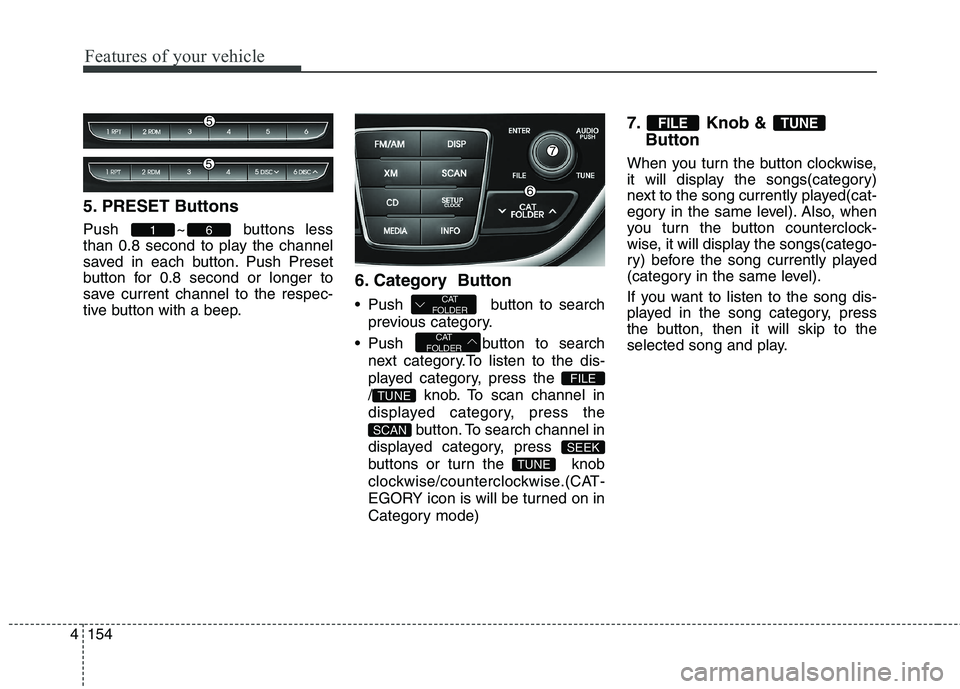

5. PRESET Buttons
Push ~ buttons less
than 0.8 second to play the channel
saved in each button. Push Preset
button for 0.8 second or longer to
save current channel to the respec-
tive button with a beep.
6. Category Button
Push button to search
previous category.
Push button to search
next category.To listen to the dis-
played category, press the
/ knob. To scan channel in
displayed category, press the
button. To search channel in
displayed category, press
buttons or turn the knob
clockwise/counterclockwise.(CAT-
EGORY icon is will be turned on in
Category mode)
7. Knob &
Button
When you turn the button clockwise,
it will display the songs(category)
next to the song currently played(cat-
egory in the same level). Also, when
you turn the button counterclock-
wise, it will display the songs(catego-
ry) before the song currently played
(category in the same level).
If you want to listen to the song dis-
played in the song category, press
the button, then it will skip to the
selected song and play.
TUNEFILE
TUNE
SEEK
SCAN
TUNE
FILE
CAT
FOLDER
CAT
FOLDER
61

4155
Features of your vehicle

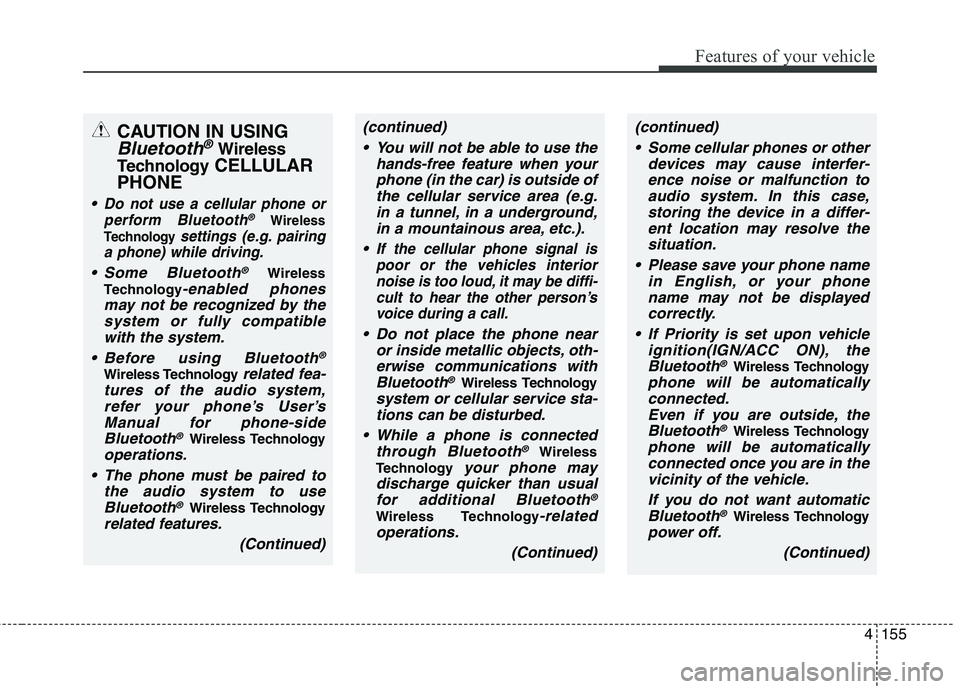

CAUTION IN USING
Bluetooth®Wireless
Technology
CELLULAR
PHONE
Do not use a cellular phone or
perform Bluetooth®Wireless
Technology
settings (e.g. pairing
a phone) while driving.
Some Bluetooth®Wireless
Technology
-enabled phones
may not be recognized by the
system or fully compatible
with the system.
Before using Bluetooth
®
Wireless Technology related fea-
tures of the audio system,
refer your phone’s User’s
Manual for phone-side
Bluetooth
®Wireless Technology
operations.

The phone must be paired to
the audio system to use
Bluetooth®Wireless Technology
related features.
(Continued)
(continued)
You will not be able to use the
hands-free feature when your
phone (in the car) is outside of
the cellular service area (e.g.
in a tunnel, in a underground,
in a mountainous area, etc.).

f the cellular phone signal is
poor or the vehicles interior
noise is too loud, it may be diffi-
cult to hear the other person’s
voice during a call.
Do not place the phone near
or inside metallic objects, oth-
erwise communications with
Bluetooth
®Wireless Technology
system or cellular service sta-
tions can be disturbed.
While a phone is connected
through Bluetooth
®Wireless
Technology
your phone may
discharge quicker than usual
for additional Bluetooth
®
Wireless Technology-related
operations.
(Continued)
(continued)
Some cellular phones or other
devices may cause interfer-
ence noise or malfunction to
audio system. In this case,
storing the device in a differ-
ent location may resolve the
situation.
Please save your phone name
in English, or your phone
name may not be displayed
correctly.
If Priority is set upon vehicle
ignition(IGN/ACC ON), the
Bluetooth
®Wireless Technology
phone will be automatically
connected.
Even if you are outside, the
Bluetooth
®Wireless Technology
phone will be automatically
connected once you are in the
vicinity of the vehicle.
If you do not want automatic
Bluetooth
®Wireless Technology
power off.
(Continued)

Features of your vehicle
156 4

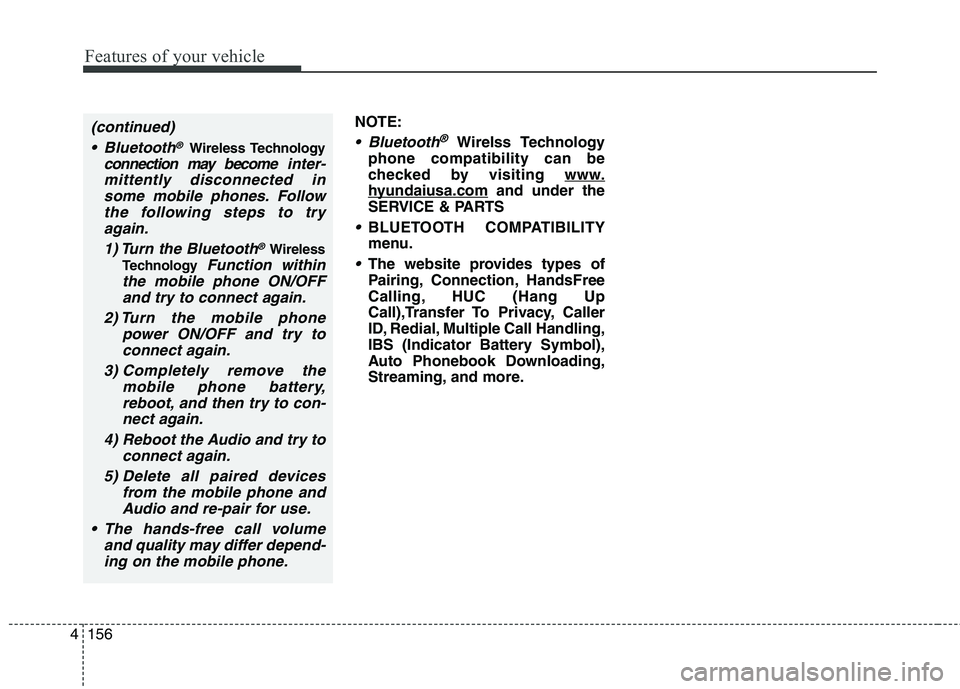

NOTE:
Bluetooth®Wirelss Technology
phone compatibility can be
checked by visiting www
.
hyundaiusa.comand under the
SERVICE & PARTS
BLUETOOTH COMPATIBILITY
menu.
The website provides types of
Pairing, Connection, HandsFree
Calling, HUC (Hang Up
Call),Transfer To Privacy, Caller
ID, Redial, Multiple Call Handling,
IBS (lndicator Battery Symbol),
Auto Phonebook Downloading,
Streaming, and more.
(continued)
Bluetooth
®Wireless Technology
connection may becomeinter-
mittently disconnected in
some mobile phones. Follow
the following steps to try
again.
1) Turn the Bluetooth
®Wireless
Technology
Function within
the mobile phone ON/OFF
and try to connect again.
2) Turn the mobile phone
power ON/OFF and try to
connect again.
3) Completely remove the
mobile phone battery,
reboot, and then try to con-
nect again.
4) Reboot the Audio and try to
connect again.
5) Delete all paired devices
from the mobile phone and
Audio and re-pair for use.
The hands-free call volume
and quality may differ depend-
ing on the mobile phone.
