HYUNDAI GENESIS COUPE 2014 Owners Manual

4157
Features of your vehicle

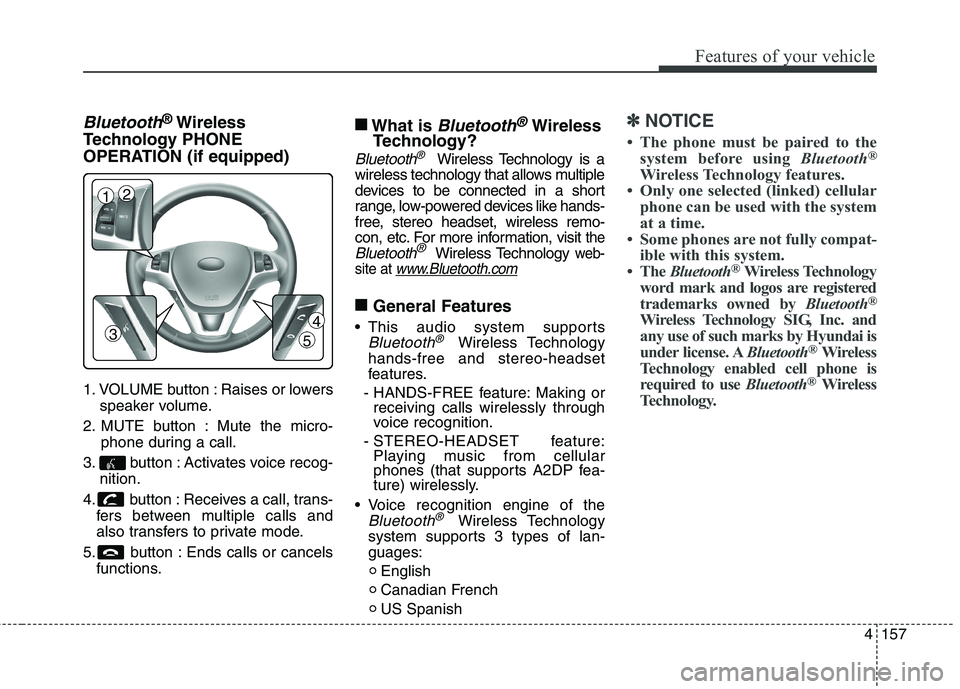

Bluetooth®Wireless
Technology PHONE
OPERATION (if equipped)
1. VOLUME button : Raises or lowers
speaker volume.
2. MUTE button : Mute the micro-
phone during a call.
3. button : Activates voice recog-
nition.
4. button : Receives a call, trans-
fers between multiple calls and
also transfers to private mode.
5. button : Ends calls or cancels
functions.
■
What is Bluetooth®Wireless
Technology?
Bluetooth®Wireless Technology is a
wireless technology that allows multiple
devices to be connected in a short
range, low-powered devices like hands-
free, stereo headset, wireless remo-
con, etc. For more information, visit
the
Bluetooth®Wireless Technology web-
site at
www.Bluetooth.com
■
General Features
This audio system supports
Bluetooth®Wireless Technology
hands-free and stereo-headset
features.
- HANDS-FREE feature: Making or
receiving calls wirelessly through
voice recognition.
- STEREO-HEADSET feature:
Playing music from cellular
phones (that supports A2DP fea-
ture) wirelessly.
Voice recognition engine of the
Bluetooth®Wireless Technology
system supports 3 types of lan-
guages:
English
Canadian French
US Spanish
✽ ✽
NOTICE
• The phone must be paired to the
system before using Bluetooth®
Wireless Technology features.
• Only one selected (linked) cellular
phone can be used with the system
at a time.
• Some phones are not fully compat-
ible with this system.
• The Bluetooth
®Wireless Technology
word mark and logos are registered
trademarks owned by Bluetooth
®
Wireless Technology SIG, Inc. and
any use of such marks by Hyundai is
under license. ABluetooth
®Wireless
Technology enabled cell phone is
required to use Bluetooth
®Wireless
Technology.
3
12
4
5

Features of your vehicle
158 4
■

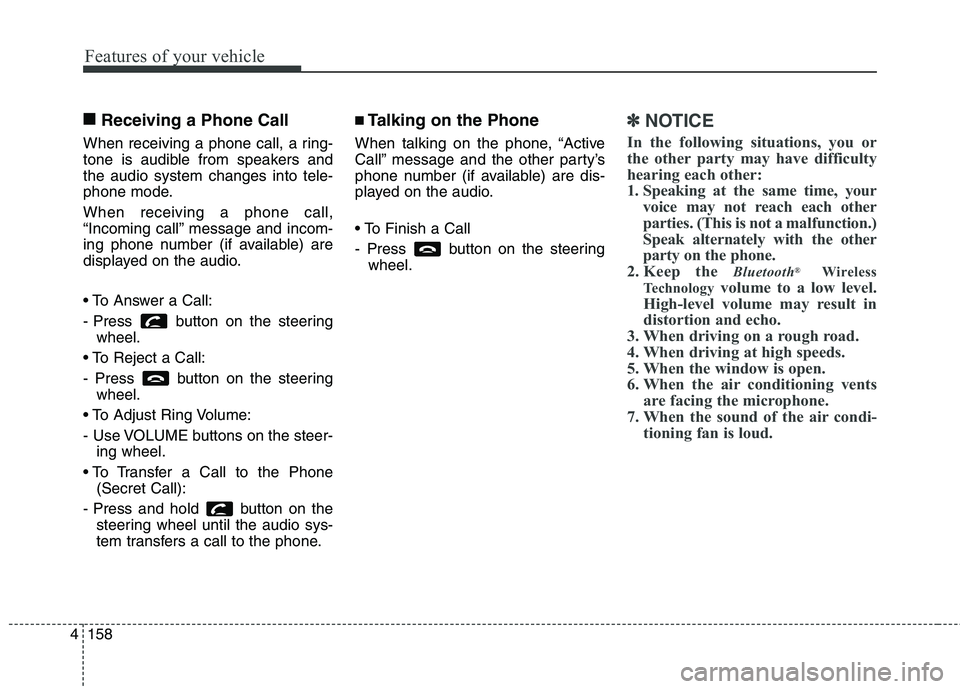

Receiving a Phone Call
When receiving a phone call, a ring-
tone is audible from speakers and
the audio system changes into tele-
phone mode.
When receiving a phone call,
“Incoming call” message and incom-
ing phone number (if available) are
displayed on the audio.

- Press button on the steering
wheel.

- Press button on the steering
wheel.

- Use VOLUME buttons on the steer-
ing wheel.

(Secret Call):
- Press and hold button on the
steering wheel until the audio sys-
tem transfers a call to the phone.
■Talking on the Phone
When talking on the phone, “Active
Call” message and the other party’s
phone number (if available) are dis-
played on the audio.

- Press button on the steering
wheel.
✽ ✽
NOTICE
In the following situations, you or
the other party may have difficulty
hearing each other:
1. Speaking at the same time, your
voice may not reach each other
parties. (This is not a malfunction.)
Speak alternately with the other
party on the phone.
2. Keep the
Bluetooth®Wireless
Technology
volume to a low level.
High-level volume may result in
distortion and echo.
3. When driving on a rough road.
4. When driving at high speeds.
5. When the window is open.
6. When the air conditioning vents
are facing the microphone.
7. When the sound of the air condi-
tioning fan is loud.

4159
Features of your vehicle

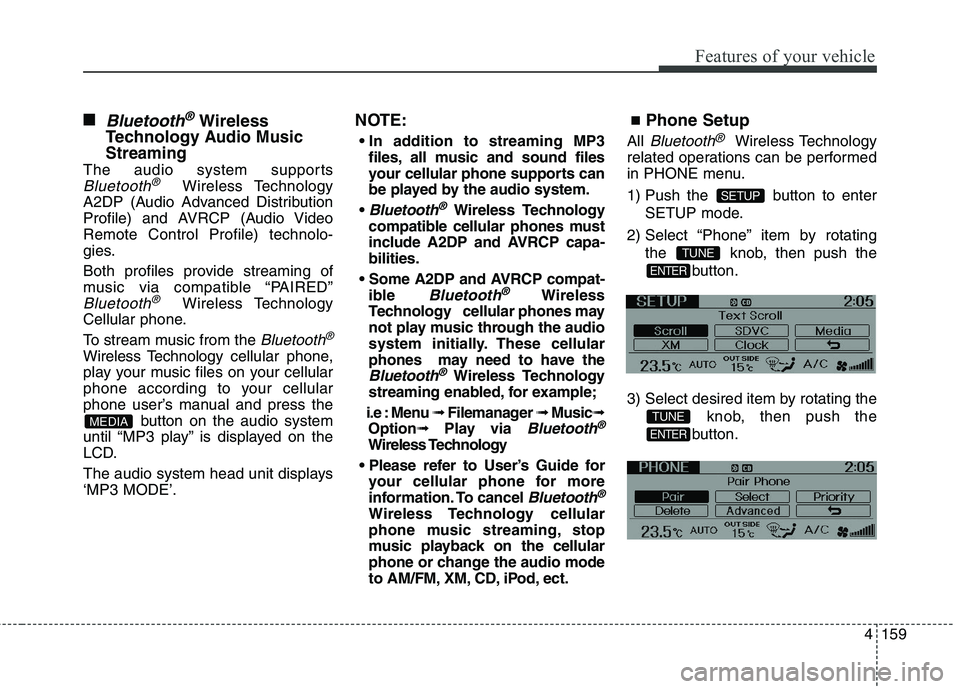

■Bluetooth®Wireless
Technology
Audio Music
Streaming
The audio system supports
Bluetooth®Wireless Technology
A2DP (Audio Advanced Distribution
Profile) and AVRCP (Audio Video
Remote Control Profile) technolo-
gies.
Both profiles provide streaming of
music via compatible “PAIRED”
Bluetooth®Wireless Technology
Cellular phone.
To stream music from the
Bluetooth®
Wireless Technologycellular phone,
play your music files on your cellular
phone according to your cellular
phone user’s manual and press the
button on the audio system
until “MP3 play” is displayed on the
LCD.
The audio system head unit displays
‘MP3 MODE’.
NOTE:

files, all music and sound files
your cellular phone supports can
be played by the audio system.

Bluetooth®Wireless Technology
compatible cellular phones must
include A2DP and AVRCP capa-
bilities.

ible
Bluetooth®Wireless
Technology cellular phones may
not play music through the audio
system initially. These cellular
phones may need to have the
Bluetooth®Wireless Technology
streaming enabled, for example;
i.e : Menu ➟ Filemanager ➟ Music➟
Option➟ Play via
Bluetooth®
Wireless Technology

your cellular phone for more
information. To cancel
Bluetooth®
Wireless Technology cellular
phone music streaming, stop
music playback on the cellular
phone or change the audio mode
to AM/FM, XM, CD, iPod, ect.
■Phone Setup
All Bluetooth®Wireless Technology
related operations can be performed
in PHONE menu.
1) Push the button to enter
SETUP mode.
2) Select “Phone” item by rotating
the knob, then push the
button.
3) Select desired item by rotating the
knob, then push the
button.
ENTER
TUNE
ENTER
TUNE
SETUP
MEDIA

Features of your vehicle
160 4

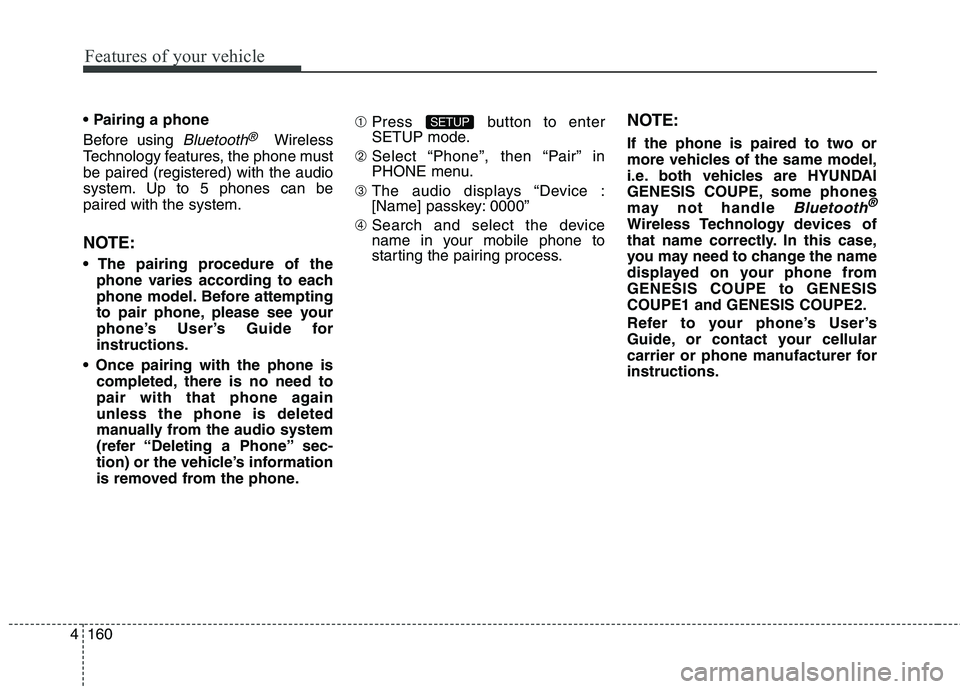

Before using
Bluetooth®Wireless
Technology features, the phone must
be paired (registered) with the audio
system. Up to 5 phones can be
paired with the system.
NOTE:

phone varies according to each
phone model. Before attempting
to pair phone, please see your
phone’s User’s Guide for
instructions.

completed, there is no need to
pair with that phone again
unless the phone is deleted
manually from the audio system
(refer “Deleting a Phone” sec-
tion) or the vehicle’s information
is removed from the phone.➀Press button to enter
SETUP mode.
➁ Select “Phone”, then “Pair” in
PHONE menu.
➂ The audio displays “Device :
[Name] passkey: 0000”
➃ Search and select the device
name in your mobile phone to
starting the pairing process.
NOTE:
If the phone is paired to two or
more vehicles of the same model,
i.e. both vehicles are HYUNDAI
GENESIS COUPE, some phones
may not handle
Bluetooth®
Wireless Technology devices of
that name correctly. In this case,
you may need to change the name
displayed on your phone from
GENESIS COUPE to GENESIS
COUPE1 and GENESIS COUPE2.
Refer to your phone’s User’s
Guide, or contact your cellular
carrier or phone manufacturer for
instructions.
SETUP

4161
Features of your vehicle

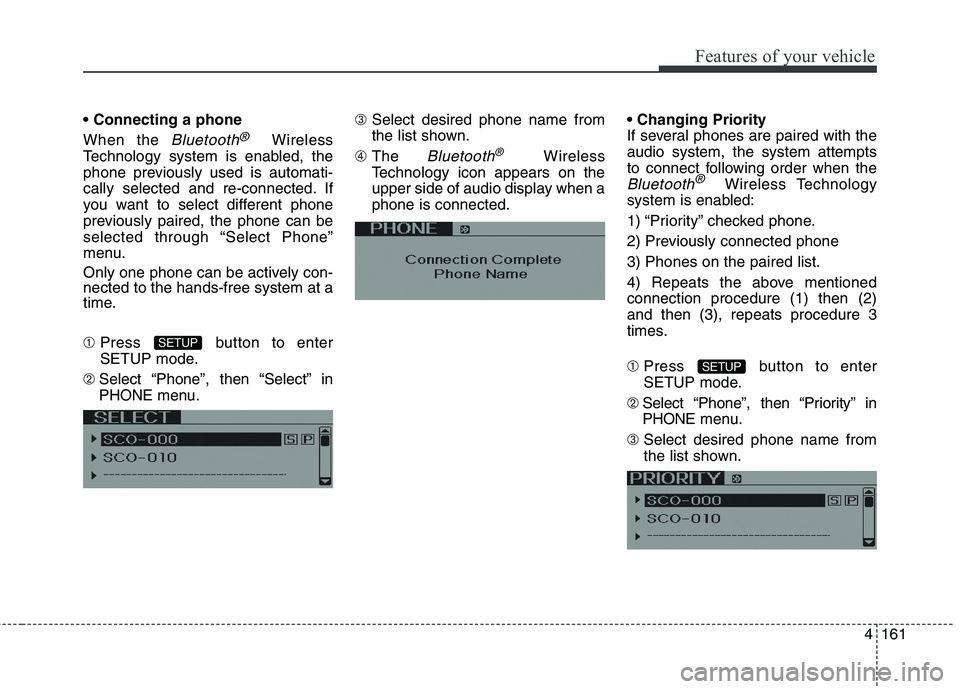

When the
Bluetooth®Wireless
Technology system is enabled, the
phone previously used is automati-
cally selected and re-connected. If
you want to select different phone
previously paired, the phone can be
selected through “Select Phone”
menu.
Only one phone can be actively con-
nected to the hands-free system at a
time.
➀Press button to enter
SETUP mode.
➁ Select “Phone”, then “Select” in
PHONE menu.➂ Select desired phone name from
the list shown.
➃ The
Bluetooth®Wireless
Technology icon appears on the
upper side of audio display when a
phone is connected.
If several phones are paired with the
audio system, the system attempts
to connect following order when the
Bluetooth®Wireless Technology
system is enabled:
1) “Priority” checked phone.
2) Previously connected phone
3) Phones on the paired list.
4) Repeats the above mentioned
connection procedure (1) then (2)
and then (3), repeats procedure 3
times.
➀Press button to enter
SETUP mode.
➁ Select “Phone”, then “Priority” in
PHONE menu.
➂ Select desired phone name from
the list shown.
SETUP
SETUP

Features of your vehicle
162 4

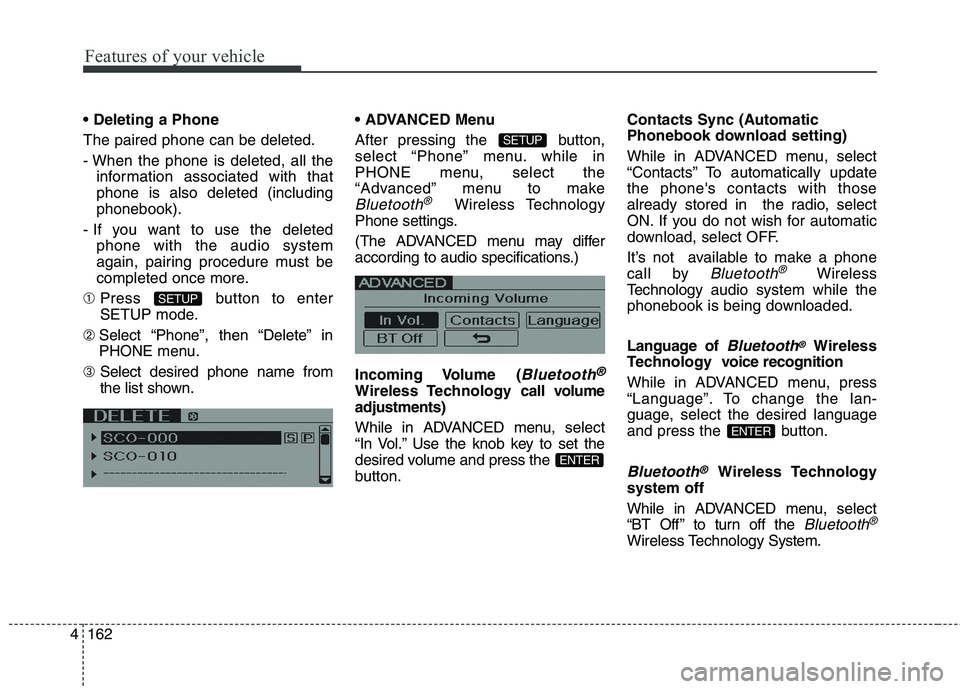

The paired phone can be deleted.
- When the phone is deleted, all the
information associated with that
phone is also deleted (including
phonebook).
- If you want to use the deleted
phone with the audio system
again, pairing procedure must be
completed once more.
➀Press button to enter
SETUP mode.
➁ Select “Phone”, then “Delete” in
PHONE menu.
➂ Select desired phone name from
the list shown. Menu
After pressing the button,
select “Phone” menu. while in
PHONE menu, select the
“Advanced” menu to make
Bluetooth®Wireless Technology
Phone settings.
(The ADVANCED menu may differ
according to audio specifications.)
Incoming Volume (
Bluetooth®
Wireless Technology call volume
adjustments)
While in ADVANCED menu, select
“In Vol.” Use the knob key to set the
desired volume and press the
button.Contacts Sync (Automatic
Phonebook download setting)
While in ADVANCED menu, select
“Contacts” To automatically update
the phone's contacts with those
already stored in the radio, select
ON. If you do not wish for automatic
download, select OFF.
It’s not available to make a phone
call by
Bluetooth®Wireless
Technologyaudio system while the
phonebook is being downloaded.
Language of
Bluetooth®Wireless
Technology voice recognition
While in ADVANCED menu, press
“Language”. To change the lan-
guage, select the desired language
and press the button.
Bluetooth®Wireless Technology
system off
While in ADVANCED menu, select
“BT Off ” to turn off the
Bluetooth®
Wireless TechnologySystem.
ENTER
ENTER
SETUP
SETUP

4163
Features of your vehicle

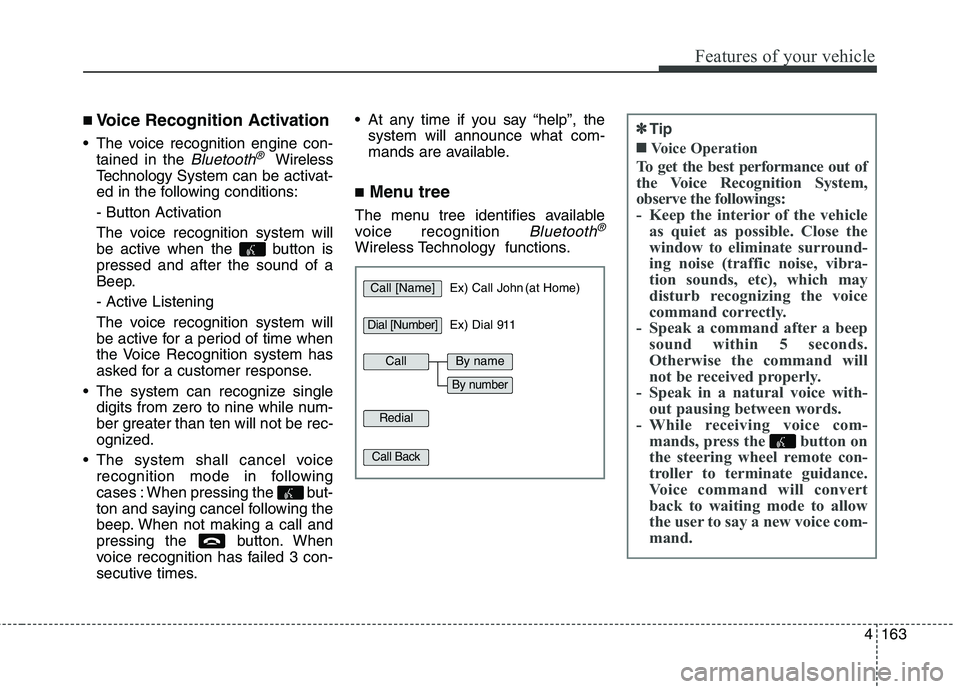

■Voice Recognition Activation
The voice recognition engine con-
tained in the
Bluetooth®Wireless
TechnologySystem can be activat-
ed in the following conditions:
- Button Activation
The voice recognition system will
be active when the button is
pressed and after the sound of a
Beep.
- Active Listening
The voice recognition system will
be active for a period of time when
the Voice Recognition system has
asked for a customer response.
The system can recognize single
digits from zero to nine while num-
ber greater than ten will not be rec-
ognized.
The system shall cancel voice
recognition mode in following
cases : When pressing the but-
ton and saying cancel following the
beep. When not making a call and
pressing the button. When
voice recognition has failed 3 con-
secutive times. At any time if you say “help”, the
system will announce what com-
mands are available.
■Menu tree
The menu tree identifies available
voice recognition
Bluetooth®
Wireless Technology functions.
✽ ✽
Tip
■Voice Operation
To get the best performance out of
the Voice Recognition System,
observe the followings:
- Keep the interior of the vehicle
as quiet as possible. Close the
window to eliminate surround-
ing noise (traffic noise, vibra-
tion sounds, etc), which may
disturb recognizing the voice
command correctly.
- Speak a command after a beep
sound within 5 seconds.
Otherwise the command will
not be received properly.
- Speak in a natural voice with-
out pausing between words.
- While receiving voice com-
mands, press the button on
the steering wheel remote con-
troller to terminate guidance.
Voice command will convert
back to waiting mode to allow
the user to say a new voice com-
mand.
Call [Name]Ex) Call John (at Home)
Ex) Dial 911
Dial [Number]
Redial
Call Back
CallBy name
By number

Features of your vehicle
164 4

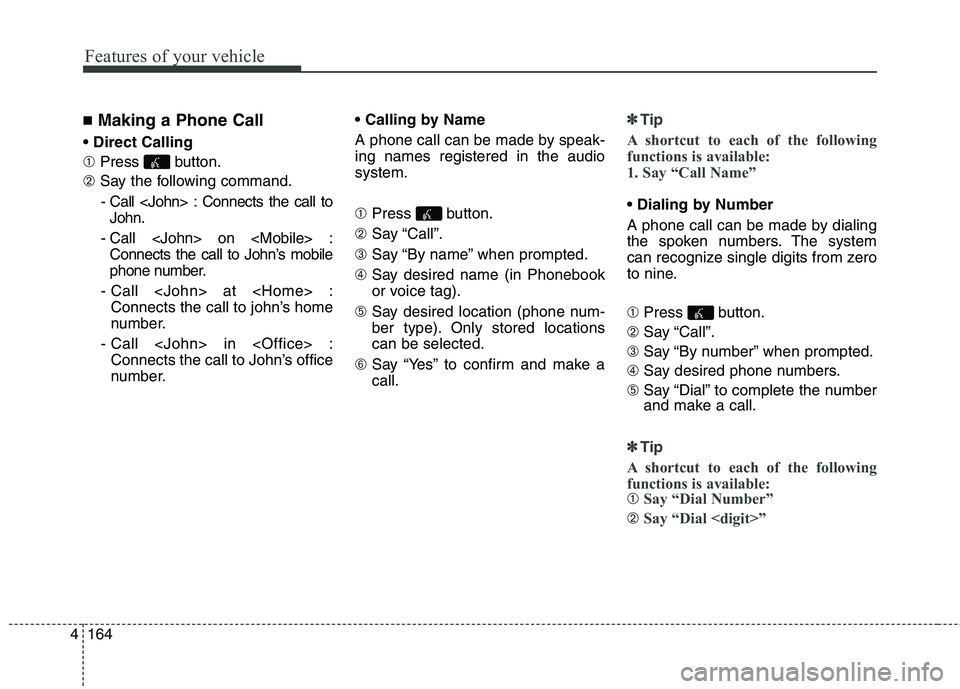

■Making a Phone Call

➀ Press button.
➁ Say the following command.
- Call : Connects the call to
John.
- Call on :
Connects the call to John’s mobile
phone number.
- Call at :
Connects the call to john’s home
number.
- Call in :
Connects the call to John’s office
number.
A phone call can be made by speak-
ing names registered in the audio
system.
➀ Press button.
➁ Say “Call”.
➂ Say “By name” when prompted.
➃ Say desired name (in Phonebook
or voice tag).
➄ Say desired location (phone num-
ber type). Only stored locations
can be selected.
➅ Say “Yes” to confirm and make a
call.✽ ✽
Tip
A shortcut to each of the following
functions is available:
1. Say “Call Name”

A phone call can be made by dialing
the spoken numbers. The system
can recognize single digits from zero
to nine.
➀ Press button.
➁ Say “Call”.
➂ Say “By number” when prompted.
➃ Say desired phone numbers.
➄ Say “Dial” to complete the number
and make a call.
✽ ✽
Tip
A shortcut to each of the following
functions is available:
➀ Say “Dial Number”
➁ Say “Dial ”

4165
Features of your vehicle

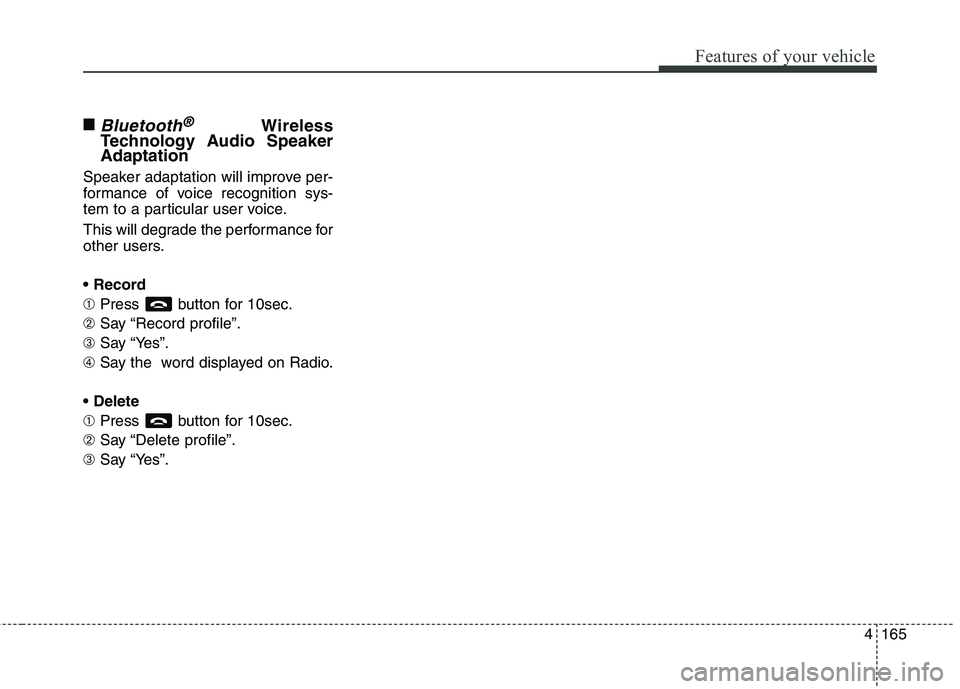

■Bluetooth®Wireless
Technology Audio Speaker
Adaptation
Speaker adaptation will improve per-
formance of voice recognition sys-
tem to a particular user voice.
This will degrade the performance for
other users.

➀ Press button for 10sec.
➁ Say “Record profile”.
➂ Say “Yes”.
➃ Say the word displayed on Radio.

➀ Press button for 10sec.
➁ Say “Delete profile”.
➂ Say “Yes”.

Features of your vehicle
166 4

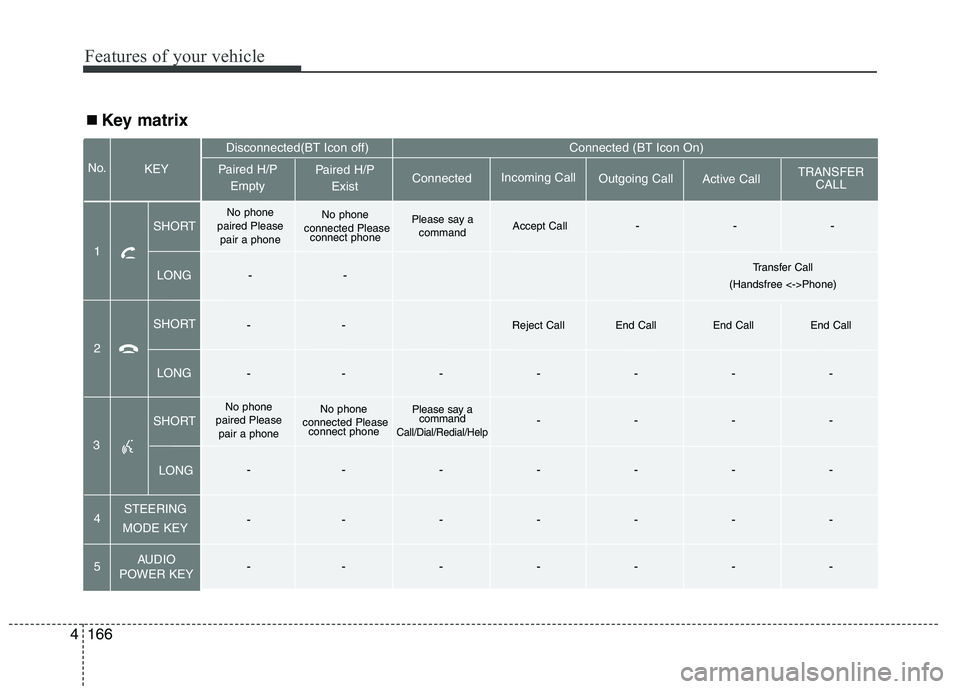

■ Key matrix
No.
Disconnected(BT Icon off) Connected (BT Icon On)
Paired H/P
EmptyPaired H/P
Exist
1SHORT
LONG
SHORT
LONG
STEERING
MODE KEY
AUDIO
POWER KEYIncoming Call
Outgoing Call
Active CallTRANSFER
CALL Connected KEY
--Reject Call End Call End Call End Call
-------
No phone
paired Please
pair a phoneNo phone
connected Please
connect phonePlease say a
command
Call/Dial/Redial/Help----
-------
-------
-------
No phone
paired Please
pair a phoneNo phone
connected Please
connect phonePlease say a
commandAccept Call---
4
5 2
3
SHORT
LONG
--Transfer Call
(Handsfree <->Phone)
