Hyundai Genesis Coupe 2015 Owner's Manual

83
Specifications, Consumer information, Reporting safety defects

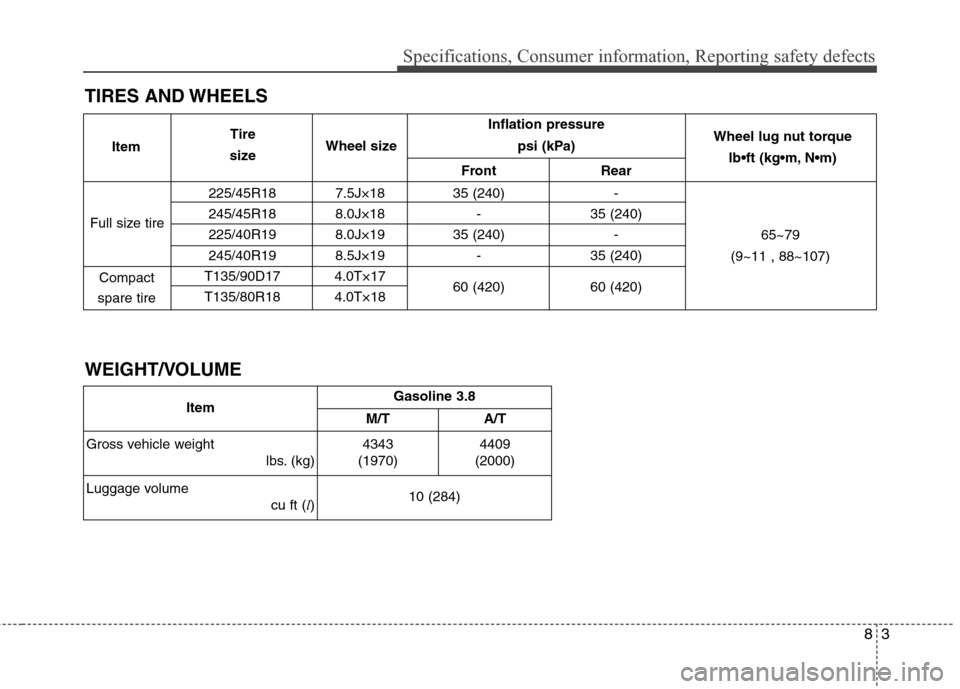

TIRES AND WHEELS
Inflation pressure
psi (kPa)
Front Rear
225/45R18 7.5J×18 35 (240) -
245/45R18 8.0J×18 - 35 (240)
225/40R19 8.0J×19 35 (240) -
245/40R19 8.5J×19 - 35 (240)
T135/90D17 4.0T×17
60 (420) 60 (420)
T135/80R18 4.0T×18
Full size tire
Compact
spare tireWheel lug nut torque
lb•ft (kg N
65~79
(9~11 , 88~107) ItemTire
sizeWheel size
ItemGasoline 3.8
M/T A/T
Gross vehicle weight
lbs. (kg)4343
(1970)4409
(2000)
Luggage volume
cu ft (l)10 (284)
WEIGHT/VOLUME

Specifications, Consumer information, Reporting safety defects
4 8

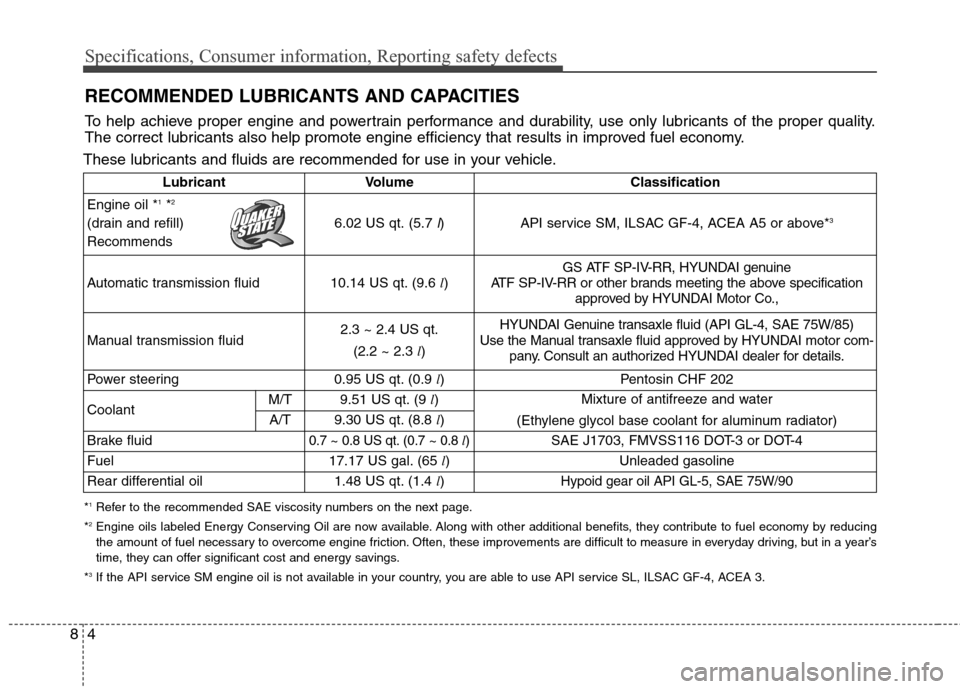

RECOMMENDED LUBRICANTS AND CAPACITIES
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL, ILSAC GF-4, ACEA 3.
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
LubricantVolumeClassification
Engine oil *1*2
(drain and refill)
Recommends6.02 US qt. (5.7 l)API service SM, ILSAC GF-4, ACEA A5 or above*3
Automatic transmission fluid10.14 US qt. (9.6 l)
GS ATF SP-IV-RR, HYUNDAI genuine
ATF SP-IV-RR or other brands meeting the above specification
approved by HYUNDAI Motor Co.,
Manual transmission fluid2.3 ~ 2.4 US qt.
(2.2 ~ 2.3 l)HYUNDAI Genuine transaxle fluid (API GL-4, SAE 75W/85)
Use the Manual transaxle fluid approved by HYUNDAI motor com-
pany. Consult an authorized HYUNDAI dealer for details.
Power steering0.95 US qt. (0.9 l)Pentosin CHF 202
CoolantM/T9.51 US qt. (9 l) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
A/T9.30 US qt. (8.8 l)
Brake fluid0.7 ~ 0.8 US qt. (0.7 ~ 0.8 l)SAE J1703, FMVSS116 DOT-3 or DOT-4
Fuel17.17 US gal. (65 l)Unleaded gasoline
Rear differential oil1.48 US qt. (1.4 l)Hypoid gear oil API GL-5, SAE 75W/90

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity engine
oils are required for satisfactory lubri-
cation in hot weather. Using oils of any
viscosity other than those recommend-
ed could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
85
Specifications, Consumer information, Reporting safety defects
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
10W-30
5W-30
*1For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-30 (API SM / ILSAC GF-4 / ACEA A5).
However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.

Specifications, Consumer information, Reporting safety defects
6 8

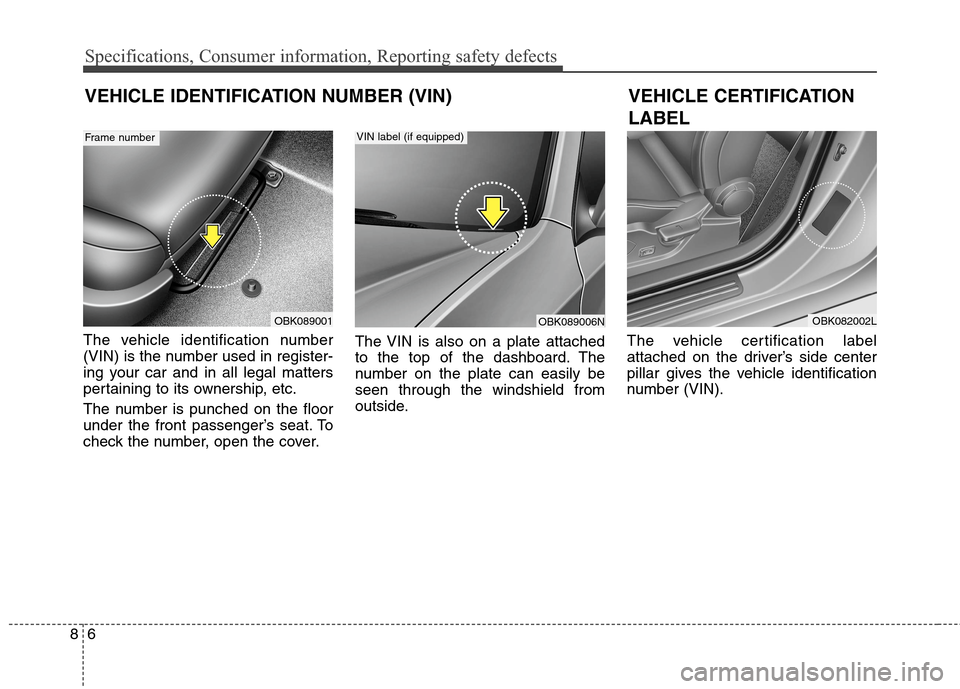

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the front passenger’s seat. To
check the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OBK089001
Frame number
OBK082002LOBK089006N
VIN label (if equipped)
VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION
LABEL

87
Specifications, Consumer information, Reporting safety defects
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.The refrigerant label is located on
the underside of the hood.
The label contains the following infor-
mation:
Type of refrigerant
Amount of refrigerant
OBK082005L
OBK089004
TIRE SPECIFICATION AND
PRESSURE LABELENGINE NUMBERREFRIGERANT LABEL
OBK082006N

Specifications, Consumer information, Reporting safety defects
8 8

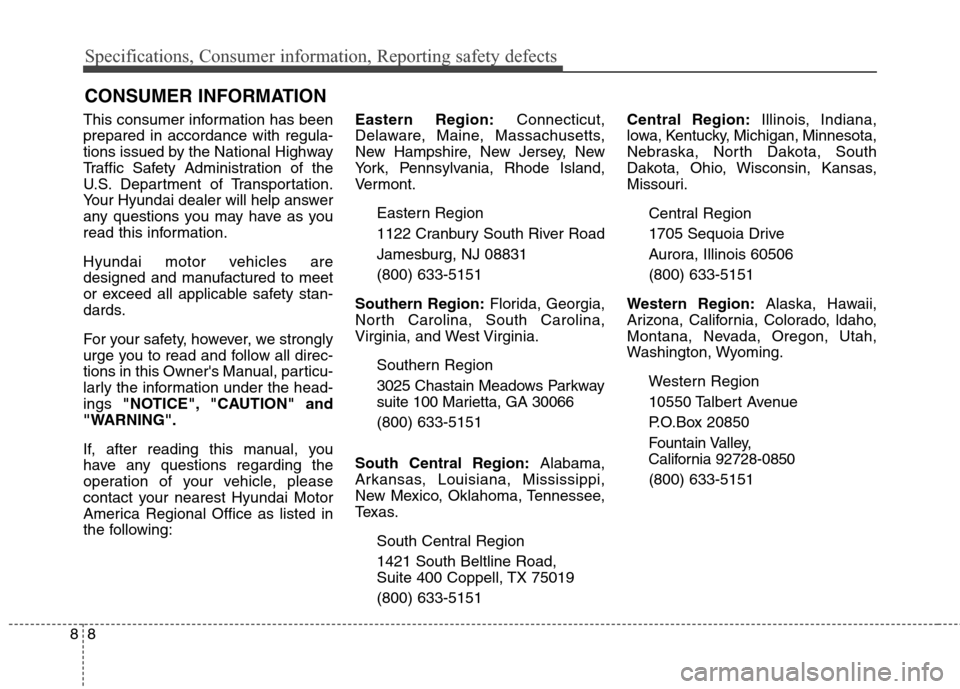

This consumer information has been
prepared in accordance with regula-
tions issued by the National Highway
Traffic Safety Administration of the
U.S. Department of Transportation.
Your Hyundai dealer will help answer
any questions you may have as you
read this information.
Hyundai motor vehicles are
designed and manufactured to meet
or exceed all applicable safety stan-
dards.
For your safety, however, we strongly
urge you to read and follow all direc-
tions in this Owner's Manual, particu-
larly the information under the head-
ings "NOTICE", "CAUTION" and
"WARNING".
If, after reading this manual, you
have any questions regarding the
operation of your vehicle, please
contact your nearest Hyundai Motor
America Regional Office as listed in
the following:Eastern Region:Connecticut,
Delaware, Maine, Massachusetts,
New Hampshire, New Jersey, New
York, Pennsylvania, Rhode Island,
Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region:Florida, Georgia,
North Carolina, South Carolina,
Virginia, and West Virginia.
Southern Region
3025 Chastain Meadows Parkway
suite 100 Marietta, GA 30066
(800) 633-5151
South Central Region:Alabama,
Arkansas, Louisiana, Mississippi,
New Mexico, Oklahoma, Tennessee,
Texas.
South Central Region
1421 South Beltline Road,
Suite 400 Coppell, TX 75019
(800) 633-5151Central Region:Illinois, Indiana,
lowa, Kentucky, Michigan, Minnesota,
Nebraska, North Dakota, South
Dakota, Ohio, Wisconsin, Kansas,
Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region:Alaska, Hawaii,
Arizona, California, Colorado, ldaho,
Montana, Nevada, Oregon, Utah,
Washington, Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley,
California 92728-0850
(800) 633-5151
CONSUMER INFORMATION

89
Specifications, Consumer information, Reporting safety defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investiga-
tion, and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA,
1200 New Jersey Ave SE., West
Building, Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS

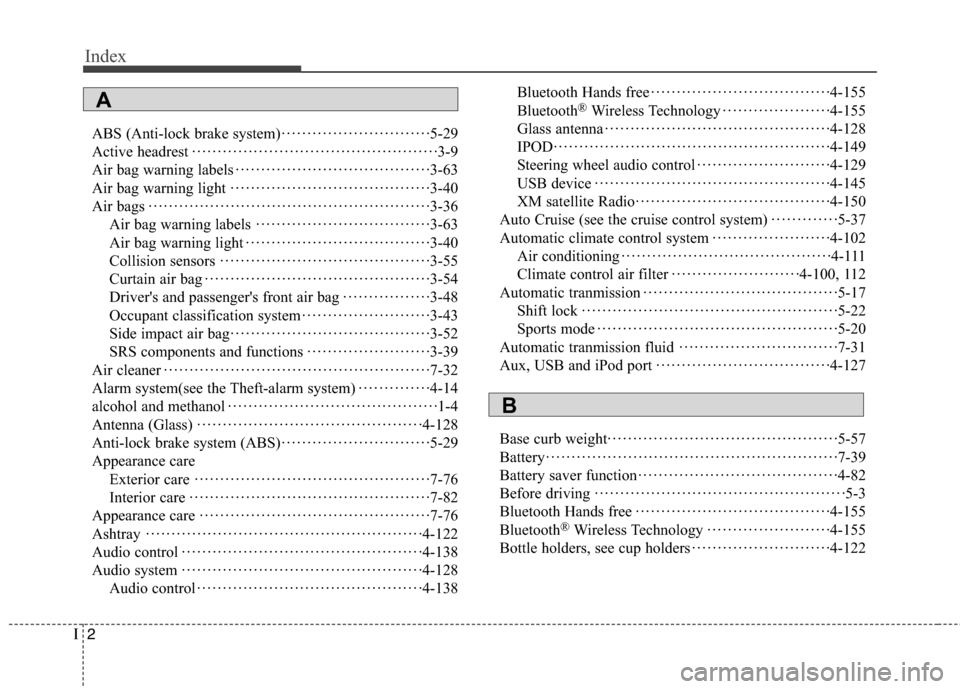

Index
I

Index
2I
ABS (Anti-lock brake system)·····························5-29
Active headrest················································3-9
Air bag warning labels······································3-63
Air bag warning light·······································3-40
Air bags·······················································3-36
Air bag warning labels··································3-63
Air bag warning light····································3-40
Collision sensors·········································3-55
Curtain air bag············································3-54
Driver's and passenger's front air bag·················3-48
Occupant classification system·························3-43
Side impact air bag·······································3-52
SRS components and functions························3-39
Air cleaner····················································7-32
Alarm system(see the Theft-alarm system)··············4-14
alcohol and methanol·········································1-4
Antenna (Glass)············································4-128
Anti-lock brake system (ABS)·····························5-29
Appearance care
Exterior care··············································7-76
Interior care···············································7-82
Appearance care·············································7-76
Ashtray······················································4-122
Audio control···············································4-138
Audio system···············································4-128
Audio control············································4-138Bluetooth Hands free···································4-155
Bluetooth
®Wireless Technology·····················4-155
Glass antenna············································4-128
IPOD······················································4-149
Steering wheel audio control··························4-129
USB device··············································4-145
XM satellite Radio······································4-150
Auto Cruise (see the cruise control system)·············5-37
Automatic climate control system·······················4-102
Air conditioning·········································4-111
Climate control air filter · · ·······················4-100, 112
Automatic tranmission······································5-17
Shift lock··················································5-22
Sports mode···············································5-20
Automatic tranmission fluid·······························7-31
Aux, USB and iPod port··································4-127
Base curb weight·············································5-57
Battery·························································7-39
Battery saver function·······································4-82
Before driving·················································5-3
Bluetooth Hands free······································4-155
Bluetooth
®Wireless Technology························4-155
Bottle holders, see cup holders···························4-122
A
B

I3
Index
Brake system·················································5-25
Anti-lock brake system (ABS)·························5-29
Electronic stability program (ESC)····················5-31
Parking brake·············································5-27
Power brakes··············································5-25
Brakes/clutch fluid··········································7-28
Bulb replacement············································7-67
Bulb wattage···················································8-2
California perchlorate notice·······························7-86
Capacities (Lubricants)·······································8-4
Care
Exterior care··············································7-76
Interior care···············································7-82
Tire care···················································7-41
Cargo capacity···············································5-53
Cargo weight·················································5-57
Center console storage····································4-120
Central door lock switch····································4-18
Certification label············································5-55
Certification label·············································8-6
Chains
Tire chains·················································5-49
Changing tires················································6-13
Checking tire inflation pressure···························7-43Child restraint system·······································3-27
Lower anchor·············································3-34
Passerger's seat···········································3-38
Seat belt····················································3-30
Tether anchor system····································3-32
Cigarette lighter············································4-121
Climate control air filter·····························4-100, 112
Climate control air filter replacement·····················7-33
Clock (Digital)··············································4-124
Collision sensors·············································3-55
Combined instrument, see instrument cluster···········4-45
Compact spare tire replacement···························7-46
Compass······················································4-37
Consumer information········································8-8
Coolant························································7-25
Cooling fluid, see engine coolant·························7-25
Crankcase emission control system·······················7-83
Cruise control system·······································5-37
Cup holder··················································4-120
Curtain air bag···············································3-54
Dashboard illumination, see instrument panel illumination· ·4-46
Dashboard, see instrument cluster·························4-45
Daytime running light (DRL)······························4-83
Defogging (Windshield)···································4-114
D
C
