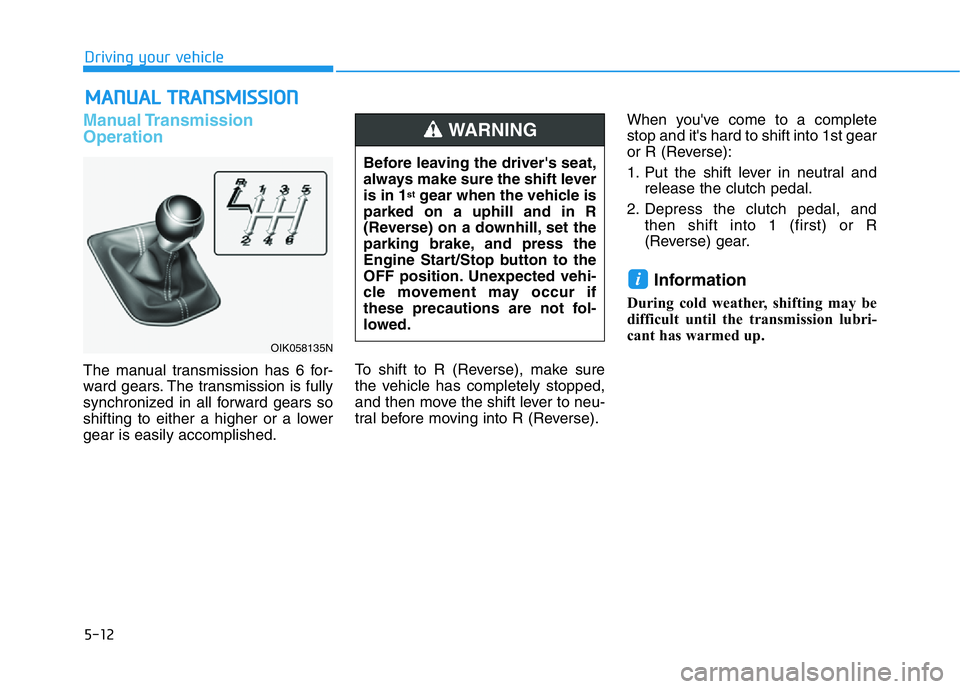

5-12
Manual Transmission
Operation
The manual transmission has 6 for-
ward gears. The transmission is fully
synchronized in all forward gears so
shifting to either a higher or a lower
gear is easily accomplished.To shift to R (Reverse), make sure
the vehicle has completely stopped,
and then move the shift lever to neu-
tral before moving into R (Reverse).When you've come to a complete
stop and it's hard to shift into 1st gear
or R (Reverse):
1. Put the shift lever in neutral and
release the clutch pedal.
2. Depress the clutch pedal, and
then shift into 1 (first) or R
(Reverse) gear.
Information
During cold weather, shifting may be
difficult until the transmission lubri-
cant has warmed up.
i
MANUAL TRANSMISSION
Driving your vehicle
OIK058135N
Before leaving the driver's seat,
always make sure the shift lever
is in 1
stgear when the vehicle is
parked on a uphill and in R
(Reverse) on a downhill, set the
parking brake, and press the
Engine Start/Stop button to the
OFF position. Unexpected vehi-
cle movement may occur if
these precautions are not fol-
lowed.
WARNING

5-13
Driving your vehicle

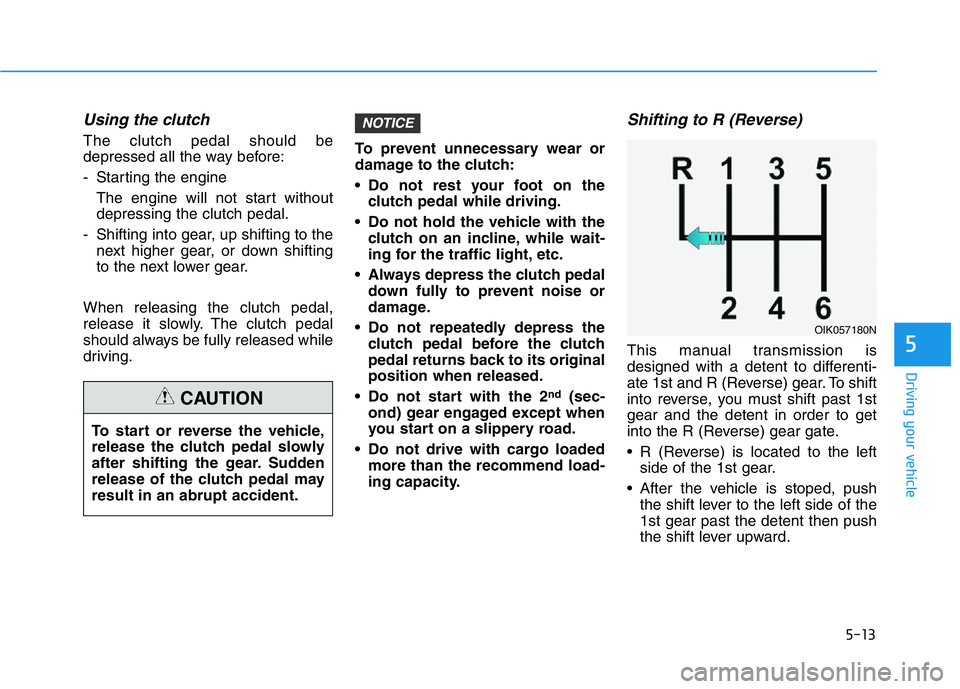

Using the clutch
The clutch pedal should be
depressed all the way before:
- Starting the engine
The engine will not start without
depressing the clutch pedal.
- Shifting into gear, up shifting to the
next higher gear, or down shifting
to the next lower gear.
When releasing the clutch pedal,
release it slowly. The clutch pedal
should always be fully released while
driving.To prevent unnecessary wear or
damage to the clutch:
• Do not rest your foot on the
clutch pedal while driving.
• Do not hold the vehicle with the
clutch on an incline, while wait-
ing for the traffic light, etc.
• Always depress the clutch pedal
down fully to prevent noise or
damage.
• Do not repeatedly depress the
clutch pedal before the clutch
pedal returns back to its original
position when released.
• Do not start with the 2
nd(sec-
ond) gear engaged except when
you start on a slippery road.
• Do not drive with cargo loaded
more than the recommend load-
ing capacity.
Shifting to R (Reverse)
This manual transmission is
designed with a detent to differenti-
ate 1st and R (Reverse) gear. To shift
into reverse, you must shift past 1st
gear and the detent in order to get
into the R (Reverse) gear gate.
• R (Reverse) is located to the left
side of the 1st gear.
• After the vehicle is stoped, push
the shift lever to the left side of the
1st gear past the detent then push
the shift lever upward.
NOTICE
5
To start or reverse the vehicle,
release the clutch pedal slowly
after shifting the gear. Sudden
release of the clutch pedal may
result in an abrupt accident.
CAUTION
OIK057180N

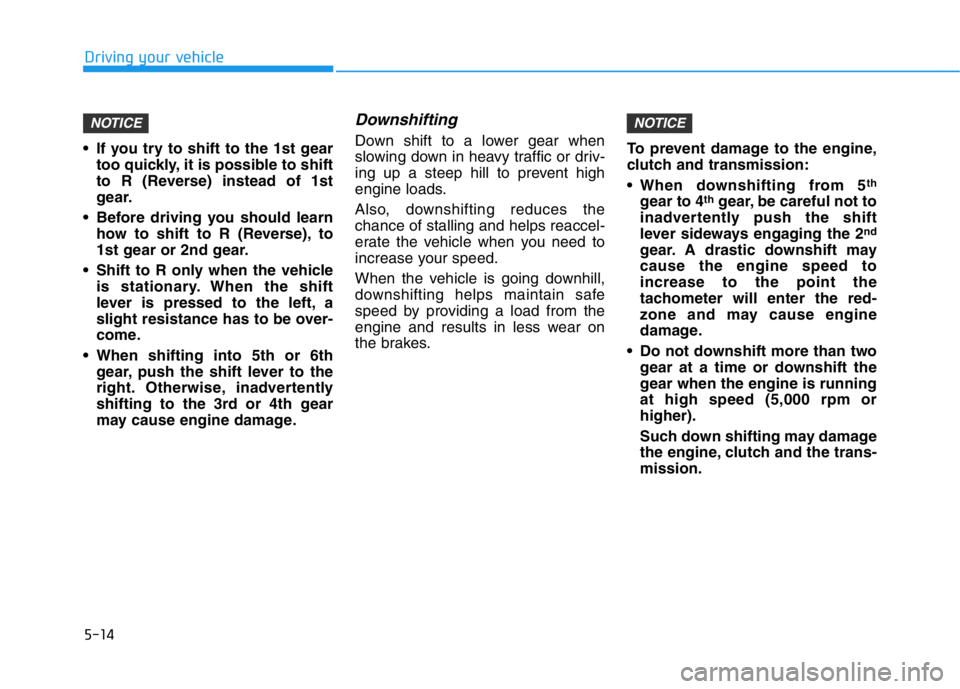

5-14
• If you try to shift to the 1st gear
too quickly, it is possible to shift
to R (Reverse) instead of 1st
gear.
• Before driving you should learn
how to shift to R (Reverse), to
1st gear or 2nd gear.
• Shift to R only when the vehicle
is stationary. When the shift
lever is pressed to the left, a
slight resistance has to be over-
come.
• When shifting into 5th or 6th
gear, push the shift lever to the
right. Otherwise, inadvertently
shifting to the 3rd or 4th gear
may cause engine damage.
Downshifting
Down shift to a lower gear when
slowing down in heavy traffic or driv-
ing up a steep hill to prevent high
engine loads.
Also, downshifting reduces the
chance of stalling and helps reaccel-
erate the vehicle when you need to
increase your speed.
When the vehicle is going downhill,
downshifting helps maintain safe
speed by providing a load from the
engine and results in less wear on
the brakes.To prevent damage to the engine,
clutch and transmission:
• When downshifting from 5
th
gear to 4thgear, be careful not to
inadvertently push the shift
lever sideways engaging the 2
nd
gear. A drastic downshift may
cause the engine speed to
increase to the point the
tachometer will enter the red-
zone and may cause engine
damage.
• Do not downshift more than two
gear at a time or downshift the
gear when the engine is running
at high speed (5,000 rpm or
higher).
Such down shifting may damage
the engine, clutch and the trans-
mission.
NOTICENOTICE
Driving your vehicle

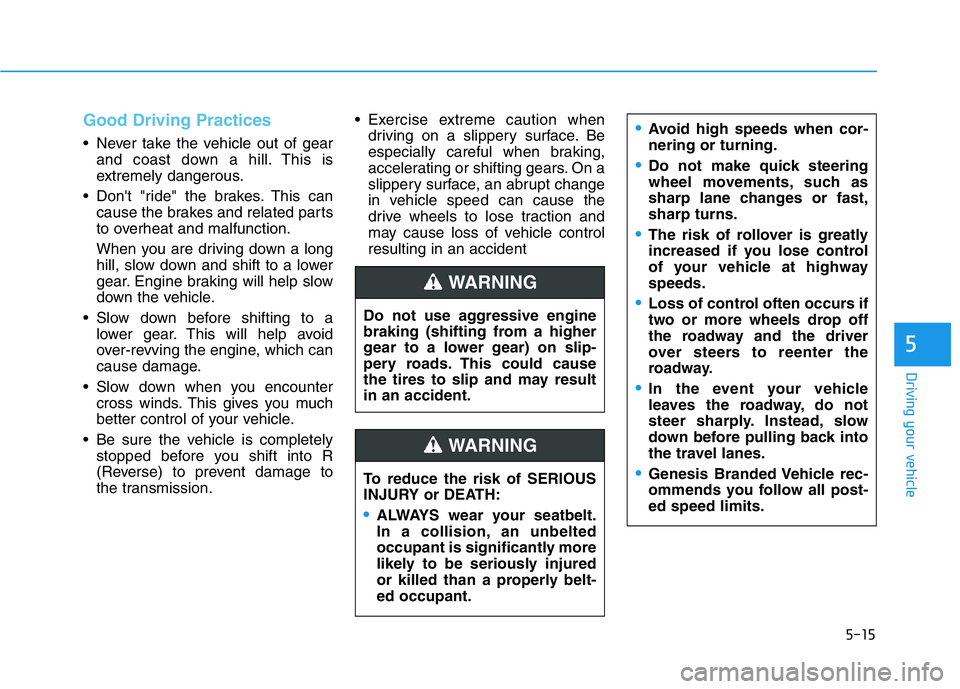

5-15
Driving your vehicle
Good Driving Practices
• Never take the vehicle out of gear
and coast down a hill. This is
extremely dangerous.
• Don't "ride" the brakes. This can
cause the brakes and related parts
to overheat and malfunction.
When you are driving down a long
hill, slow down and shift to a lower
gear. Engine braking will help slow
down the vehicle.
• Slow down before shifting to a
lower gear. This will help avoid
over-revving the engine, which can
cause damage.
• Slow down when you encounter
cross winds. This gives you much
better control of your vehicle.
• Be sure the vehicle is completely
stopped before you shift into R
(Reverse) to prevent damage to
the transmission.• Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the
drive wheels to lose traction and
may cause loss of vehicle control
resulting in an accident
5
Do not use aggressive engine
braking (shifting from a higher
gear to a lower gear) on slip-
pery roads. This could cause
the tires to slip and may result
in an accident.
WARNING
•Avoid high speeds when cor-
nering or turning.
•Do not make quick steering
wheel movements, such as
sharp lane changes or fast,
sharp turns.
•The risk of rollover is greatly
increased if you lose control
of your vehicle at highway
speeds.
•Loss of control often occurs if
two or more wheels drop off
the roadway and the driver
over steers to reenter the
roadway.
•In the event your vehicle
leaves the roadway, do not
steer sharply. Instead, slow
down before pulling back into
the travel lanes.
•Genesis Branded Vehicle rec-
ommends you follow all post-
ed speed limits.To reduce the risk of SERIOUS
INJURY or DEATH:
•ALWAYS wear your seatbelt.
In a collision, an unbelted
occupant is significantly more
likely to be seriously injured
or killed than a properly belt-
ed occupant.
WARNING

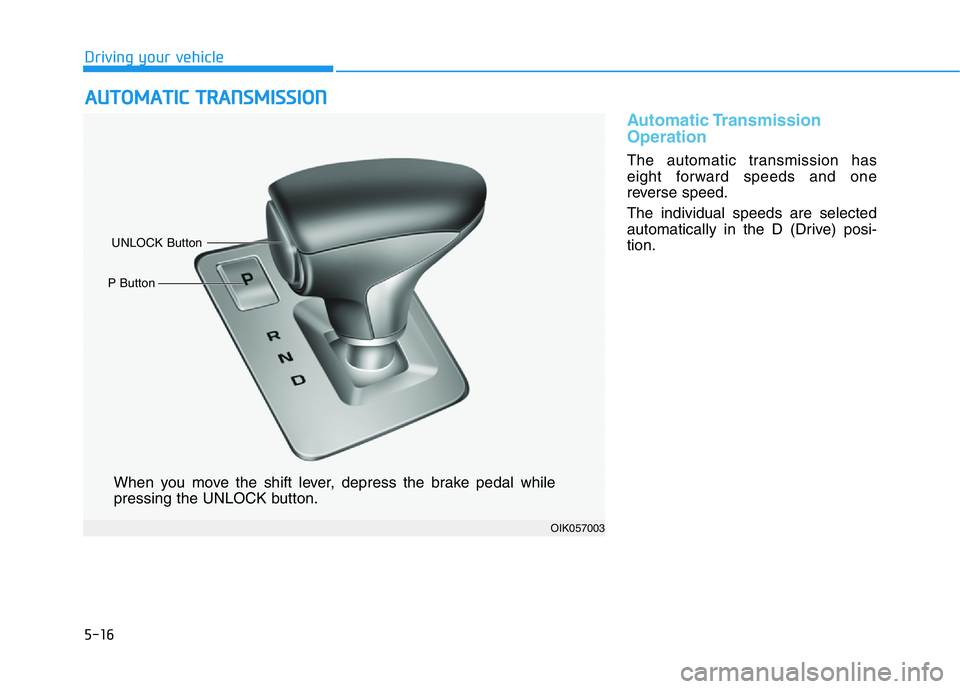

5-16
Driving your vehicle
Automatic Transmission
Operation
The automatic transmission has
eight forward speeds and one
reverse speed.
The individual speeds are selected
automatically in the D (Drive) posi-
tion.
AUTOMATIC TRANSMISSION
OIK057003
When you move the shift lever, depress the brake pedal while
pressing the UNLOCK button.
UNLOCK Button
P Button

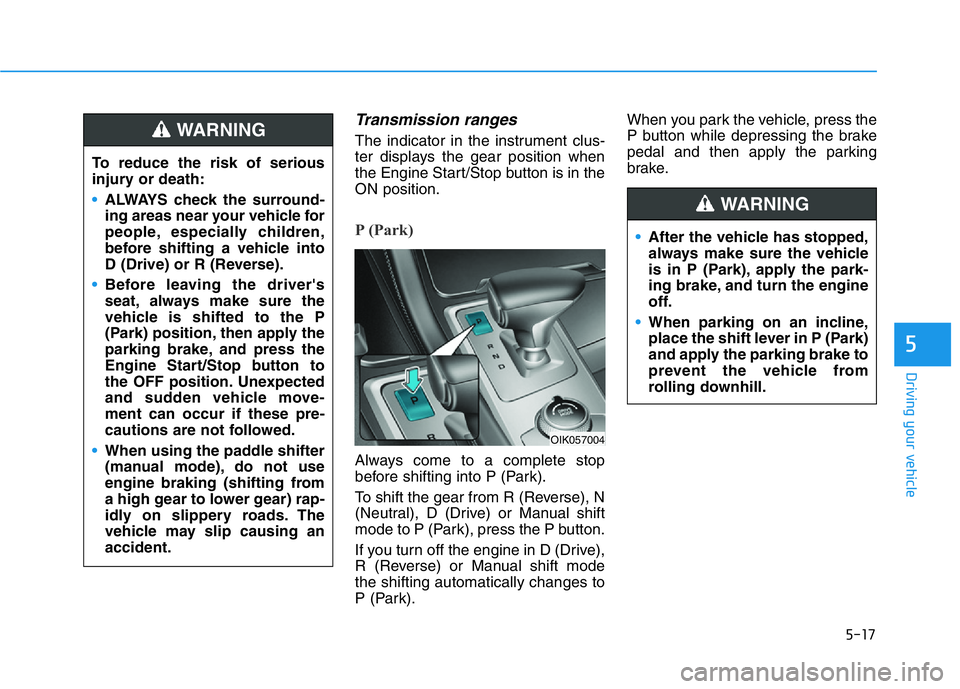

5-17
Driving your vehicle
5
Transmission ranges
The indicator in the instrument clus-
ter displays the gear position when
the Engine Start/Stop button is in the
ON position.
P (Park)
Always come to a complete stop
before shifting into P (Park).
To shift the gear from R (Reverse), N
(Neutral), D (Drive) or Manual shift
mode to P (Park), press the P button.
If you turn off the engine in D (Drive),
R (Reverse) or Manual shift mode
the shifting automatically changes to
P (Park).When you park the vehicle, press the
P button while depressing the brake
pedal and then apply the parking
brake.
OIK057004
To reduce the risk of serious
injury or death:
•ALWAYS check the surround-
ing areas near your vehicle for
people, especially children,
before shifting a vehicle into
D (Drive) or R (Reverse).
•Before leaving the driver's
seat, always make sure the
vehicle is shifted to the P
(Park) position, then apply the
parking brake, and press the
Engine Start/Stop button to
the OFF position. Unexpected
and sudden vehicle move-
ment can occur if these pre-
cautions are not followed.
•When using the paddle shifter
(manual mode), do not use
engine braking (shifting from
a high gear to lower gear) rap-
idly on slippery roads. The
vehicle may slip causing an
accident.
WARNING
•After the vehicle has stopped,
always make sure the vehicle
is in P (Park), apply the park-
ing brake, and turn the engine
off.
•When parking on an incline,
place the shift lever in P (Park)
and apply the parking brake to
prevent the vehicle from
rolling downhill.
WARNING

5-18
Driving your vehicle

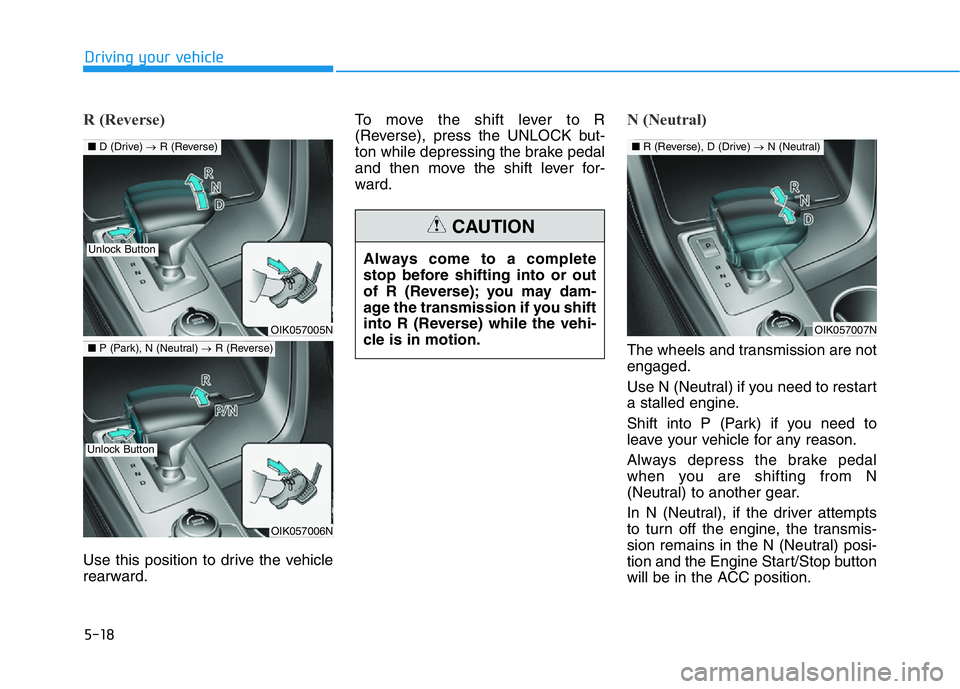

R (Reverse)
Use this position to drive the vehicle
rearward.To move the shift lever to R
(Reverse), press the UNLOCK but-
ton while depressing the brake pedal
and then move the shift lever for-
ward.
N (Neutral)
The wheels and transmission are not
engaged.
Use N (Neutral) if you need to restart
a stalled engine.
Shift into P (Park) if you need to
leave your vehicle for any reason.
Always depress the brake pedal
when you are shifting from N
(Neutral) to another gear.
In N (Neutral), if the driver attempts
to turn off the engine, the transmis-
sion remains in the N (Neutral) posi-
tion and the Engine Start/Stop button
will be in the ACC position.
OIK057005N
OIK057006N
■D (Drive) →R (Reverse)
■P (Park), N (Neutral) →R (Reverse)
Unlock Button
Unlock Button
Always come to a complete
stop before shifting into or out
of R (Reverse); you may dam-
age the transmission if you shift
into R (Reverse) while the vehi-
cle is in motion.
CAUTION
OIK057007N
■R (Reverse), D (Drive) →N (Neutral)

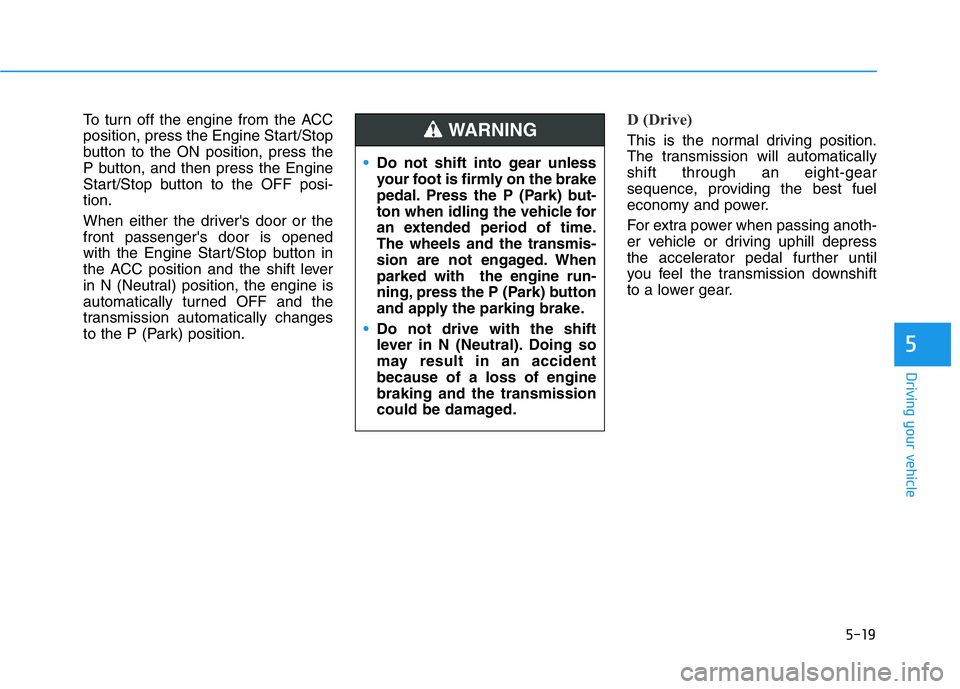

5-19
Driving your vehicle
5
To turn off the engine from the ACC
position, press the Engine Start/Stop
button to the ON position, press the
P button, and then press the Engine
Start/Stop button to the OFF posi-
tion.
When either the driver's door or the
front passenger's door is opened
with the Engine Start/Stop button in
the ACC position and the shift lever
in N (Neutral) position, the engine is
automatically turned OFF and the
transmission automatically changes
to the P (Park) position.D (Drive)
This is the normal driving position.
The transmission will automatically
shift through an eight-gear
sequence, providing the best fuel
economy and power.
For extra power when passing anoth-
er vehicle or driving uphill depress
the accelerator pedal further until
you feel the transmission downshift
to a lower gear. •Do not shift into gear unless
your foot is firmly on the brake
pedal. Press the P (Park) but-
ton when idling the vehicle for
an extended period of time.
The wheels and the transmis-
sion are not engaged. When
parked with the engine run-
ning, press the P (Park) button
and apply the parking brake.
•Do not drive with the shift
lever in N (Neutral). Doing so
may result in an accident
because of a loss of engine
braking and the transmission
could be damaged.WARNING

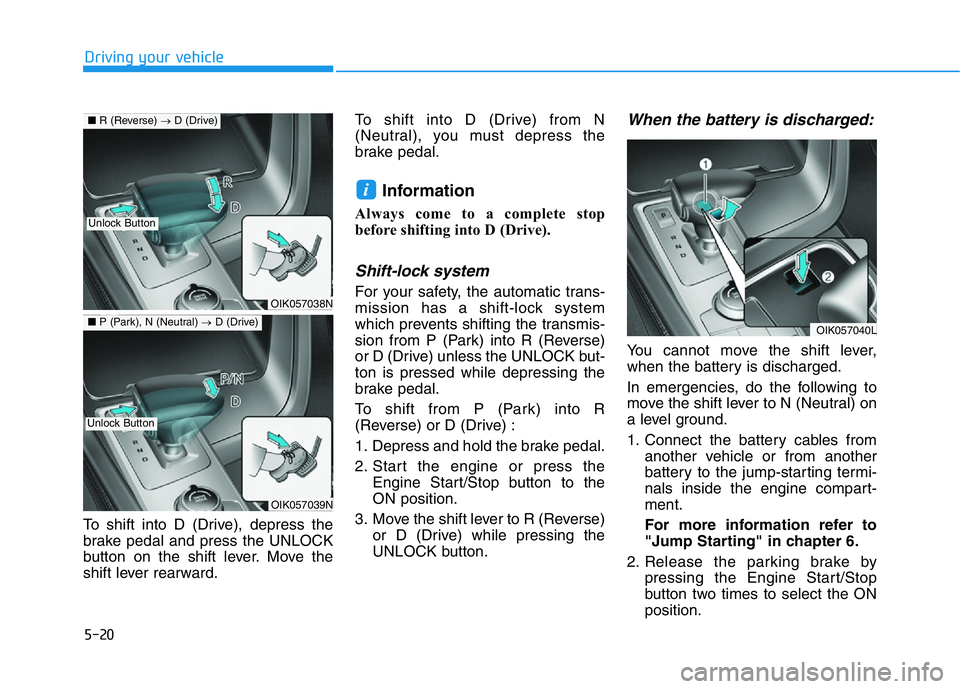

5-20
Driving your vehicle
To shift into D (Drive), depress the
brake pedal and press the UNLOCK
button on the shift lever. Move the
shift lever rearward.To shift into D (Drive) from N
(Neutral), you must depress the
brake pedal.
Information
Always come to a complete stop
before shifting into D (Drive).
Shift-lock system
For your safety, the automatic trans-
mission has a shift-lock system
which prevents shifting the transmis-
sion from P (Park) into R (Reverse)
or D (Drive) unless the UNLOCK but-
ton is pressed while depressing the
brake pedal.
To shift from P (Park) into R
(Reverse) or D (Drive) :
1. Depress and hold the brake pedal.
2. Start the engine or press the
Engine Start/Stop button to the
ON position.
3. Move the shift lever to R (Reverse)
or D (Drive) while pressing the
UNLOCK button.
When the battery is discharged:
You cannot move the shift lever,
when the battery is discharged.
In emergencies, do the following to
move the shift lever to N (Neutral) on
a level ground.
1. Connect the battery cables from
another vehicle or from another
battery to the jump-starting termi-
nals inside the engine compart-
ment.
For more information refer to
"Jump Starting" in chapter 6.
2. Release the parking brake by
pressing the Engine Start/Stop
button two times to select the ON
position.
i
OIK057038N
OIK057039N
■R (Reverse) →D (Drive)
■P (Park), N (Neutral) →D (Drive)
Unlock Button
Unlock Button
OIK057040L

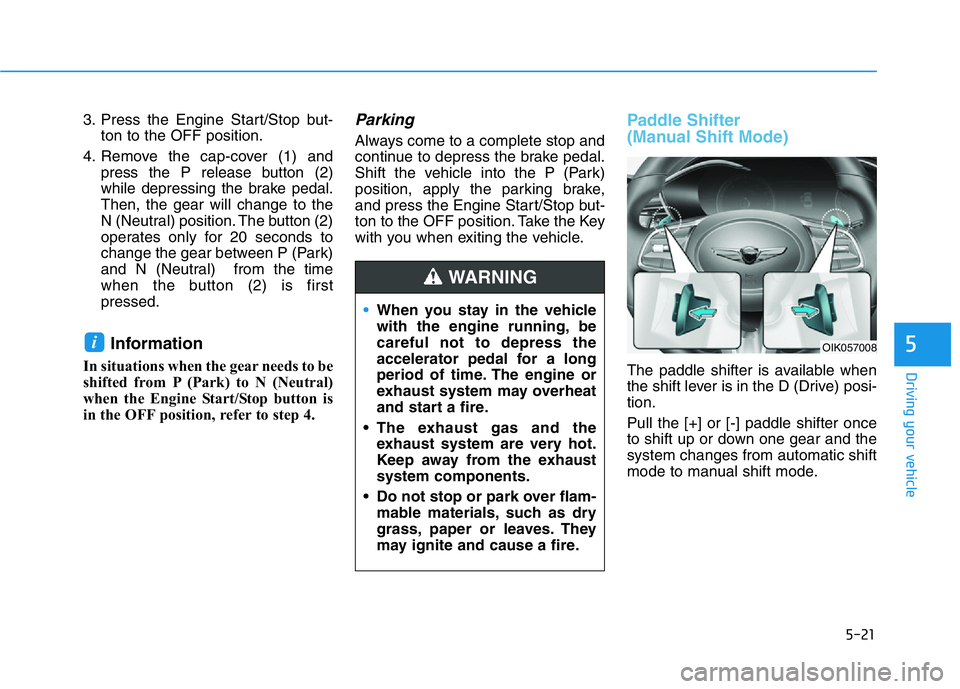

5-21
Driving your vehicle
5
3. Press the Engine Start/Stop but-
ton to the OFF position.
4. Remove the cap-cover (1) and
press the P release button (2)
while depressing the brake pedal.
Then, the gear will change to the
N (Neutral) position. The button (2)
operates only for 20 seconds to
change the gear between P (Park)
and N (Neutral) from the time
when the button (2) is first
pressed.
Information
In situations when the gear needs to be
shifted from P (Park) to N (Neutral)
when the Engine Start/Stop button is
in the OFF position, refer to step 4.
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Shift the vehicle into the P (Park)
position, apply the parking brake,
and press the Engine Start/Stop but-
ton to the OFF position. Take the Key
with you when exiting the vehicle.
Paddle Shifter
(Manual Shift Mode)
The paddle shifter is available when
the shift lever is in the D (Drive) posi-
tion.
Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
system changes from automatic shift
mode to manual shift mode.
i
•When you stay in the vehicle
with the engine running, be
careful not to depress the
accelerator pedal for a long
period of time. The engine or
exhaust system may overheat
and start a fire.
• The exhaust gas and the
exhaust system are very hot.
Keep away from the exhaust
system components.
• Do not stop or park over flam-
mable materials, such as dry
grass, paper or leaves. They
may ignite and cause a fire.
WARNING
OIK057008
