display HYUNDAI GENESIS G70 2022 Owner's Manual

04
4-31

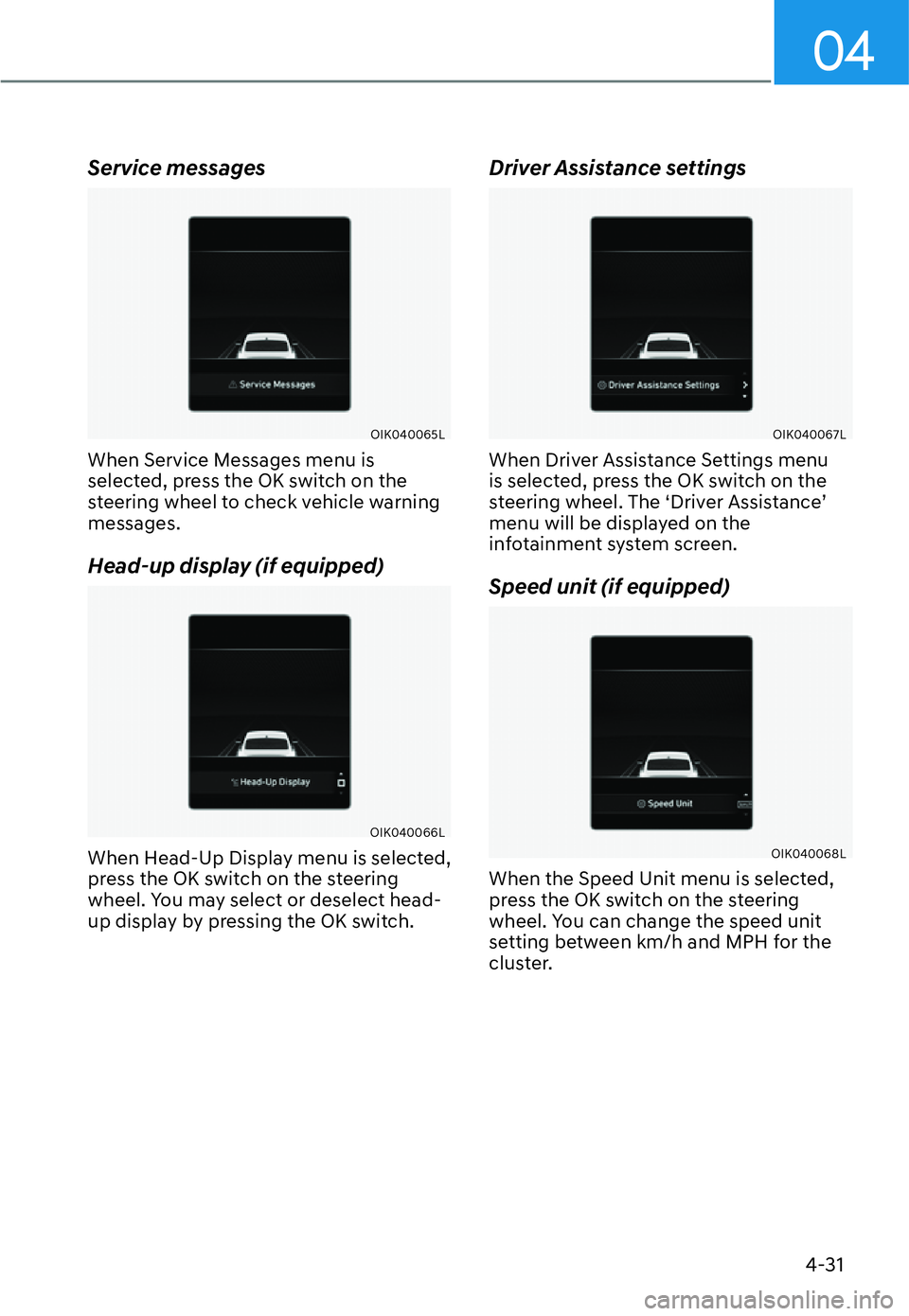

Service messages
OIK040065L
When Service Messages menu is
selected, press the OK switch on the
steering wheel to check vehicle warning
messages.
Head-up display (if equipped)
OIK040066L
When Head-Up Display menu is selected,
press the OK switch on the steering
wheel. You may select or deselect head-
up display by pressing the OK switch.
Driver Assistance settings
OIK040067L
When Driver Assistance Settings menu
is selected, press the OK switch on the
steering wheel. The ‘Driver Assistance’
menu will be displayed on the
infotainment system screen.
Speed unit (if equipped)
OIK040068L
When the Speed Unit menu is selected,
press the OK switch on the steering
wheel. You can change the speed unit
setting between km/h and MPH for the
cluster.

5

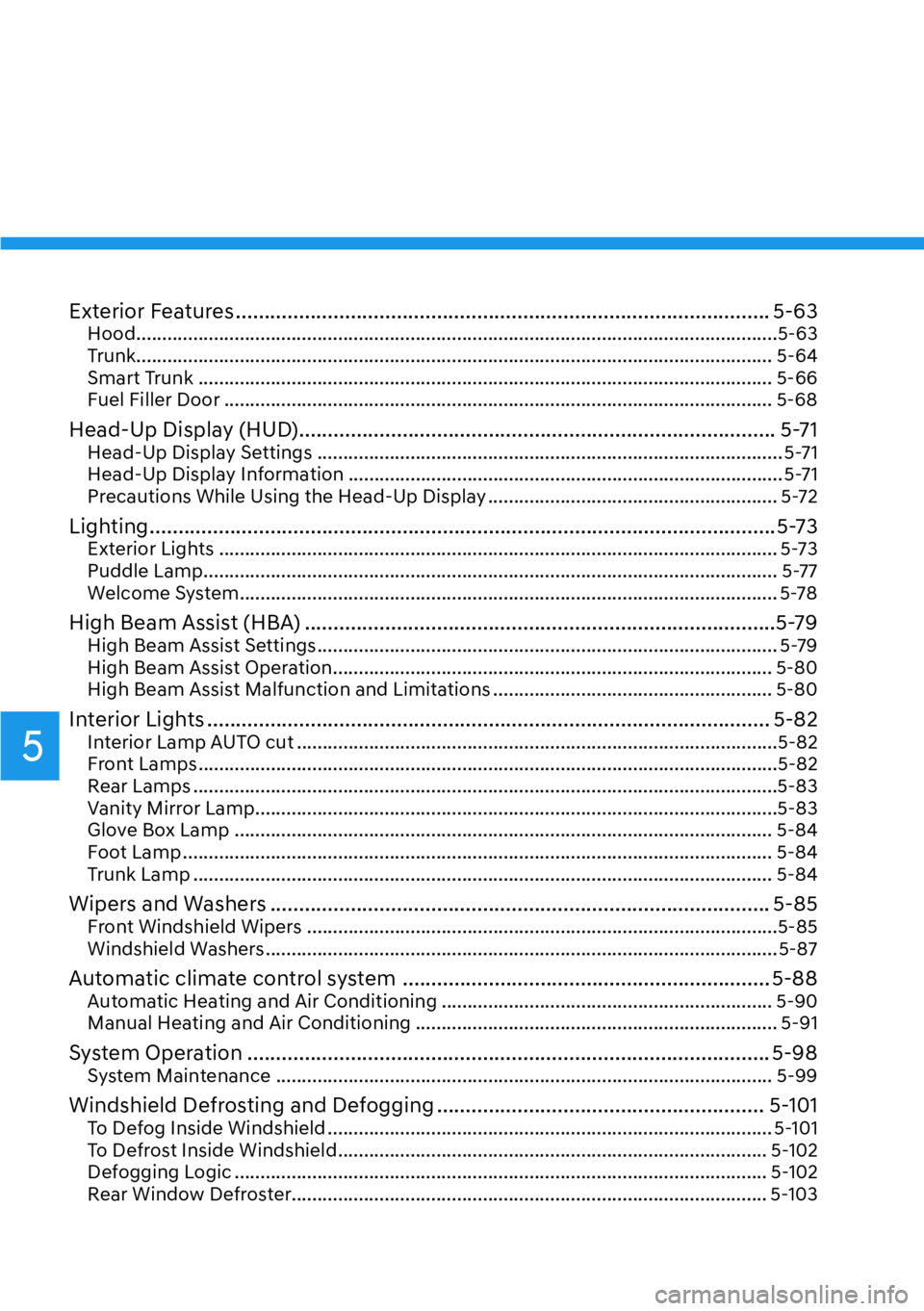

Exterior Features ............................................................................................. 5-63Hood ............................................................................................................................5-63
Trunk ........................................................................................................................... 5-64
Smart Trunk ............................................................................................................... 5-66
Fuel Filler Door .......................................................................................................... 5-68
Head-Up Display (HUD)................................................................................... 5-71Head-Up Display Settings .......................................................................................... 5-71
Head-Up Display Information .................................................................................... 5-71
Precautions While Using the Head-Up Display ........................................................ 5-72
Lighting .............................................................................................................5-73Exterior Lights ............................................................................................................ 5-73
Puddle Lamp ............................................................................................................... 5-77
Welcome System ........................................................................................................ 5-78
High Beam Assist (HBA) ..................................................................................5-79High Beam Assist Settings ......................................................................................... 5-79
High Beam Assist Operation ..................................................................................... 5-80
High Beam Assist Malfunction and Limitations ...................................................... 5-80
Interior Lights .................................................................................................. 5-82Interior Lamp AUTO cut .............................................................................................5-82
Front Lamps ................................................................................................................5-82
Rear Lamps .................................................................................................................5-83
Vanity Mirror Lamp .....................................................................................................5-83
Glove Box Lamp ........................................................................................................ 5-84
Foot Lamp .................................................................................................................. 5-84
Trunk Lamp ................................................................................................................ 5-84
Wipers and Washers ....................................................................................... 5-85Front Windshield Wipers ...........................................................................................5-85
Windshield Washers ................................................................................................... 5-87
Automatic climate control system ................................................................ 5-88Automatic Heating and Air Conditioning ................................................................ 5-90
Manual Heating and Air Conditioning ...................................................................... 5-91
System Operation ........................................................................................... 5-98System Maintenance ................................................................................................ 5-99
Windshield Defrosting and Defogging ......................................................... 5-101To Defog Inside Windshield ...................................................................................... 5-101
To Defrost Inside Windshield ................................................................................... 5-102
Defogging Logic ....................................................................................................... 5-102
Rear Window Defroster............................................................................................ 5-103

Convenient Features
5-24

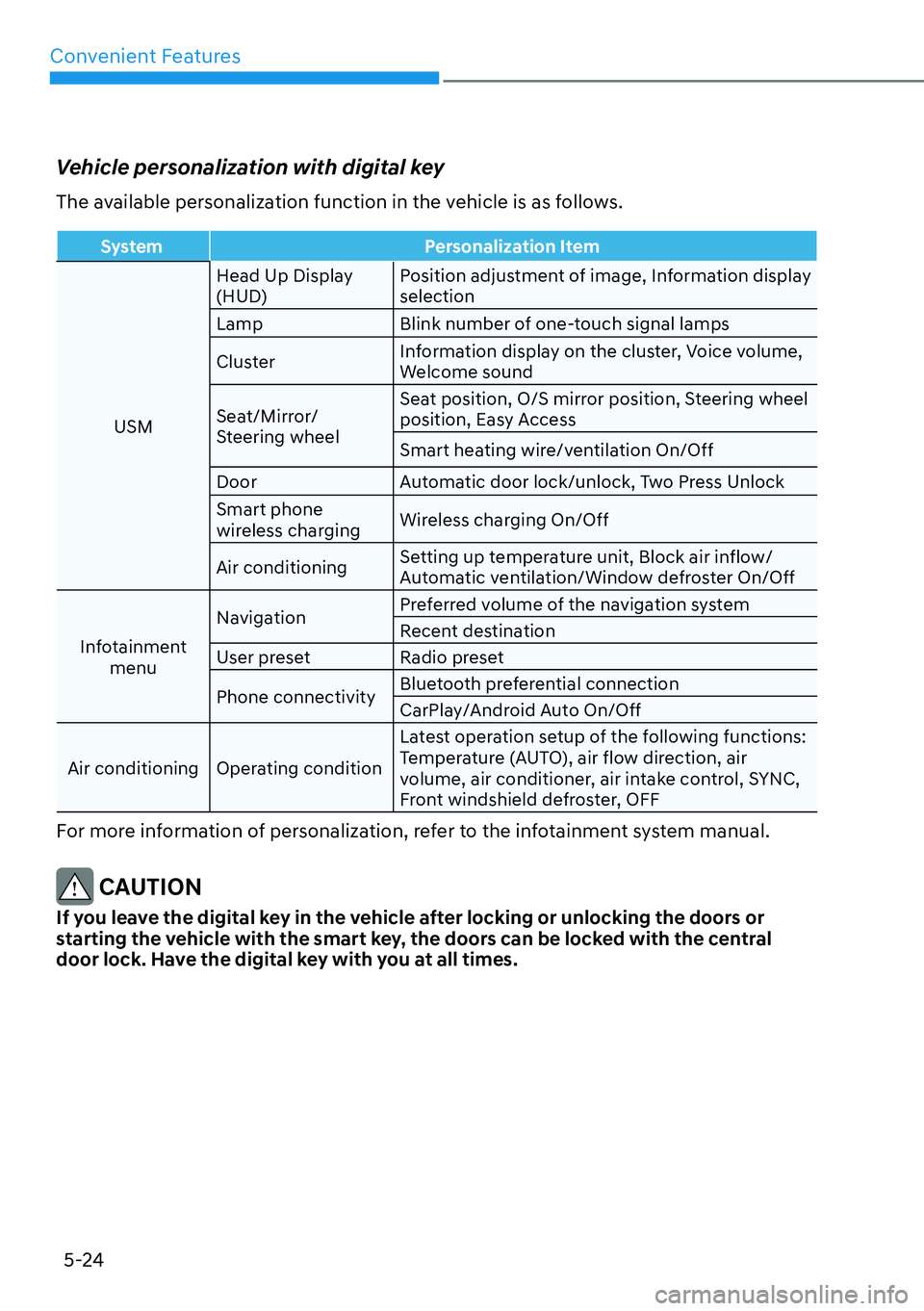

Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
USMHead Up Display
(HUD)Position adjustment of image, Information display
selection
Lamp Blink number of one-touch signal lamps
ClusterInformation display on the cluster, Voice volume,
Welcome sound
Seat/Mirror/
Steering wheelSeat position, O/S mirror position, Steering wheel
position, Easy Access
Smart heating wire/ventilation On/Off
Door Automatic door lock/unlock, Two Press Unlock
Smart phone
wireless chargingWireless charging On/Off
Air conditioningSetting up temperature unit, Block air inflow/
Automatic ventilation/Window defroster On/Off
Infotainment
menuNavigationPreferred volume of the navigation system
Recent destination
User preset Radio preset
Phone connectivityBluetooth preferential connection
CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the following functions:
Temperature (AUTO), air flow direction, air
volume, air conditioner, air intake control, SYNC,
Front windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key in the vehicle after locking or unlocking the doors or
starting the vehicle with the smart key, the doors can be locked with the central
door lock. Have the digital key with you at all times.

Convenient Features
5-32
OIK050006
Integrated Memory System for the
driver’s seat is provided to store and
recall the following memory settings with
a simple button operation.

[Driver’s seat position

[Steering wheel position (power
adjustment)

[Side view mirror position
WARNING
Never attempt to operate the
integrated memory system while the
vehicle is moving.
This could result in loss of control, and
an accident causing death, serious
injury, or property damage.
Information

[If the battery is disconnected, the
memory settings will be erased.

[If integrated memory system does not
operate normally, have the system
inspected by an authorized retailer of
Genesis Branded products.
Storing Memory Positions
1. Shift to P (Park) while the Engine
Start/Stop button is in the ON
position.
2. Adjust the driver’s seat position, side
view mirror position, steering wheel
position to the desired position.
3. Press the SET button. The system
will beep once and notify you ‘Press
button to save settings’ on the cluster
LCD display.
4. Press one of the memory buttons (1
or 2) within 4 seconds. The system
will beep twice when the memory has
been successfully stored.
5. ‘Settings 1(or 2) saved’ will appear on
the cluster LCD display. The message
appears only for the driver’s seat
position memory setting.
INTEGRATED MEMORY SYSTEM

05
5-33
Recalling Memory Positions
1. Shift to P (Park) while the Engine
Start/Stop button is in the ON
position.
2. Press the desired memory button (1
or 2). The system will beep once, and
then the driver’s seat position, side
view mirror position, steering wheel
position will automatically adjust to
the stored positions.
3. ‘Settings 1(or 2) applied’ will appear on
the cluster LCD display.
Information

[If you press the SET button or the
corresponding button which the
setting is being recalled, the setting will
temporarily deactivate. If you press the
other buttons, the setting of the pressed
button will activate.
For example, if you press the SET
button or number 1 button with the
number 1 setting in operation, the
setting will temporarily deactivate. If
you press the number 2 button, the
number 2 setting will activate.

[If you adjust the seat, side view mirror,
steering wheel while recalling the
stored positions, the pre-set settings will
become ineffective.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback
to the foremost position.
3. Press the SET button and push
forward the driver’s seat movement
switch over 2 seconds simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification
sound.
2. The driver’s seat and seatback is
adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is
re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.

[The memory button is pressed.

[The seat control switch is operated.

[The driving speed exceeds
2 mph (3 km/h).

[The driver’s door is closed.

05
5-43

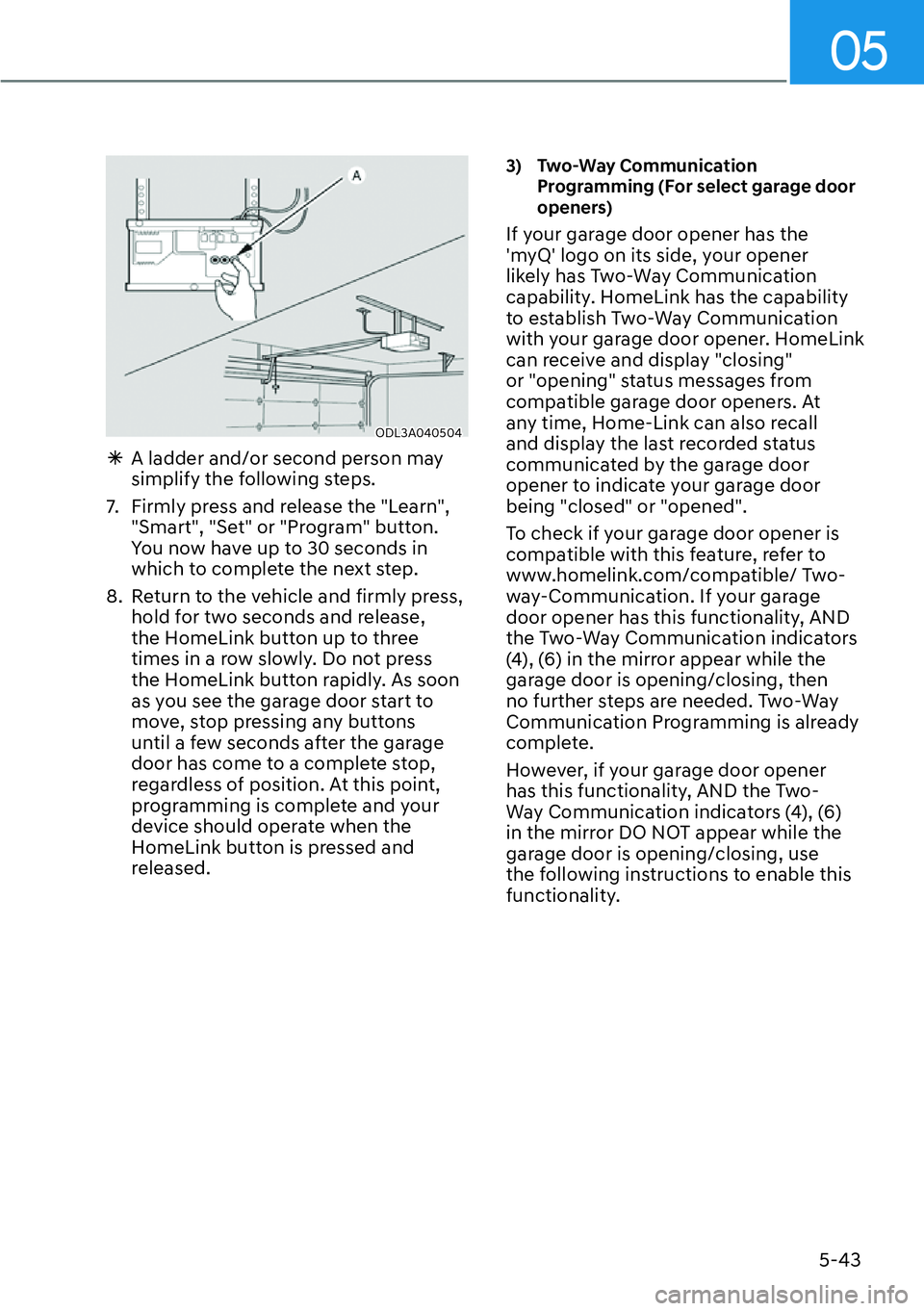

ODL3A040504
ÃA ladder and/or second person may
simplify the following steps.
7. Firmly press and release the "Learn",
"Smart", "Set" or "Program" button.
You now have up to 30 seconds in
which to complete the next step.
8. Return to the vehicle and firmly press,
hold for two seconds and release,
the HomeLink button up to three
times in a row slowly. Do not press
the HomeLink button rapidly. As soon
as you see the garage door start to
move, stop pressing any buttons
until a few seconds after the garage
door has come to a complete stop,
regardless of position. At this point,
programming is complete and your
device should operate when the
HomeLink button is pressed and
released.
3) Two-Way Communication
Programming (For select garage door
openers)
If your garage door opener has the
'myQ' logo on its side, your opener
likely has Two-Way Communication
capability. HomeLink has the capability
to establish Two-Way Communication
with your garage door opener. HomeLink
can receive and display "closing"
or "opening" status messages from
compatible garage door openers. At
any time, Home-Link can also recall
and display the last recorded status
communicated by the garage door
opener to indicate your garage door
being "closed" or "opened".
To check if your garage door opener is
compatible with this feature, refer to
www.homelink.com/compatible/ Two-
way-Communication. If your garage
door opener has this functionality, AND
the Two-Way Communication indicators
(4), (6) in the mirror appear while the
garage door is opening/closing, then
no further steps are needed. Two-Way
Communication Programming is already
complete.
However, if your garage door opener
has this functionality, AND the Two-
Way Communication indicators (4), (6)
in the mirror DO NOT appear while the
garage door is opening/closing, use
the following instructions to enable this
functionality.

05
5-45

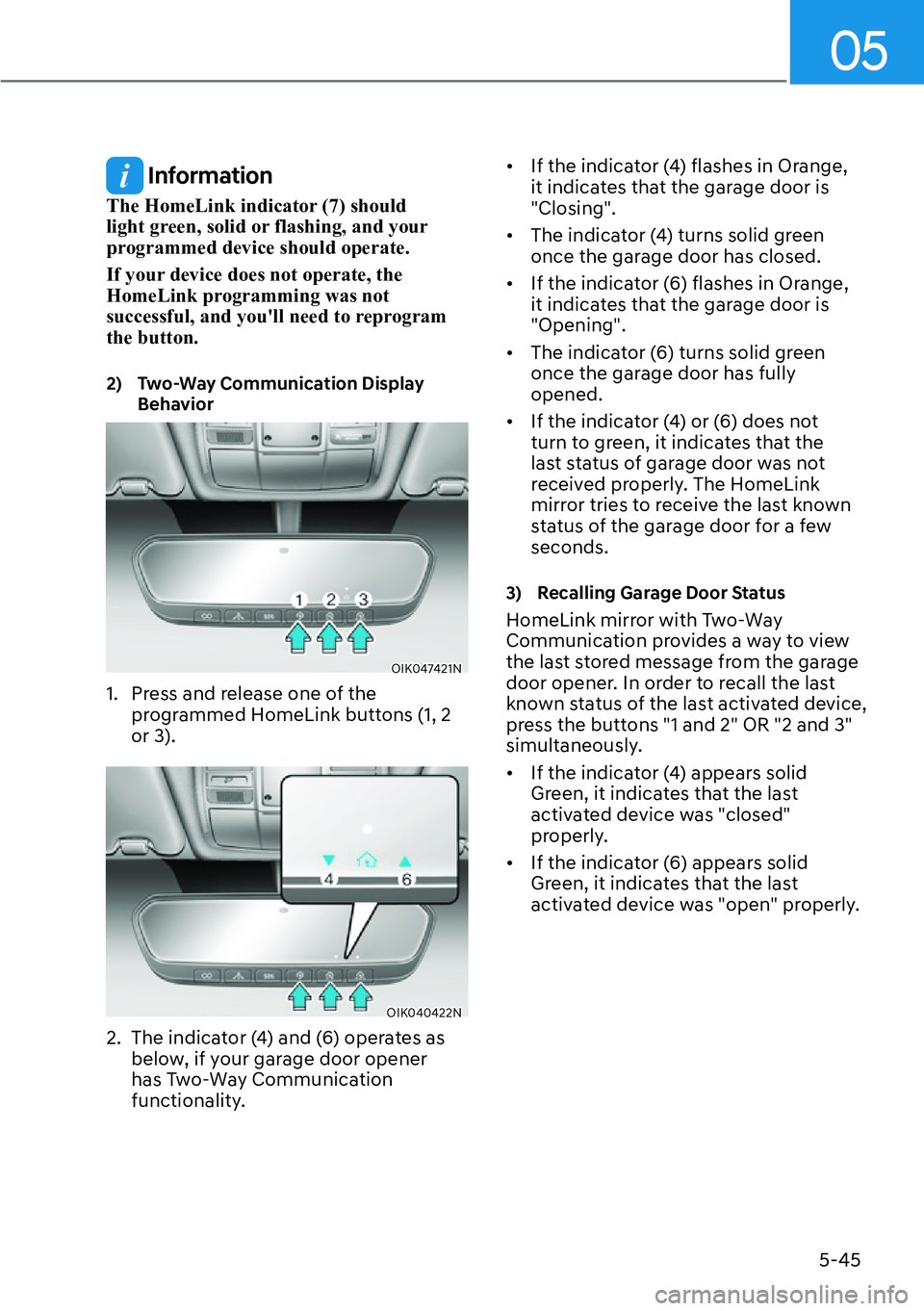

Information
The HomeLink indicator (7) should
light green, solid or flashing, and your
programmed device should operate.
If your device does not operate, the
HomeLink programming was not
successful, and you'll need to reprogram
the button.
2) Two-Way Communication Display
Behavior
OIK047421N
1. Press and release one of the
programmed HomeLink buttons (1, 2
or 3).
OIK040422N
2. The indicator (4) and (6) operates as
below, if your garage door opener
has Two-Way Communication
functionality.
[If the indicator (4) flashes in Orange,
it indicates that the garage door is
"Closing".

[The indicator (4) turns solid green
once the garage door has closed.

[If the indicator (6) flashes in Orange,
it indicates that the garage door is
"Opening".

[The indicator (6) turns solid green
once the garage door has fully
opened.

[If the indicator (4) or (6) does not
turn to green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last known
status of the garage door for a few
seconds.
3) Recalling Garage Door Status
HomeLink mirror with Two-Way
Communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons "1 and 2" OR "2 and 3"
simultaneously.

[If the indicator (4) appears solid
Green, it indicates that the last
activated device was "closed"
properly.

[If the indicator (6) appears solid
Green, it indicates that the last
activated device was "open" properly.

Convenient Features
5-62
Sunroof Open Warning
OIK040018
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle.
Also, leaving the sunroof open when the
vehicle is unattended may invite theft.

05
5-63
Hood
Opening the hood
OIK050020
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
OIK050021
3. Go to the front of the vehicle, raise the
hood slightly, push up the secondary
latch (1) inside of the hood center and
lift the hood (2).
After the hood has been lifted halfway,
it will raise completely by itself.
Closing the hood
1. Before closing the hood, check in and
around the engine compartment to
ensure the following:
- Any tools or other loose objects
are removed from the engine room
area or hood opening area
- All glove, rags, or other
combustible materials is removed
from the engine compartment
- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted
approximately 12 in. (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
EXTERIOR FEATURES

05
5-71
OIK050034N
The Head-Up Display is a feature that
allows the driver to view information
projected onto a transparent screen
while still keeping their eyes on the road
ahead while driving.
Head-Up Display Settings
OIK050215L

[Head-up display can be enabled from
the Settings menu in the infotainment
system screen. Select:
-6HWXS
