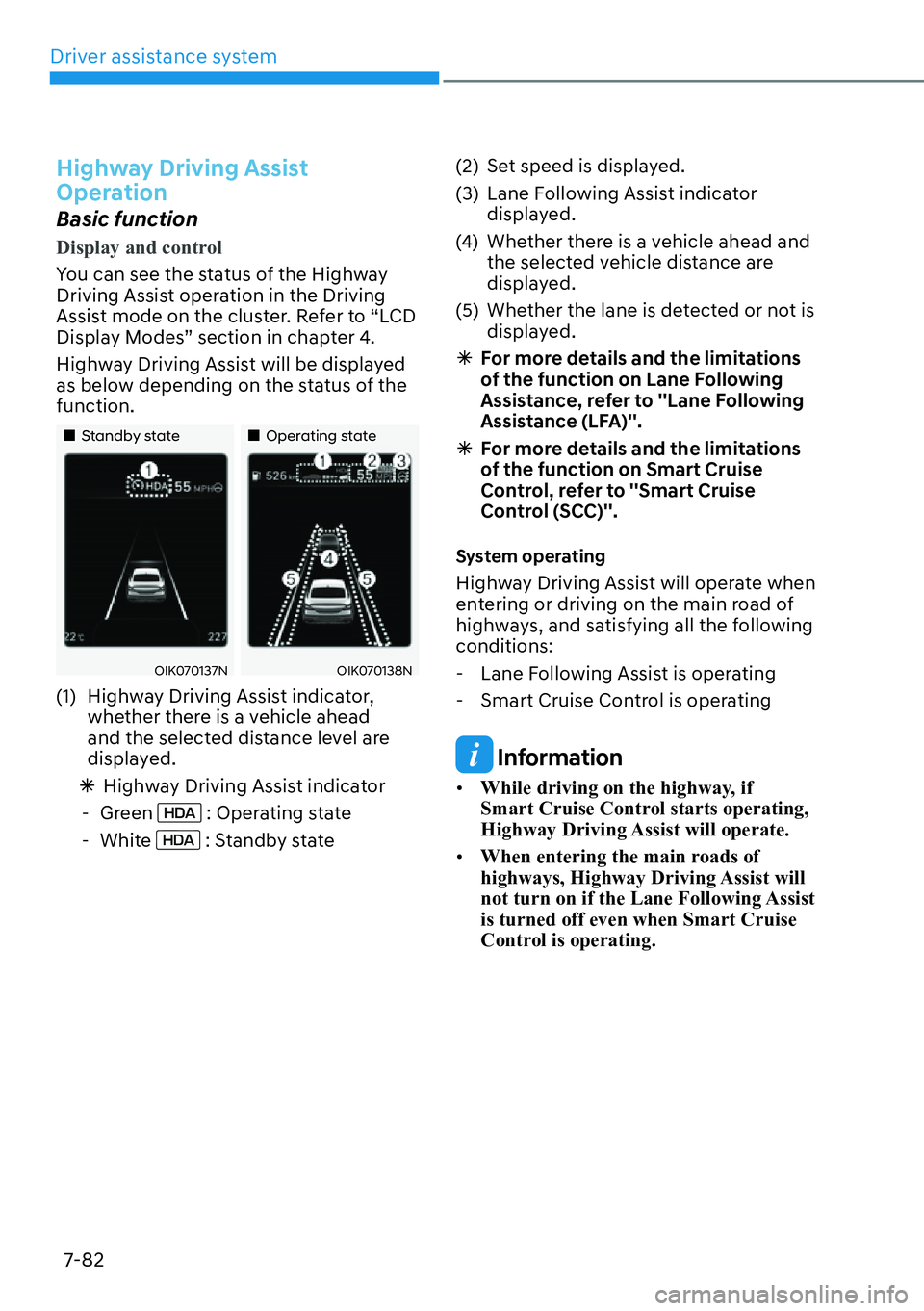

Driver assistance system
7-82
Highway Driving Assist
Operation
Basic function
Display and control
You can see the status of the Highway
Driving Assist operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Highway Driving Assist will be displayed
as below depending on the status of the
function.
„Standby state„Operating state
OIK070137NOIK070138N
(1) Highway Driving Assist indicator,
whether there is a vehicle ahead
and the selected distance level are
displayed.
ÃHighway Driving Assist indicator
- Green
: Operating state
- White
: Standby state(2) Set speed is displayed.
(3) Lane Following Assist indicator
displayed.
(4) Whether there is a vehicle ahead and
the selected vehicle distance are
displayed.
(5) Whether the lane is detected or not is
displayed.
ÃFor more details and the limitations
of the function on Lane Following
Assistance, refer to ''Lane Following
Assistance (LFA)''.
ÃFor more details and the limitations
of the function on Smart Cruise
Control, refer to ''Smart Cruise
Control (SCC)''.
System operating
Highway Driving Assist will operate when
entering or driving on the main road of
highways, and satisfying all the following
conditions:
- Lane Following Assist is operating
- Smart Cruise Control is operating
Information

[While driving on the highway, if
Smart Cruise Control starts operating,
Highway Driving Assist will operate.

[When entering the main roads of
highways, Highway Driving Assist will
not turn on if the Lane Following Assist
is turned off even when Smart Cruise
Control is operating.

07
7-83

[Restarting after stopping
OTM070114L
When Highway Driving Assist is
operating, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving
within 30 seconds after the stop, your
vehicle will start as well. In addition,
after the vehicle has stopped and 30
seconds have passed, the ‘Use switch
RUSHGDOWRDFFHOHUDWH
TPHVVDJH
will appear on the cluster. Depress
the accelerator pedal or push the +
switch, - switch or
switch to start
driving.
[Hands-off warning
OIK070019L
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Place hands on the steering
ZKHHO
TZDUQLQJPHVVDJHZLOODSSHDU
and an audible warning will sound in
stages.
First stage : Warning message
Second stage : Warning message (red
steering wheel) and
audible warning

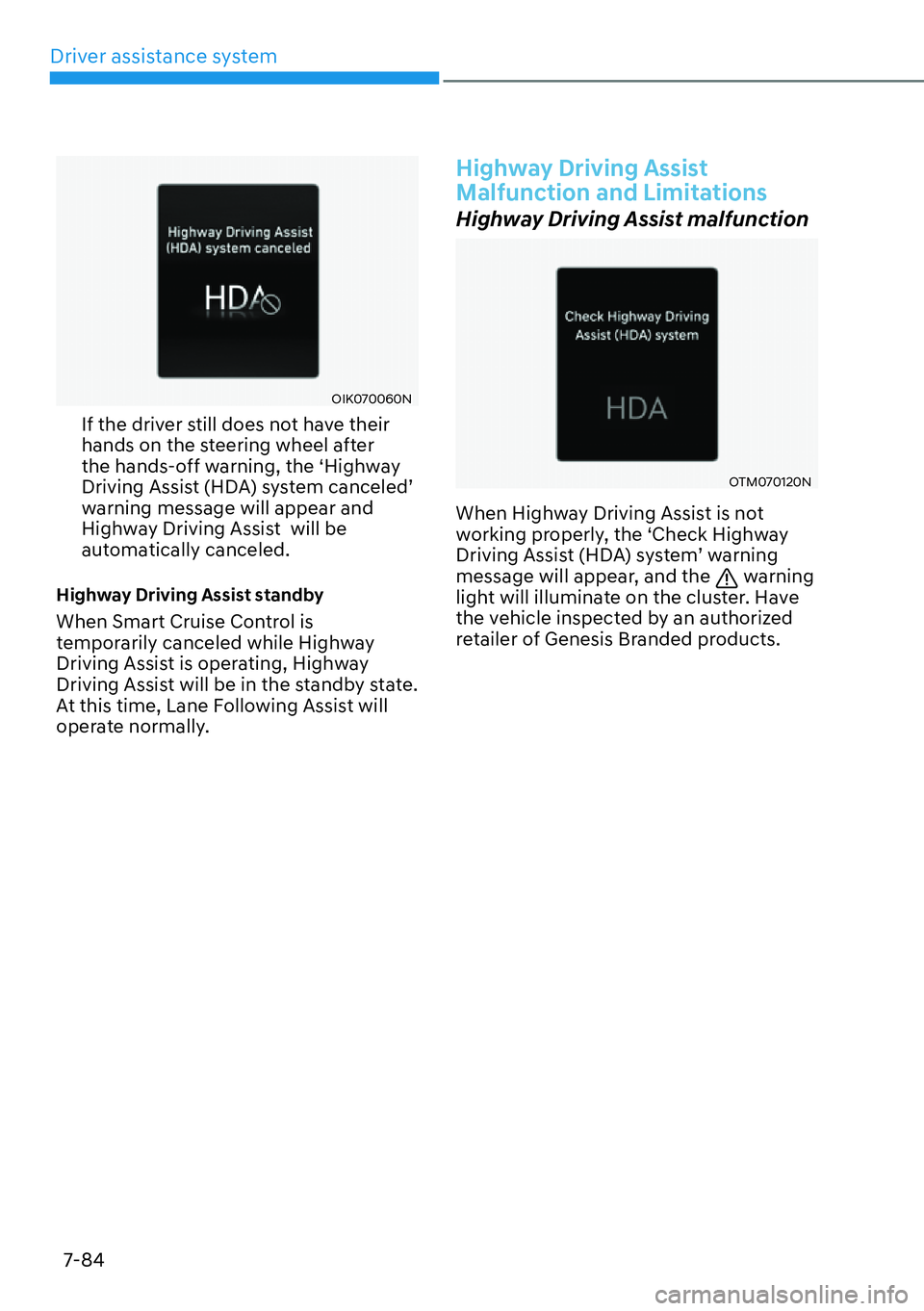

Driver assistance system
7-84
OIK070060N
If the driver still does not have their
hands on the steering wheel after
the hands-off warning, the ‘Highway
'ULYLQJ$VVLVW+'$V\VWHPFDQFHOHG
T
warning message will appear and
Highway Driving Assist will be
automatically canceled.
Highway Driving Assist standby
When Smart Cruise Control is
temporarily canceled while Highway
Driving Assist is operating, Highway
Driving Assist will be in the standby state.
At this time, Lane Following Assist will
operate normally.
Highway Driving Assist
Malfunction and Limitations
Highway Driving Assist malfunction
OTM070120N
When Highway Driving Assist is not
working properly, the ‘Check Highway
'ULYLQJ$VVLVW+'$V\VWHP
TZDUQLQJ
message will appear, and the
warning
light will illuminate on the cluster. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.

07
7-85
WARNING

[The driver is responsible for
controlling the vehicle for safe
driving.

[Always have your hands on the
steering wheel while driving.

[Highway Driving Assist is a
supplemental function that assists
the driver in driving the vehicle
and is not a complete autonomous
driving system. Always check road
conditions, and if necessary, take
appropriate actions to drive safely.

[Always have your eyes on the road,
and it is the responsibility of the
driver to avoid violating traffic laws.
The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[Highway Driving Assist may not
be able to recognize all traffic
situations. Highway Driving Assist
may not detect possible collisions
due to limitations of the function.
Always be aware of the limitations
of the function. Obstacles such as
vehicles, motorcycles, bicycles,
pedestrians, or unspecified objects
or structures such as guardrails,
tollgate, etc. that may collide with
the vehicle may not be detected.

[Highway Driving Assist will turn off
automatically under the following
situations:
-Driving on roads that Highway
Driving Assist does not operate,
such as a rest area, intersection,
junction, etc.
-The navigation does not operate
properly such as when the
navigation is being updated or
restarted
[Highway Driving Assist may
inadvertently operate or turn off
depending on road conditions
(navigation information) and
surroundings.

[Lane Following Assist function may
be temporarily disabled when the
front view camera cannot detect
lanes properly or the hands-off
warning is on.

[You may not hear the warning sound
of Highway Driving Assist if the
surrounding is noisy.

[If the vehicle is driven at high speed
above a certain speed at a curve,
your vehicle may drive to one side or
may depart from the driving lane.

[If emergency towing is necessary, we
recommend that Highway Driving
Assist is turned off due to safety
reasons.

[The hands–off warning message
may appear early or late depending
on how the steering wheel is held or
road conditions. Always have your
hands on the steering wheel while
driving.

[For your safety, please read the
owner's manual before using the
Highway Driving Assist.

[Highway Driving Assist will not
operate when the engine is started,
or when the detecting sensors or
navigation is being initialized.

Driver assistance system
7-86
Limitations of Highway Driving
Assist
Highway Driving Assist may not operate
normally, or may not operate under the
following circumstances:

[The map information and the
actual road is different because the
navigation is not updated

[The map information and the actual
road is different because of real-time
GPS data or map information error

[The infotainment system is overloaded
by simultaneously performing
functions such as route search, video
playback, voice recognition, etc.

[GPS signals are blocked in areas such
as a tunnel

[The driver goes off course or the
route to the destination is changed or
canceled by resetting the navigation

[The vehicle enters a service station or
rest area

[Android Auto or Car Play is operating

[The navigation cannot detect the
current vehicle position (ex: elevated
roads including overpass adjacent to
general roads or nearby roads exist in
a parallel way)
Information
For more details on the limitations of
the front view camera, front radar, front
corner radar and rear corner radar, refer
to “Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

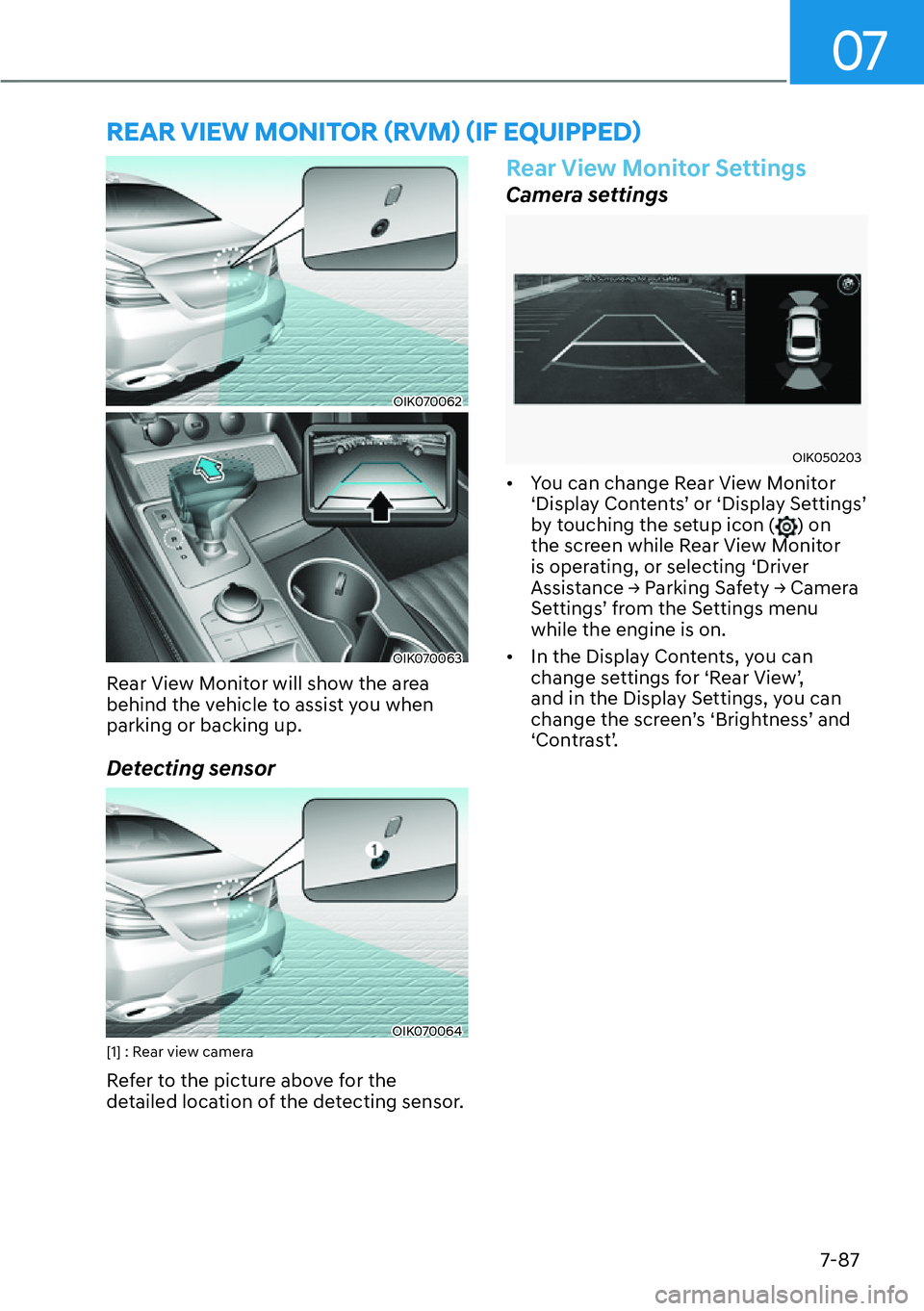

07
7-87
5($59,(:021,725

Driver assistance system
7-88

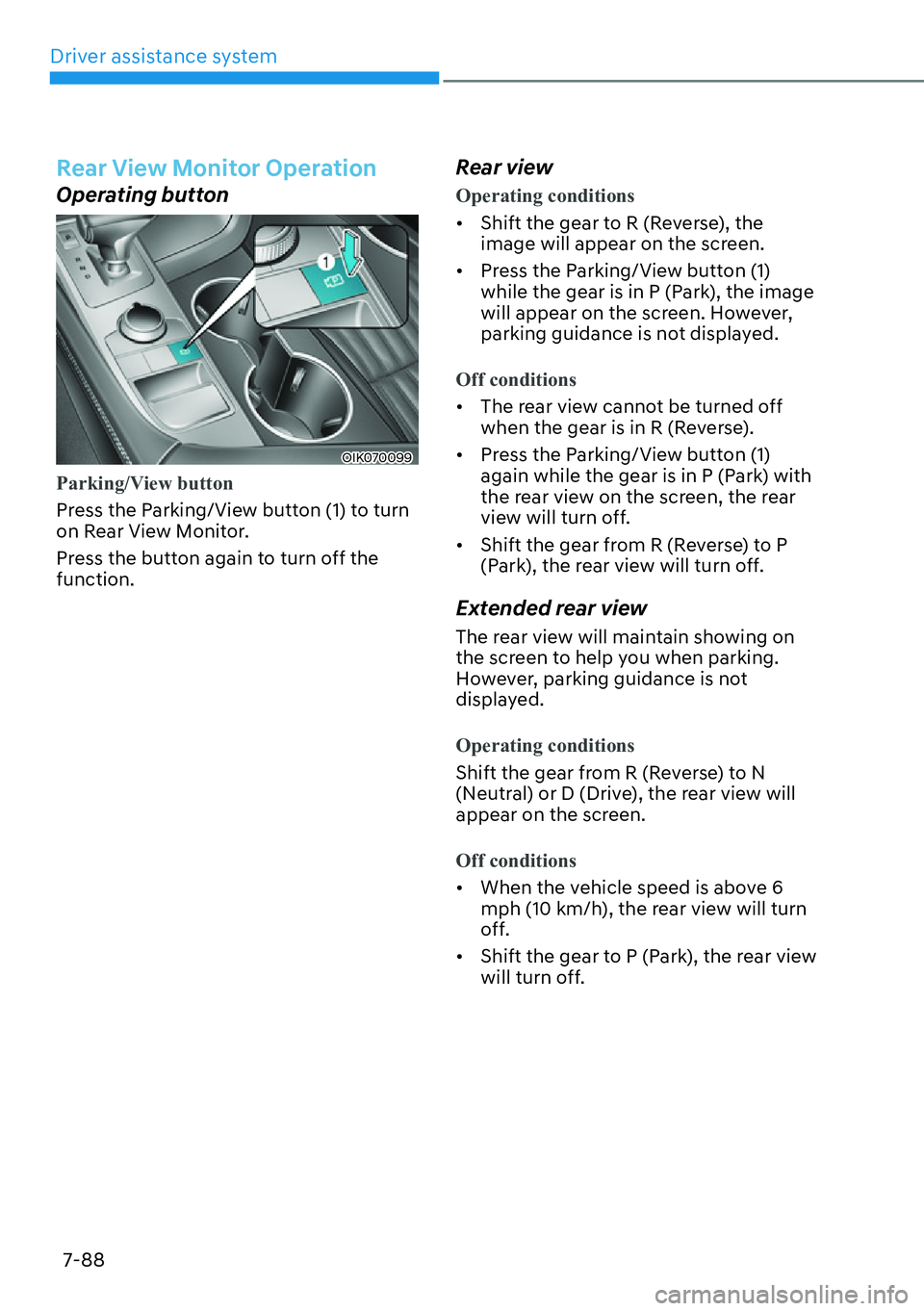

Rear View Monitor Operation
Operating button
OIK070099
Parking/View button
Press the Parking/View button (1) to turn
on Rear View Monitor.
Press the button again to turn off the
function.
Rear view
Operating conditions

[Shift the gear to R (Reverse), the
image will appear on the screen.

[Press the Parking/View button (1)
while the gear is in P (Park), the image
will appear on the screen. However,
parking guidance is not displayed.
Off conditions

[The rear view cannot be turned off
when the gear is in R (Reverse).

[Press the Parking/View button (1)
again while the gear is in P (Park) with
the rear view on the screen, the rear
view will turn off.

[Shift the gear from R (Reverse) to P
(Park), the rear view will turn off.
Extended rear view
The rear view will maintain showing on
the screen to help you when parking.
However, parking guidance is not
displayed.
Operating conditions
Shift the gear from R (Reverse) to N
(Neutral) or D (Drive), the rear view will
appear on the screen.
Off conditions

[When the vehicle speed is above 6
mph (10 km/h), the rear view will turn
off.

[Shift the gear to P (Park), the rear view
will turn off.

07
7-89

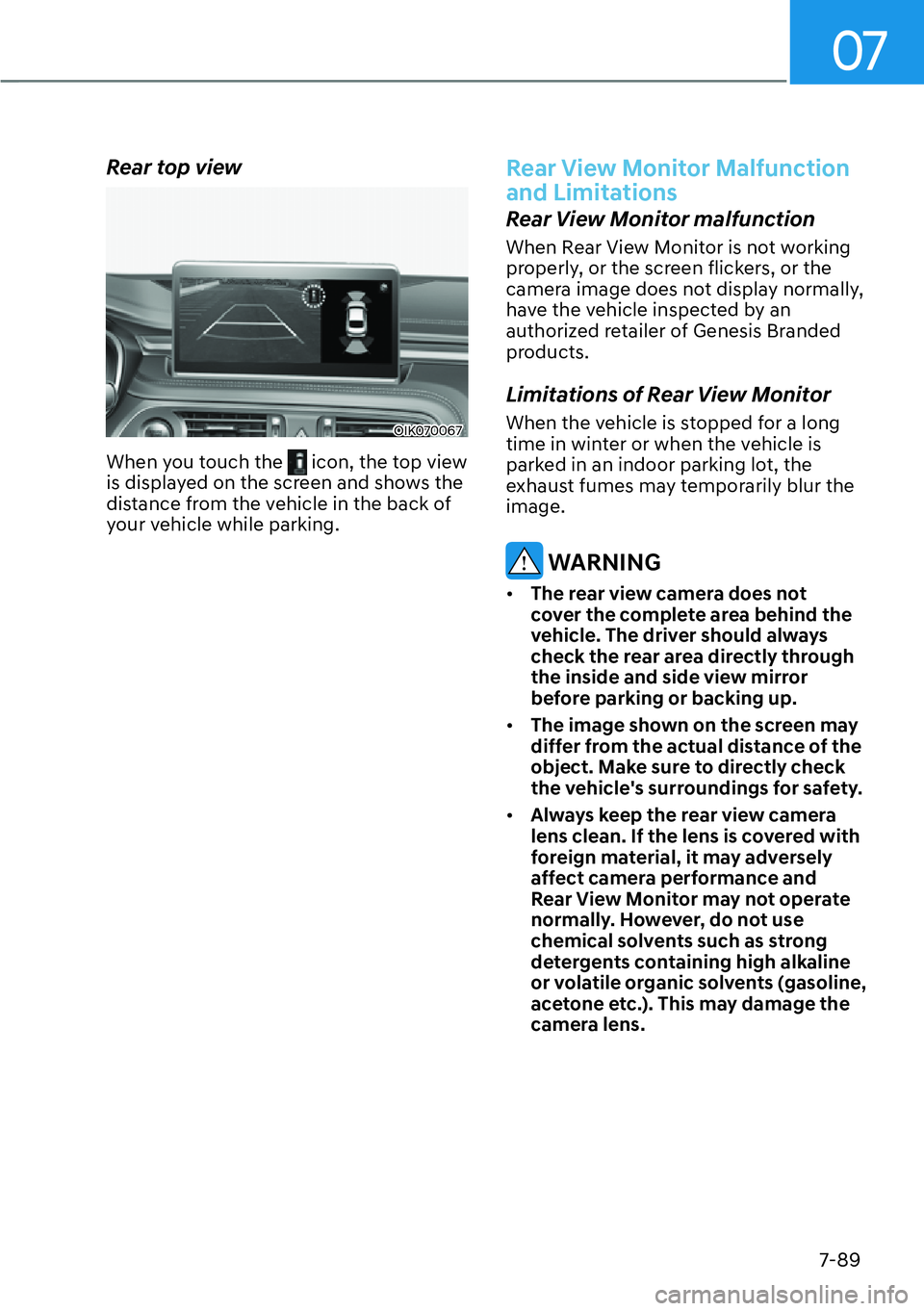

Rear top view
OIK070067
When you touch the icon, the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

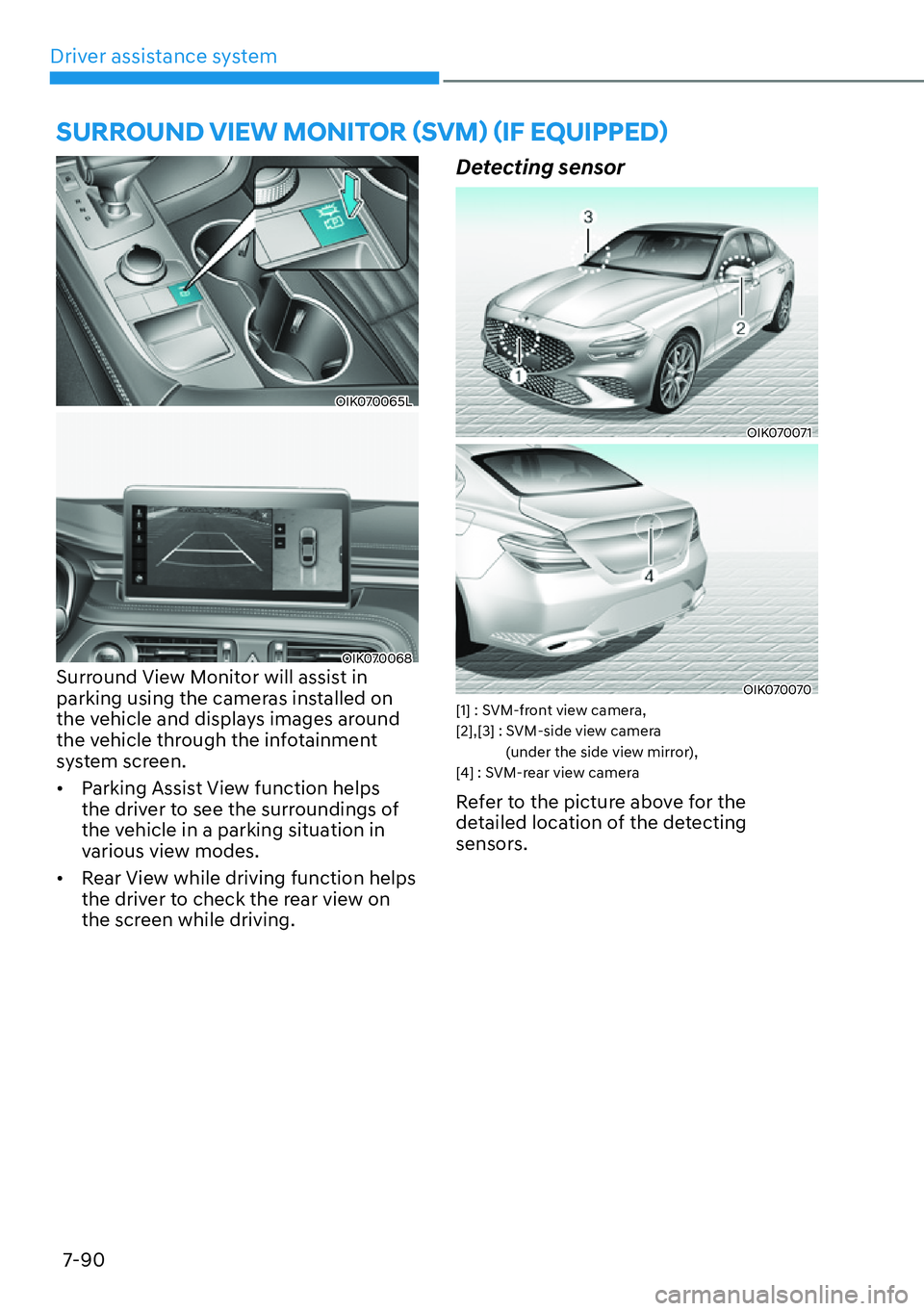

Driver assistance system
7-90
6855281'9,(:021,725

07
7-91

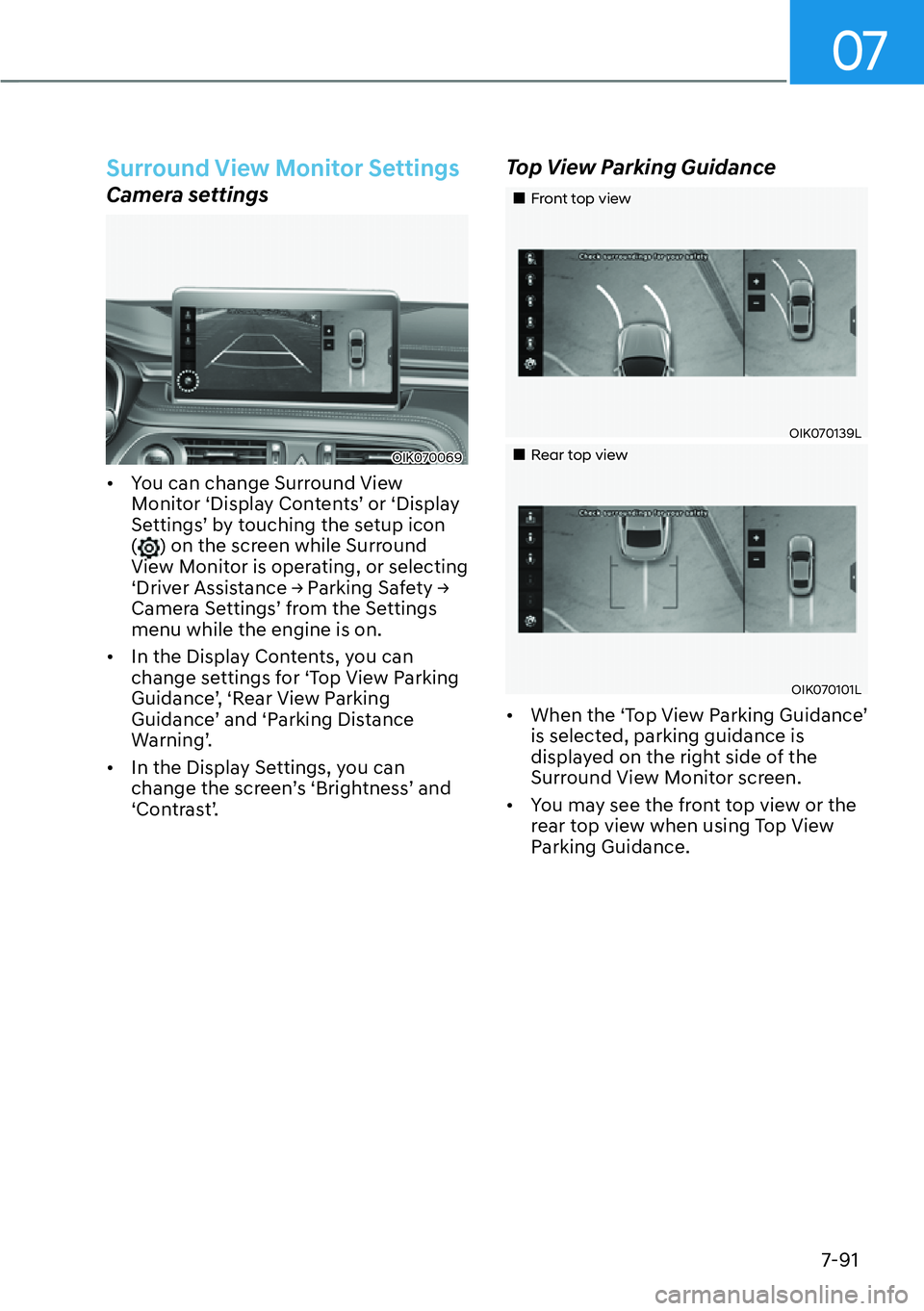

Surround View Monitor Settings
Camera settings
OIK070069

[You can change Surround View
0RQLWRU
S'LVSOD\&RQWHQWV
TRU
S'LVSOD\
6HWWLQJV
TE\WRXFKLQJWKHVHWXSLFRQ
(
) on the screen while Surround
View Monitor is operating, or selecting

S'ULYHU$VVLVWDQFH
