Driver assistance system
7-102
WARNING
[ Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Safety system may not
operate properly.
[ Rear Cross-Traffic Safety system may
not operate properly in an area (for
example: open terrain), where any
substance are not detected after
turning ON the engine.
CAUTION
Turn off Rear Cross-Traffic Safety
system to install a trailer, carrier, etc.,
or remove the trailer, carrier, etc. to use
Rear Cross-Traffic Safety system.
Limitations of Rear Cross-Traffic
Safety system
Rear Cross-Traffic Safety system may
not operate normally, or the system
may operate unexpectedly under the
following circumstances:
[ Departing from where trees or grass
are overgrown
[ Departing from where roads are wet
[ Speed of the approaching vehicle is
fast or slow
% U D N L Q J F R Q W U R O P D \ Q R W Z R U N G U L Y H UT V
attention is required in the following
circumstances:
[ The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch
[ Driving on a slippery surface due to
snow, water puddle, ice, etc.
[ The tire pressure is low or a tire is
damaged
[ The brake is reworked
Information
For more details on the limitations of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in chapter 7.
WARNING
[ Driving near a vehicle or structure
ORG3070070[A] : Structure
Rear Cross-Traffic Safety system
may be limited when driving near
a vehicle or structure, and may not
detect the vehicle approaching from
the left or right. If this occurs, the
system may not warn the driver or
control the brakes when necessary.
Always check your surroundings
while backing up.
Page 412 of 530

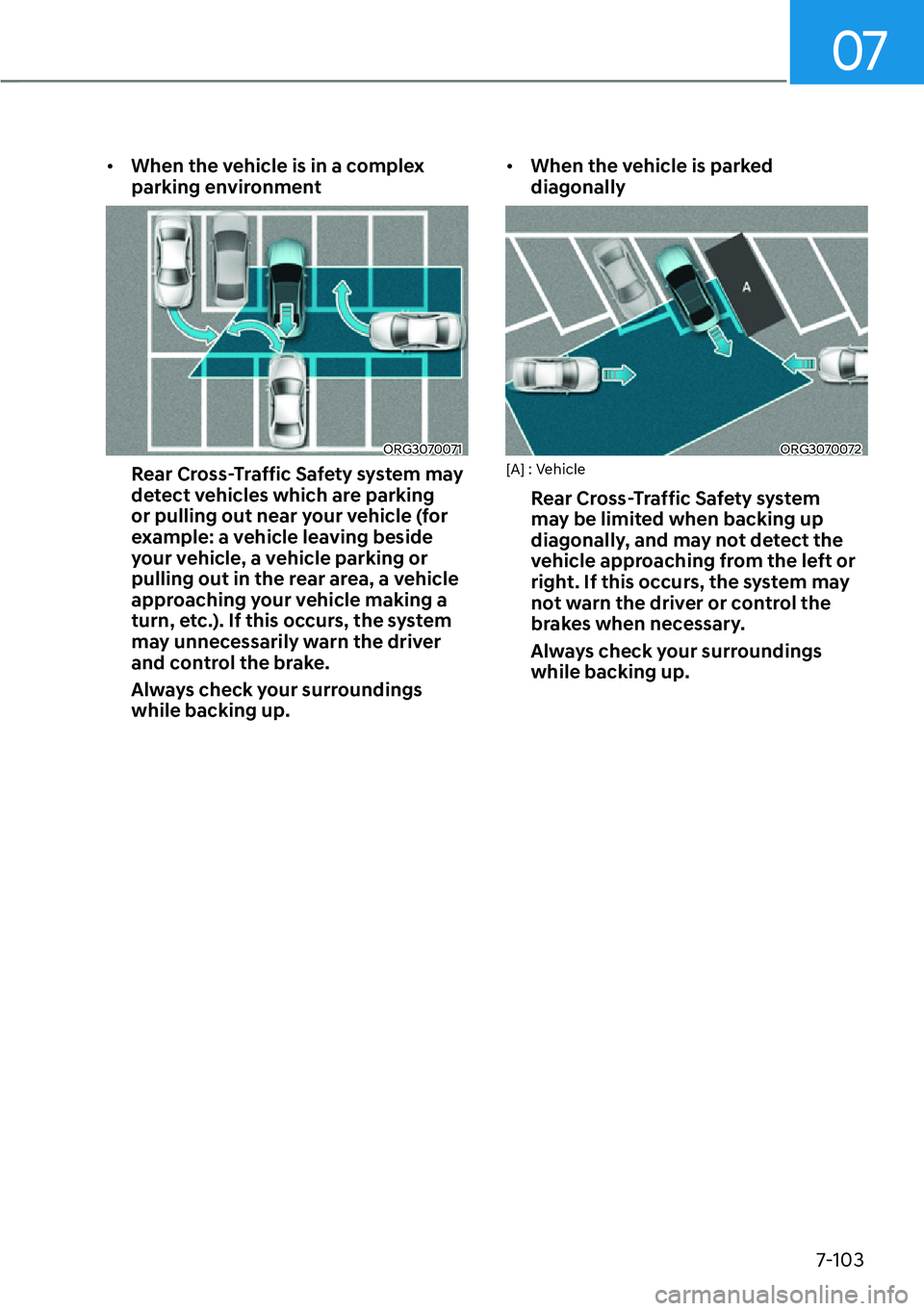

07
7-103
[ When the vehicle is in a complex
parking environment
ORG3070071
Rear Cross-Traffic Safety system may
detect vehicles which are parking
or pulling out near your vehicle (for
example: a vehicle leaving beside
your vehicle, a vehicle parking or
pulling out in the rear area, a vehicle
approaching your vehicle making a
turn, etc.). If this occurs, the system
may unnecessarily warn the driver
and control the brake.
Always check your surroundings
while backing up.[ When the vehicle is parked
diagonally
ORG3070072[A] : Vehicle
Rear Cross-Traffic Safety system
may be limited when backing up
diagonally, and may not detect the
vehicle approaching from the left or
right. If this occurs, the system may
not warn the driver or control the
brakes when necessary.
Always check your surroundings
while backing up.
Page 413 of 530

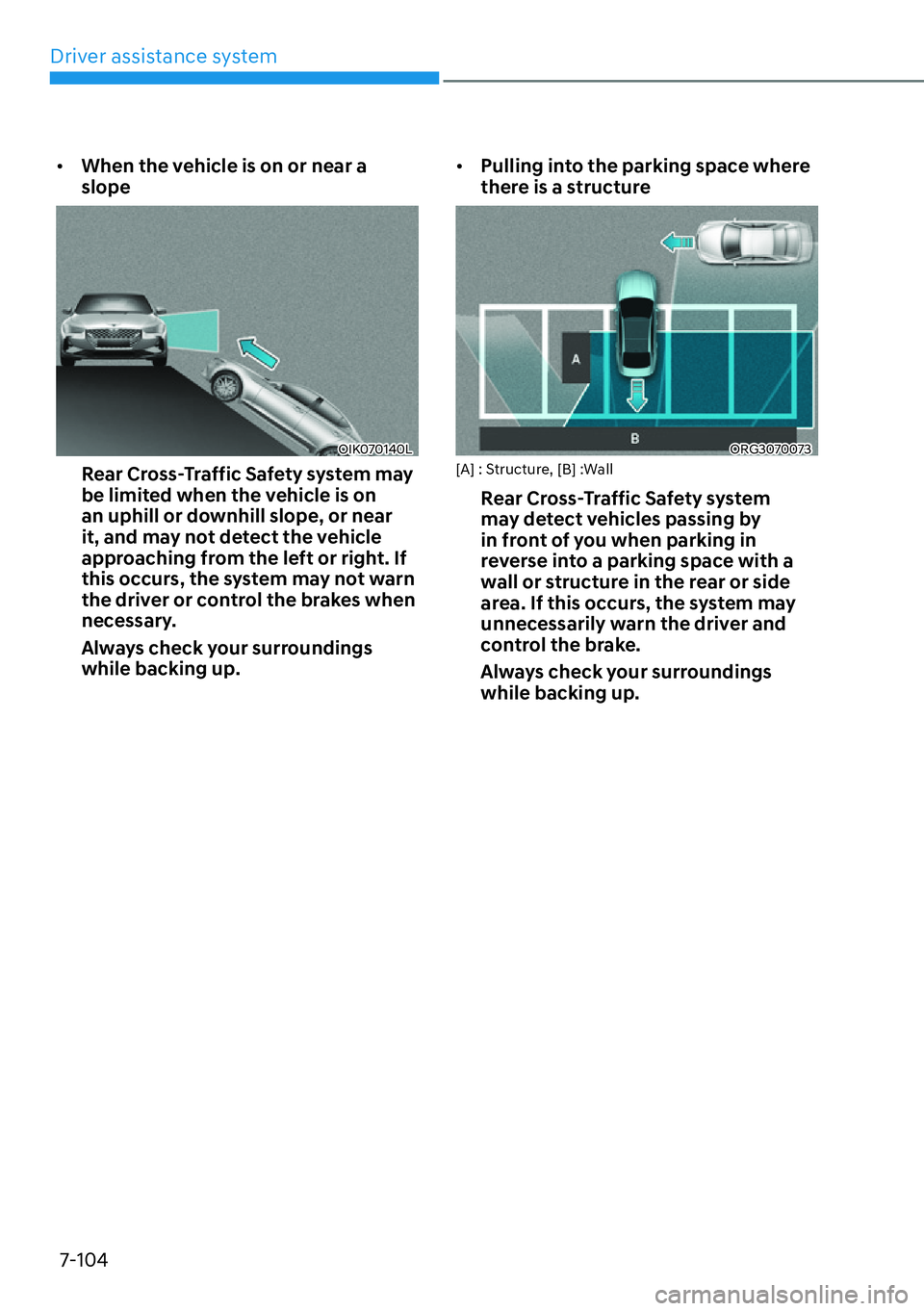

Driver assistance system
7-104
[ When the vehicle is on or near a
slope
OIK070140L
Rear Cross-Traffic Safety system may
be limited when the vehicle is on
an uphill or downhill slope, or near
it, and may not detect the vehicle
approaching from the left or right. If
this occurs, the system may not warn
the driver or control the brakes when
necessary.
Always check your surroundings
while backing up.[ Pulling into the parking space where
there is a structure
ORG3070073[A] : Structure, [B] :Wall
Rear Cross-Traffic Safety system
may detect vehicles passing by
in front of you when parking in
reverse into a parking space with a
wall or structure in the rear or side
area. If this occurs, the system may
unnecessarily warn the driver and
control the brake.
Always check your surroundings
while backing up.
Page 414 of 530

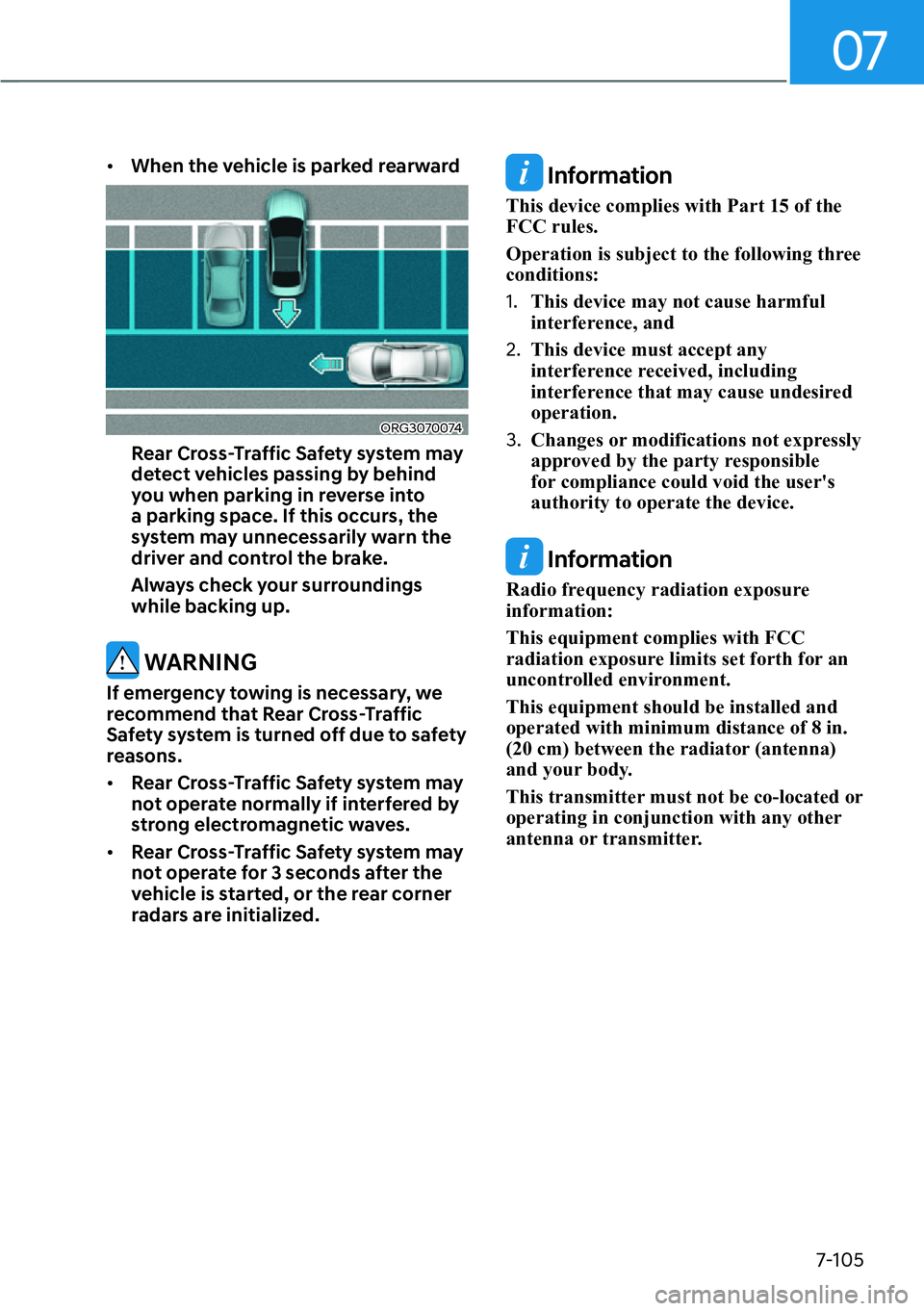

07
7-105
[ When the vehicle is parked rearward
ORG3070074
Rear Cross-Traffic Safety system may
detect vehicles passing by behind
you when parking in reverse into
a parking space. If this occurs, the
system may unnecessarily warn the
driver and control the brake.
Always check your surroundings
while backing up.
WARNING
If emergency towing is necessary, we
recommend that Rear Cross-Traffic
Safety system is turned off due to safety
reasons.
[ Rear Cross-Traffic Safety system may
not operate normally if interfered by
strong electromagnetic waves.
[ Rear Cross-Traffic Safety system may
not operate for 3 seconds after the
vehicle is started, or the rear corner
radars are initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.
Page 415 of 530

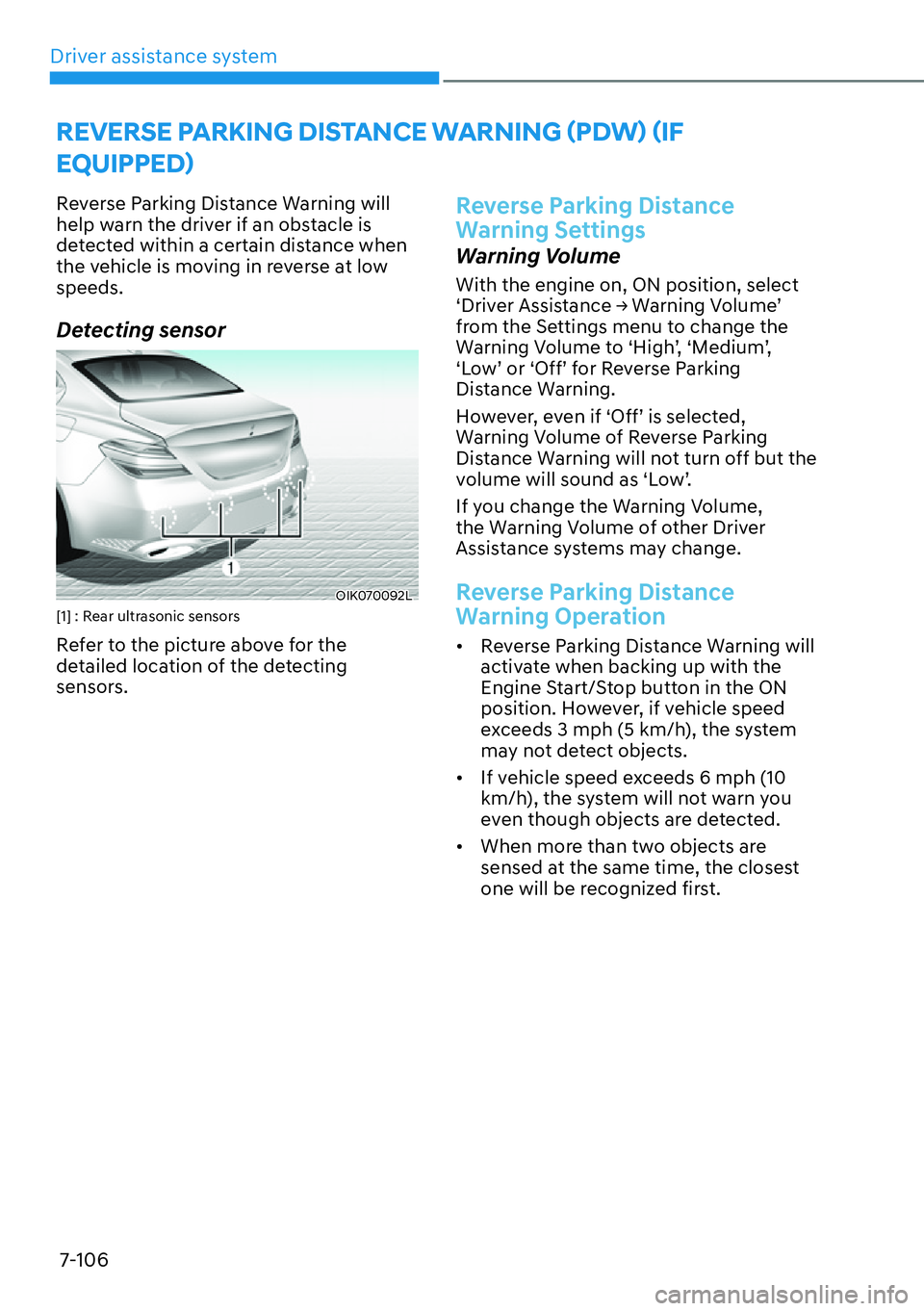

Driver assistance system
7-106
5 ( 9 ( 5 6 ( 3 $ 5 . , 1 * ' , 6 7 $ 1 & ( : $ 5 1 , 1 *
Page 416 of 530
07
7-107
Reverse Parking Distance Warning
[ Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).
[ Reverse Parking Distance Warning
detects a person, animal or object in
W K H U H D U Z K H Q W K H Y H K L F O HT V U H D U Z D U G
speed is below 6 mph (10 km/h).
Distance
from objectWarning
indicator
Warning
sound
Driving
rearward
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
12 in. (within
30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance
Warning Malfunction and
Precautions
Reverse Parking Distance Warning
malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Reverse Parking
Distance Warning is operating normally.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
[ The audible warning does not sound.
[ The buzzer sounds intermittently.
[ 7 K H S 3 D U N L Q J V H Q V R U H U U R U R U E O R F N D J HT
warning message appears on the
cluster.
OIK070141L
Page 417 of 530
Driver assistance system
7-108
WARNING
[ Reverse Parking Distance Warning
is a supplemental function. The
operation of Reverse Parking
Distance Warning can be affected
by several factors (including
environmental conditions). It is the
responsibility of the driver to always
check the rear view before and while
parking.
[ Your new vehicle warranty does not
cover any accidents or damage to
the vehicle due to the malfunction of
Reverse Parking Distance Warning.
[ Pay close attention when driving
near objects, pedestrians, and
especially children. Some objects
may not be detected by the
ultrasonic sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor.
Limitations of Reverse Parking
Distance Warning
[ Reverse Parking Distance Warning
may not operate normally when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign
material, such as snow or water
(Reverse Parking Distance Warning
will operate normally when such
foreign material are removed.)
- The weather is extremely hot or cold
- The sensor or sensor assembly is
disassembled
- The surface of the sensor is pressed
hard or an impact is applied with a
hard object
- The surface of the sensor is
scratched with a sharp object
- The sensors or its surrounding
area is directly sprayed with high
pressure washer[ Reverse Parking Distance Warning
may malfunction when:
- Heavy rain or water spray is present
- Water flows on the surface of the
sensor
- $ I I H F W H G E \ D Q R W K H U Y H K L F O HT V
sensors
- The sensor is covered with snow
- Driving on uneven road, gravel
roads or bushes
- Objects that generates ultrasonic
waves are near the sensor
- Installing the license plate
differently from the original location
- The vehicle bumper height or
ultrasonic sensor installation has
been modified
- Attaching equipments or
accessories around the ultrasonic
sensors
[ The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects
that are very close to the ultrasonic
sensors
[ Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.
[ Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
[ If Reverse Parking Distance Warning
needs repair, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Page 418 of 530

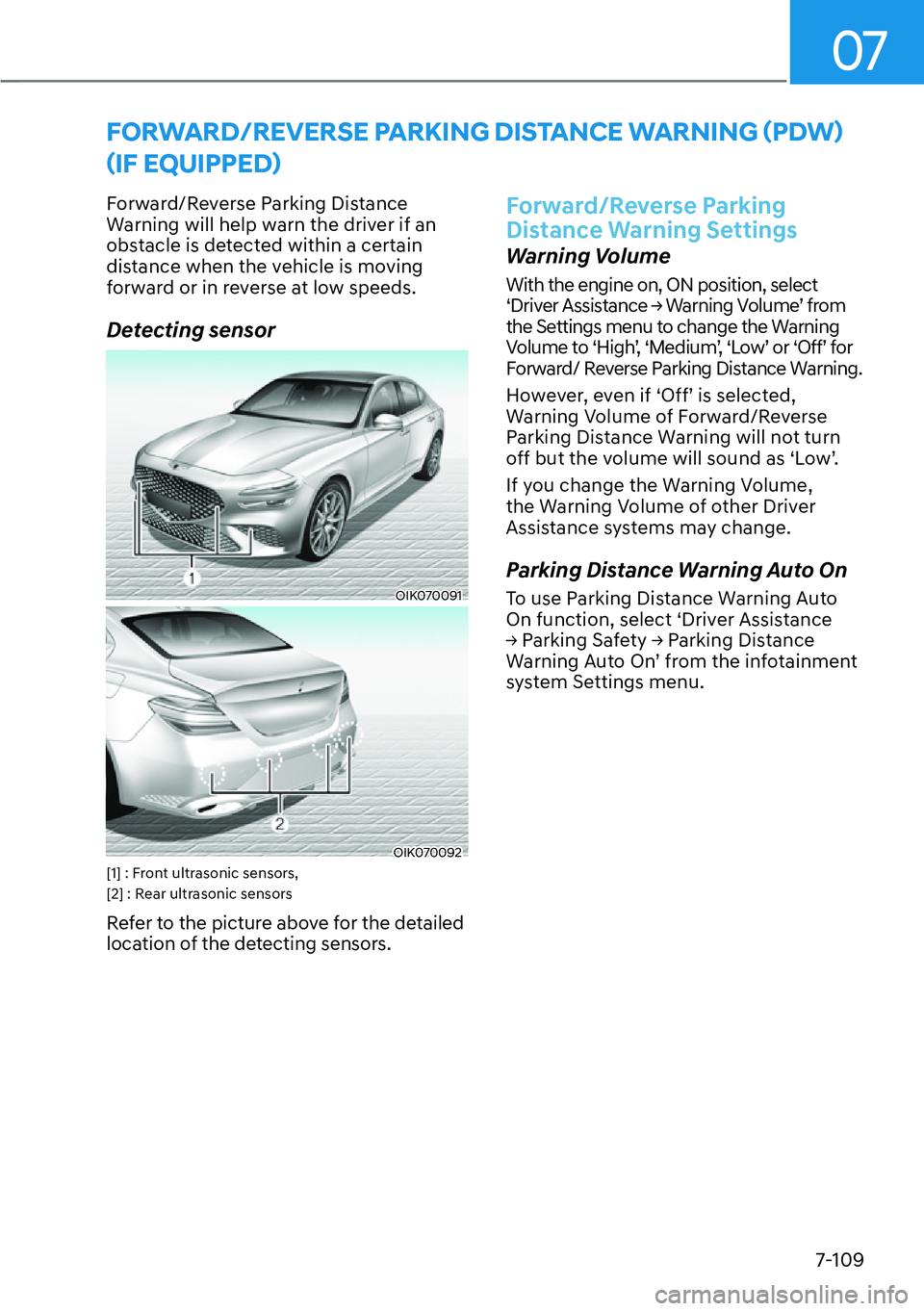

07
7-109
) 2 5 : $ 5 ' 5 ( 9 ( 5 6 ( 3 $ 5 . , 1 * ' , 6 7 $ 1 & ( : $ 5 1 , 1 *
Page 419 of 530

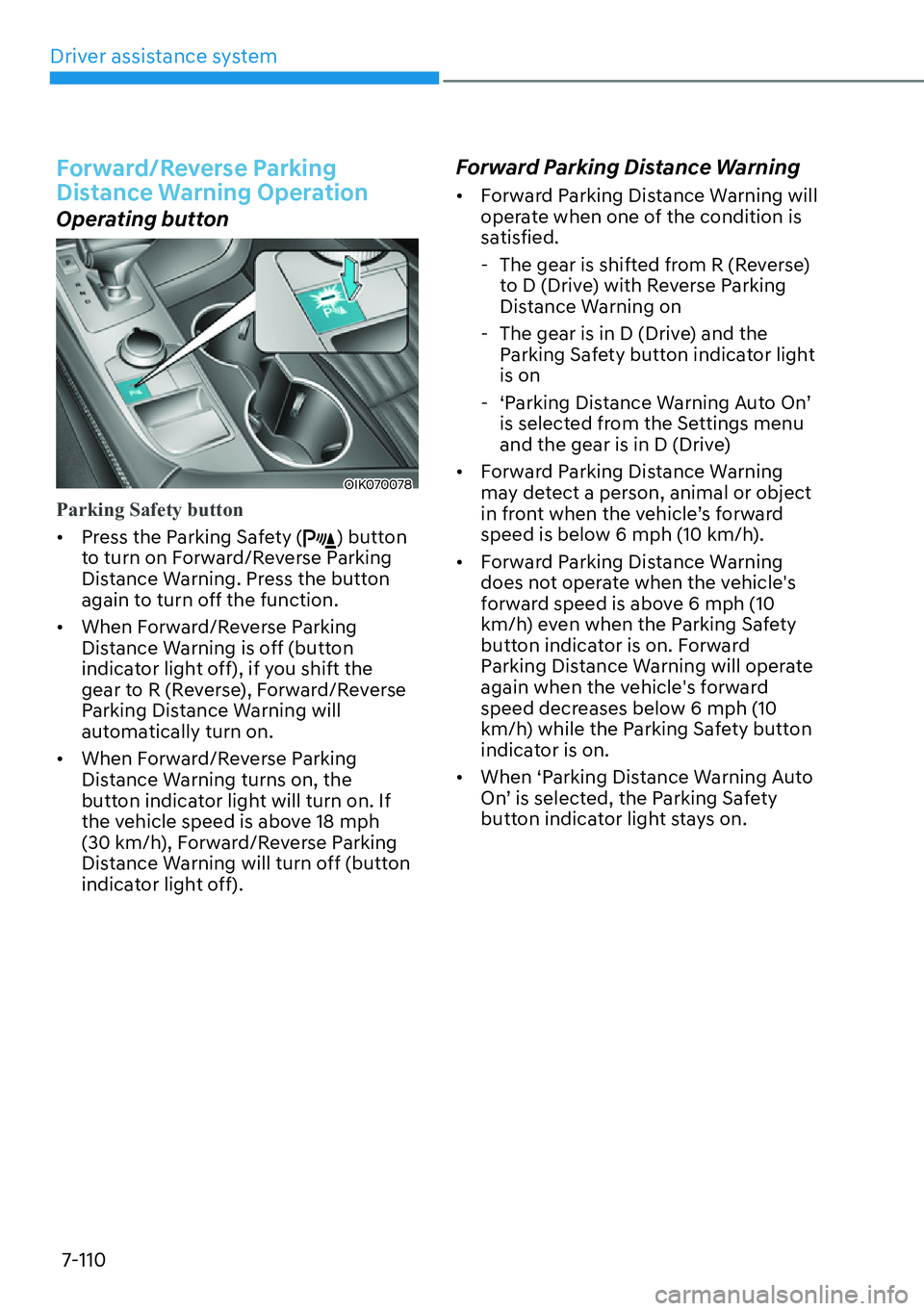

Driver assistance system
7-110
Forward/Reverse Parking
Distance Warning Operation
Operating button
OIK070078
Parking Safety button
[ Press the Parking Safety () button
to turn on Forward/Reverse Parking
Distance Warning. Press the button
again to turn off the function.
[ When Forward/Reverse Parking
Distance Warning is off (button
indicator light off), if you shift the
gear to R (Reverse), Forward/Reverse
Parking Distance Warning will
automatically turn on.
[ When Forward/Reverse Parking
Distance Warning turns on, the
button indicator light will turn on. If
the vehicle speed is above 18 mph
(30 km/h), Forward/Reverse Parking
Distance Warning will turn off (button
indicator light off).
Forward Parking Distance Warning
[ Forward Parking Distance Warning will
operate when one of the condition is
satisfied.
- The gear is shifted from R (Reverse)
to D (Drive) with Reverse Parking
Distance Warning on
- The gear is in D (Drive) and the
Parking Safety button indicator light
is on
-S 3 D U N L Q J ' L V W D Q F H : D U Q L Q J $ X W R 2 QT
is selected from the Settings menu
and the gear is in D (Drive)
[ Forward Parking Distance Warning
may detect a person, animal or object
L Q I U R Q W Z K H Q W K H Y H K L F O HT V I R U Z D U G
speed is below 6 mph (10 km/h).
[ Forward Parking Distance Warning
does not operate when the vehicle's
forward speed is above 6 mph (10
km/h) even when the Parking Safety
button indicator is on. Forward
Parking Distance Warning will operate
again when the vehicle's forward
speed decreases below 6 mph (10
km/h) while the Parking Safety button
indicator is on.
[ When ‘Parking Distance Warning Auto
2 QT L V V H O H F W H G W K H 3 D U N L Q J 6 D I H W \
button indicator light stays on.
Page 420 of 530
07
7-111
[ When ‘Parking Distance Warning Auto
2 QT L V G H V H O H F W H G D Q G W K H Y H K L F O HT V
forward speed is above 12 mph (20
km/h), the Parking Safety button
indicator will turn off. Although you
drive below 6 mph (10 km/h), the
system will not turn on.
Distance
from objectWarning
indicator
Warning
sound
Driving
forward
24~40 in.
(60~100 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
12 in. (within
30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance Warning
[ Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).
[ Reverse Parking Distance Warning
helps detect a person, animal or
R E M H F W L Q W K H U H D U Z K H Q W K H Y H K L F O HT V
rearward speed is below 6 mph (10
km/h).
[ : K H Q W K H Y H K L F O HT V U H D U Z D U G V S H H G L V
below 6 mph (10 km/h), both the front
and rear ultrasonic sensors will help
detect objects. However, the front
ultrasonic sensors can help detect a
person, animal or object when it is
within 24 in. (60 cm) from the sensors.
Distance
from objectWarning
indicator
Warning
sound
Driving
rearward
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
12 in. (within
30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
