HYUNDAI GENESIS GV70 2021 Owners Manual

05
5-27

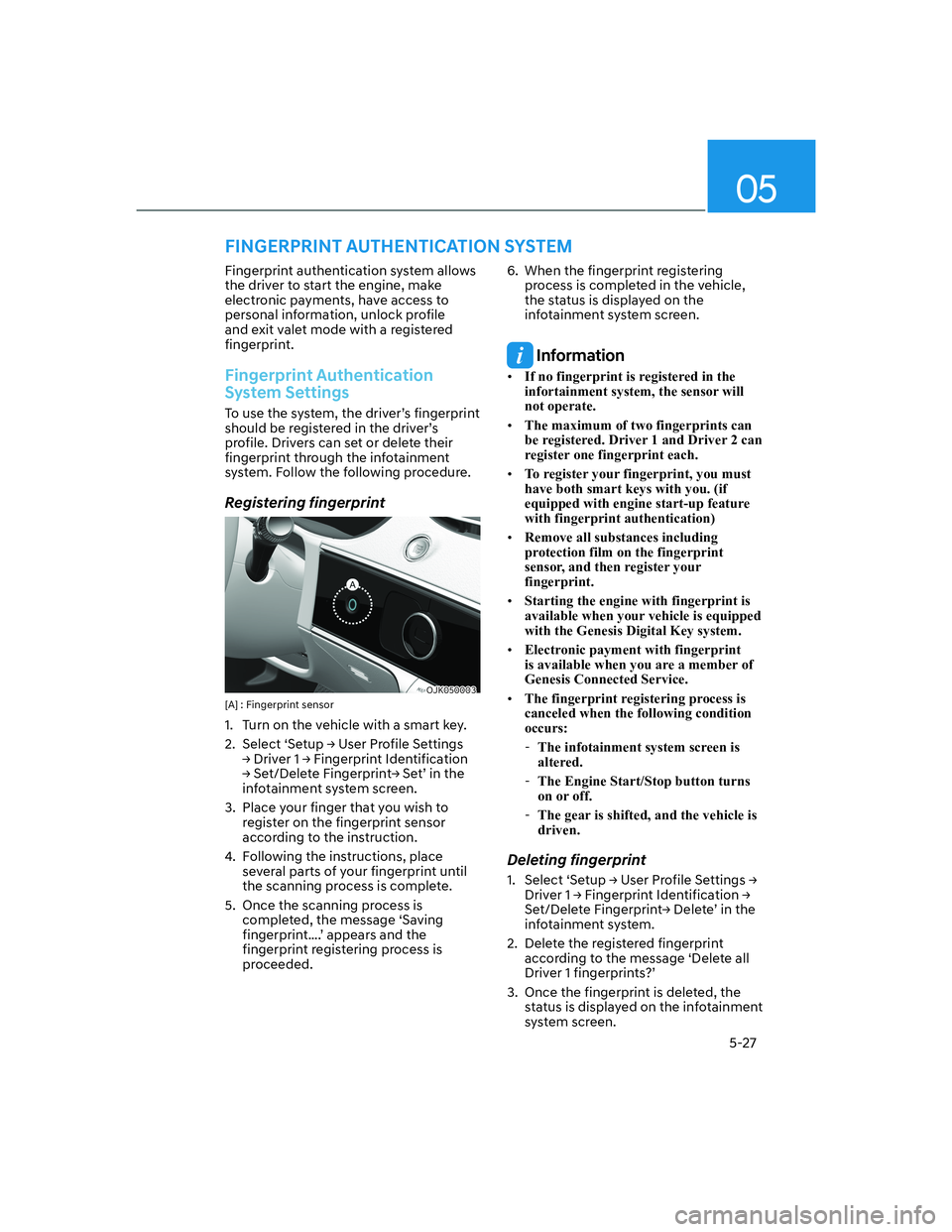

FINGERPRINT AUTHENTICATION SYSTEM
Fingerprint authentication system allows
the driver to start the engine, make
electronic payments, have access to
personal information, unlock profile
and exit valet mode with a registered
fingerprint.
Fingerprint Authentication
System Settings
To use the system, the driver’s fingerprint
should be registered in the driver’s
profile. Drivers can set or delete their
fingerprint through the infotainment
system. Follow the following procedure.
Registering fingerprint
OJK050003OJK050003[A] : Fingerprint sensor
1. Turn on the vehicle with a smart key.
2. 6HOHFW
S6HWXS

Convenience Features
5-28

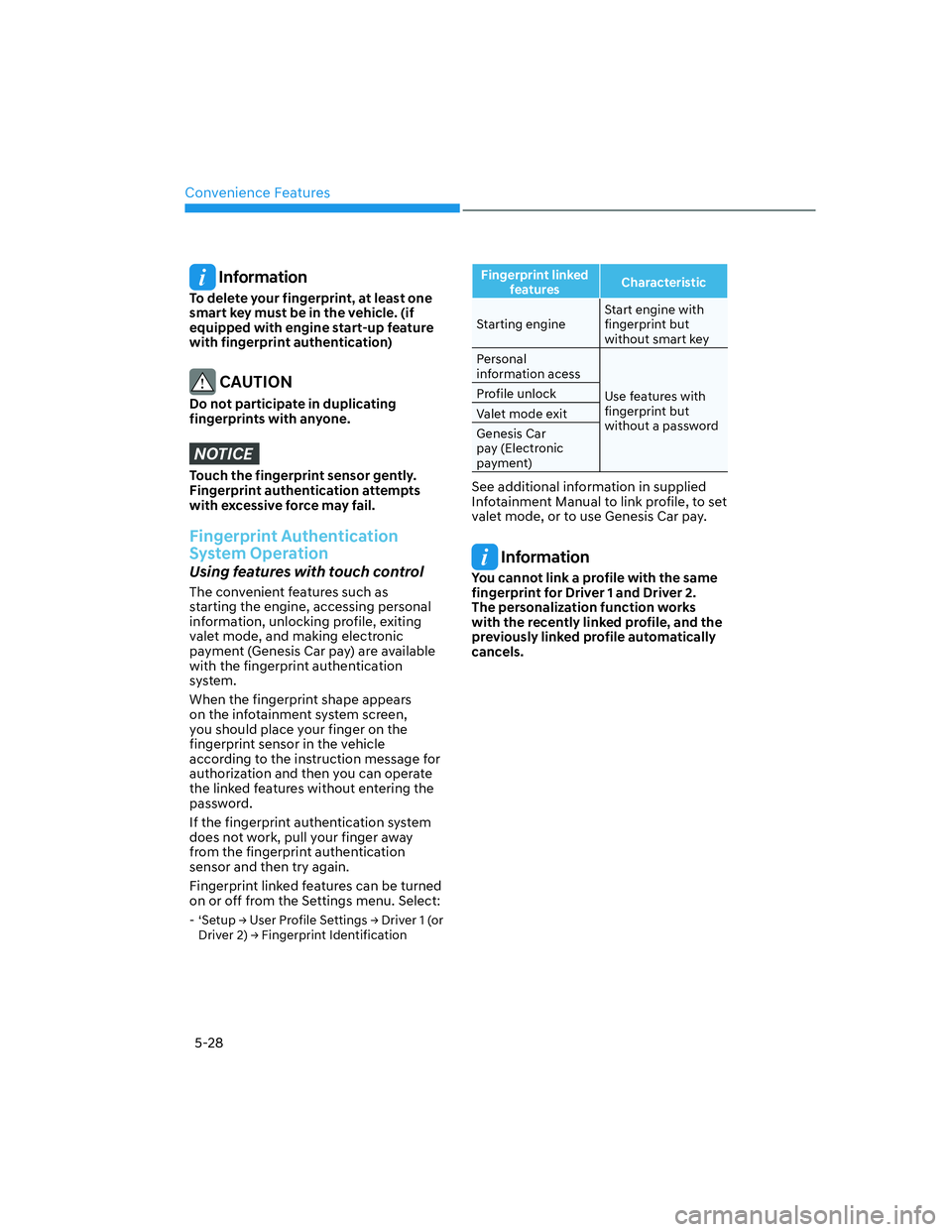

Information
To delete your fingerprint, at least one
smart key must be in the vehicle. (if
equipped with engine start-up feature
with fingerprint authentication)
CAUTION
Do not participate in duplicating
fingerprints with anyone.
NOTICE
Touch the fingerprint sensor gently.
Fingerprint authentication attempts
with excessive force may fail.
Fingerprint Authentication
System Operation
Using features with touch control
The convenient features such as
starting the engine, accessing personal
information, unlocking profile, exiting
valet mode, and making electronic
payment (Genesis Car pay) are available
with the fingerprint authentication
system.
When the fingerprint shape appears
on the infotainment system screen,
you should place your finger on the
fingerprint sensor in the vehicle
according to the instruction message for
authorization and then you can operate
the linked features without entering the
password.
If the fingerprint authentication system
does not work, pull your finger away
from the fingerprint authentication
sensor and then try again.
Fingerprint linked features can be turned
on or off from the Settings menu. Select:

L
S6HWXS

05
5-29
Starting the engine (if equipped)
OJK050046OJK050046Place your finger on the fingerprint
sensor (1) to verify your fingerprint. After
it is successfully verified, start the engine
by pressing the Engine Start/Stop button
(2) within 30 seconds.
Fingerprint
authentication
statusLight
colorMessage on
cluster
Standby White -
Succeed BlueFingerprint is
verified. You can
start vehicle.
Fail Yellow -
Restricted due
to consecutive
failureRedFingerprint
authorization is
locked out. Try
again in XX min.
For more details on how to start your
vehicle with the Engine Start/Stop
button, refer to “Engine Start/Stop
Button” section in chapter 6.
Information
If you are in the vehicle for an extended
period without starting the engine, the
fingerprint sensor may turn off.
If this occurs, depress the brake pedal and
verify your fingerprint again when the
fingerprint sensor illuminates.
Limitations of Fingerprint
Authentication System
• Fingerprint authentication system
may not work when:
- Trying to authorize with an
unregistered fingerprint.
- The center of the fingerprint sensor
is not touched.
- Any water or substance is on your
finger or the sensor.
- The film on the sensor is not
removed.
- The registered fingerprint is scarred
or swollen.
- Your hand is overly dry.
- The sensor is touched shortly.
• If fingerprint authentication fails
repeatedly, fingerprint authentication
may be temporarily restricted. You
should try it later or try other methods
such as using your smart key or
inputting your password.
If the engine does not start due to
fingerprint sensor malfunction, have
the system inspected by an authorized
retailer of Genesis Branded products.
• When you visit an authorized retailer
of Genesis Branded products to repair
parts due to fingerprint authentication
system or related part failure, your
registered fingerprint might be
deleted. Have your smart key when
you visit an authorized retailer of
Genesis Branded products.

Convenience Features
5-30

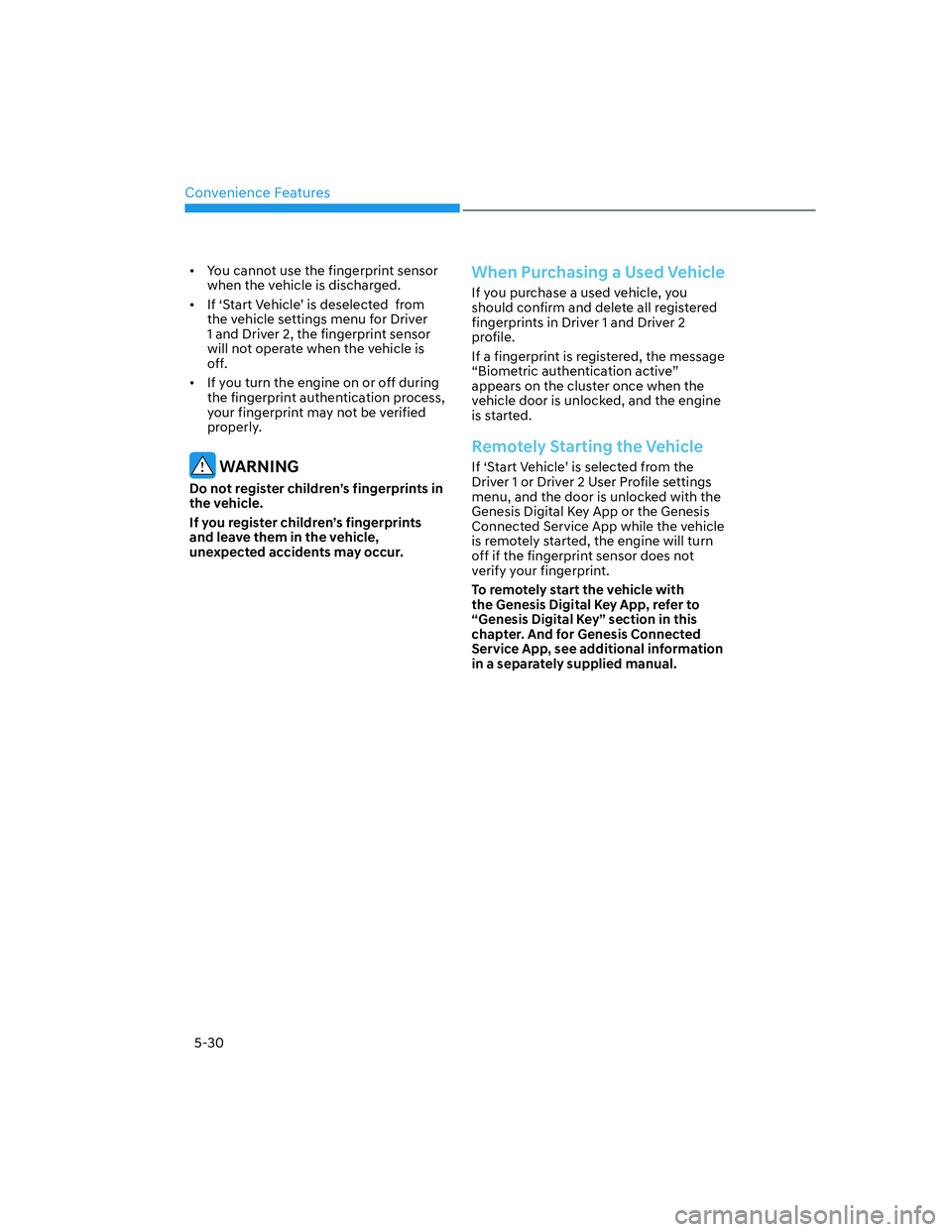

• You cannot use the fingerprint sensor
when the vehicle is discharged.
• If ‘Start Vehicle’ is deselected from
the vehicle settings menu for Driver
1 and Driver 2, the fingerprint sensor
will not operate when the vehicle is
off.
• If you turn the engine on or off during
the fingerprint authentication process,
your fingerprint may not be verified
properly.
WARNING
Do not register children’s fingerprints in
the vehicle.
If you register children’s fingerprints
and leave them in the vehicle,
unexpected accidents may occur.
When Purchasing a Used Vehicle
If you purchase a used vehicle, you
should confirm and delete all registered
fingerprints in Driver 1 and Driver 2
profile.
If a fingerprint is registered, the message
“Biometric authentication active”
appears on the cluster once when the
vehicle door is unlocked, and the engine
is started.
Remotely Starting the Vehicle
If ‘Start Vehicle’ is selected from the
Driver 1 or Driver 2 User Profile settings
menu, and the door is unlocked with the
Genesis Digital Key App or the Genesis
Connected Service App while the vehicle
is remotely started, the engine will turn
off if the fingerprint sensor does not
verify your fingerprint.
To remotely start the vehicle with
the Genesis Digital Key App, refer to
“Genesis Digital Key” section in this
chapter. And for Genesis Connected
Service App, see additional information
in a separately supplied manual.

05
5-31

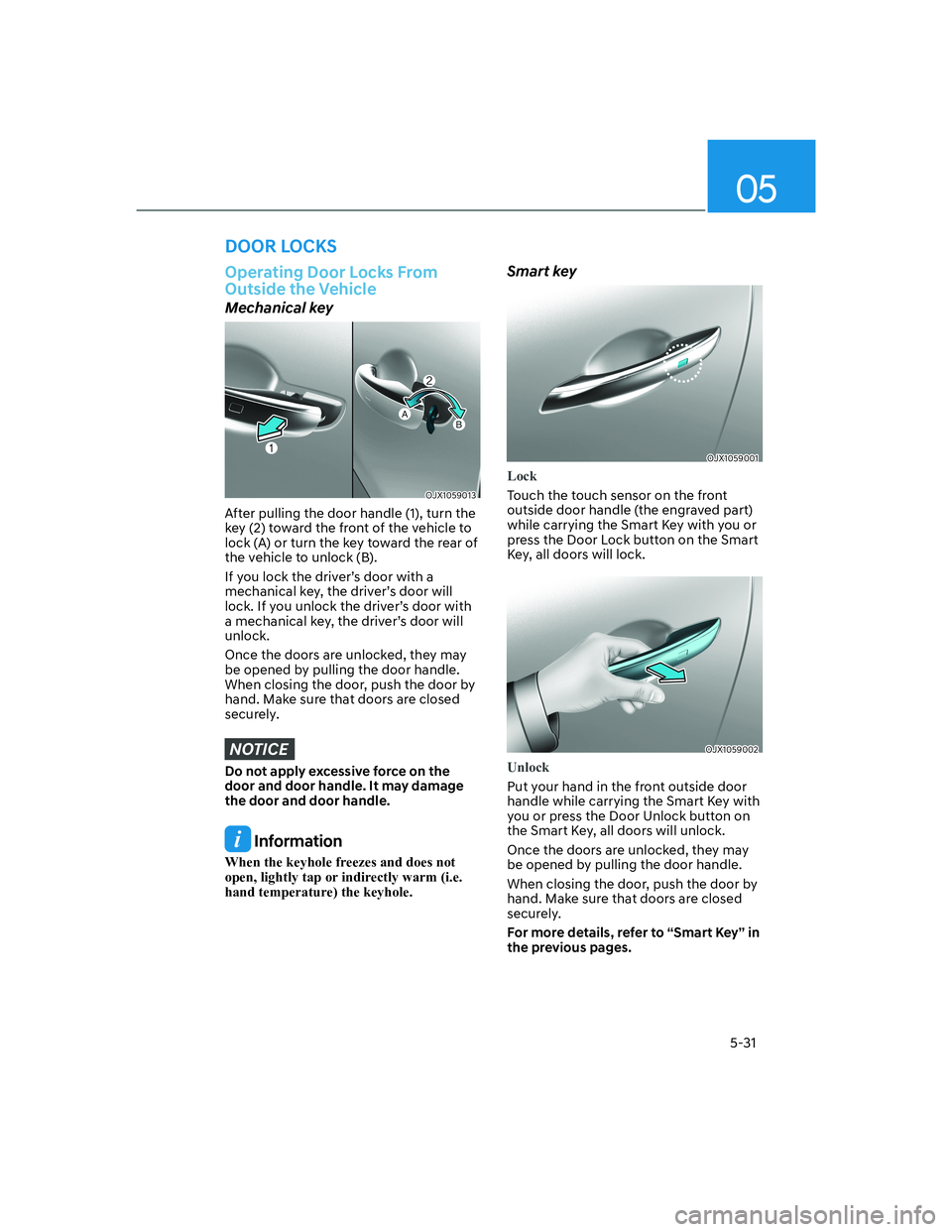

Operating Door Locks From
Outside the Vehicle
Mechanical key
OJX1059013OJX1059013
After pulling the door handle (1), turn the
key (2) toward the front of the vehicle to
lock (A) or turn the key toward the rear of
the vehicle to unlock (B).
If you lock the driver’s door with a
mechanical key, the driver’s door will
lock. If you unlock the driver’s door with
a mechanical key, the driver’s door will
unlock.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
NOTICE
Do not apply excessive force on the
door and door handle. It may damage
the door and door handle.
Information
:KHQWKHNH\KROHIUHH]HVDQGGRHVQRW
open, lightly tap or indirectly warm (i.e.
hand temperature) the keyhole.
Smart key
OJX1059001OJX1059001
Lock
Touch the touch sensor on the front
outside door handle (the engraved part)
while carrying the Smart Key with you or
press the Door Lock button on the Smart
Key, all doors will lock.
OJX1059002OJX1059002
Unlock
Put your hand in the front outside door
handle while carrying the Smart Key with
you or press the Door Unlock button on
the Smart Key, all doors will unlock.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
For more details, refer to “Smart Key” in
the previous pages.
DOOR LOCKS

Convenience Features
5-32

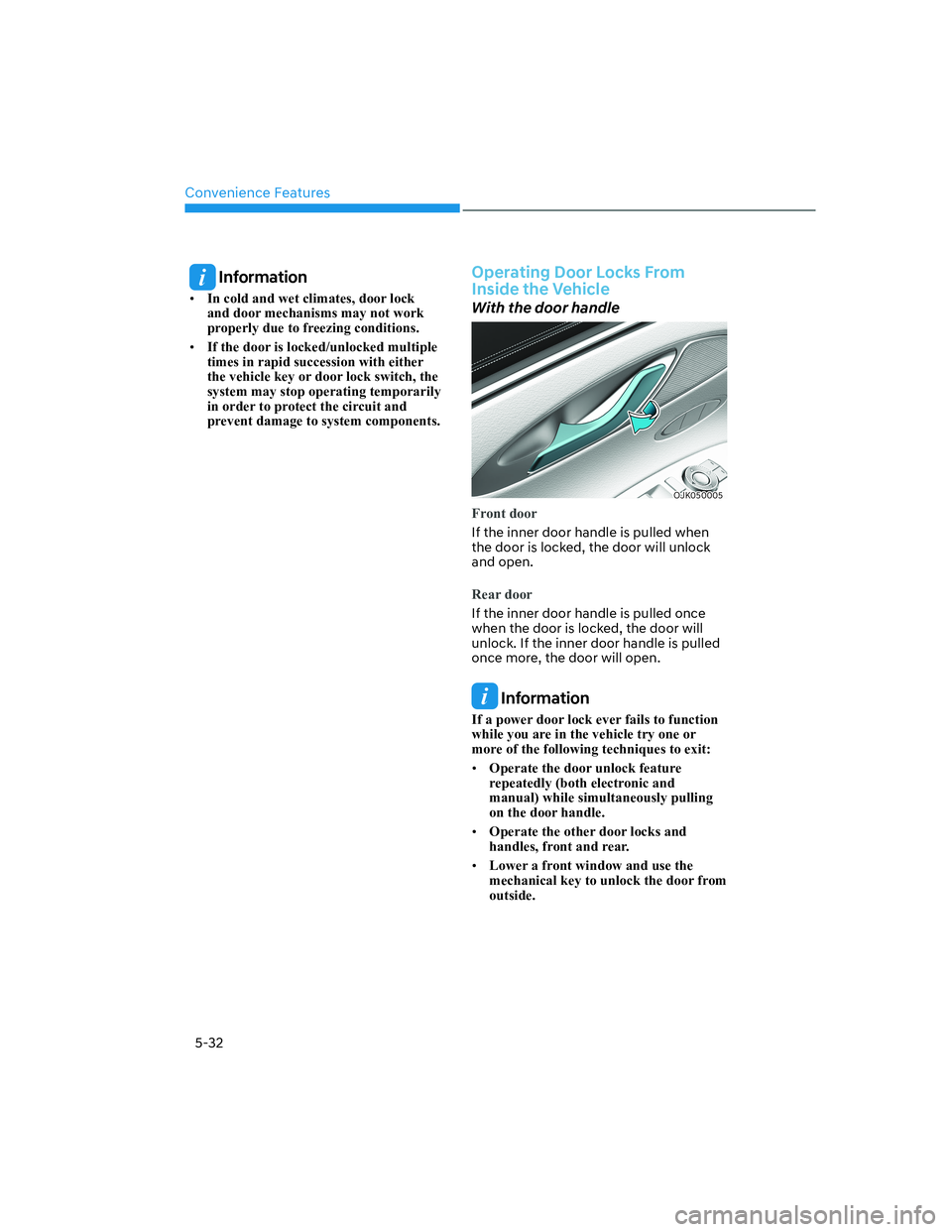

Information
• In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
• ,IWKHGRRULVORFNHGXQORFNHGPXOWLSOH
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.
Operating Door Locks From
Inside the Vehicle
With the door handle
OJK050005OJK050005
Front door
If the inner door handle is pulled when
the door is locked, the door will unlock
and open.
Rear door
If the inner door handle is pulled once
when the door is locked, the door will
unlock. If the inner door handle is pulled
once more, the door will open.
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:
• Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.
• Operate the other door locks and
handles, front and rear.
• Lower a front window and use the
mechanical key to unlock the door from
outside.

05
5-33
With the central door lock switch
„„Driver’s doorDriver’s door
OJX1059015OJX1059015
„„Front passenger’s doorFront passenger’s door
OJX1059016OJX1059016
Driver and passenger door
The driver and passenger side door
armrest is equipped with a central door
lock switch. The lock switch is indicated
by a
symbol. The unlock switch is
indicated by a symbol.
When the lock switch (1) is pressed (door
indicator light ON), all the vehicle doors
will lock.
When the unlock switch (2) is pressed, all
the vehicle doors will unlock.
If the smart key is in the vehicle and any
door is open, the doors will not lock even
though the lock switch (1) is pressed.
OJK050063OJK050063
Rear door
When the lock switch (1) is pressed (door
indicator light ON), all the vehicle doors
will lock.
When the unlock switch (2) is pressed, all
the vehicle doors will unlock.
Information
If all doors are locked with the rear door
lock switch, and the electronic child safety
lock button (if equipped) in the driver’s
seat is turned ON (indicator light ON), the
rear doors cannot be opened. If you want
to open the rear doors:
• Unlock the door with the smart key
from outside when the vehicle is in OFF
position.
• Unlock the door with Genesis
Connected Service using your
smartphone.
• Press the electronic child safety lock
button on the driver’s door to turn
it off (indicator light OFF), then
unlock the doors with the driver’s or
passenger’s central door lock switch.
(OHFWURQLFFKLOGORFN2))
:'RRU
unlocked)
• Press the electronic child safety lock
button on the driver’s door to turn it
off (indicator light OFF), then pull the
rear inner door handle twice.

Convenience Features
5-34

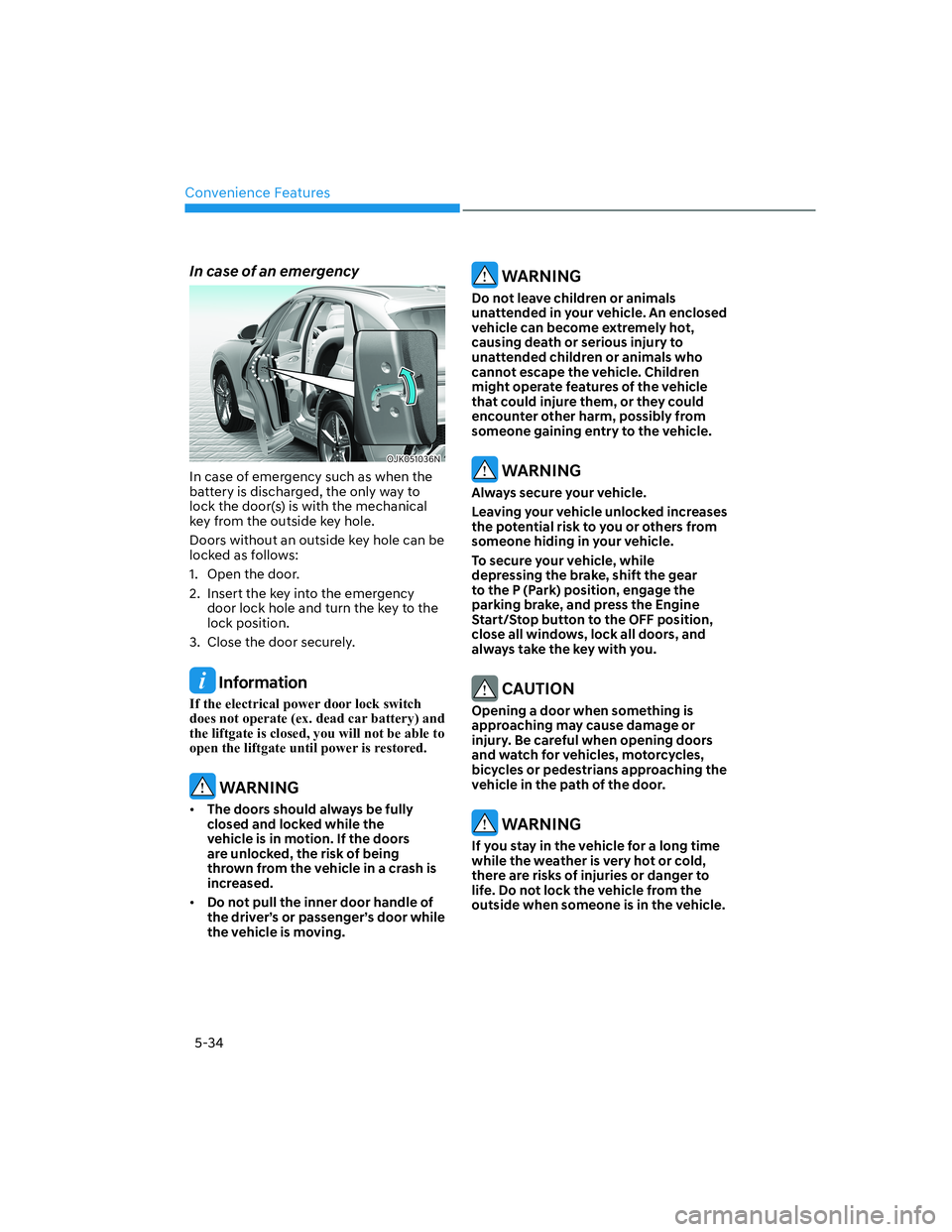

In case of an emergency
OJK051036N OJK051036N
In case of emergency such as when the
battery is discharged, the only way to
lock the door(s) is with the mechanical
key from the outside key hole.
Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency
door lock hole and turn the key to the
lock position.
3. Close the door securely.
Information
If the electrical power door lock switch
does not operate (ex. dead car battery) and
the liftgate is closed, you will not be able to
open the liftgate until power is restored.
WARNING
• The doors should always be fully
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.
• Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle. Children
might operate features of the vehicle
that could injure them, or they could
encounter other harm, possibly from
someone gaining entry to the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake, shift the gear
to the P (Park) position, engage the
parking brake, and press the Engine
Start/Stop button to the OFF position,
close all windows, lock all doors, and
always take the key with you.
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.

05
5-35

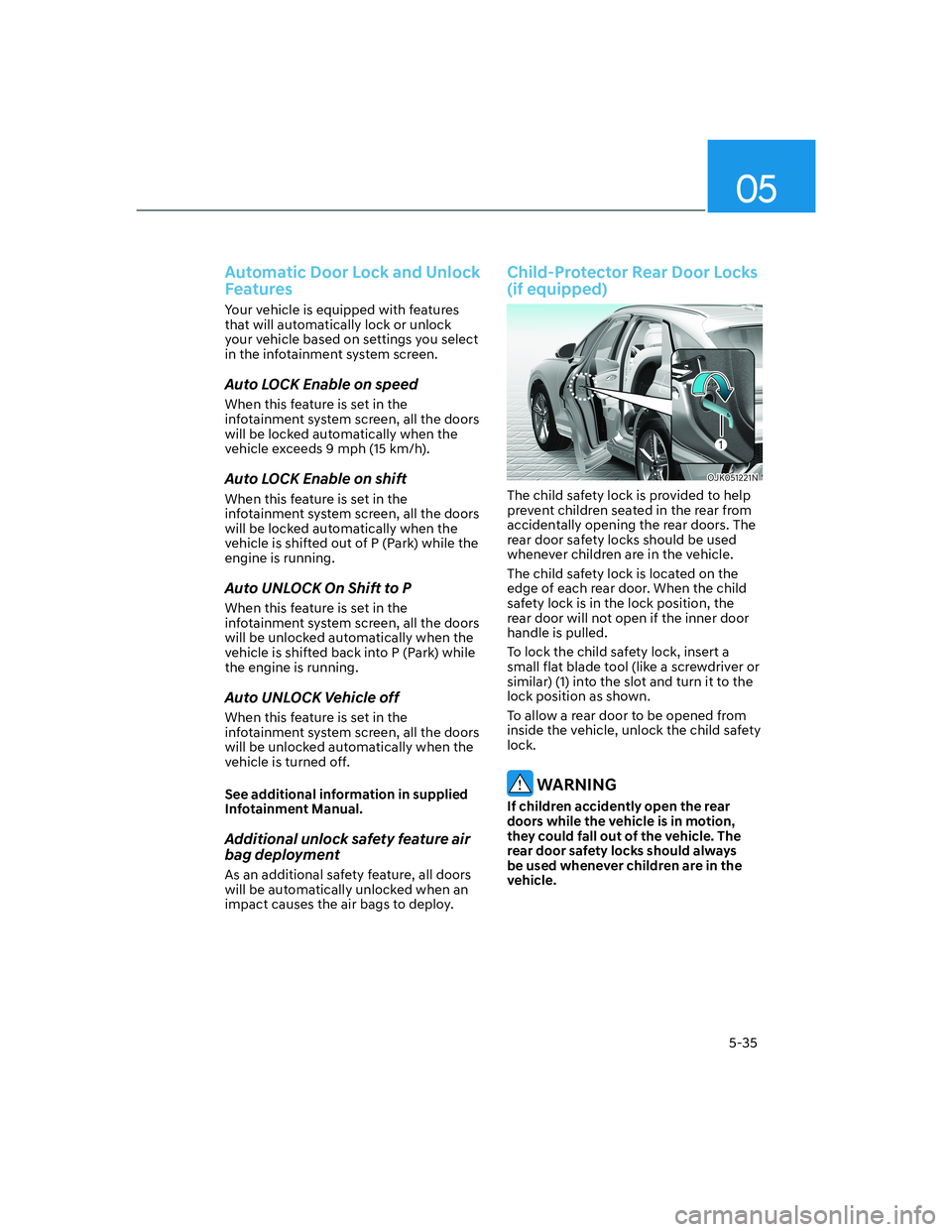

Automatic Door Lock and Unlock
Features
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system screen.
Auto LOCK Enable on speed
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle is shifted out of P (Park) while the
engine is running.
Auto UNLOCK On Shift to P
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the engine is running.
Auto UNLOCK Vehicle off
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is turned off.
See additional information in supplied
Infotainment Manual.
Additional unlock safety feature air
bag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the air bags to deploy.
Child-Protector Rear Door Locks
(if equipped)
OJK051221NOJK051221N
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the
rear door will not open if the inner door
handle is pulled.
To lock the child safety lock, insert a
small flat blade tool (like a screwdriver or
similar) (1) into the slot and turn it to the
lock position as shown.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING
If children accidently open the rear
doors while the vehicle is in motion,
they could fall out of the vehicle. The
rear door safety locks should always
be used whenever children are in the
vehicle.

Convenience Features
5-36

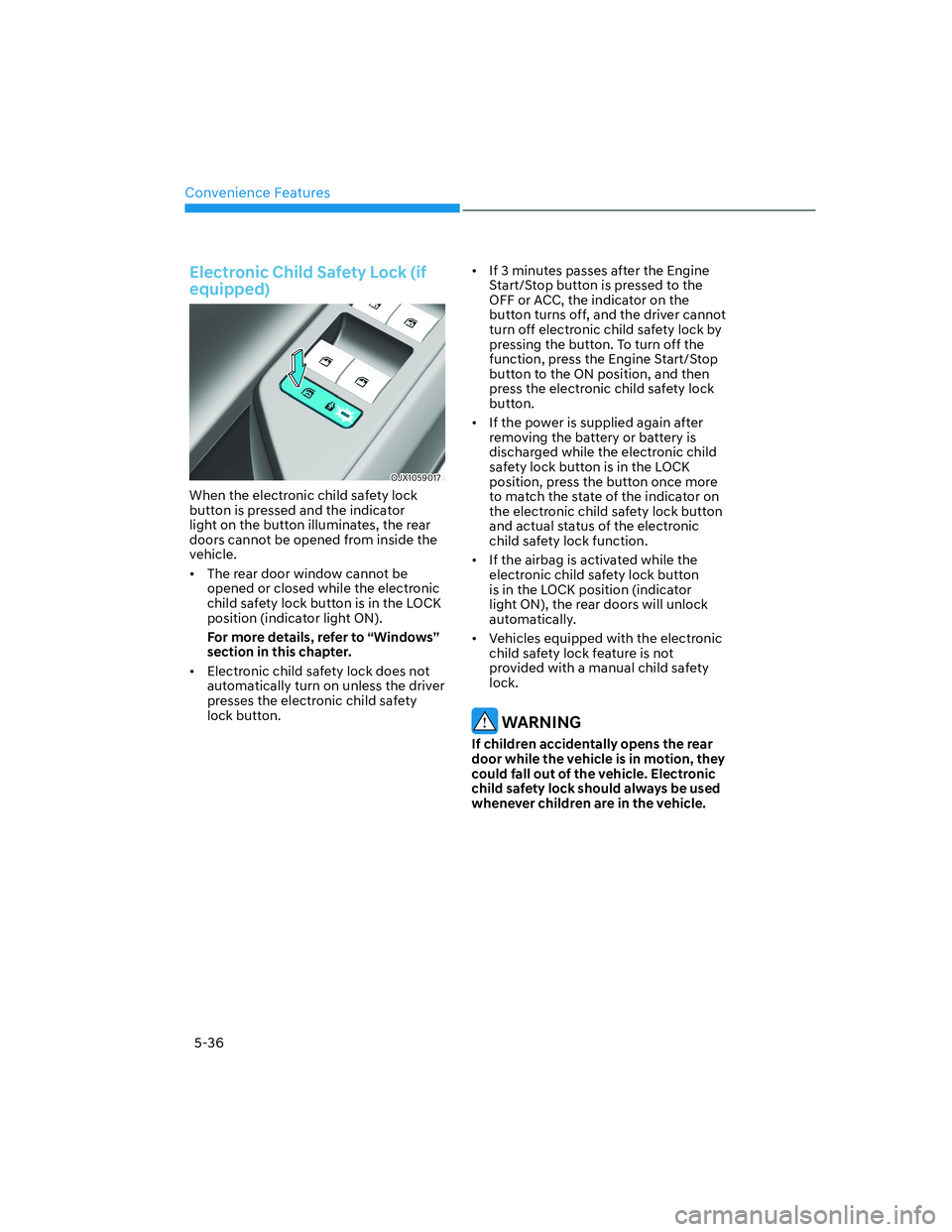

Electronic Child Safety Lock (if
equipped)
OJX1059017OJX1059017
When the electronic child safety lock
button is pressed and the indicator
light on the button illuminates, the rear
doors cannot be opened from inside the
vehicle.
• The rear door window cannot be
opened or closed while the electronic
child safety lock button is in the LOCK
position (indicator light ON).
For more details, refer to “Windows”
section in this chapter.
• Electronic child safety lock does not
automatically turn on unless the driver
presses the electronic child safety
lock button.• If 3 minutes passes after the Engine
Start/Stop button is pressed to the
OFF or ACC, the indicator on the
button turns off, and the driver cannot
turn off electronic child safety lock by
pressing the button. To turn off the
function, press the Engine Start/Stop
button to the ON position, and then
press the electronic child safety lock
button.
• If the power is supplied again after
removing the battery or battery is
discharged while the electronic child
safety lock button is in the LOCK
position, press the button once more
to match the state of the indicator on
the electronic child safety lock button
and actual status of the electronic
child safety lock function.
• If the airbag is activated while the
electronic child safety lock button
is in the LOCK position (indicator
light ON), the rear doors will unlock
automatically.
• Vehicles equipped with the electronic
child safety lock feature is not
provided with a manual child safety
lock.
WARNING
If children accidentally opens the rear
door while the vehicle is in motion, they
could fall out of the vehicle. Electronic
child safety lock should always be used
whenever children are in the vehicle.
