05
5-37

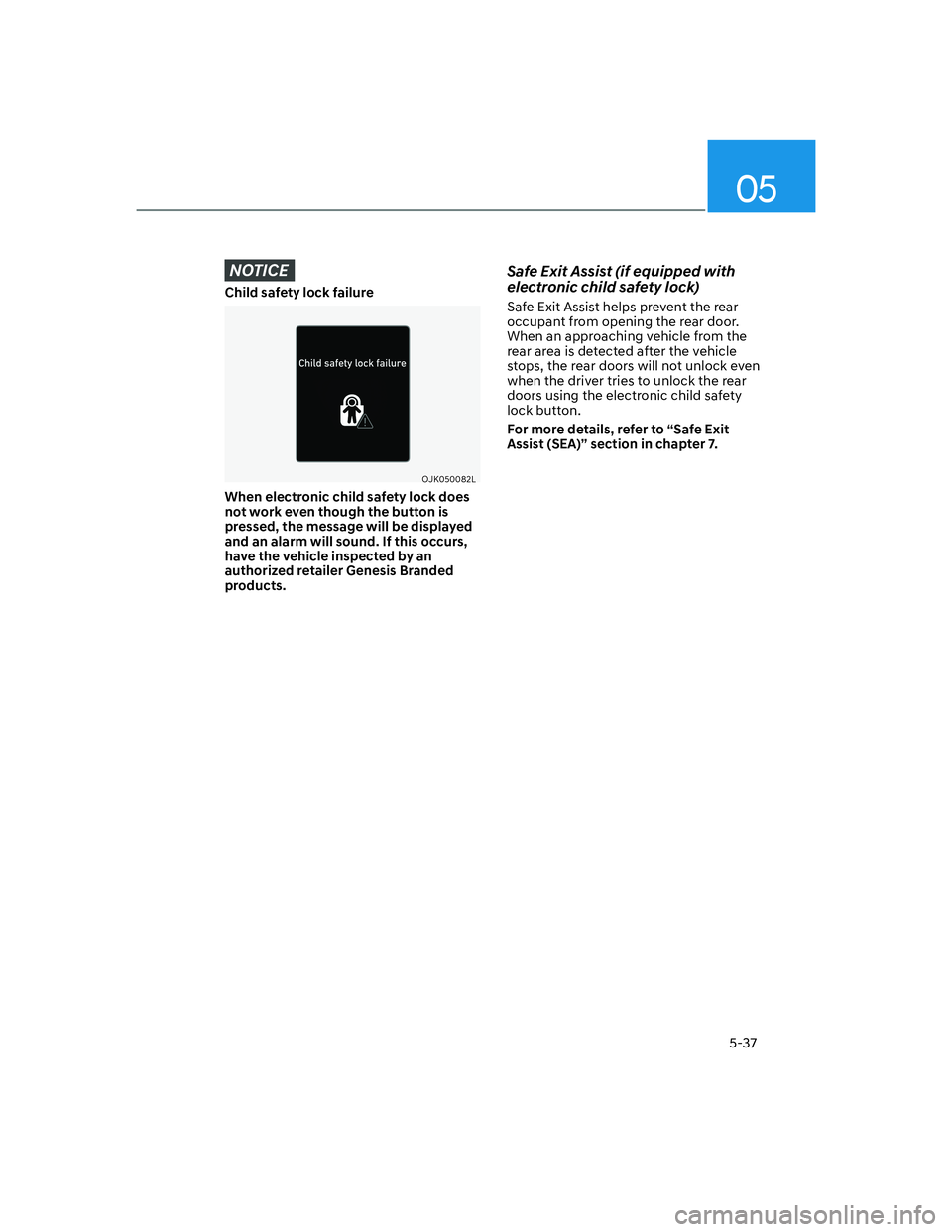

NOTICE
Child safety lock failure
OJK050082LOJK050082L
When electronic child safety lock does
not work even though the button is
pressed, the message will be displayed
and an alarm will sound. If this occurs,
have the vehicle inspected by an
authorized retailer Genesis Branded
products.
Safe Exit Assist (if equipped with
electronic child safety lock)
Safe Exit Assist helps prevent the rear
occupant from opening the rear door.
When an approaching vehicle from the
rear area is detected after the vehicle
stops, the rear doors will not unlock even
when the driver tries to unlock the rear
doors using the electronic child safety
lock button.
For more details, refer to “Safe Exit
Assist (SEA)” section in chapter 7.

Convenience Features
5-38

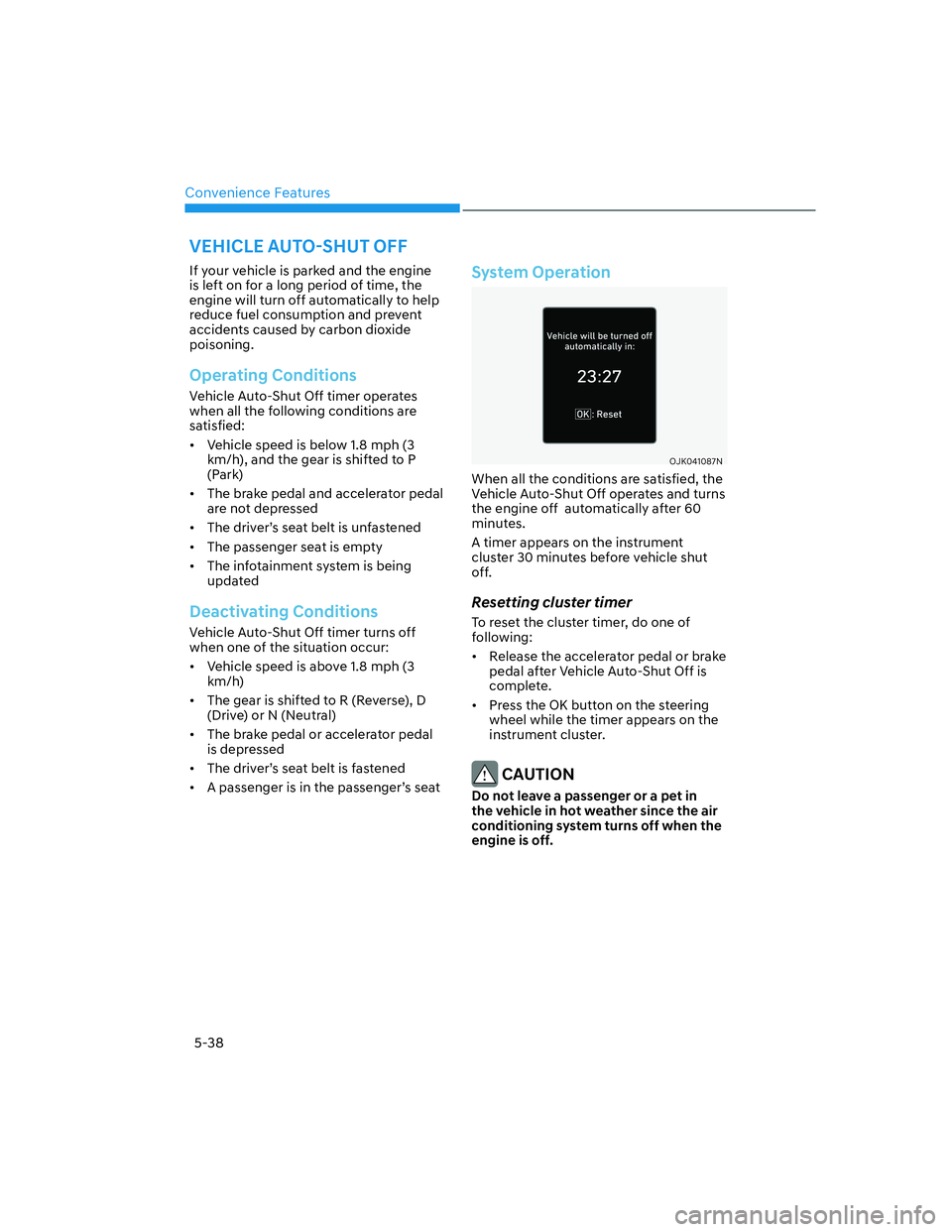

If your vehicle is parked and the engine
is left on for a long period of time, the
engine will turn off automatically to help
reduce fuel consumption and prevent
accidents caused by carbon dioxide
poisoning.
Operating Conditions
Vehicle Auto-Shut Off timer operates
when all the following conditions are
satisfied:
• Vehicle speed is below 1.8 mph (3
km/h), and the gear is shifted to P
(Park)
• The brake pedal and accelerator pedal
are not depressed
• The driver’s seat belt is unfastened
• The passenger seat is empty
• The infotainment system is being
updated
Deactivating Conditions
Vehicle Auto-Shut Off timer turns off
when one of the situation occur:
• Vehicle speed is above 1.8 mph (3
km/h)
• The gear is shifted to R (Reverse), D
(Drive) or N (Neutral)
• The brake pedal or accelerator pedal
is depressed
• The driver’s seat belt is fastened
• A passenger is in the passenger’s seat
System Operation
OJK041087NOJK041087N
When all the conditions are satisfied, the
Vehicle Auto-Shut Off operates and turns
the engine off automatically after 60
minutes.
A timer appears on the instrument
cluster 30 minutes before vehicle shut
off.
Resetting cluster timer
To reset the cluster timer, do one of
following:
• Release the accelerator pedal or brake
pedal after Vehicle Auto-Shut Off is
complete.
• Press the OK button on the steering
wheel while the timer appears on the
instrument cluster.
CAUTION
Do not leave a passenger or a pet in
the vehicle in hot weather since the air
conditioning system turns off when the
engine is off.
9(+,&/($872

05
5-39
7+()7

Convenience Features
5-40

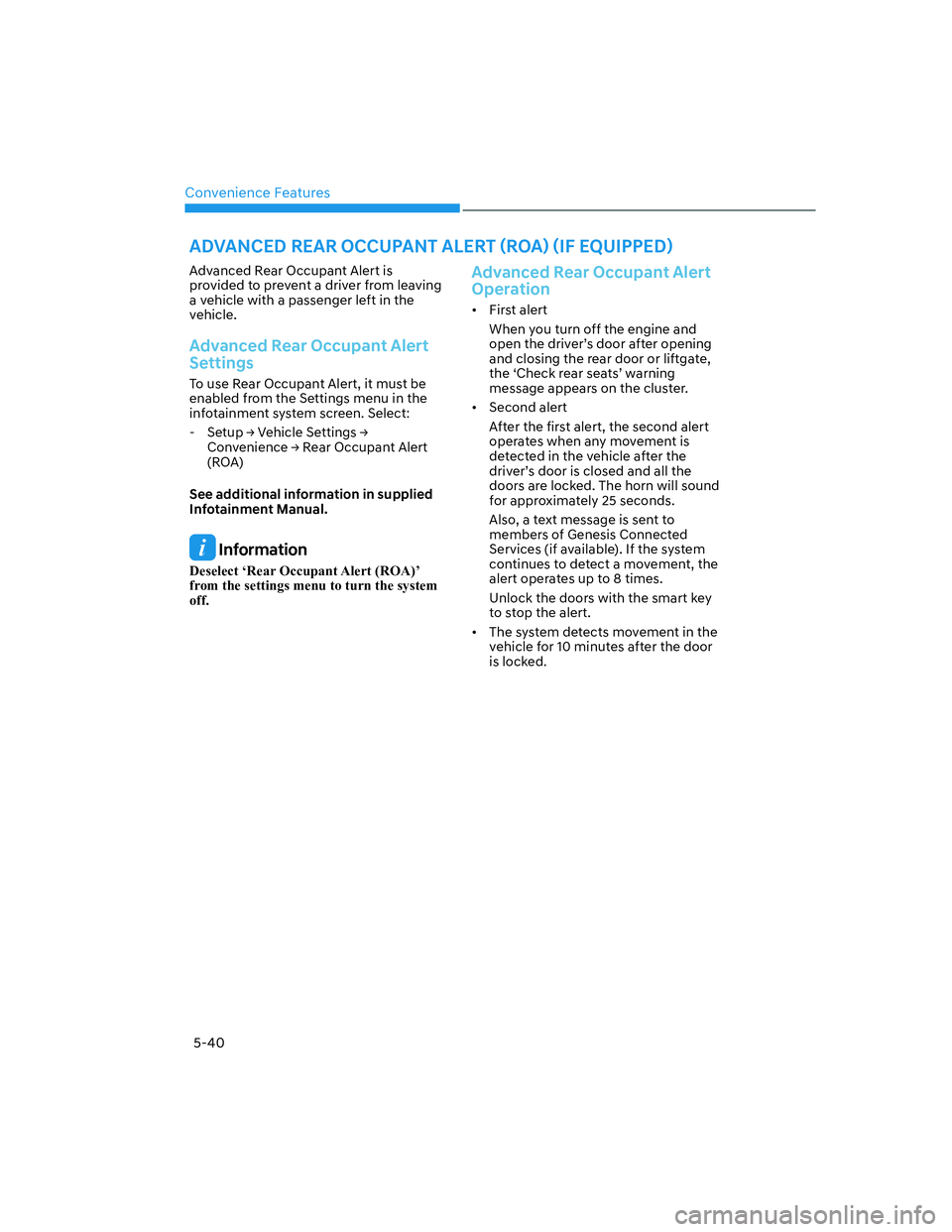

Advanced Rear Occupant Alert is
provided to prevent a driver from leaving
a vehicle with a passenger left in the
vehicle.
Advanced Rear Occupant Alert
Settings
To use Rear Occupant Alert, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
-6HWXS

05
5-41

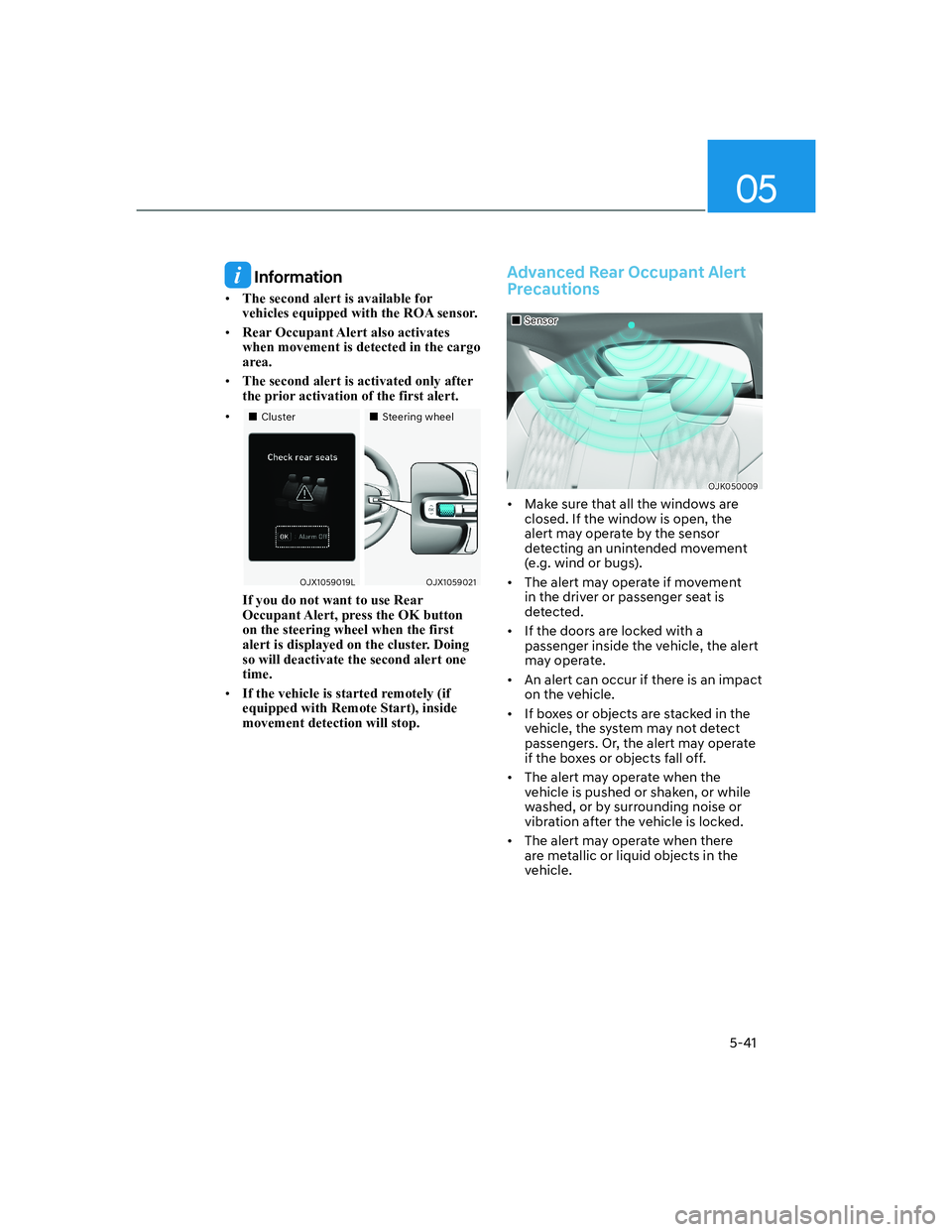

Information
• The second alert is available for
vehicles equipped with the ROA sensor.
• Rear Occupant Alert also activates
when movement is detected in the cargo
area.
• The second alert is activated only after
the prior activation of the first alert.
• „„ClusterCluster„„Steering wheelSteering wheel
OJX1059019LOJX1059019LOJX1059021OJX1059021
If you do not want to use Rear
Occupant Alert, press the OK button
on the steering wheel when the first
alert is displayed on the cluster. Doing
so will deactivate the second alert one
time.
• If the vehicle is started remotely (if
equipped with Remote Start), inside
movement detection will stop.
Advanced Rear Occupant Alert
Precautions
„„SensorSensor
OJK050009OJK050009
• Make sure that all the windows are
closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(e.g. wind or bugs).
• The alert may operate if movement
in the driver or passenger seat is
detected.
• If the doors are locked with a
passenger inside the vehicle, the alert
may operate.
• An alert can occur if there is an impact
on the vehicle.
• If boxes or objects are stacked in the
vehicle, the system may not detect
passengers. Or, the alert may operate
if the boxes or objects fall off.
• The alert may operate when the
vehicle is pushed or shaken, or while
washed, or by surrounding noise or
vibration after the vehicle is locked.
• The alert may operate when there
are metallic or liquid objects in the
vehicle.

Convenience Features
5-42

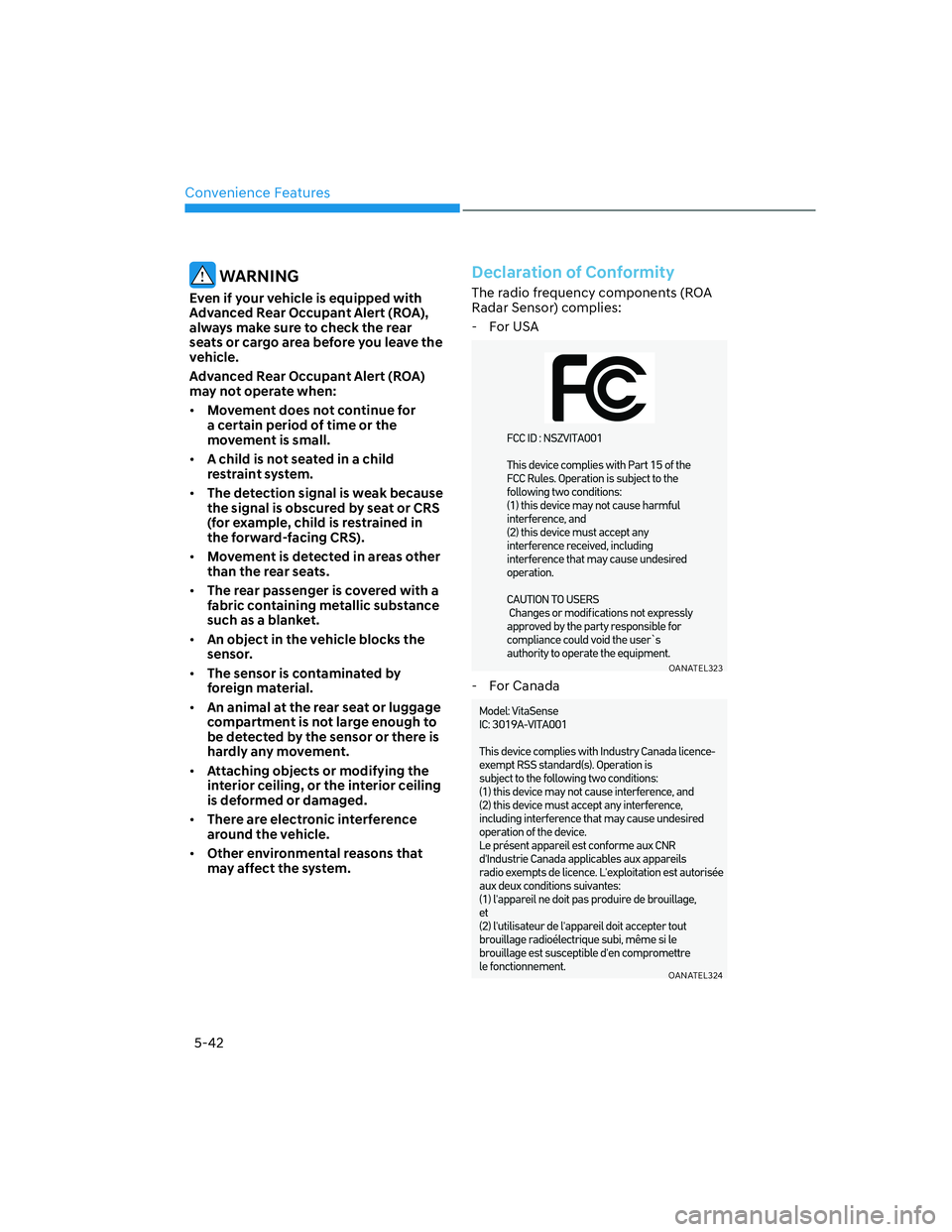

WARNING
Even if your vehicle is equipped with
Advanced Rear Occupant Alert (ROA),
always make sure to check the rear
seats or cargo area before you leave the
vehicle.
Advanced Rear Occupant Alert (ROA)
may not operate when:
• Movement does not continue for
a certain period of time or the
movement is small.
• A child is not seated in a child
restraint system.
• The detection signal is weak because
the signal is obscured by seat or CRS
(for example, child is restrained in
the forward-facing CRS).
• Movement is detected in areas other
than the rear seats.
• The rear passenger is covered with a
fabric containing metallic substance
such as a blanket.
• An object in the vehicle blocks the
sensor.
• The sensor is contaminated by
foreign material.
• An animal at the rear seat or luggage
compartment is not large enough to
be detected by the sensor or there is
hardly any movement.
• Attaching objects or modifying the
interior ceiling, or the interior ceiling
is deformed or damaged.
• There are electronic interference
around the vehicle.
• Other environmental reasons that
may affect the system.
Declaration of Conformity
The radio frequency components (ROA
Radar Sensor) complies:
- For USA
OANATEL323OANATEL323
- For Canada
OANATEL324OANATEL324

05
5-43
OJK050006OJK050006

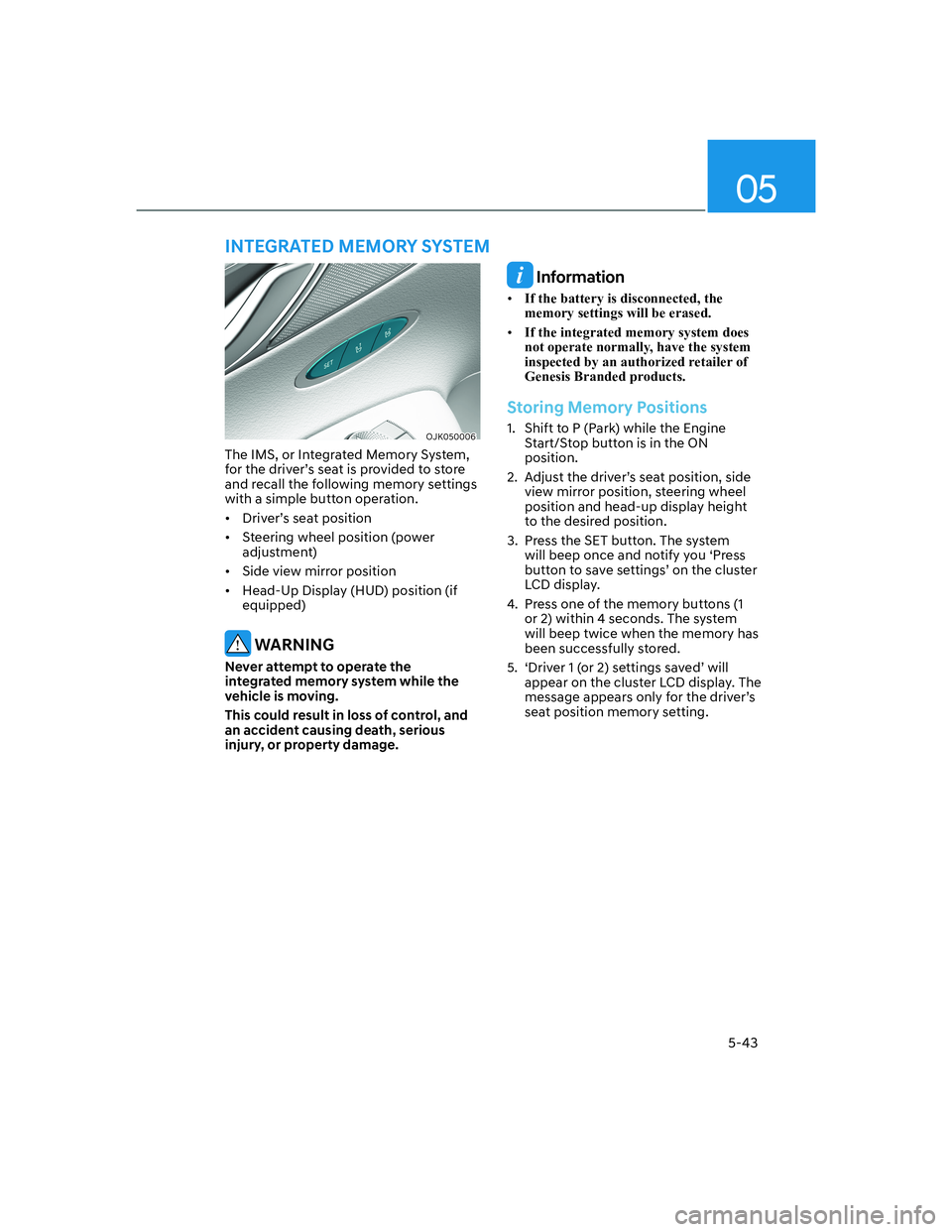

The IMS, or Integrated Memory System,
for the driver’s seat is provided to store
and recall the following memory settings
with a simple button operation.
• Driver’s seat position
• Steering wheel position (power
adjustment)
• Side view mirror position
• Head-Up Display (HUD) position (if
equipped)
WARNING
Never attempt to operate the
integrated memory system while the
vehicle is moving.
This could result in loss of control, and
an accident causing death, serious
injury, or property damage.
Information
• If the battery is disconnected, the
memory settings will be erased.
• If the integrated memory system does
not operate normally, have the system
inspected by an authorized retailer of
Genesis Branded products.
Storing Memory Positions
1. Shift to P (Park) while the Engine
Start/Stop button is in the ON
position.
2. Adjust the driver’s seat position, side
view mirror position, steering wheel
position and head-up display height
to the desired position.
3. Press the SET button. The system
will beep once and notify you ‘Press
button to save settings’ on the cluster
LCD display.
4. Press one of the memory buttons (1
or 2) within 4 seconds. The system
will beep twice when the memory has
been successfully stored.
5. ‘Driver 1 (or 2) settings saved’ will
appear on the cluster LCD display. The
message appears only for the driver’s
seat position memory setting.
INTEGRATED MEMORY SYSTEM

Convenience Features
5-44

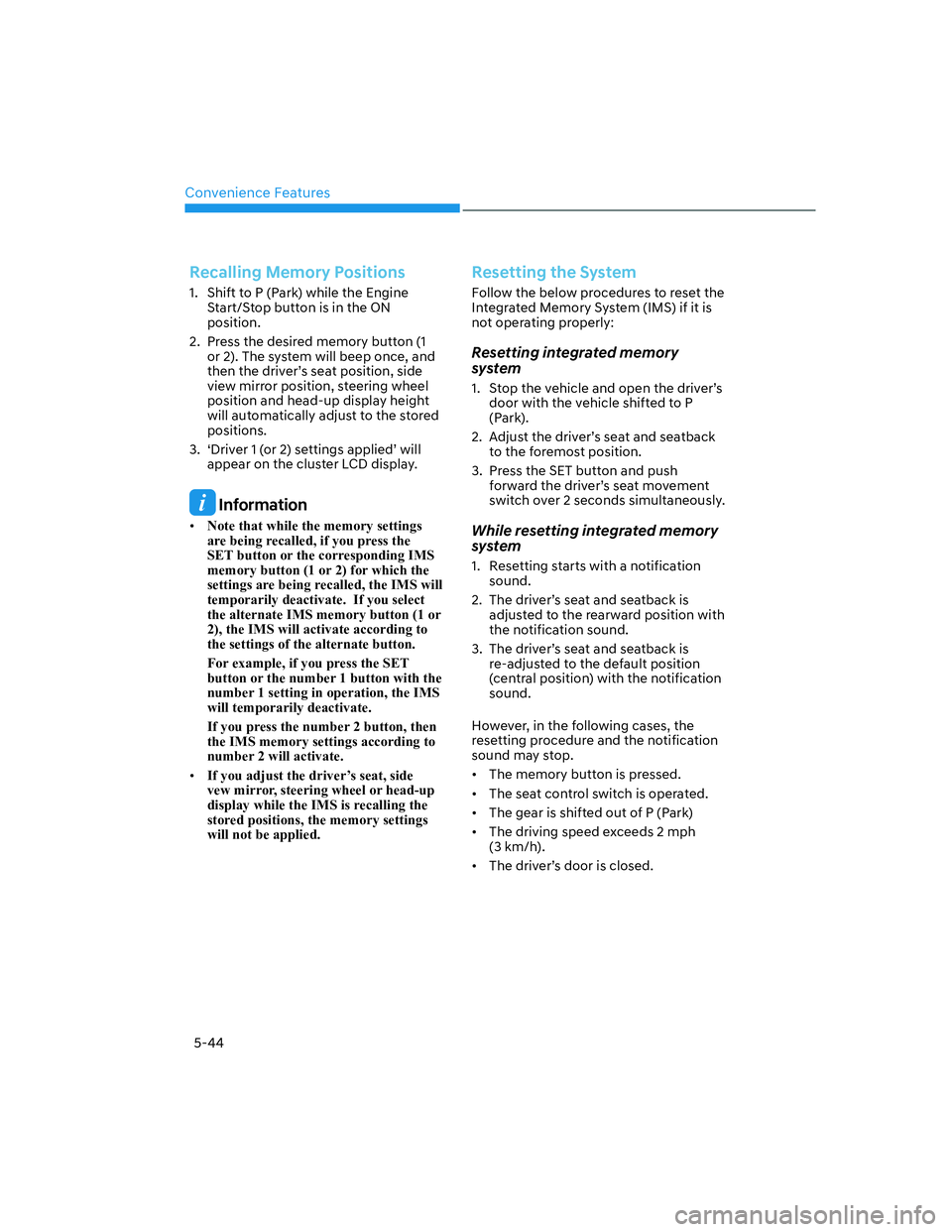

Recalling Memory Positions
1. Shift to P (Park) while the Engine
Start/Stop button is in the ON
position.
2. Press the desired memory button (1
or 2). The system will beep once, and
then the driver’s seat position, side
view mirror position, steering wheel
position and head-up display height
will automatically adjust to the stored
positions.
3. ‘Driver 1 (or 2) settings applied’ will
appear on the cluster LCD display.
Information
• Note that while the memory settings
are being recalled, if you press the
6(7EXWWRQRUWKHFRUUHVSRQGLQJ,06
memory button (1 or 2) for which the
VHWWLQJVDUHEHLQJUHFDOOHGWKH,06ZLOO
temporarily deactivate. If you select
WKHDOWHUQDWH,06PHPRU\EXWWRQRU
WKH,06ZLOODFWLYDWHDFFRUGLQJWR
the settings of the alternate button.
For example, if you press the SET
button or the number 1 button with the
QXPEHUVHWWLQJLQRSHUDWLRQWKH,06
will temporarily deactivate.
If you press the number 2 button, then
WKH,06PHPRU\VHWWLQJVDFFRUGLQJWR
number 2 will activate.
• If you adjust the driver’s seat, side
vew mirror, steering wheel or head-up
GLVSOD\ZKLOHWKH,06LVUHFDOOLQJWKH
stored positions, the memory settings
will not be applied.
Resetting the System
Follow the below procedures to reset the
Integrated Memory System (IMS) if it is
not operating properly:
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback
to the foremost position.
3. Press the SET button and push
forward the driver’s seat movement
switch over 2 seconds simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification
sound.
2. The driver’s seat and seatback is
adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is
re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
• The memory button is pressed.
• The seat control switch is operated.
• The gear is shifted out of P (Park)
• The driving speed exceeds 2 mph
(3 km/h).
• The driver’s door is closed.

05
5-45

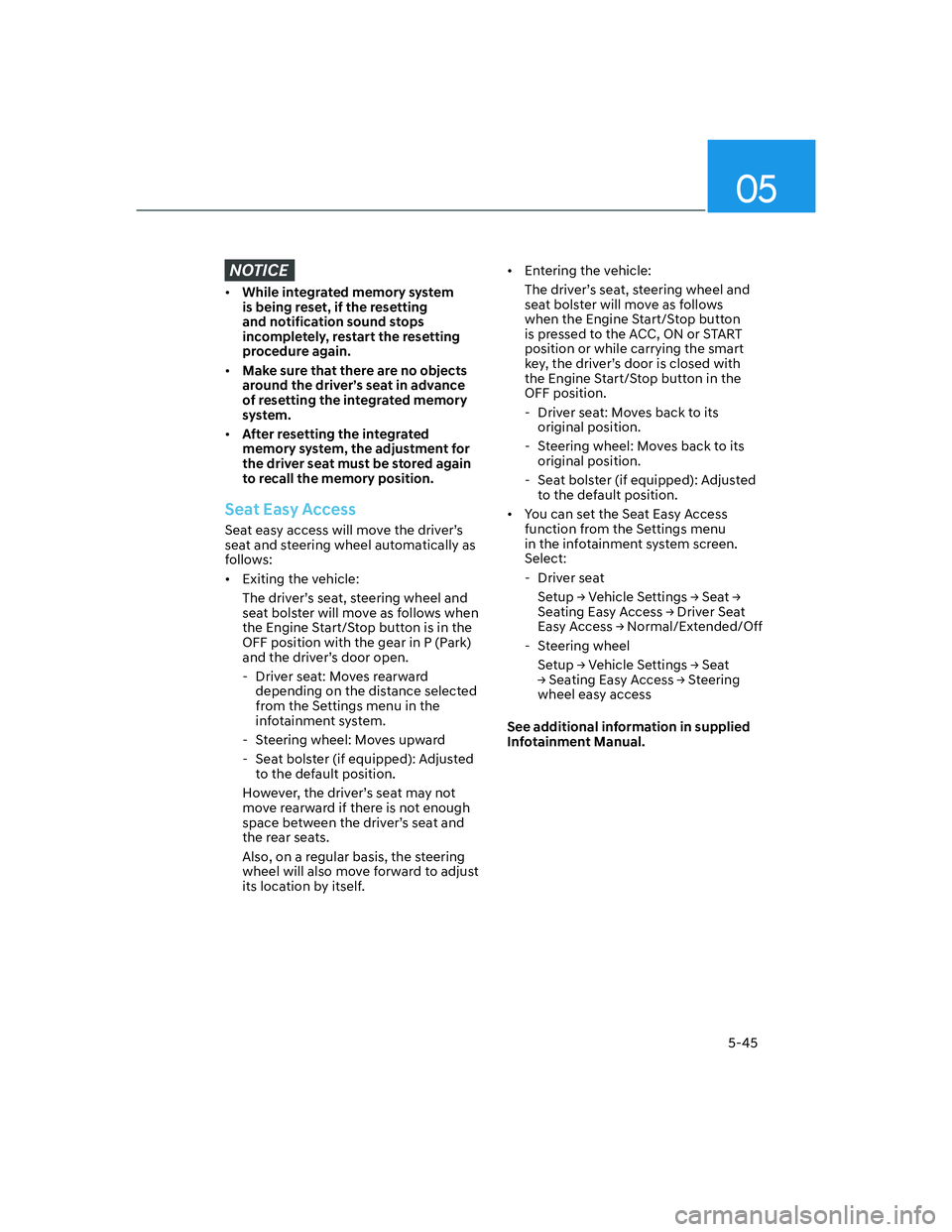

NOTICE
• While integrated memory system
is being reset, if the resetting
and notification sound stops
incompletely, restart the resetting
procedure again.
• Make sure that there are no objects
around the driver’s seat in advance
of resetting the integrated memory
system.
• After resetting the integrated
memory system, the adjustment for
the driver seat must be stored again
to recall the memory position.
Seat Easy Access
Seat easy access will move the driver’s
seat and steering wheel automatically as
follows:
• Exiting the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the Engine Start/Stop button is in the
OFF position with the gear in P (Park)
and the driver’s door open.
- Driver seat: Moves rearward
depending on the distance selected
from the Settings menu in the
infotainment system.
- Steering wheel: Moves upward
- Seat bolster (if equipped): Adjusted
to the default position.
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and
the rear seats.
Also, on a regular basis, the steering
wheel will also move forward to adjust
its location by itself.• Entering the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows
when the Engine Start/Stop button
is pressed to the ACC, ON or START
position or while carrying the smart
key, the driver’s door is closed with
the Engine Start/Stop button in the
OFF position.
- Driver seat: Moves back to its
original position.
- Steering wheel: Moves back to its
original position.
- Seat bolster (if equipped): Adjusted
to the default position.
• You can set the Seat Easy Access
function from the Settings menu
in the infotainment system screen.
Select:
- Driver seat
6HWXS

Convenience Features
5-46
60$57326785(&$5(6<67(0
