Page 381 of 428
DO-IT-YOURSELF MAINTENANCE 6- 7
G030B01TB
NOTE: The use of a 5W-20 multi grade oil is not recommended for sustained high speed use.
2. Diesel engine The engine oil quality should meet the following classification: API class: CF-4 or ABOVE ACEA class: B4 or ABOVE NOTE: SAE 0W-30 oil is for extra cold zone and to be restricted by driving condi-tion and dealing area. (Especially, not recommended for sustained high loaded and high speed operation.) SG030C1-E Engine Oil Level Gasoline engine
HTB167
HTB167A
Diesel engine The engine oil level should be checked with the engine at normal operating temperature and the vehicle parkedupon level ground. Prior to checking the level, the vehicle should be allowed to stand for severalminutes after the engine has been switched off to allow the oil to drain back to the sump.Withdraw the dipstick and wipe it with a clean rag. Replace the dipstick fully and withdraw again when the oil levelmay be read from the stick. Normal oil level is indicated when the oil is present between the two marks on the stick. Itis not necessary to add oil if the level is above the lower mark and in any case, oil must not be added to the degree thatthe level exceeds the upper mark. Re- place the dipstick fully after checking the level.
Page 382 of 428
6- 8 DO-IT-YOURSELF MAINTENANCE
Petrol engine
HTB169
HTB169A
Diesel engine
G030D01TB-EAT ENGINE OIL REPLENISHMENT
If the indicated oil level is at or below the lower mark of the dipstick, oil should be added until the level is at or below the upper mark.To add oil to the engine, remove the filler cap by rotating in an counterclock- wise direction and pour engine oil intothe engine. Before checking the level again, allow several minutes for the oil to drain into the sump. Replace the oilfiller cap rotating it in a clockwise direc- tion until tight. The quantity of oil required to raise thelevel from the minimum to maximum level is approximately 1.2 litre.ZG030E1-A ENGINE OIL CONSUMPTION Function of engine oil Engine oil has the primary function of lubricating and cooling the inside of the engine. Engine oil consumption It is normal that an engine should con- sume some engine oil while normal driving. The cause of oil consumption in a normal engine are as follows;
o Engine oil is used to lubricate pis-
tons, piston rings and cylinders. A thin film of oil is left on the cylinder wall when a piston moves down- wards in the cylinder. High negativepressure generated during engine operation sucks some of the oil into the combustion chamber.This oil with some oil of the cylinder wall is burned by the high tempera- ture combustion gases during thecombustion process.
o The engine oil consumption is strongly
effected by the viscosity and qualityof oil, engine rpm and driving condi- tion etc.

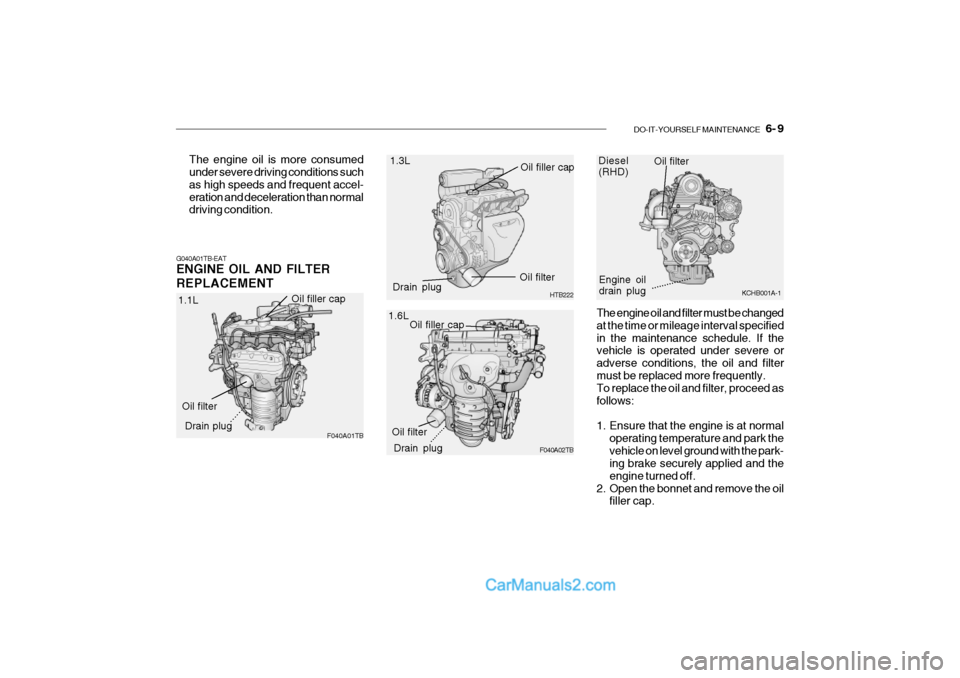

Page 383 of 428
DO-IT-YOURSELF MAINTENANCE 6- 9
Oil filler cap 1.3L
F040A01TB HTB222
Oil filter
Drain plug Oil filler cap
Drain plug Oil filter
1.1L
.........
The engine oil is more consumed under severe driving conditions such as high speeds and frequent accel-eration and deceleration than normal driving condition.
1.6L
F040A02TBOil filler cap
Drain plug
Oil filter
.........
Diesel (RHD)
KCHB001A-1
Engine oil drain plugOil filter................
G040A01TB-EAT ENGINE OIL AND FILTER REPLACEMENT
The engine oil and filter must be changed at the time or mileage interval specifiedin the maintenance schedule. If the vehicle is operated under severe or adverse conditions, the oil and filtermust be replaced more frequently. To replace the oil and filter, proceed as follows:
1. Ensure that the engine is at normaloperating temperature and park the vehicle on level ground with the park- ing brake securely applied and the engine turned off.
2. Open the bonnet and remove the oil filler cap.
Page 384 of 428
6- 10 DO-IT-YOURSELF MAINTENANCE
HTB170
Petrol engine SG050A1-E ENGINE COOLANT CHECKING AND REPLACING
SG050B1-E Coolant recommendations WARNING:
Do not remove the radiator cap when the engine is hot, since the system is pressurized and coolant may beejected from the radiator resulting in scalding.
!
!
3. Prepare a suitable receptacle to col- lect the displaced oil and remove the drain plug from the sump.
4. When the oil has drained from the sump, replace the drain plug using anew washer ensuring that the plug is not over tightened. Tightening torque is: 3.5 ~ 4.5 kgf.m
5. Remove the oil filter by rotating coun- terclockwise, using a proprietary oil filter removal tool if necessary. Notethat the oil filter will contain approxi- mately 0.5 litres of oil and this should be collected in a suitable receptacle.
6. Install a new oil filter having smeared the sealing ring with clean oil androtating clockwise until the filter con-tacts the mounting and then a further one half turn. Do not over-tighten CAUTION:
The oil being drained from the en- gine will be hot. Care should beexercised to prevent scalding.
! Tightening torque: Petrol -
1.2 ~ 1.6 kgf.m
Diesel(RHD) - 2.3 ~ 2.5 kgf.m
7. Pour the specified quantity of the recommended oil into the engine and replace the filler cap. Start the en- gine and ensure that no oil leaks exist. Turn off the engine and after acouple minutes, recheck the oil level.
WARNING:
Prolonged and repeated contact with used engine oils may result in seri- ous skin disorders including derma-titis and cancer. Avoid contact with skin as far as possible and always wash thoroughly after any contact.Keep used oils out of reach of chil- dren. It is illegal to pollute drains, water courses and soil. Use onlyauthorized waste collection facili- ties including civic amenity sites and garages for the disposal of usedoil and oil filters. If in doubt, contact the local authority for disposal in- structions.
Page 385 of 428
DO-IT-YOURSELF MAINTENANCE 6- 11
HTB170A
Diesel engine Only ethylene glycol based coolant with a corrosion inhibitor suited to aluminium alloy engine components should be used in the cooling system. No further additives or inhibitors should be used.The coolant specific gravity should be checked as prescribed in the mainte- nance schedule to ensure adequatefrost and corrosion protection. In addi- tion, the engine coolant must be re- placed at the specified interval sincethe corrosion inhibitor properties dete- riorate with time. It is important to note that whilst anincrease in the concentration of anti freeze gives an increase in the level offrost protection, a solution which is in excess of 65% anti freeze will result in reduced frost protection and engineoverheating. Therefore the recom- mended concentration of 50% should not be exceeded for general use.The use of methanol based anti freeze compounds may result in engine over- heating and will invalidate the vehiclewarranty. NOTE: It is imperative that vehicles fitted with an air conditioning system have a coolant concentration of the rec- ommended strength at all times. Theuse of the air conditioning system when the cooling system is filled with water only will result in theheater matrix freezing and subse- quently bursting.
SG050C1-E Engine Coolant Level The engine coolant level may be ob- served through the side of the plasticcoolant reservoir (expansion tank) when the engine is cold. If the level is below the "LOW" mark, add coolant of thecorrect concentration until the level is between the "LOW" and "Full" marks. If the level falls below the "LOW" mark ona regular basis despite being topped up, consult a Hyundai dealer. SG050D1-E To Change the engine Coolant The engine coolant should be changed at those intervals specified in the ve- hicle maintenance schedule in Section5. NOTE: Care should be taken to ensure that coolant is not allowed to spill ontothe paintwork since the finish may become damaged. If coolant spill- age occurs, the affected area shouldbe rinsed thoroughly with water.
Page 386 of 428
6- 12 DO-IT-YOURSELF MAINTENANCE
HTB172
!
HTB171
1. Park the vehicle on level ground and
ensure that the parking brake is firmly applied, and the engine allowed tocool. Do not attempt this operation whilst the engine is hot since burning orscalding may result.
2. Prepare a suitable receptacle to col-
lect the displaced coolant and posi-tion this under the radiator drain tap.
3. With the heater temperature control
set to the "HOT" position, removethe radiator cap and open the radiator drain tap. 5. Prepare a suitable quantity of new
engine coolant (refer to section 9)and pour this into the radiator.
6. Start the engine with the radiator cap
still removed and continue to addcoolant as the level decreases as air is expelled from the system. Whenthe level remains constant, replace the radiator cap and replenish the coolant reservoir.
7. When the engine is hot, check to ensure that no coolant leaks arepresent.
4. When the engine coolant has drained completely, close the drain tap en-suring that this is not over tightened. WARNING:
The cooling fan is controlled by en-gine coolant temperature and may sometimes operate even when the engine is not running. Use extremecaution when working near the blades of the cooling fan so that you are not injured by a rotating fanblade. As the engine coolant tem- perature decreases, the fan will auto- matically shut off. This is a normalcondition.
Page 387 of 428
DO-IT-YOURSELF MAINTENANCE 6- 13
SG060A1-E SPARKING PLUG REPLACE- MENT
G060A01L
0.039 ~ 0.043 in. (1.0 ~ 1.1 mm )
This operation should only be performed when the engine is cold.
1. Remove the centre cover from the engine rocker cover.
2. Remove plug lead from the sparking plug to be replaced, pulling the lead by the rubber cap. (Pulling the lead may damage the carbon conductor).
3. Clean around the base of the plug to be removed, and install the plugsocket ensuring that the ceramicinsulator does not become damaged. Turn the socket counterclockwise to remove the plug. CAUTION:
Sparking plugs must only be cleaned using purpose designed equipment. Wire brushing may damage the cen-tre electrodein-sulator causing mis- firing to occur. Only the correct grade of sparking plug should be used.Use of an incorrect grade may result in serious engine damage. Prior to installing a sparking plug, the gap between the centre and outer elec- trodes must be checked and adjusted as necessary. Adjustment is facilitated by bending the outer electrode towards or away fromthe centre electrode. Under no circum- stances should attempts be made to adjust the position of the centre elec-trode.
4. Insert the sparking plug into the cyl- inder head and screw by the wrench and until the plug contacts the seat- ing area. Tighten the plug with the socket by a further 1/2 to 3/4 of a turnonly. 5. Replace the plug lead ensuring that
the cap is pushed firmly into place.Confirm that the cap is correctlyseated by lightly pulling upon it.
NOTE: When replacing the spark plug, al- ways use the genuine parts recom- mended. Recommended Spark Plugs
CHAMPION NGK RC10YCBKR5ES
Unleaded
engine Leaded
engine
RC10YC4 BKR5ES-11
!

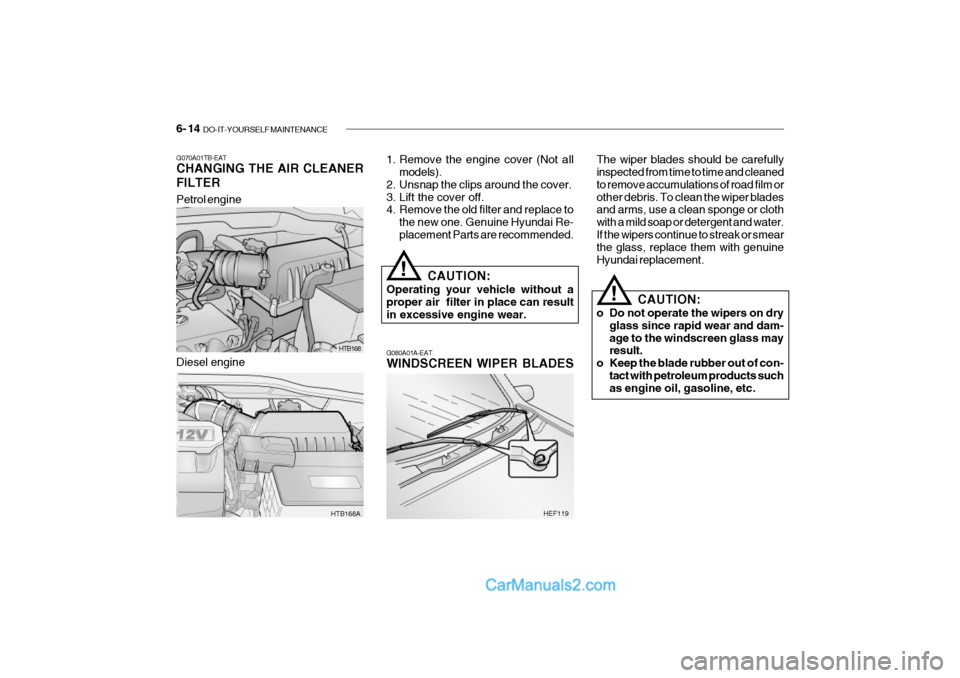

Page 388 of 428
6- 14 DO-IT-YOURSELF MAINTENANCE
Petrol engine
HTB168
HTB168A
G070A01TB-EAT CHANGING THE AIR CLEANER FILTER
1. Remove the engine cover (Not all
models).
2. Unsnap the clips around the cover.
3. Lift the cover off.
4. Remove the old filter and replace to the new one. Genuine Hyundai Re- placement Parts are recommended.
CAUTION:
Operating your vehicle without aproper air filter in place can result in excessive engine wear.
!
G080A01A-EAT WINDSCREEN WIPER BLADES The wiper blades should be carefully inspected from time to time and cleaned to remove accumulations of road film orother debris. To clean the wiper blades and arms, use a clean sponge or cloth with a mild soap or detergent and water.If the wipers continue to streak or smear the glass, replace them with genuine Hyundai replacement.
HEF119
Diesel engine
CAUTION:
o Do not operate the wipers on dry glass since rapid wear and dam-age to the windscreen glass may result.
o Keep the blade rubber out of con- tact with petroleum products suchas engine oil, gasoline, etc.
!

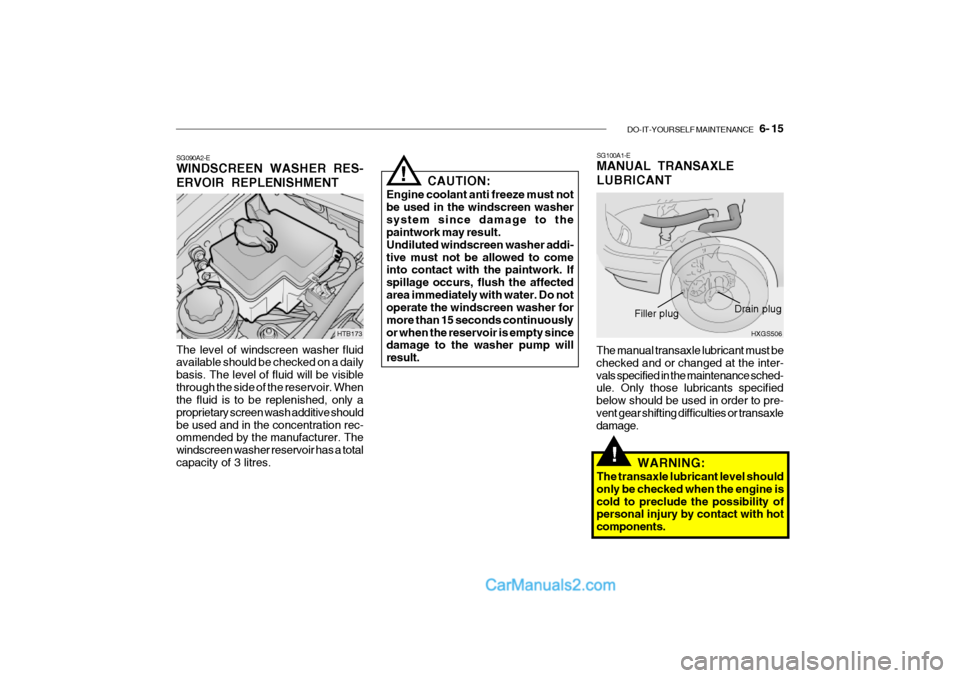

Page 389 of 428
DO-IT-YOURSELF MAINTENANCE 6- 15
SG100A1-E MANUAL TRANSAXLE LUBRICANT
SG090A2-E WINDSCREEN WASHER RES- ERVOIR REPLENISHMENT The level of windscreen washer fluid available should be checked on a daily basis. The level of fluid will be visiblethrough the side of the reservoir. When the fluid is to be replenished, only a proprietary screen wash additive shouldbe used and in the concentration rec- ommended by the manufacturer. The windscreen washer reservoir has a totalcapacity of 3 litres. CAUTION:
Engine coolant anti freeze must notbe used in the windscreen washersystem since damage to the paintwork may result. Undiluted windscreen washer addi-tive must not be allowed to come into contact with the paintwork. If spillage occurs, flush the affectedarea immediately with water. Do not operate the windscreen washer for more than 15 seconds continuouslyor when the reservoir is empty since damage to the washer pump will result.
!
HTB173
HXGS506
Drain plug
Filler plug
The manual transaxle lubricant must be checked and or changed at the inter-vals specified in the maintenance sched- ule. Only those lubricants specified below should be used in order to pre-vent gear shifting difficulties or transaxle damage.
!WARNING:
The transaxle lubricant level should only be checked when the engine iscold to preclude the possibility of personal injury by contact with hot components.

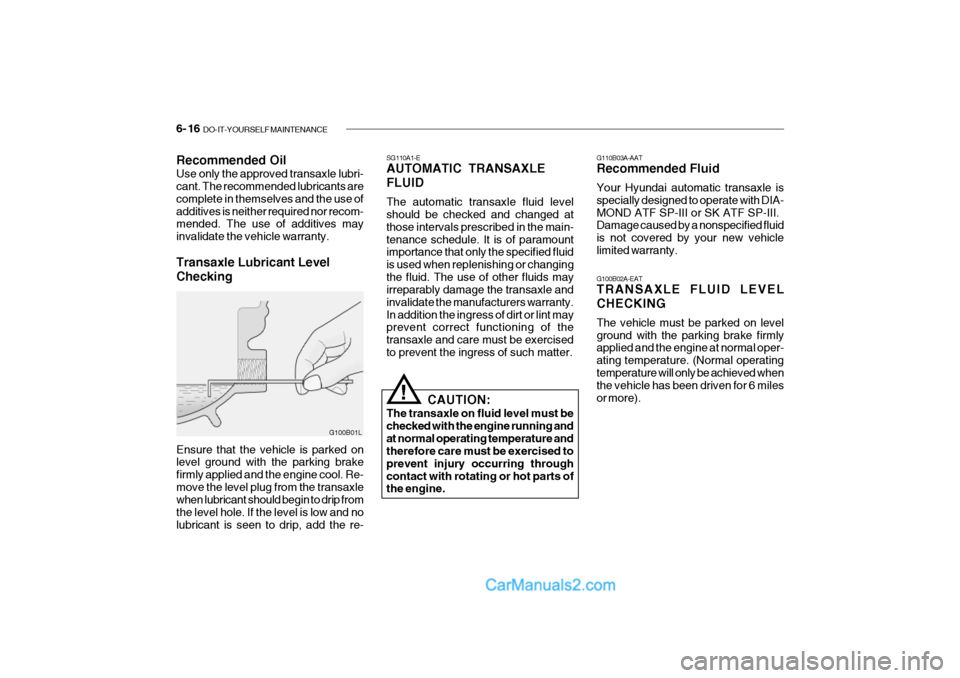

Page 390 of 428
6- 16 DO-IT-YOURSELF MAINTENANCE
G100B01L
Recommended Oil Use only the approved transaxle lubri- cant. The recommended lubricants are complete in themselves and the use ofadditives is neither required nor recom- mended. The use of additives may invalidate the vehicle warranty.
Transaxle Lubricant Level Checking Ensure that the vehicle is parked on level ground with the parking brake firmly applied and the engine cool. Re-move the level plug from the transaxle when lubricant should begin to drip from the level hole. If the level is low and nolubricant is seen to drip, add the re-
G100B02A-EAT TRANSAXLE FLUID LEVEL CHECKING The vehicle must be parked on level ground with the parking brake firmly applied and the engine at normal oper- ating temperature. (Normal operatingtemperature will only be achieved when the vehicle has been driven for 6 miles or more).
SG110A1-E AUTOMATIC TRANSAXLE FLUID The automatic transaxle fluid level should be checked and changed at those intervals prescribed in the main-tenance schedule. It is of paramount importance that only the specified fluid is used when replenishing or changingthe fluid. The use of other fluids may irreparably damage the transaxle and invalidate the manufacturers warranty.In addition the ingress of dirt or lint may prevent correct functioning of the transaxle and care must be exercisedto prevent the ingress of such matter.
CAUTION:
The transaxle on fluid level must bechecked with the engine running andat normal operating temperature and therefore care must be exercised to prevent injury occurring throughcontact with rotating or hot parts of the engine.
! G110B03A-AAT Recommended Fluid Your Hyundai automatic transaxle is specially designed to operate with DIA-MOND ATF SP-III or SK ATF SP-III. Damage caused by a nonspecified fluid is not covered by your new vehiclelimited warranty.
