1- 56 FEATURES OF YOUR HYUNDAI
B370A01A-AAT HAZARD WARNING SYSTEM The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location.When you must make such an emer- gency stop, always pull off the road as far as possible.The hazard warning lights are turned on by pushing in on the hazard switch. This causes all turn signal lights toblink. The hazard warning lights will operate even though the key is not in the ignition.To turn the hazard warning lights off, push in on the switch a second time. HTB093
B380A01HP-AAT REAR WINDOW DEFROSTER SWITCH The rear window defroster is turned on by pushing in on the switch. To turn the defroster off, push in on the switch asecond time. The rear window de- froster automatically turns itself off af- ter about 20 minutes. To restart thedefroster cycle, push in on the switch again after it has turned itself off.
HTB039B350A01TB-AAT Tail Gate Wiper And Washer Switch (If installed)
HTB023
1. : The washer fluid will be sprayed onto the rear window and the wiper operates while the rear win-dow wiper barrel is placed in this position.
2.ON : When the point indicates "ON", the rear window wiper oper-ates continuously.
3.OFF

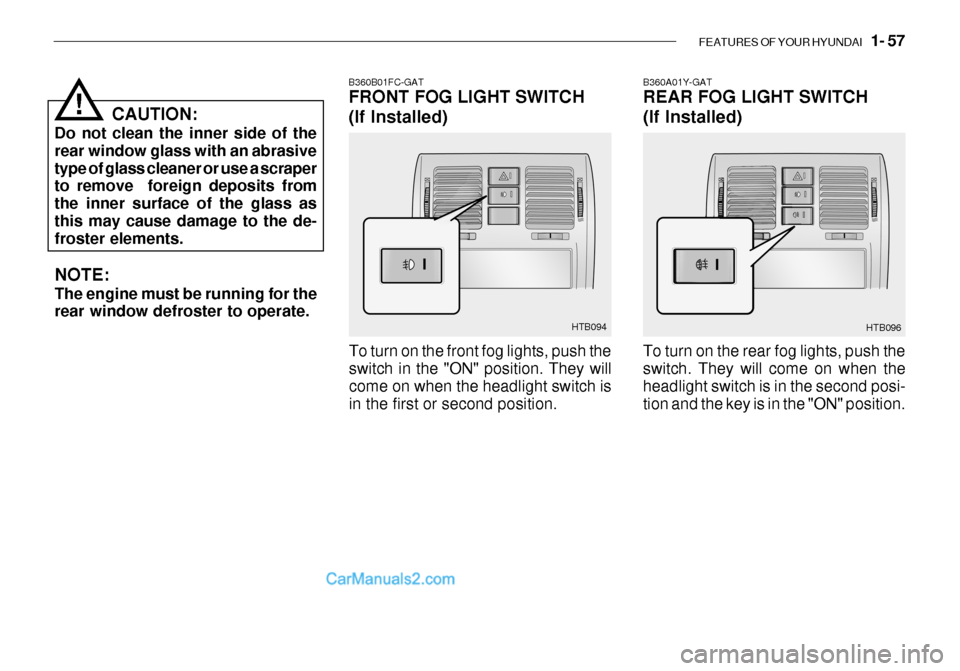

FEATURES OF YOUR HYUNDAI 1- 57
B360A01Y-GAT REAR FOG LIGHT SWITCH (If Installed)
To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi-tion and the key is in the "ON" position. HTB096
HTB094
B360B01FC-GAT FRONT FOG LIGHT SWITCH (If Installed)
To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch isin the first or second position.
CAUTION:
Do not clean the inner side of therear window glass with an abrasivetype of glass cleaner or use a scraper to remove foreign deposits from the inner surface of the glass asthis may cause damage to the de- froster elements. NOTE: The engine must be running for the rear window defroster to operate.
!

1- 58 FEATURES OF YOUR HYUNDAI
B420A02A-AAT CIGARETTE LIGHTER For the cigarette lighter to work, the key must be in the "ACC" position orthe "ON" position. To use the cigarette lighter, push it all the way into its socket. When the ele-ment has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressedin. This can damage the heating ele- ment and create a fire hazard. B430A01TB-GAT FRONT ASHTRAY
If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundai replacement or its approved equiva-lent.
HTB097
!
HTB100
B400A01TB-AAT DIGITAL CLOCK HTB095
There is a digital clock control button built-in right side of the speedometer. Its functions are: o Reset : Push the button for more than
1 second.
o Min/Hour Adjustment: Turn to "H"
for 0.5 second to advance the hour indicated. Turn to "M" for 0.5 sec-ond to advance the minute indi- cated.
o Auto mode: Turn to the right or left
side for more than 1 second to ad-vance fastly. CAUTION:
Don't turn the switch excessively to prevent switch damage.
!
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.

FEATURES OF YOUR HYUNDAI 1- 59
B340G01S-GAT HEADLIGHT LEVELING DEVICE SYSTEM (If Installed) To adjust the headlight beam level according to the number of the pas- sengers and the loading weight in theluggage area, turn the beam leveling switch. The higher the number of the switchposition, the lower the headlight beam level. Always keep the headlight beam at the proper leveling position, or head-lights may dazzle other road users. Listed below are the examples of proper switch settings. For loading conditionsother than those listed below, adjust the switch position so that the beam level may be the nearest as the condi-tion obtained according to the list. HTB181
Front side
B450A01TB-GAT DRINK HOLDER (If Installed) The drink holder is used for holding cups or cans. Either holder can be a drink holder or a ashtray holder. HTB105Rear side
The front ashtray may be opened by pulling it up by its top edge. To close the ashtray cover firmly, let the lid gripprotrude outside. To remove the ash- tray to empty or clean it, pull the cover up all the way out.Either holder can be a drink holder or a ashtray holder.
B455A01TB-GAT CONSOLE TRAY There is multipurpose receipts to ac- cept pens or CD case in the console tray.
HTB307

1- 60 FEATURES OF YOUR HYUNDAI
B460A01Y-AAT SUNROOF (If installed) Sun Shade
Your HYUNDAI is equipped with a sliding sunshade which you can manu- ally adjust to let in light with the sunroof closed, or to block sunlight.
Loading condition Switch
position
Driver only Driver + front passenger Full passengers (including driver)Full passengers (including driver) + full trunk loading (or light trailer loading)Driver + full trunk loading (or maximum trailer loading) 0
1 2
3 0
B470A01FC
WARNING:
Never adjust the sunshade while driving.!
B460B01GK-GAT Opening the Sunroof System The sunroof can be electrically opened or closed with the ignition key in the "ON" position. The sunroof is moved toits fully open position by pushing the "Open" switch, and to stop at the de- sired position, push in any switches(Open, Close, Up, Down). To close, press and hold the "CLOSE" button. Release the button when the sunroofreaches the desired position. HFC2021

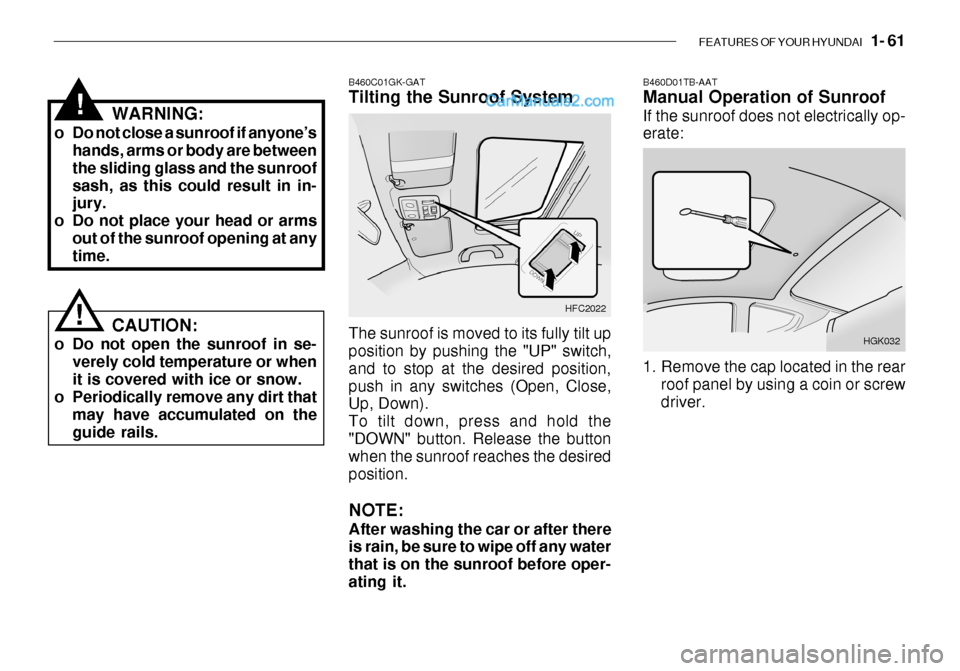

FEATURES OF YOUR HYUNDAI 1- 61
B460D01TB-AAT Manual Operation of Sunroof If the sunroof does not electrically op- erate:
HGK032
1. Remove the cap located in the rear roof panel by using a coin or screw driver.
HFC2022
B460C01GK-GAT Tilting the Sunroof System
The sunroof is moved to its fully tilt up position by pushing the "UP" switch, and to stop at the desired position,push in any switches (Open, Close, Up, Down). To tilt down, press and hold the"DOWN" button. Release the button when the sunroof reaches the desired position. NOTE: After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before oper-ating it.
WARNING:
o Do not close a sunroof if anyone’s hands, arms or body are betweenthe sliding glass and the sunroofsash, as this could result in in- jury.
o Do not place your head or arms
out of the sunroof opening at anytime.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on theguide rails.
!
!

1- 62 FEATURES OF YOUR HYUNDAI
2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the vehicle’s trunk or glove box.
3. Turn the wrench counterclockwise to open or clockwise to close thesunroof. HGK033
With Sunroof
B480A01E-AAT FRONT INTERIOR LIGHT Map Light The two map light switches are located on both sides of the front overhead console. Push in the map light switch to turn the light on or off. This lightproduces a spot beam for convenient use as a map light at night or as a personal light for the driver and thepassenger.
B460E01TB-GAT Resetting the Sunroof System If the battery has been recharged, disconnected, if the sunroof is oper- ated with the hexagonal head wrenchmanually, or if the sunroof operation is stopped by that ignition key is turned to the "OFF" position while it is moving,you may need to reset the sunroof. To do this;
1. Turn the ignition switch "OFF".
2. With pressing "open" "up" button at
the same time, turn the ignition switch "ON".
3. If the sunroof is set like this, the
sunroof is reset with tilting up/downautomatically once for all.Without Sunroof
HTB050
!CAUTION:
If the sunroof is not reset, it may not be operated properly.

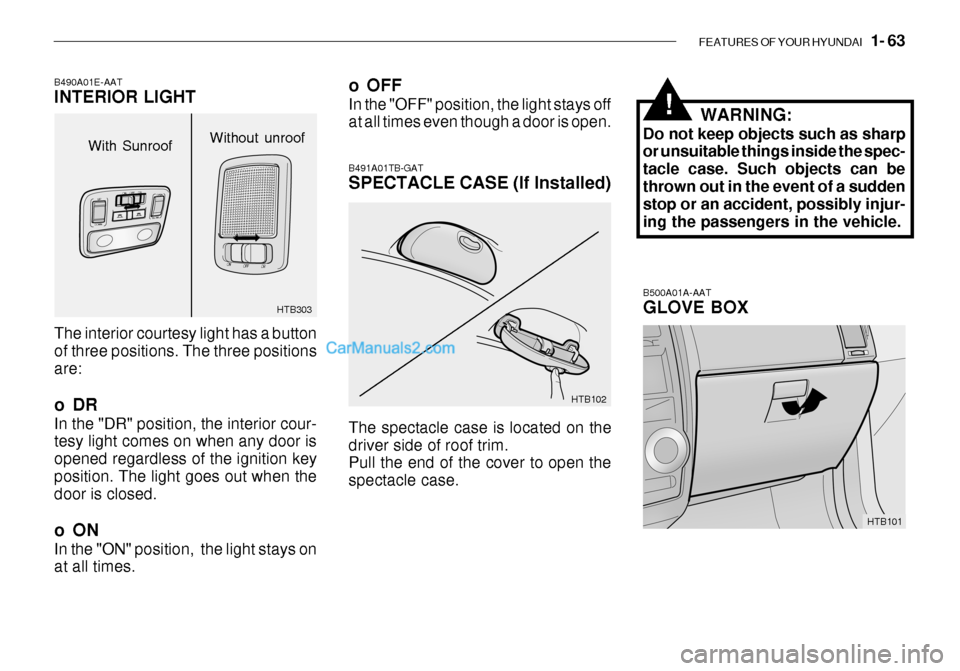

FEATURES OF YOUR HYUNDAI 1- 63
B500A01A-AAT GLOVE BOX
HTB101
HTB102
B491A01TB-GAT SPECTACLE CASE (If Installed) The spectacle case is located on the driver side of roof trim. Pull the end of the cover to open the spectacle case.
o OFF In the "OFF" position, the light stays off at all times even though a door is open.
WARNING:
Do not keep objects such as sharpor unsuitable things inside the spec- tacle case. Such objects can bethrown out in the event of a sudden stop or an accident, possibly injur- ing the passengers in the vehicle.
!
The interior courtesy light has a button of three positions. The three positions are:
oDR In the "DR" position, the interior cour- tesy light comes on when any door is opened regardless of the ignition keyposition. The light goes out when the door is closed.
oON In the "ON" position, the light stays on at all times.
B490A01E-AAT INTERIOR LIGHT
HTB303
With Sunroof
Without unroof

1- 64 FEATURES OF YOUR HYUNDAI
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should be kept closed when the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.!
B510A01A-AAT OUTSIDE REAR VIEW MIRROR Manual Type (If installed) The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by thecontrol lever in the bottom front corner of the window. Before driving away, always checkthat your mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behindyour vehicle. When using the mirror, always exercise caution when attempt- ing to judge the distance of vehiclesbehind or along side of you. HTB306
CAUTION:
If the mirror control is jammed withice, do not attempt to break it freeusing the control handle or by ma- nipulating the face of the mirror. Use an approved spray de-icer (notradiator antifreeze) to release the frozen mechanism or move the ve- hicle to a warm place and allow theice to melt.
!

FEATURES OF YOUR HYUNDAI 1- 65
To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the correspondingdoor mirror.
2. Now, adjust mirror angle by de-
pressing the appropriate perimeterswitch as illustrated.
HTB213CAUTION:
o Do not operate the switch con- tinuously for an unnecessarylength of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge,soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in the passenger side rear view mirror. It is a convex mirror with a curvedsurface. Any objects seen in this mirror are closer than they appear.
!
!
B510B01FC-GAT Electric Type (If installed) The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and tothe rear of the left and right sides. The remote control outside rearview mirror switch controls the adjustmentsfor both right and left outside mirrors. HTB104
