Hyundai Getz 2003 Manual Online

1- 66 FEATURES OF YOUR HYUNDAI
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR Your Hyundai is equipped with a day/ night inside rearview mirror. The "night" position is selected by flipping the tabat the bottom of the mirror toward you. In the "night" position, the glare of headlights of cars behind you is re-duced. HTB103B510D01HP-AAT OUTSIDE REARVIEW MIRROR
HEATER (If Installed) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outsiderearview mirror glass, push in the switch for the rear window defroster. The rearview mirror glass will be heated fordefrosting or defogging and will give you improved rear vision in inclement weather conditions. Push the switchagain to turn the heater off. The out- side rearview mirror heater automati- cally turns itself off after 20 minutes. B510C01A-AAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear. The outside rearview mirrors can befolded rearward for parking in narrow areas.
HTB039
HTB205
WARNING:
Do not adjust or fold the outsiderearview mirrors while the vehicle is moving. This could result in lossof control, and an accident which could cause death, serious injury or property damage.
!

FEATURES OF YOUR HYUNDAI 1- 67
Always engage the parking brake be- fore leaving the car. This also turns on the parking brake indicator light whenthe key is in the "ON" or "START" position. Before driving away, be sure that the parking brake is fully releasedand the indicator light is off.
o To engage the parking brake, pull
the lever up as far as possible.
o To release the parking brake, pull
up the lever and press the thumb button. Then, while holding the but- ton in, lower the brake lever.
B530A01A-AAT PARKING BRAKE
B550A01S-GATHIGH-MOUNTED REAR STOP LIGHT (If Installed) In addition to the lower-mounted rear stop lights on either side of the car, the high mounted rear stop light in thecenter of the rear window or inserted in the rear spoiler also lights when the brakes are applied.
HTB251
HTB255
B570A01TB-GAT HOOD RELEASE
HTB070
1. Pull the release knob to unlatch the hood.
HTB069
2. Push the safety catch lever sidewards and lift the hood.

1- 68 FEATURES OF YOUR HYUNDAI
B560A01HP-AAT REMOTE FUEL-FILLER LID RE- LEASE The fuel-filler lid may be opened from inside the vehicle by pulling up on the fuel-filler lid opener located on the frontfloor area on the left side of the car. NOTE: If the fuel-filler lid will not open because ice has formed around it,tap lightly or push on the lid to
WARNING:
o Always double check to be sure that the hood is firmly latched before driving away. If it is notlatched, the hood could fly open while the vehicle is being driven, causing a total loss of visibility,which might result in an acci- dent.
o The support rod must be inserted completely into the hole providedin the hood whenever you in- spect the engine compartment.This will prevent the hood from falling and possibly injuring you.
Before closing the hood, return thesupport rod to its clip to prevent it from rattling. Lower the hood until it is about30 cm (1 ft.) above the closed position and let it drop. Make sure that it locks into place.
HTB288
!
!
3. Pull the support rod from the hood. HTB308
4. Hold the hood open with the support rod. CAUTION:
Make sure that the support rod has been released prior to closing thehood. o Do not move the vehicle with the
hood in the raised position, asvision is obstructed and the hoodcould fall or be damaged.
HTB115

FEATURES OF YOUR HYUNDAI 1- 69

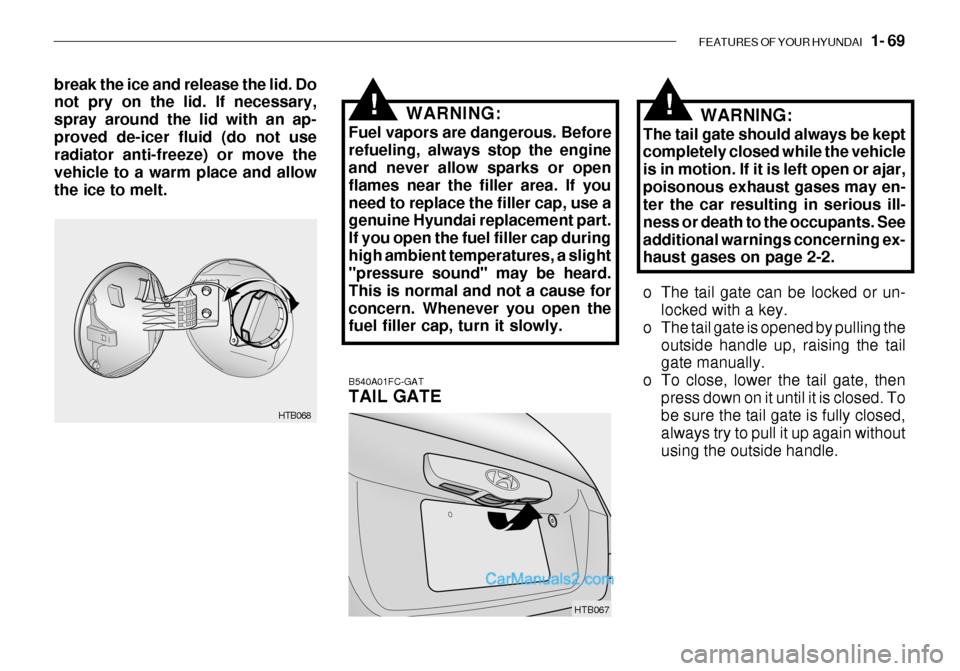

break the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an ap-proved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allowthe ice to melt.
B540A01FC-GAT TAIL GATE
HTB067WARNING:
The tail gate should always be kept completely closed while the vehicle is in motion. If it is left open or ajar,poisonous exhaust gases may en- ter the car resulting in serious ill- ness or death to the occupants. Seeadditional warnings concerning ex- haust gases on page 2-2.
o The tail gate can be locked or un- locked with a key.
o The tail gate is opened by pulling the outside handle up, raising the tail gate manually.
o To close, lower the tail gate, then press down on it until it is closed. Tobe sure the tail gate is fully closed, always try to pull it up again withoutusing the outside handle.
HTB068
!!WARNING:
Fuel vapors are dangerous. Before refueling, always stop the engine and never allow sparks or open flames near the filler area. If youneed to replace the filler cap, use a genuine Hyundai replacement part. If you open the fuel filler cap duringhigh ambient temperatures, a slight "pressure sound" may be heard. This is normal and not a cause forconcern. Whenever you open the fuel filler cap, turn it slowly.

1- 70 FEATURES OF YOUR HYUNDAI

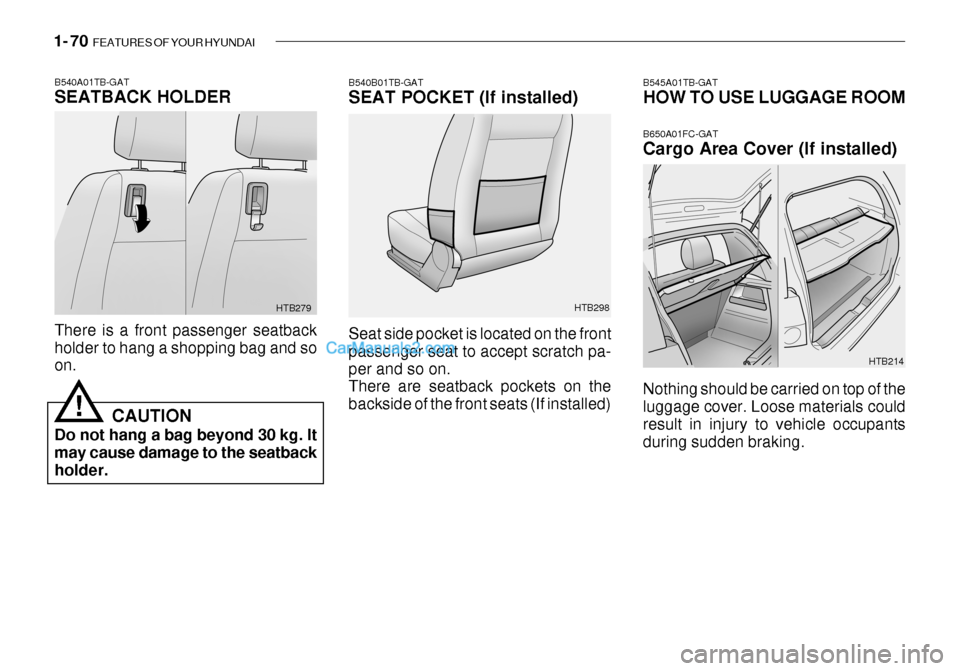

B540B01TB-GAT
SEAT POCKET (If installed)
HTB214
Seat side pocket is located on the front passenger seat to accept scratch pa-per and so on. There are seatback pockets on the backside of the front seats (If installed) HTB298B545A01TB-GAT HOW TO USE LUGGAGE ROOM B650A01FC-GAT Cargo Area Cover (If installed)
Nothing should be carried on top of the luggage cover. Loose materials could result in injury to vehicle occupantsduring sudden braking.
There is a front passenger seatback holder to hang a shopping bag and so on. HTB279
B540A01TB-GAT SEATBACK HOLDER
!
CAUTION
Do not hang a bag beyond 30 kg. It may cause damage to the seatback holder.

FEATURES OF YOUR HYUNDAI 1- 71
B545B01TB-GAT Luggage Under Tray (If installed) There is a multipurpose receipt space under the luggage room mat. HTB295Before use the luggage under tray,hang the luggage room mat to the mat hanger. Mat hanger is located beneaththe center of the cargo area cover.
HTB296
Mat hanger CAUTION:
Should install the luggage un- der tray on the spare tire. Un- less, it may cause transforma- tion of the luggage room mat.
!
Luggage Side Trim
HTB297
There are multipurpose receipts to accept small commodities in the lug- gage side trim.

1- 72 FEATURES OF YOUR HYUNDAI
B545C01TB-GAT Luggage Board (If installed)
HTB299
For greater convenience, your Hyundai can devide the cargo space with the luggage board. Fix the luggage boardto the luggage board supporter. Fold the board to pull the grip upward and push forward. CAUTION:
o When you want to enlarge the cargo space, remove the luggage board from the luggage board supporter after folding the rearseat.
o Do not load cargo beyond 30kg.
It may cause damage to the lug-gage board.
HTB301
!
Luggage Board Supporter
B540D02FC-GAT Luggage Net (If Installed) Some objects can be kept in the net in the luggage compartment. Use the luggage net on the floor or atthe back of the luggage compartment to prevent objects from sliding.
HTB289
!WARNING:
Avoid eye injury. DO NOT over- stretch. ALWAYS keep face and body out of recoil path. DO NOT use when strap has visible signs of wear ordamage.

FEATURES OF YOUR HYUNDAI 1- 73
B560B01O-GAT AUTO FUEL CUT SWITCH (Gasoline Engine) (If installed) The auto fuel cut switch is located on the driver's side of the engine compart- ment.In the event of a collision or sudden impact, the auto fuel cut device cuts off the fuel supply. If this device is acti-vated, it must be reset by pressing in on the top of the switch before the engine can be restarted. HTB304
!WARNING:
Before resetting the auto fuel cut switch, the fuel line should bechecked for fuel leaks.
HTB098
B580A01TB-GAT SUN VISOR
HTB148
A Type
B Type
o To use the luggage board with
unfolding, fix it in the luggage board supporter. There will be an audible "Click" when the luggage board fixes in the supporter.
o The luggage board can be thrown out in the event of a sudden stopor an accident. Unfold the lug-gage board stablely to prevent cargo damage.
HTB302

1- 74 FEATURES OF YOUR HYUNDAI
B610B01A-GAT HORN
Press the center hub of the steering wheel to sound the horn. HTB110B600A01A-AAT STEERING WHEEL TILT LEVER (If Installed) To Adjust the Steering Wheel:
HTB085
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten the lever by pulling it upward.
!WARNING:
Do not attempt to adjust the steer- ing wheel while driving as this may result in loss of control of the ve-hicle which may cause serious in- jury or death.
Your Hyundai is equipped with sunvisors to give the driver and front pas- senger either frontal or side ward shade.The sun visors are fitted on both sides on all models. To reduce glare or to shut out direct rays of the sun, turn thesun visor down to block the annoy- ance. A ticket holder is provided on the back of the sun visor for the driver.Vanity mirrors are provided on the back of the sunvisor for the driver and the front passenger (If installed). NOTE: The Supplemental Restraint Sys- tem (SRS) label containing useful information can be found on the front of each sun visor.
WARNING:
Do not place the sun visor in such a manner that it obscures visibility of the roadway, traffic or other ob-jects.
!

FEATURES OF YOUR HYUNDAI 1- 75

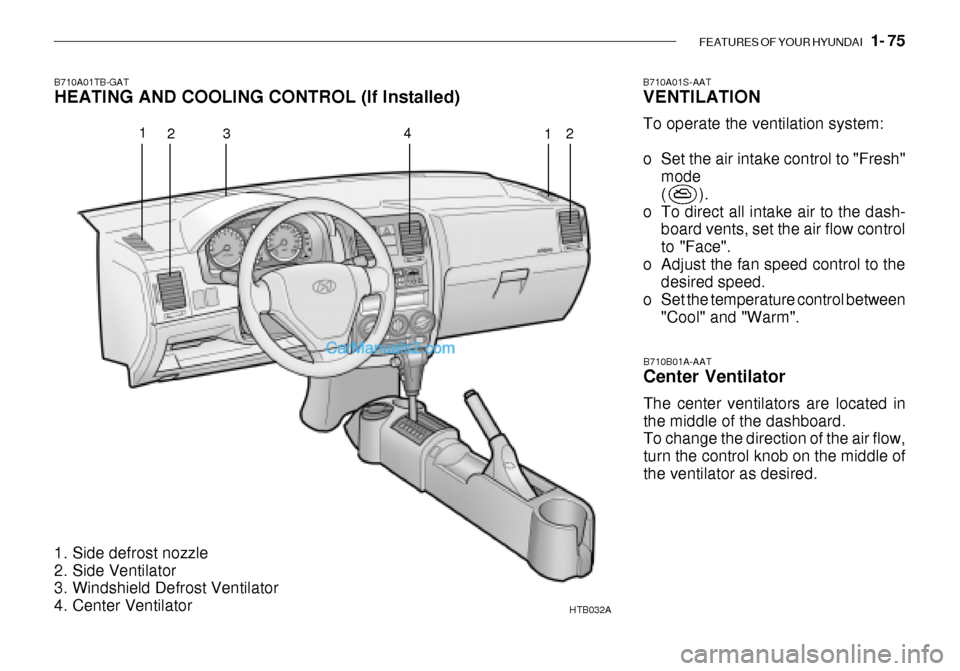

B710A01TB-GAT
HEATING AND COOLING CONTROL (If Installed)
HTB032A
1. Side defrost nozzle
2. Side Ventilator
3. Windshield Defrost Ventilator
4. Center Ventilator B710B01A-AAT Center Ventilator The center ventilators are located in the middle of the dashboard. To change the direction of the air flow, turn the control knob on the middle ofthe ventilator as desired.
B710A01S-AAT VENTILATION To operate the ventilation system:
o Set the air intake control to "Fresh"
mode
( ).
o To direct all intake air to the dash- board vents, set the air flow controlto "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between
"Cool" and "Warm".
1 2 3 4
12
