Hyundai Getz 2004 User Guide

YOUR VEHICLE AT A GLANCE

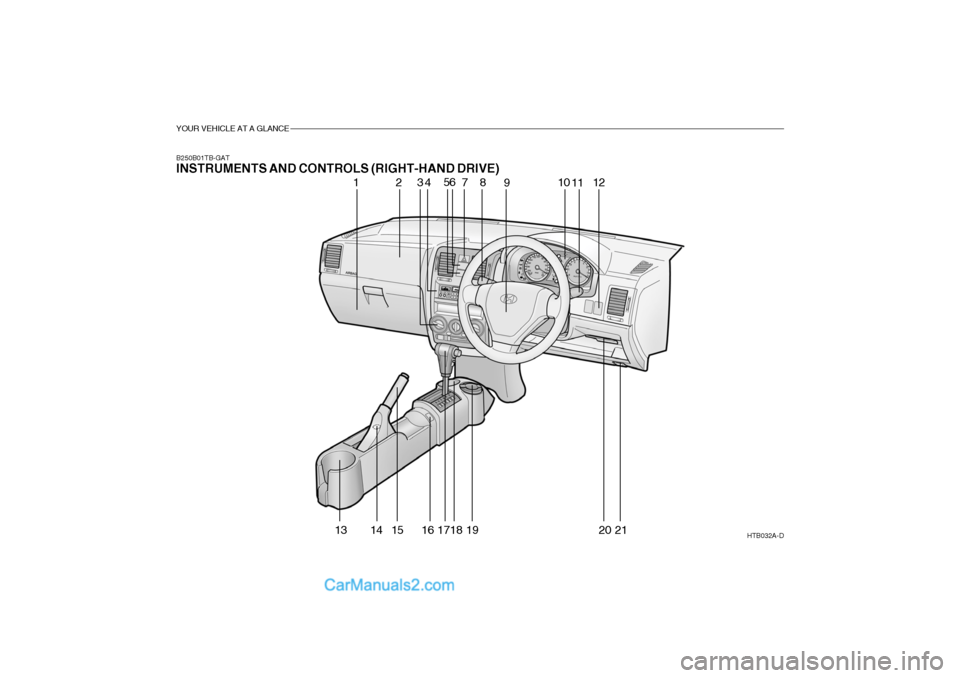

B250B01TB-GAT INSTRUMENTS AND CONTROLS (RIGHT-HAND DRIVE)HTB032A-D
1234 56
7 8
9 10
11 12
13 14 15 16 1718 19 20 21

YOUR VEHICLE AT A GLANCE
1. Glove Box
2. Passenger's Airbag (If installed)
3. Heating/Air Conditioning Control Panel(If installed)
4. Audio System (If installed)
5. Rear Fog Light Switch (If installed)
6. Front Fog Light Switch (If installed)
7. Hazard Warning Light
8. Windshield Wiper/Washer Switch
9. Horn and Driver's Airbag (If installed)
10. Instrument Cluster
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. 11. Multi-Function Light Switch
12. Headlight Leveling Switch (If installed)
13. Rear Drink Holder
14. Cigarette Lighter
15. Parking Brake Lever
16. Seat Warmer (If installed)
17. Shift Lever (If installed)
18. Front Drink Holder
19. Ashtray
20. Fuse Box
21. Hood Release Lever
!

YOUR VEHICLE AT A GLANCE
B255A01TB-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detail explanations of these items will be found on page 1-44
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Oil Pressure Warning Light Parking Brake/Brake Level Warning Light Charging System Warning Light Tail Gate Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
O/D OFF Indicator (Automatic transaxle only)
Electric Power Steering System (EPS)Warning Light
Diesel Pre-heat Indicator Light (Diesel only)
Fuel Filter Warning Light (Diesel only)
Immobilizer Indicator

1. FEATURES OF YOUR HYUNDAI
Fuel Recommendations ................................................................... 1-2
Breaking in Your New Hyundai ........................................................ 1-3
Key (Immobilizer system) ................................................................ 1-4
Door locks (Theft-alarm system) ..................................................... 1-7Power windows.............................................................................. 1-12
Seat ................................................................................................ 1-13
Seat Belt ......................................................................................... 1-20
Child restraint system .................................................................... 1-26
Supplemental restraint (AIRBAG) system .....................................1-34
Instrument cluster and indicator lights ............................................1-41
Warning Light and Indicator ............................................................ 1-44
Trip computer ................................................................................. 1-51
Multi-Function Light Sw itch ............................................................ 1-53
Windshield wiper/Washer Switch ...................................................1-54
Sunroof ........................................................................................... 1-60
Mirror .............................................................................................. 1-64
Hood R elease ................................................................................ 1-67
How to use luggage Room ............................................................. 1-70
Heating and cooling control ............................................................ 1-75
Stereo sound system ..................................................................... 1-84
Audio system ................................................................................. 1-86
Antenna ........................................................................................ 1-120
1

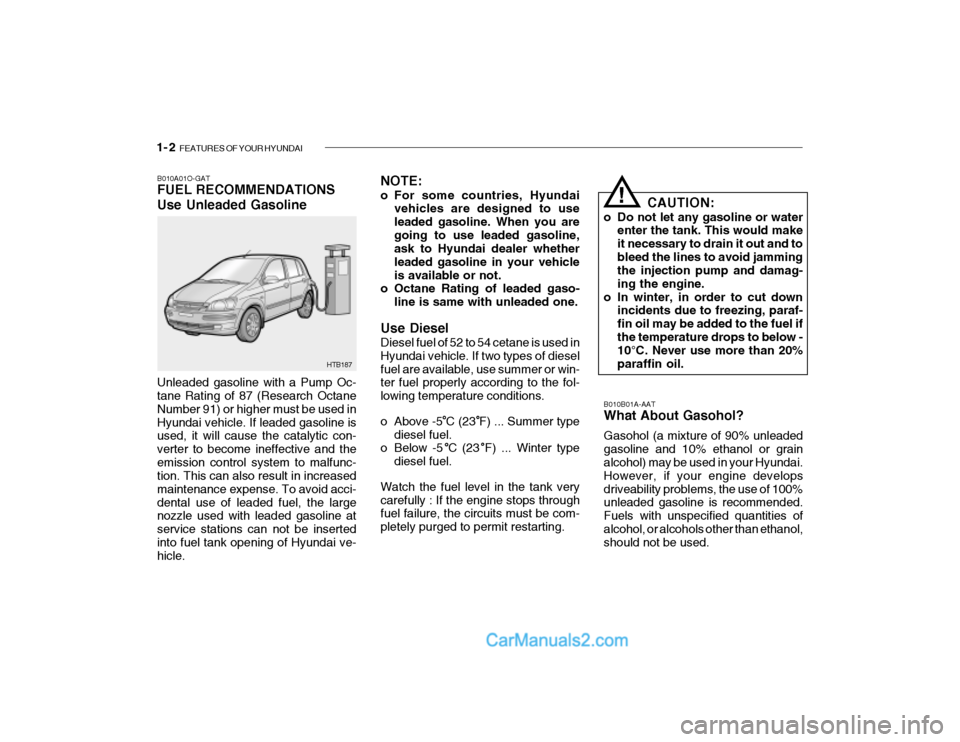

1- 2 FEATURES OF YOUR HYUNDAI
B010B01A-AAT What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine developsdriveability problems, the use of 100% unleaded gasoline is recommended. Fuels with unspecified quantities ofalcohol, or alcohols other than ethanol, should not be used.
B010A01O-GAT FUEL RECOMMENDATIONS Use Unleaded Gasoline
NOTE:
o For some countries, Hyundai
vehicles are designed to use leaded gasoline. When you aregoing to use leaded gasoline, ask to Hyundai dealer whether leaded gasoline in your vehicleis available or not.
o Octane Rating of leaded gaso-
line is same with unleaded one.
Use Diesel Diesel fuel of 52 to 54 cetane is used in Hyundai vehicle. If two types of dieselfuel are available, use summer or win- ter fuel properly according to the fol- lowing temperature conditions.
o Above -5 C (23 F) ... Summer type diesel fuel.
o Below -5 C (23 F) ... Winter type
diesel fuel.
Watch the fuel level in the tank very carefully : If the engine stops through fuel failure, the circuits must be com- pletely purged to permit restarting.
Unleaded gasoline with a Pump Oc- tane Rating of 87 (Research Octane Number 91) or higher must be used inHyundai vehicle. If leaded gasoline is used, it will cause the catalytic con- verter to become ineffective and theemission control system to malfunc- tion. This can also result in increased maintenance expense. To avoid acci-dental use of leaded fuel, the large nozzle used with leaded gasoline at service stations can not be insertedinto fuel tank opening of Hyundai ve- hicle. HTB187
CAUTION:
o Do not let any gasoline or water enter the tank. This would make it necessary to drain it out and tobleed the lines to avoid jamming the injection pump and damag- ing the engine.
o In winter, in order to cut down incidents due to freezing, paraf-fin oil may be added to the fuel ifthe temperature drops to below - 10°C. Never use more than 20% paraffin oil.
!

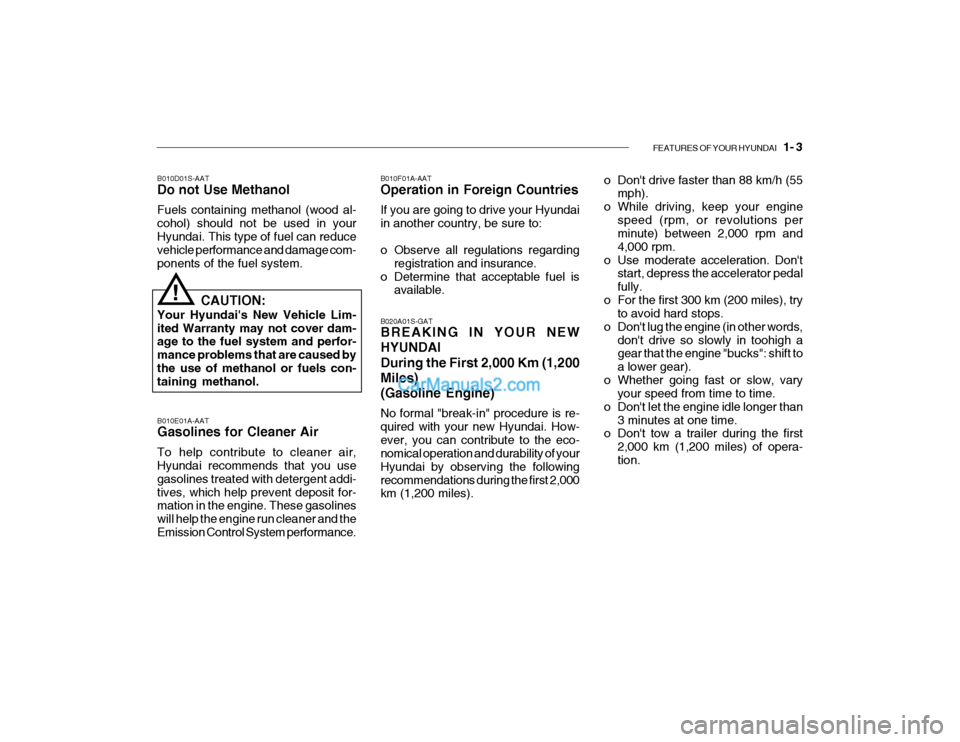

FEATURES OF YOUR HYUNDAI 1- 3
B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you use gasolines treated with detergent addi-tives, which help prevent deposit for- mation in the engine. These gasolines will help the engine run cleaner and theEmission Control System performance.
B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood al- cohol) should not be used in yourHyundai. This type of fuel can reduce vehicle performance and damage com- ponents of the fuel system.
CAUTION:
Your Hyundai's New Vehicle Lim-ited Warranty may not cover dam- age to the fuel system and perfor- mance problems that are caused by the use of methanol or fuels con- taining methanol.
! B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.
B020A01S-GAT BREAKING IN YOUR NEW HYUNDAI During the First 2,000 Km (1,200 Miles)(Gasoline Engine) No formal "break-in" procedure is re- quired with your new Hyundai. How-ever, you can contribute to the eco- nomical operation and durability of your Hyundai by observing the followingrecommendations during the first 2,000 km (1,200 miles). o Don't drive faster than 88 km/h (55
mph).
o While driving, keep your engine
speed (rpm, or revolutions perminute) between 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in toohigh a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.
o Don't let the engine idle longer than 3 minutes at one time.
o Don't tow a trailer during the first
2,000 km (1,200 miles) of opera-tion.

1- 4 FEATURES OF YOUR HYUNDAI
B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keys to your Hyundai. This key numberplate should not be left with the keys but kept in a safe place, not in the vehicle. The key number should alsobe recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys ifyou can supply the key number.
B020B01FC-GAT BREAKING IN YOUR NEW HYUNDAIDuring the First 1,000 Km (600Miles) (Diesel Engine) No formal "break-in" procedure is re- quired with your new Hyundai. How- ever, you can contribute to the eco- nomical operation and durability of yourHyundai by observing the following recommendations during the first 1,000 km (600 miles).
o While driving, keep your engine
speed (rpm, or revolutions per minute) within 3,000 rpm.
o While driving, keep under three quar-
ters of maximum speed.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words,
don't drive so slowly in too-high a gear that the engine "bucks": shift to a lower gear). B030A01A-AAT KEYS For greater convenience, the same key operates all the locks in yourHyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in caseyou accidentally lock one key inside the car.
o Whether going fast or slow, vary
your speed from time to time.
o Don't let the engine idle longer than
3 minutes at one time.
o Don't tow a trailer during the first
1,000 km (600 miles) of operation.
B030A01E B030B01E

FEATURES OF YOUR HYUNDAI 1- 5
B880A01A-GAT IMMOBILIZER SYSTEM (If Installed) The immobilizer system is an anti-theft device, designed to deter automobile theft.
B880B03A-GAT Keys All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doors without the use of the key, care shouldbe exercised to ensure that the key does not become locked inside the vehicle by mistake. NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine. B880C02A-GAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou. The key number should be recorded and kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber.
B880C01L
In the interest of security, the metal tag attached to the keys which bears the key number should be removed fromthe key ring after you receive your new vehicle. In addition, key numbers can- not be provided by Hyundai for securi-ty reasons. If you need additional keys or if you should lose your keys, your authorizedHyundai dealer can make new keys.

1- 6 FEATURES OF YOUR HYUNDAI
password, consult your authorized Hyundai dealer.
1. To set the password you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num-bers, then the immobilizer indicator will blink along with the operation of the ignition key. For example, turnthe ignition key once for digit num- ber "1", and twice for "2", and so on. However, for the digit number "0",you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried successfully, turn the ignition key"ON" and check that the immobi-lizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start yourengine after 30 seconds, your en- gine will not start.
HTB197
B880D02A-GAT Limp home procedures In case the immobilizer warning indi- cator blinks for five seconds when the ignition key is turned to "ON" position,this indicates that the immobilizer sys- tem is out of order. And you cannot start the engine without the limp homeprocedures with ignition key. The following procedure is how to start the engine with the function of the limphome. (0, 1, 2, 3 as a sample pass- word). NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have the NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
! CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait forabout one hour to do the limp home procedure again.
o If you cannot start your engine in spite of limp home procedure,have your vehicle towed by an authorized Hyundai dealer.

FEATURES OF YOUR HYUNDAI 1- 7
UNLOCK
B040A01A-AAT DOOR LOCKS
B040B01A-AATLocking and Unlocking Front Doors With a Key
HTB056
LOCK
!WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children inthe car), be sure that all the doors are securely closed and locked so that the doors cannot be inad-vertently opened from the inside. This helps ensure that doors will not be opened accidentally. Also,when combined with the proper use of seat belts, locking the doors helps keep occupants frombeing ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traf-fic. o The door can be locked or unlocked
with a key.
o Lock the door by turning the key
toward the front of the vehicle andunlock it by turning the key toward the rear. B040C01FC-GAT Locking From the Outside
The doors can be locked without a key. To lock the doors from the outside, first push the inside lock switch to the"LOCK" position, so that the red mark on the switch is not visible, then close the door.The door will not lock if the key is left in the ignition switch when the front doors close. This is normal. (If installed) NOTE:
o When locking the door this way, be careful not to lock the door with the ignition key left in thevehicle. HTB062
