1- 38 FEATURES OF YOUR HYUNDAI
B260C02TB-EAT

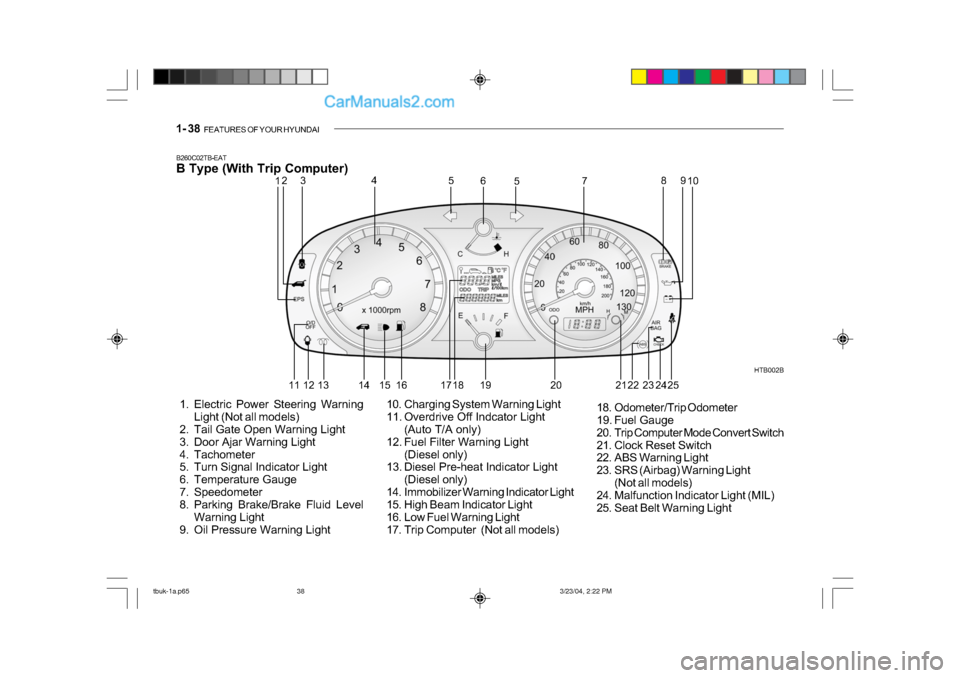

B Type (With Trip Computer)
1. Electric Power Steering Warning
Light (Not all models)
2. Tail Gate Open Warning Light
3. Door Ajar Warning Light
4. Tachometer
5. Turn Signal Indicator Light
6. Temperature Gauge
7. Speedometer
8. Parking Brake/Brake Fluid Level
Warning Light
9. Oil Pressure Warning Light HTB002B
10. Charging System Warning Light
11. Overdrive Off Indcator Light (Auto T/A only)
12. Fuel Filter Warning Light (Diesel only)
13. Diesel Pre-heat Indicator Light
(Diesel only)
14. Immobilizer Warning Indicator Light
15. High Beam Indicator Light
16. Low Fuel Warning Light
17. Trip Computer (Not all models) 18. Odometer/Trip Odometer
19. Fuel Gauge
20. Trip Computer Mode Convert Switch
21. Clock Reset Switch
22. ABS Warning Light
23. SRS (Airbag) Warning Light
(Not all models)
24. Malfunction Indicator Light (MIL)
25. Seat Belt Warning Light
12 3 4
5
5
6
78
910
11 12 13 14 15 16 17 18 19 20 22 23
24 2521
tbuk-1a.p65 3/23/04, 2:22 PM
38
1- 48 FEATURES OF YOUR HYUNDAI
HTB014B
MPG = Total Cruise Distance(Miles)
Total Fuel Consumption (G)

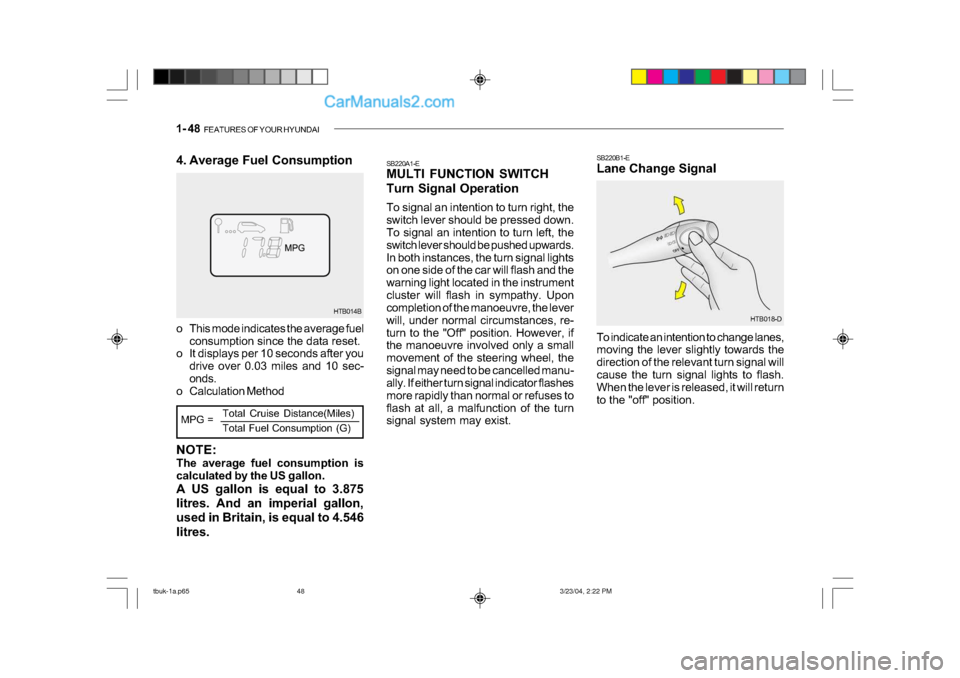

4. Average Fuel Consumption
o This mode indicates the average fuel
consumption since the data reset.
o It displays per 10 seconds after you
drive over 0.03 miles and 10 sec-
onds.
o Calculation Method SB220A1-E
MULTI FUNCTION SWITCH
Turn Signal Operation
To signal an intention to turn right, the
switch lever should be pressed down.
To signal an intention to turn left, the
switch lever should be pushed upwards.
In both instances, the turn signal lights
on one side of the car will flash and the
warning light located in the instrument
cluster will flash in sympathy. Upon
completion of the manoeuvre, the lever
will, under normal circumstances, re-
turn to the "Off" position. However, if
the manoeuvre involved only a small
movement of the steering wheel, the
signal may need to be cancelled manu-
ally. If either turn signal indicator flashes
more rapidly than normal or refuses to
flash at all, a malfunction of the turn
signal system may exist. SB220B1-E
Lane Change Signal
To indicate an intention to change lanes,
moving the lever slightly towards the
direction of the relevant turn signal will
cause the turn signal lights to flash.
When the lever is released, it will return
to the "off" position.
HTB018-D
NOTE:
The average fuel consumption is
calculated by the US gallon.
A US gallon is equal to 3.875
litres. And an imperial gallon,
used in Britain, is equal to 4.546
litres.
