Hyundai Getz 2004 Owner's Manual

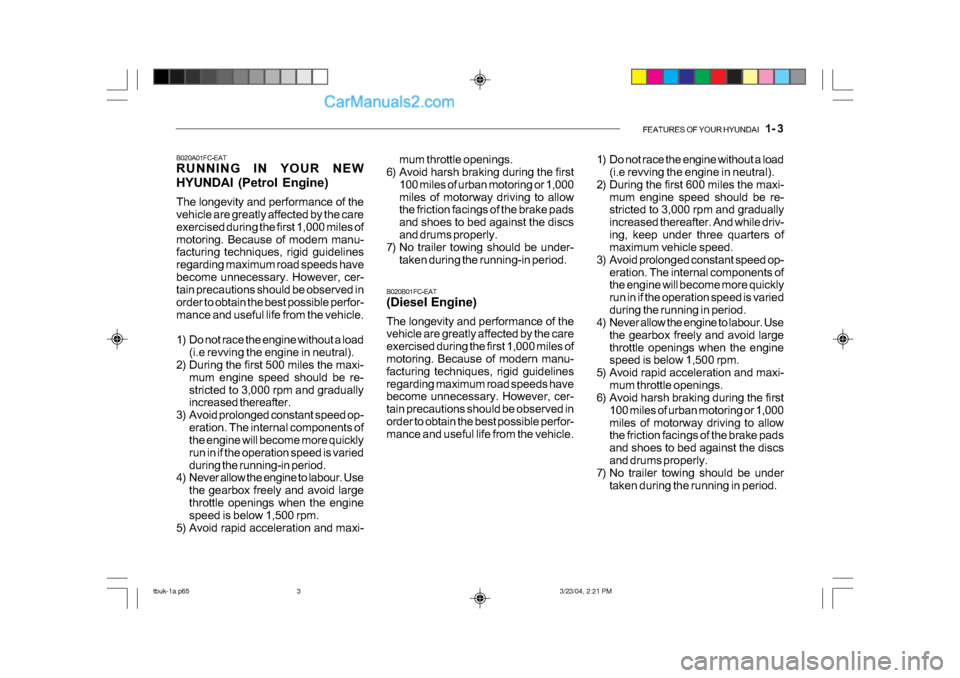

FEATURES OF YOUR HYUNDAI 1- 3
B020A01FC-EAT
RUNNING IN YOUR NEW
HYUNDAI (Petrol Engine)
The longevity and performance of the
vehicle are greatly affected by the care
exercised during the first 1,000 miles of
motoring. Because of modern manu-
facturing techniques, rigid guidelines
regarding maximum road speeds have
become unnecessary. However, cer-
tain precautions should be observed in
order to obtain the best possible perfor-
mance and useful life from the vehicle.
1) Do not race the engine without a load
(i.e revving the engine in neutral).
2) During the first 500 miles the maxi-
mum engine speed should be re-
stricted to 3,000 rpm and gradually
increased thereafter.
3) Avoid prolonged constant speed op- eration. The internal components of
the engine will become more quickly
run in if the operation speed is varied
during the running-in period.
4) Never allow the engine to labour. Use
the gearbox freely and avoid large
throttle openings when the engine
speed is below 1,500 rpm.
5) Avoid rapid acceleration and maxi- mum throttle openings.
6) Avoid harsh braking during the first
100 miles of urban motoring or 1,000
miles of motorway driving to allow
the friction facings of the brake pads
and shoes to bed against the discs
and drums properly.
7) No trailer towing should be under-
taken during the running-in period.
B020B01FC-EAT
(Diesel Engine)
The longevity and performance of the
vehicle are greatly affected by the care
exercised during the first 1,000 miles of
motoring. Because of modern manu-
facturing techniques, rigid guidelines
regarding maximum road speeds have
become unnecessary. However, cer-
tain precautions should be observed in
order to obtain the best possible perfor-
mance and useful life from the vehicle. 1) Do not race the engine without a load
(i.e revving the engine in neutral).
2) During the first 600 miles the maxi- mum engine speed should be re-
stricted to 3,000 rpm and gradually
increased thereafter. And while driv-
ing, keep under three quarters of
maximum vehicle speed.
3) Avoid prolonged constant speed op- eration. The internal components of
the engine will become more quickly
run in if the operation speed is varied
during the running in period.
4) Never allow the engine to labour. Use
the gearbox freely and avoid large
throttle openings when the engine
speed is below 1,500 rpm.
5) Avoid rapid acceleration and maxi- mum throttle openings.
6) Avoid harsh braking during the first
100 miles of urban motoring or 1,000
miles of motorway driving to allow
the friction facings of the brake pads
and shoes to bed against the discs
and drums properly.
7) No trailer towing should be under
taken during the running in period.
tbuk-1a.p65 3/23/04, 2:21 PM
3

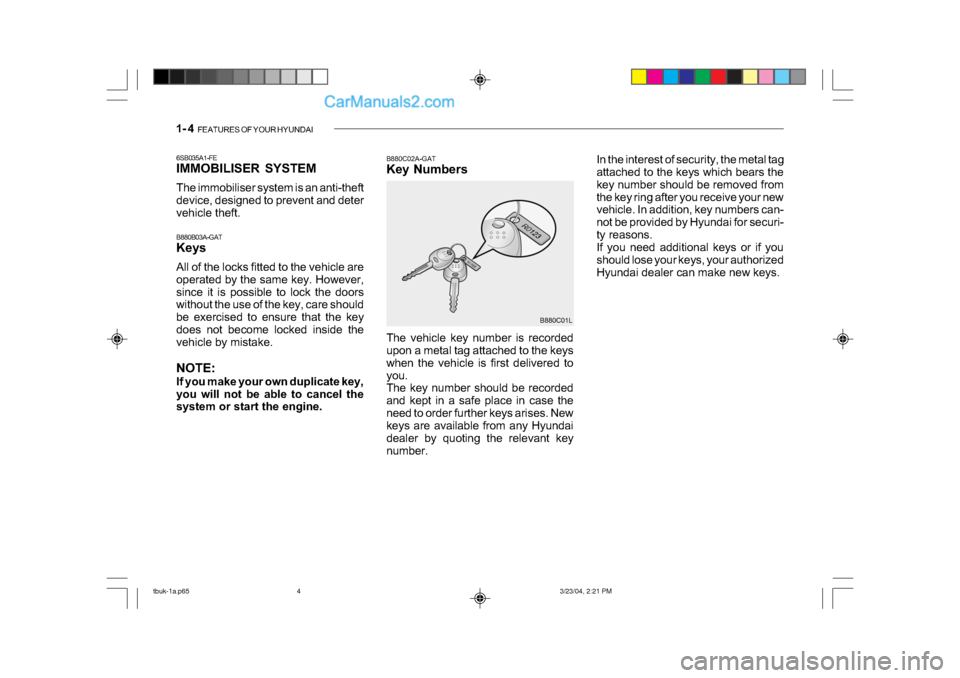

1- 4 FEATURES OF YOUR HYUNDAI
6SB035A1-FE
IMMOBILISER SYSTEM
The immobiliser system is an anti-theft
device, designed to prevent and deter
vehicle theft.
B880B03A-GAT
Keys
All of the locks fitted to the vehicle are
operated by the same key. However,
since it is possible to lock the doors
without the use of the key, care should
be exercised to ensure that the key
does not become locked inside the
vehicle by mistake.
NOTE:
If you make your own duplicate key,
you will not be able to cancel the
system or start the engine. B880C02A-GAT
Key Numbers
The vehicle key number is recorded
upon a metal tag attached to the keys
when the vehicle is first delivered to
you.
The key number should be recorded
and kept in a safe place in case the
need to order further keys arises. New
keys are available from any Hyundai
dealer by quoting the relevant key
number.
B880C01L
In the interest of security, the metal tag
attached to the keys which bears the
key number should be removed from
the key ring after you receive your new
vehicle. In addition, key numbers can-
not be provided by Hyundai for securi-
ty reasons.
If you need additional keys or if you
should lose your keys, your authorized
Hyundai dealer can make new keys.
tbuk-1a.p65
3/23/04, 2:21 PM
4

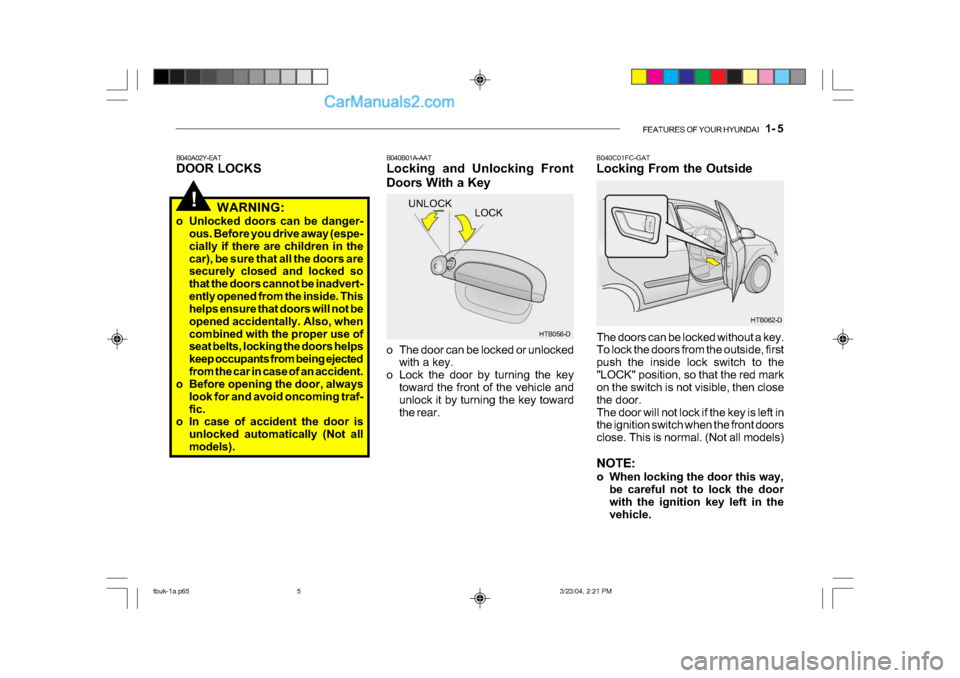

FEATURES OF YOUR HYUNDAI 1- 5
B040A02Y-EAT
DOOR LOCKS B040B01A-AAT
Locking and Unlocking Front
Doors With a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle and
unlock it by turning the key toward
the rear. B040C01FC-GAT
Locking From the Outside
The doors can be locked without a key.
To lock the doors from the outside, first
push the inside lock switch to the
"LOCK" position, so that the red mark
on the switch is not visible, then close
the door.
The door will not lock if the key is left in
the ignition switch when the front doors
close. This is normal. (Not all models)
NOTE:
o When locking the door this way, be careful not to lock the door
with the ignition key left in the
vehicle.
LOCK
HTB056-D
UNLOCK
HTB062-D
!WARNING:
o Unlocked doors can be danger- ous. Before you drive away (espe-
cially if there are children in the
car), be sure that all the doors are
securely closed and locked so
that the doors cannot be inadvert-
ently opened from the inside. This
helps ensure that doors will not be
opened accidentally. Also, when
combined with the proper use of
seat belts, locking the doors helps
keep occupants from being ejected
from the car in case of an accident.
o Before opening the door, always
look for and avoid oncoming traf-
fic.
o In case of accident the door is
unlocked automatically (Not all
models).
tbuk-1a.p65 3/23/04, 2:21 PM
5

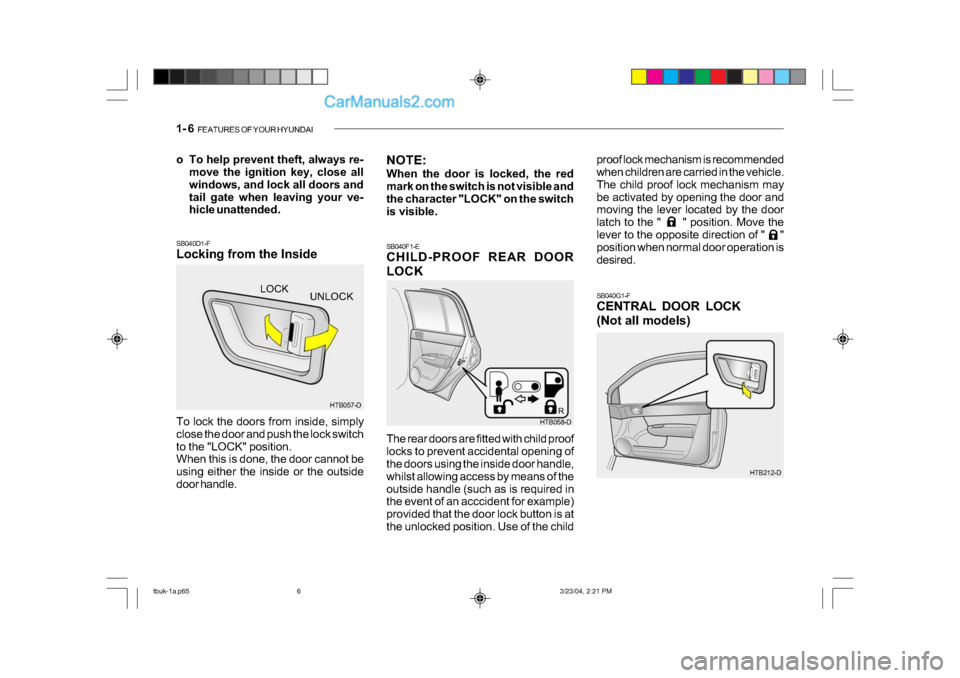

1- 6 FEATURES OF YOUR HYUNDAI
SB040G1-F
CENTRAL DOOR LOCK
(Not all models)
SB040D1-F
Locking from the Inside
To lock the doors from inside, simply
close the door and push the lock switch
to the "LOCK" position.
When this is done, the door cannot be
using either the inside or the outside
door handle. SB040F1-E
CHILD-PROOF REAR DOOR
LOCK
The rear doors are fitted with child proof
locks to prevent accidental opening of
the doors using the inside door handle,
whilst allowing access by means of the
outside handle (such as is required in
the event of an acccident for example)
provided that the door lock button is at
the unlocked position. Use of the child
o To help prevent theft, always re-
move the ignition key, close all
windows, and lock all doors and
tail gate when leaving your ve-
hicle unattended.
NOTE:
When the door is locked, the red
mark on the switch is not visible and
the character "LOCK" on the switch
is visible. proof lock mechanism is recommended
when children are carried in the vehicle.
The child proof lock mechanism may
be activated by opening the door and
moving the lever located by the door
latch to the " " position. Move the
lever to the opposite direction of " "
position when normal door operation is
desired.
HTB057-D
UNLOCK
LOCK
HTB058-D
HTB212-D
tbuk-1a.p65 3/23/04, 2:21 PM
6

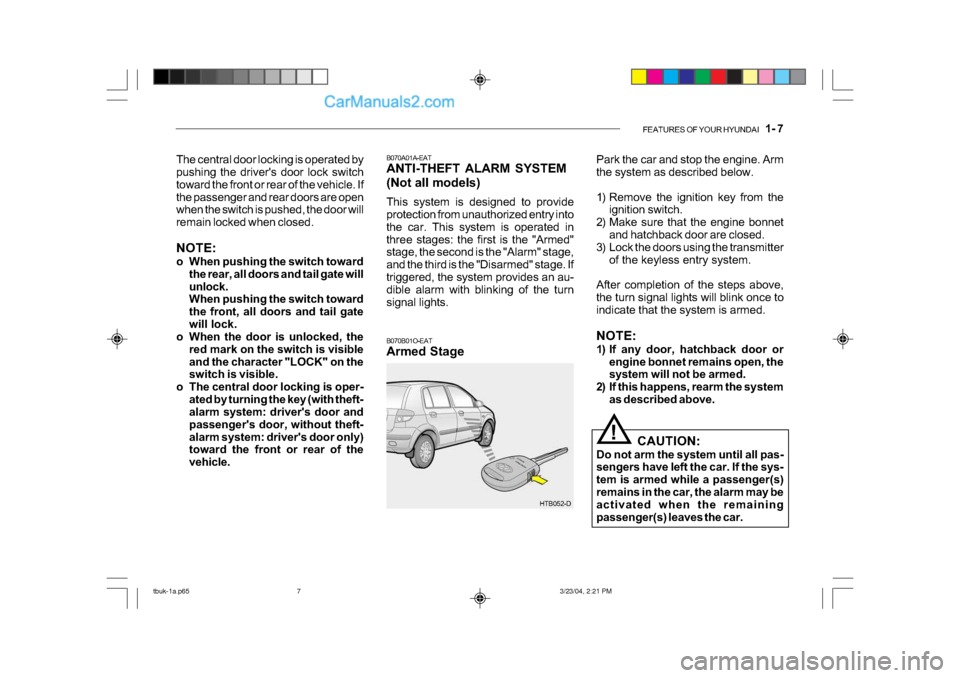

FEATURES OF YOUR HYUNDAI 1- 7
B070A01A-EAT
ANTI-THEFT ALARM SYSTEM
(Not all models)
This system is designed to provide
protection from unauthorized entry into
the car. This system is operated in
three stages: the first is the "Armed"
stage, the second is the "Alarm" stage,
and the third is the "Disarmed" stage. If
triggered, the system provides an au-
dible alarm with blinking of the turn
signal lights.
The central door locking is operated by
pushing the driver's door lock switch
toward the front or rear of the vehicle. If
the passenger and rear doors are open
when the switch is pushed, the door will
remain locked when closed.
NOTE:
o When pushing the switch toward
the rear, all doors and tail gate will
unlock.
When pushing the switch toward
the front, all doors and tail gate
will lock.
o When the door is unlocked, the
red mark on the switch is visible
and the character "LOCK" on the
switch is visible.
o The central door locking is oper- ated by turning the key (with theft-
alarm system: driver's door and
passenger's door, without theft-
alarm system: driver's door only)
toward the front or rear of the
vehicle. Park the car and stop the engine. Arm
the system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine bonnet and hatchback door are closed.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above,
the turn signal lights will blink once to
indicate that the system is armed.
NOTE:
1) If any door, hatchback door or engine bonnet remains open, the
system will not be armed.
2) If this happens, rearm the system
as described above.
CAUTION:
Do not arm the system until all pas-
sengers have left the car. If the sys-
tem is armed while a passenger(s)
remains in the car, the alarm may be
activated when the remaining
passenger(s) leaves the car.
!
HTB052-D
B070B01O-EAT
Armed Stage
tbuk-1a.p65
3/23/04, 2:21 PM
7

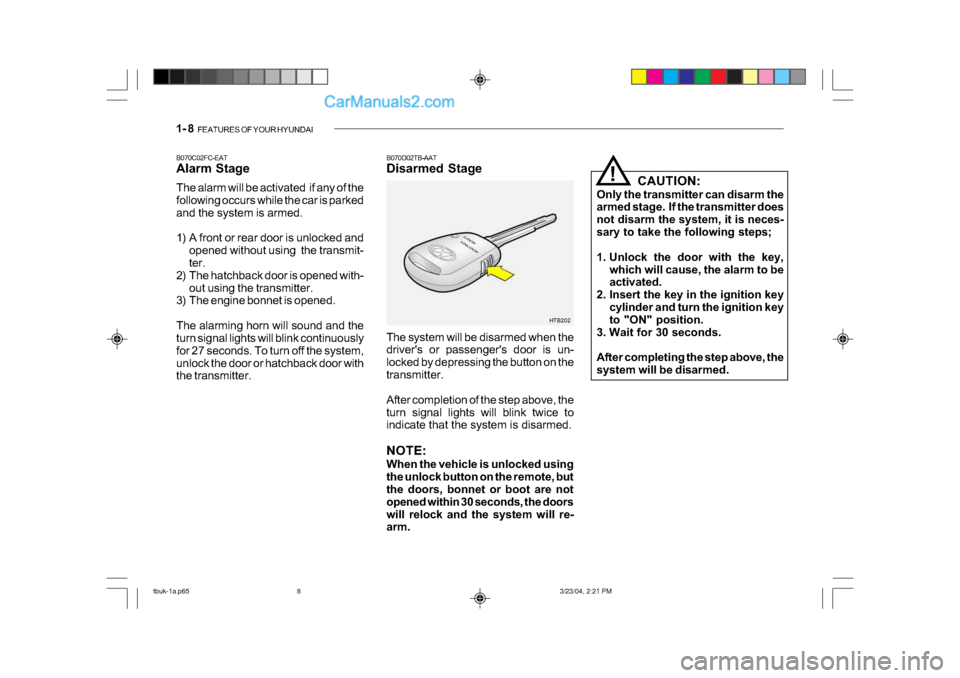

1- 8 FEATURES OF YOUR HYUNDAI
HTB202
B070D02TB-AAT
Disarmed Stage
B070C02FC-EAT
Alarm Stage
The alarm will be activated if any of the
following occurs while the car is parked
and the system is armed.
1) A front or rear door is unlocked and
opened without using the transmit-
ter.
2) The hatchback door is opened with-
out using the transmitter.
3) The engine bonnet is opened.
The alarming horn will sound and the
turn signal lights will blink continuously
for 27 seconds. To turn off the system,
unlock the door or hatchback door with
the transmitter. The system will be disarmed when the
driver's or passenger's door is un-
locked by depressing the button on the
transmitter.
After completion of the step above, the
turn signal lights will blink twice to
indicate that the system is disarmed.
NOTE:
When the vehicle is unlocked using
the unlock button on the remote, but
the doors, bonnet or boot are not
opened within 30 seconds, the doors
will relock and the system will re-
arm. CAUTION:
Only the transmitter can disarm the
armed stage. If the transmitter does
not disarm the system, it is neces-
sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be
activated.
2. Insert the key in the ignition key cylinder and turn the ignition key
to "ON" position.
3. Wait for 30 seconds.
After completing the step above, the
system will be disarmed.
!
tbuk-1a.p65 3/23/04, 2:21 PM
8

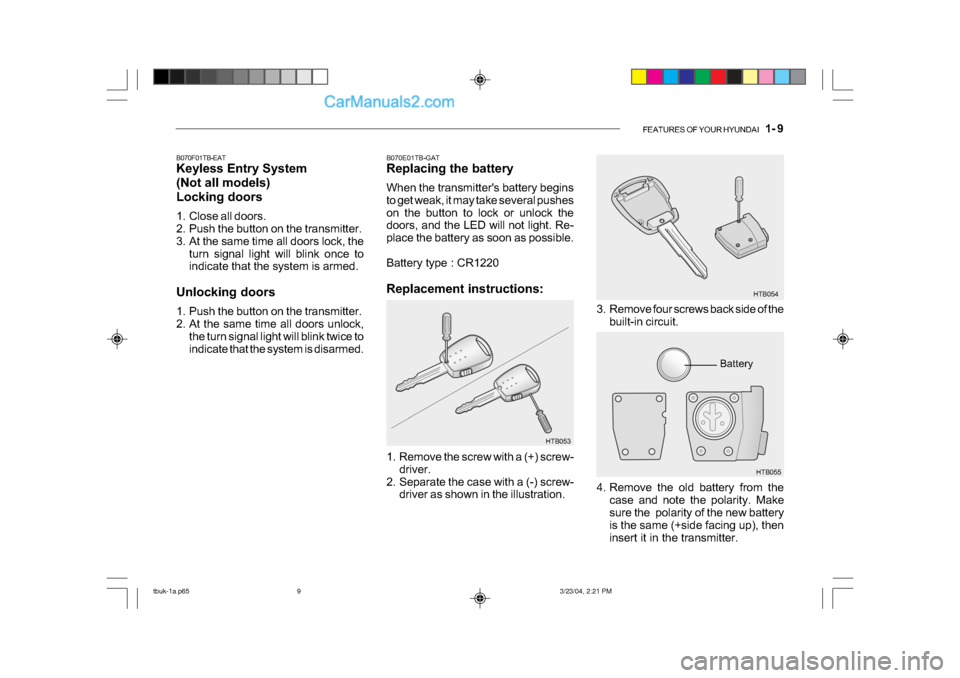

FEATURES OF YOUR HYUNDAI 1- 9
HTB053
B070F01TB-EAT
Keyless Entry System
(Not all models)
Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal light will blink once to
indicate that the system is armed.
Unlocking doors
1. Push the button on the transmitter.
2. At the same time all doors unlock, the turn signal light will blink twice to
indicate that the system is disarmed. B070E01TB-GAT
Replacing the battery
When the transmitter's battery begins
to get weak, it may take several pushes
on the button to lock or unlock the
doors, and the LED will not light. Re-
place the battery as soon as possible.
Battery type : CR1220
Replacement instructions:
1. Remove the screw with a (+) screw-
driver.
2. Separate the case with a (-) screw- driver as shown in the illustration. 3. Remove four screws back side of the
built-in circuit. HTB054
HTB055
Battery
4. Remove the old battery from the case and note the polarity. Make
sure the polarity of the new battery
is the same (+side facing up), then
insert it in the transmitter.
tbuk-1a.p65 3/23/04, 2:21 PM
9

1- 10 FEATURES OF YOUR HYUNDAI
!
HTB257-D
SB060A1-E

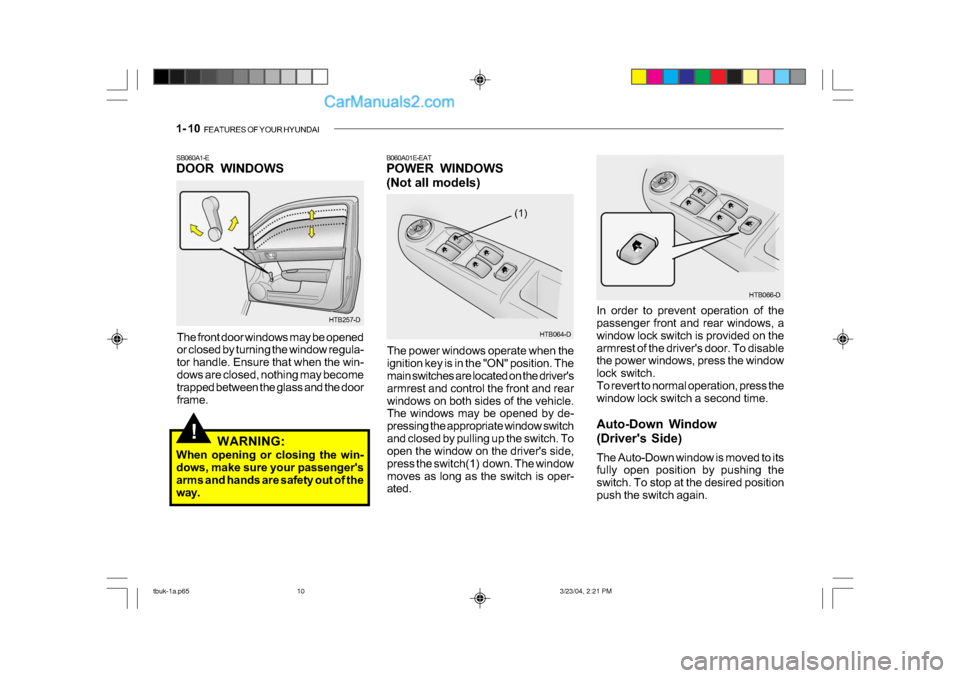

DOOR WINDOWS
The front door windows may be opened
or closed by turning the window regula-
tor handle. Ensure that when the win-
dows are closed, nothing may become
trapped between the glass and the door
frame. HTB064-D
(1)
HTB066-D
In order to prevent operation of the
passenger front and rear windows, a
window lock switch is provided on the
armrest of the driver's door. To disable
the power windows, press the window
lock switch.
To revert to normal operation, press the
window lock switch a second time.
Auto-Down Window
(Driver's Side)
The Auto-Down window is moved to its
fully open position by pushing the
switch. To stop at the desired position
push the switch again.
B060A01E-EAT
POWER WINDOWS
(Not all models)
The power windows operate when the
ignition key is in the "ON" position. The
main switches are located on the driver's
armrest and control the front and rear
windows on both sides of the vehicle.
The windows may be opened by de-
pressing the appropriate window switch
and closed by pulling up the switch. To
open the window on the driver's side,
press the switch(1) down. The window
moves as long as the switch is oper-
ated.
WARNING:
When opening or closing the win-
dows, make sure your passenger's
arms and hands are safety out of the
way.
tbuk-1a.p65 3/23/04, 2:21 PM
10

FEATURES OF YOUR HYUNDAI 1- 11
!
HTB024-D
B080A01FC-EAT

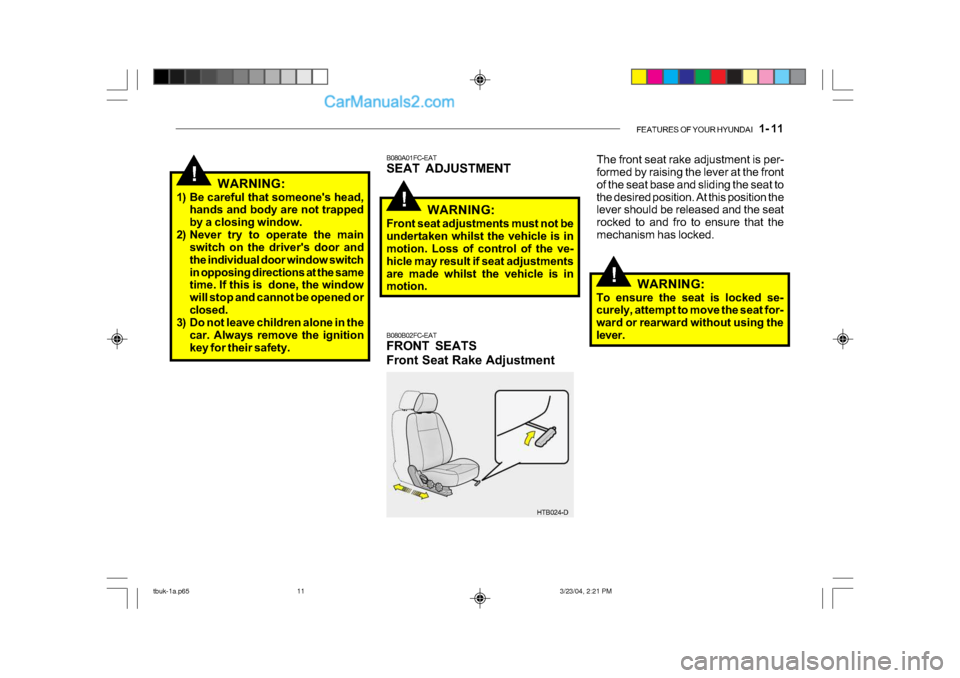

SEAT ADJUSTMENT
B080B02FC-EAT
FRONT SEATS
Front Seat Rake Adjustment
The front seat rake adjustment is per-
formed by raising the lever at the front
of the seat base and sliding the seat to
the desired position. At this position the
lever should be released and the seat
rocked to and fro to ensure that the
mechanism has locked.
WARNING:
Front seat adjustments must not be
undertaken whilst the vehicle is in
motion. Loss of control of the ve-
hicle may result if seat adjustments
are made whilst the vehicle is in
motion.
WARNING:
1) Be careful that someone's head, hands and body are not trapped
by a closing window.
2) Never try to operate the main switch on the driver's door and
the individual door window switch
in opposing directions at the same
time. If this is done, the window
will stop and cannot be opened or
closed.
3) Do not leave children alone in the
car. Always remove the ignition
key for their safety.
!
!WARNING:
To ensure the seat is locked se-
curely, attempt to move the seat for-
ward or rearward without using the
lever.
tbuk-1a.p65 3/23/04, 2:21 PM
11

1- 12 FEATURES OF YOUR HYUNDAI
HFC2028
Lock knob
SB070D2-E

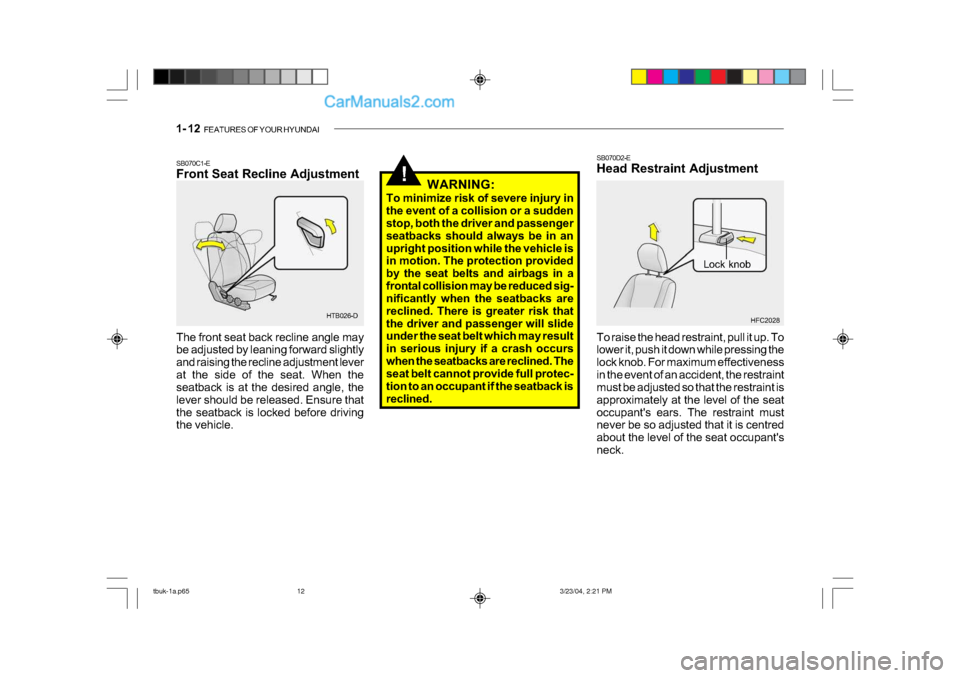

Head Restraint Adjustment
To raise the head restraint, pull it up. To
lower it, push it down while pressing the
lock knob. For maximum effectiveness
in the event of an accident, the restraint
must be adjusted so that the restraint is
approximately at the level of the seat
occupant's ears. The restraint must
never be so adjusted that it is centred
about the level of the seat occupant's
neck.SB070C1-E
Front Seat Recline Adjustment
HTB026-D
The front seat back recline angle may
be adjusted by leaning forward slightly
and raising the recline adjustment lever
at the side of the seat. When the
seatback is at the desired angle, the
lever should be released. Ensure that
the seatback is locked before driving
the vehicle.
!WARNING:
To minimize risk of severe injury in
the event of a collision or a sudden
stop, both the driver and passenger
seatbacks should always be in an
upright position while the vehicle is
in motion. The protection provided
by the seat belts and airbags in a
frontal collision may be reduced sig-
nificantly when the seatbacks are
reclined. There is greater risk that
the driver and passenger will slide
under the seat belt which may result
in serious injury if a crash occurs
when the seatbacks are reclined. The
seat belt cannot provide full protec-
tion to an occupant if the seatback is
reclined.
tbuk-1a.p65 3/23/04, 2:21 PM
12
