Hyundai Getz 2004 Owner's Manual

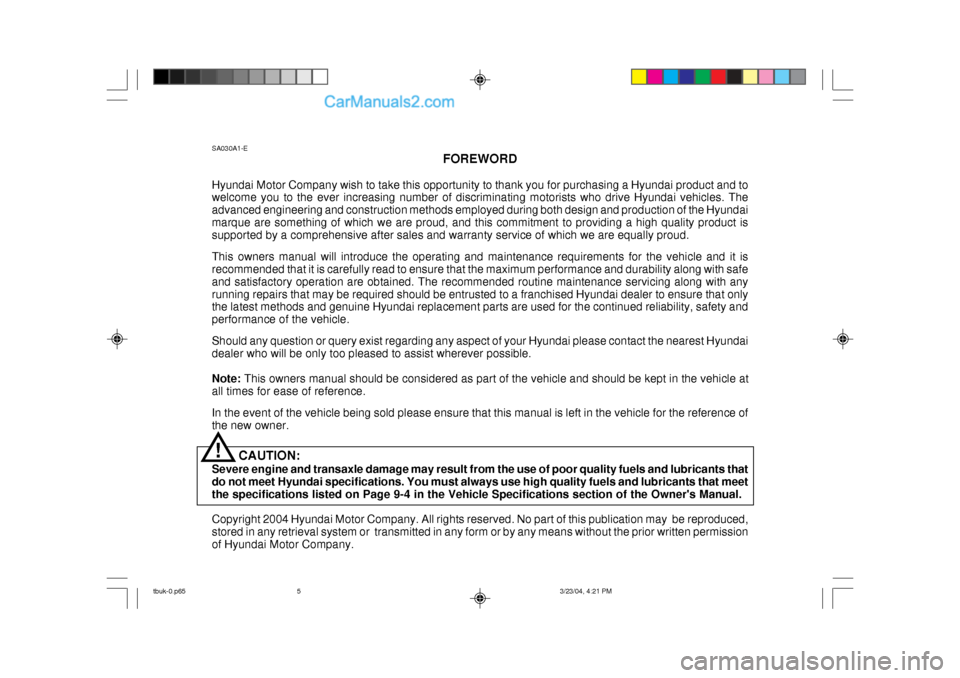

SA030A1-EFOREWORD
Hyundai Motor Company wish to take this opportunity to thank you for purchasing a Hyundai product and to welcome you to the ever increasing number of discriminating motorists who drive Hyundai vehicles. The advanced engineering and construction methods employed during both design and production of the Hyundaimarque are something of which we are proud, and this commitment to providing a high quality product is supported by a comprehensive after sales and warranty service of which we are equally proud. This owners manual will introduce the operating and maintenance requirements for the vehicle and it is recommended that it is carefully read to ensure that the maximum performance and durability along with safe and satisfactory operation are obtained. The recommended routine maintenance servicing along with anyrunning repairs that may be required should be entrusted to a franchised Hyundai dealer to ensure that only the latest methods and genuine Hyundai replacement parts are used for the continued reliability, safety and performance of the vehicle. Should any question or query exist regarding any aspect of your Hyundai please contact the nearest Hyundai dealer who will be only too pleased to assist wherever possible. Note: This owners manual should be considered as part of the vehicle and should be kept in the vehicle at
all times for ease of reference. In the event of the vehicle being sold please ensure that this manual is left in the vehicle for the reference of the new owner.
CAUTION:
Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual. Copyright 2004 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permissionof Hyundai Motor Company.
!
tbuk-0.p65 3/23/04, 4:21 PM
5

SA040A1-ESA050A1-E

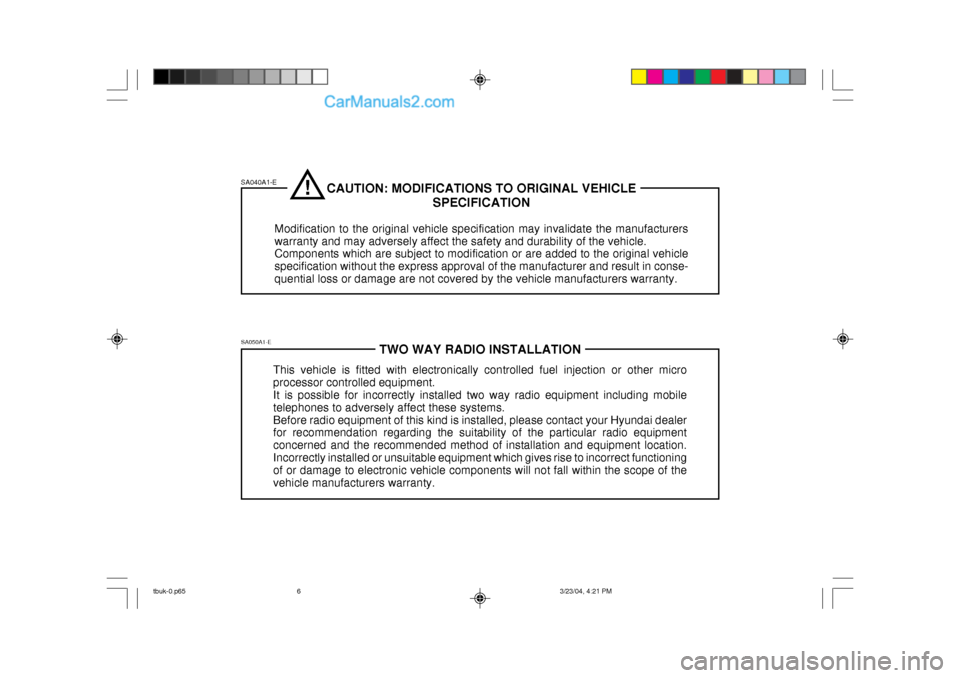

TWO WAY RADIO INSTALLATION
This vehicle is fitted with electronically controlled fuel injection or other micro processor controlled equipment. It is possible for incorrectly installed two way radio equipment including mobile telephones to adversely affect these systems.Before radio equipment of this kind is installed, please contact your Hyundai dealer for recommendation regarding the suitability of the particular radio equipment concerned and the recommended method of installation and equipment location.Incorrectly installed or unsuitable equipment which gives rise to incorrect functioning of or damage to electronic vehicle components will not fall within the scope of the vehicle manufacturers warranty.
CAUTION: MODIFICATIONS TO ORIGINAL VEHICLE SPECIFICATION
Modification to the original vehicle specification may invalidate the manufacturers warranty and may adversely affect the safety and durability of the vehicle. Components which are subject to modification or are added to the original vehicle specification without the express approval of the manufacturer and result in conse-quential loss or damage are not covered by the vehicle manufacturers warranty.!
tbuk-0.p65 3/23/04, 4:21 PM
6

!

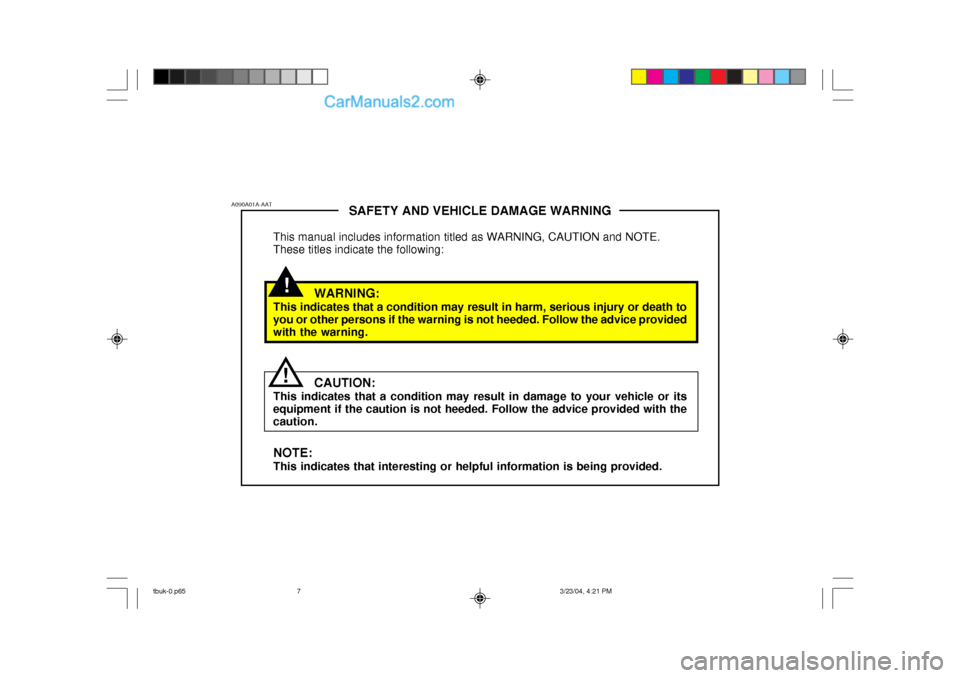

SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following:
WARNING:
This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded. Follow the advice provided with the warning.
CAUTION:
This indicates that a condition may result in damage to your vehicle or its equipment if the caution is not heeded. Follow the advice provided with the caution. NOTE: This indicates that interesting or helpful information is being provided.
A090A01A-AAT
!
tbuk-0.p65
3/23/04, 4:21 PM
7

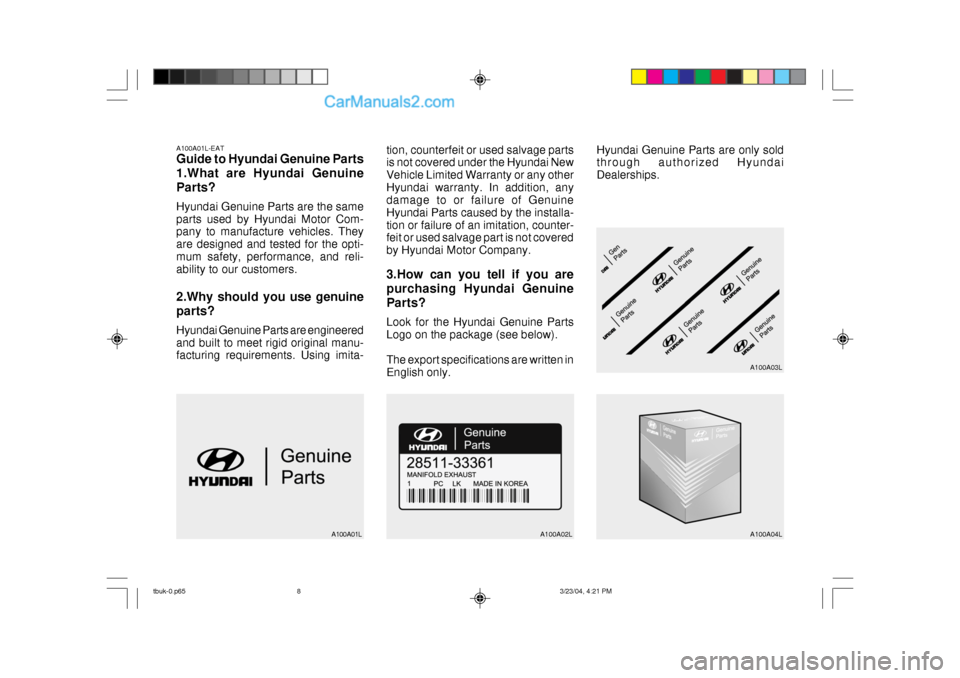

A100A01L-EAT Guide to Hyundai Genuine Parts 1.What are Hyundai GenuineParts? Hyundai Genuine Parts are the same parts used by Hyundai Motor Com- pany to manufacture vehicles. They are designed and tested for the opti-mum safety, performance, and reli- ability to our customers. 2.Why should you use genuine parts? Hyundai Genuine Parts are engineered and built to meet rigid original manu- facturing requirements. Using imita-A100A01Ltion, counterfeit or used salvage partsis not covered under the Hyundai New Vehicle Limited Warranty or any otherHyundai warranty. In addition, any damage to or failure of Genuine Hyundai Parts caused by the installa-tion or failure of an imitation, counter- feit or used salvage part is not covered by Hyundai Motor Company. 3.How can you tell if you are purchasing Hyundai GenuineParts? Look for the Hyundai Genuine Parts Logo on the package (see below). The export specifications are written in English only.
A100A02L A100A04L
A100A03L
Hyundai Genuine Parts are only sold through authorized Hyundai Dealerships.
tbuk-0.p65
3/23/04, 4:21 PM
8

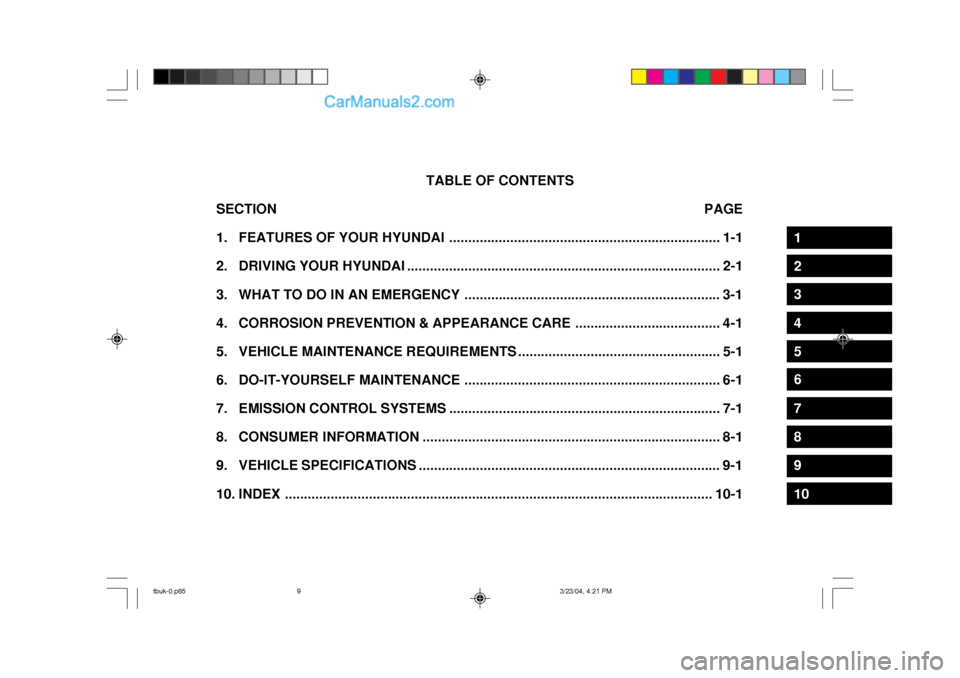

TABLE OF CONTENTS
SECTION PAGE
1. FEATURES OF YOUR HYUNDAI ....................................................................... 1-1
2. DRIVING YOUR HYUNDAI .................................................................................. 2-1
3. WHAT TO DO IN AN EMERGENCY ................................................................... 3-1
4. CORROSION PREVENTION & APPEARANCE CARE ...................................... 4-1
5. VEHICLE MAINTENANCE REQUIREMENTS ..................................................... 5-1
6. DO-IT-YOURSELF MAINTENANCE ................................................................... 6-1
7. EMISSION CONTROL SYSTEMS ....................................................................... 7-1
8. CONSUMER INFORMATION .............................................................................. 8-1
9. VEHICLE SPECIFICATIONS ............................................................................... 9-1
10. INDEX ................................................................................................................ 10-1
1
2
3
4
5
6
7
8
9
10
tbuk-0.p653/23/04, 4:21 PM
9

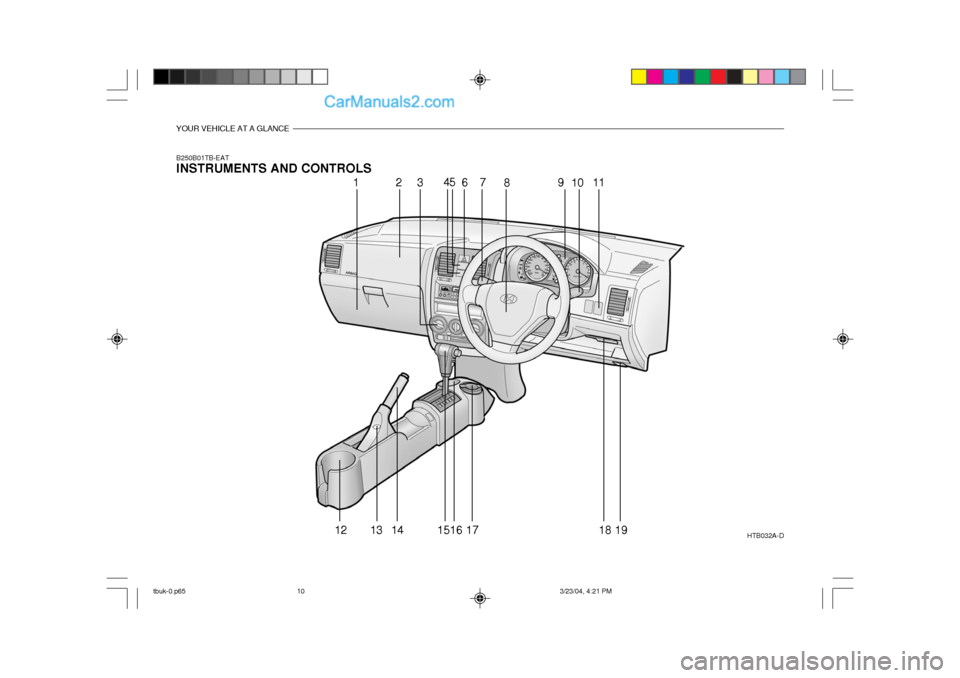

YOUR VEHICLE AT A GLANCE
B250B01TB-EAT INSTRUMENTS AND CONTROLSHTB032A-D
123 45
6 7
8 9
10 11
12 13 14 1516 17 18 19
tbuk-0.p65 3/23/04, 4:21 PM
10

YOUR VEHICLE AT A GLANCE
1. Glove Box
2. Passenger's Airbag (Not all models)
3. Heating/Air Conditioning Control Panel(Not all models)
4. Rear Fog Light Switch
5. Front Fog Light Switch (Not all models)
6. Hazard Warning Light
7. Windshield Wiper/Washer Switch
8. Horn and Driver's Airbag (Not all models)
9. Instrument Cluster
10. Multi-Function Light Switch
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. 11. Headlight Leveling Switch (Not all models)
12. Rear Drink Holder
13. Cigarette Lighter
14. Parking Brake Lever
15. Shift Lever (Not all models)
16. Front Drink Holder
17. Ashtray
18. Fuse Box
19. Hood Release Lever
!
tbuk-0.p65
3/23/04, 4:21 PM
11

YOUR VEHICLE AT A GLANCE
B255A01TB-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detail explanations of these items will be found on page 1-37
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Oil Pressure Warning Light Parking Brake/Brake Level Warning Light Charging System Warning Light Tail Gate Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
O/D OFF Indicator (Automatic transaxle only)
Electric Power Steering System (EPS)Warning Light
Diesel Pre-heat Indicator Light (Diesel only)
Fuel Filter Warning Light (Diesel only)
Immobilizer Indicator
tbuk-0.p65
3/23/04, 4:21 PM
12

1. FEATURES OF YOUR HYUNDAIFuel Reco mmendations ................................................... ................ 1-2
Running In Your new Hyundai ................................................... ...... 1-3
Immobilizer system ............................................. ............................. 1-4
Door locks (Theft-alarm syst em) ................................................ ..... 1-5
Power wi ndows .............................................. ................................1-10
Seat ................................................... .............................................1-11
Seat Belt .......................................... ...............................................1-17
Child restrain t system ........................................... .........................1-22
Supplemental restra int (AIRBAG) system ..................................... 1-30
Instrument cluster and i ndicator lights .................................... ........1-37
Warning Light and Indicator ................................................... .........1-39
Trip computer ................................................... ..............................1-46
Multi-Function Light Switch ............................................. ...............1-48
Windshield wiper/Washer Sw itch ............................................... ....1-50
Sunroof ................................................... ........................................1-55
Mirror ................................................... ...........................................1-59
Bonnet Release ................................................... ...........................1-62
How to use lu ggage Room ............................................... ..............1-66
Heating and cooling control ............................................ ................1-71
Stereo sound system ............................................. ........................1-80
Antenna ................................................... .......................................1-84
1
tbuk-1a.p65 3/23/04, 2:21 PM
1

1- 2 FEATURES OF YOUR HYUNDAI
B010A03O-EAT

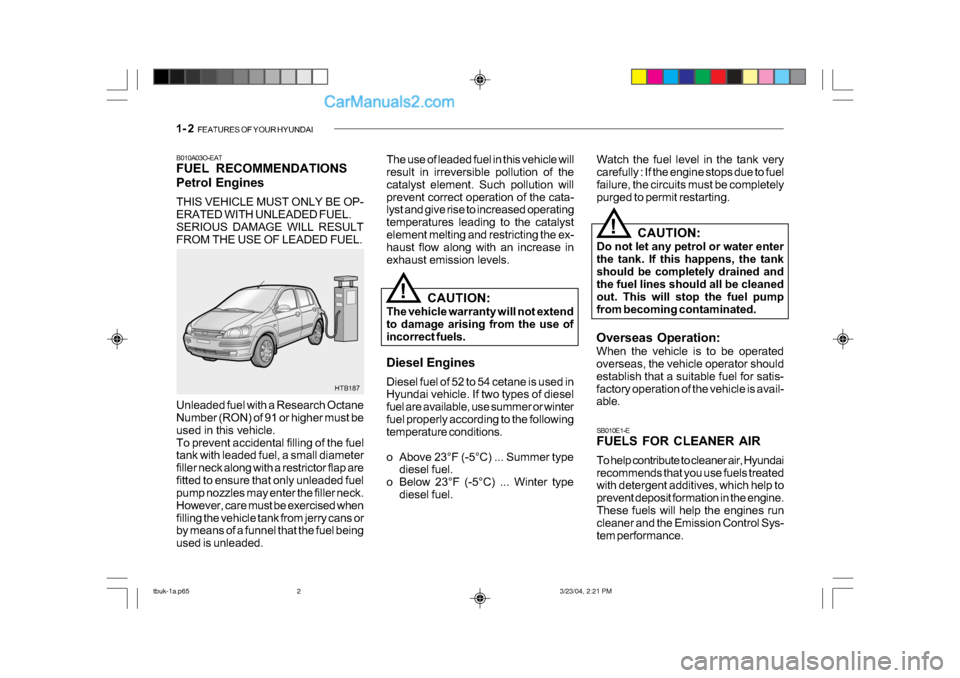

FUEL RECOMMENDATIONS
Petrol Engines
THIS VEHICLE MUST ONLY BE OP-
ERATED WITH UNLEADED FUEL.
SERIOUS DAMAGE WILL RESULT
FROM THE USE OF LEADED FUEL. The use of leaded fuel in this vehicle will
result in irreversible pollution of the
catalyst element. Such pollution will
prevent correct operation of the cata-
lyst and give rise to increased operating
temperatures leading to the catalyst
element melting and restricting the ex-
haust flow along with an increase in
exhaust emission levels.
Unleaded fuel with a Research Octane
Number (RON) of 91 or higher must be
used in this vehicle.
To prevent accidental filling of the fuel
tank with leaded fuel, a small diameter
filler neck along with a restrictor flap are
fitted to ensure that only unleaded fuel
pump nozzles may enter the filler neck.
However, care must be exercised when
filling the vehicle tank from jerry cans or
by means of a funnel that the fuel being
used is unleaded. HTB187
!
CAUTION:
The vehicle warranty will not extend
to damage arising from the use of
incorrect fuels.
Diesel Engines
Diesel fuel of 52 to 54 cetane is used in
Hyundai vehicle. If two types of diesel
fuel are available, use summer or winter
fuel properly according to the following
temperature conditions.
o Above 23°F (-5°C) ... Summer type diesel fuel.
o Below 23°F (-5°C) ... Winter type diesel fuel.
! Watch the fuel level in the tank very
carefully : If the engine stops due to fuel
failure, the circuits must be completely
purged to permit restarting.
CAUTION:
Do not let any petrol or water enter
the tank. If this happens, the tank
should be completely drained and
the fuel lines should all be cleaned
out. This will stop the fuel pump
from becoming contaminated.
Overseas Operation:
When the vehicle is to be operated
overseas, the vehicle operator should
establish that a suitable fuel for satis-
factory operation of the vehicle is avail-
able. SB010E1-E
FUELS FOR CLEANER AIR
To help contribute to cleaner air, Hyundai
recommends that you use fuels treated
with detergent additives, which help to
prevent deposit formation in the engine.
These fuels will help the engines run
cleaner and the Emission Control Sys-
tem performance.
tbuk-1a.p65 3/23/04, 2:21 PM
