Hyundai Getz 2004 Owner's Manual

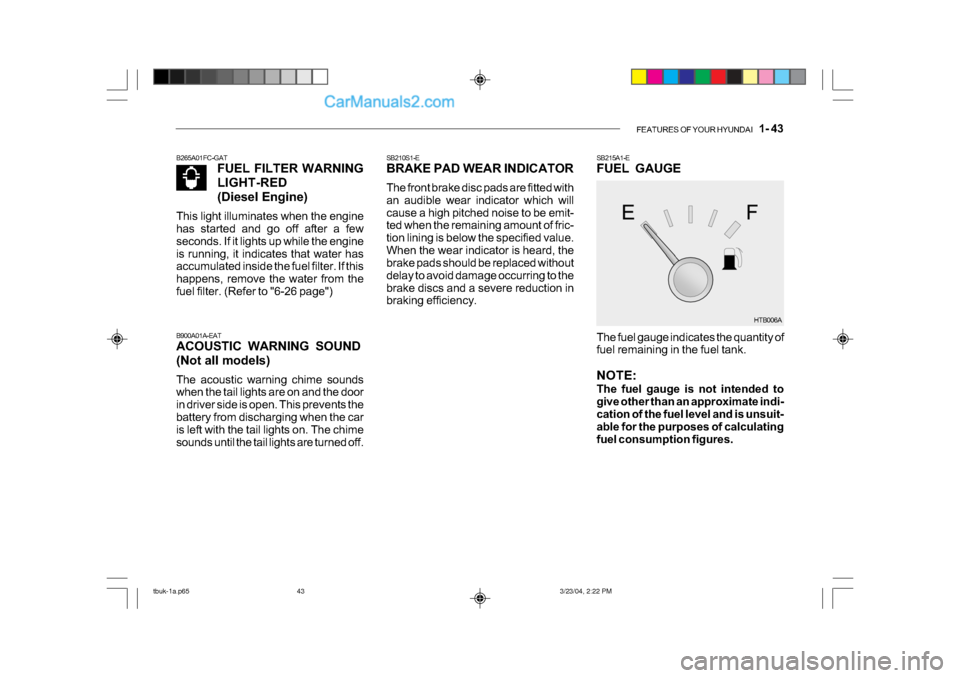

FEATURES OF YOUR HYUNDAI 1- 43
SB210S1-E
BRAKE PAD WEAR INDICATOR
The front brake disc pads are fitted with
an audible wear indicator which will
cause a high pitched noise to be emit-
ted when the remaining amount of fric-
tion lining is below the specified value.
When the wear indicator is heard, the
brake pads should be replaced without
delay to avoid damage occurring to the
brake discs and a severe reduction in
braking efficiency.
B900A01A-EAT
ACOUSTIC WARNING SOUND
(Not all models)
The acoustic warning chime sounds
when the tail lights are on and the door
in driver side is open. This prevents the
battery from discharging when the car
is left with the tail lights on. The chime
sounds until the tail lights are turned off. HTB006A
The fuel gauge indicates the quantity of
fuel remaining in the fuel tank.
NOTE:
The fuel gauge is not intended to
give other than an approximate indi-
cation of the fuel level and is unsuit-
able for the purposes of calculating
fuel consumption figures.
SB215A1-E
FUEL GAUGE
B265A01FC-GAT
FUEL FILTER WARNING
LIGHT-RED
(Diesel Engine)
This light illuminates when the engine
has started and go off after a few
seconds. If it lights up while the engine
is running, it indicates that water has
accumulated inside the fuel filter. If this
happens, remove the water from the
fuel filter. (Refer to "6-26 page")
tbuk-1a.p65 3/23/04, 2:22 PM
43

1- 44 FEATURES OF YOUR HYUNDAI
!
SB215B1-E
ENGINE COOLANT TEMPERA-
TURE GAUGE
The engine coolant temperature gauge
indicates the engine coolant tempera-
ture and will, under normal circum-
stances, give an indication in the "Nor-
mal" or centre portion of the scale.
Should the indication move into the
upper or "Hot" portion of the scale,
engine overheating is indicated. Under
these circumstances, the vehicle should
be brought to rest as soon as is safe to
do so and the engine turned off. Once
the engine has cooled somewhat, the
coolant level and the condition of the
generator/water pump drive belt should
be checked. If the cause of the over- SB215C1-E
SPEEDOMETER
HTB007A
heating cannot be readily established,
the assistance of a Hyundai dealer
should be sought.
HTB004A
The speedometer indicates the vehicle
speed in both miles and kilometres per
hour.
WARNING:
The engine cooling system is pres-
surized and removal of the radiator
cap when the engine is hot may
cause hot water and steam to be
ejected from the radiator resulting in
burns and scalding. The radiator cap
must only be removed when the en-
gine has cooled. Do not add cold
water to a hot engine to avoid the
possibility of engine damage. The
use of plain water in the cooling
system is not recommended since
the aluminium components of the
cooling system require the use of a
corrosion inhibitor found in the rec-
ommended Ethylene Glycol type anti
freeze solutions.
A Type B Type
tbuk-1a.p65
3/23/04, 2:22 PM
44

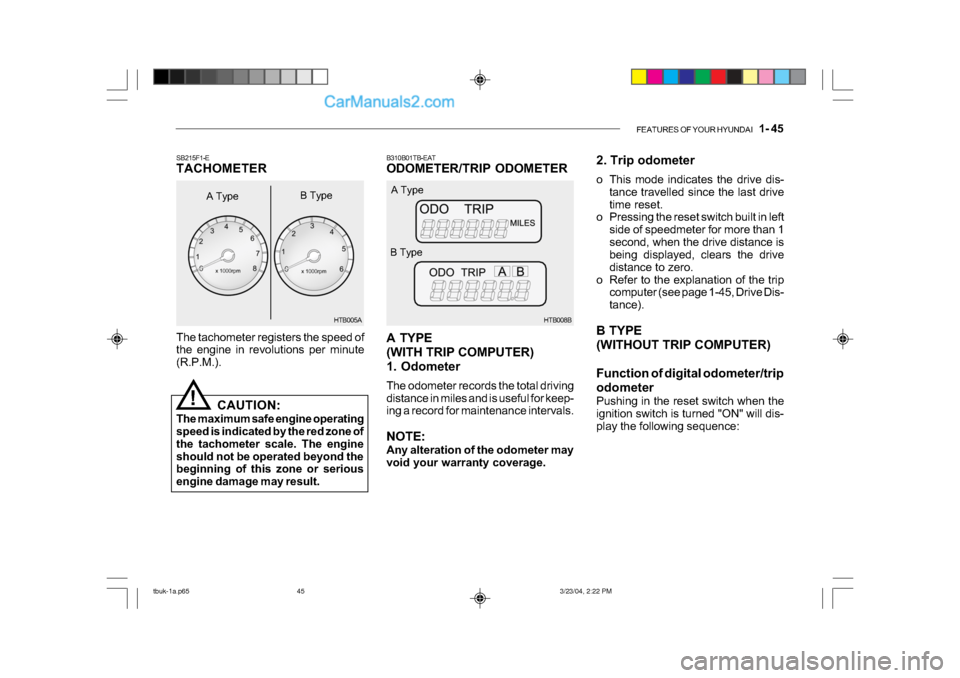

FEATURES OF YOUR HYUNDAI 1- 45
B310B01TB-EAT
ODOMETER/TRIP ODOMETER
A TYPE
(WITH TRIP COMPUTER)
1. Odometer
The odometer records the total driving
distance in miles and is useful for keep-
ing a record for maintenance intervals.
NOTE:
Any alteration of the odometer may
void your warranty coverage. HTB008B
A Type
B Type 2. Trip odometer
o This mode indicates the drive dis-
tance travelled since the last drive
time reset.
o Pressing the reset switch built in left
side of speedmeter for more than 1
second, when the drive distance is
being displayed, clears the drive
distance to zero.
o Refer to the explanation of the trip computer (see page 1-45, Drive Dis-
tance).
B TYPE
(WITHOUT TRIP COMPUTER)
Function of digital odometer/trip
odometer
Pushing in the reset switch when the
ignition switch is turned "ON" will dis-
play the following sequence:
The tachometer registers the speed of
the engine in revolutions per minute
(R.P.M.).
SB215F1-E
TACHOMETER
A Type
!
CAUTION:
The maximum safe engine operating
speed is indicated by the red zone of
the tachometer scale. The engine
should not be operated beyond the
beginning of this zone or serious
engine damage may result. HTB005A
B Type
tbuk-1a.p65
3/23/04, 2:22 PM
45

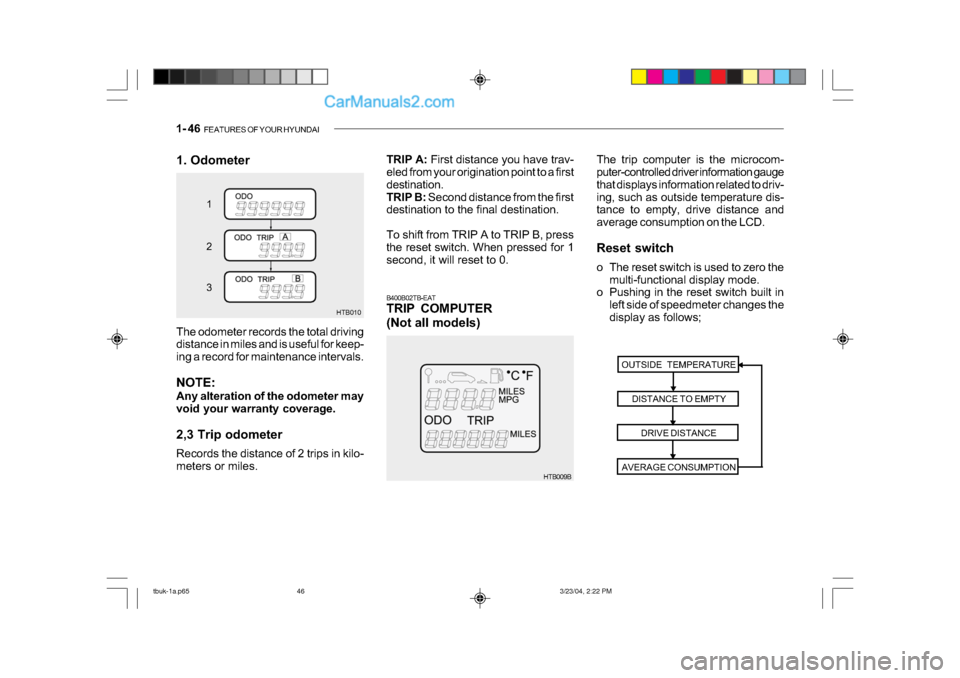

1- 46 FEATURES OF YOUR HYUNDAI
1. Odometer
HTB010
1
2
3
The odometer records the total driving
distance in miles and is useful for keep-
ing a record for maintenance intervals.
NOTE:
Any alteration of the odometer may
void your warranty coverage.
2,3 Trip odometer
Records the distance of 2 trips in kilo-
meters or miles.
HTB009B The trip computer is the microcom-
puter-controlled driver information gauge
that displays information related to driv-
ing, such as outside temperature dis-
tance to empty, drive distance and
average consumption on the LCD.
Reset switch
o The reset switch is used to zero the
multi-functional display mode.
o Pushing in the reset switch built in
left side of speedmeter changes the
display as follows;
B400B02TB-EAT
TRIP COMPUTER
(Not all models)
OUTSIDE TEMPERATUREDISTANCE TO EMPTYDRIVE DISTANCE
AVERAGE CONSUMPTION
TRIP A: First distance you have trav-
eled from your origination point to a first
destination.
TRIP B: Second distance from the first
destination to the final destination.
To shift from TRIP A to TRIP B, press
the reset switch. When pressed for 1
second, it will reset to 0.
tbuk-1a.p65 3/23/04, 2:22 PM
46

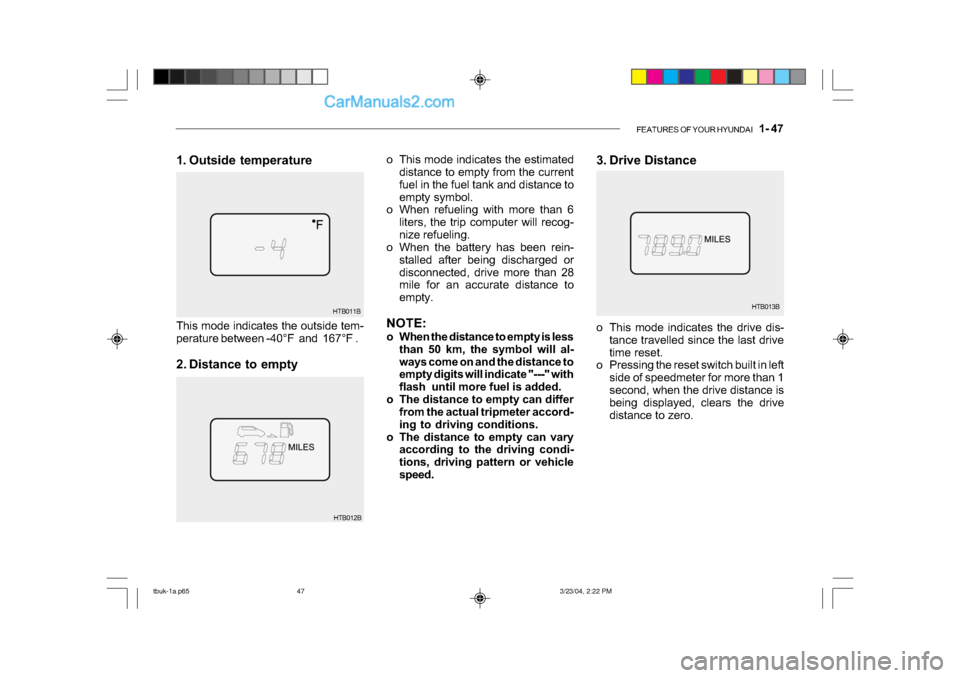

FEATURES OF YOUR HYUNDAI 1- 47
3. Drive Distance
HTB013B
o This mode indicates the estimated
distance to empty from the current
fuel in the fuel tank and distance to
empty symbol.
o When refueling with more than 6
liters, the trip computer will recog-
nize refueling.
o When the battery has been rein-
stalled after being discharged or
disconnected, drive more than 28
mile for an accurate distance to
empty.
NOTE:
o When the distance to empty is less than 50 km, the symbol will al-
ways come on and the distance to
empty digits will indicate "---" with
flash until more fuel is added.
o The distance to empty can differ from the actual tripmeter accord-
ing to driving conditions.
o The distance to empty can vary according to the driving condi-
tions, driving pattern or vehicle
speed. o This mode indicates the drive dis-
tance travelled since the last drive
time reset.
o Pressing the reset switch built in left
side of speedmeter for more than 1
second, when the drive distance is
being displayed, clears the drive
distance to zero.
HTB012B
1. Outside temperature
This mode indicates the outside tem-
perature between -40°F and 167°F .
2. Distance to empty
HTB011B
tbuk-1a.p65
3/23/04, 2:22 PM
47

1- 48 FEATURES OF YOUR HYUNDAI
HTB014B
MPG = Total Cruise Distance(Miles)
Total Fuel Consumption (G)
4. Average Fuel Consumption
o This mode indicates the average fuel
consumption since the data reset.
o It displays per 10 seconds after you
drive over 0.03 miles and 10 sec-
onds.
o Calculation Method SB220A1-E
MULTI FUNCTION SWITCH
Turn Signal Operation
To signal an intention to turn right, the
switch lever should be pressed down.
To signal an intention to turn left, the
switch lever should be pushed upwards.
In both instances, the turn signal lights
on one side of the car will flash and the
warning light located in the instrument
cluster will flash in sympathy. Upon
completion of the manoeuvre, the lever
will, under normal circumstances, re-
turn to the "Off" position. However, if
the manoeuvre involved only a small
movement of the steering wheel, the
signal may need to be cancelled manu-
ally. If either turn signal indicator flashes
more rapidly than normal or refuses to
flash at all, a malfunction of the turn
signal system may exist. SB220B1-E
Lane Change Signal
To indicate an intention to change lanes,
moving the lever slightly towards the
direction of the relevant turn signal will
cause the turn signal lights to flash.
When the lever is released, it will return
to the "off" position.
HTB018-D
NOTE:
The average fuel consumption is
calculated by the US gallon.
A US gallon is equal to 3.875
litres. And an imperial gallon,
used in Britain, is equal to 4.546
litres.
tbuk-1a.p65 3/23/04, 2:22 PM
48

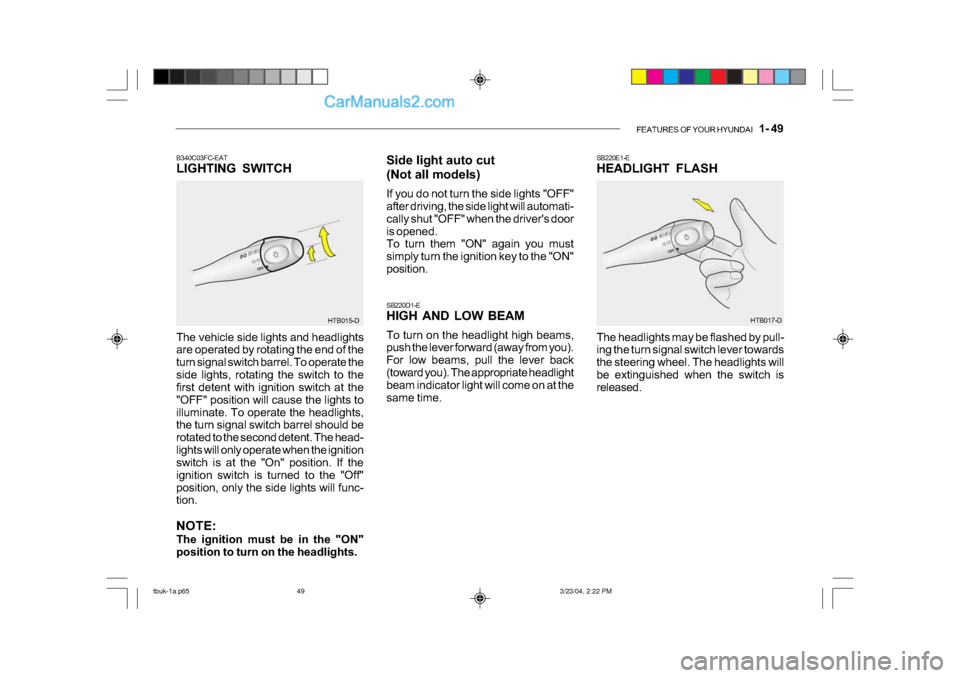

FEATURES OF YOUR HYUNDAI 1- 49
HTB017-DHTB015-D
B340C03FC-EAT
LIGHTING SWITCH
The vehicle side lights and headlights
are operated by rotating the end of the
turn signal switch barrel. To operate the
side lights, rotating the switch to the
first detent with ignition switch at the
"OFF" position will cause the lights to
illuminate. To operate the headlights,
the turn signal switch barrel should be
rotated to the second detent. The head-
lights will only operate when the ignition
switch is at the "On" position. If the
ignition switch is turned to the "Off"
position, only the side lights will func-
tion.
NOTE:
The ignition must be in the "ON"
position to turn on the headlights. Side light auto cut
(Not all models)
If you do not turn the side lights "OFF"
after driving, the side light will automati-
cally shut "OFF" when the driver's door
is opened.
To turn them "ON" again you must
simply turn the ignition key to the "ON"
position.
SB220D1-E
HIGH AND LOW BEAM
To turn on the headlight high beams,
push the lever forward (away from you).
For low beams, pull the lever back
(toward you). The appropriate headlight
beam indicator light will come on at the
same time.
SB220E1-E
HEADLIGHT FLASH
The headlights may be flashed by pull-
ing the turn signal switch lever towards
the steering wheel. The headlights will
be extinguished when the switch is
released.
tbuk-1a.p65
3/23/04, 2:22 PM
49

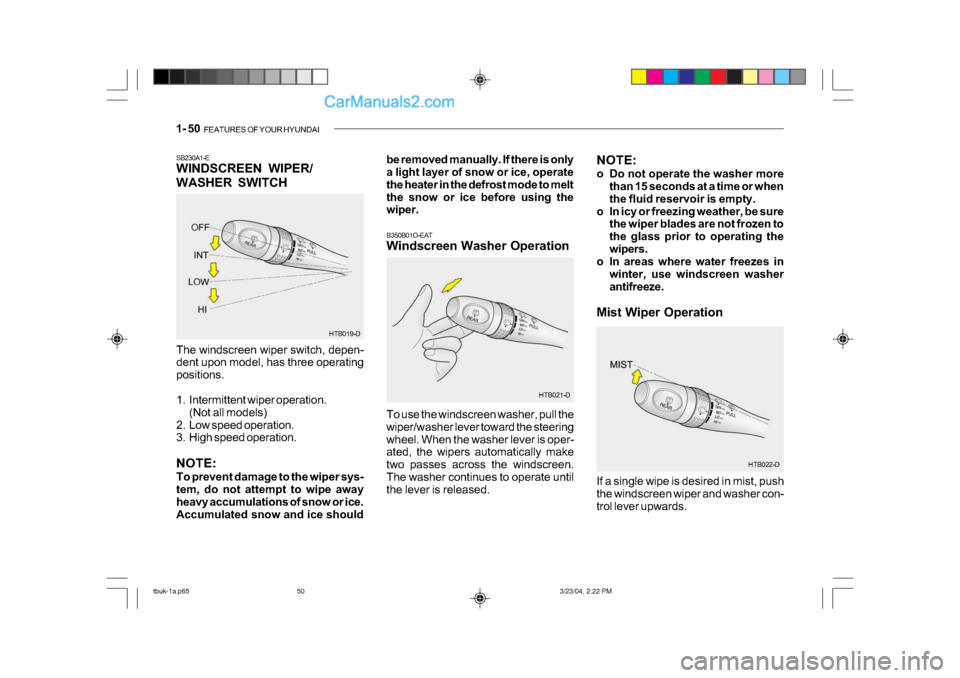

1- 50 FEATURES OF YOUR HYUNDAI
HTB019-D
SB230A1-E
WINDSCREEN WIPER/
WASHER SWITCH
The windscreen wiper switch, depen-
dent upon model, has three operating
positions.
1. Intermittent wiper operation.
(Not all models)
2. Low speed operation.
3. High speed operation.
NOTE:
To prevent damage to the wiper sys-
tem, do not attempt to wipe away
heavy accumulations of snow or ice.
Accumulated snow and ice should be removed manually. If there is only
a light layer of snow or ice, operate
the heater in the defrost mode to melt
the snow or ice before using the
wiper.
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when
the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen to
the glass prior to operating the
wipers.
o In areas where water freezes in
winter, use windscreen washer
antifreeze.
Mist Wiper Operation
HTB022-D
To use the windscreen washer, pull the
wiper/washer lever toward the steering
wheel. When the washer lever is oper-
ated, the wipers automatically make
two passes across the windscreen.
The washer continues to operate until
the lever is released.
B350B01O-EAT
Windscreen Washer Operation
HTB021-DIf a single wipe is desired in mist, push
the windscreen wiper and washer con-
trol lever upwards.
tbuk-1a.p65 3/23/04, 2:22 PM
50

FEATURES OF YOUR HYUNDAI 1- 51
SB240A1-E

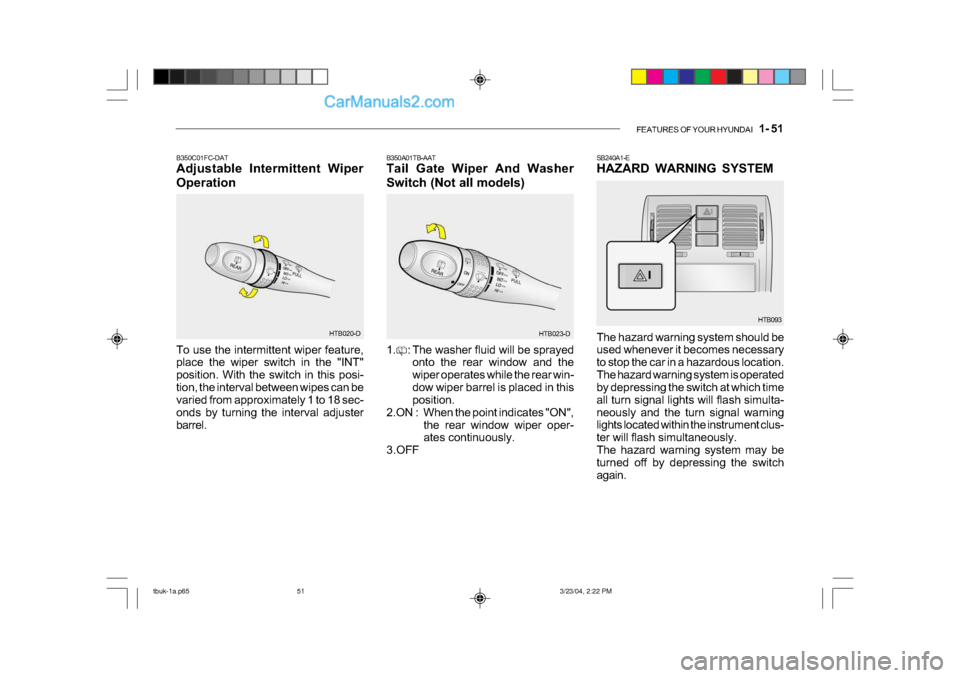

HAZARD WARNING SYSTEM
The hazard warning system should be
used whenever it becomes necessary
to stop the car in a hazardous location.
The hazard warning system is operated
by depressing the switch at which time
all turn signal lights will flash simulta-
neously and the turn signal warning
lights located within the instrument clus-
ter will flash simultaneously.
The hazard warning system may be
turned off by depressing the switch
again. HTB093B350A01TB-AAT
Tail Gate Wiper And Washer
Switch (Not all models)
HTB023-D
1. : The washer fluid will be sprayed onto the rear window and the
wiper operates while the rear win-
dow wiper barrel is placed in this
position.
2.ON : When the point indicates "ON", the rear window wiper oper-
ates continuously.
3.OFF
B350C01FC-DAT
Adjustable Intermittent Wiper
Operation
To use the intermittent wiper feature,
place the wiper switch in the "INT"
position. With the switch in this posi-
tion, the interval between wipes can be
varied from approximately 1 to 18 sec-
onds by turning the interval adjuster
barrel.
HTB020-D
tbuk-1a.p65
3/23/04, 2:22 PM
51

1- 52 FEATURES OF YOUR HYUNDAI
SB250A1-E

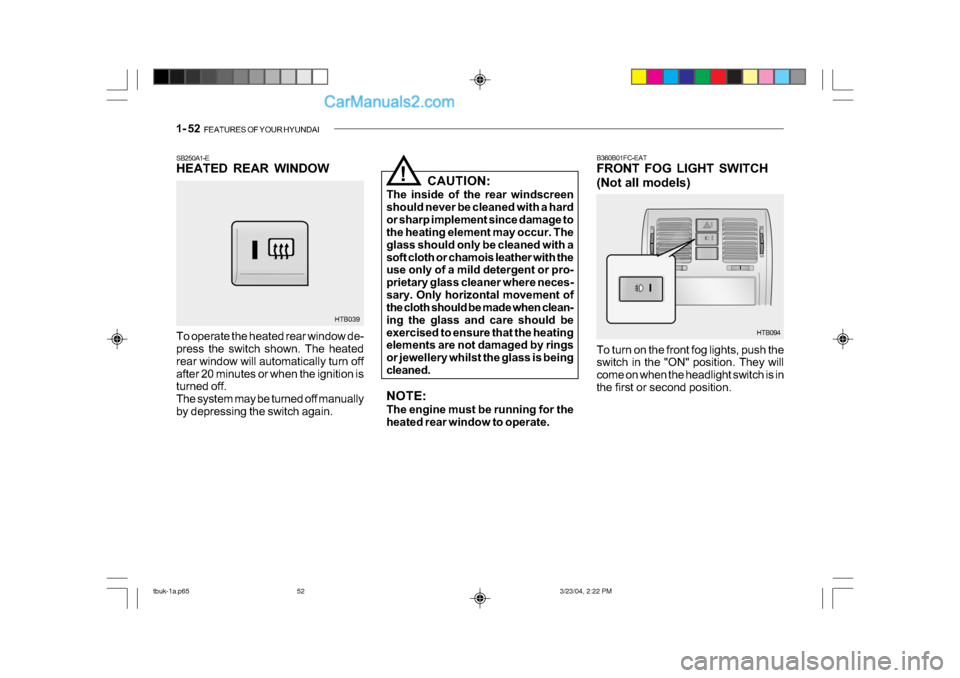

HEATED REAR WINDOW
To operate the heated rear window de-
press the switch shown. The heated
rear window will automatically turn off
after 20 minutes or when the ignition is
turned off.
The system may be turned off manually
by depressing the switch again. HTB039CAUTION:
The inside of the rear windscreen
should never be cleaned with a hard
or sharp implement since damage to
the heating element may occur. The
glass should only be cleaned with a
soft cloth or chamois leather with the
use only of a mild detergent or pro-
prietary glass cleaner where neces-
sary. Only horizontal movement of
the cloth should be made when clean-
ing the glass and care should be
exercised to ensure that the heating
elements are not damaged by rings
or jewellery whilst the glass is being
cleaned.
NOTE:
The engine must be running for the
heated rear window to operate.
! B360B01FC-EAT
FRONT FOG LIGHT SWITCH
(Not all models)
HTB094
To turn on the front fog lights, push the
switch in the "ON" position. They will
come on when the headlight switch is in
the first or second position.
tbuk-1a.p65 3/23/04, 2:22 PM
52
